Basic Information
Lateral Pressure
100-1000 (N/100mm)
Tensile Strength
100N-1000N
Certification
RoHS, CE, ISO9001
Style
Single & Double Jacket
Fiber Type
OS2, G657A1/A2, OM1-OM5
Product Description

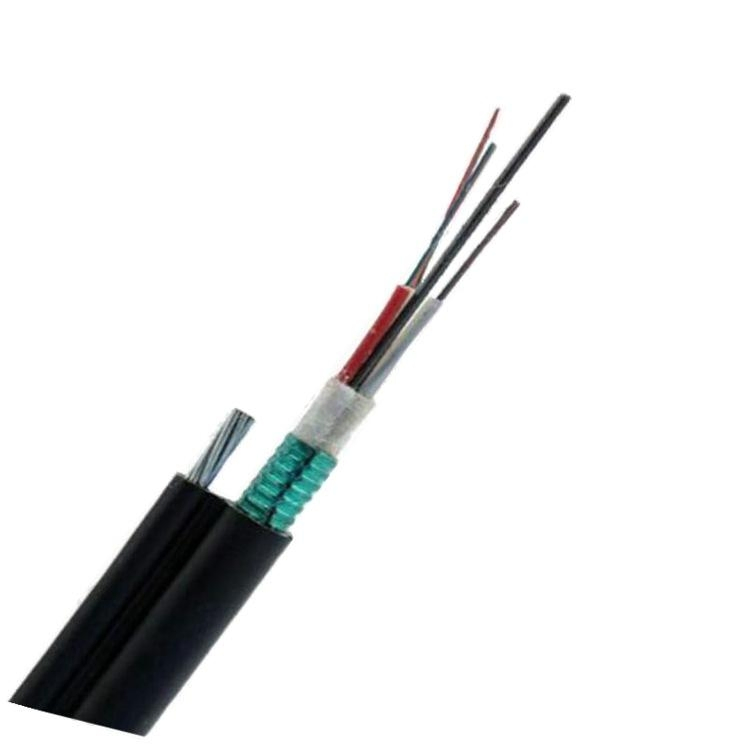

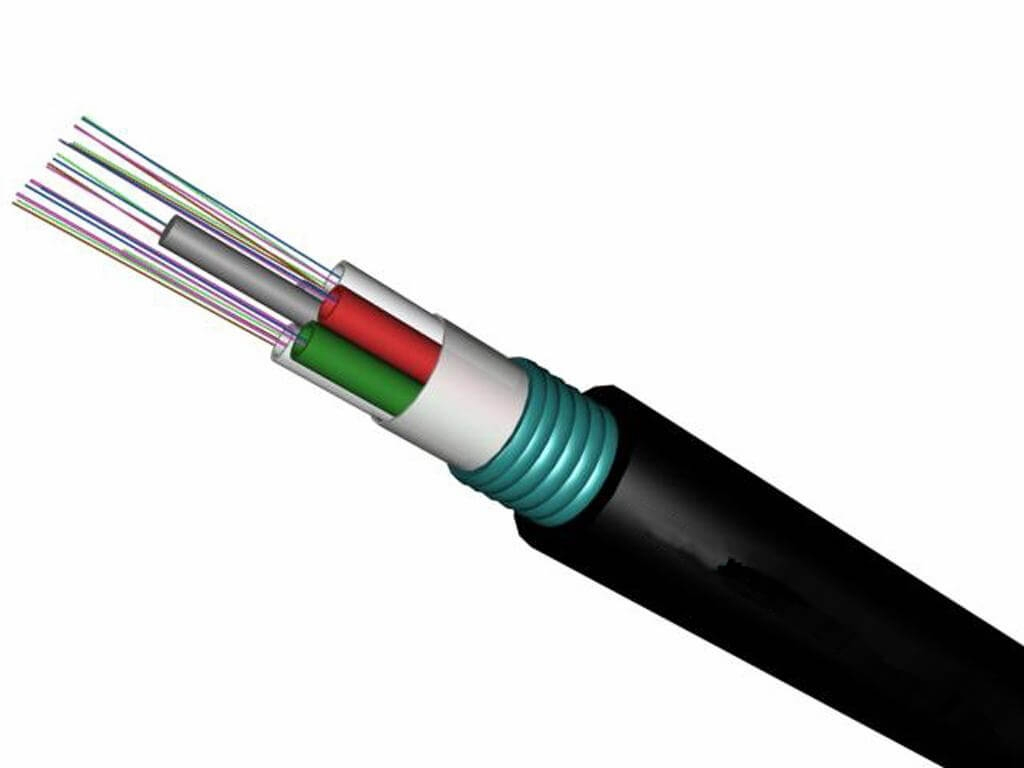

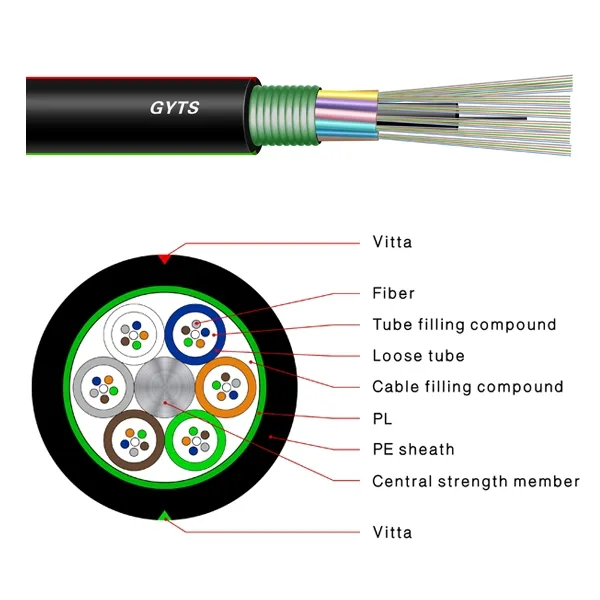

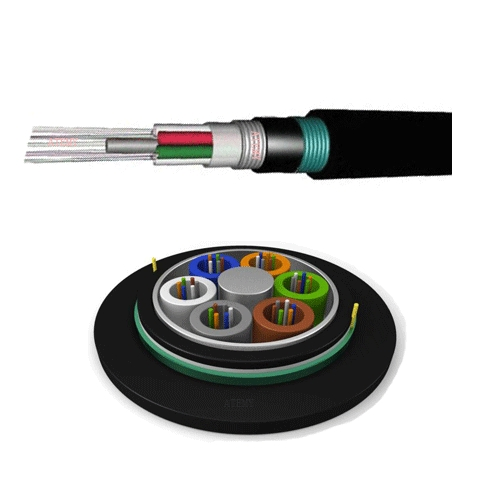

Outdoor Optical Fiber Cable Single Mode Multi Core Cable GYTS provides superior mechanical and temperature performance for various environment demands.
Good mechanical and temperature performance
Low attenuation and dispersion
Compact structure prevents loose tube shrinking
Special tube filling compound for fiber protection
Steel wire used as the central strength member
PSP enhancing moisture-proof performance
PE sheath protects from ultraviolet radiation
Technical Specifications
| Fiber Cores |
OD (mm) |
Weight (kg/km) |
Short-tensile (N) |
Long-tensile (N) |
Dynamic Bend |
Static Bend |
Crush (N/100mm) |
| 2-30 | 8.8 | 83 | 1500 | 600 | 20D | 10D | 300 |
| 32-36 | 9.1 | 91 | 1500 | 600 | 20D | 10D | 300 |
| 38-60 | 9.7 | 91 | 1500 | 600 | 20D | 10D | 300 |
| 62-72 | 10.2 | 110 | 3000 | 1000 | 20D | 10D | 300 |
| 74-96 | 11.5 | 130 | 3000 | 1000 | 20D | 10D | 300 |
| 98-144 | 14.5 | 190 | 3000 | 1000 | 20D | 10D | 300 |
Ordering Requirements
Fiber Sort: G652D, G657A1, G657A2, OM1, OM2, OM3, OM4
Fiber Brand: Major industry leading brands available
Jacket Material: PE, LSZH available upon request
Color Coding: According to standard or custom requirements
Standard Length: 2KM per drum or customized

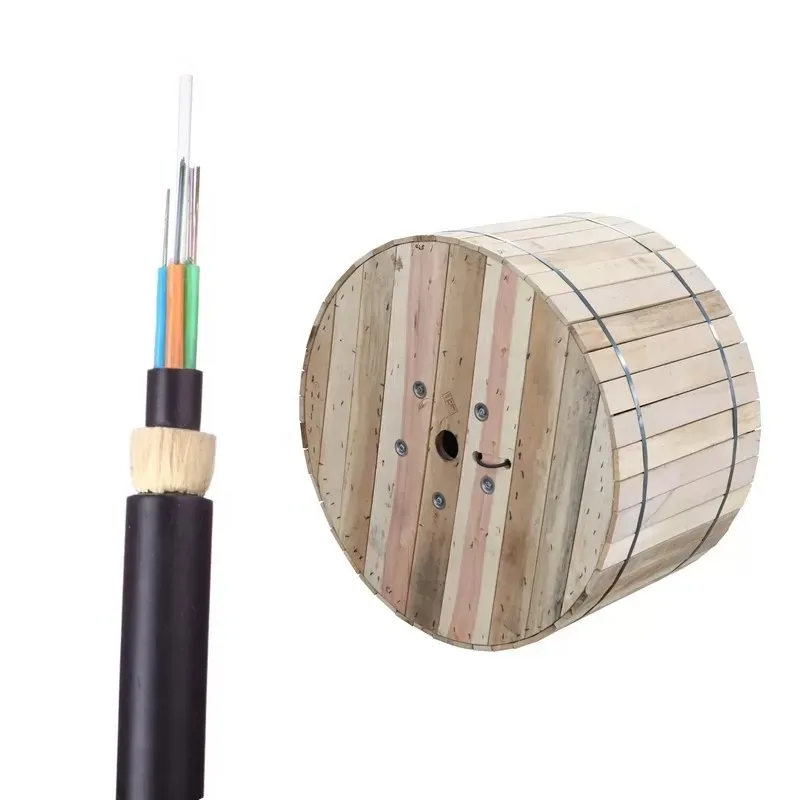

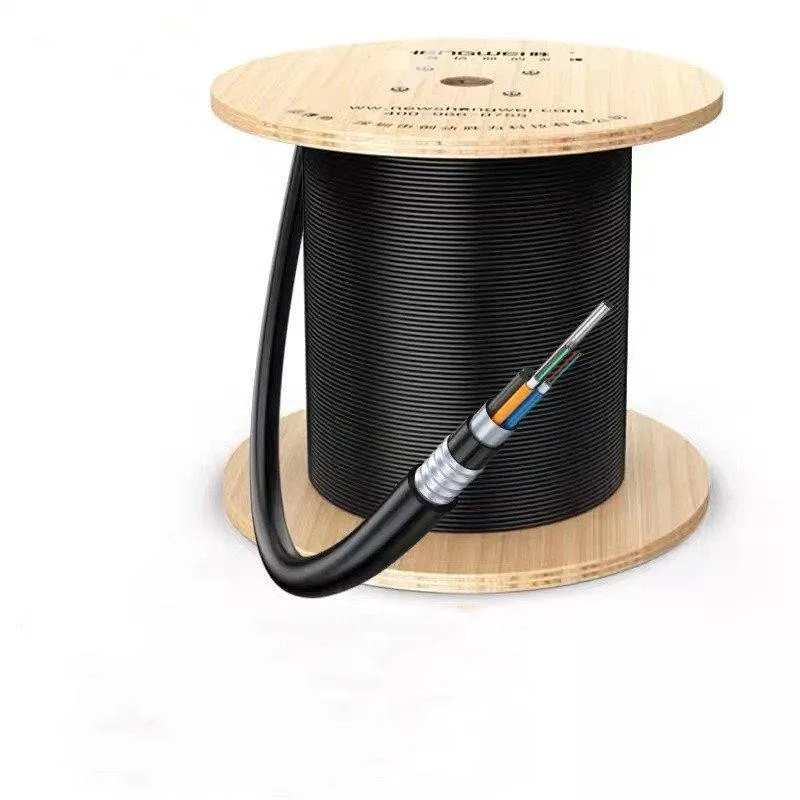

Packaging & Storage
Frequently Asked Questions
What are the main applications for GYTS fiber cables?
GYTS cables are primarily designed for outdoor use, suitable for duct and aerial applications, providing excellent moisture resistance and mechanical protection.
Does this cable support both Single Mode and Multi Mode fibers?
Yes, GYTS cables can be configured with Single Mode (G652D, G657 series) or Multi Mode (OM1, OM2, OM3, OM4, OM5) fibers based on your network needs.
What makes GYTS moisture-proof?
It utilizes a PSP (Plastic-coated Steel Tape) longitudinal wrap and special tube filling compound to ensure a critical moisture-proof barrier for the fibers.
What is the central strength member made of?
The central strength member is typically made of high-quality steel wire, which provides the necessary tensile strength for outdoor installation.
What is the standard delivery length?
The standard delivery length is 2km per wooden drum, but custom lengths can be negotiated based on project requirements.
Is the outer sheath UV resistant?
Yes, the high-quality PE (Polyethylene) sheath is specifically designed to protect the cable from ultraviolet radiation and environmental degradation.
