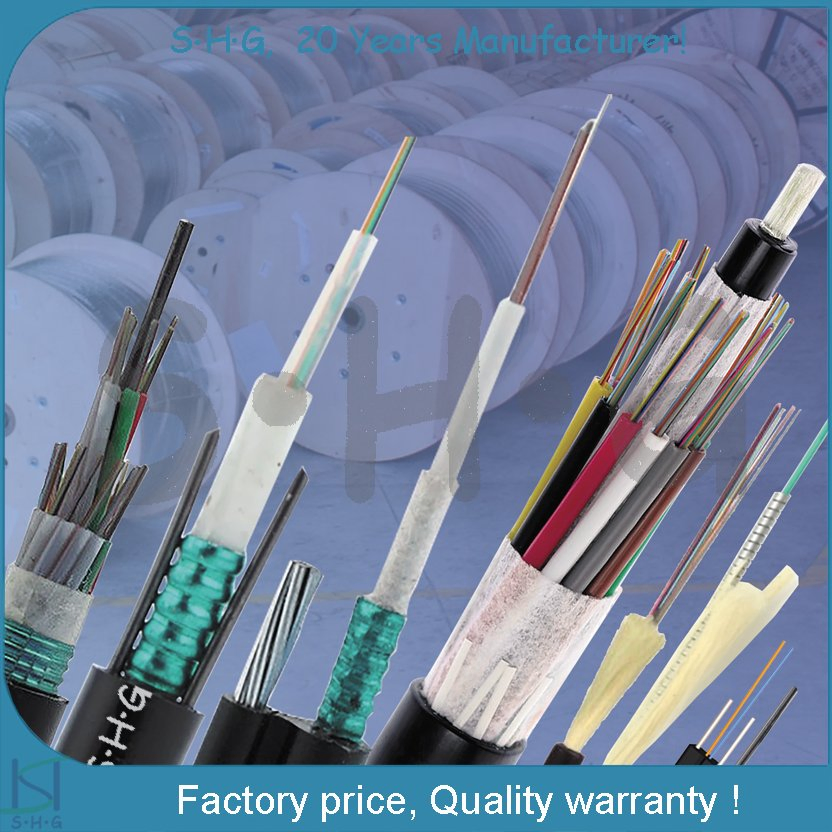

12/24/46/48/60/72/96/144 Aerial Figure 8 Multi Loose Tube Outdoor Fiber Optic Cable (GYTC8S)
12/24/46/48/60/72/96/144 Aerial Figure 8 Multi Loose Tube Outdoor Fiber Optic Cable (GYTC8S)
12/24/46/48/60/72/96/144 Aerial Figure 8 Multi Loose Tube Outdoor Fiber Optic Cable (GYTC8S)
12/24/46/48/60/72/96/144 Aerial Figure 8 Multi Loose Tube Outdoor Fiber Optic Cable (GYTC8S)
12/24/46/48/60/72/96/144 Aerial Figure 8 Multi Loose Tube Outdoor Fiber Optic Cable (GYTC8S)
1 / 5
12/24/46/48/60/72/96/144 Aerial Figure 8 Multi Loose Tube Outdoor Fiber Optic Cable (GYTC8S)
12/24/46/48/60/72/96/144 Aerial Figure 8 Multi Loose Tube Outdoor Fiber Optic Cable (GYTC8S)
12/24/46/48/60/72/96/144 Aerial Figure 8 Multi Loose Tube Outdoor Fiber Optic Cable (GYTC8S)
12/24/46/48/60/72/96/144 Aerial Figure 8 Multi Loose Tube Outdoor Fiber Optic Cable (GYTC8S)
12/24/46/48/60/72/96/144 Aerial Figure 8 Multi Loose Tube Outdoor Fiber Optic Cable (GYTC8S)

12/24/46/48/60/72/96/144 Aerial Figure 8 Multi Loose Tube Outdoor Fiber Optic Cable (GYTC8S)

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📊 Basic Information
Model NO.
GYTC8S
Connection Structure
GYTC8S
Material Shape
Round Wire
Allowed Lateral Pressure
>1000(N/100mm)
Tensile Strength
1000N < 10000N
Core
Multicore
Certification
RoHS, CE, ISO9001, VDE, CCC
Sheath Material
PE
Armor
Steel Tape
Fiber Counts
2-144 Fibers
Origin
China
Production Capacity
10000km Per Month
🔍 Product Description

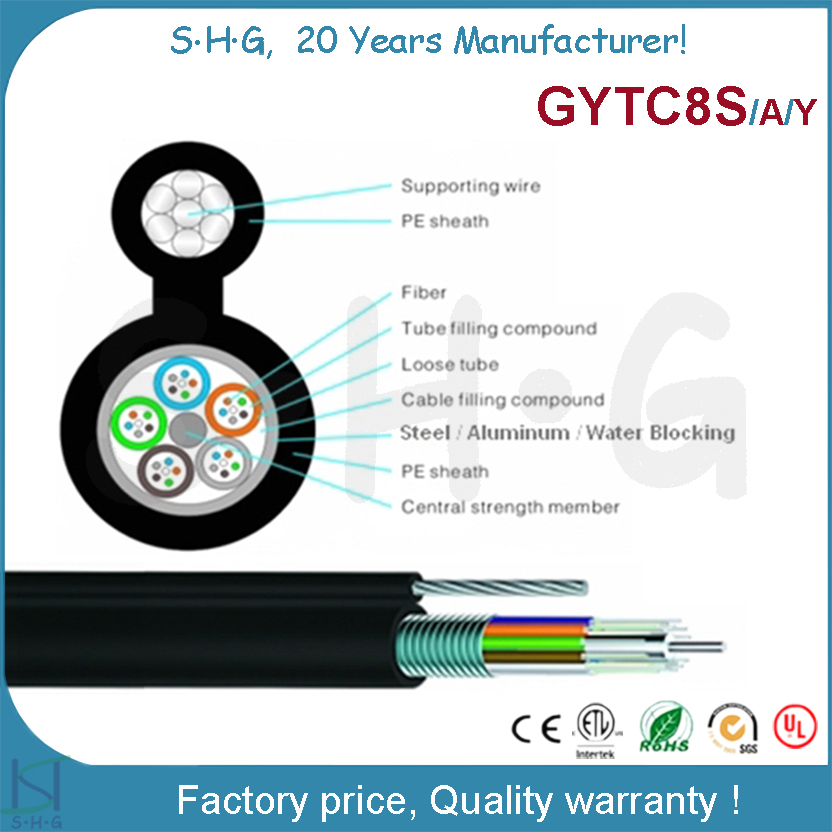

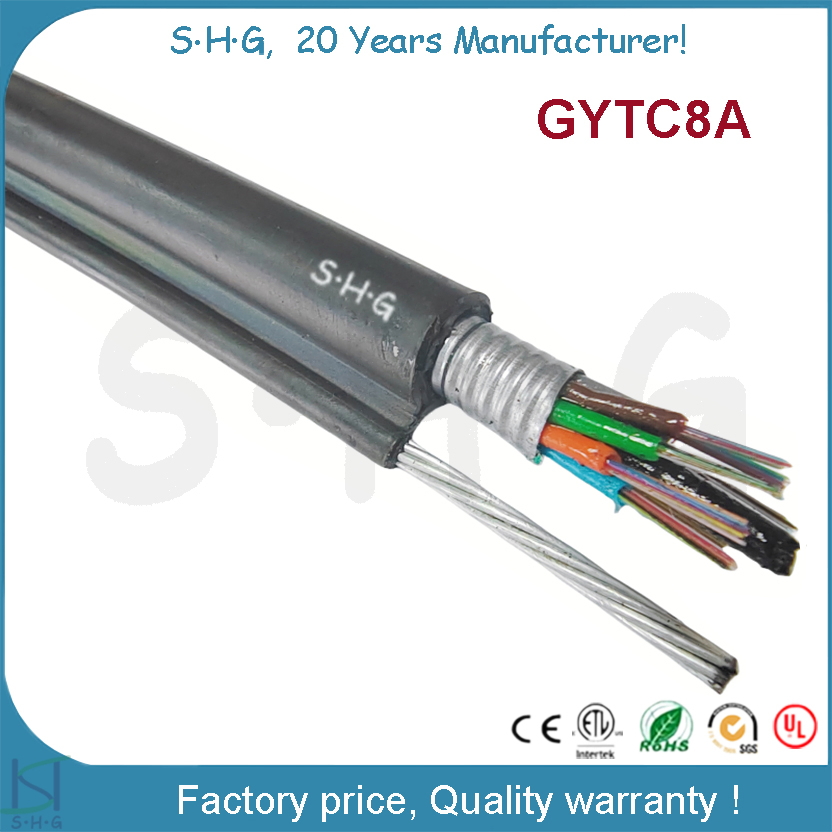

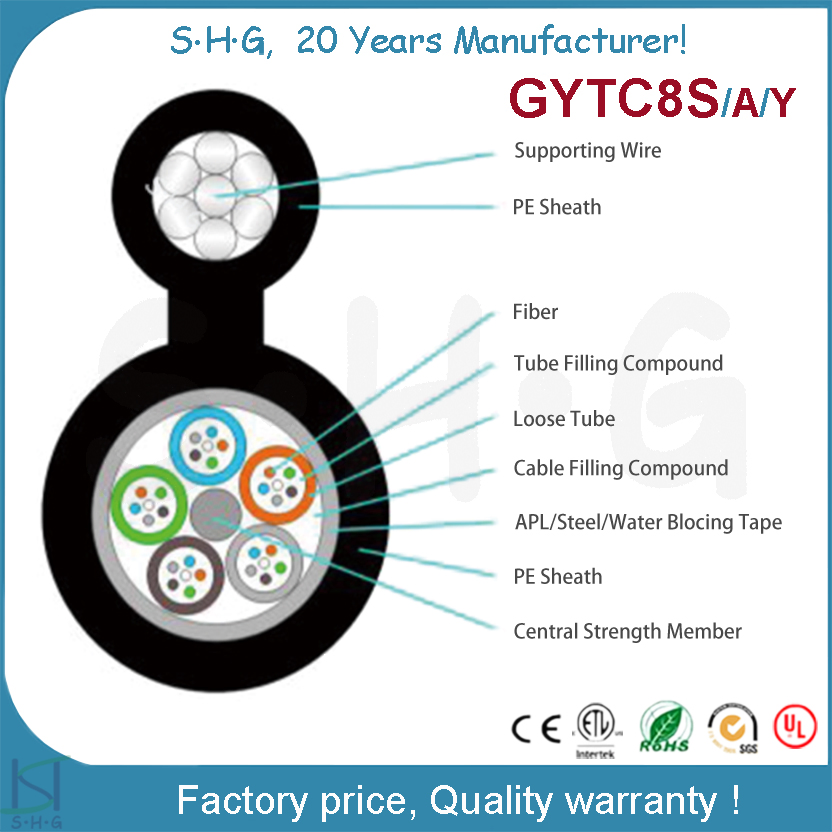

Figure 8 Outdoor Fiber Optic Cable (GYTC8S, GYTC8A, GYTC8Y), featuring 2~144 fibers, metal steel strand central strength member, jelly filled, fiber contained loose tube and PP filler stranded. It includes water blocking jelly, longitudinally covered by copolymer coated steel tape (GYTC8S), APL (GYTC8A), or water blocking tape (GYTC8Y), with a PE outer sheath. This figure 8 type cable utilizes 7 steel wires stranded as a supporting wire.

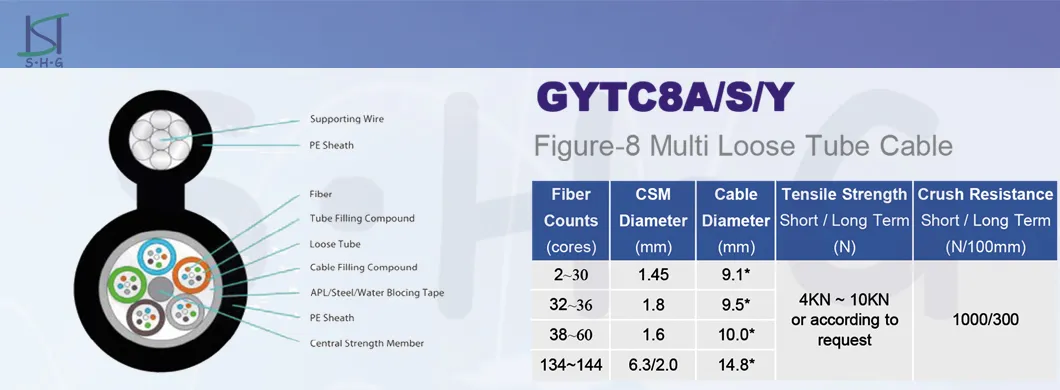

Outdoor Fiber Optic Cable Structure
Key Features
  • Low dispersion and attenuation
  • Proper design and precise control for fiber excess length
  • Excellent mechanical and environmental properties due to distinct stranding process
  • High tensile strength of stranded wires meets self-supporting requirements and reduces installation costs
  • Small cable diameter and light weight for easy laying
  • Operating Temperature: -40°C to +60°C
📈 Technical Characteristics
Fiber Count Cable Dia. (mm) Net Weight (Kg/km) Bending Radius (Static/Dynamic) Tensile Strength (Short/Long Term) Crush Pressure (Short/Long Term)
-3010.1x19.320510D / 20D6000N / 3000N3000N / 1000N
32-3610.6x19.923510D / 20D6000N / 3000N3000N / 1000N
38-6011.4x20.823610D / 20D6000N / 3000N3000N / 1000N
62-7212.2x21.627110D / 20D6000N / 3000N3000N / 1000N
86-9613.8x23.231210D / 20D6000N / 3000N3000N / 1000N
134-14417.0x26.439610D / 20D6000N / 3000N3000N / 1000N
📦 Packaging & Shipping

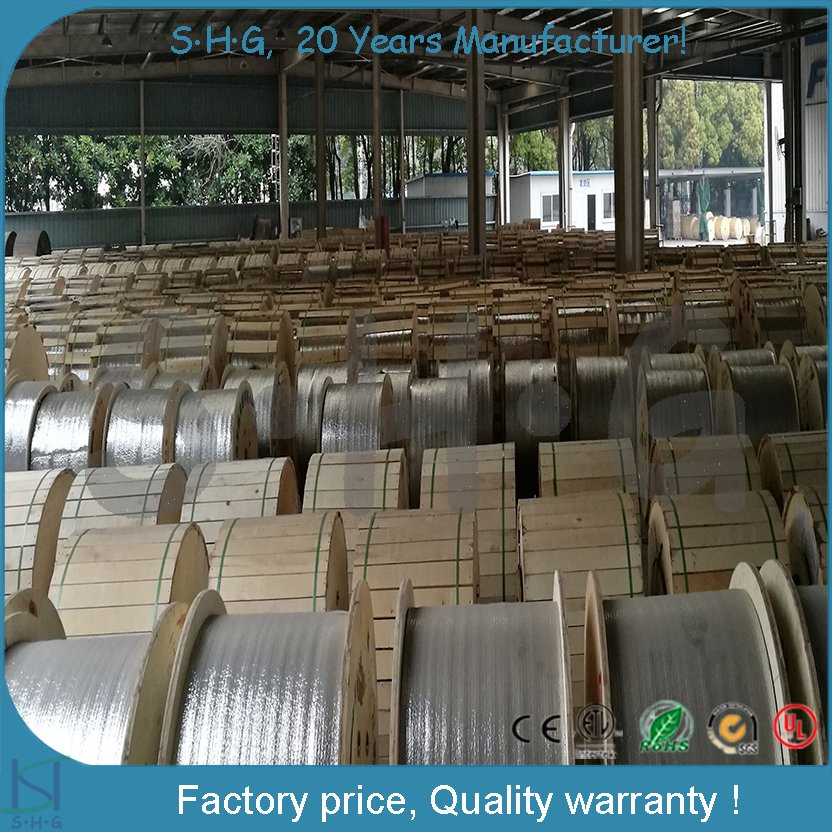

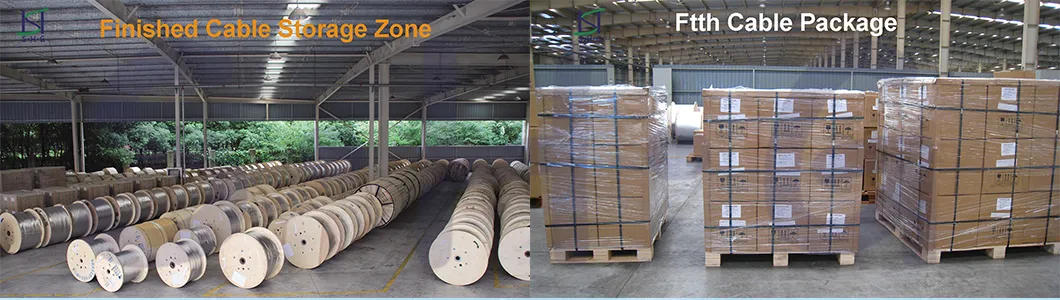

Standard packaging: 1 or 2km per wooden reel, then secured on pallets. Other requirements like 500m reels or pull boxes are available upon request.

Packaging

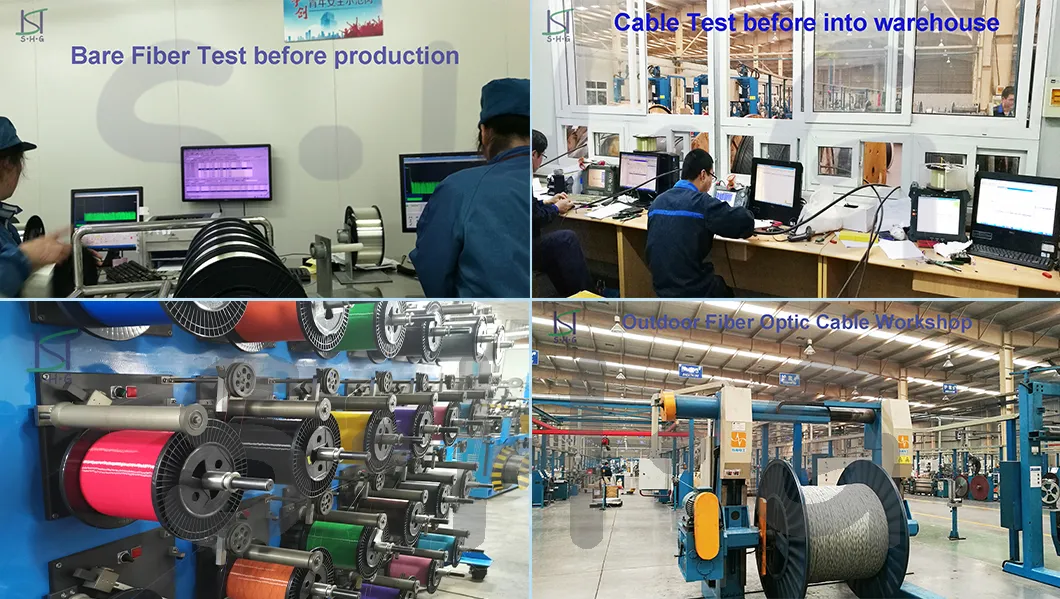

Workshop View
🏆 Certifications & Advantages

Compliance with international standards: ISO9001:2008, CE, RoHS, and REACH.

Certificates
Why Choose Us
❓ Frequently Asked Questions
Are you a factory?
Yes, we are a group company with 4 specialized factories handling production and export operations.
Do you offer OEM services?
Yes! OEM service is available. We can provide your logo and reference on both products and packaging.
What is the lead time for products?
Items in stock have a lead time of 2 days. For non-stock items, it usually takes 7-25 days after order confirmation and deposit receipt.
Which are the nearest ports for delivery?
The nearest sea ports are Ningbo and Shanghai. We can also deliver from other airports like Shenzhen if required.
What are your payment terms?
We prefer T/T: 30% in advance as a deposit, with the balance due upon copy of B/L or prior to shipment.
How do you ensure product quality?
We prioritize our reputation and long-term partnerships. We offer quality products to earn trust and aim for mutual cooperation rather than one-time business.
