📋 Basic Information
Allowed Lateral Pressure
100-1000 (N/100mm)
Allowed Tensile Strength
1000N-10000N
Certification
RoHS, CE, ISO9001, VDE, CCC
Sheath Material
LSZH/PE/Flame Retardant
Fiber Type
G652D, OM1, OM2, OM3, OM4
Tube Design
Central Loose Tube
Self-Supporting
2.0mm Steel Wire
Bend Radius
Static 10*D / Dynamic 20*D
🔍 Product Description

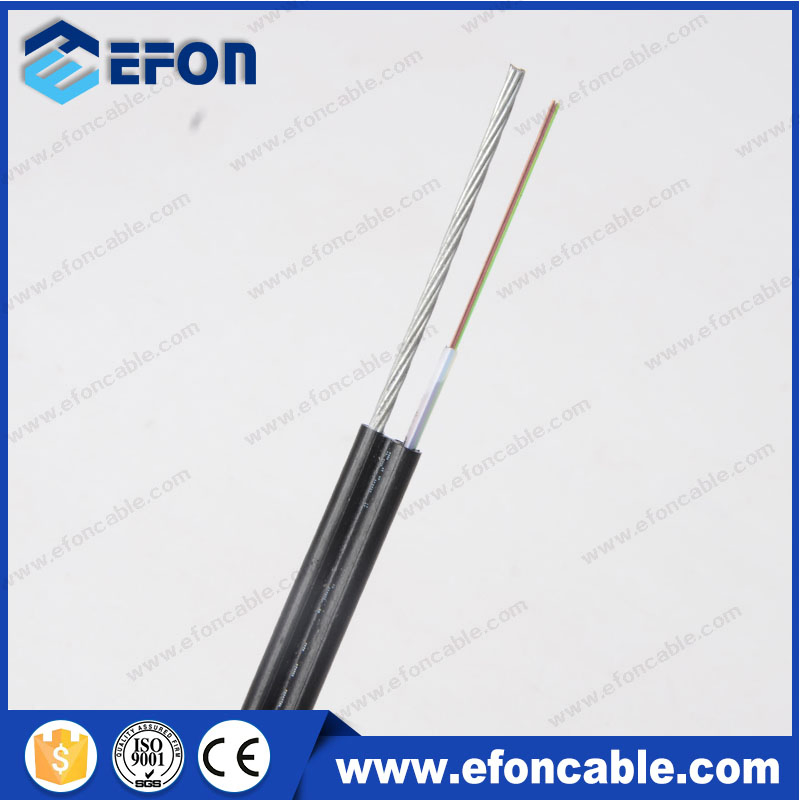

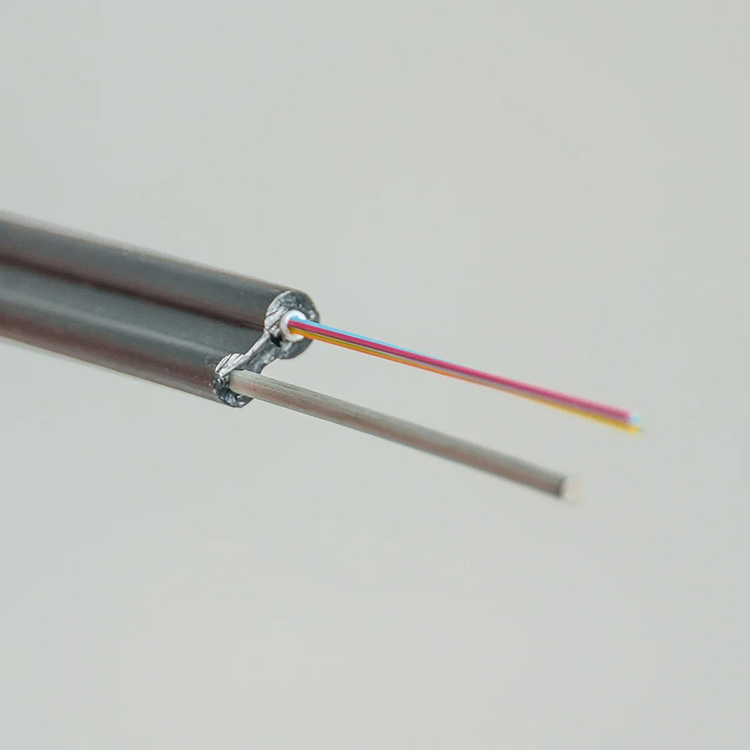

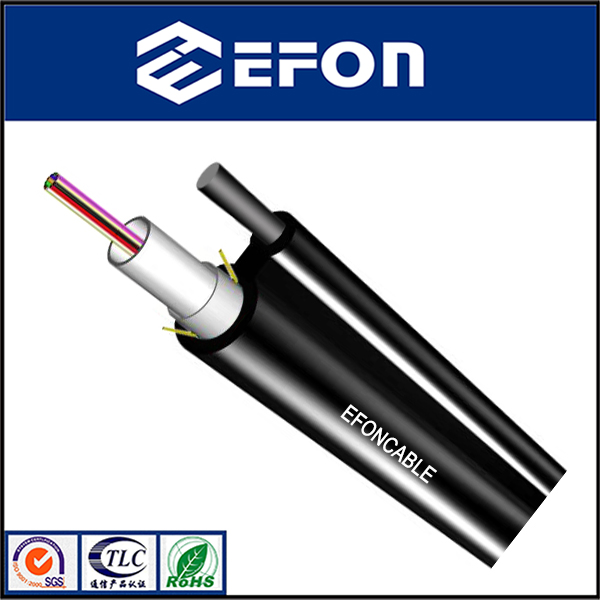

Aerial Figure 8 Self-Supporting Drop Cable (GYXTC8Y)

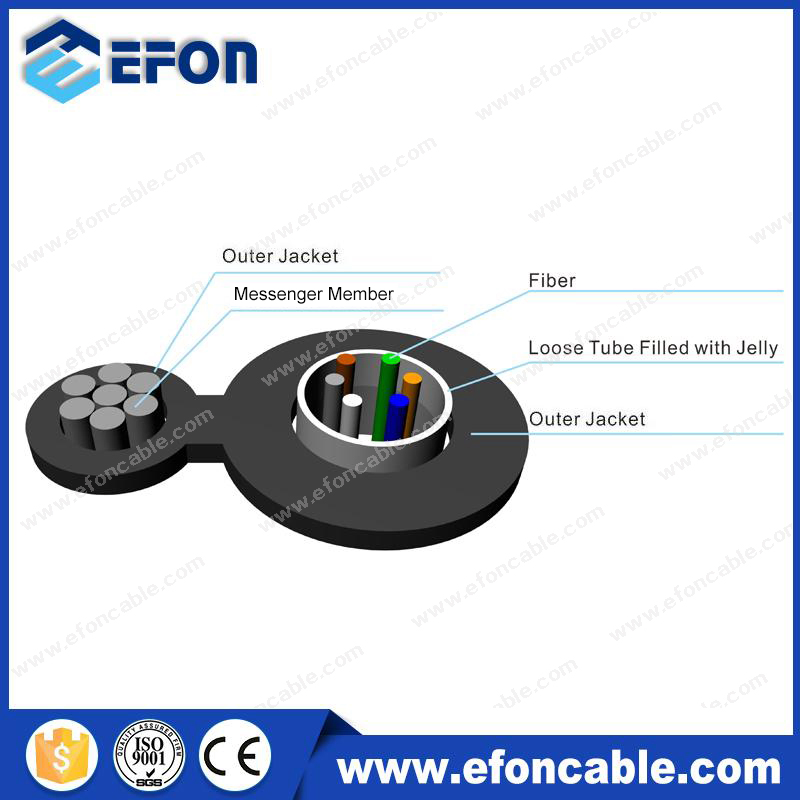

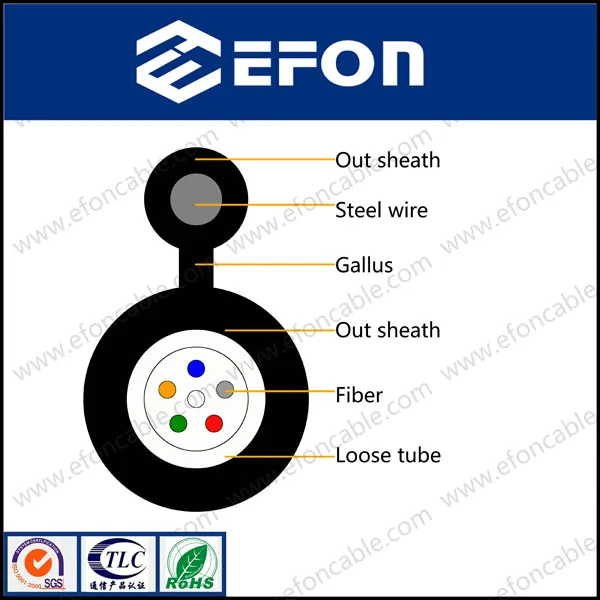

The loose tubes are made of high modulus plastics (PBT), filled with water-resistant gel. The outer sheath is constructed from UV-resistant PE. The Figure-8 self-supporting structure provides high tensile strength and enables easy, cost-saving aerial installations.
⭐ Key Features
- Unitube design, accommodating up to 24 fibers.
- Compact structure, small size, and lightweight.
- Excellent water blocking and UV resistance.
- High and low temperature resistance for diverse climates.
- Strict raw material control ensuring 30+ years lifespan.
- Ideal for last-mile FTTX aerial projects.
📜 Performance Standards
Max Tension
IEC 60794-1-2-E
Crush Test
IEC 60794-1-2-E3
Impact Test
IEC 60794-1-2-E4
Temperature Cycling
IEC 60794-1-2-F1
Water Penetration
IEC 60794-1-2-F5B
📊 Technical Parameters
| Parameter |
2-8 Cores |
10-12 Cores |
14-24 Cores |
| Self Support Member (Steel Wire) |
2.0mm |
| Diameter of Cable (mm) |
5.2 * 9.6 |
5.2 * 9.6 |
As per requirement |
| Gross Weight (Kg/Km) |
48 |
48 |
- |
| Max Tensile Force (Short/Long Term) |
1000N / 400N |
| Max Crush Resistance (Short/Long Term) |
400N / 200N (N/100mm) |
| Operation Temperature |
-40°C to +60°C |

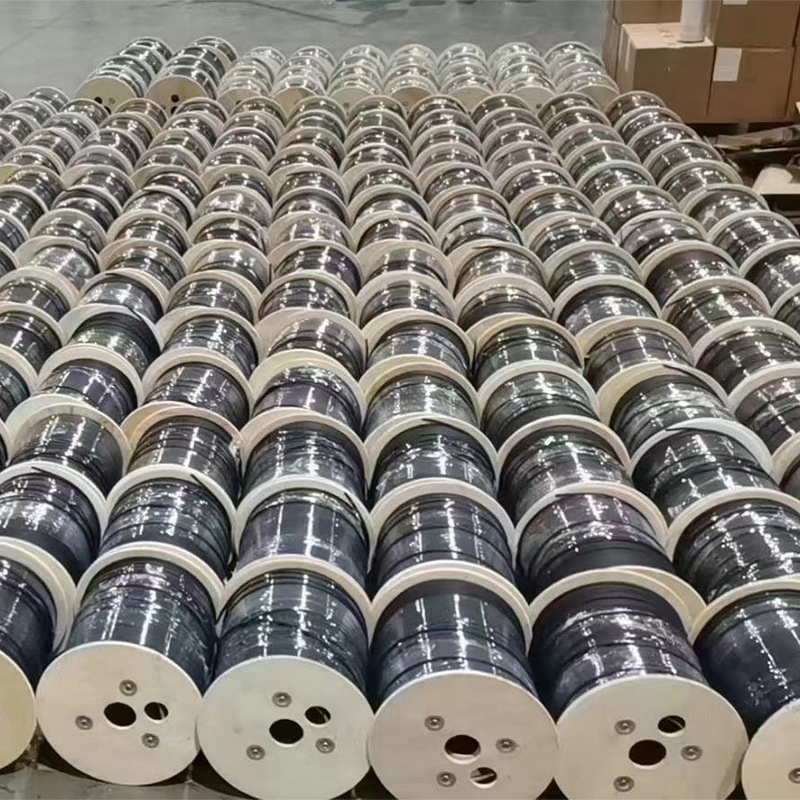

🛠️ Product Gallery

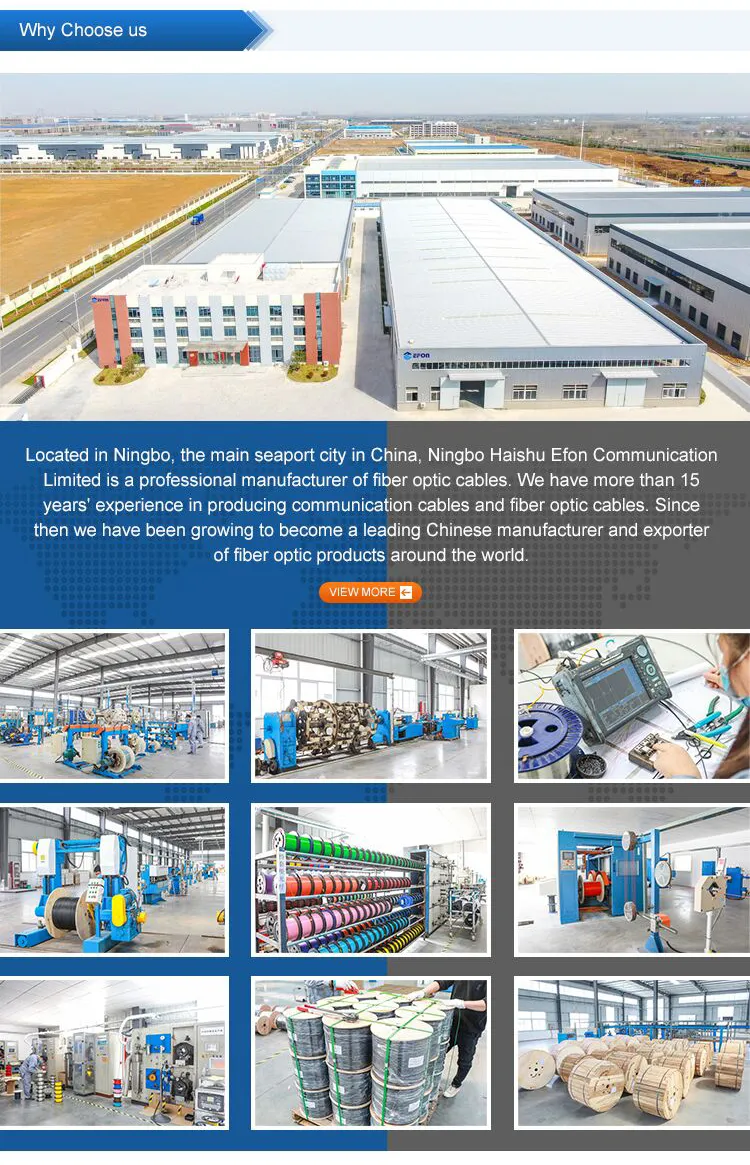

🏢 Production & Quality
❓ Frequently Asked Questions
1. What is the benefit of the Figure 8 self-supporting structure?
The Figure 8 design integrates a steel wire strength member with the fiber cable, allowing for direct aerial installation between poles without needing a separate messenger wire, which significantly reduces labor and material costs.
2. Can GYXTC8Y cable be used for underground installations?
This specific model is primarily designed for aerial (hanging) applications due to its self-supporting steel wire. For underground or duct installations, we recommend different cable structures optimized for those environments.
3. What is the expected lifespan of this fiber optic cable?
With high-quality PBT loose tubes and UV-resistant PE jackets, the cable is designed to last more than 30 years under standard operating conditions.
4. How does the water-blocking feature work?
The central loose tube is filled with a specialized water-resistant gel compound that prevents moisture ingress, protecting the optical fibers from environmental damage and signal attenuation.
5. Is the jacket material flame retardant?
We offer different jacket options including standard UV-resistant PE for outdoor use and LSZH (Low Smoke Zero Halogen) or Flame Retardant PE based on specific project requirements.
6. What fiber types can be included in the GYXTC8Y?
The cable can be customized with various fiber types, including Single Mode (G.652D) and Multi-mode (OM1, OM2, OM3, OM4) to suit different bandwidth and distance needs.
