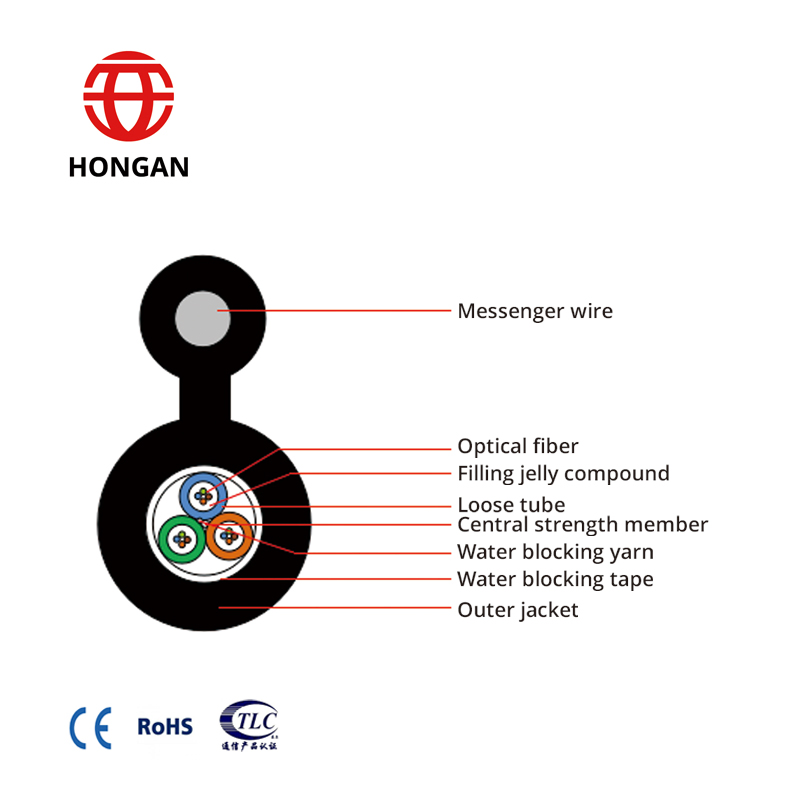

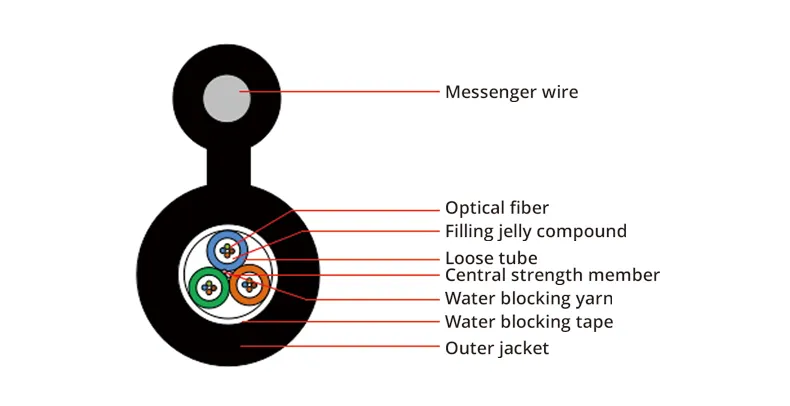

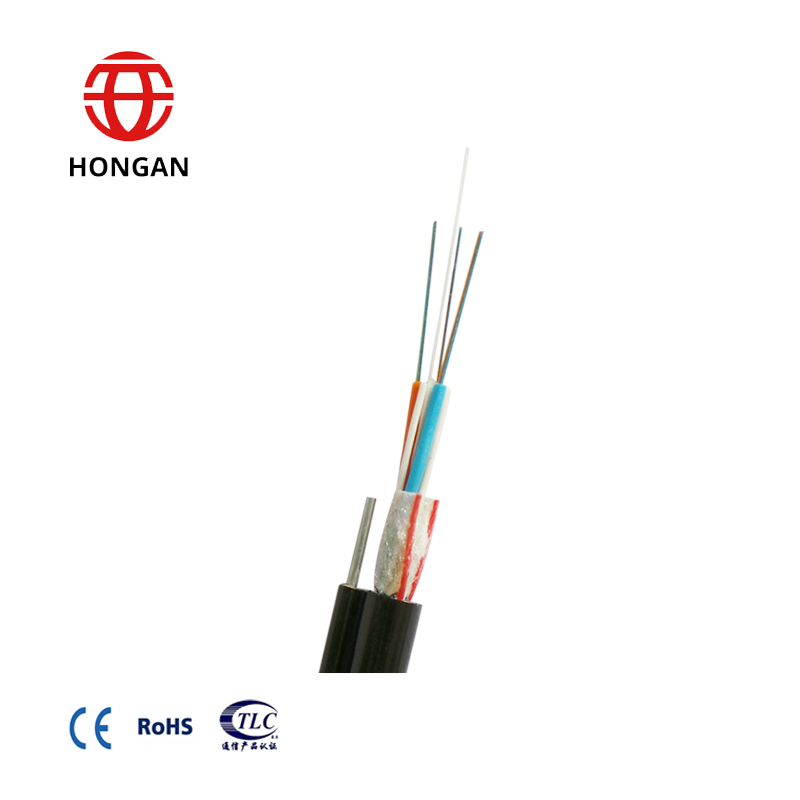

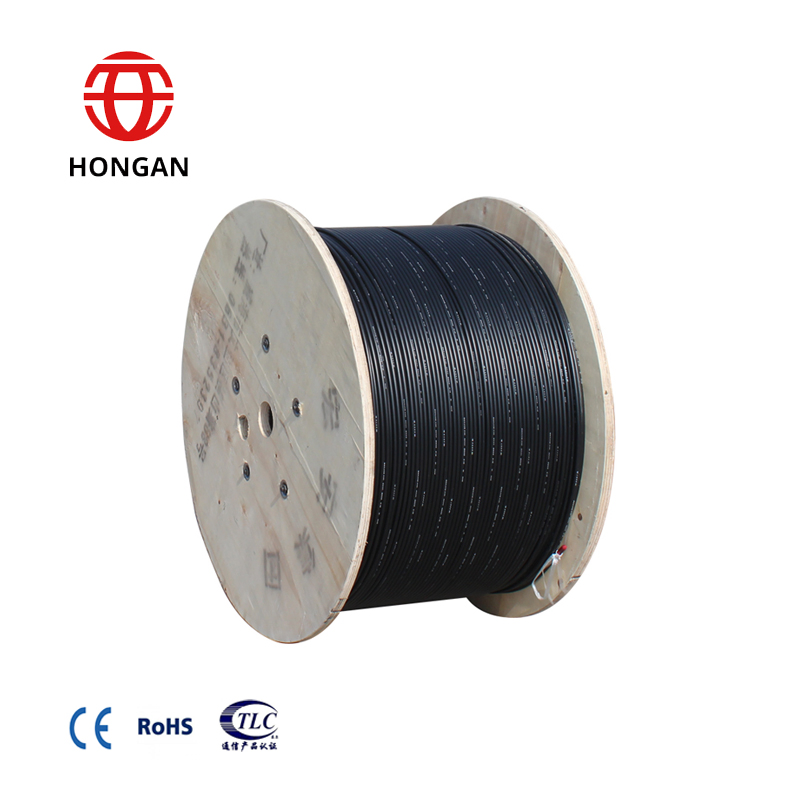

GYTC8Y Fiber Optic Cable is an 8-like type of fiber optic cable manufactured from high modulus plastic. It is available in both single-mode and multi-mode forms. Designed for durability, this cable is highly water-resistant, making it ideal for application in watery or humid environments. It features a robust layer of steel wire to provide the necessary structural support for aerial installations.
| Fiber count | Structure | Fibers per tube | Loose tube diameter(mm) | CSM diameter(mm) | Jacket Thickness(mm) | Cable diameter(mm) | Weight(kg/km) |
|---|---|---|---|---|---|---|---|
| 4 | 1+5 | 4 | 1.7±0.1 | 1.5/1.5 | 1.6±0.1 | 8.6 ±0.5 | 84 |
| 6 | 1+5 | 6 | 1.7±0.1 | 1.5/1.5 | 1.6±0.1 | 8.6 ±0.5 | 84 |
| 12 | 1+5 | 6 | 1.7±0.1 | 1.5/1.5 | 1.6±0.1 | 8.6 ±0.5 | 84 |
| 24 | 1+5 | 6 | 1.7±0.1 | 1.5/1.5 | 1.6±0.1 | 8.6 ±0.5 | 85 |
| 48 | 1+5 | 12 | 2.0±0.1 | 1.5/1.5 | 1.6±0.1 | 9.2 ±0.5 | 94 |
| Item | Parameters | |
|---|---|---|
| Loose tube | Material | PBT |
| Filler | Material | PE |
| CSM | Material | FRP |
| Messenger wire | Diameter | 4.5±0.2mm |
| Outer jacket | Material | MDPE / Black |
| Tensile performance | Short term | 3000N |
| Crush resistance | Short term | 1000N/100mm |
