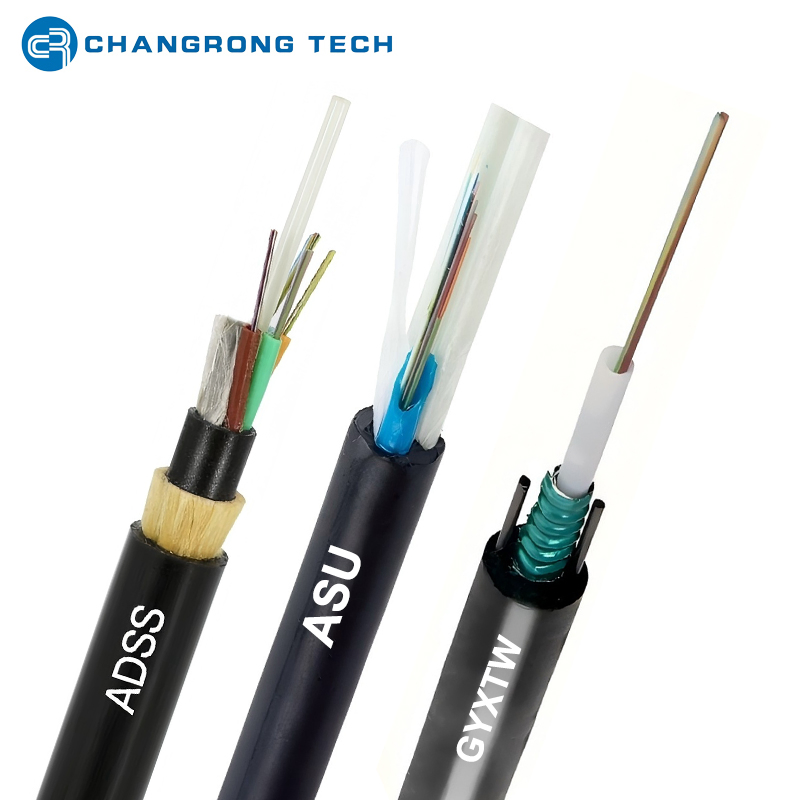

2core-24core Aerial Span 80m/100m Fiber Optic Cable ADSS (ASU) Fibra Optica Monomodo

1 / 5

2core-24core Aerial Span 80m/100m Fiber Optic Cable ADSS (ASU) Fibra Optica Monomodo

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

ASU

Structure

Fiber Optic Cable

Core

2-24 Core

Material

Round Wire / PE Sheath

Lateral Pressure

>1000(N/100mm)

Tensile Strength

1000N - 10000N

Certification

RoHS, CE, ISO9001

Fiber Type

G652.D

Application

Aerial Self-Supporting

Drum Length

2km, 3km, 4km, 5km

Product Description

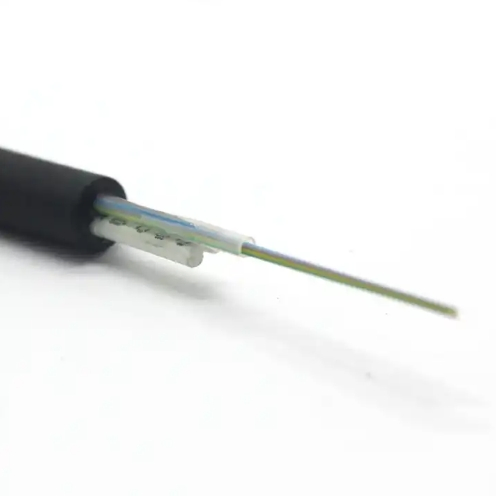

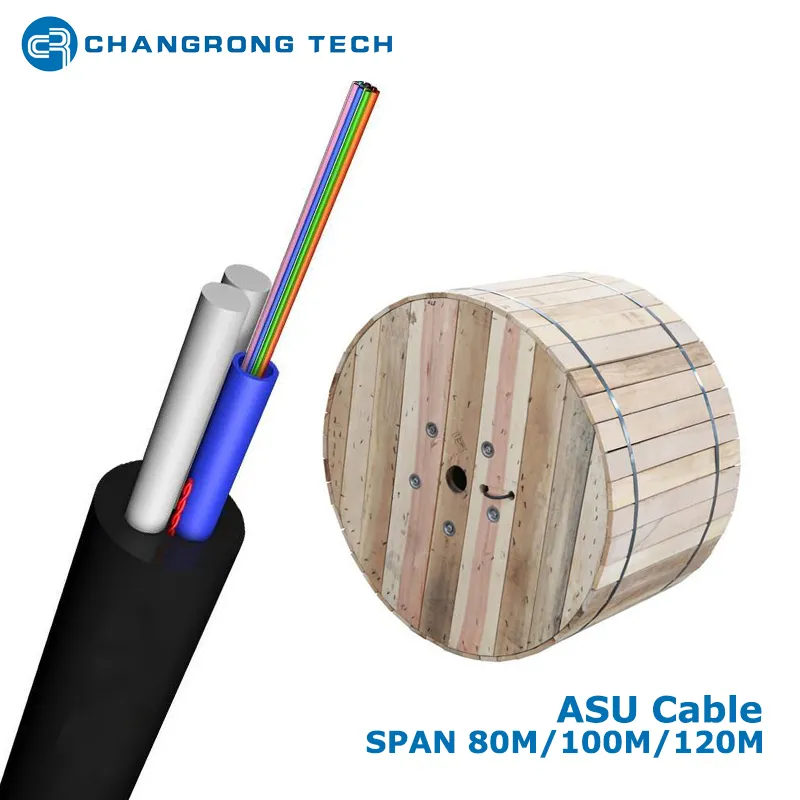

ASU (Aerial Self-supported Uni-tube) Mini ADSS Fiber Optic Cable

The ASU Mini ADSS cable is designed for Span 80m, 100m, and 120m aerial installations, offering a compact and durable solution for optical fiber connectivity.

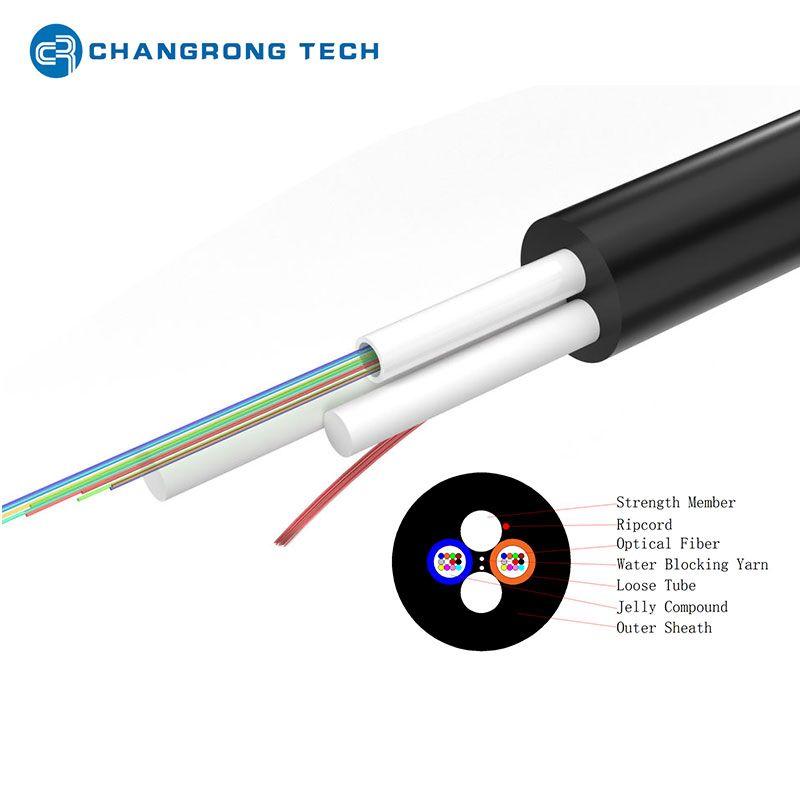

Cable Construction:

2-24 fibers positioned in a gel-filled PBT loose tube.
Double FRP (Fiber Reinforced Plastic) strength members with SZ stranding.
Cable core filled with water-blocking yarn for moisture protection.
High-quality PE outer jacket with one ripcord for easy access.

Key Features:

All dielectric loose tube structure.
Highly resistant to electromagnetic interference.
Small diameter and lightweight design for reduced wind and ice load.
Cost-effective with simplified installation and maintenance.

Technical Parameters

Specification	1-12 Cores		24 Cores
Span (M)	80M	120M	80M	120M
Cable Diameter (mm)	6.6	7.6	7.5	8.2
Cable Weight (Kg/km)	45	62	52	65
Tensile Strength (N)	1500N	2000N	1500N	2000N
Crush Resistance	2000N/100mm
Bending Radius	Static: 10D / Dynamic: 20D
Temperature Range	-40ºC to +70ºC

Product Showcase

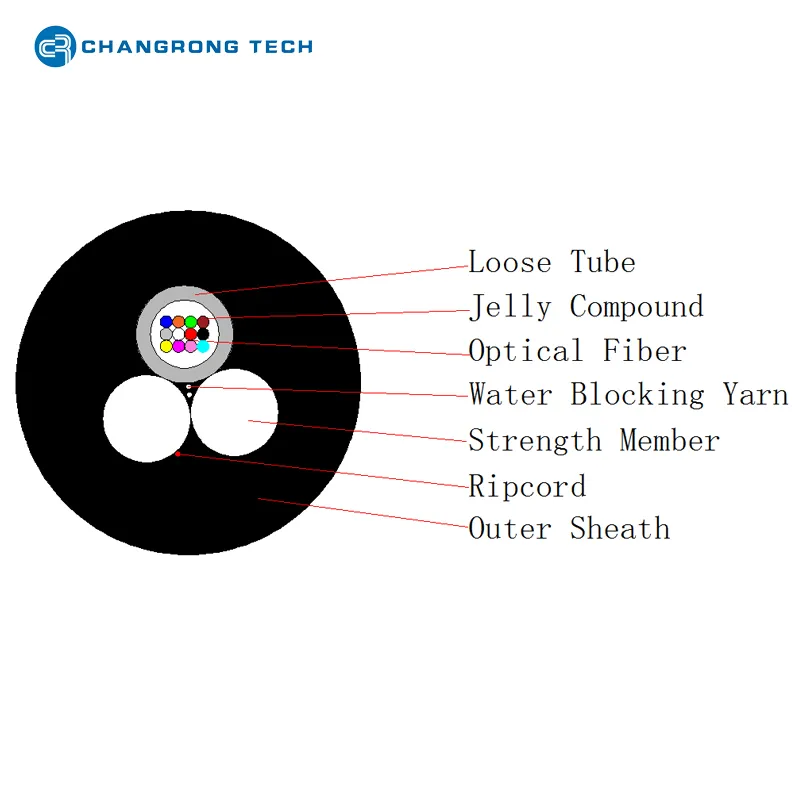

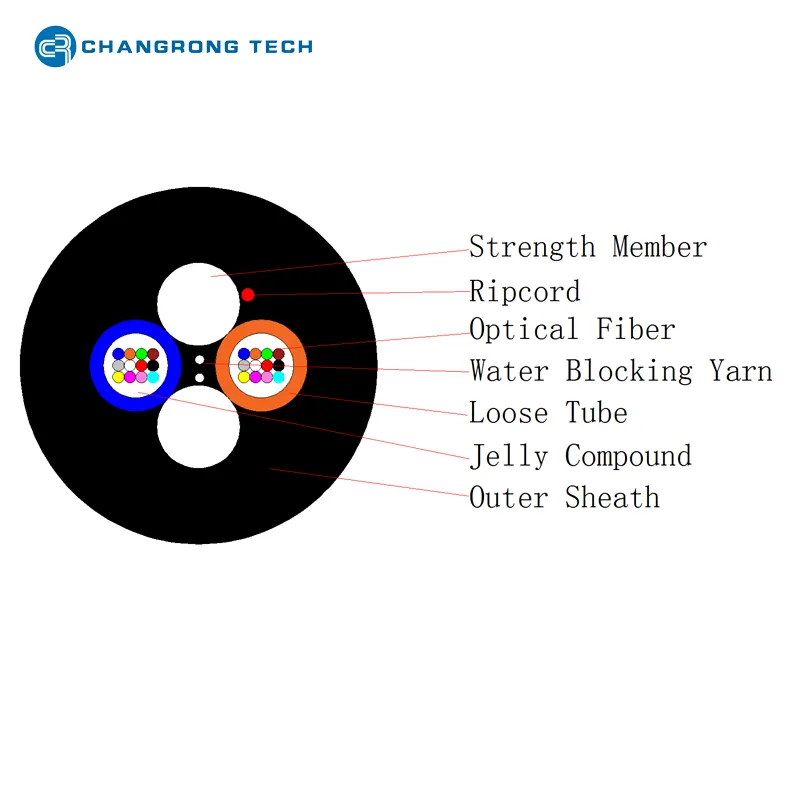

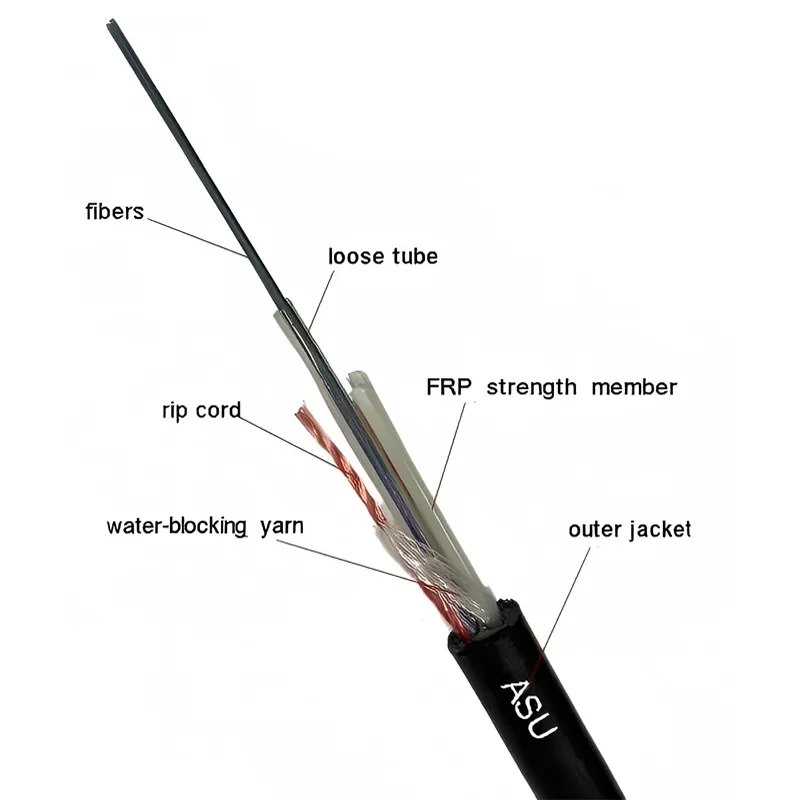

Cable Structure Design

Certifications & Standards

ISO 9001, ISO14001, ISO45001 Certified Factory

Our laboratory has passed the CNAS Certification, ensuring all products meet IEC60794 and IEC60793 standards.

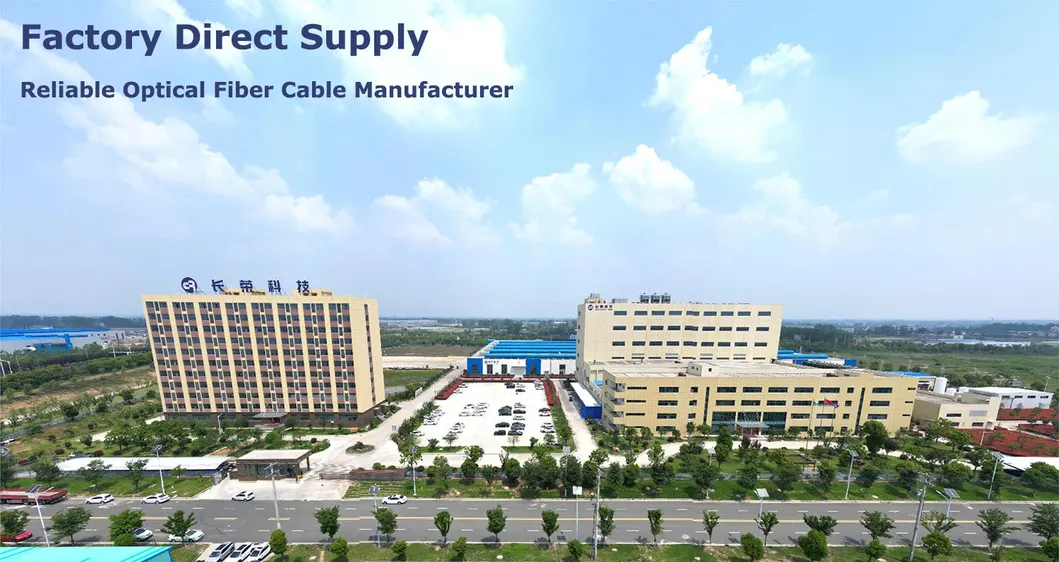

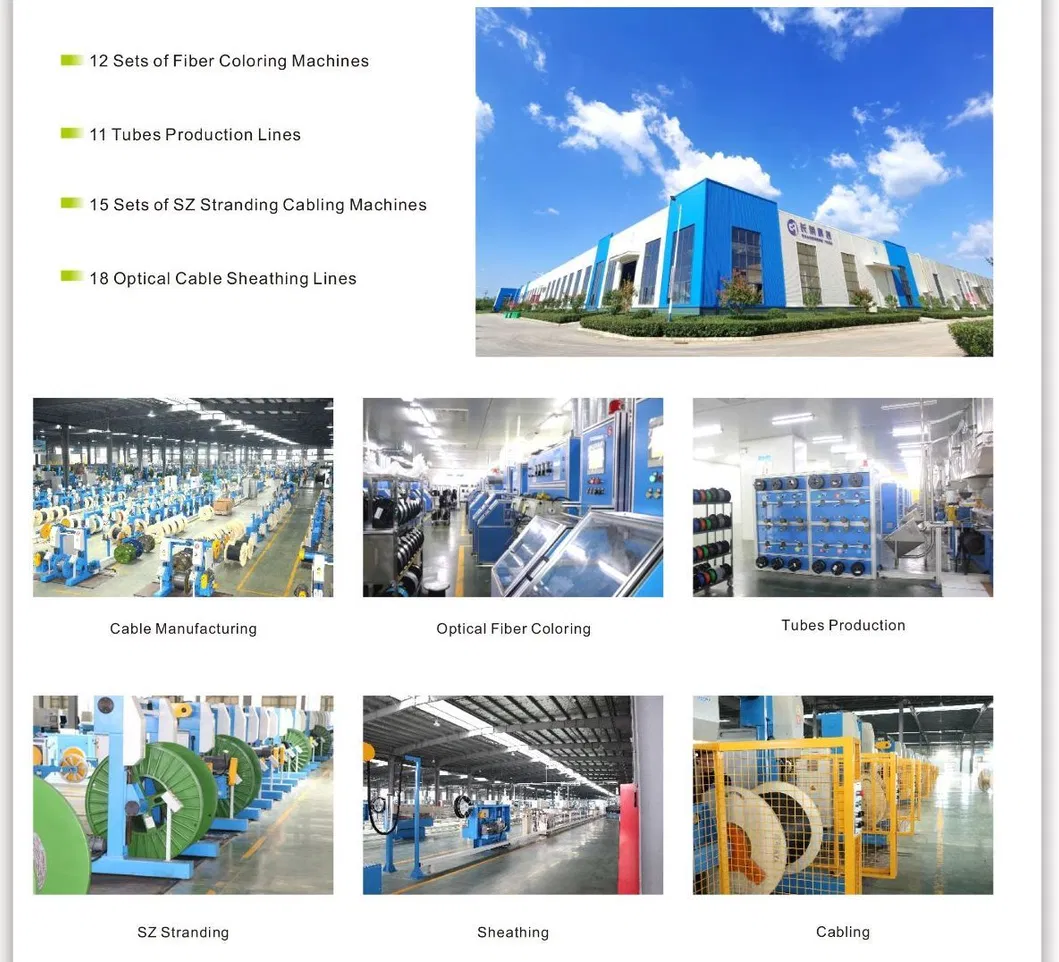

Manufacturing Advantages

High Capacity: 18 Optical Cable production lines for bulk order fulfillment.
Technical Support: Reliable expertise for customized structure designs.
Premium Quality: 18 Optical Fiber drawing lines with 15 million km annual output of A-grade fibers.
Strict QC: Fully equipped labs for rigorous testing under ISO9001 management.

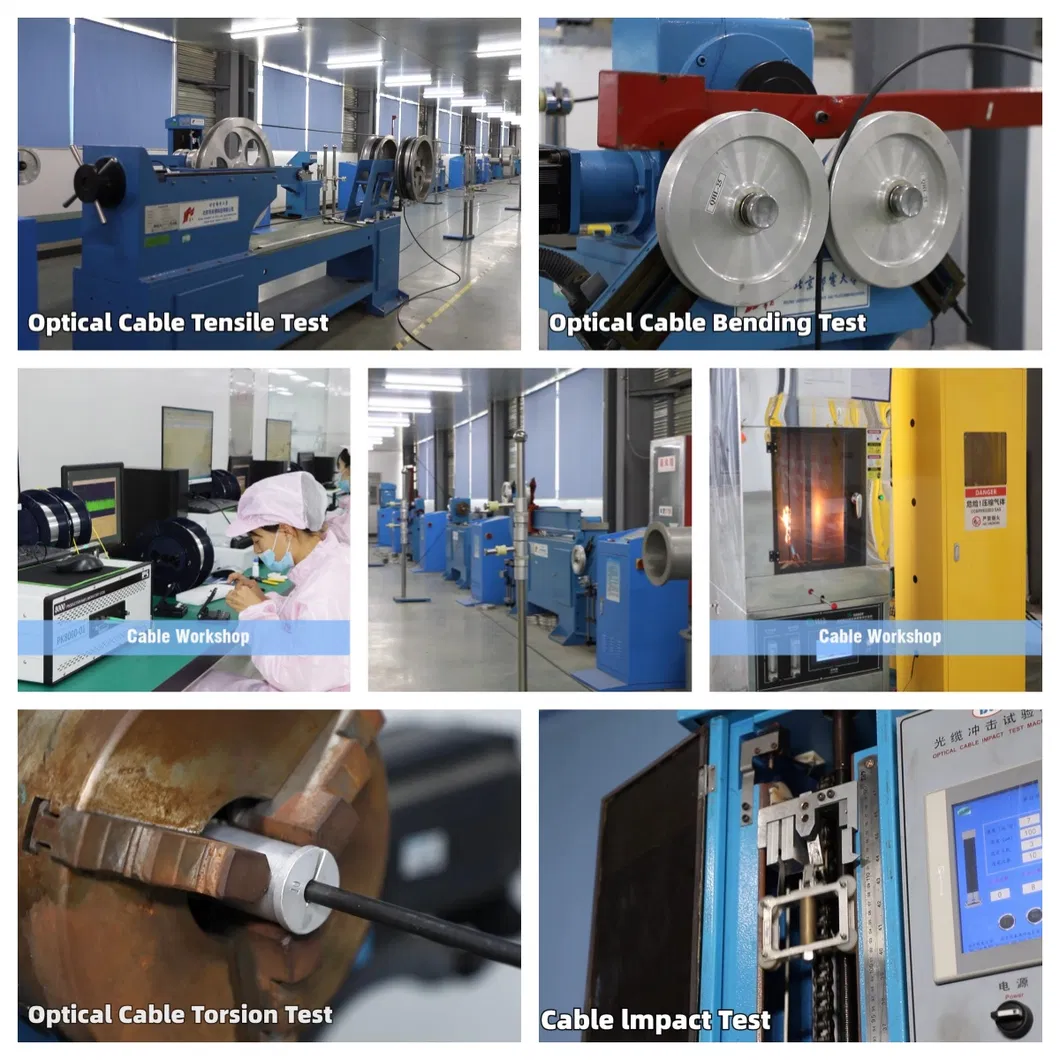

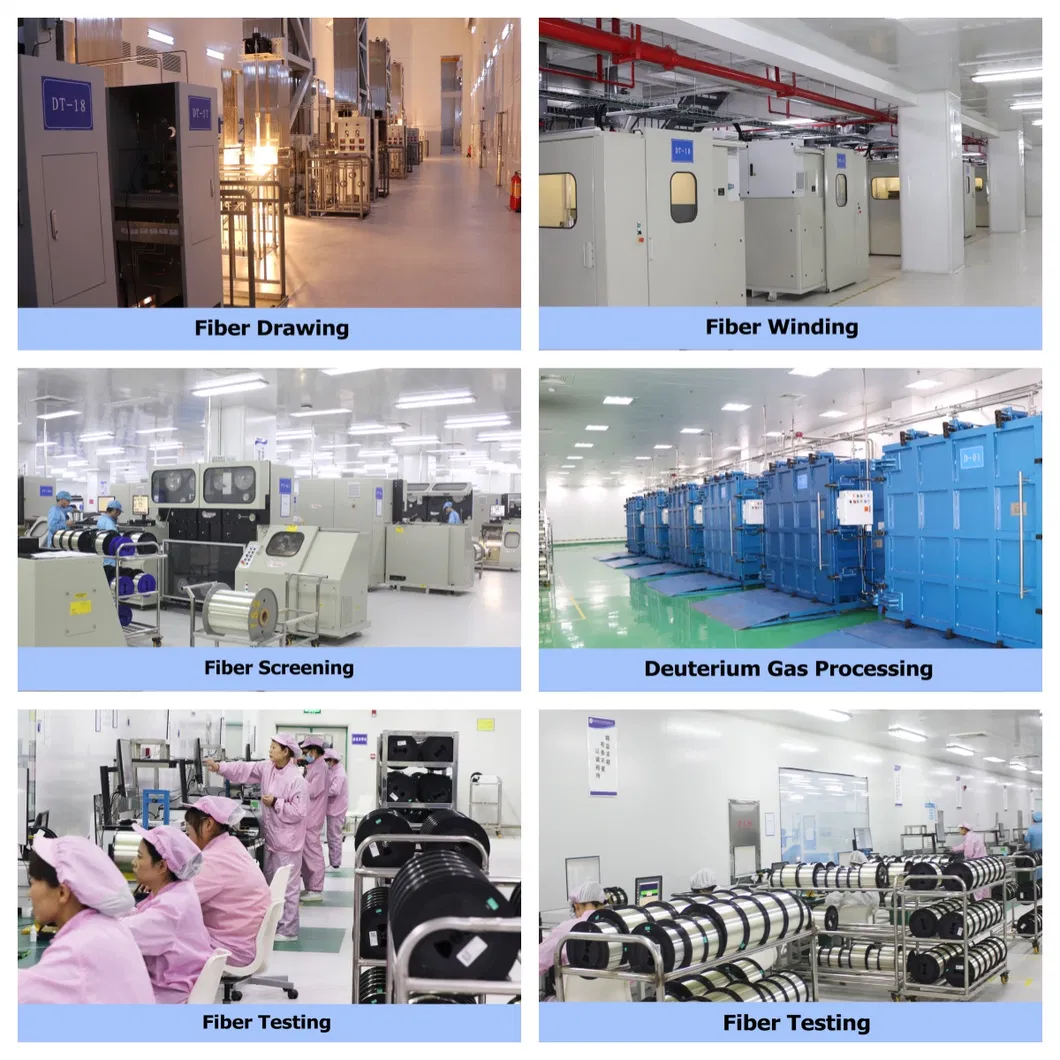

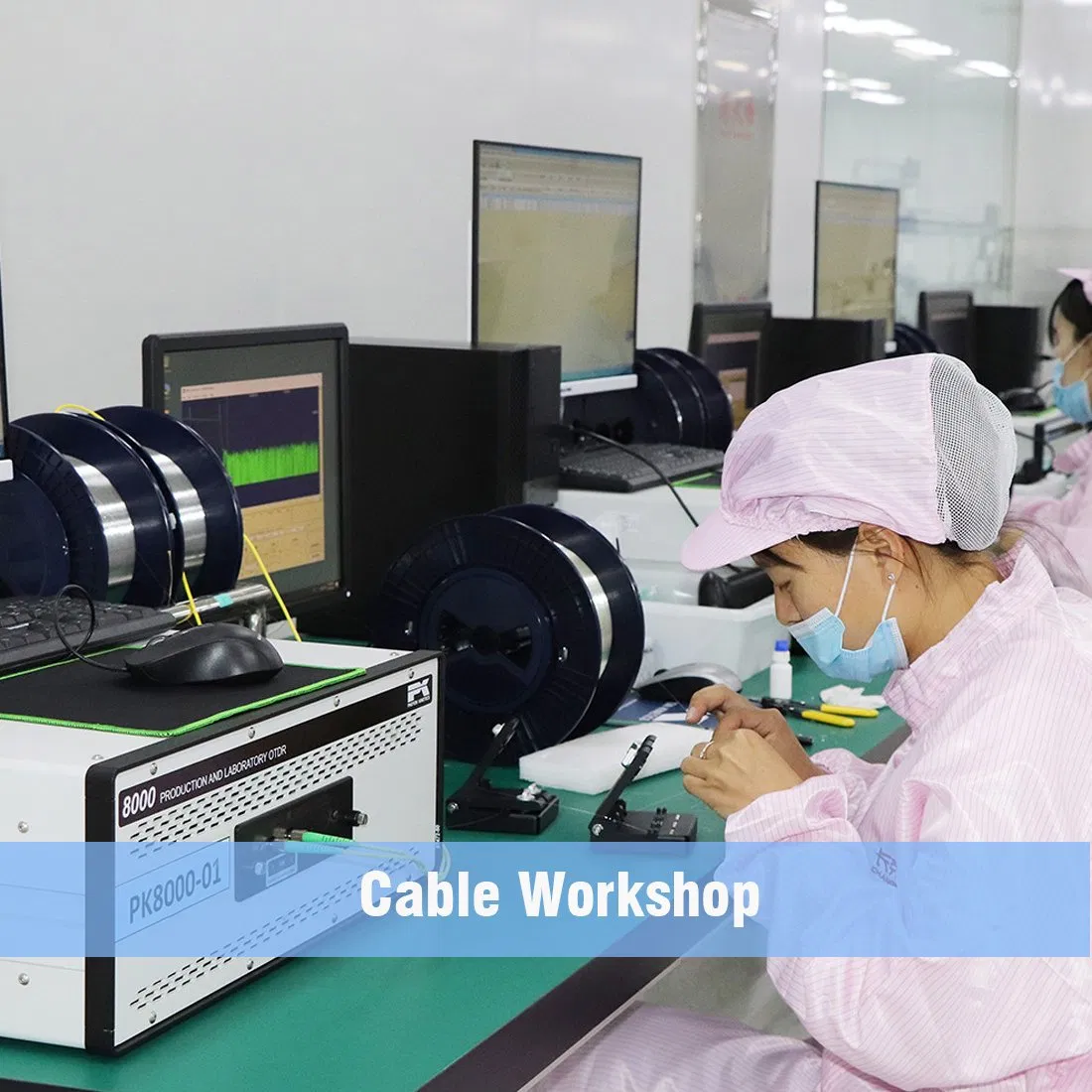

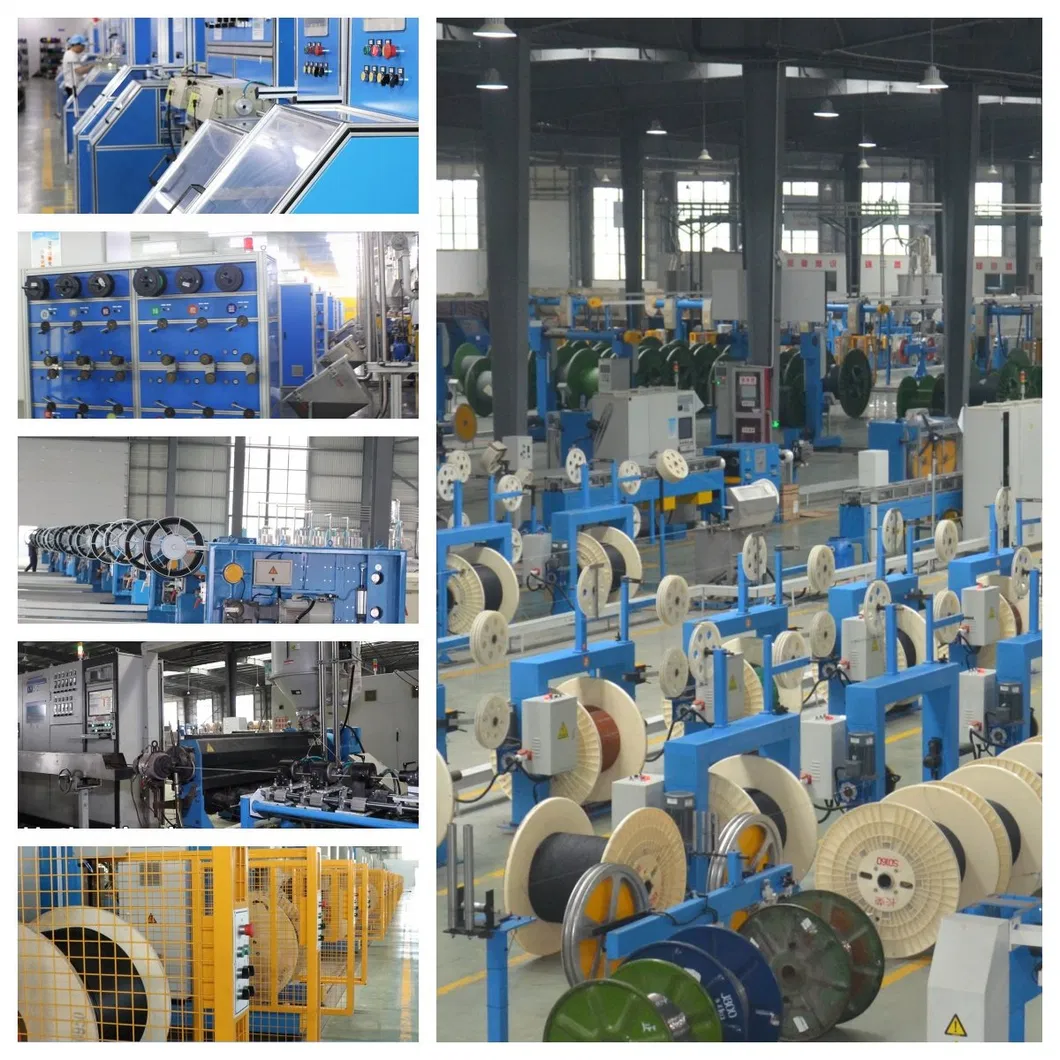

Workshop & Testing

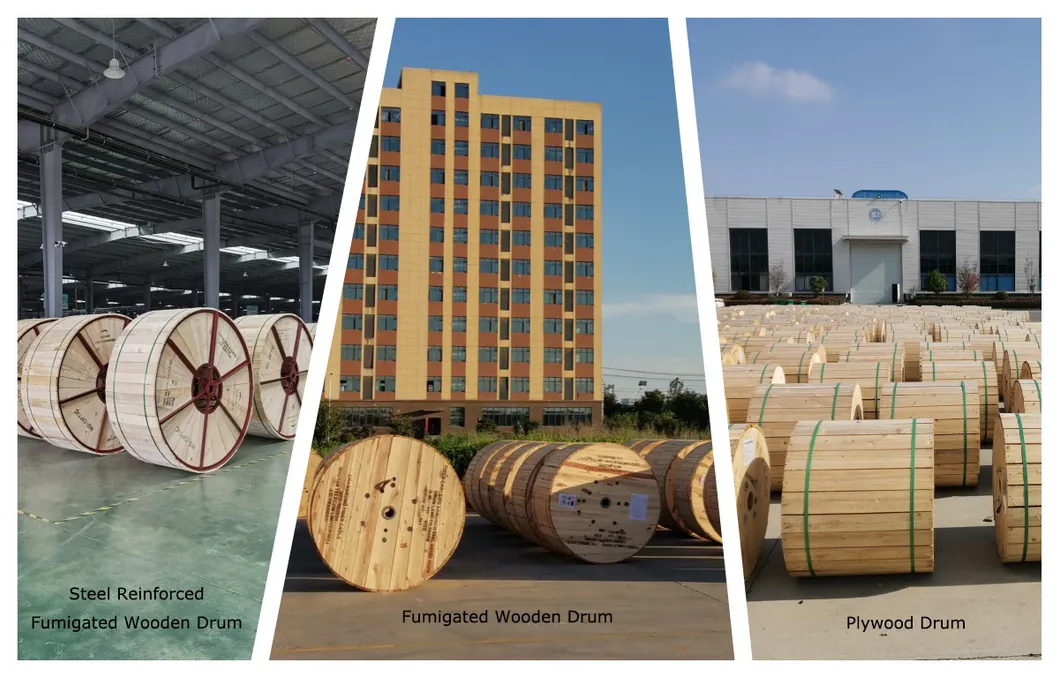

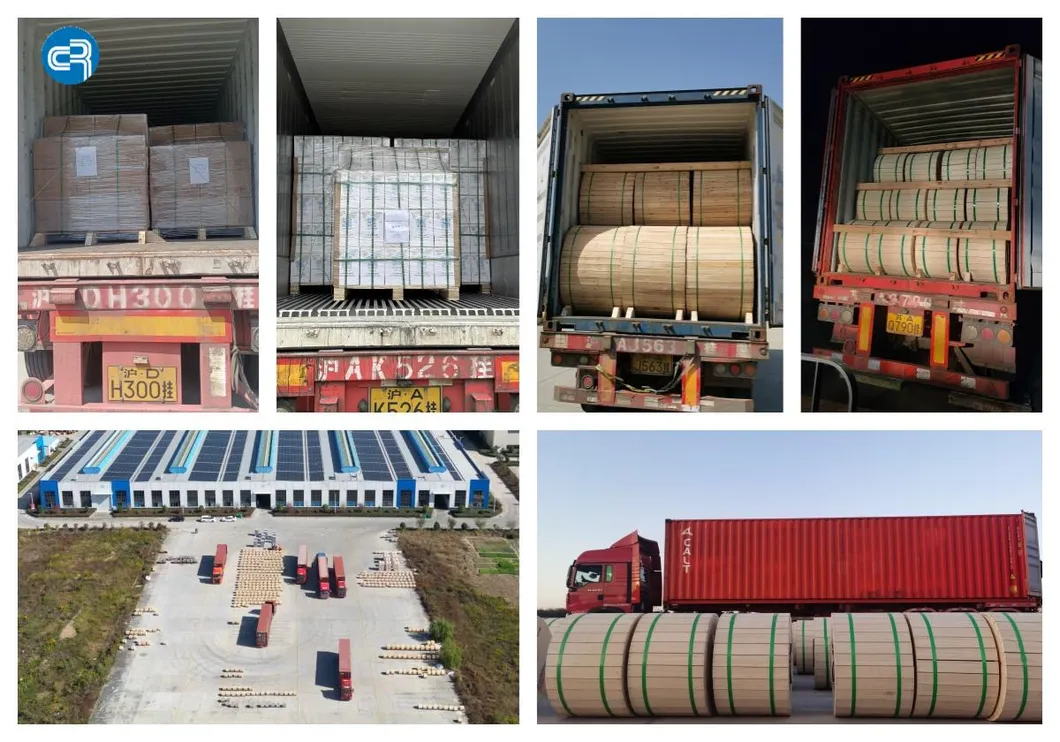

Packing & Shipping

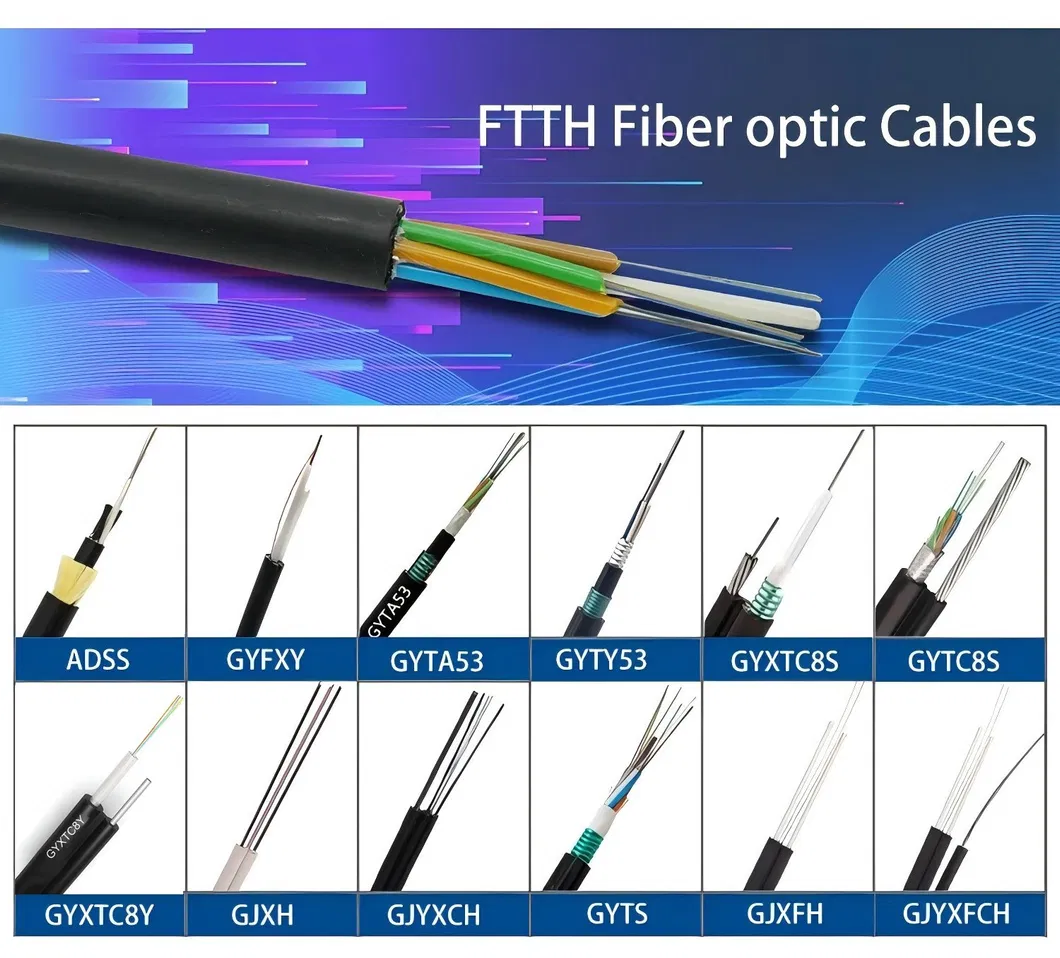

Our Product Range

Frequently Asked Questions

Are you a direct manufacturer?

Yes, we are a professional factory located in China, specializing in optical fiber and cable production since 2017.

What is the warranty period for your fiber optic cables?

We provide a 25-year warranty for our fiber optic cable products.

Can you handle small orders?

Yes, we support new projects and can accommodate small orders as we understand business growth starts small.

What is your typical lead time?

Our usual delivery time is within 15 working days, depending on the order size and requirements.

Do you provide OEM and ODM services?

Absolutely. We supply both OEM and ODM services, including customized cable structures and logo printing.

What certifications do your products hold?

Our factory and products are certified by ISO9001, ISO14001, ISO45001, TLC, and CNAS.
