Outdoor Aerial Optical Fiber Cable Uni Loose Tube Rop Cord No Metal ASU Mini Span ADSS Fibre Optic Cable
Non-metal round structure aerial 4 core 8 core optical cable for 120m 80m Span.

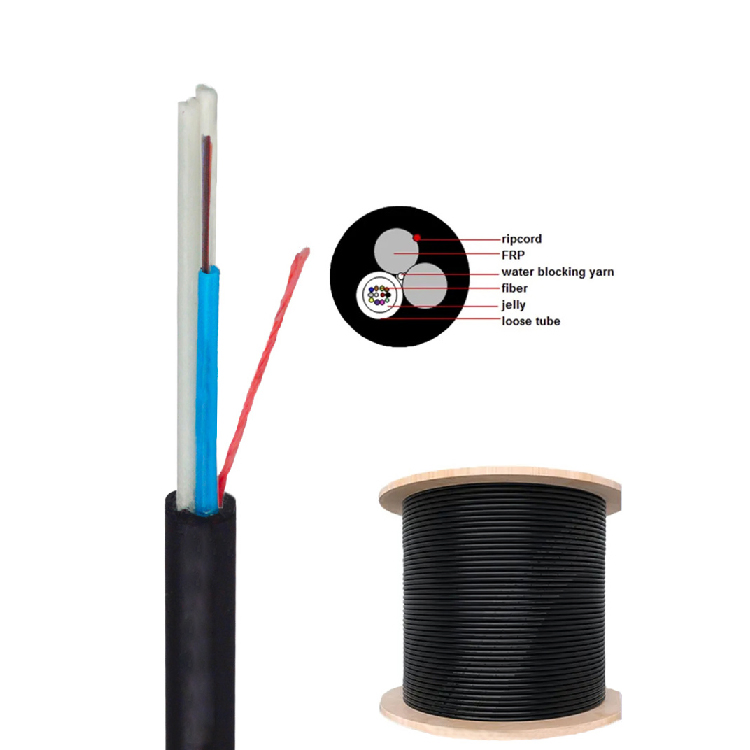

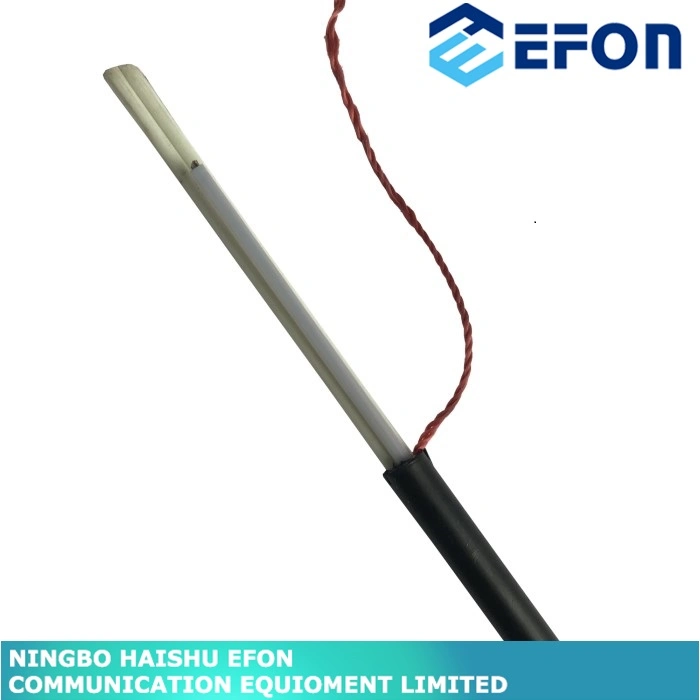

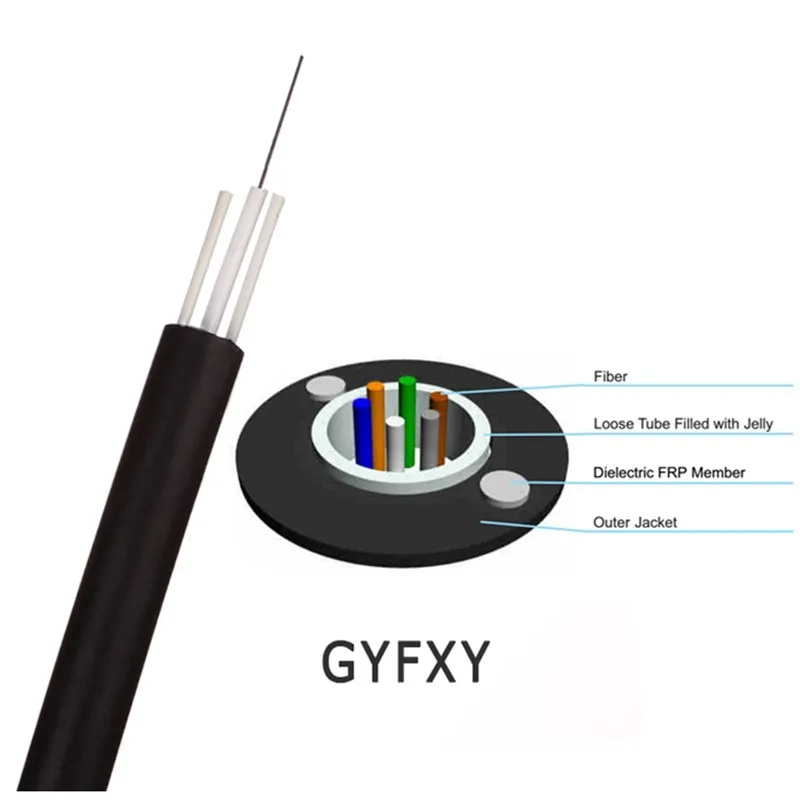

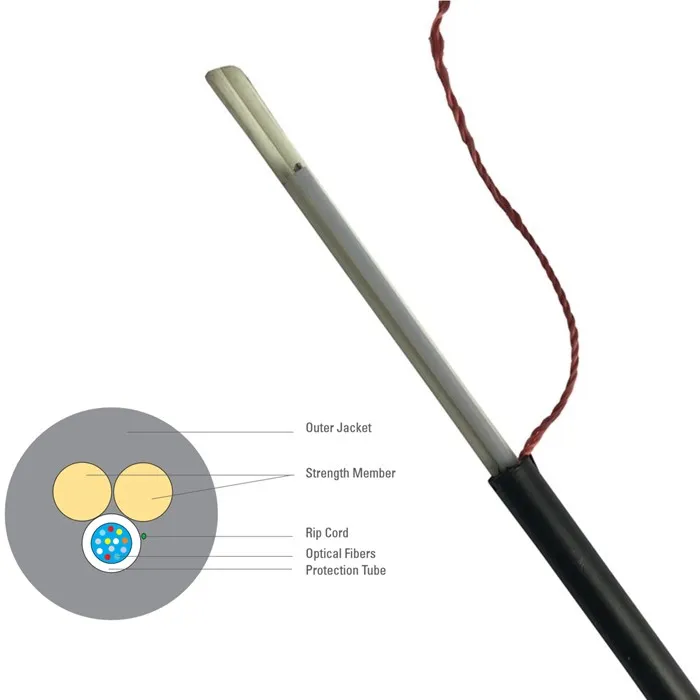

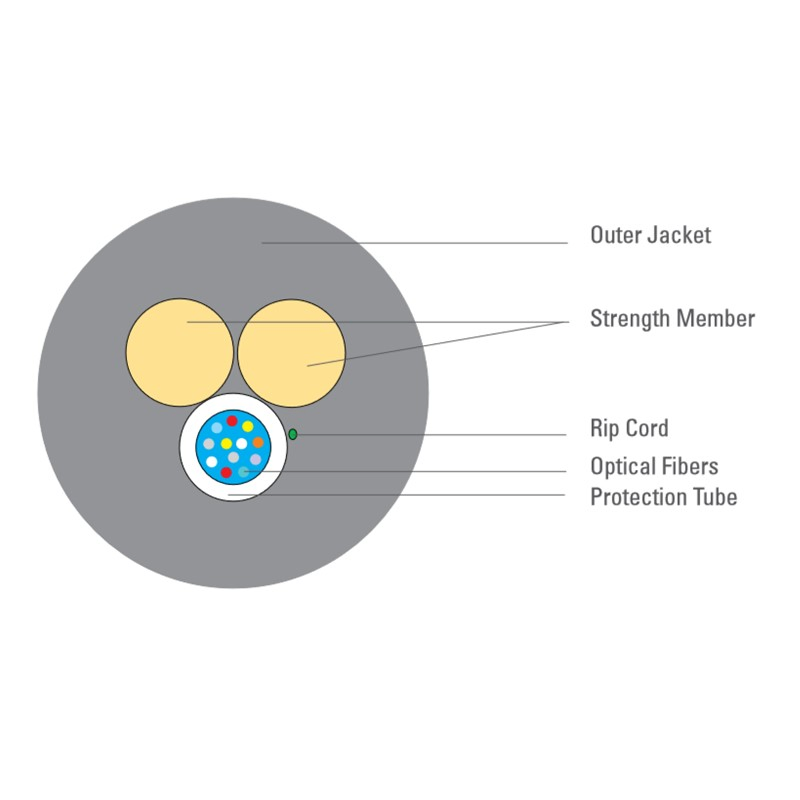

All dielectric optical cable with singlemode fiber, stranded in parallel with a dielectric strength member. The entire unit is protected by a high-quality black PE jacket designed for harsh outdoor environments.
Specifically designed for self-supported aerial installation, ideal for mini span requirements in FTTH network deployments.
| Fiber Type | G.652 | G.655 | 50/125μm | 62.5/125μm | |
|---|---|---|---|---|---|
| Attenuation | 1310 nm | <0.36 dB/km | <0.40 dB/km | - | - |
| 1550 nm | <0.22 dB/km | <0.23 dB/km | - | - | |
| Bandwidth | 850 nm | - | - | >500 MHz-km | >200 Mhz-km |
| 1300 nm | - | - | >500 MHz-km | >500 Mhz-km | |
| Fiber Count | Nominal Diameter (mm) | Nominal Weight (kg/km) | Tensile Load (Short Term N) | Crush Resistance (N/100mm) |
|---|---|---|---|---|
| 2~12 | 6.2 | 45 | 600 | 1000 |
| 14~24 | 7.0 | 56 | 800 | 1000 |
