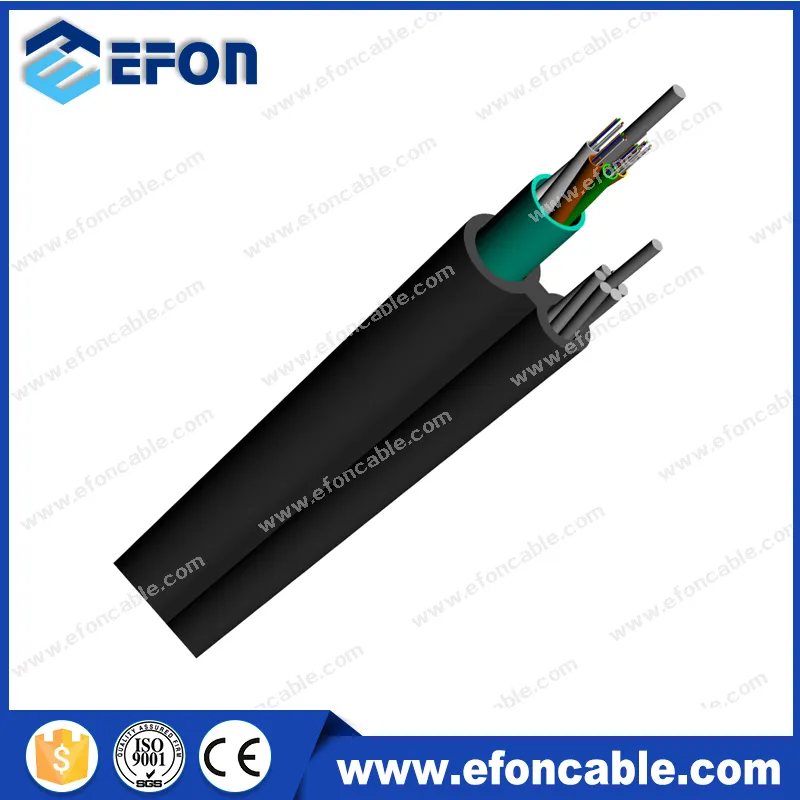

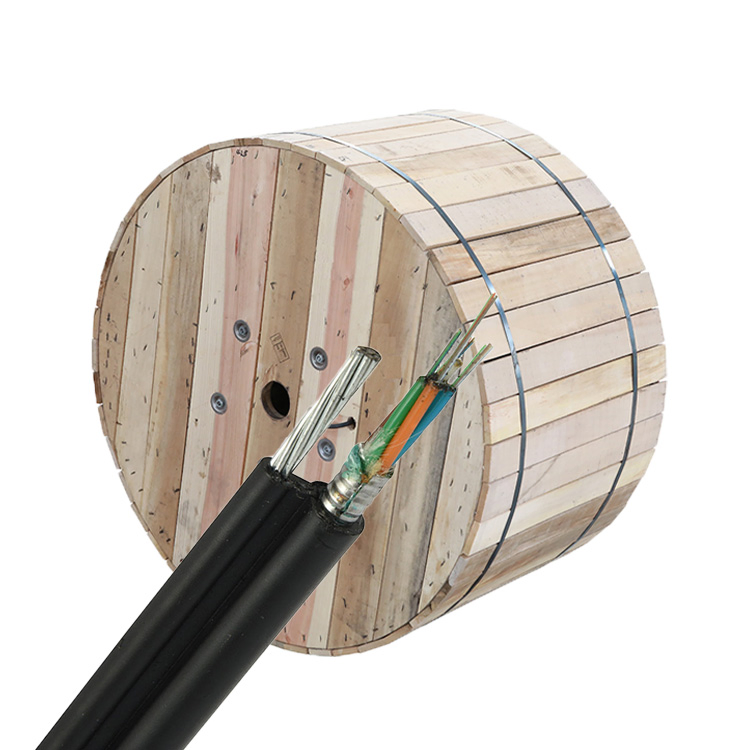

Self-supporting Aerial Optical Drop FTTH Fiber Optic Cable GYTC8S (4-96 Core)

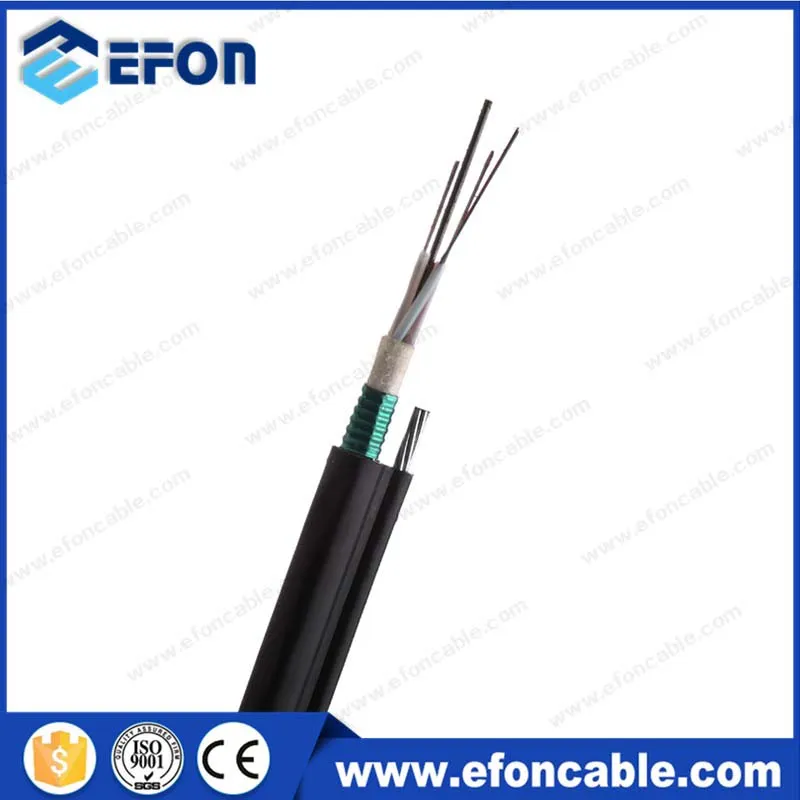

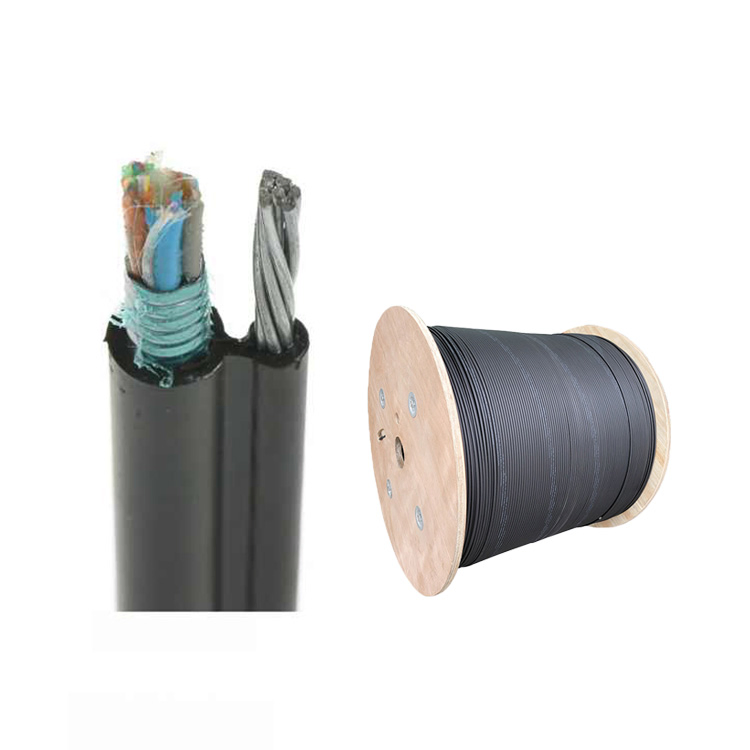

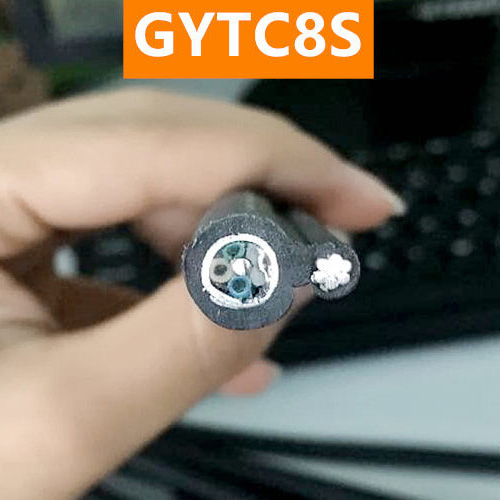

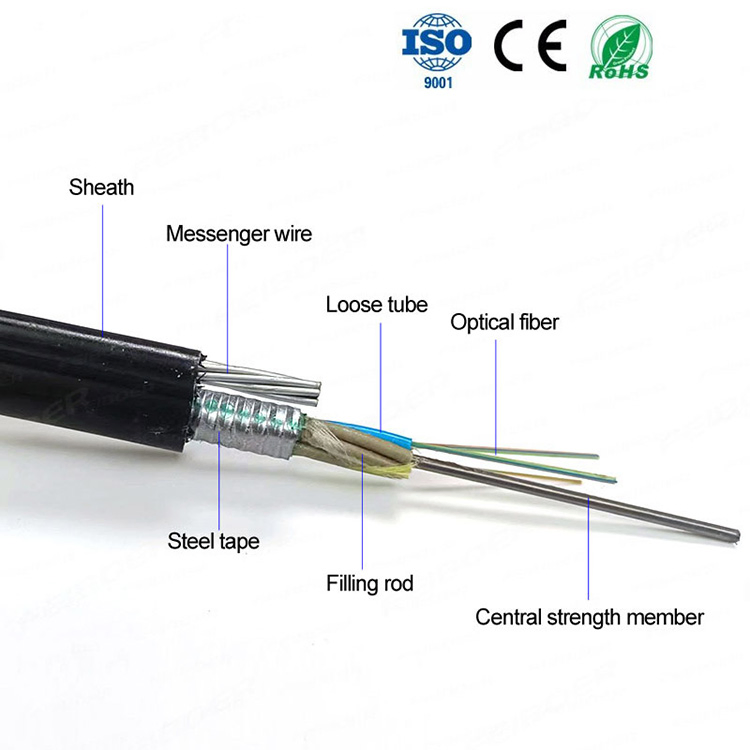

The loose tubes are made of high modulus plastic (PBT), filled with water-resistant gel. Corrugated steel tape is applied for crush resistance. The outer sheath is constructed from UV-resistant PE. The Figure-8 self-supporting structure provides high tensile strength and enables cost-saving aerial installations.
Features:
Application: Primarily designed for hanging on poles (Aerial installation).
| Fiber Count | 8-30 | 32-60 | 62-72 | 74-96 | 98-120 | 122-144 | |||||
| Messenger Diameter (Steel Wire) | 7x0.9, 7x1.0, 7x1.2, 7x1.4, 7x1.6 mm | ||||||||||
| Diameter of Cable (mm) | 8.1 | 8.7 | 9.3 | 10.6 | 11.9 | 13.4 | |||||
| Max Tensile Force (Short Term) | 3000 N | 4000 N | 6000 N | 8000 N | 12000 N | ||||||
| Max Crush Resistance | Short term: 1000N / Long term: 300N | ||||||||||
| Allowable Temperature | Operation | -40°C to +60°C | |||||||||
| Storage | -50°C to +70°C | ||||||||||
