Home > Aerial Fiber Optic Cable > 12 24 36 48 96 144 288 Core Double PE Jacket Self-Supporting Aerial Span 300m ADSS G652D Fiber Optic Cable
12 24 36 48 96 144 288 Core Double PE Jacket Self-Supporting Aerial Span 300m ADSS G652D Fiber Optic Cable
12 24 36 48 96 144 288 Core Double PE Jacket Self-Supporting Aerial Span 300m ADSS G652D Fiber Optic Cable
12 24 36 48 96 144 288 Core Double PE Jacket Self-Supporting Aerial Span 300m ADSS G652D Fiber Optic Cable
12 24 36 48 96 144 288 Core Double PE Jacket Self-Supporting Aerial Span 300m ADSS G652D Fiber Optic Cable
12 24 36 48 96 144 288 Core Double PE Jacket Self-Supporting Aerial Span 300m ADSS G652D Fiber Optic Cable
1 / 5
12 24 36 48 96 144 288 Core Double PE Jacket Self-Supporting Aerial Span 300m ADSS G652D Fiber Optic Cable
12 24 36 48 96 144 288 Core Double PE Jacket Self-Supporting Aerial Span 300m ADSS G652D Fiber Optic Cable
12 24 36 48 96 144 288 Core Double PE Jacket Self-Supporting Aerial Span 300m ADSS G652D Fiber Optic Cable
12 24 36 48 96 144 288 Core Double PE Jacket Self-Supporting Aerial Span 300m ADSS G652D Fiber Optic Cable
12 24 36 48 96 144 288 Core Double PE Jacket Self-Supporting Aerial Span 300m ADSS G652D Fiber Optic Cable

12 24 36 48 96 144 288 Core Double PE Jacket Self-Supporting Aerial Span 300m ADSS G652D Fiber Optic Cable

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📦 Basic Info
Model NO.: ADSS
Connection Structure: SC
Material Shape: Round Wire
Allowed Lateral Pressure: >1000(N/100mm)
Core: 12-288xn
Certification: RoHS, CE, ISO9001
Life Span: Over 30 Years
Largest Span: >1000m
📝 Product Description

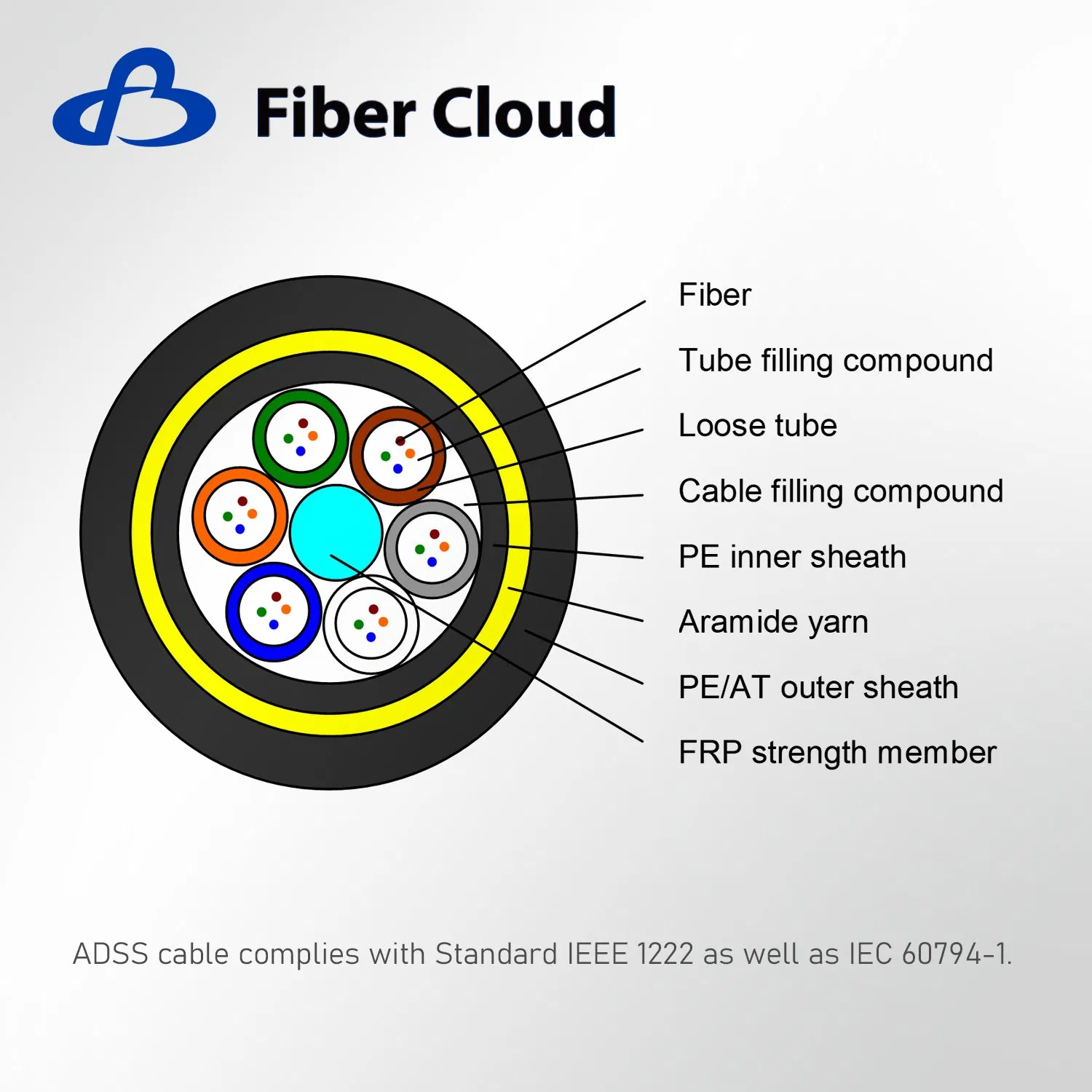

ADSS optical cable complies with IEEE 1222 as well as IEC60794-1 standard.

ADSS Fiber Optic Cable
  • Can be installed without shutting off the power.
  • For overhead power lines under 110kV, PE outer sheath is applied.
  • For power lines equal to or over 110kV, AT outer sheath is applied.
  • Excellent AT performance: The maximum inductive at the operating point of AT sheath can reach 220KV.
  • Light weight and small diameter reducing the load caused by ice and wind.
  • Large span lengths: the largest span is over 1000m.
  • Design life span is over 30 years.

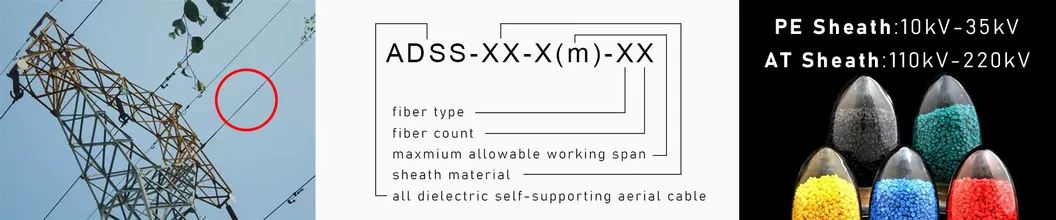

ADSS Features
⚙️ Product Parameters
Ref. Diameter(mm) Weight PE(kg/km) Weight AT(kg/km) Daily Tension(kN) Break Strength(kN)
11.81171241.510
12.01211292.2515
12.3126134320
12.61331413.624
12.81381454.530
📜 Certifications
Certifications

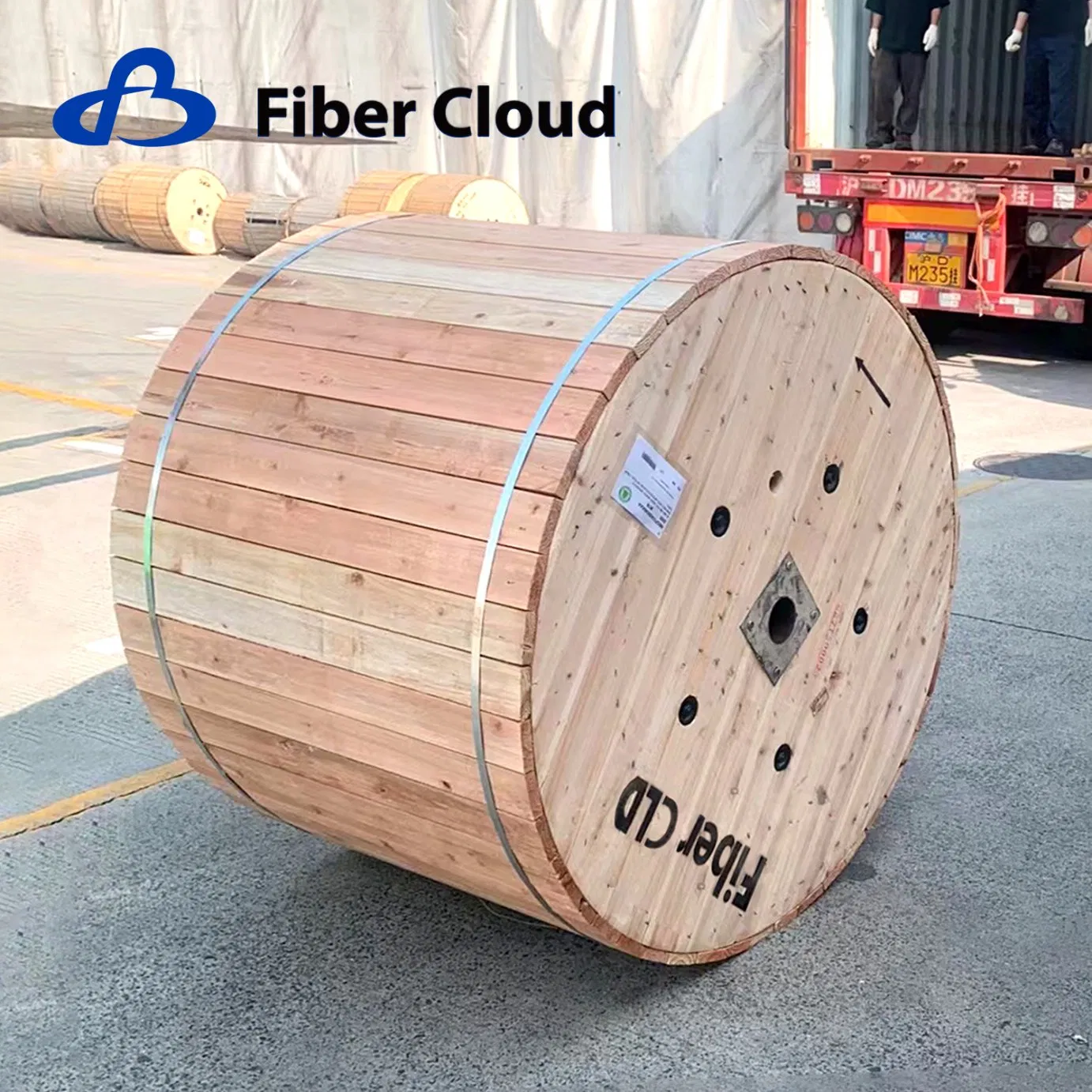

📦 Packaging & Shipping

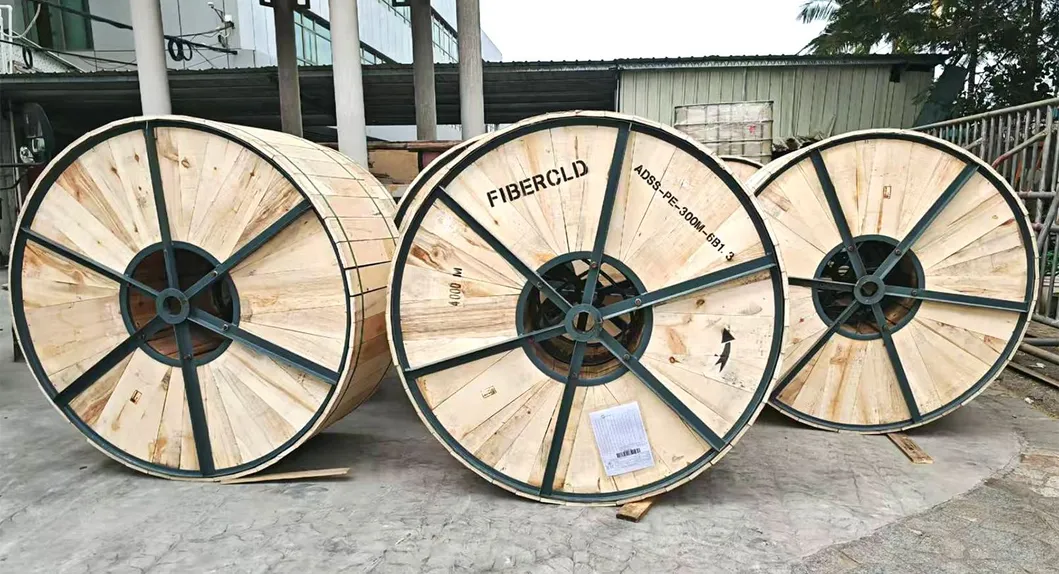

Packaging
❓ Frequently Asked Questions
Q1: How can you guarantee the delivery time?
We have a complete and professional procedure system from production to delivery, supported by 10 years of experience to ensure on-time shipment.
Q2: What is your best price?
We provide the most competitive quotes based on the quality of our products and the quantity of your order.
Q3: Can I print my own logo on the product?
Yes, we offer customization services including fiber optic printing with your logo.
Q4: Can you provide OEM/ODM service?
Yes, we can. Please provide us with the specific details of your requirements.
Q5: How do you handle faulty products?
Our products are produced under a strict quality control system with a defect rate of less than 0.2%. We conduct strict inspections and issue test reports before shipment.
