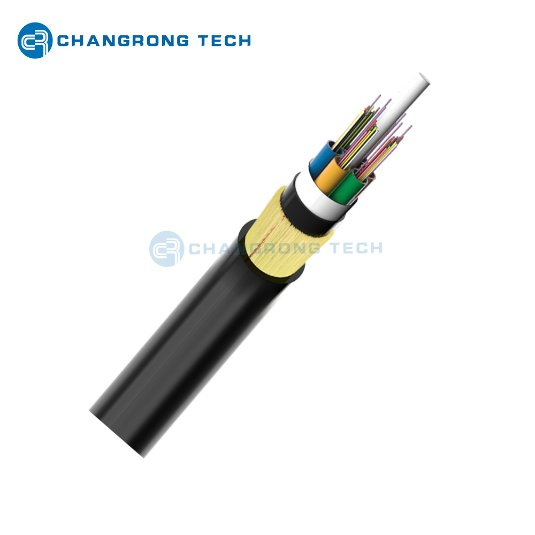

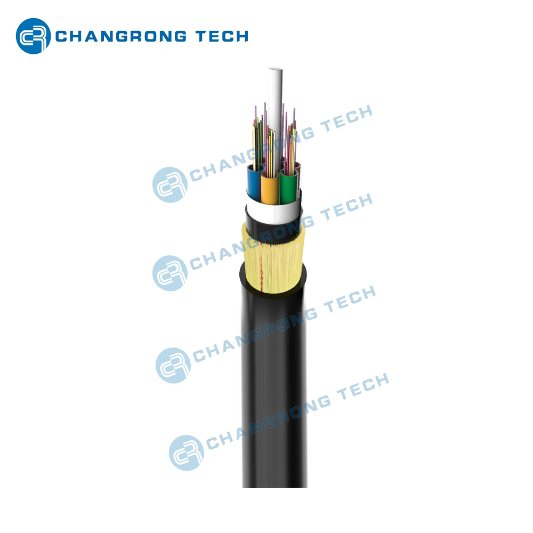

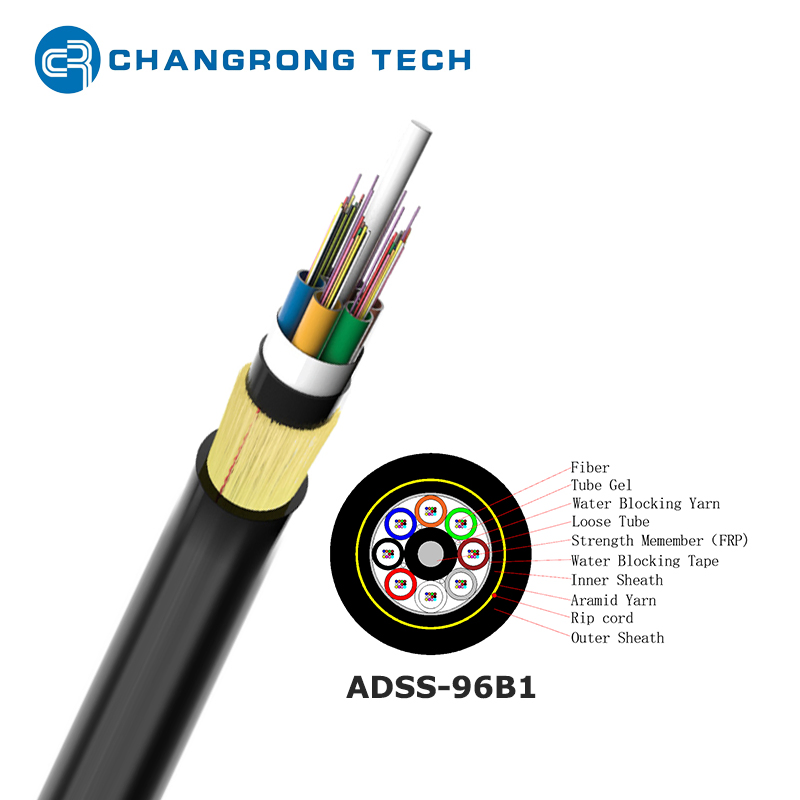

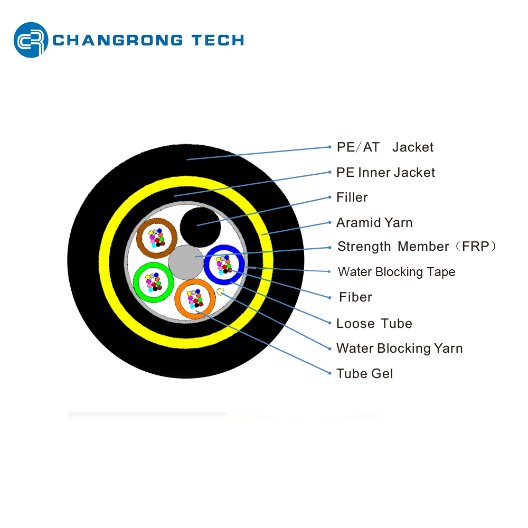

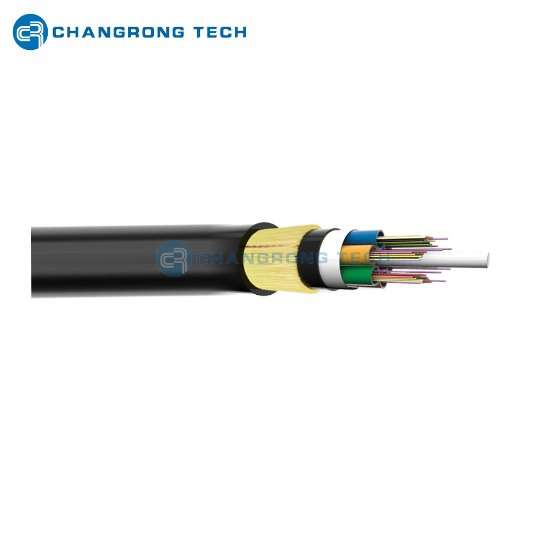

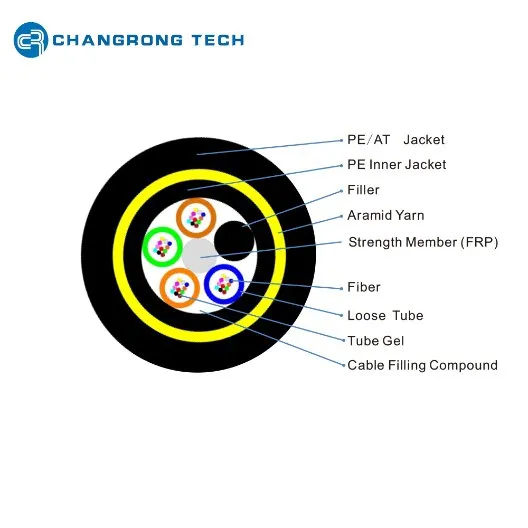

The fibers are positioned in a loose tube made of high modulus plastic and filled with gel. Tubes (and fillers) are stranded around the non-metallic strength member to form the cable core. The core is filled with water blocking compound and a PE inner jacket is extruded. Aramid yarn is armored around the inner jacket for reinforcement. Finally, a PE or AT (Anti-tracking) outer jacket is applied.
| Counts | 2-30 | 32-36 | 38-60 | 62-72 | 74-96 | 98-120 | 122-144 |
|---|---|---|---|---|---|---|---|
| Max. fibers per tube | 6 | 6 | 12 | 12 | 12 | 12 | 12 |
| Units (Tubes/Fillers) | 6 | 6 | 6 | 6 | 8 | 10 | 12 |
| Cable Diameter (mm) | 9.7 | 9.7 | 9.7 | 9.7 | 11.2 | 12.3 | 13.5 |
| Weight (Kg/km) | 74 | 75 | 75 | 75 | 100 | 120 | 143 |
| Fiber Type | G652D, G655, G657, 50/125, 62.5/125 | ||||||
| Tensile Strength (N) | Long/Short Term: 1900 / 4800 | ||||||
| Temperature (ºC) | Storage / Operation: -40ºC ~ +70ºC | ||||||

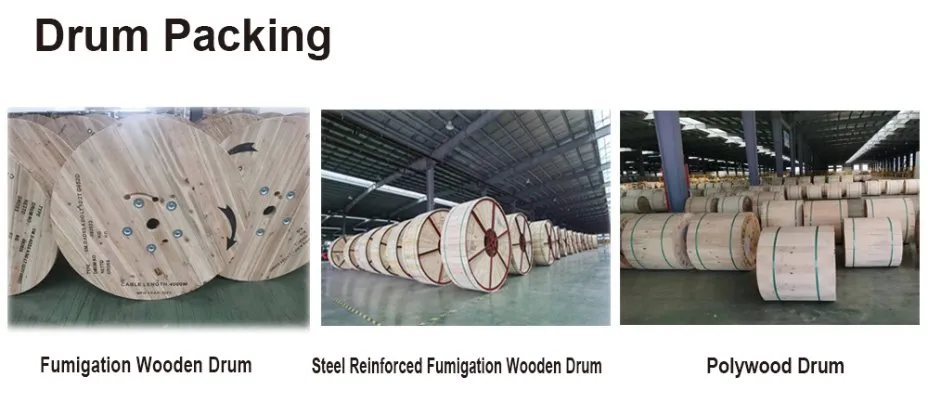

Standard packaging includes wooden drums or steel-wooden fumigated drums. Package size is approximately 140cm x 140cm x 75cm with a gross weight of 160kg per unit.
