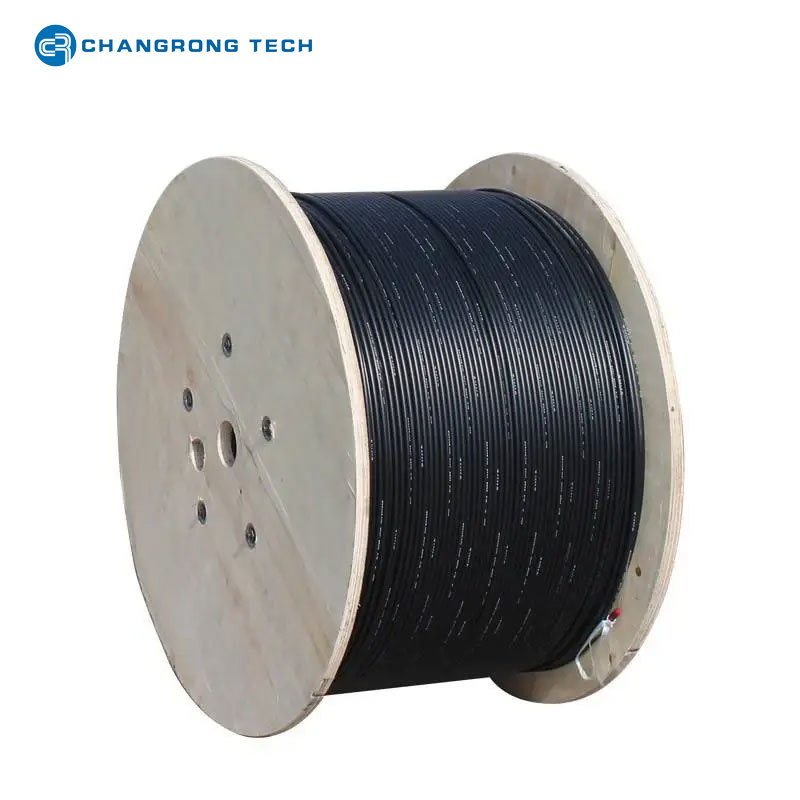

Gyxtc8s 12cores G652D Aerial Figure 8 Fiber Optic Armored FTTH Drop Cable
Gyxtc8s 12cores G652D Aerial Figure 8 Fiber Optic Armored FTTH Drop Cable
Gyxtc8s 12cores G652D Aerial Figure 8 Fiber Optic Armored FTTH Drop Cable
Gyxtc8s 12cores G652D Aerial Figure 8 Fiber Optic Armored FTTH Drop Cable
Gyxtc8s 12cores G652D Aerial Figure 8 Fiber Optic Armored FTTH Drop Cable
1 / 5
Gyxtc8s 12cores G652D Aerial Figure 8 Fiber Optic Armored FTTH Drop Cable
Gyxtc8s 12cores G652D Aerial Figure 8 Fiber Optic Armored FTTH Drop Cable
Gyxtc8s 12cores G652D Aerial Figure 8 Fiber Optic Armored FTTH Drop Cable
Gyxtc8s 12cores G652D Aerial Figure 8 Fiber Optic Armored FTTH Drop Cable
Gyxtc8s 12cores G652D Aerial Figure 8 Fiber Optic Armored FTTH Drop Cable

Gyxtc8s 12cores G652D Aerial Figure 8 Fiber Optic Armored FTTH Drop Cable

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

ℹ️Basic Information

Model NO.:GYXTC8S
Material Shape:Figure 8
Lateral Pressure:>1000(N/100mm)
Tensile Strength:1000N - 10000N
Certification:RoHS, CE, ISO9001
Sheath Material:PE
Structure:Central Loose Tube
Fiber Counts:2-12 Core
Armor:Corrugated Steel Tape
Messenger:1.0mm*7 Stranded Wires
Package Size:100cm * 100cm * 75cm
Gross Weight:125.000kg

📝Product Description

GYXTC8S Aerial Figure 8 Central Loose Tube Outdoor Armored Optical Fiber Cable

The 2~12 fibers are positioned in a central PBT loose tube filled with tube gel. The cable core is filled with water-blocking compound and armored with corrugated steel tape (CST). Stranded steel wires serve as the messenger for self-supporting aerial installation. Finally, a figure-8 PE outer jacket is extruded.

Key Features:
  • Central Loose Tube structure
  • Figure-8 design for easy self-supporting installation
  • Small size, light weight, and high flexibility
  • Hydrolysis resistant loose tube
  • Tube gel for critical fiber protection
  • Corrugated steel tape (CST) for moisture-proofing

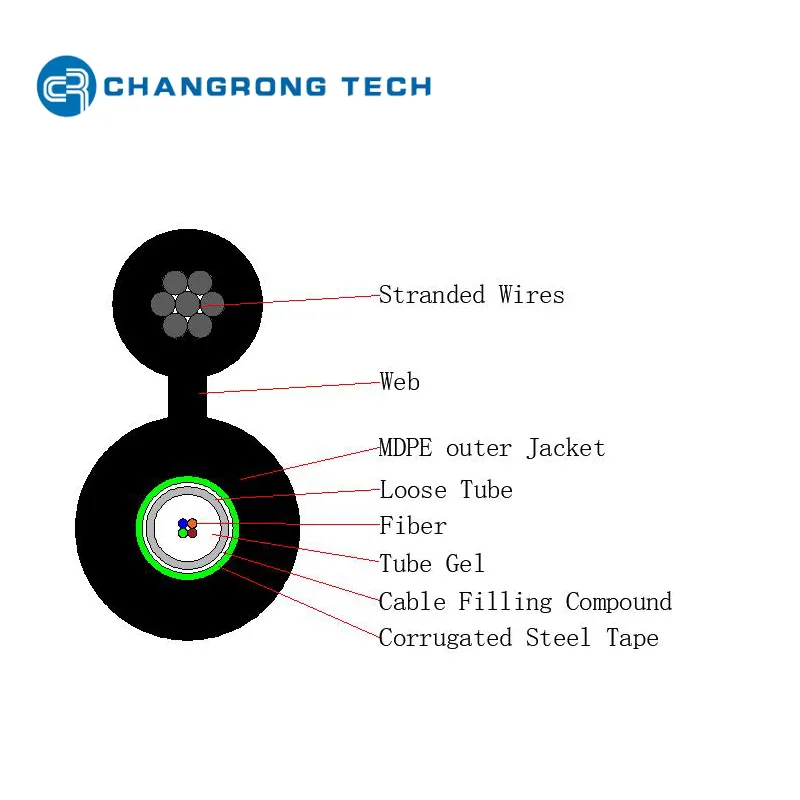

🔍Cross Section

GYXTC8S Cross Section

📊Technical Parameters

Item Value
Fiber Counts4
Fiber Counts/ Tube4
Tube MaterialPBT
Tube FillingThixotropic Jelly
OD of Tube2.6±0.1 mm
ArmorCorrugated Steel Tape
CableThickness of sheathNominal 1.5 mm MDPE
OD6.6mm±0.5mm
MessengerMaterialGalvanised Stranded Steel Wire
Diameter1.0mm (7 wires)
OD5.0±0.5mm
Total Height13.1±1.0 mm
Weight (±10kg)110 kg/km

📸Detailed Photos

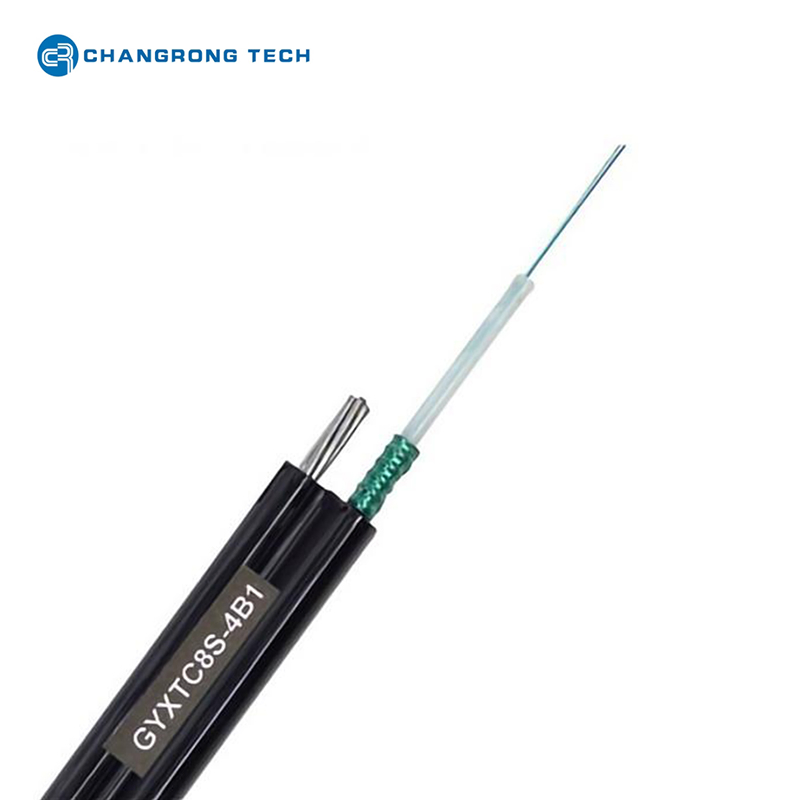

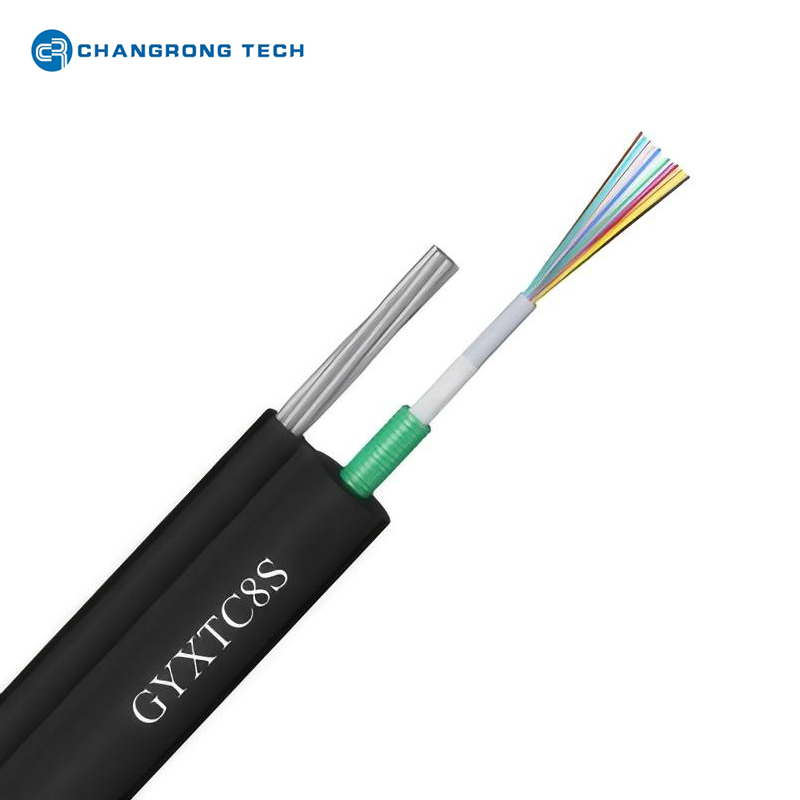

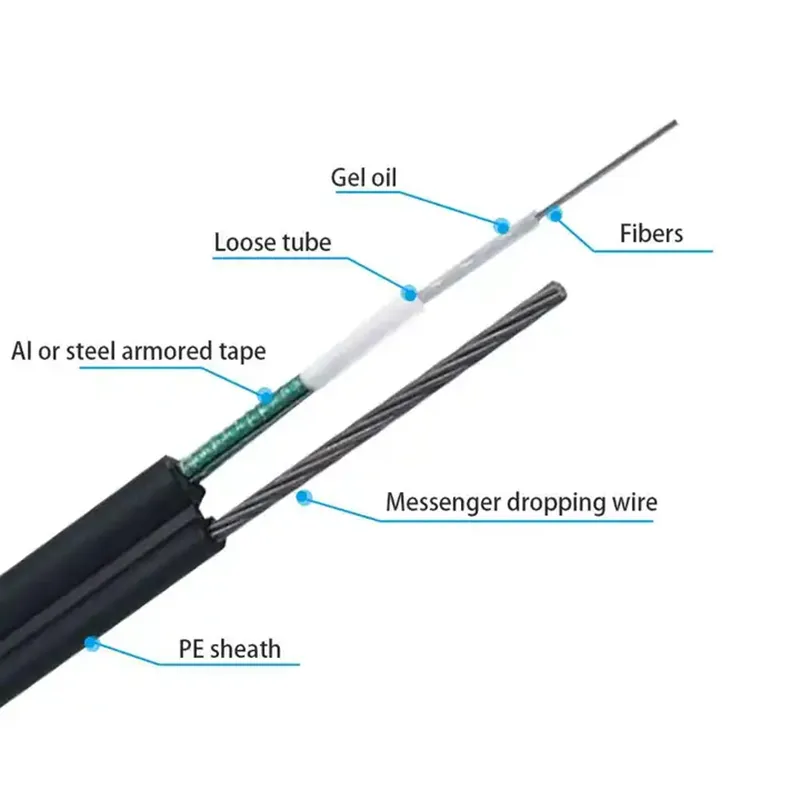

GYXTC8S Overview
Fiber Detail 1

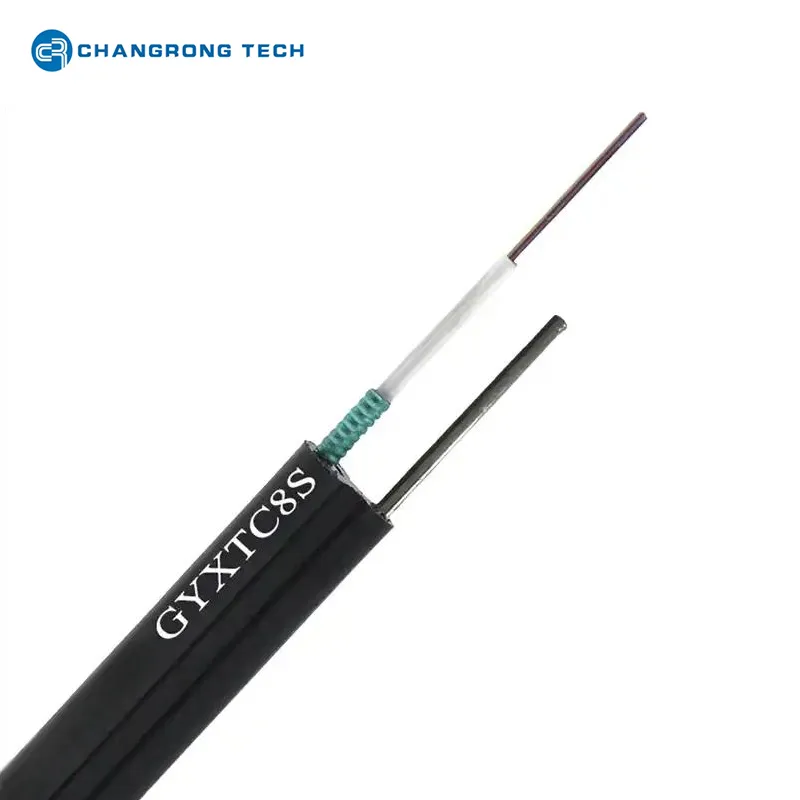

Fiber Detail 2

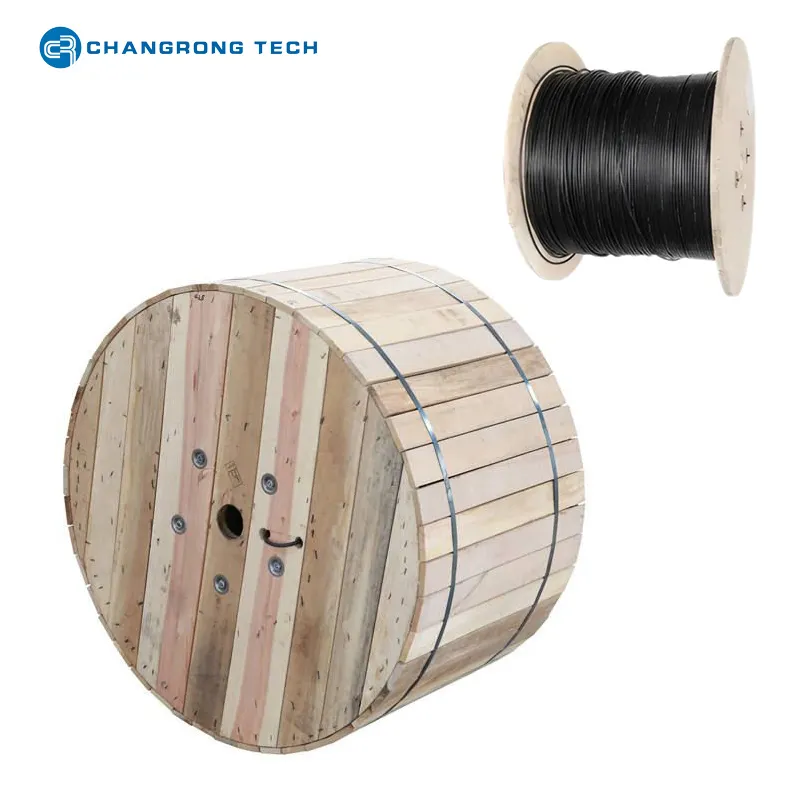

Cable Structure

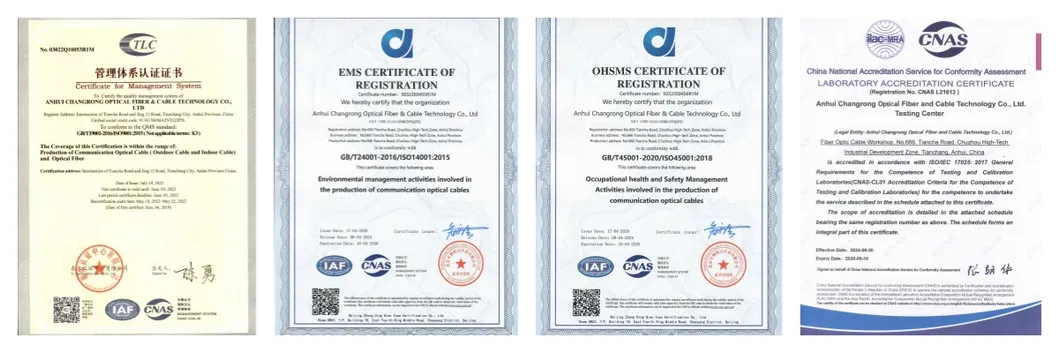

📜Certifications

ISO9001, ISO14001, ISO45001 Certified Factory | CNAS Certified Lab

Certifications Display

📦Packaging & Shipping

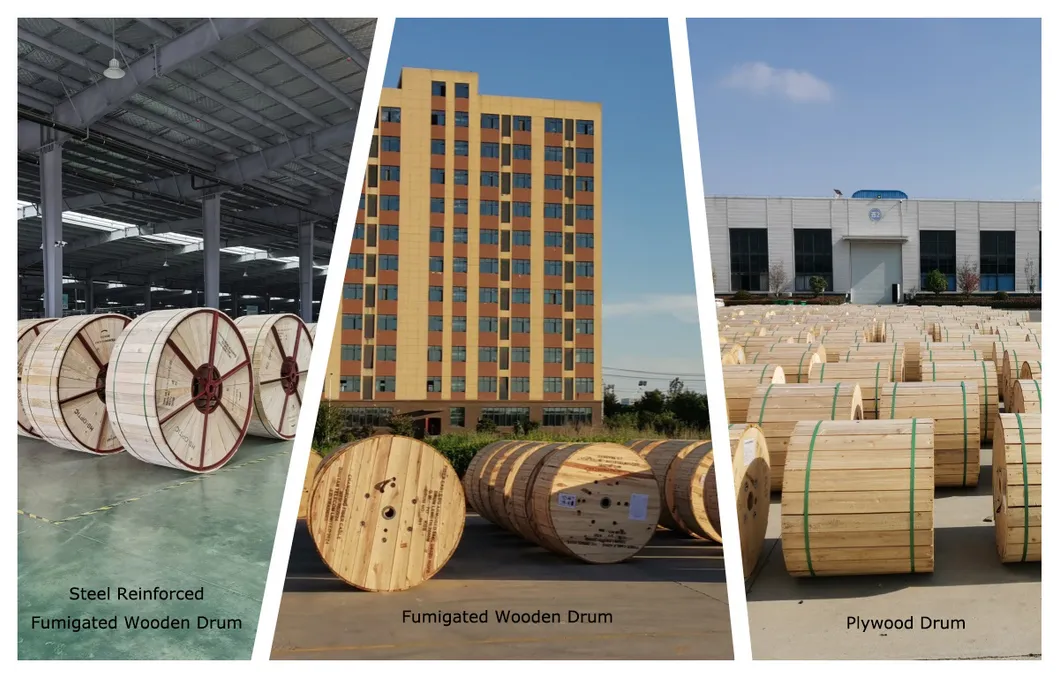

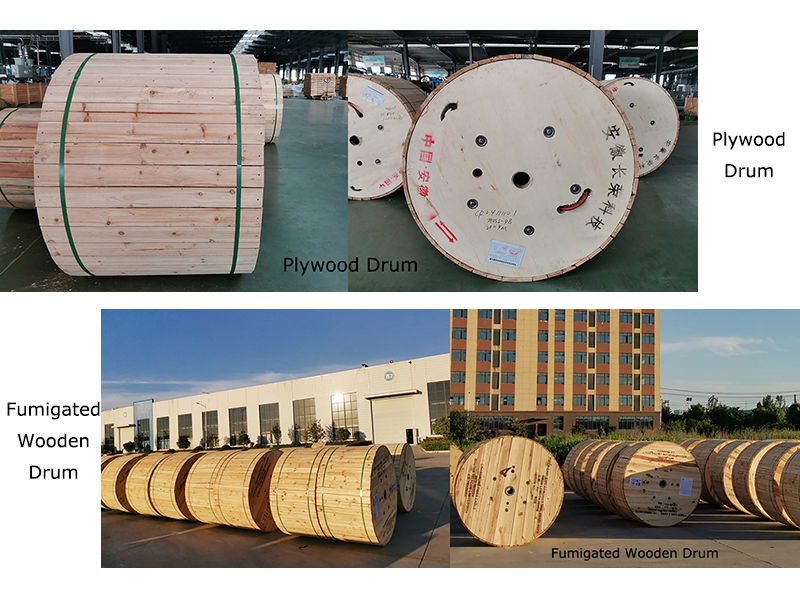

Drum Packing

Drum Packing

Shipping & Logistics

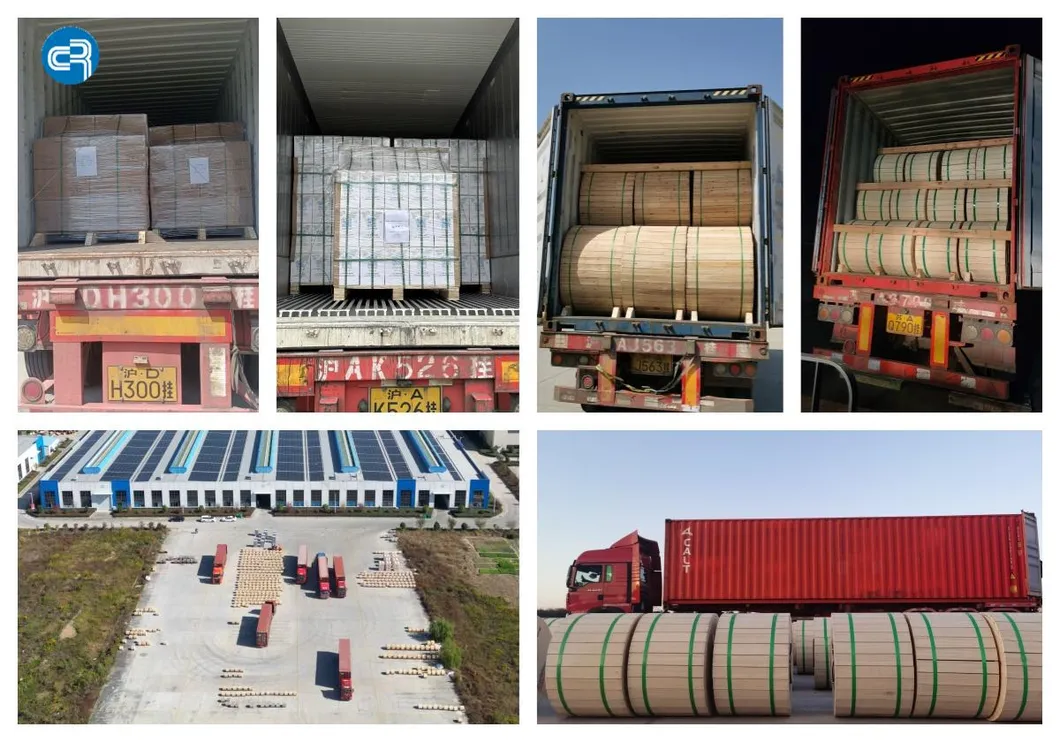

Shipping

🏭Production Workshop

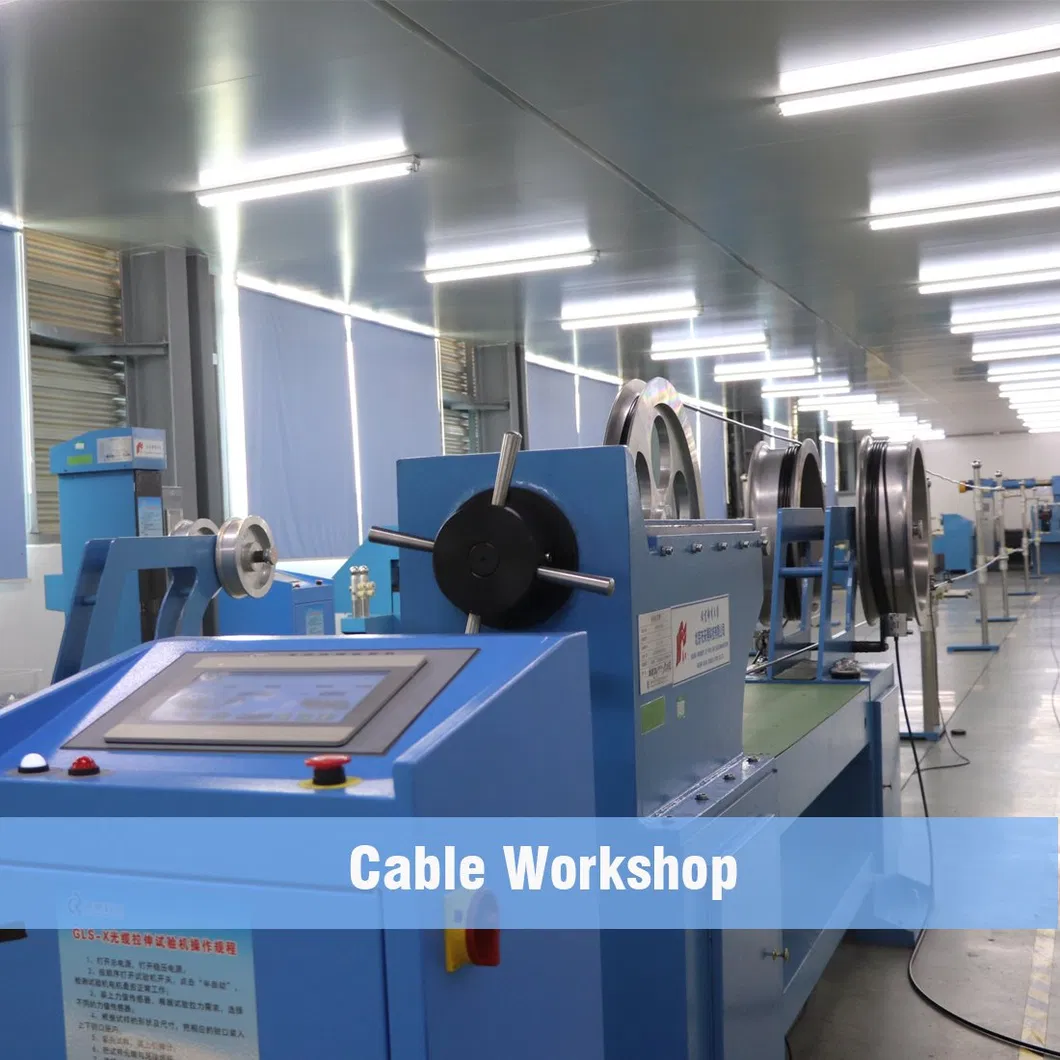

Workshop 1

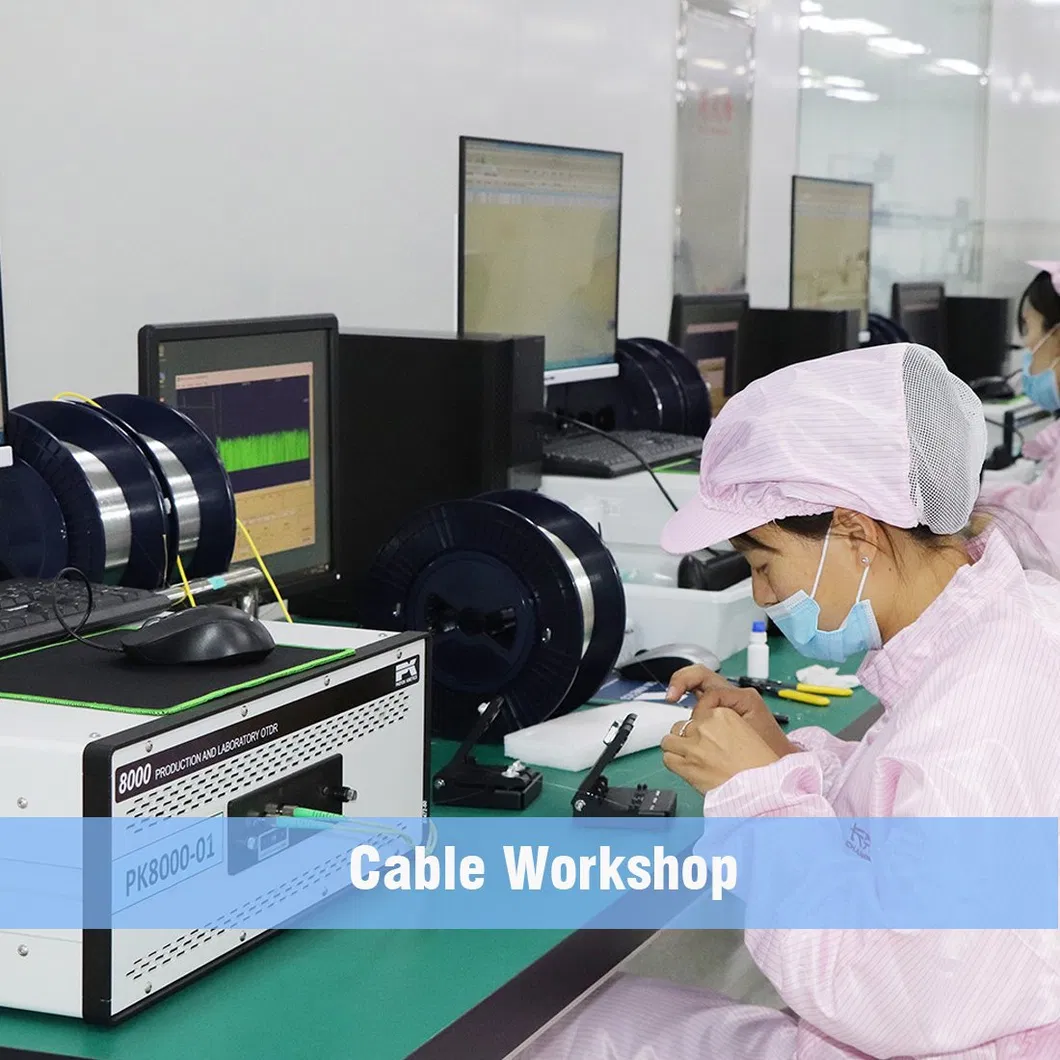

Workshop 2

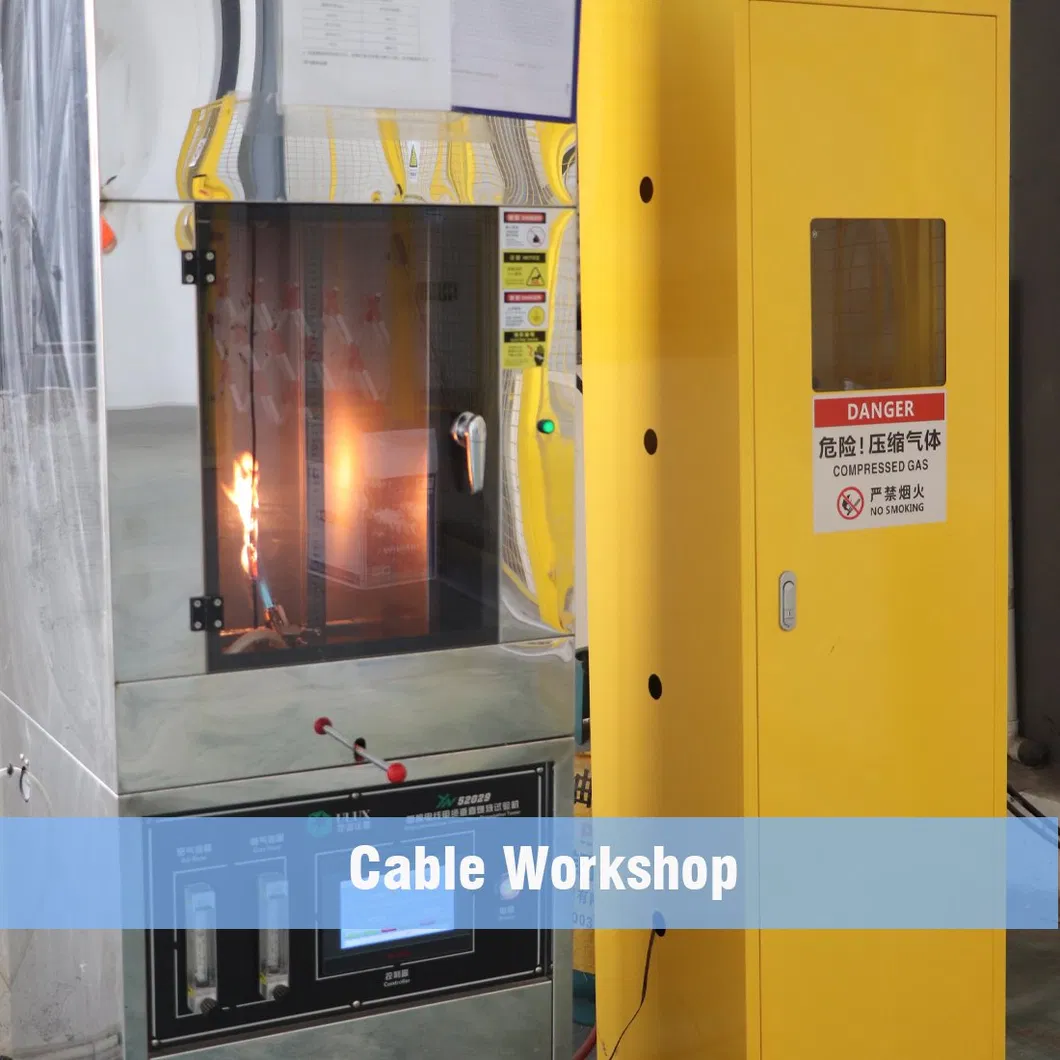

Workshop 3

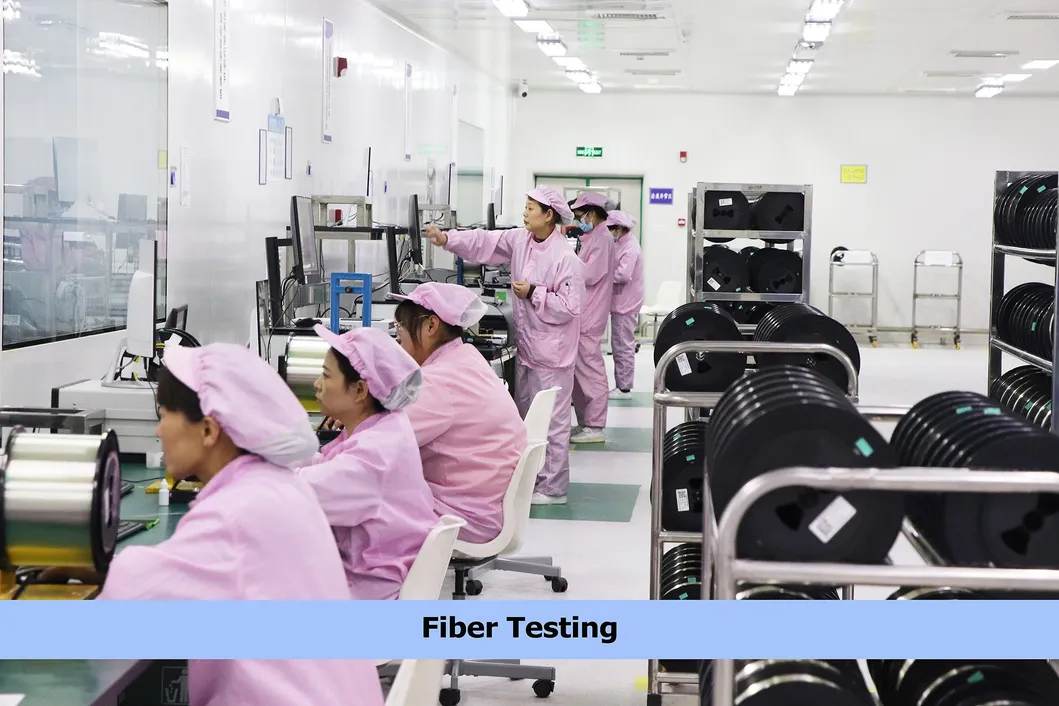

Workshop 4

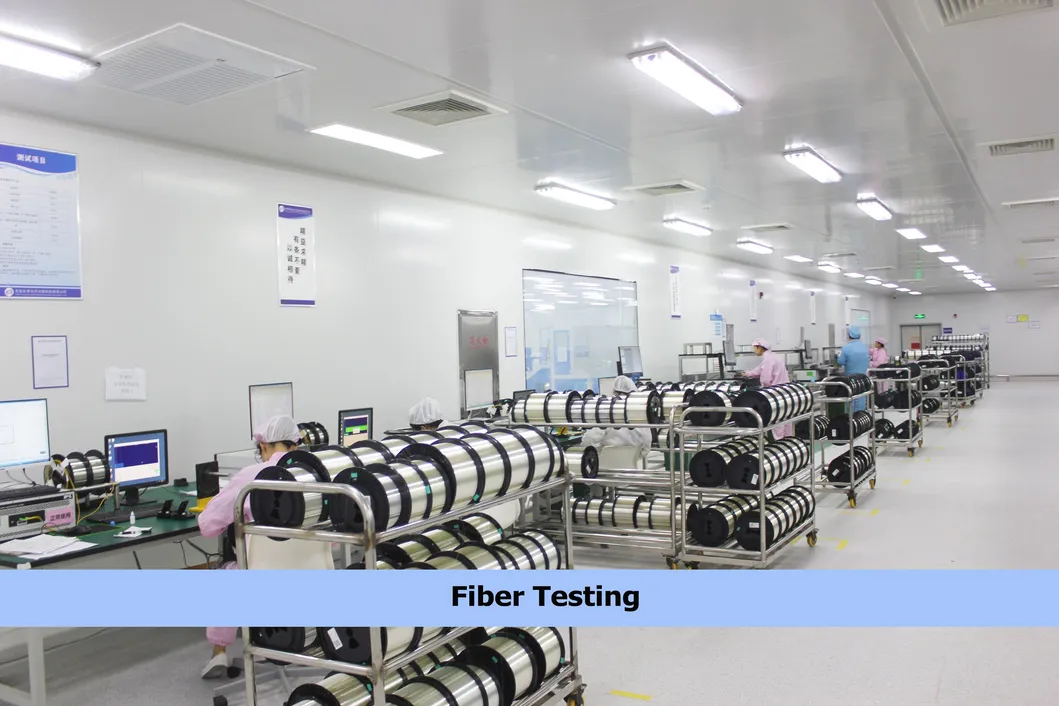

Workshop 5
Frequently Asked Questions
1. What is the main application of the GYXTC8S fiber cable?
The GYXTC8S cable is primarily designed for self-supporting aerial installations, specifically for aerial access and FTTH drop cable applications.
2. Why is it called a "Figure-8" cable?
The "Figure-8" refers to the cross-sectional shape of the cable, where the optical fiber unit and the steel messenger wire are integrated under a single PE jacket, resembling the number 8.
3. What kind of protection does the corrugated steel tape (CST) provide?
The CST armor provides excellent moisture resistance and enhances the cable's mechanical protection against lateral pressure and rodent damage.
4. Can I customize the fiber count for this cable?
Yes, the GYXTC8S series typically supports fiber counts ranging from 2 to 12 cores to meet different network requirements.
5. Is the outer jacket UV resistant?
Yes, the outer jacket is made of high-quality Polyethylene (PE), which provides excellent resistance to UV radiation and outdoor environmental stress.
6. What certifications does your manufacturing process hold?
Our production facilities are fully certified under ISO9001, ISO14001, and ISO45001 standards, with products meeting RoHS and CE requirements.
