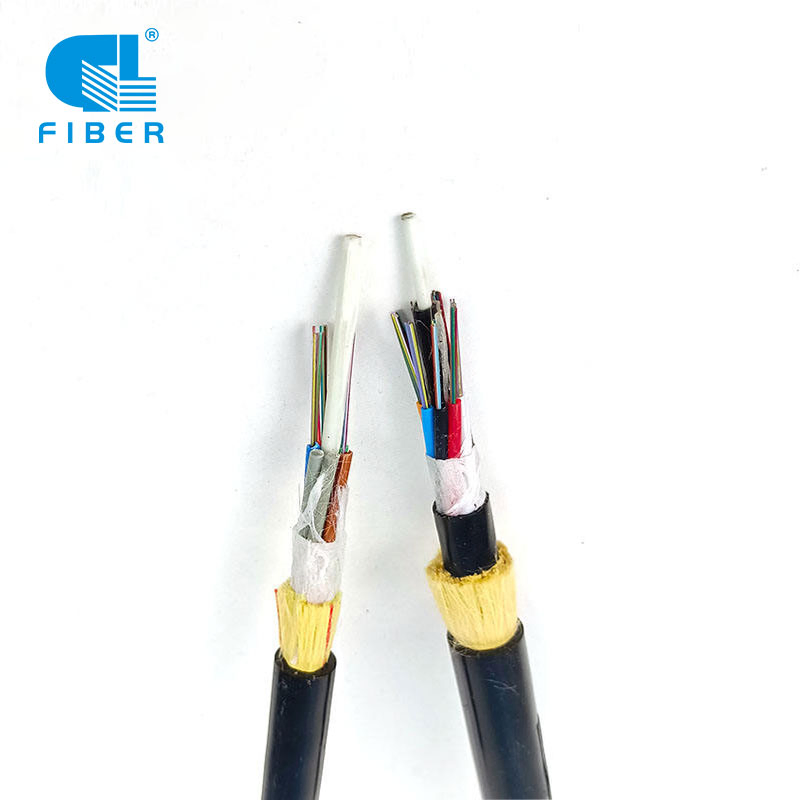

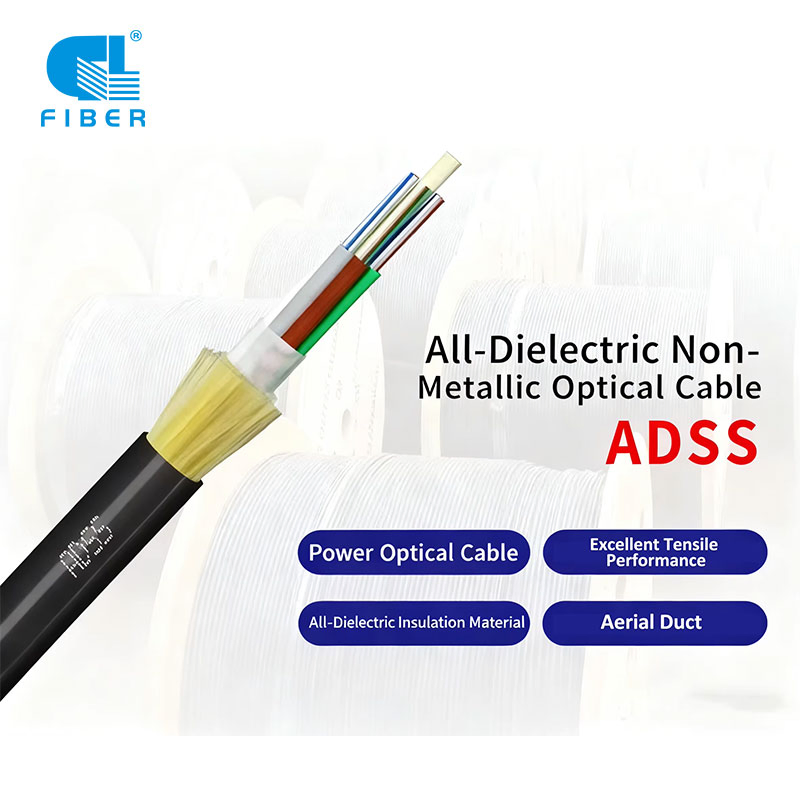

Non-Armored Outdoor Overhead Span 100m ADSS Optical Cable 3KN Aerial Fiber Optic Cable

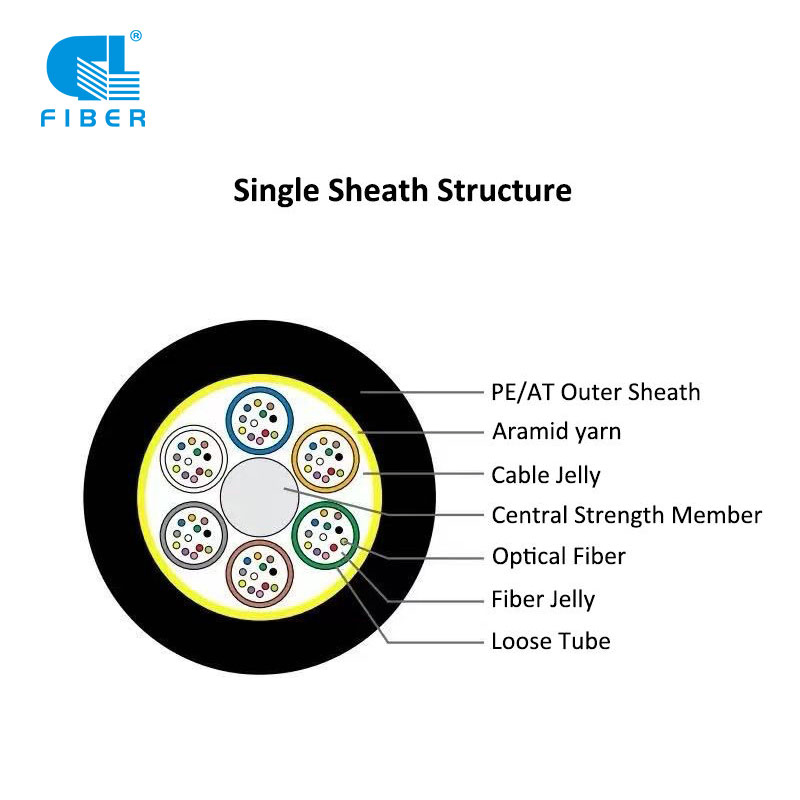

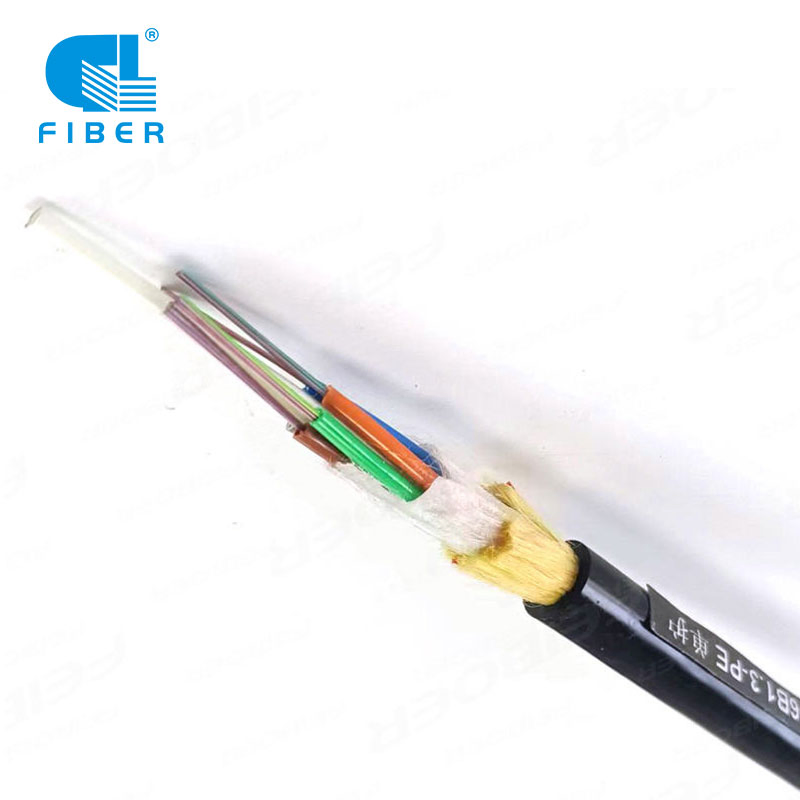

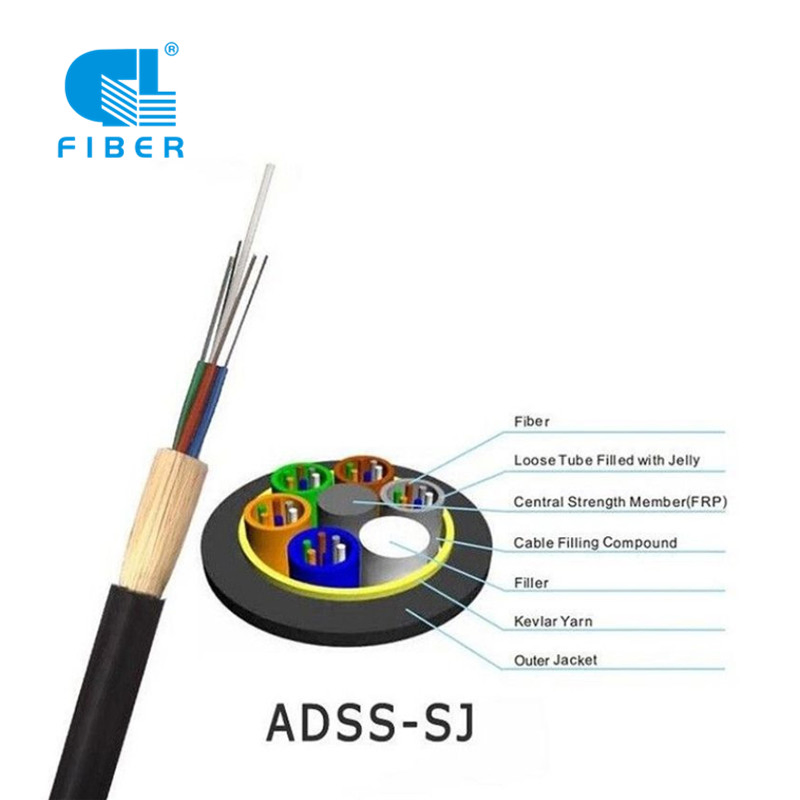

ADSS fiber optical cable is loose tube stranded. Fibers, 250μm, are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound, it is covered with a stranded layer of aramid yarns and the cable is completed with a PE outer sheath.

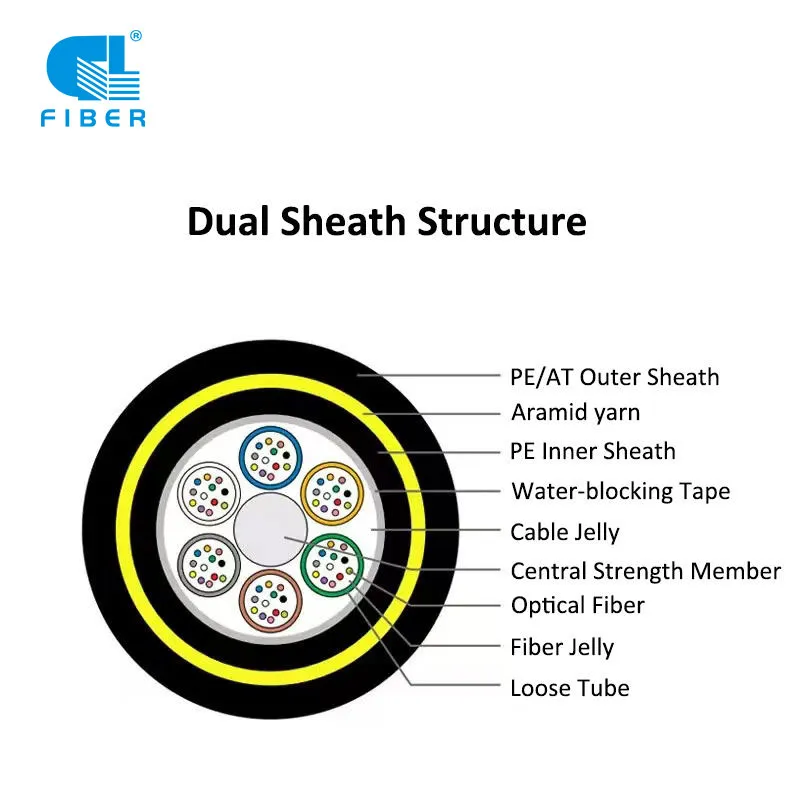

For overhead power lines under 110kV, PE outer sheath is applied. For power lines equal to or over 110kV, AT outer sheath is applied. The dedicated design of aramid quantity and stranding process can satisfy the demand for various spans.

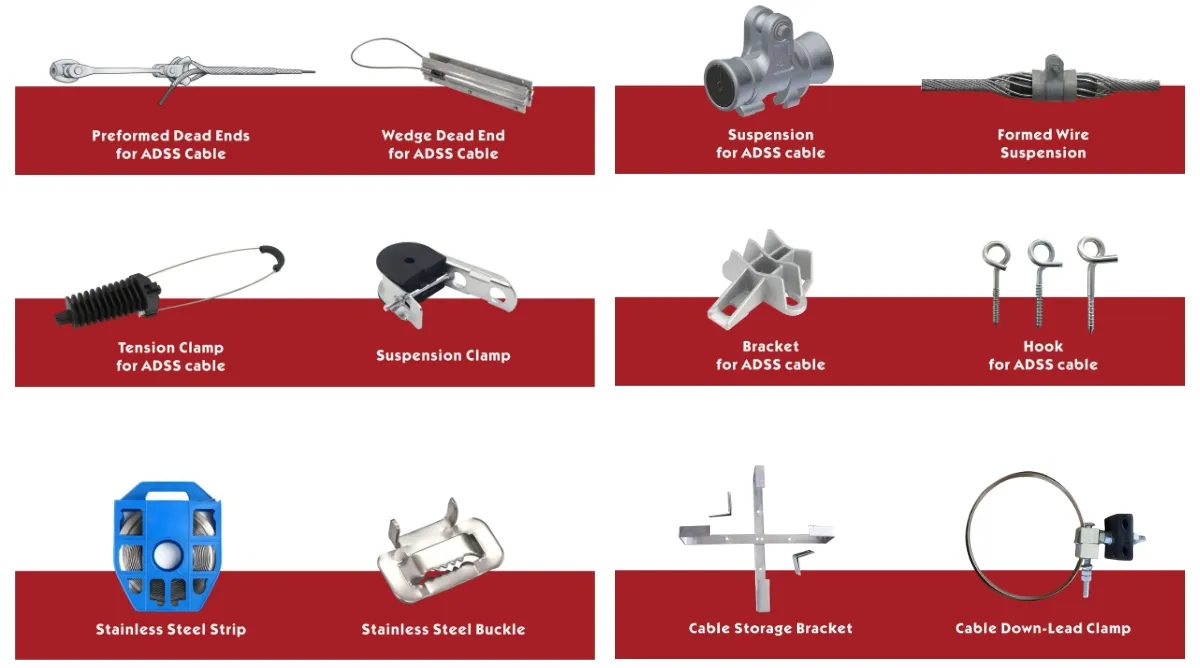

The cables can only be installed in a reliable way with the right tools:

• Dead-End Clamps: Addressing modification of cable ends and tension.
• Suspension Clamps: Hanging on the cable safely.
• Anchor Clamps: Firming cables into poles or towers.
• Anti-Vibration Devices: For wind-induced oscillation protection.

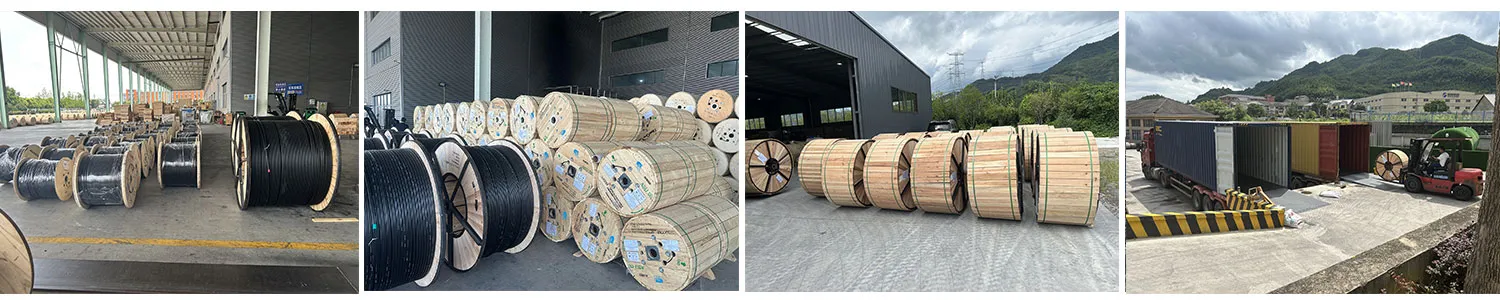

Packing: Wooden drums (1km/ 2km/ 3km/ 4km/ 5km per drum)

Lengths: tolerance ±1% (Customized drum lengths available on request)

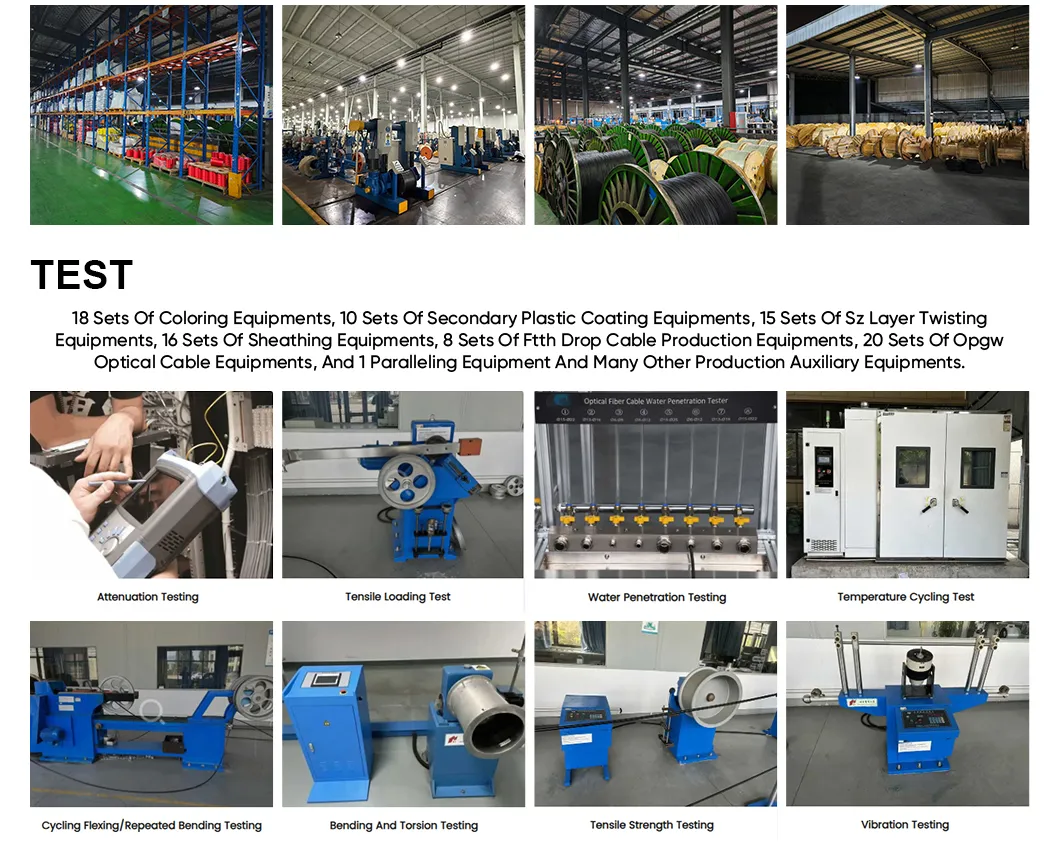

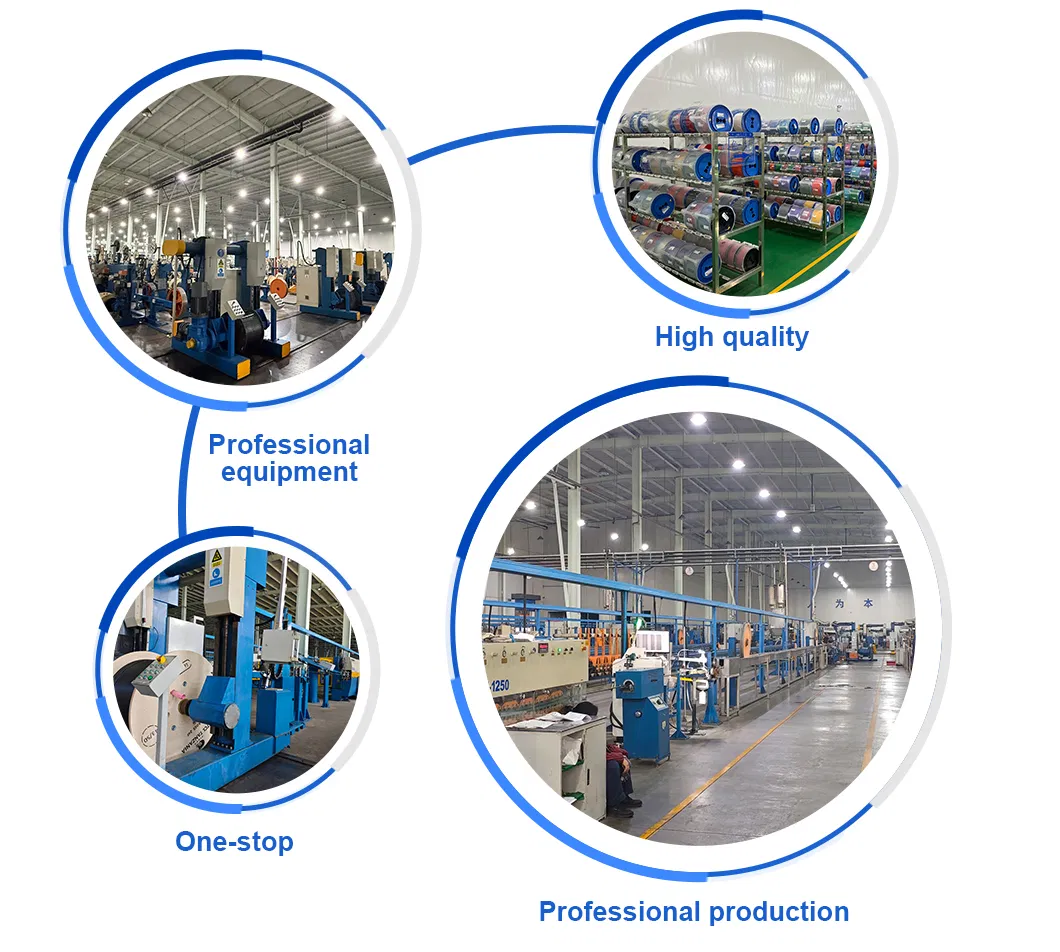

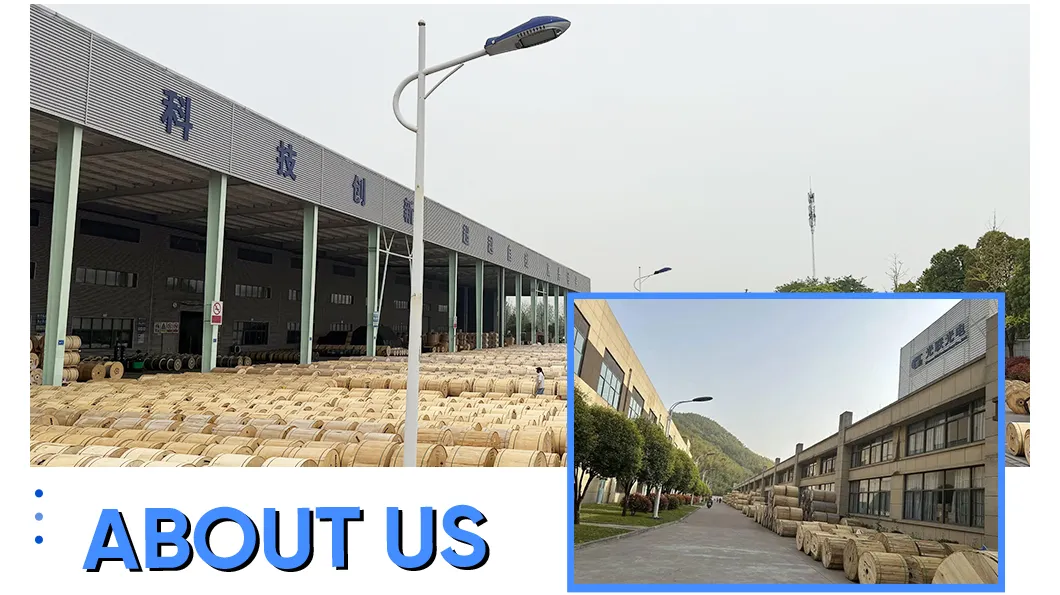

With over 21 years of experience as a leading manufacturer of fiber optic cables and accessories, the factory operates with over 550 employees. 70% of the team belongs to the technical and research departments, ensuring high creativity and professional expertise.

Quality systems are certified to ISO 9001:2015, ensuring a perfect quality control system and reliable products for both domestic and overseas markets.
