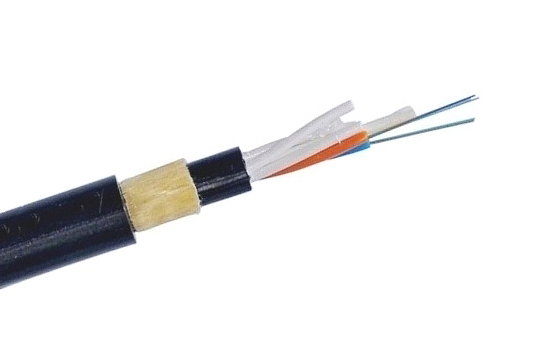

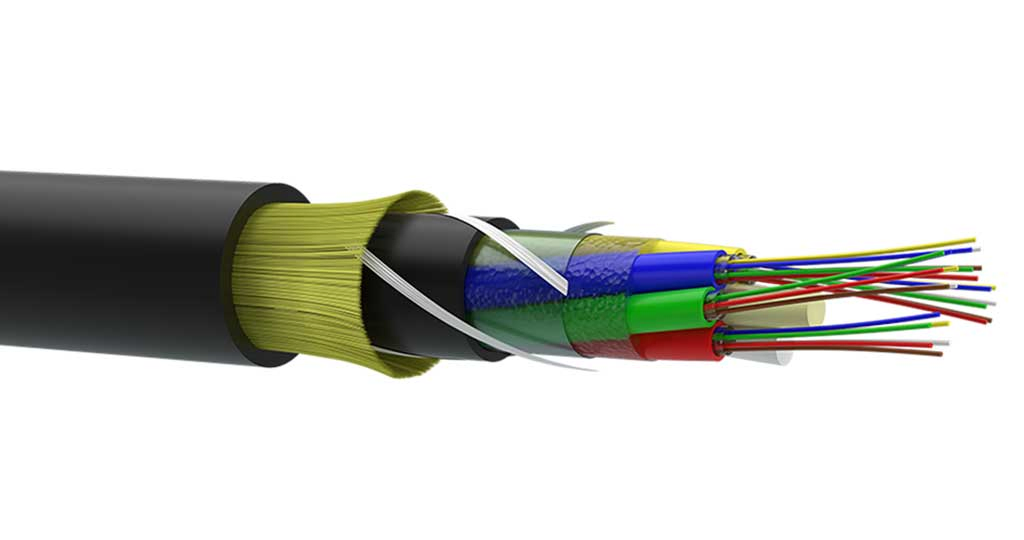

Outdoor Aerial Single/Double Jacket 6-144core G652D Span 100m ADSS Fiber Optic Cable
Outdoor Aerial Single/Double Jacket 6-144core G652D Span 100m ADSS Fiber Optic Cable
Outdoor Aerial Single/Double Jacket 6-144core G652D Span 100m ADSS Fiber Optic Cable
Outdoor Aerial Single/Double Jacket 6-144core G652D Span 100m ADSS Fiber Optic Cable
Outdoor Aerial Single/Double Jacket 6-144core G652D Span 100m ADSS Fiber Optic Cable
1 / 5
Outdoor Aerial Single/Double Jacket 6-144core G652D Span 100m ADSS Fiber Optic Cable
Outdoor Aerial Single/Double Jacket 6-144core G652D Span 100m ADSS Fiber Optic Cable
Outdoor Aerial Single/Double Jacket 6-144core G652D Span 100m ADSS Fiber Optic Cable
Outdoor Aerial Single/Double Jacket 6-144core G652D Span 100m ADSS Fiber Optic Cable
Outdoor Aerial Single/Double Jacket 6-144core G652D Span 100m ADSS Fiber Optic Cable

Outdoor Aerial Single/Double Jacket 6-144core G652D Span 100m ADSS Fiber Optic Cable

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.
ADSS
Connection Structure
SC
Material Shape
Round Wire
Tensile Strength
100N < 1000N
Core Count
2 Cores to 288 Cores
Certification
RoHS, CE, ISO9001
Sheath Material
HDPE
Style
Single Jacket & Double Jacket
Fiber Type
G652D, G657A1/A2, OM1-OM5
Production Capacity
50000m/Day
Product Overview

Outdoor Aerial Single/Double Jacket 6-144Core G652D Span 100m ADSS Fiber Optic Cable

All Dielectric Self-Supporting (ADSS) Fiber Optic Cable is designed with a loose tube stranded structure. Bare fibers (200um or 250um) are positioned into a loose tube made of high modulus plastics, filled with a water-resistant compound. The tubes are stranded around a non-metallic FRP (Fiber Reinforced Plastic) central strength member. After being covered with a thin PE inner sheath and layers of aramid yarns, the cable is completed with an outer PE or AT (anti-tracking) sheath.

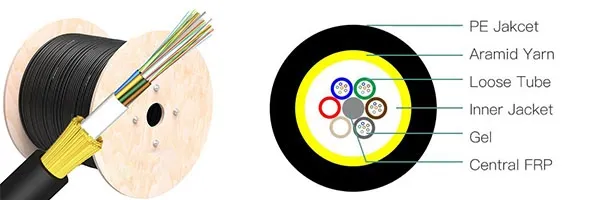

ADSS Fiber Optic Cable Structure
Key Features & Applications
  • ✓ S-Z stranded design (up to 288 fibers)
  • ✓ Suitable for distribution and high voltage transmission lines
  • ✓ Aramid yarn provides excellent tensile strength
  • ✓ All dielectric structure: protection from electromagnetic influence
  • ✓ Low attenuation and dispersion for perfect mechanical properties
  • ● Long distance telecom and LAN in high voltage areas
  • ● Access to telecom networks
  • ● Power transmission systems with high thunder frequency
  • ● Areas with high electro-magnetic interference

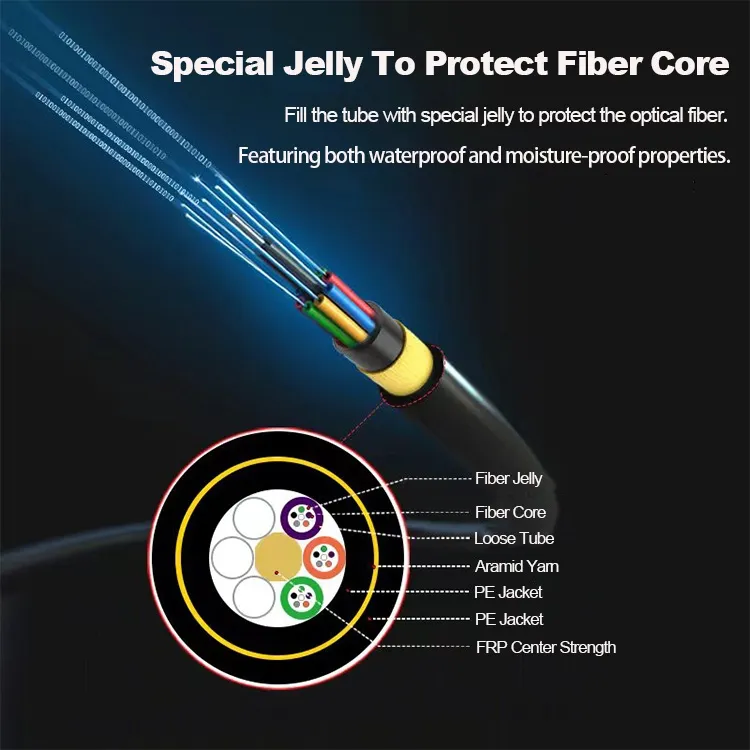

Fiber Detail

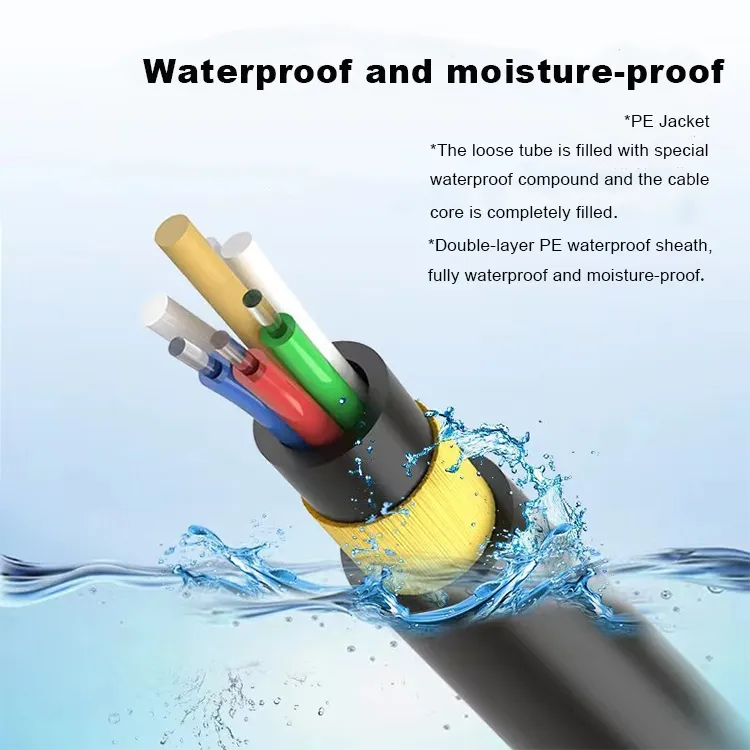

Cable Cross Section

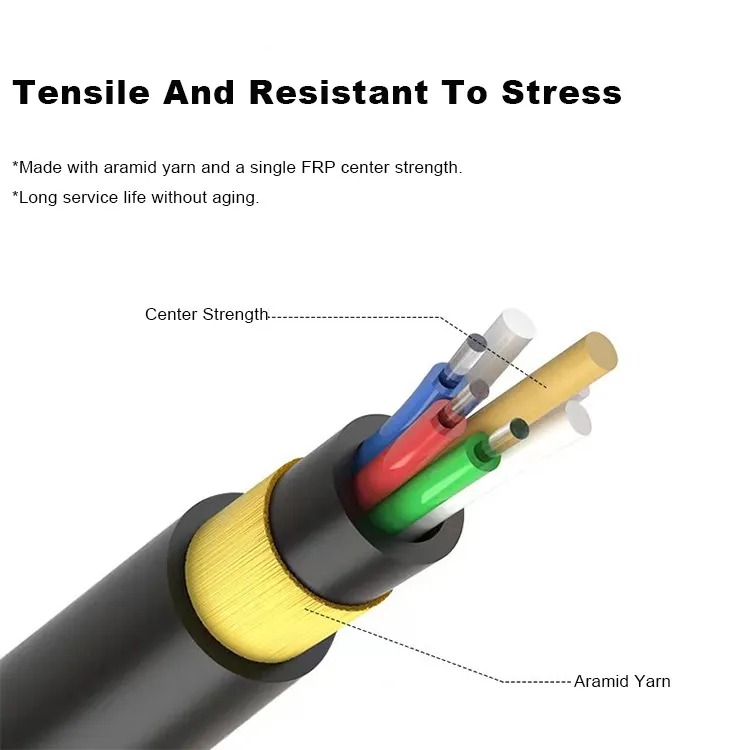

Outdoor Installation

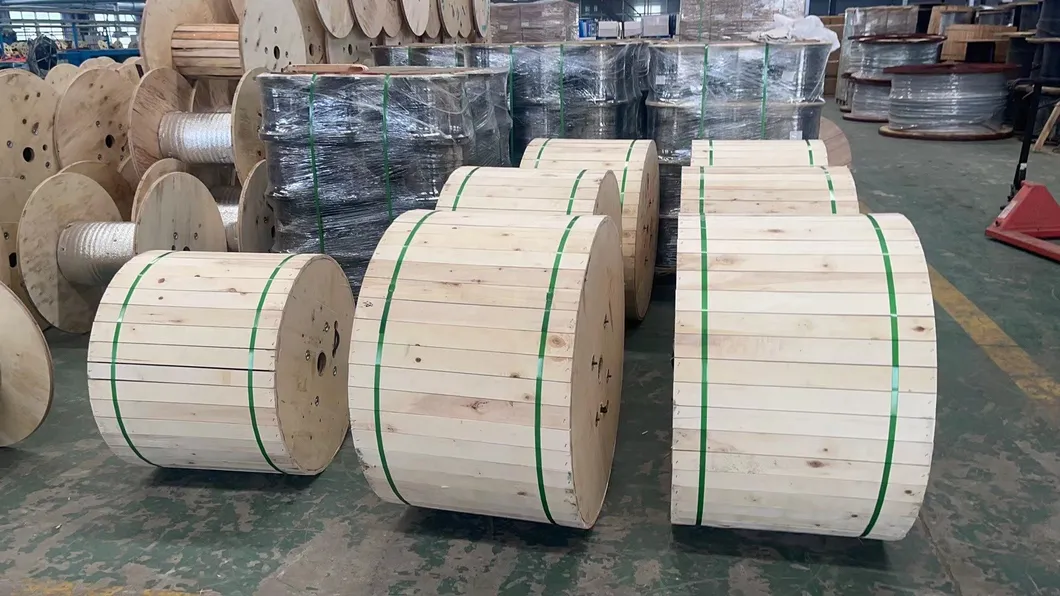

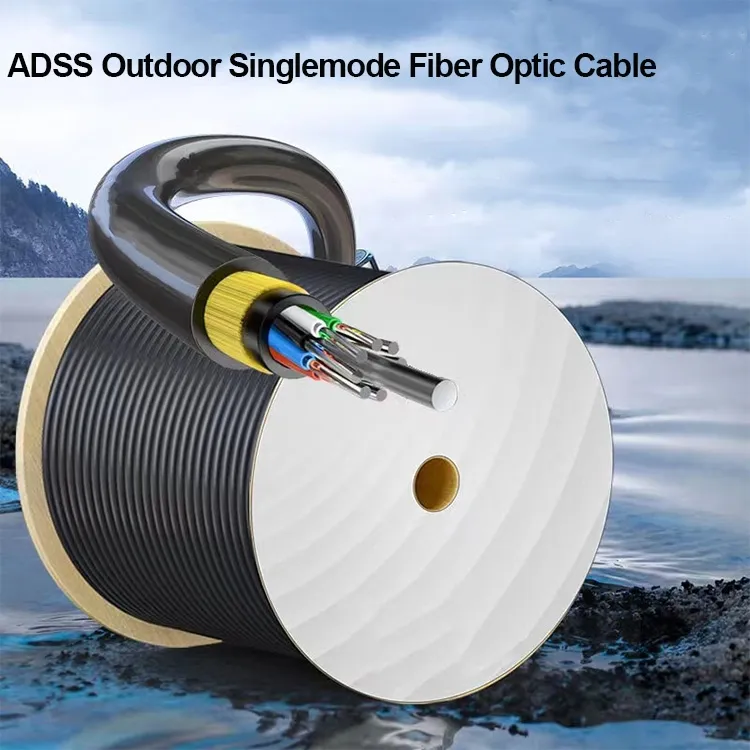

Drum Packaging

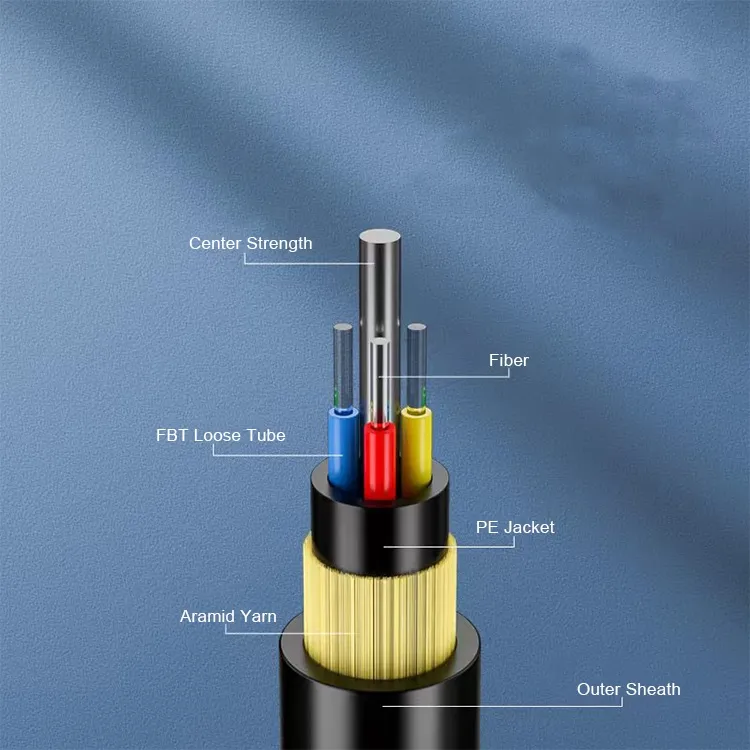

Fiber Core

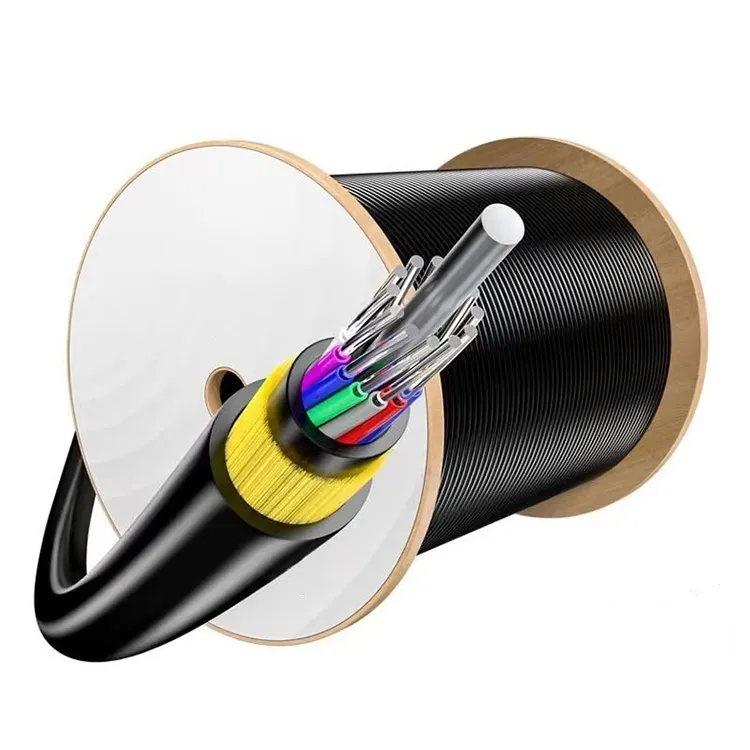

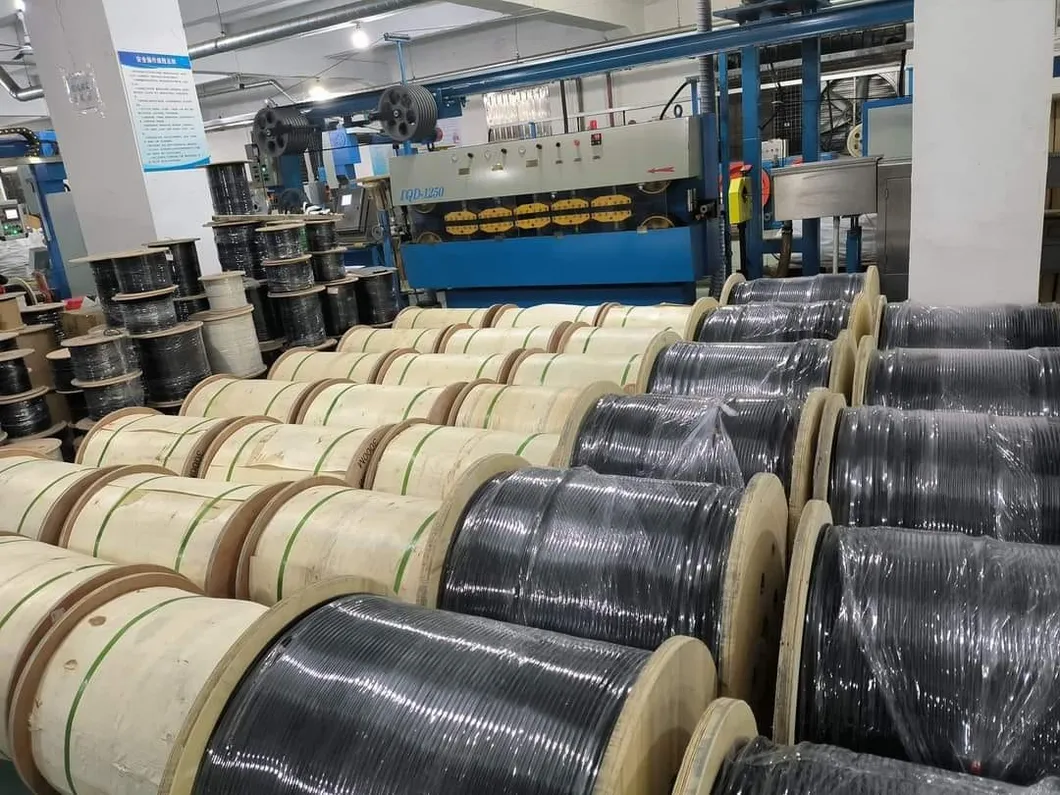

ADSS Spool
Technical Parameters
Outer Diameter (mm) Weight (kg/km) Max Working Tension (KN) Break Strength (KN) Suitable Span (m)
PE Sheath AT Sheath Condition A Condition B
12.5125136410160100
13.0132142615230150
13.61451561024370250
14.51641771536480320
15.51902042660750530
16.8226242411031000750
Requirements for Order
  • 1 Fiber Sort: Single mode (G652D, G657A1/A2) or Multi mode (OM1, OM2, OM3, OM4).
  • 2 Jacket Material: PE or LSZH available upon request.
  • 3 Color Coding: Fiber and tube colors can be customized according to requirements.
  • 4 Cable Length: Standard 2KM/drum, customizable.
  • 5 Temperature: Storage/Operating Range from -40ºC to +70ºC.
Frequently Asked Questions
What is ADSS fiber optic cable?
ADSS (All-Dielectric Self-Supporting) cable is a type of optical fiber cable that is strong enough to support itself between structures without using conductive metal elements. It is designed for aerial installation on distribution and transmission lines.
What core counts are available for this cable?
Our ADSS cable supports a wide range of fiber counts, from 2 cores up to 288 cores, catering to various network capacities.
What is the difference between PE and AT sheaths?
PE (Polyethylene) is the standard outer sheath for normal environments. AT (Anti-Tracking) sheath is specifically designed for high-voltage environments to prevent electrical tracking on the cable surface.
What is the maximum span distance for ADSS cable?
The span distance depends on the cable design and environment. We offer solutions for spans starting from 100 meters up to 1000 meters or more, depending on the tensile strength and technical requirements.
Is ADSS cable resistant to lightning and electromagnetic interference?
Yes, because it is "All-Dielectric" (contains no metal), it is immune to electromagnetic interference and is safer for installation in areas with high lightning activity or near high-voltage power lines.
What are the storage and operating temperature limits?
The cable is designed to perform reliably in a temperature range from -40ºC to +70ºC, making it suitable for most outdoor environmental conditions.
