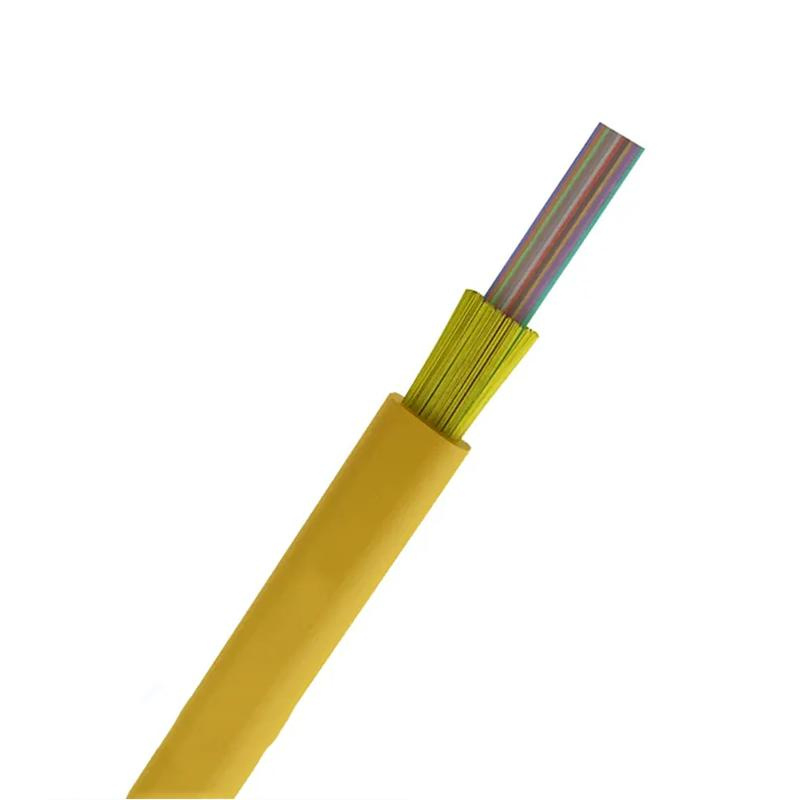

Gjdfb 6 Core PVC Jacket Exactcable Indoor Flat Fiber Ribbon Cable

1 / 5

Gjdfb 6 Core PVC Jacket Exactcable Indoor Flat Fiber Ribbon Cable

Customization:	Available
Type:	Fiber Optic Cable
Wiring Devices:	No

Send Inquiry

Product Description

ℹ️

Basic Info

Model NO.

GJDFB

Certification

CE, ISO, RoHS, GS

Condition

New

Use

Telecommunication Networks

Insertion Loss

0.3dB

Return Loss

50dB

Stable Operation

-40~+80c

Fiber Mode

Gjdfb

Bending Radius

20d/10d

Specification

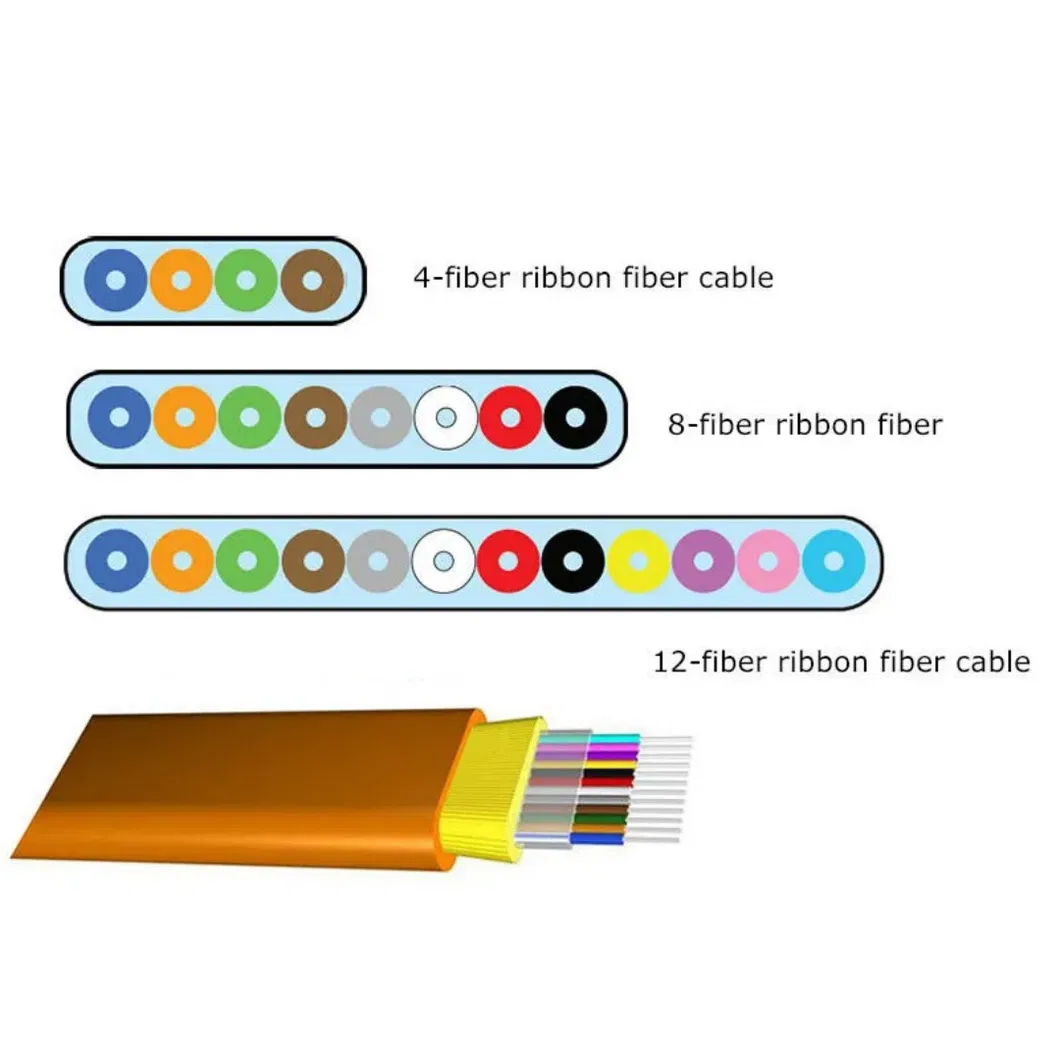

2/4/6/8/10/12 Cores

📦

Product Overview

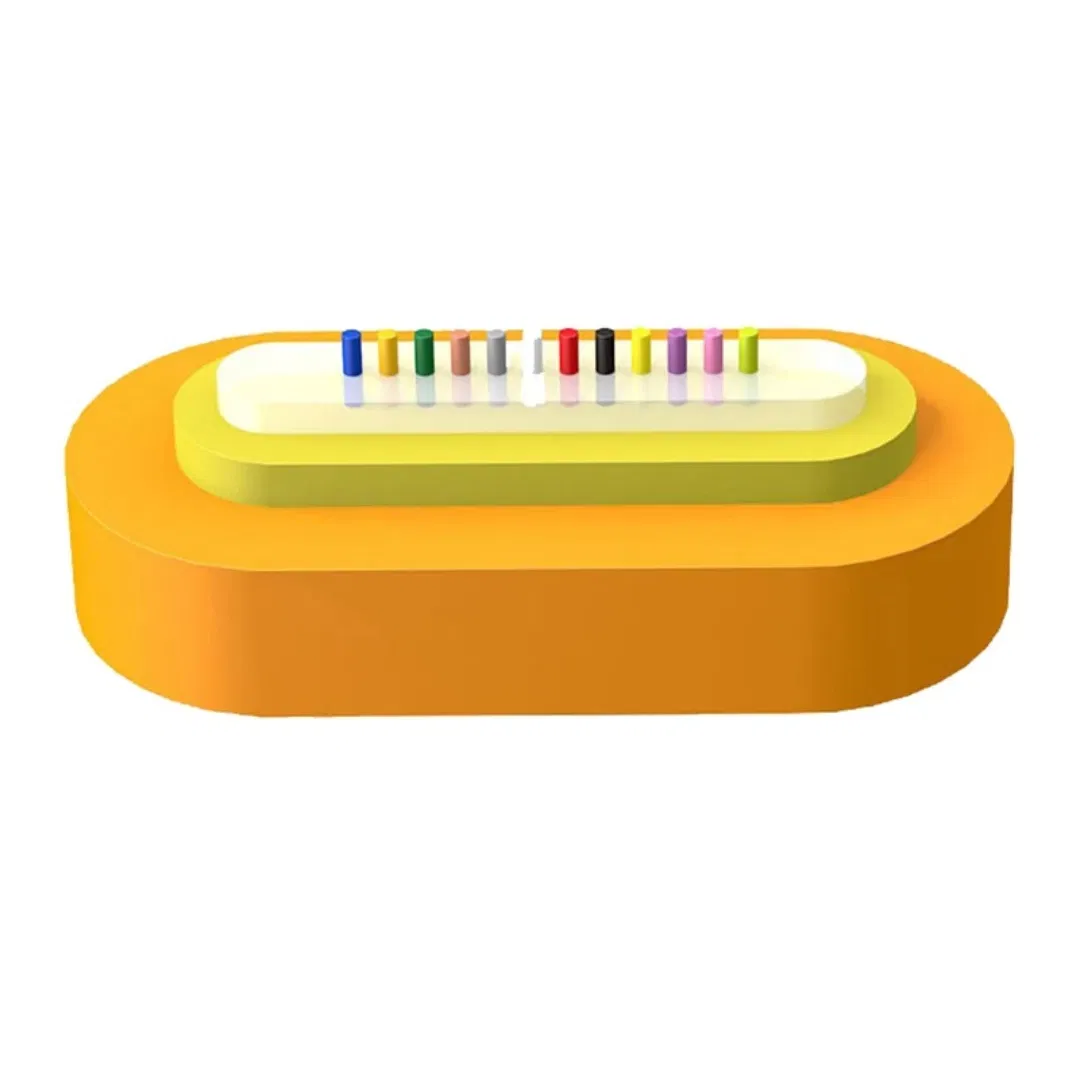

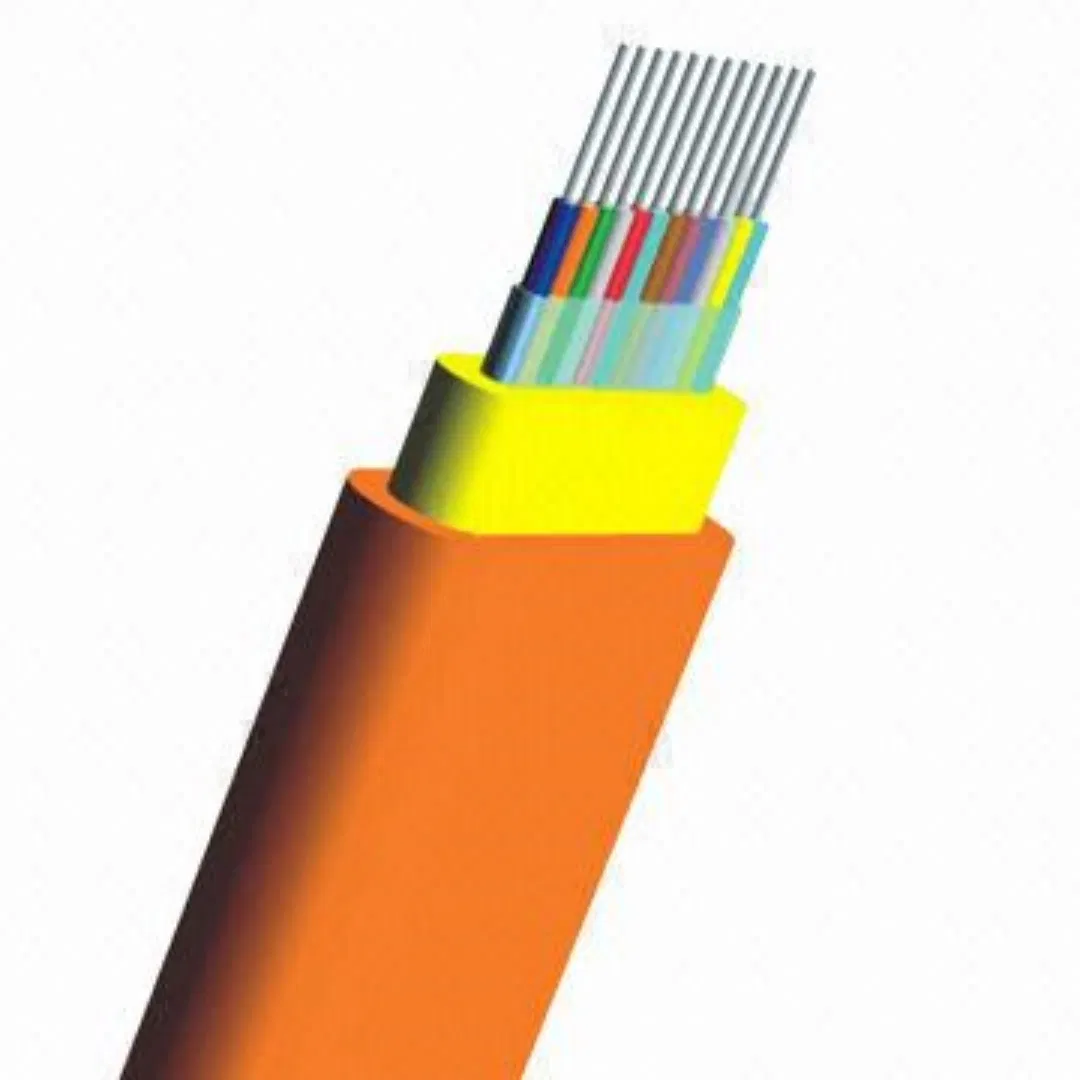

12 Core Singlemode GJDFB Indoor Flat Fiber Optic Ribbon Cable

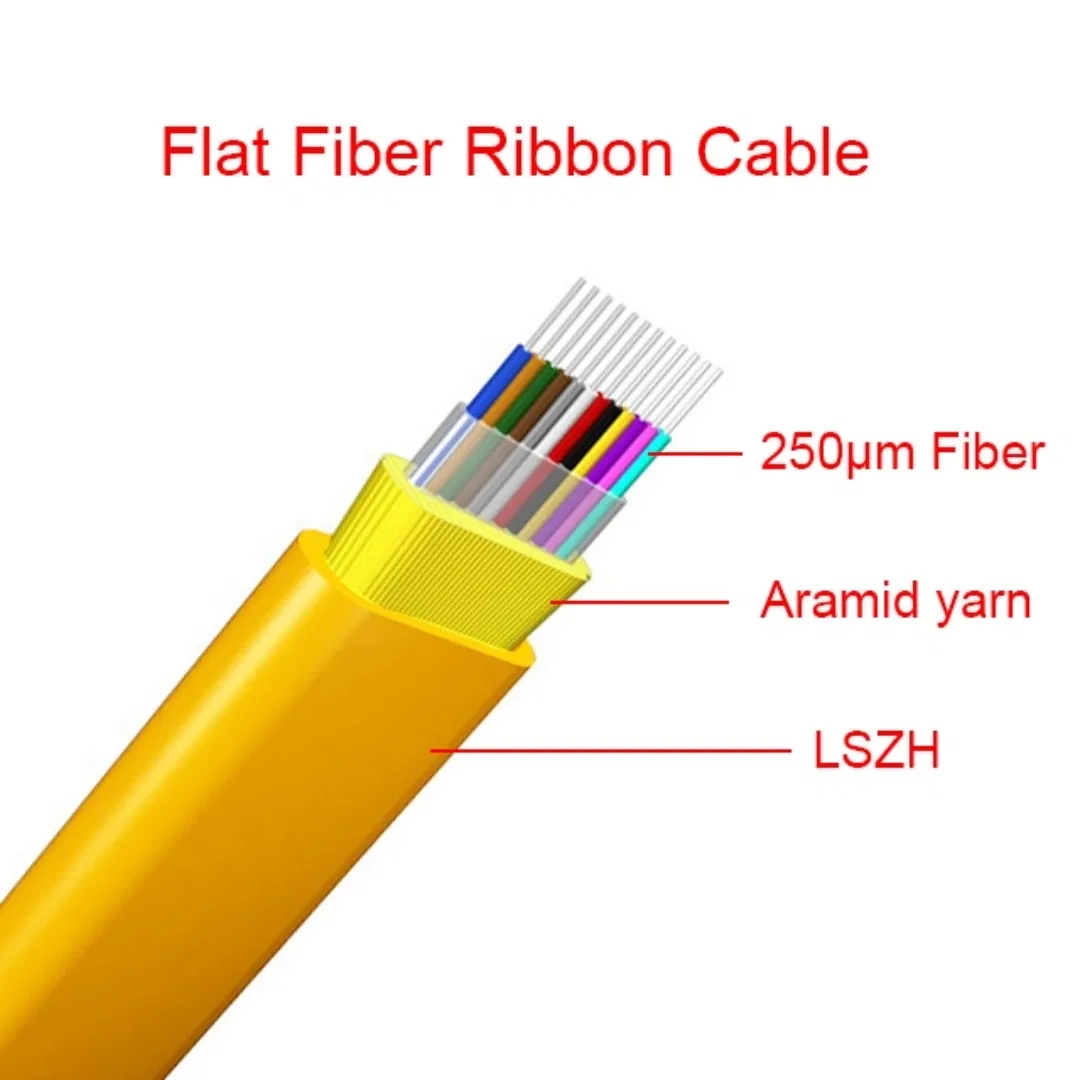

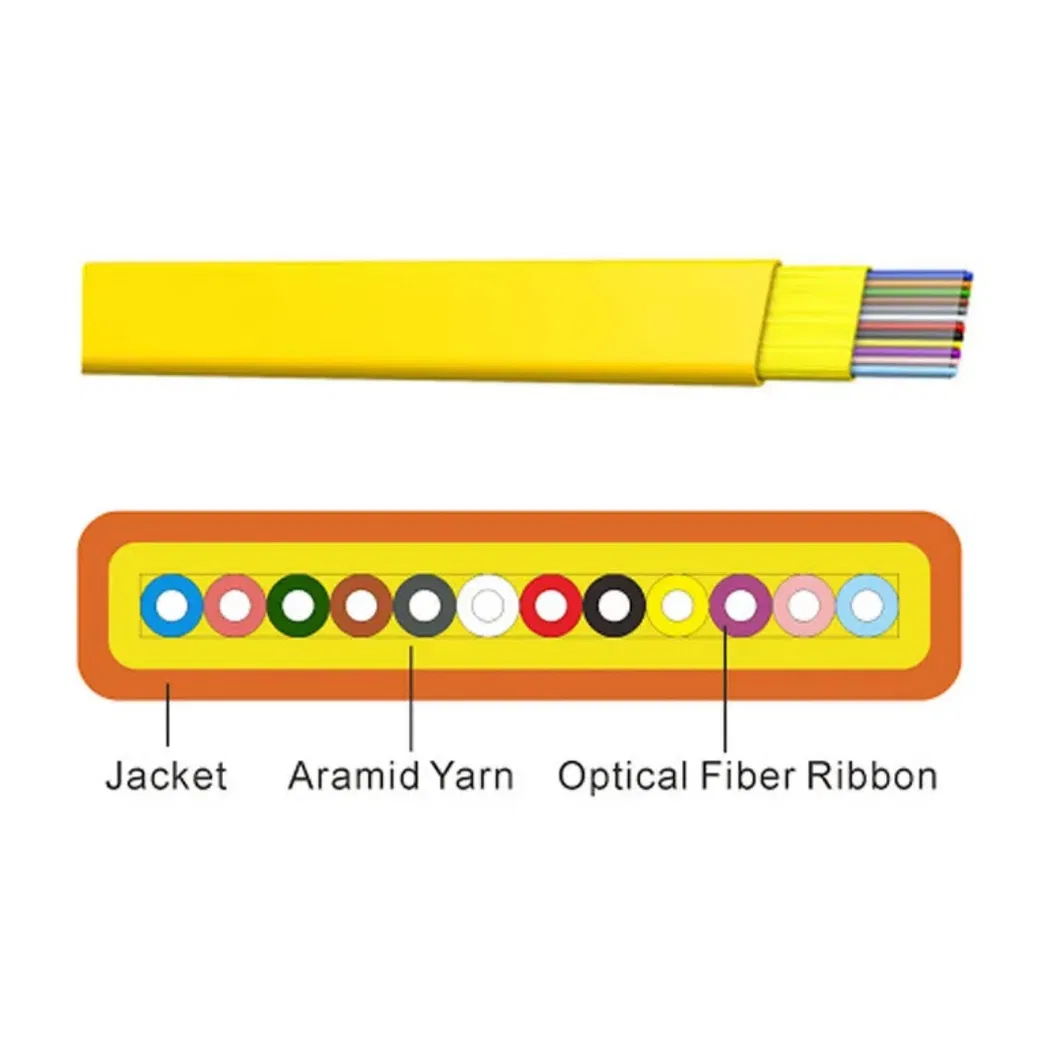

The flat fibre ribbon cable uses fibre ribbon as the optical transmission medium, covered with aramid yarn as a strength member, then extruded with a PVC sheath. Other sheath materials, such as LSZH and TPU, are available on request.

⭐

Key Features

✓ Aramid yarn strength member ensures excellent tensile strength.
✓ Compact structure with high fiber density and flexibility.
✓ Excellent crush resistance and bending radius.
✓ Jacket is anti-corrosion, anti-water, and flame-retardant.
✓ Easy to peel off for efficient installation.

📊

Technical Parameters

ITEM	Value
Max. Tensile Load (Short Term)	500N
Max. Tensile Load (Long Term)	100N
Max. Crush Load (Short Term)	500N/100mm
Max. Crush Load (Long Term)	100N/100mm
UL Fire Rated	OFNR
Operating Temperature	-20°C to +60°C
Sheath Material	Standard: PVC (LSZH/PE Optional)

🎨

ANSI/TIA/EIA-598-B Color Code

Fiber 1

Blue

Fiber 2

Orange

Fiber 3

Green

Fiber 4

Brown

Fiber 5

Slate

Fiber 6

White

🚀

Applications

This flat fiber ribbon cable is ideally suited for:

▶ Indoor cabling and distribution systems.
▶ Optical connections in equipment rooms and distribution frames.
▶ Manufacturing of pigtails and patch cords.
▶ Access building cables for LAN environments.

❓

Frequently Asked Questions

Q1: What kinds of cables are available for production? We specialize in a wide range of cables including Fire alarm cables, Alarm/security cables, Speaker cables, Coaxial cables, Data cables, HDMI, and various telecommunication/power wires.

Q2: What is the Minimum Order Quantity (MOQ)? The standard MOQ is 10KM per item. However, free samples can be provided if stock is available (shipping costs apply).

Q3: What is the typical delivery timeframe? Normally, the delivery time is approximately 15 days after the deposit is received, depending on the specific order quantity.

Q4: What payment terms are supported? We accept T/T, L/C, and Western Union. Other payment methods can be discussed through negotiation.

Q5: What are the accepted trade terms? We primarily operate under FOB, CFR, CIF, and EXW terms.

Q6: Can the cable jacket be customized? Yes, while PVC is standard, options for LSZH, PE, or OFNP are available upon request to meet specific safety and environmental requirements.
