High Quality 2-12 Cores Flat Ribbon Fiber Optic Cable Gjdfbv

Customization:	Available
Application:	Communication
Type:	Singlemode Fiber or Multimode Fiber

Send Inquiry

Product Description

Basic Information

Model NO.

GJDFBV

Connection Structure

Fiber Optic

Material Shape

Round Wire

Allowed Lateral Pressure

>1000(N/100mm)

Allowed Tensile Strength

1000N<10000N

Core

Single-Mode or Multi-Mode

Certification

RoHS, CE, ISO9001

Sheath Material

PVC/LSZH

Jacket Color

According to Requirement

Construction

Tight Buffered and Loose Tube

Specification

Fiber type: G657A1, G657A2/B2, G657B3

HS Code

8544700000

Production Capacity

1000000m/Month

Product Description

Optical Characteristics Complied With Or Exceeds Standard:

ITU-T G652.D
ITU-T G657.A
IEC60793-2-10 type A1a.2 OM3
ISO/IEC 11801, ISO/IEC 24702
ANSI/TIA/EIA 568C.3

ITU-T G651.1 OM1 OM2 OM3 OM4
IEC60793-2-10 type A1a.1/A1b OM1/OM2
IEC60793-2-10 type A1a.3 OM4
IEEE 802.3z Gigabit Ethernet
ROHS Compliant Directive 2011/65/EU(ROHS2.0)

Mechanical & Environmental Characteristics

ITEM	Value
Max. Tensile Load (Short Term)	500N
Max. Tensile Load (Long Term)	100N
Max. Crush Load (Short Term)	500N/100mm
Max Crush Load (Long Term)	100N/100mm
UL Fire Rated	OFNR
Operating Temperature	-20°C to +60°C
Storage Temperature	-20°C to +85°C
Sheath Material	Standard: PVC \| Optional: LSZH, PE or other

The most fundamental differences between multimode & singlemode fiber are the size of the fiber's core and the associated attenuation or loss and bandwidth of the fiber. The smaller the core diameter, the higher the fiber's bandwidth and the lower the attenuation (loss in dB per kilometer). The fiber's attenuation and bandwidth are also dependent on wavelength.

Singlemode was for high-speed long-distance transmission and multimode (in either the 50 µm or 62.5 µm core diameters) was used for lower speed short distance applications. Multimode 50 µm fiber had a lower cost and higher modal bandwidth than multimode 62.5 µm core fiber.

Fiber Type	Max. Attenuation (dB/km)				Min. Overfill Launch Bandwidth (Mhz.km)		Min. Gigabit Ethernet Link Distance (m)
	Multimode		Singlemode		850nm	1300nm	Gigabit		10Gigabit
	850nm	1300nm	1310nm	1550nm	850nm	1300nm	850nm	1300nm	850nm
OM1 62.5/125µm	≤2.7	≤0.6	-	-	≥500	≥600	275	550	-
OM2 50/125µm	≤2.3	≤0.6	-	-	≥500	≥500	750	600	150
OM3 50/125µm	≤2.3	≤0.6	-	-	≥1500	≥500	1000	600	300
OM4 50/125µm	≤2.3	≤0.6	-	-	≥3500	≥500	1100	600	550
G652D 9/125µm	-	-	≤0.30	≤0.18	-	-	-	-	-
G657A 9/125µm	-	-	≤0.35	≤0.21	-	-	-	-	-

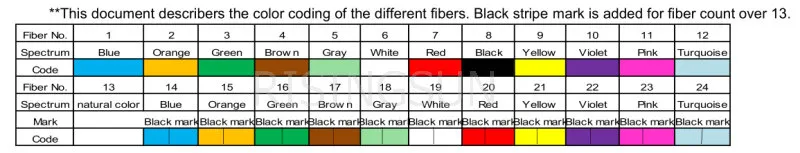

ANSI/TIA/EIA-598-B Standard Fiber Color Code

Fiber 1	Blue	Fiber 7	Red
Fiber 2	Orange	Fiber 8	Black
Fiber 3	Green	Fiber 9	Yellow
Fiber 4	Brown	Fiber 10	Purple
Fiber 5	Gray	Fiber 11	Pink
Fiber 6	White	Fiber 12	Aqua
Fiber 13 and higher: The color code is repeated with added black stripe or dash

Ordering Information

Cable Type	Jacket	Fiber Count	Fiber Type	Jacket Color
GJDFBV	1=PVC 2=LSZH 3=PE	04F, 12F	OM1, OM2, OM3, OM4, G652D, G657A	As noted in color code chart

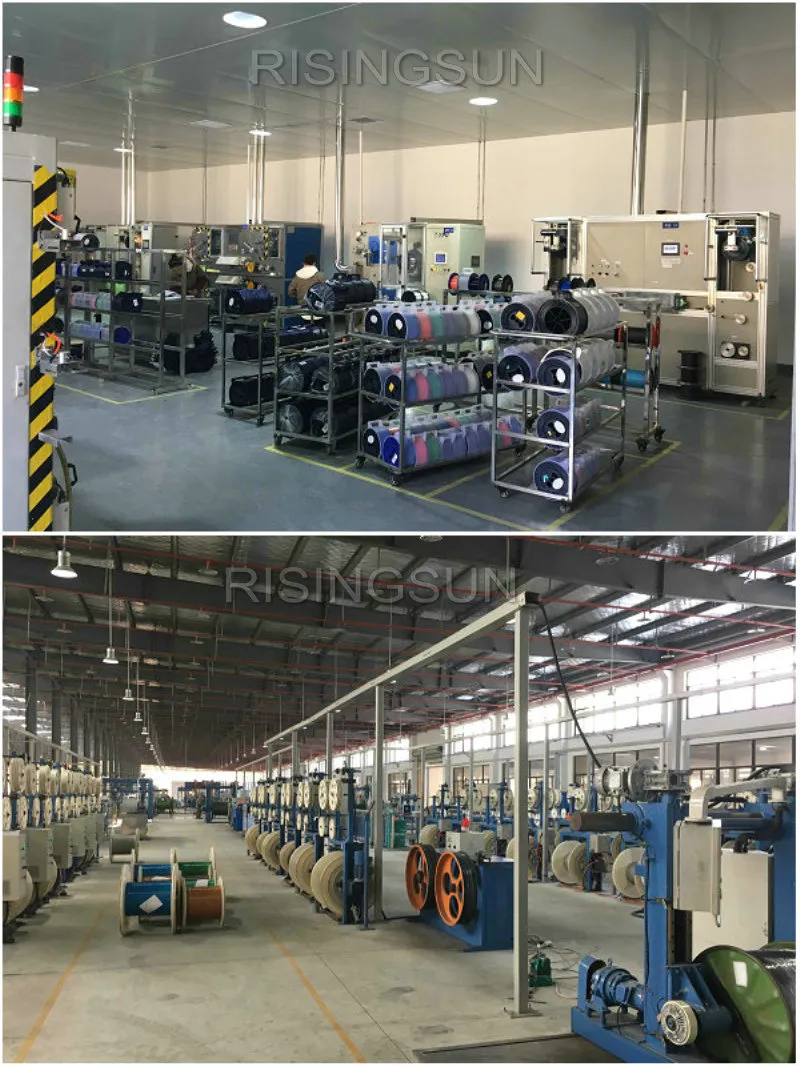

Workshop

Related Products

Central tube optical fiber cable: GYXY, GYXTW, GYXTY, GYXTA, GYXTS
Stranded type fiber cable: GYSTY, GYSTS, GYSTA, GYTY53, GYTA53
Nonmetallic (FRP) fiber cable: GYFTY, GYFSTS, GYFTY53, GYFTA53
Figure-8 Self-supporting optical fiber cable: GYXTC8A, GYXTC8S, GYXTY8S, GYXTY8A, GYXTC8Y, GYXYC8Y
Aerial outdoor optical fiber cable: ADSS
FTTH drop optical fiber cable: GJXH, GJXFH, GJYXC8H, GJYXCH
Fiber Patch cable: LC, SC, FC, ST, MU, E2000

Frequently Asked Questions (FAQ)

Q1: What are the main applications for GJDFBV fiber optic cables? A1: This cable is ideal for indoor distribution, FTTH applications, and interconnecting optical instruments and communication equipment.

Q2: Can I choose between PVC and LSZH jackets? A2: Yes, the cable is available with standard PVC or optional Low Smoke Zero Halogen (LSZH) and PE sheath materials depending on your safety requirements.

Q3: Does the cable support both single-mode and multi-mode fibers? A3: Yes, it can be customized with single-mode (G652D, G657A) or multi-mode (OM1, OM2, OM3, OM4) fiber cores.

Q4: What is the operating temperature range for this cable? A4: The GJDFBV fiber optic cable is designed to operate reliably within a temperature range of -20°C to +60°C.

Q5: Is this product compliant with international environmental standards? A5: Yes, the cable is fully RoHS compliant and meets CE and ISO9001 quality management standards.

Q6: How are the fibers identified within a multi-core cable? A6: Fibers are color-coded according to the ANSI/TIA/EIA-598-B standard (Blue, Orange, Green, etc.) for easy identification during installation.
