Product Description

Basic Info.

Model NO.SC-LC

Connection StructureSc/LC/FC/St/Mu/E2000

Material ShapeRound Wire

Allowed Tensile Strength100N < 1000N

CoreSingle Core/Double Core/Multimode Core

CertificationRoHS, ISO9001

Sheath MaterialPVC/LSZH

Insertion LossLess Than 0.3dB

Return Loss35-65dB

Cable JacketPVC,LSZH,Ofnr,Ofnp

Operating Temperature-40-85 Degrees Celsius

Production Capacity20000/Day

Product Description

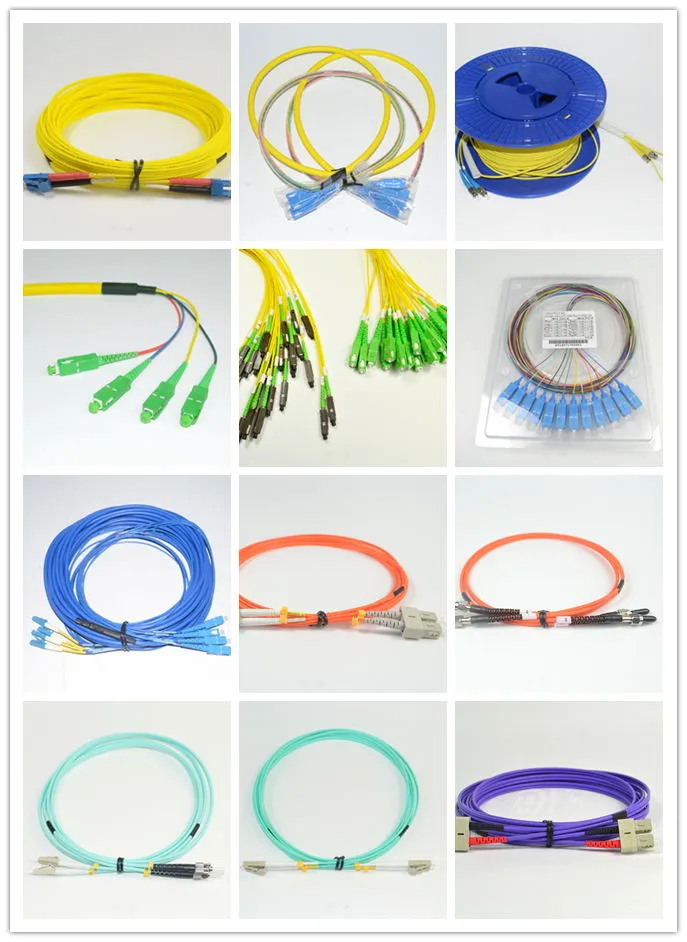

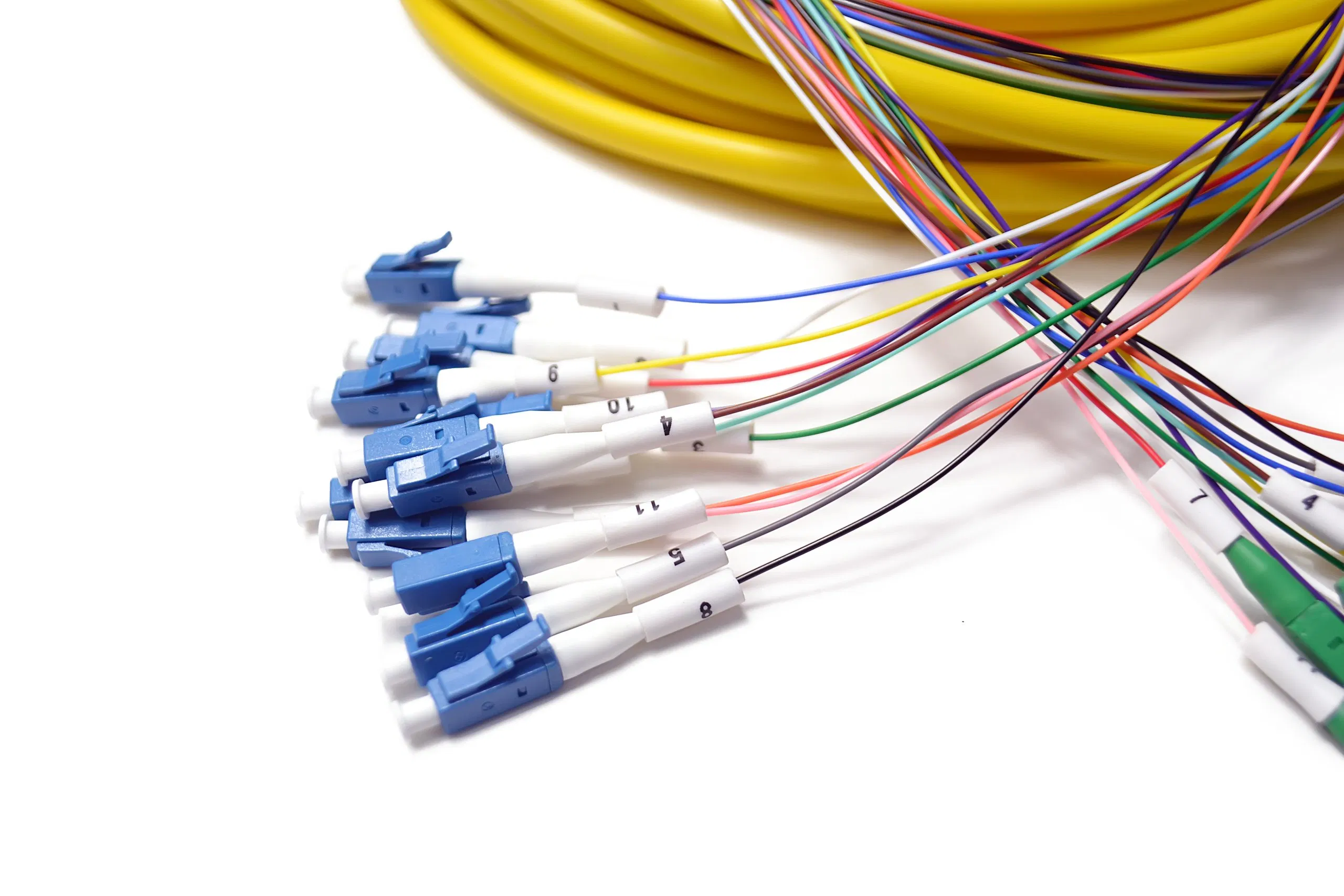

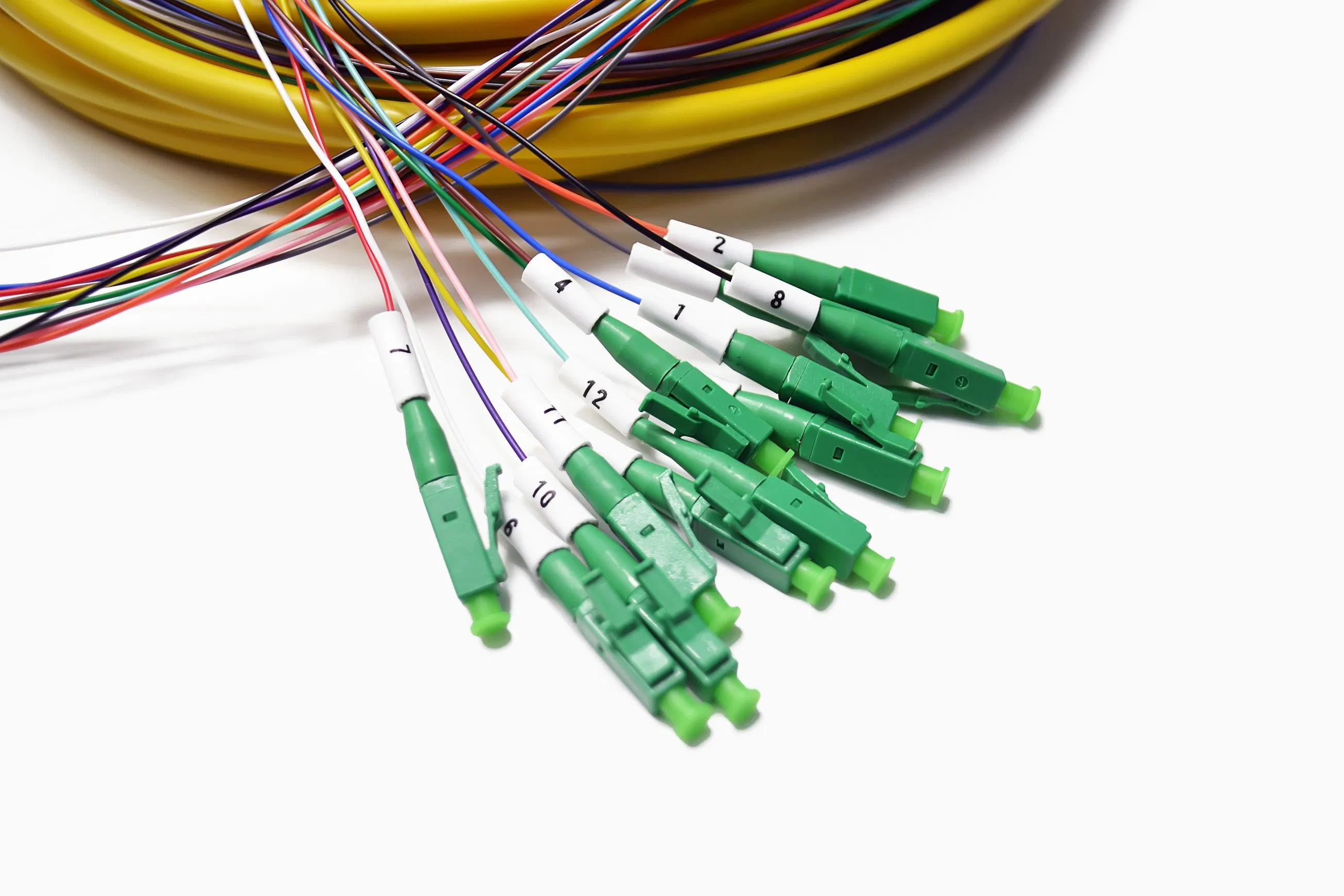

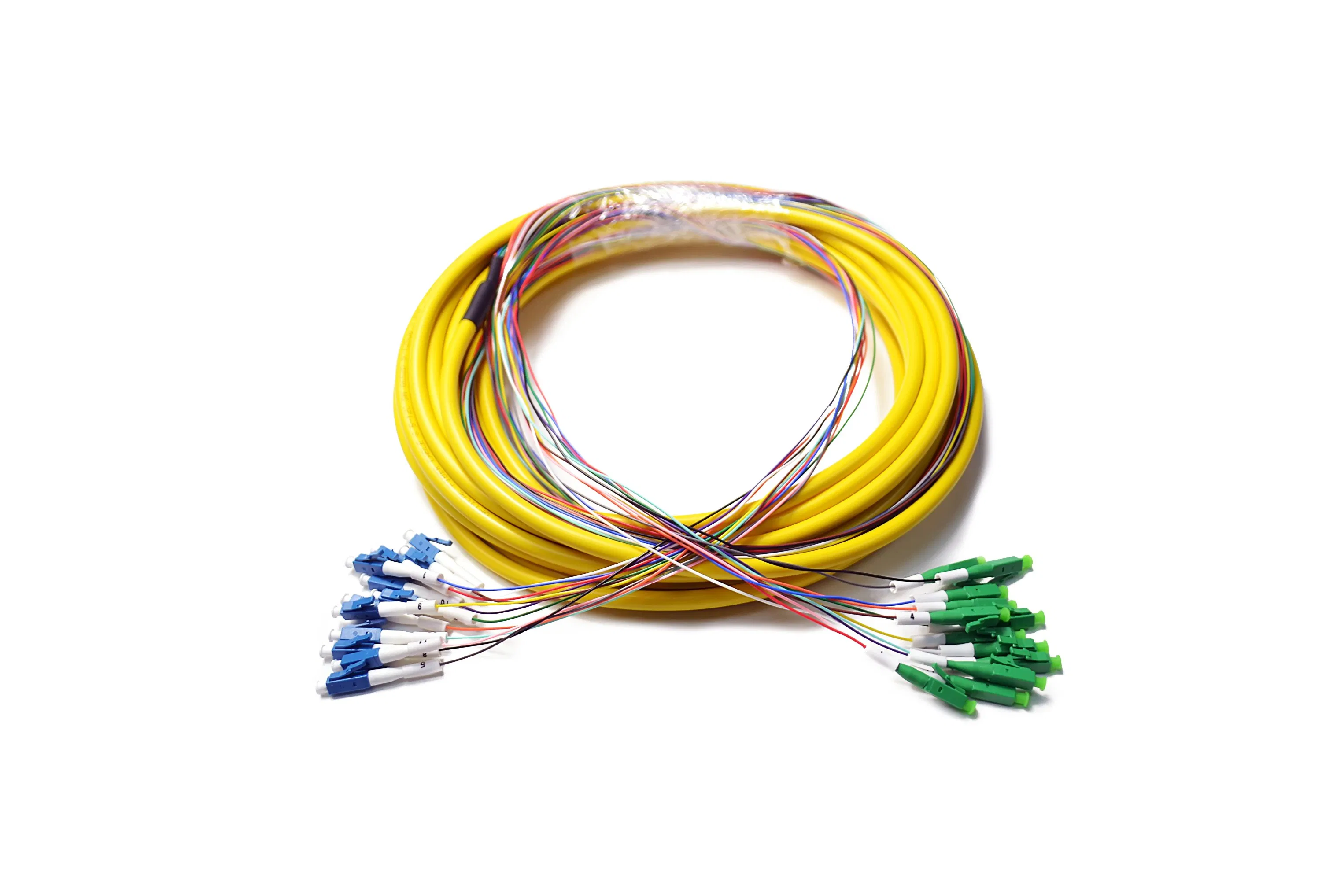

Fiber Optic Patch Cord Cable

Ceramic Ferrule: Zirconium material for stable quality and easy polishing.

High Capacity: 20K-30K pieces connectors each day.

Quick Turnaround: Delivery time within 5-7 days.

Quality Assurance: ISO9001 compliant and 100% testing before shipment.

Connector Options: SC, LC, FC, ST, MU, MTRJ, MPO/MTP, ODC, ODLC, SMA905, etc.

Technical Specifications

Parameter	Single Mode (UPC)	Single Mode (APC)	Multimode (PC)
Insertion Loss	≤0.2dB	≤0.2dB	≤0.3dB
Return Loss	≥55dB	≥65dB	≥35dB
Interchangeability	≤0.2dB
Vibration	≤0.2dB (550Hz 1.5mm)
Temperature Range	-40 to +85°C (100 hours)
Apex Offset	0μm ~ 50μm

Fiber Type	Min. Bandwidth	Distance	Attenuation
62.5/125	200/500 MHz/Km	@1Gig 220m	3.0/1.0 dB/km
50/125	500/500 MHz/Km	@1Gig 500m	3.0/1.0 dB/km
9/125	Approx 100 Terahertz	Up to 100km	0.4/0.3 dB/km

Applications

• FTTH (Fiber To The Home)

• Optical fiber data communication

• Access networks

• Telecommunications & CATV

• LAN, MAN, WAN

• Military & Medical industry

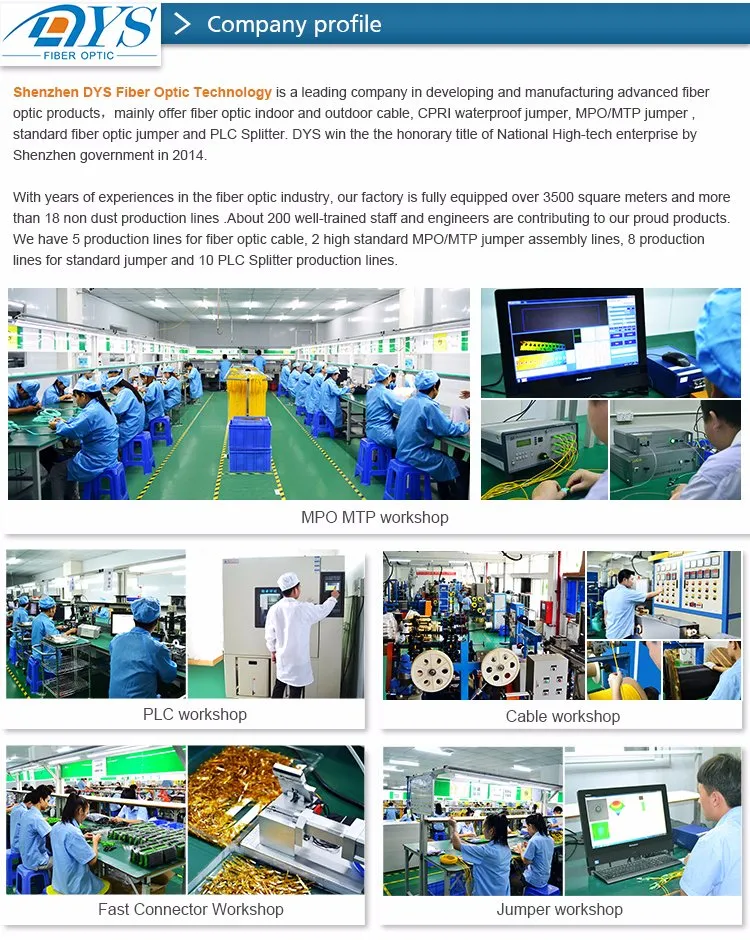

Competitive Advantage & Production

Strictly enforcing the ISO9001 quality management system, utilizing advanced facilities and qualified human resources management to ensure product quality stability and excellent performance. Providing excellent after-sales service to global markets including Europe, America, and Southeast Asia.

Trade & Sample Policy

Trade TermsEXW, FOB, CFR, CIF, FCA

Payment TermsT/T, L/C, Western Union, Paypal

Sample Policy: Samples will be offered free of charge for some items. Please contact us to take action.

Frequently Asked Questions

Q1: What is the typical insertion loss for your patch cords? The insertion loss for our single-mode and multimode connectors is typically less than 0.3dB, with high-quality Zirconium ceramic ferrules ensuring stability.

Q2: What cable jacket materials are available? We offer a variety of jacket materials including PVC, LSZH (Low Smoke Zero Halogen), OFNR, and OFNP to meet different environmental and safety requirements.

Q3: Do your products meet international standards? Yes, all our fiber optic patch cords are compliant with RoHS, IEC, and GR-326 standards, and our production process follows ISO9001 quality management.

Q4: Can I customize the length and connector type? Absolutely. We support all kinds of connectors (SC, LC, FC, ST, MPO, etc.) and customized lengths ranging from 0.5m to over 200m.

Q5: What is your production capacity? Our facility has a strong supply capacity, producing between 20,000 to 30,000 pieces of connectors every day.

Q6: What are your standard delivery times? Standard orders are typically delivered within 5-7 days, depending on the specifications and order volume.
