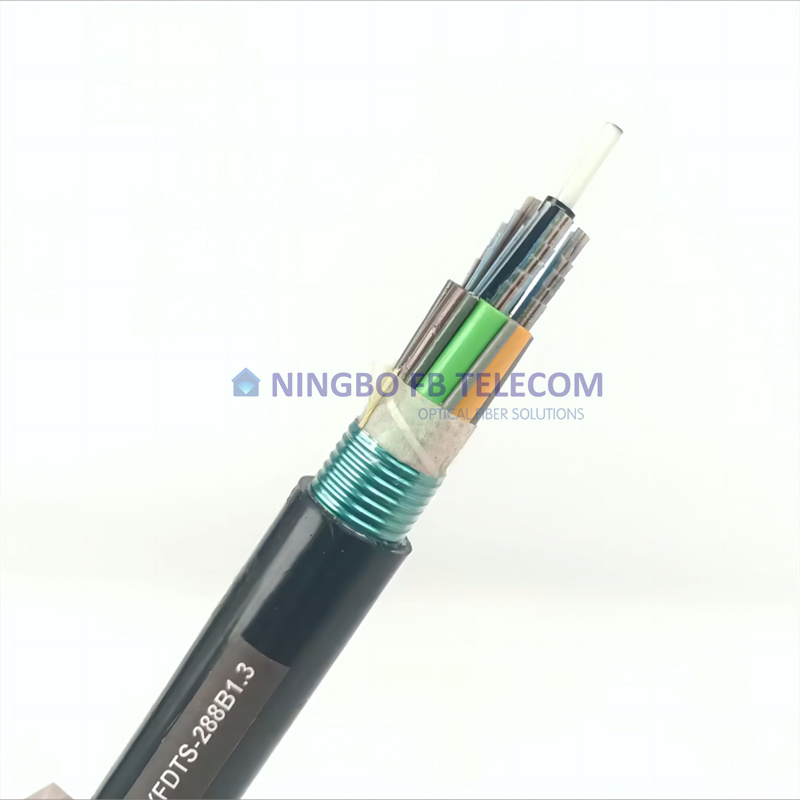

Round Shape Ribbon Cable Gyfdts Optical Fiber Cable with FRP Strength Member

📋 Basic Information

Model NO.

GYFDTS

Material Shape

Round Wire

Lateral Pressure

300/1000(N/100mm)

Tensile Strength

600/1500N

Core Count

2-864 Fibers

Certification

ISO9001

Sheath Material

Single PE Sheath

Operating Temp

-40 ~ +70℃

Usage

Duct / Aerial / Direct Buried

HS Code

8544700000

🔍 Product Description

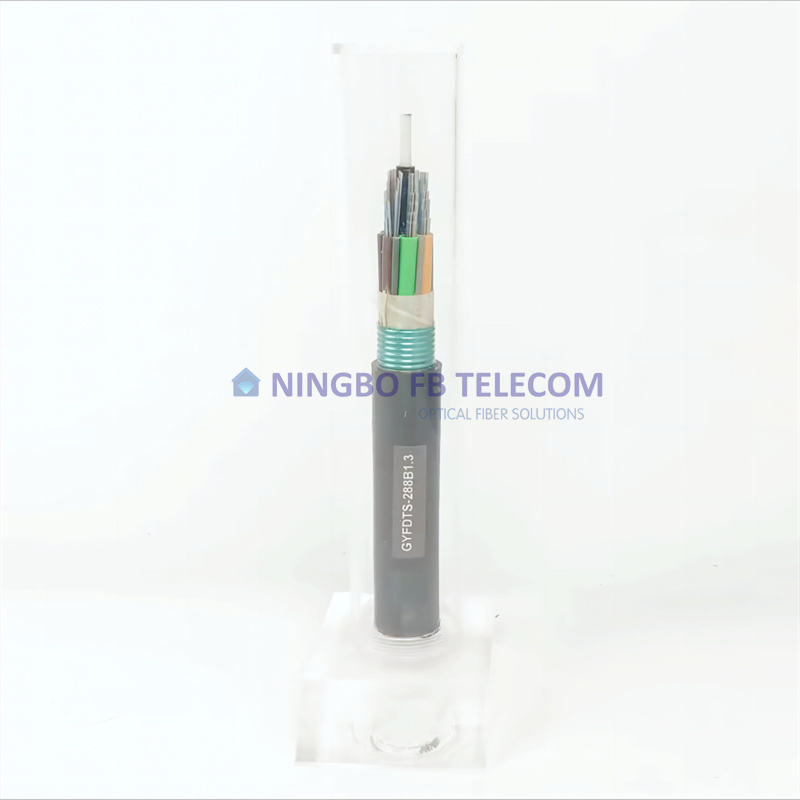

Round Shape Ribbon Cable GYFDTS Optical Fiber Cable with FRP Strength Member

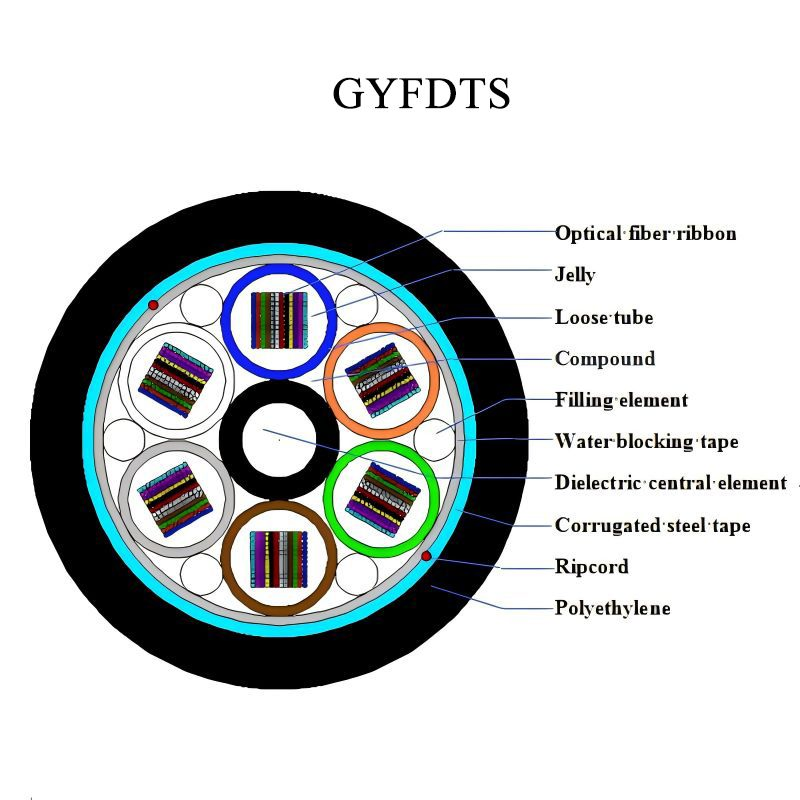

The structure of GYFDTS optical cable is to put 4, 6, 8, 12 core optical fiber ribbons into loose tubes made of high modulus materials, and the loose tubes are filled with waterproof compounds. The center of the cable core is a glass fiber reinforced plastic (FRP). The loose tube and filling rope are twisted around the central reinforcement core to form a compact and round cable core, and the gaps in the cable core are filled with water-blocking fillers. The double-sided plastic-coated steel tape (PSP) is longitudinally wrapped and then extruded into a polyethylene sheath to form a cable.

⚙️ Product Parameters

Cable Type	GYFDTS
Fiber Counts	2-864
Fiber Color	Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Pink, Aqua
Fiber Types	Single-mode and Multimode
Cable Construction	S-Z Stranded loose tube
Strength Member	FRP
Sheath Options	Single PE Sheath
Armor	Corrugated steel tape
Operating Temperature	-40ºC to 70ºC
Tensile Strength	Short term 1500N / Long term 600N
Crush Resistance	Short term 1000N/100mm / Long term 300N/100mm
Min. Bend Radius	Dynamic 20D / Static 10D

* Note: Parameters are typical values and can be customized according to requirements.

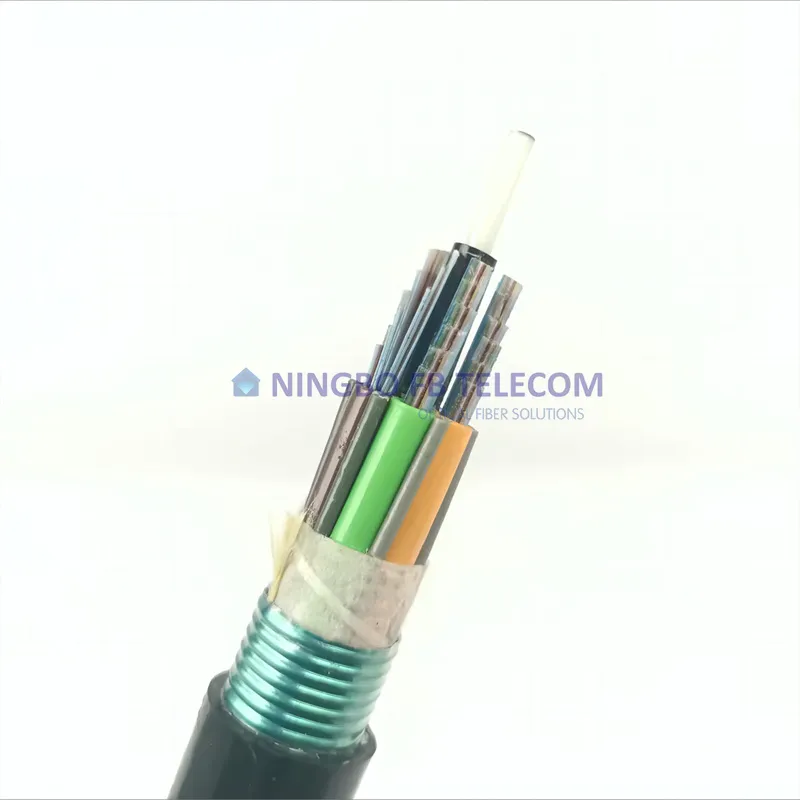

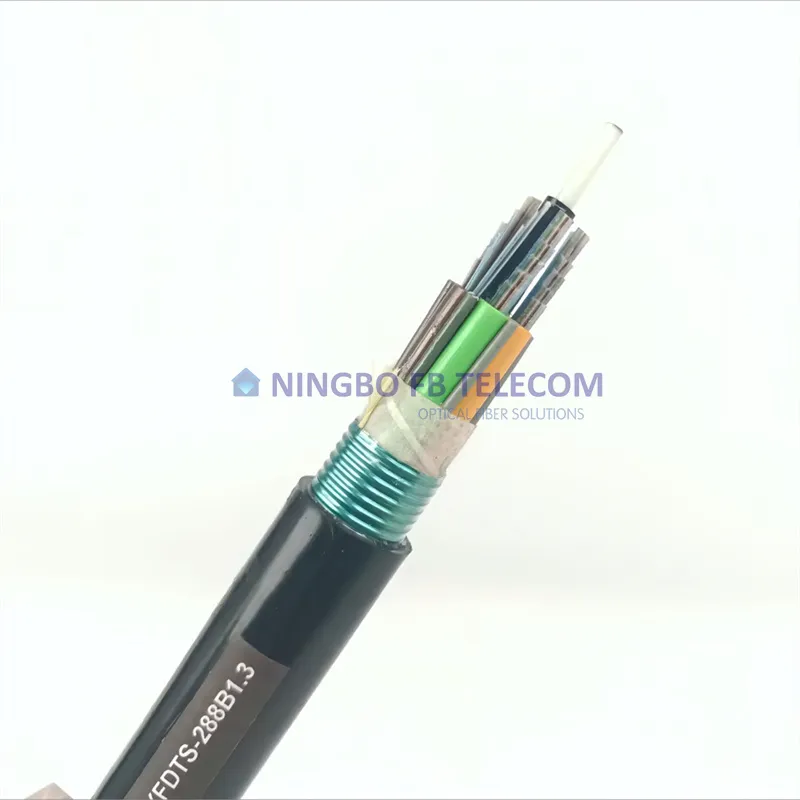

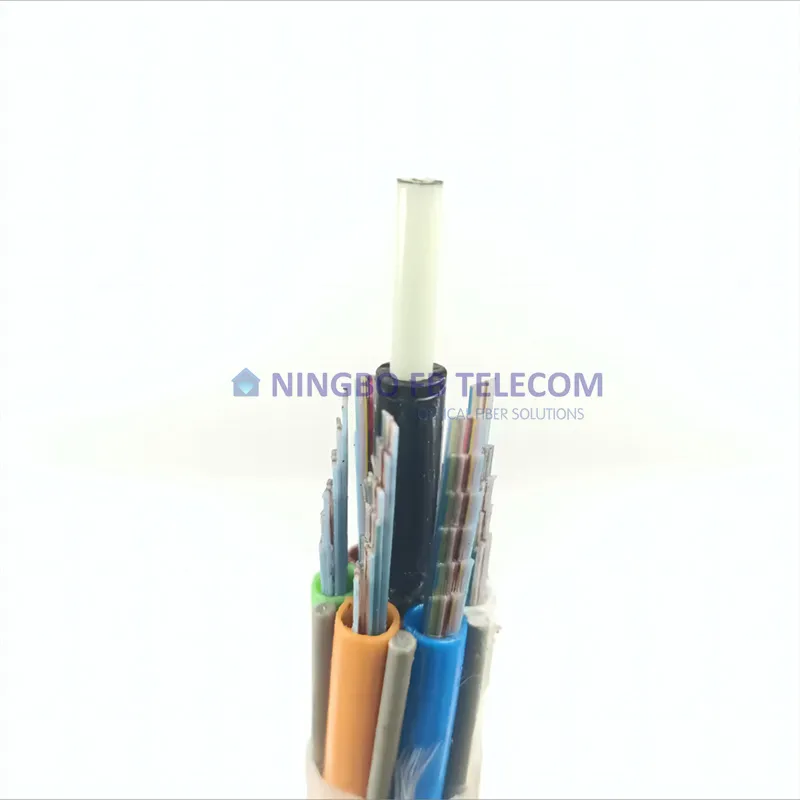

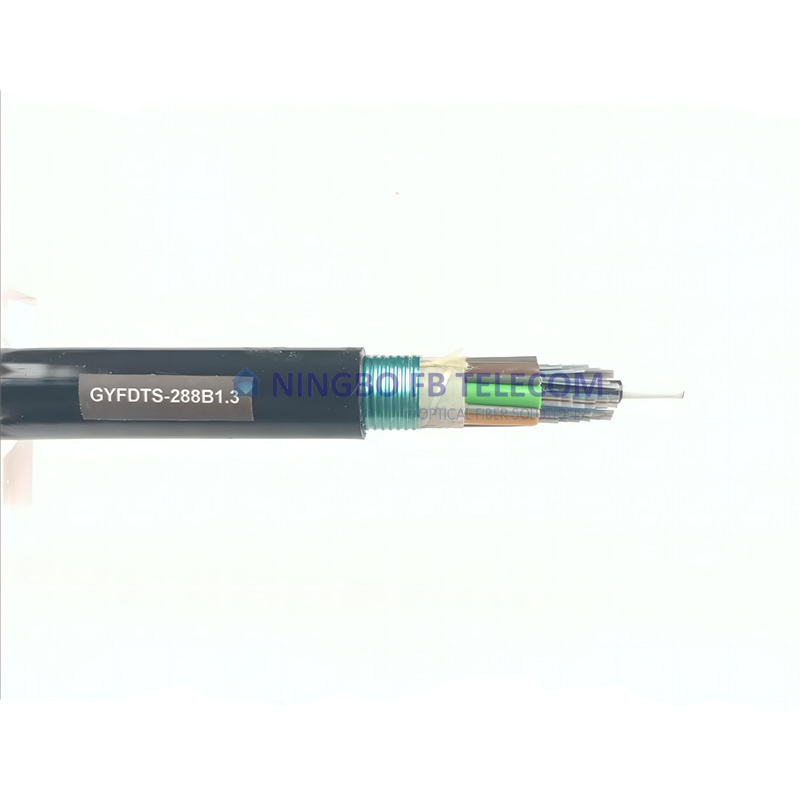

🖼️ Detailed Photos

🏭 Production & Packaging

❓ Frequently Asked Questions

What is the main advantage of the GYFDTS ribbon cable?

The GYFDTS structure utilizes optical fiber ribbons, allowing for high fiber density in a compact round cable core, significantly simplifying the mass splicing process.

What type of strength member is used in this cable?

It uses a Glass Fiber Reinforced Plastic (FRP) central strength member, providing excellent tensile strength while remaining non-metallic and resistant to electromagnetic interference.

Can this cable be used for outdoor direct burial?

Yes, the cable is designed with double-sided plastic-coated steel tape (PSP) armor and a PE sheath, making it suitable for duct, aerial, and direct burial applications.

What is the range of fiber counts available?

We offer a wide range of fiber counts from 2 cores up to 864 cores to meet various network scale requirements.

What is the operating temperature range?

The cable is engineered to perform reliably in environments ranging from -40ºC to +70ºC.

How is the cable protected against moisture?

The cable features loose tubes filled with waterproof compounds and cable core gaps filled with water-blocking fillers to ensure longitudinal water resistance.
