Gjdfb G652D Fiber Exactcable Indoor Single Mode Flat Fiber Ribbon Cable

1 / 5

Gjdfb G652D Fiber Exactcable Indoor Single Mode Flat Fiber Ribbon Cable

Customization:	Available
Type:	Fiber Optic Cable
Wiring Devices:	No

Send Inquiry

Product Description

Basic Information

Model NO.	GJDFB
Name	Gjdfb Flat Fiber Optic Ribbon Cable
Certification	CE, ISO, RoHS, GS
Fiber Mode	Singlemode / Multimode

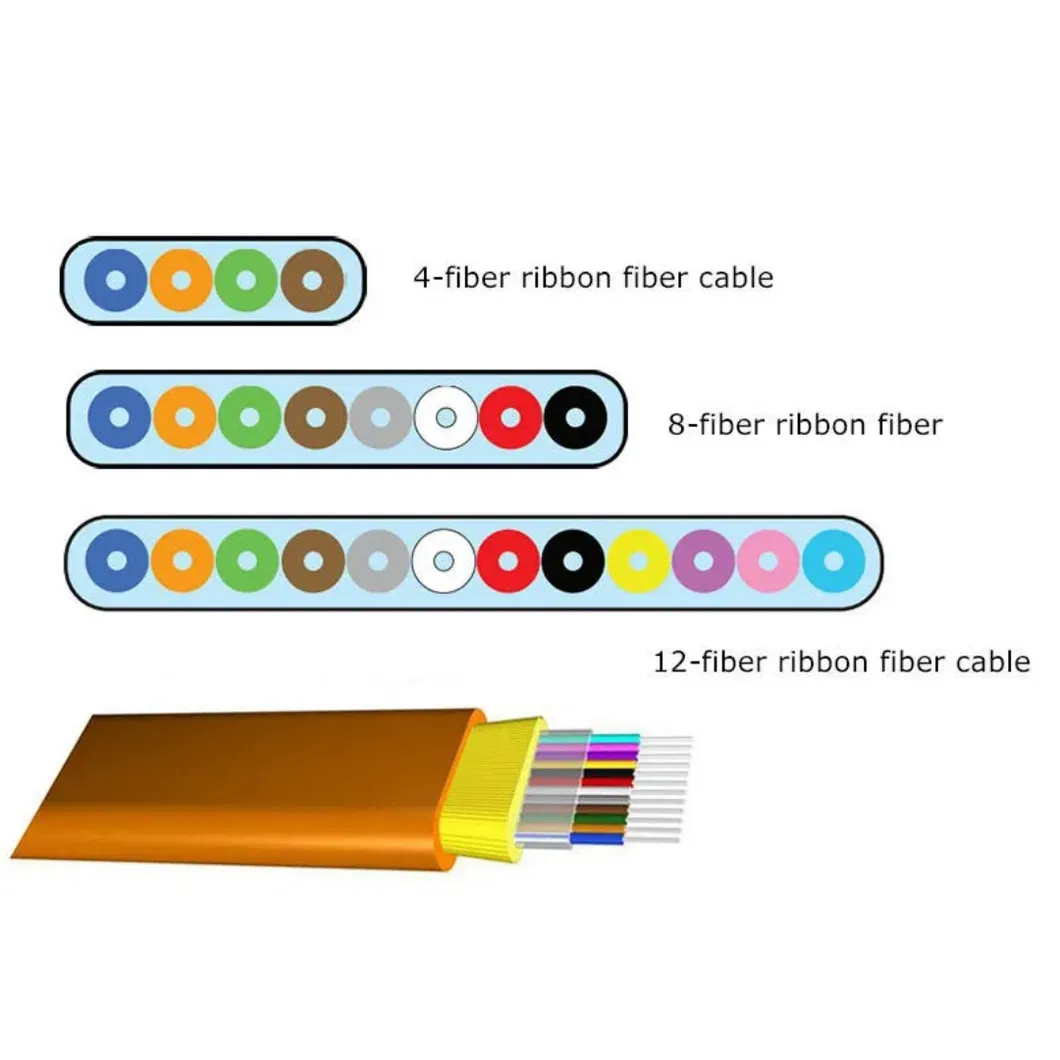

Core Specification	2/4/6/8/10/12 Cores
Insertion Loss	0.3dB
Return Loss	50dB
Stable Operation	-40~+80c
Bending Radius	20d/10d
Network Application	Telecommunication Networks, Wireless LAN, 4G

Product Description

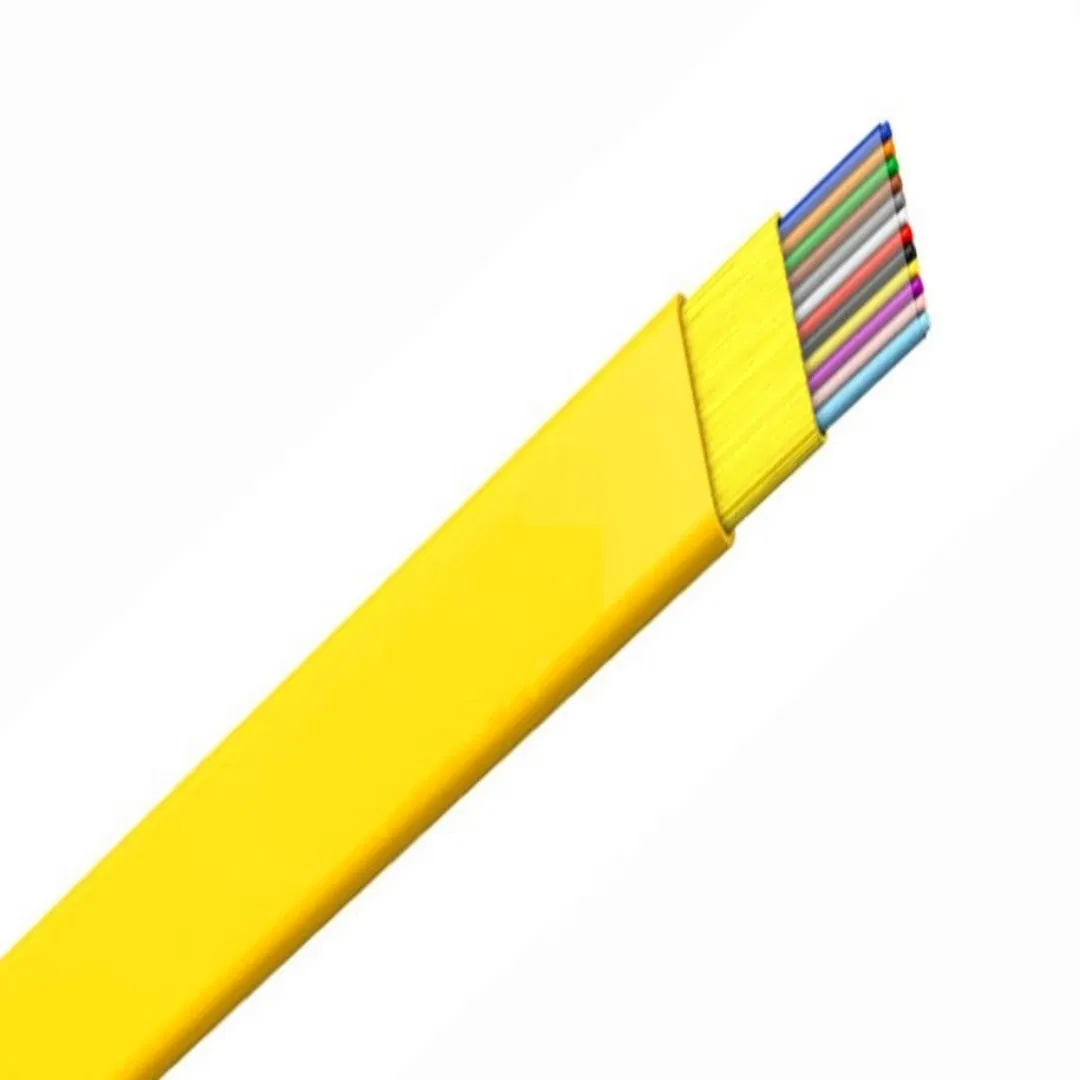

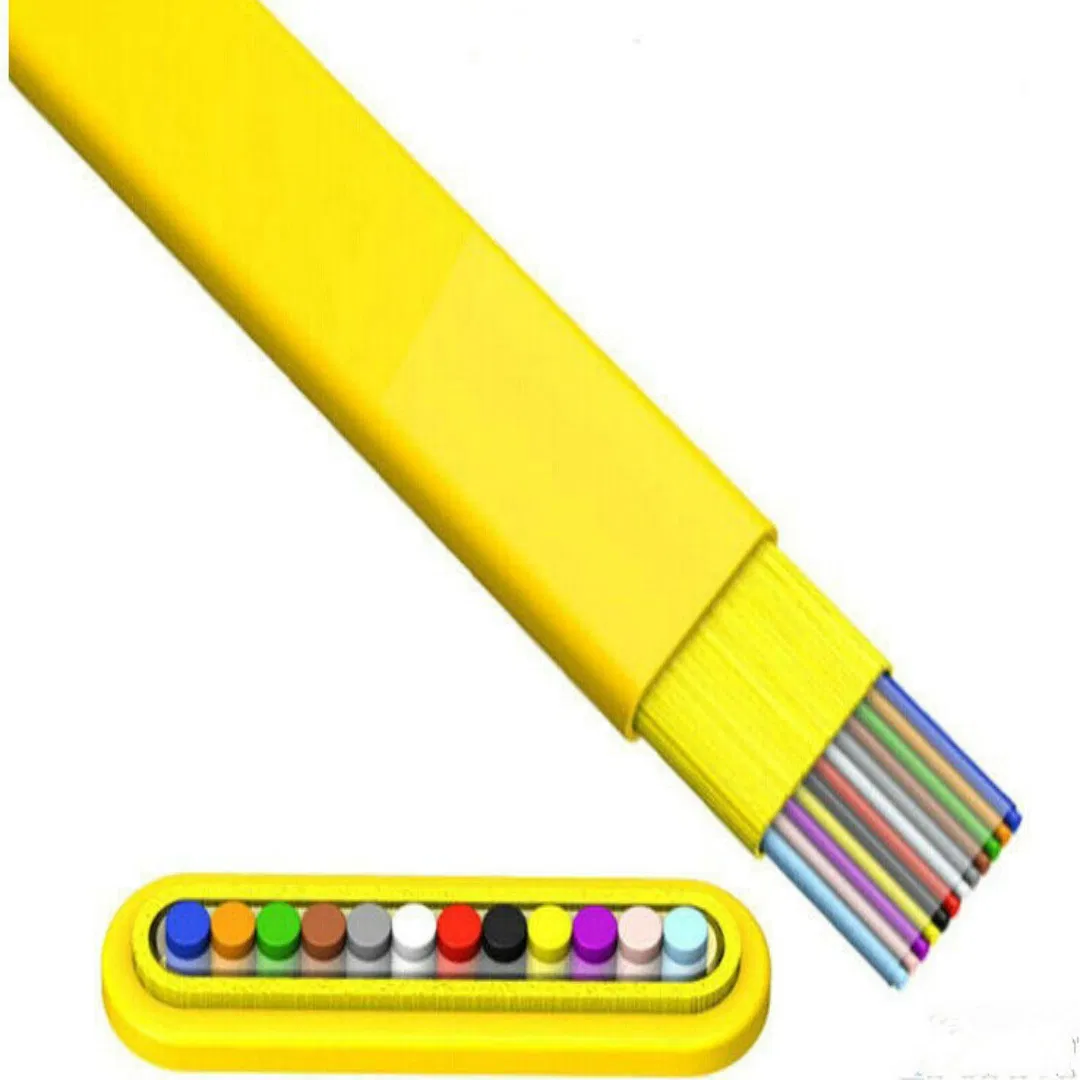

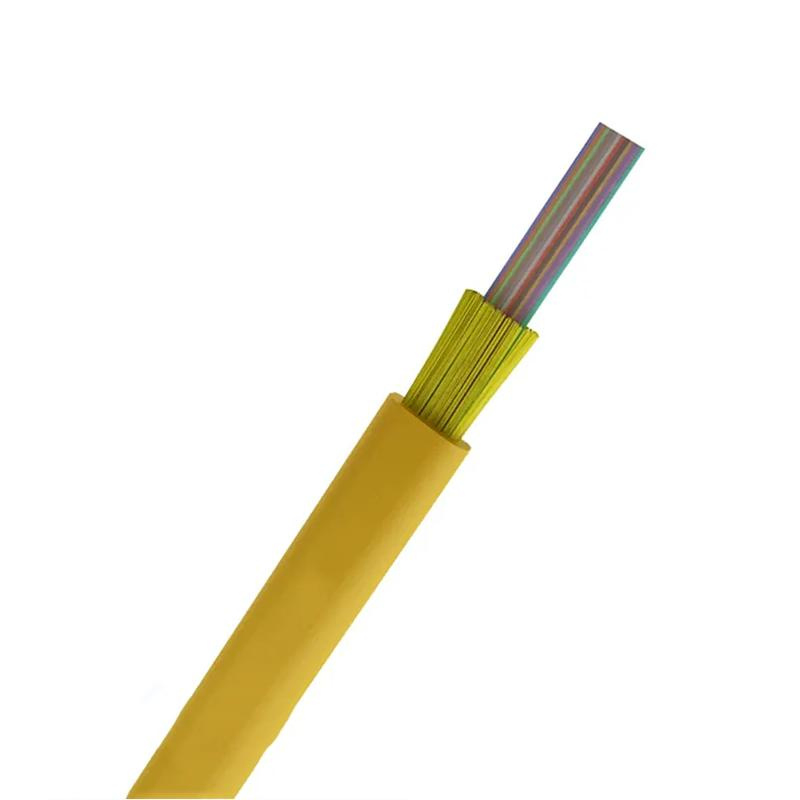

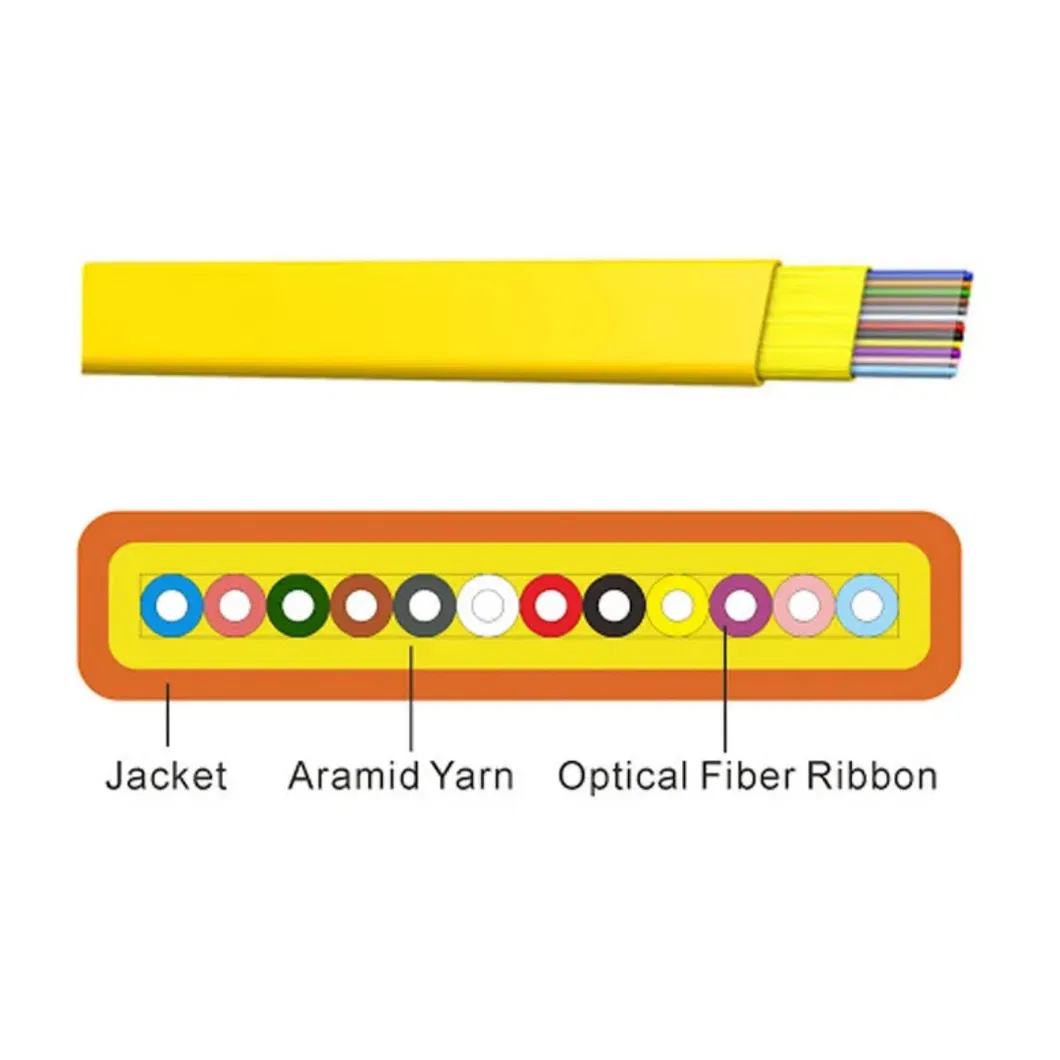

Indoor Flat Fiber Ribbon Cable Structure

12 Core Singlemode GJDFB Indoor Flat Fiber Optic Ribbon Cable

The flat fibre ribbon cable uses fibre ribbon as optical transmission medium, covered with aramid yarn as strength member, then extruded with a PVC sheath. Other sheath materials, like LSZH and TPU, are available on request.

Key Features & Advantages

High Strength: Aramid yarn as strength member provides excellent tensile strength.
Compact Design: Compact structure with high fibre density, offering great flexibility and crush resistance.
Durability: Anti-corrosion, anti-water, and anti-ultraviolet radiation jacket.
Eco-Friendly: Flame-retardant jacket materials that are harmless to the environment.
High Capacity: Available up to 144 fiber cores for diverse networking needs.
Low Interference: All-dielectric structure protects against electromagnetic influence.

Technical Specifications

ITEM	Value
Max. Tensile Load (Short Term)	500N
Max. Tensile Load (Long Term)	100N
Max. Crush Load (Short Term)	500N/100mm
Max. Crush Load (Long Term)	100N/100mm
UL Fire Rated	OFNR
Operating Temperature	-20°C to +60°C
Sheath Material	Standard: PVC \| Optional: LSZH, PE

Fiber Color Code (ANSI/TIA/EIA-598-B)

Frequently Asked Questions

Q1: What types of cables do you provide for telecommunication projects? We provide a wide range of cables including Fire alarm cables, Alarm/security cables, Speaker cables, Coaxial cables, Data cables, HDMI cables, and specialized Indoor/Outdoor fiber optic cables.

Q2: What is the Minimum Order Quantity (MOQ)? Our standard MOQ is 10KM per item. However, specific requirements can be discussed based on the order type.

Q3: Can I request free samples before placing a bulk order? Yes, free samples can be provided if they are currently in stock. The recipient is responsible for the freight/shipping costs.

Q4: What is the typical delivery timeframe for orders? Normally, our delivery time is approximately 15 days after the deposit is received, depending on the total order quantity.

Q5: What payment and trade terms are supported? We accept T/T, L/C, and Western Union. Our trade terms include FOB (Shanghai or Ningbo), CFR, CIF, and EXW.

Q6: Are OEM services available for custom cable designs? Yes, OEM services are available. We can customize sheath materials (PVC, LSZH, TPU) and fiber counts to meet specific project requirements.
