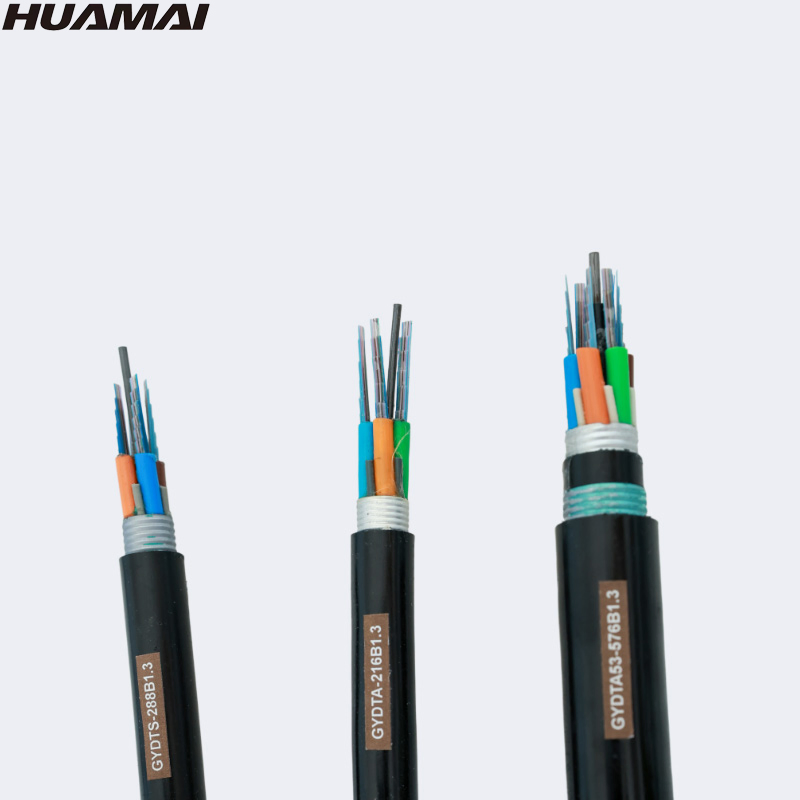

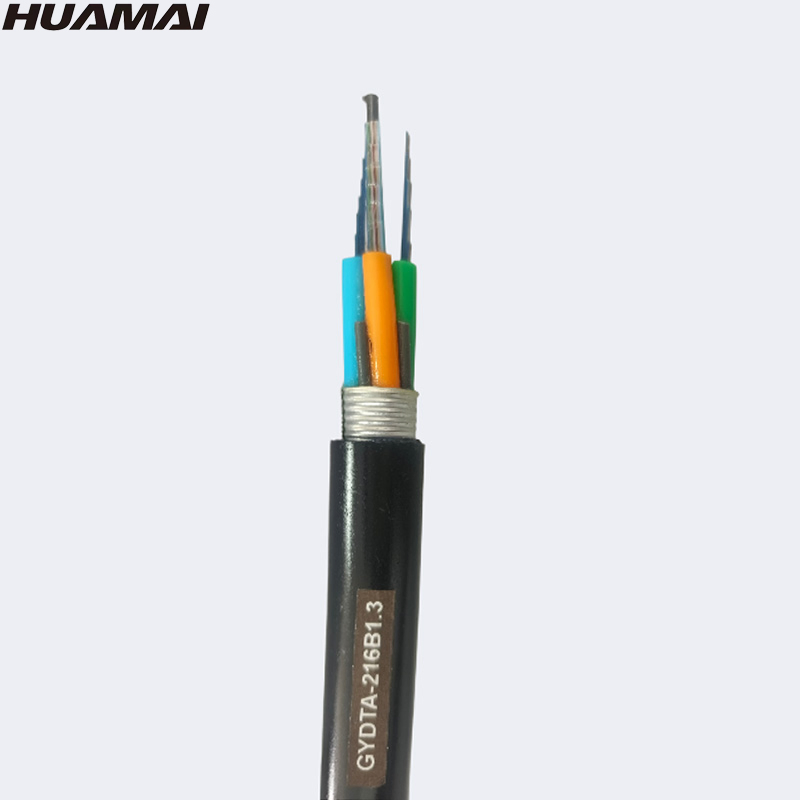

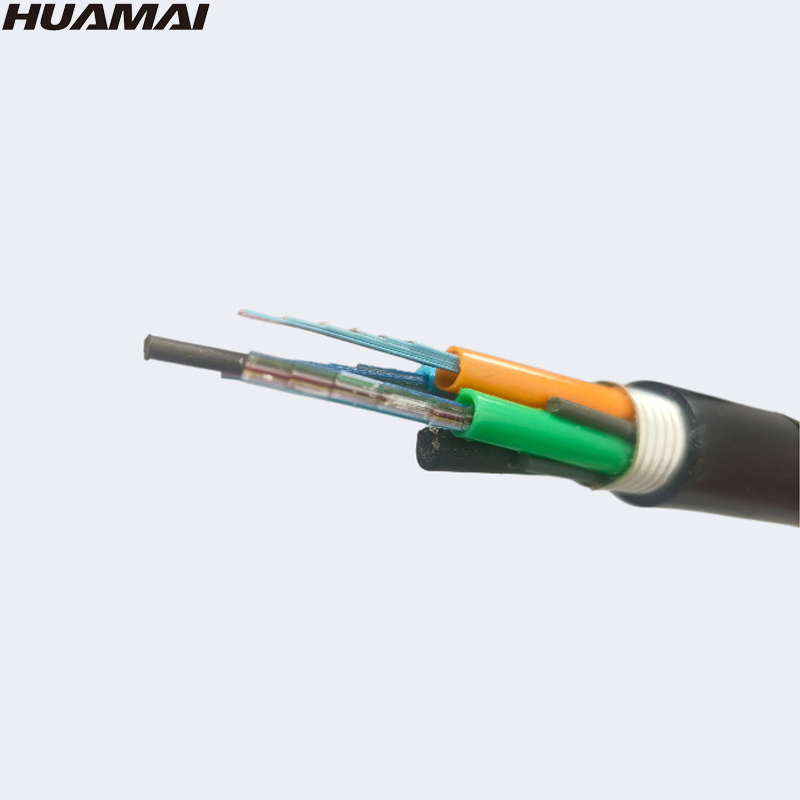

Loose tube stranded armoured fiber ribbon optical cable

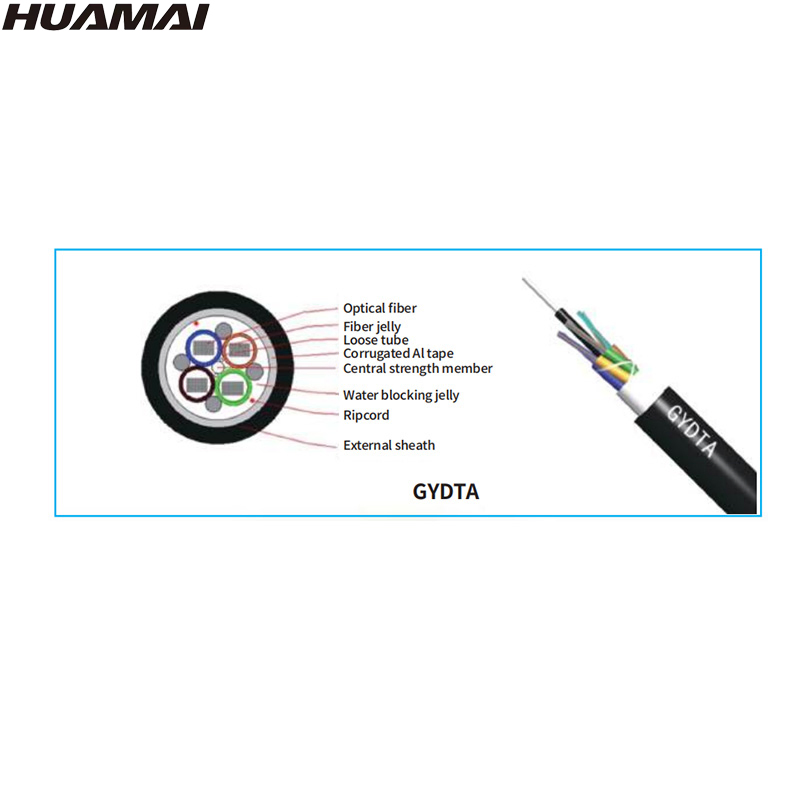

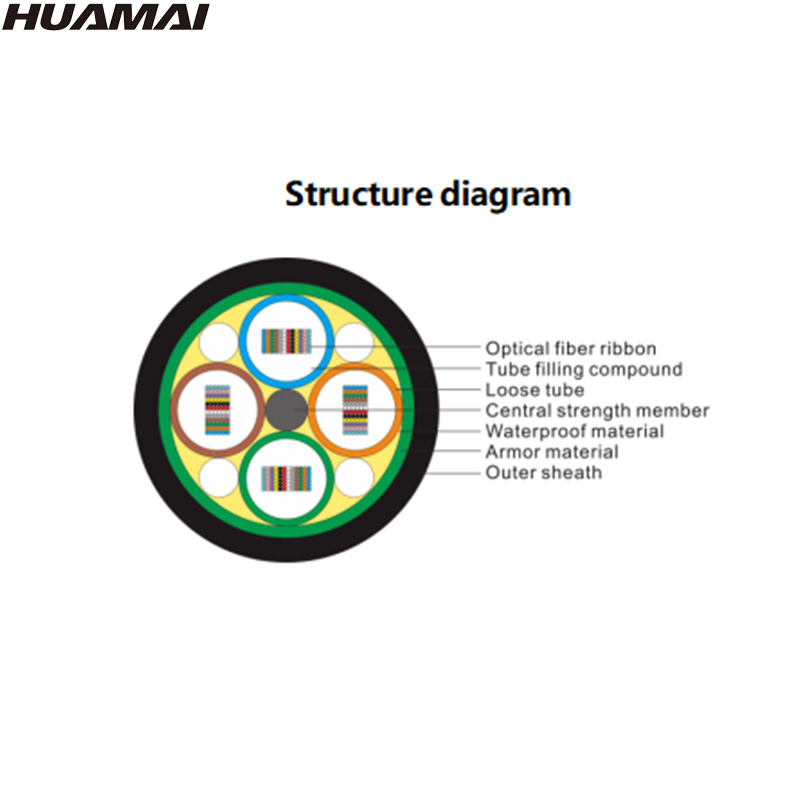

This optical cable features a metal core with loose tube stranded filling, fiber ribbon construction, metal tape armor, and a durable polyethylene (PE) sheath. It is designed for high-performance data transmission in various environments.
Reference Standard:
IEC 60794-3
Key Product Features:
| Fiber Count | Tensile Strength (N) | Crush Resistance (N/100mm) | Min. Bend Radius (mm) | Nominal Diameter (mm) | Nominal Weight (kg/km) | |||
|---|---|---|---|---|---|---|---|---|
| Short term | Long term | Short term | Long term | Dynamic | Static | |||
| 144 | 1500 | 600 | 1000 | 300 | 20D | 10D | 16.5 | 245/275 |
| 192 | 1500 | 600 | 1000 | 300 | 20D | 10D | 17.6 | 275/305 |
| 216 | 1500 | 600 | 1000 | 300 | 20D | 10D | 17.6 | 275/305 |
| 288 | 1500 | 600 | 1000 | 300 | 20D | 10D | 17.6 | 275/305 |
| 432 | 1500 | 600 | 1000 | 300 | 20D | 10D | 21.8 | 410/450 |
| 576 | 1500 | 600 | 1000 | 300 | 20D | 10D | 22.8 | 430/500 |
Note:
1. D refers to the diameter of optical cable;
2. Typical values may be adjusted according to actual conditions;
3. Customized products can be designed based on specific customer requirements.

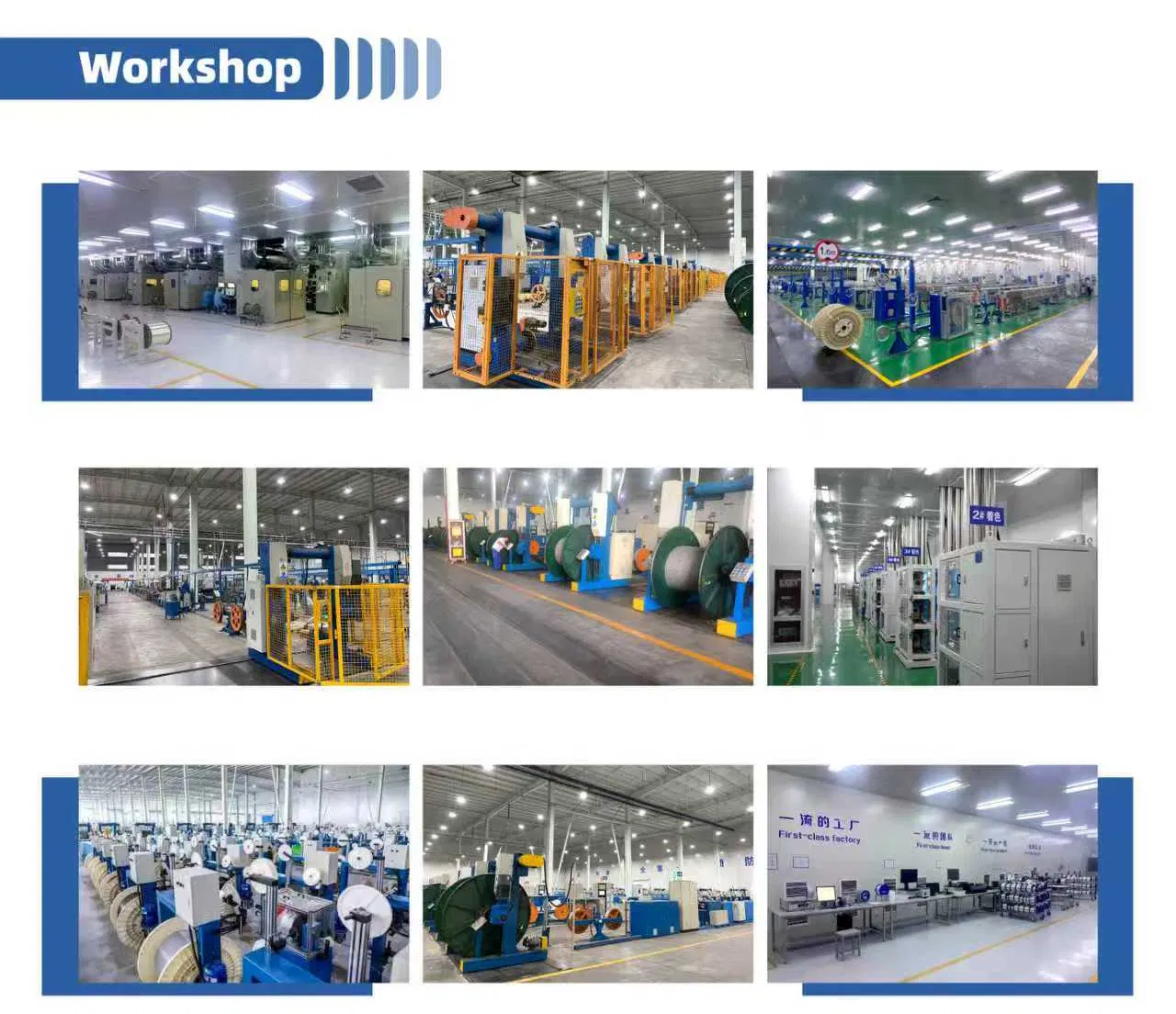

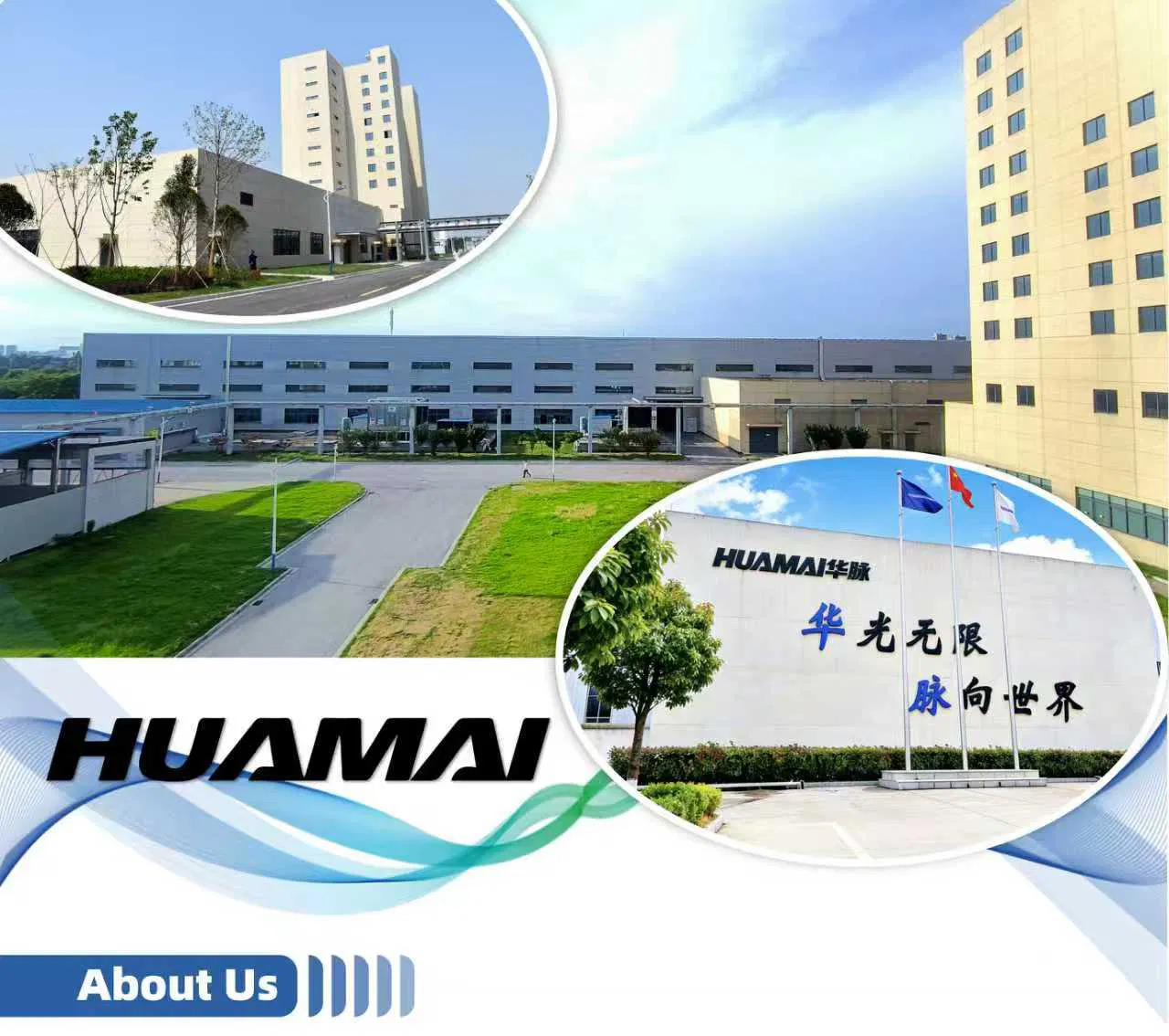

Founded in 2018, our facility has been dedicated to the field of optical communication for over 8 years. We are a professional fiber optic cable manufacturer and a direct source factory, specializing in a full range of indoor and outdoor optical cables. We pride ourselves on meeting diverse customization needs with a solid industrial foundation.
Our marketing and service network spans the globe, serving numerous regions and industries including major telecommunications operators, equipment vendors, oil and gas networks, electric power, and urban rail transit systems. We actively export to international markets including South Korea, the United States, and beyond.
