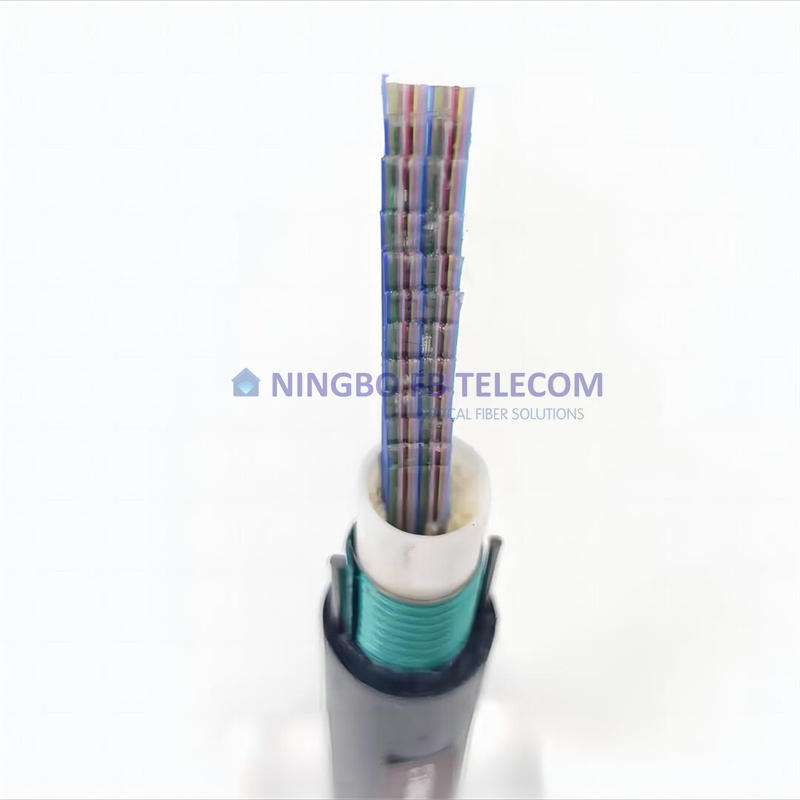

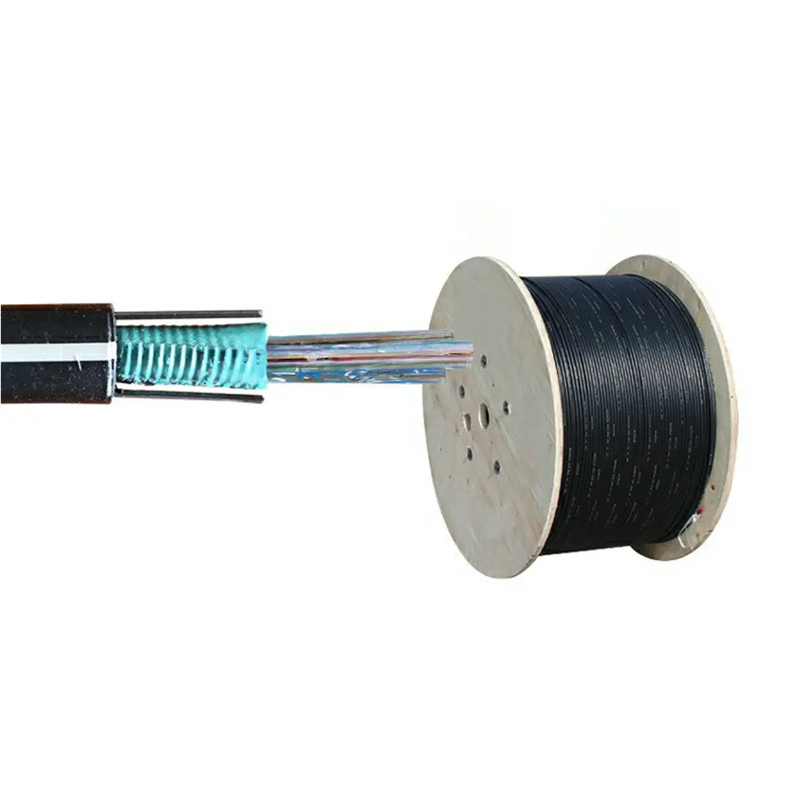

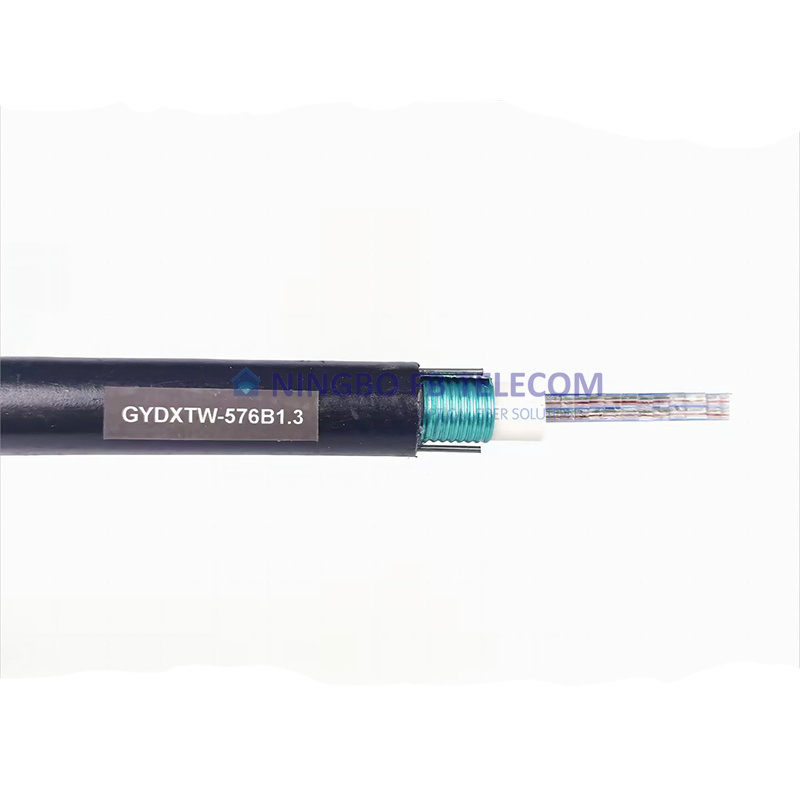

Central Loose Tube Light Armored Ribbon Cable Gydxtw Optical Fiber Cable
Central Loose Tube Light Armored Ribbon Cable Gydxtw Optical Fiber Cable
Central Loose Tube Light Armored Ribbon Cable Gydxtw Optical Fiber Cable
Central Loose Tube Light Armored Ribbon Cable Gydxtw Optical Fiber Cable
Central Loose Tube Light Armored Ribbon Cable Gydxtw Optical Fiber Cable
1 / 5
Central Loose Tube Light Armored Ribbon Cable Gydxtw Optical Fiber Cable
Central Loose Tube Light Armored Ribbon Cable Gydxtw Optical Fiber Cable
Central Loose Tube Light Armored Ribbon Cable Gydxtw Optical Fiber Cable
Central Loose Tube Light Armored Ribbon Cable Gydxtw Optical Fiber Cable
Central Loose Tube Light Armored Ribbon Cable Gydxtw Optical Fiber Cable

Central Loose Tube Light Armored Ribbon Cable Gydxtw Optical Fiber Cable

Send Inquiry

Product Description

GYDXTW Optical Fiber Cable

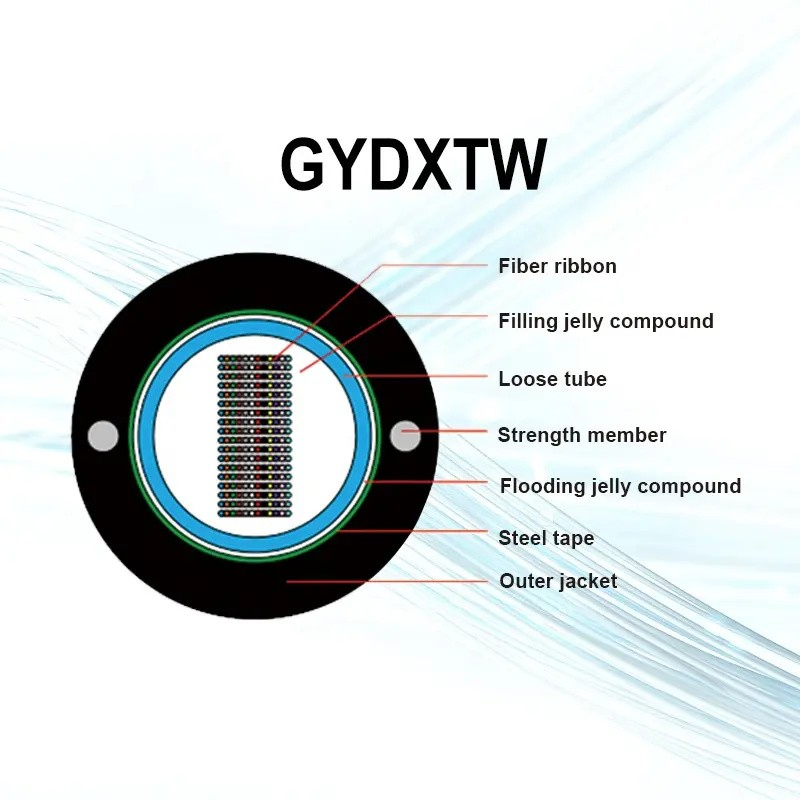

The structure of GYDXTW optical cable consists of a 12-core optical fiber ribbon placed into a loose tube made of high modulus material. This tube is filled with a waterproof compound to ensure long-term stability.

✔ The loose tube is protected by a layer of double-sided plastic-coated steel tape (PSP) longitudinal package.
✔ Water blocking material is integrated between the steel tape and the loose tube for superior longitudinal moisture protection.
✔ Two parallel steel wires are placed on both sides to provide excellent tensile strength.
✔ Finished with a high-quality extruded Vinyl (PE) sheath for outdoor durability.
Product Parameters
Cable type GYDXTW
Optical fiber counts 2-432
Optical fiber color Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Pink, Aqua
Fiber Types Single-mode and Multimode
Cable Constructions Central tube
Strength Member Parallel Steel wire
Sheath Options Single PE Sheath
Armor Corrugated steel tape
Operating Temperature -40ºC to +70ºC
Tensile Strength Short term 1500N / Long term 600N
Crush Resistance Short term 1000N/100mm / Long term 300N/100mm
Minimum bend radius Dynamic 20D / Static 10D
* Notes: Above parameters are typical values. Cable specifications can be customized based on specific requirements.
Detailed Photos
GYDXTW Optical Fiber Cable Detail 1
GYDXTW Optical Fiber Cable Detail 2

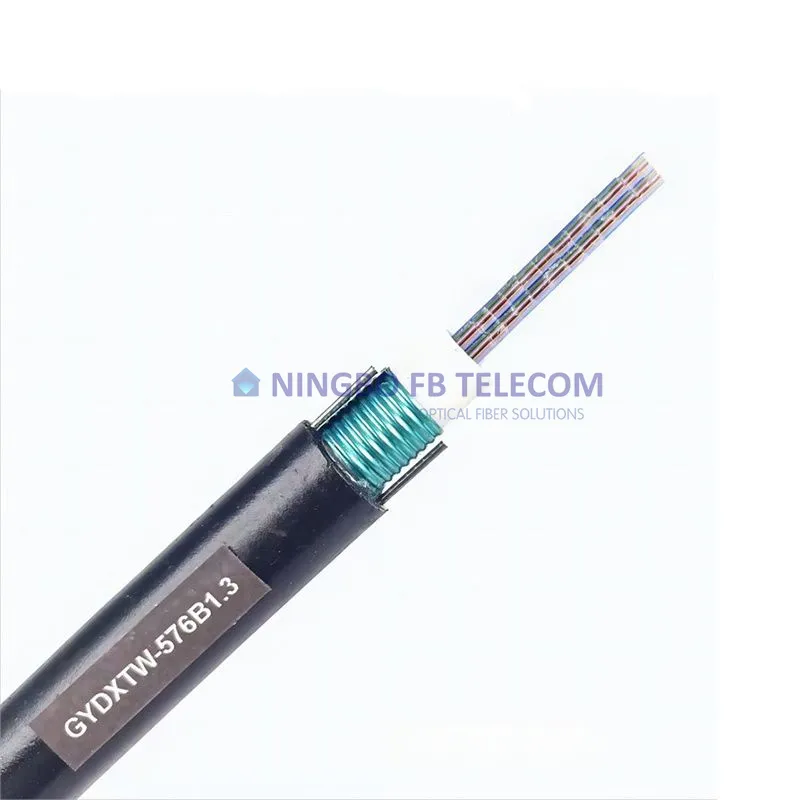

GYDXTW Optical Fiber Cable Detail 3
GYDXTW Optical Fiber Cable Detail 4

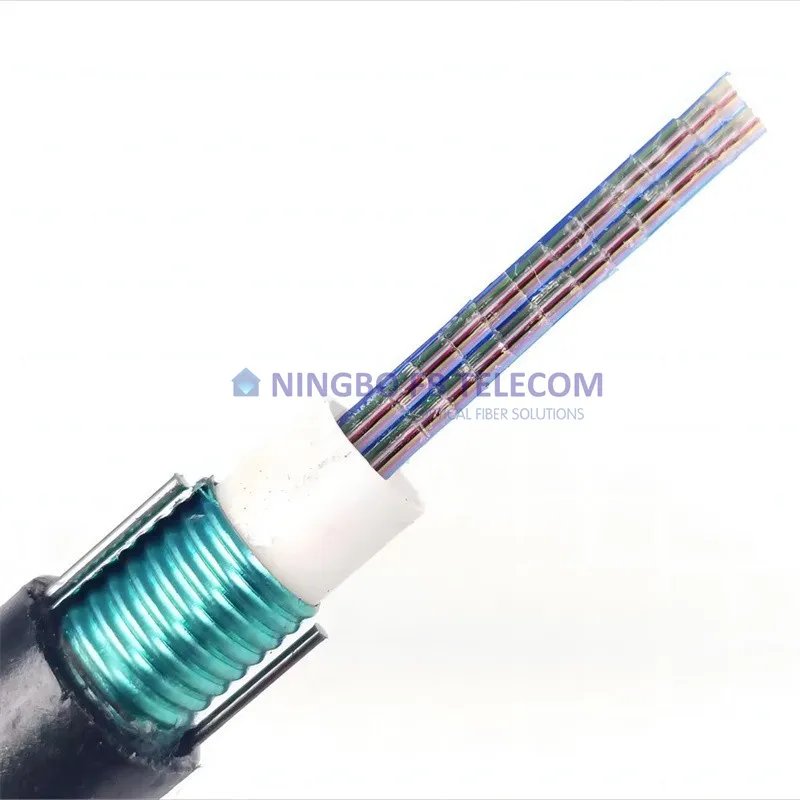

GYDXTW Optical Fiber Cable Detail 5
GYDXTW Optical Fiber Cable Detail 6
Production & Quality Control
Production Facility Testing Equipment
Packaging & Shipping
We ensure that all optical fiber cables are professionally packed to withstand international transportation conditions, maintaining the integrity of the fiber ribbons.
Packaging and Shipping
Frequently Asked Questions
What are the primary applications for GYDXTW cable?
GYDXTW is designed for outdoor use, specifically for aerial or duct installations where light armoring and water protection are required.
How many fibers can the GYDXTW accommodate?
This cable supports a wide range of fiber counts, typically from 2 cores up to 432 cores, utilizing efficient fiber ribbon structures.
What provides the mechanical strength in this cable?
The cable features two parallel steel wires and a corrugated steel tape (PSP) armor, providing excellent tensile strength and crush resistance.
Is the GYDXTW cable moisture-resistant?
Yes, it features a central loose tube filled with waterproof compound and additional water-blocking materials between the steel tape and the tube.
What is the operating temperature range?
The cable is engineered to perform reliably in extreme environments, with an operating temperature range of -40ºC to +70ºC.
Can the cable sheath be customized?
While standard PE sheath is common, we can design the cable specification according to specific customer requirements for different environments.
