12 Core Singlemode Gjdfbv Indoor Flat Fiber Optic Ribbon Cable

1 / 5

12 Core Singlemode Gjdfbv Indoor Flat Fiber Optic Ribbon Cable

Send Inquiry

Product Description

12 Core Singlemode GJDFBV Indoor Flat Fiber Optic Ribbon Cable

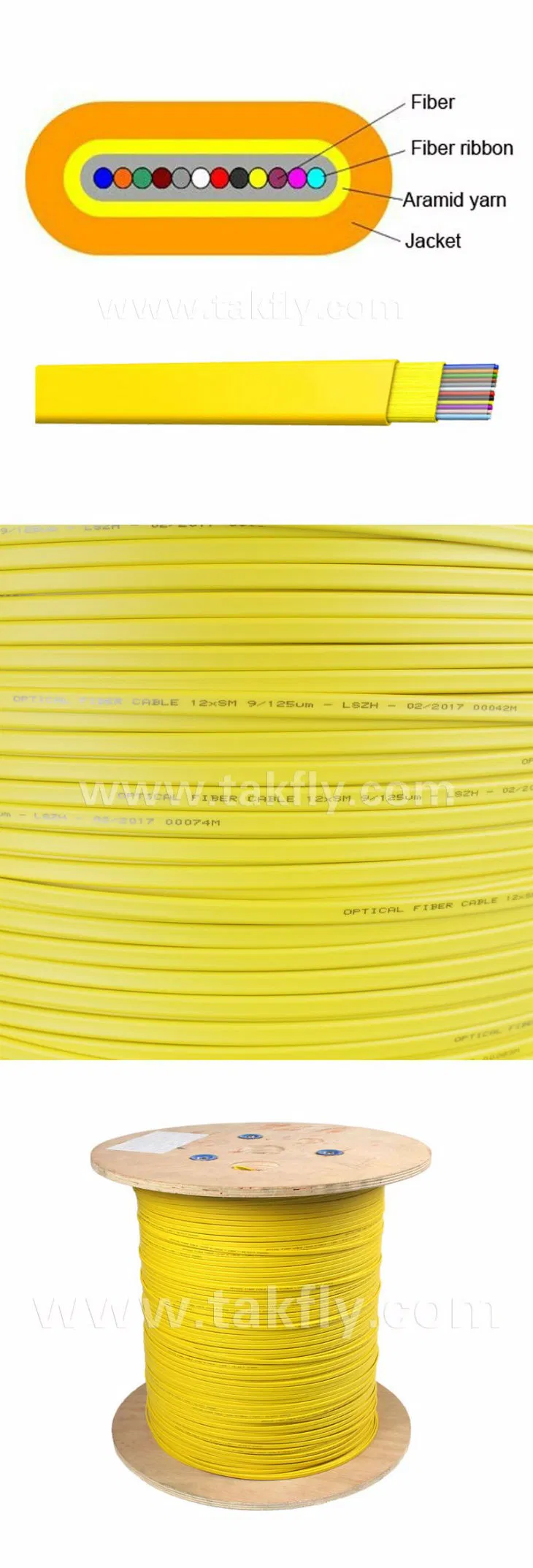

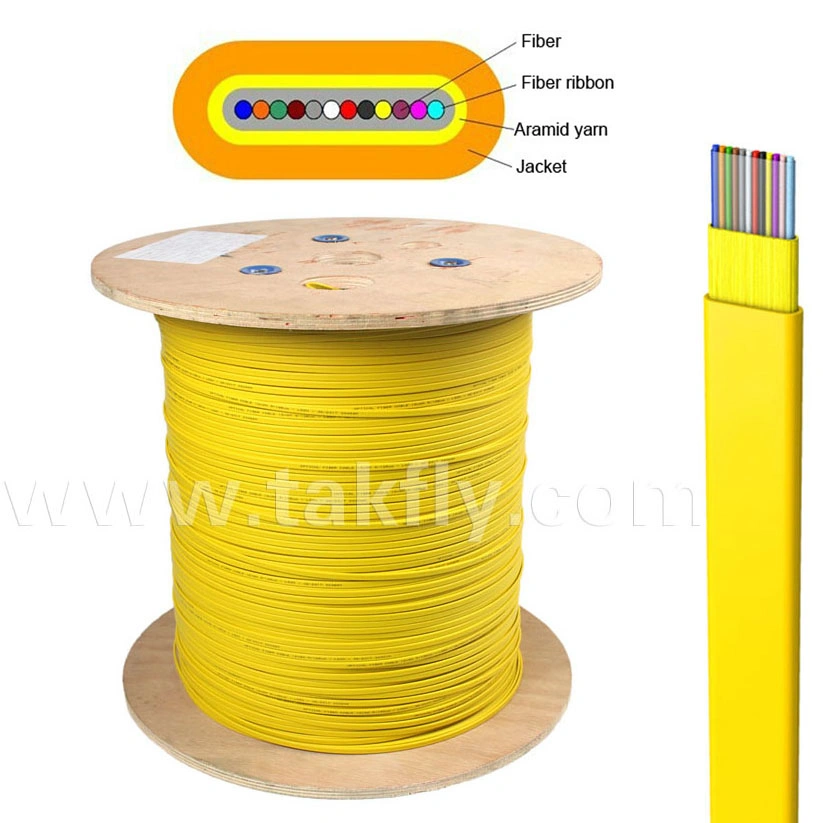

GJDFJV corning fiber cable flat fiber ribbon cable use fiber ribbon as optical communication medium, the fiber ribbon wrapped with a layer of aramind yard as strength member units, and the cable is completed with a flat PVC or LSZH jacket.

Key Features & Specifications

✓ 12 Core Singlemode Ribbon Fiber for high density connectivity.

✓ Low Insertion Loss and High Return Loss performance.

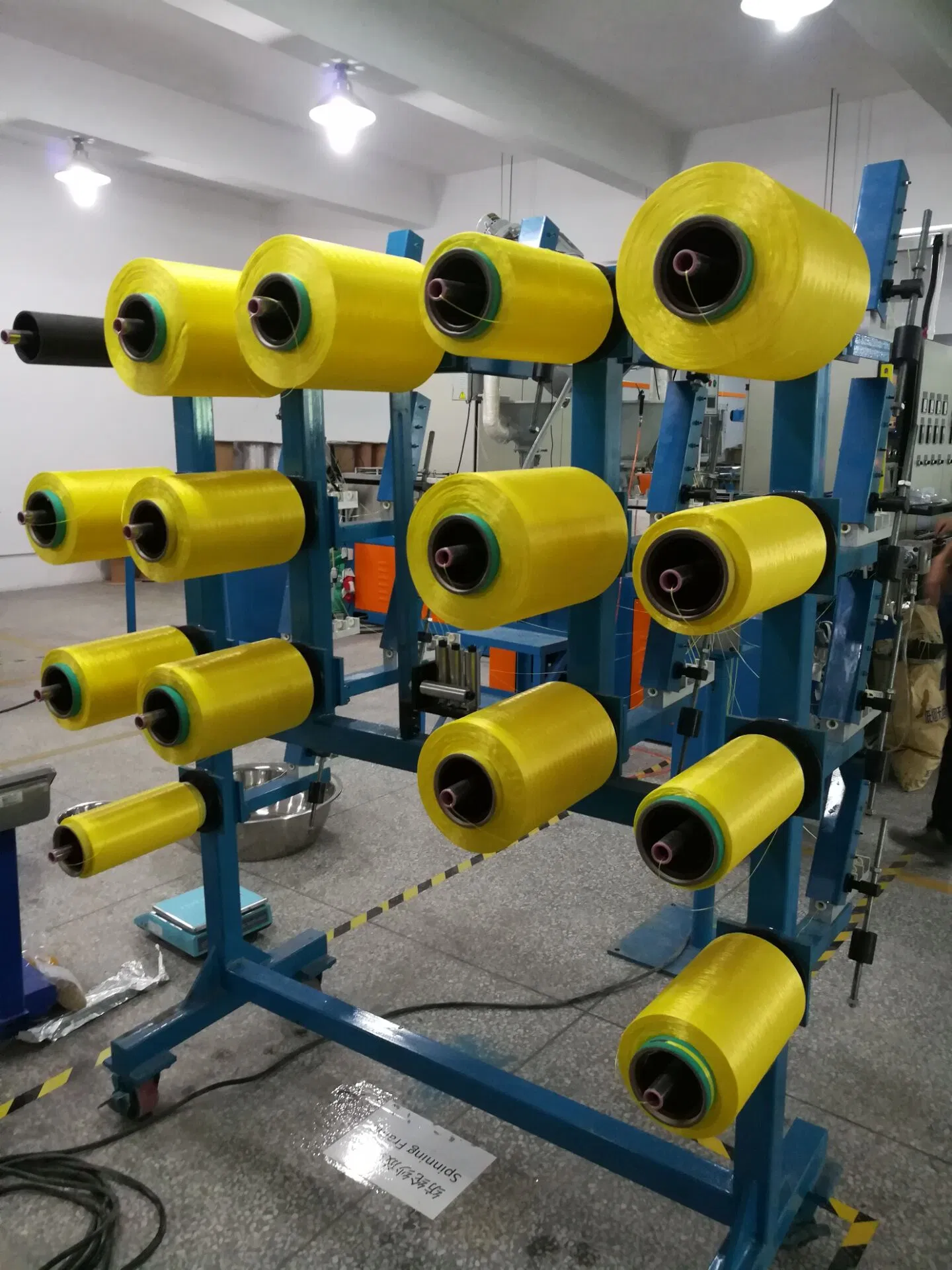

✓ Aramid yarn strength members for excellent tensile strength.

✓ Compact structure with superior flexibility and crush resistance.

✓ Anti-corrosion, anti-water, and flame-retardant LSZH/PVC jacket.

✓ All dielectric structure protects against electromagnetic interference.

Typical Applications

Indoor cabling and distribution.

Optical communication equipment rooms and distribution frames.

Production of pigtails and patch cords.

Access building cable for high-speed networks.

Technical Parameters (G.652D)

No.	Items	Unit	Specification
1	Mode Field Diameter (1310nm / 1550nm)	μm	9.2±0.4 / 10.4±0.5
2	Cladding Diameter	μm	124.8±0.7
3	Cladding Non-Circularity	%	≤0.7
4	Core-Cladding Concentricity Error	μm	≤0.5
5	Coating Diameter	μm	245±5
6	Attenuation (1310nm / 1550nm)	dB/km	≤0.4 / ≤0.3

Mechanical & Environmental Characteristics

Items	Unit	Specifications
Tension (Long/Short Term)	N	80 / 200
Crush (Long/Short Term)	N/10cm	200 / 500
Min. Bend Radius (Dynamic/Static)	mm	20H / 10H
Operating Temperature	ºC	-20 ~ +85
Jacket Material / Color	-	LSZH / Yellow

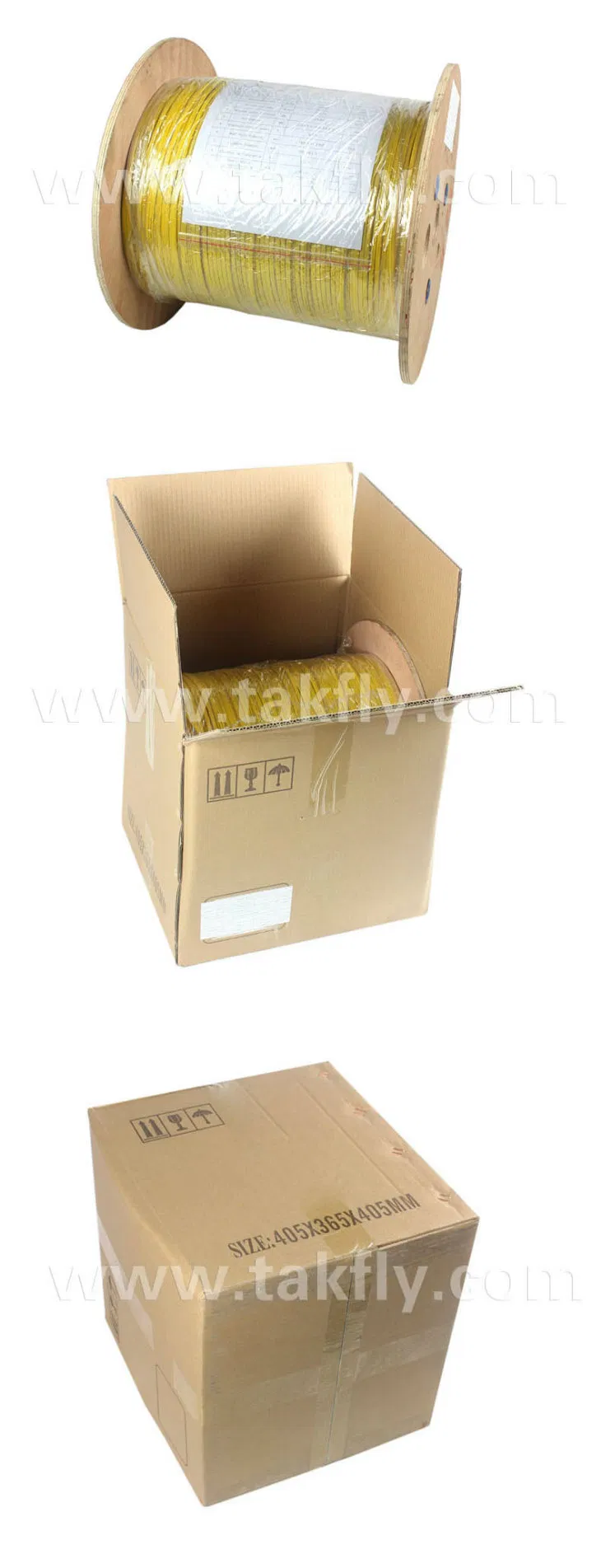

Packaging Information

• Wooden drums with comprehensive test reports.
• Standard length: 1000m/roll.
• Net Weight: 15.5kg.
• Carton Size: 40.5 * 36.5 * 40.5cm.

Frequently Asked Questions

Q: What type of fiber is used in this ribbon cable?

A: The cable utilizes G.652D Singlemode fiber ribbon as the optical communication medium, providing low attenuation and high performance.

Q: What are the primary jacket options available?

A: Options are available for PVC, LSZH (Low Smoke Zero Halogen), and OFNP to meet different indoor environmental and fire safety requirements.

Q: Is this cable suitable for tight-bend environments?

A: Yes, it features a scientific design that offers a small bend radius and high flexibility, making it ideal for indoor laying conditions and pigtails.

Q: How does the cable handle electromagnetic interference?

A: The cable has an all-dielectric structure (using aramid yarn as the strength member), which completely protects it from electromagnetic influence.

Q: What is the standard packaging and weight?

A: It is supplied in 1000m wooden drum rolls. Each roll weighs approximately 15.5kg and is packed in a 40.5*36.5*40.5cm carton.

Q: What is the operating temperature range?

A: This fiber optic cable is designed to operate reliably within a temperature range of -20ºC to +85ºC.
