Factory Price 96 144 Core Outdoor Fiber Optic Cable

Product Description

🌐

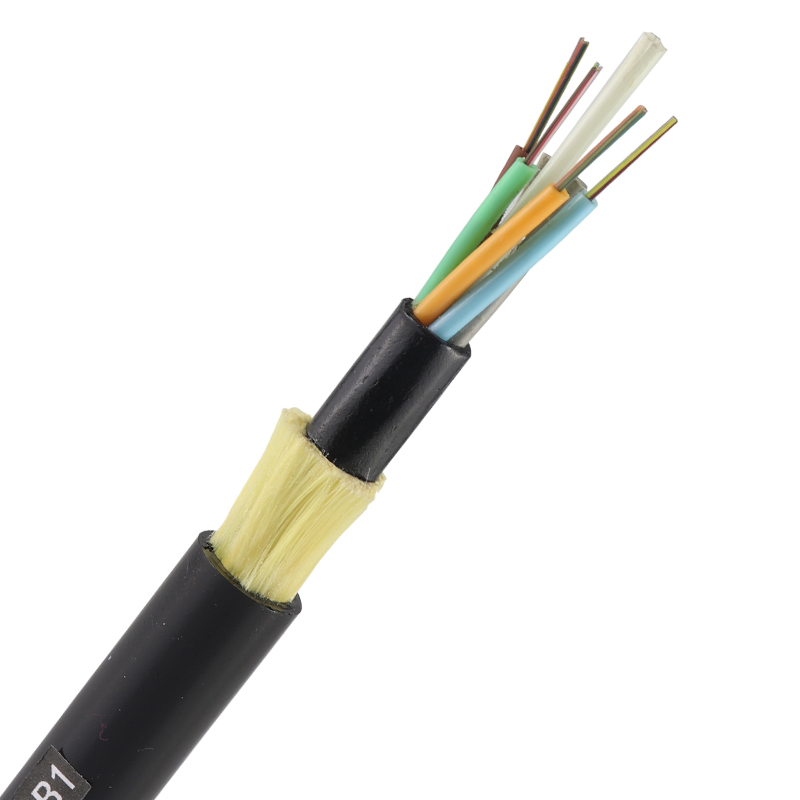

ADSS Outdoor Fiber Optic Cable

ADSS Outdoor Cable are positioned into a loose tube made of high modulus plastics. Filled with a water-blocking filling compound, the tube is stranded around FRP as a non-metallic central strength member into compact and circular cable core. ADSS cables are ideal for outside plant aerial applications, the lightweight cable and all-dielectric construction allow cost-effective and safe installation in high voltage overhead power lines.

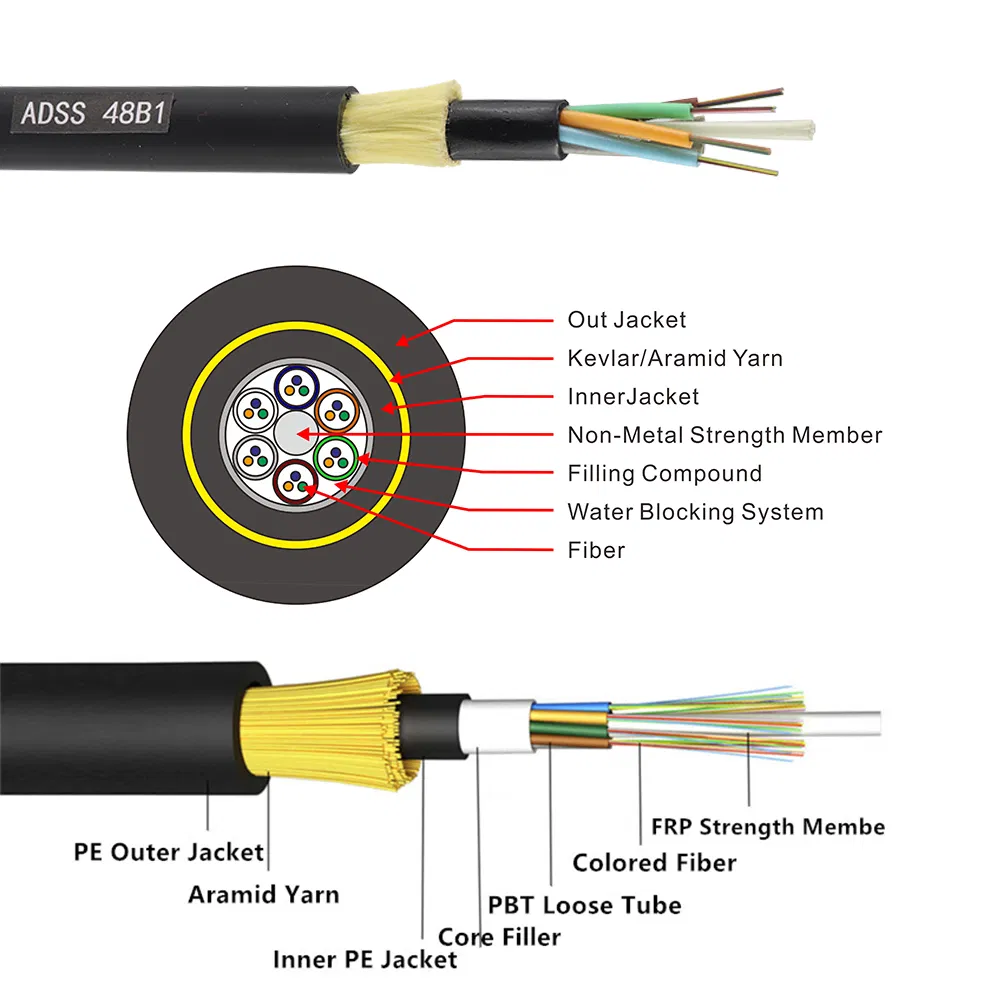

ADSS Fiber Optic Cable
Cable type OD(mm) Nominal Weight(kg/km) Tensile strength(N) Crush Resistance(N/100MM) Bending Radius(mm)
Short-term Long-term Short-term Long-term Dynamic Static
ADSS-2~48Xn 12.0±0.5 140.0 3600 1200 1000 500 20D 15D
ADSS-96Xn 14.0±0.5 165.0 3600 1200 1000 500 20D 15D
ADSS-144Xn 16.0±0.5 205.0 3600 1200 1000 500 20D 15D
Storage/Working temperature(ºC) -40~+70
🏗️

GYTS Outdoor Fiber Optic Cable

GYTS is the outdoor fiber optic cable type used for duct and aerial applications. The loose tube stranding technology make the fibers have good secondary excess length.

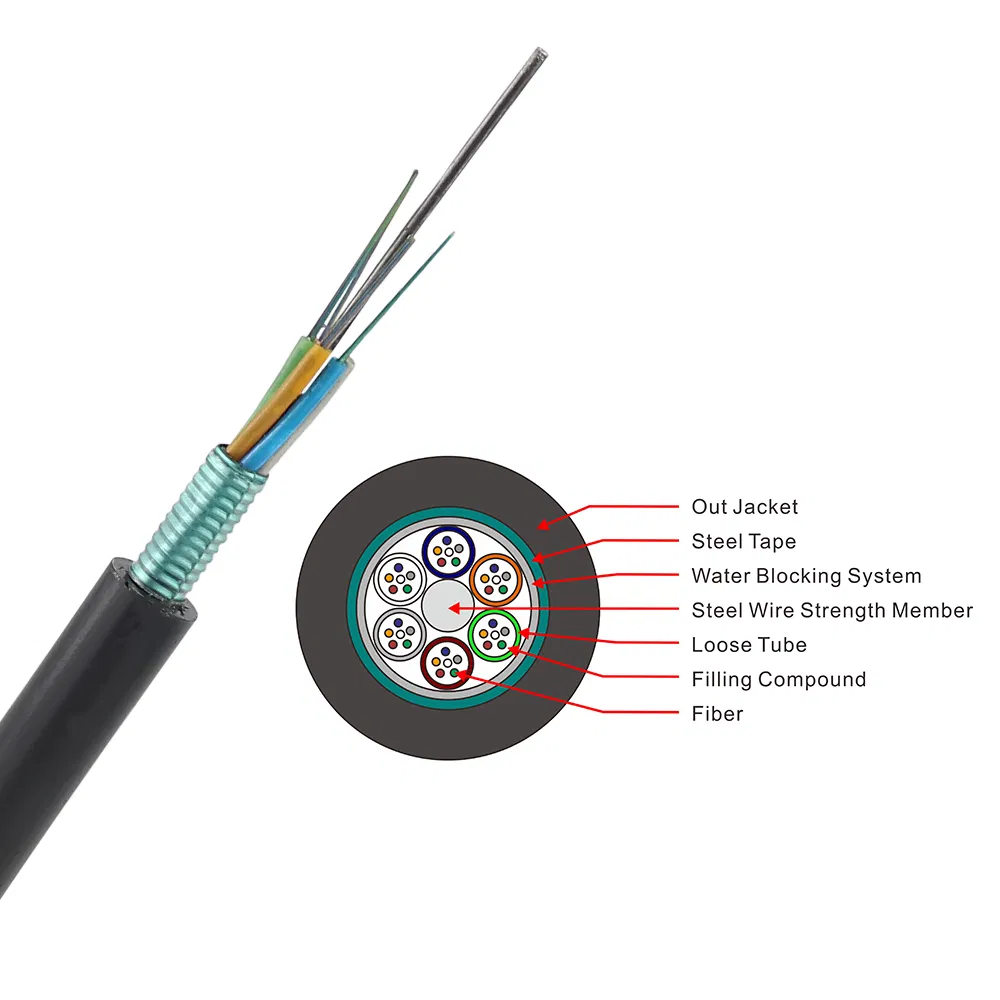

GYTS Fiber Optic Cable
Cable type OD(mm) Nominal Weight(kg/km) Tensile strength(N) Crush Resistance(N/100MM) Bending Radius(mm)
Short-term Long-term Short-term Long-term Dynamic Static
GYTS-2~60Xn 10.5±0.5 88.0 1500 600 1000 300 20D 15D
GYTS-62~72Xn 11.5±0.5 102.0 1500 600 1000 300 20D 15D
GYTS-74~96Xn 13.0±0.5 130.0 1500 600 1000 300 20D 15D
GYTS-98~144Xn 15.5±0.5 156.0 1500 600 1000 300 20D 15D
Storage/Working temperature(ºC) -40~+70
♾️

GYTC8S Figure 8 Fiber Optic Cable

GYTC8S is a typical outdoor use fiber optic cable for aerial applications. GYTC8S is also called the figure 8 cable because of its structure looks like the figure 8. We supply single mode and multi mode GYTC8S fiber cables from 2-fiber type to 144-fiber type.

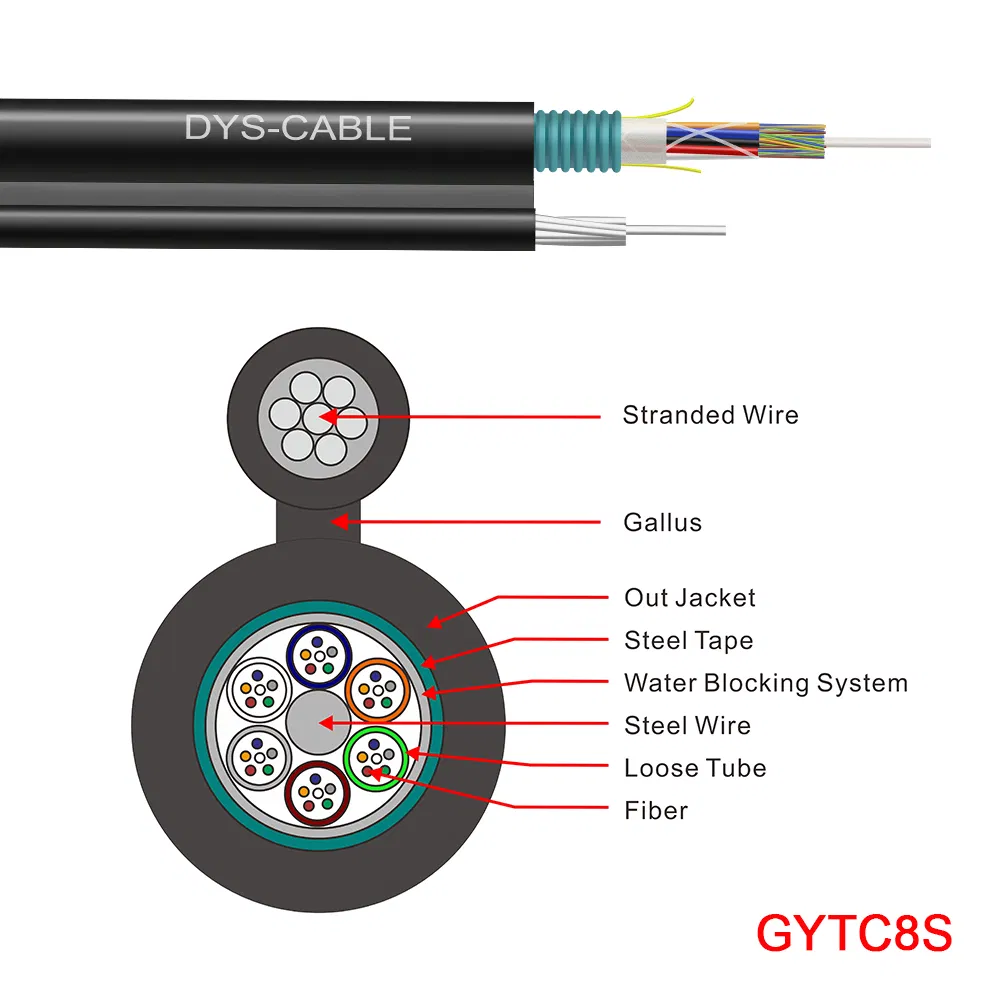

GYTC8S Figure 8 Cable
Cable type OD(mm) Nominal Weight(kg/km) Tensile strength(N) Crush Resistance(N/100MM) Bending Radius(mm)
Short-term Long-term Short-term Long-term Dynamic Static
GYTC8S-12~60Xn (11.0±0.1)*(20.8±0.5) 212.0 4950 2500 2000 1000 20D 15D
GYTC8S-62~144Xn (11.0±0.1)*(20.8±0.5) 397.0 4950 2500 2000 1000 20D 15D
Storage/Working temperature(ºC) -40~+70
🏭

Manufacturing Capabilities

Founded in 2009, our group is a leading manufacturer of passive fiber optic components, precision molds, and injection products. We operate a 20,000 square meters production base with over 50 production lines and a dedicated R&D and quality team. Our product portfolio includes indoor/outdoor fiber cables, FTTx waterproof patch cords, MPO/MTP high-density assemblies, fast connectors, PLC splitters, and fiber distribution boxes.

Certified with ISO9001, ISO14001, and ISO45001, and recognized as a National High-Tech Enterprise, we hold 20+ patents. Our products meet international standards such as CPR, UL, and CE, backed by advanced reliability testing and world-class manufacturing equipment.
Factory View

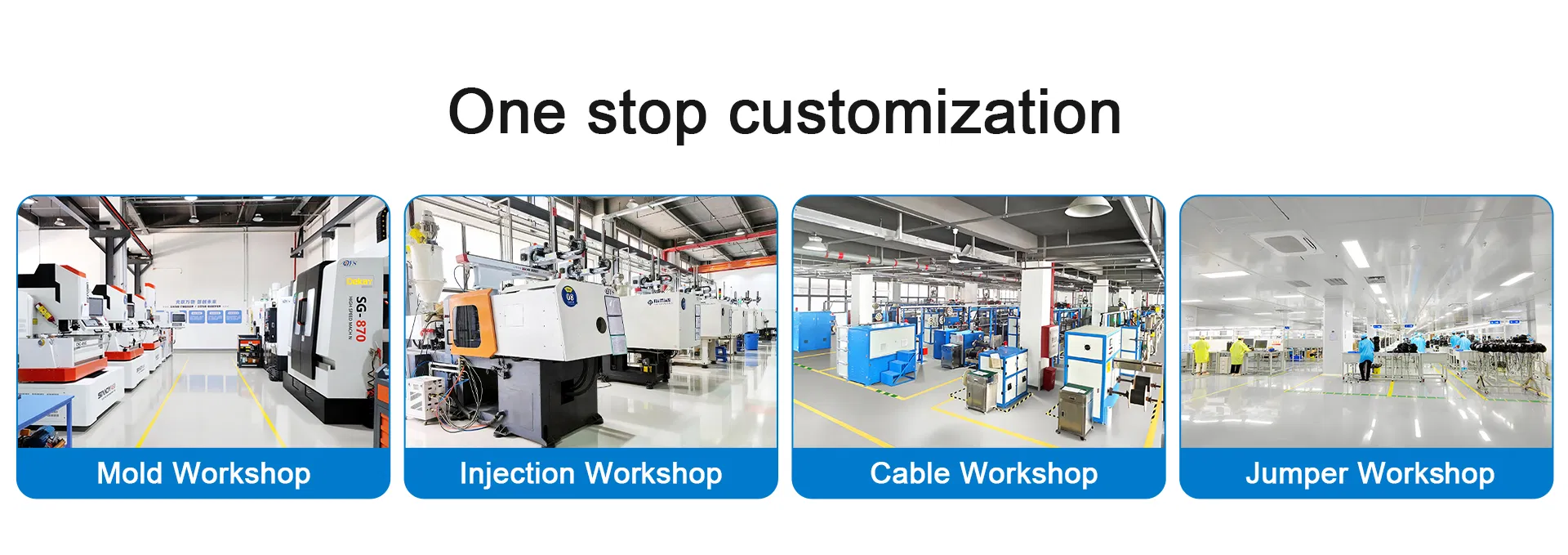

Production Line

Frequently Asked Questions

1. What are the primary applications for ADSS fiber optic cables?
ADSS (All-Dielectric Self-Supporting) cables are designed for outside plant aerial applications, specifically for installation on high-voltage overhead power lines due to their non-metallic construction.
2. Why is GYTC8S called "Figure 8" cable?
It is called "Figure 8" because its cross-sectional structure, which includes a built-in messenger wire for support, resembles the numeral 8.
3. What is the working temperature range for these outdoor cables?
All mentioned outdoor cables (ADSS, GYTS, and GYTC8S) are designed to operate within a storage and working temperature range of -40ºC to +70ºC.
4. Are your fiber optic products compliant with international standards?
Yes, our products meet international standards including CPR, UL, and CE, and our manufacturing processes are certified under ISO9001, ISO14001, and ISO45001.
5. Does the GYTS cable support both duct and aerial installation?
Yes, GYTS is a versatile outdoor cable suitable for both duct and aerial applications, utilizing loose tube stranding for optimal fiber protection.
6. What fiber counts are available for the GYTC8S series?
We supply GYTC8S fiber cables in both single-mode and multi-mode versions, ranging from 2-fiber up to 144-fiber configurations.
