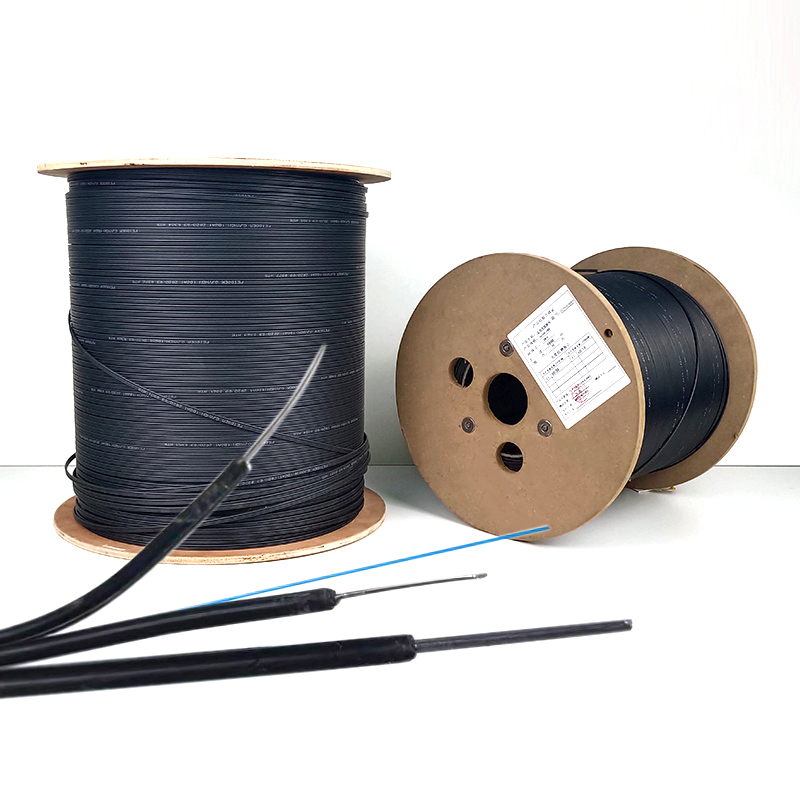

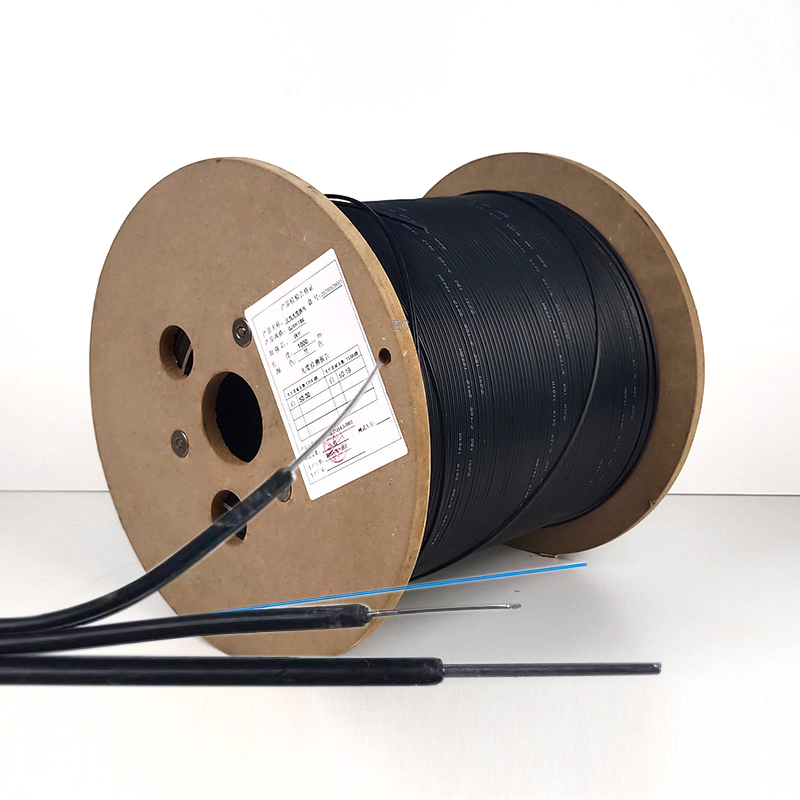

Outdoor 1km FTTH 1 Core Fiber Optic Drop Cable Optical Fiber Cable
Outdoor 1km FTTH 1 Core Fiber Optic Drop Cable Optical Fiber Cable
Outdoor 1km FTTH 1 Core Fiber Optic Drop Cable Optical Fiber Cable
Outdoor 1km FTTH 1 Core Fiber Optic Drop Cable Optical Fiber Cable
Outdoor 1km FTTH 1 Core Fiber Optic Drop Cable Optical Fiber Cable
1 / 5
Outdoor 1km FTTH 1 Core Fiber Optic Drop Cable Optical Fiber Cable
Outdoor 1km FTTH 1 Core Fiber Optic Drop Cable Optical Fiber Cable
Outdoor 1km FTTH 1 Core Fiber Optic Drop Cable Optical Fiber Cable
Outdoor 1km FTTH 1 Core Fiber Optic Drop Cable Optical Fiber Cable
Outdoor 1km FTTH 1 Core Fiber Optic Drop Cable Optical Fiber Cable

Outdoor 1km FTTH 1 Core Fiber Optic Drop Cable Optical Fiber Cable

Customization: Available
Application: Communication, Outdoor Overhead
Type: Fiber Optic Cable
Send Inquiry

Product Description

ⓘ Basic Information
Model NO.
GJYXCH
Connection Structure
SC
Material Shape
Flat Wire
Lateral Pressure
>1000(N/100mm)
Tensile Strength
1000N - 10000N
Core
Single Core
Certification
CE/RoHS/ISO9001
Sheath Material
LSZH
Product Name
Optic Fiber Cable
Jacket Material
LSZH HDPE
Color
Black/White/Customized
Messenger Wire
Steel Wire or FRP
Fiber Type
G657A1
Package Size
31.00cm * 31.00cm * 24.00cm
Gross Weight
20.000kg
Capacity
500000km/Year
📋 Product Description

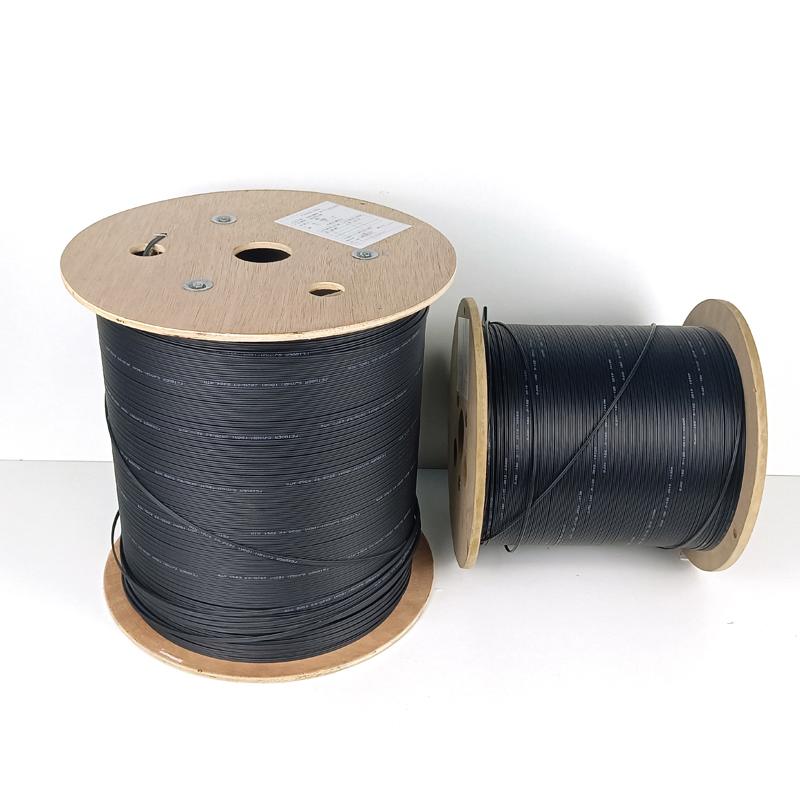

Outdoor 1km Roll FTTH 1 Core Fiber Optic Drop Cable

Key Features
✓

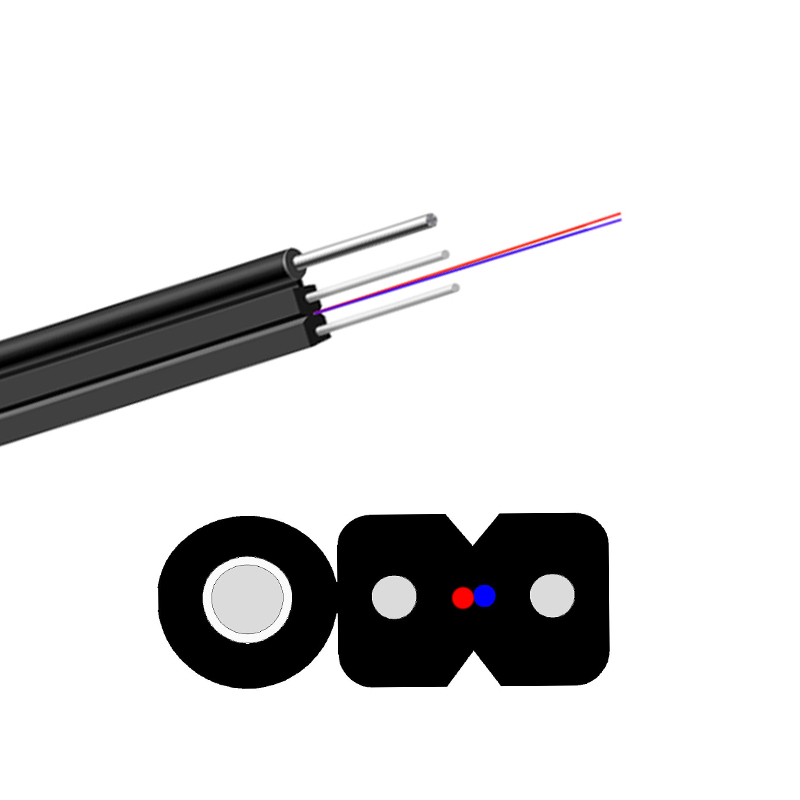

Bow-tie type cross-section design with LZSH or PVC Sheath for superior protection.
✓
Two parallel wire or FRP as strength members to provide adequate tension and pressure.
✓
Flex durable fiber providing greater bandwidth and enhanced transmission characteristics.
✓
Unique groove design: Light-weight, easy to peel, and simple for maintenance.
Applications
  • Indoor and outdoor wiring systems
  • FTTH (Fiber to the Home) terminal systems
  • Shaft and building wiring applications
⚙ Product Parameters
Fiber Count1 / 2 / 4
Fiber TypeG657A1 / G657A2
Strength MemberSteel / FRP
Outer SheathLSZH (Low Smoke Zero Halogen) Flame Retardant & UV Anti
Cable Diameter5.0 * 2.0mm
Operation Temp-40ºC to +70ºC
Tension LoadShort term: 1000N / Long term: 600N
Crush LoadShort term: 2200N / Long term: 1000N
Bending RadiusInstallation: 30 x OD / Operation: 15 x OD
📈 Our Advantages & Performance
Fiber Optic Performance

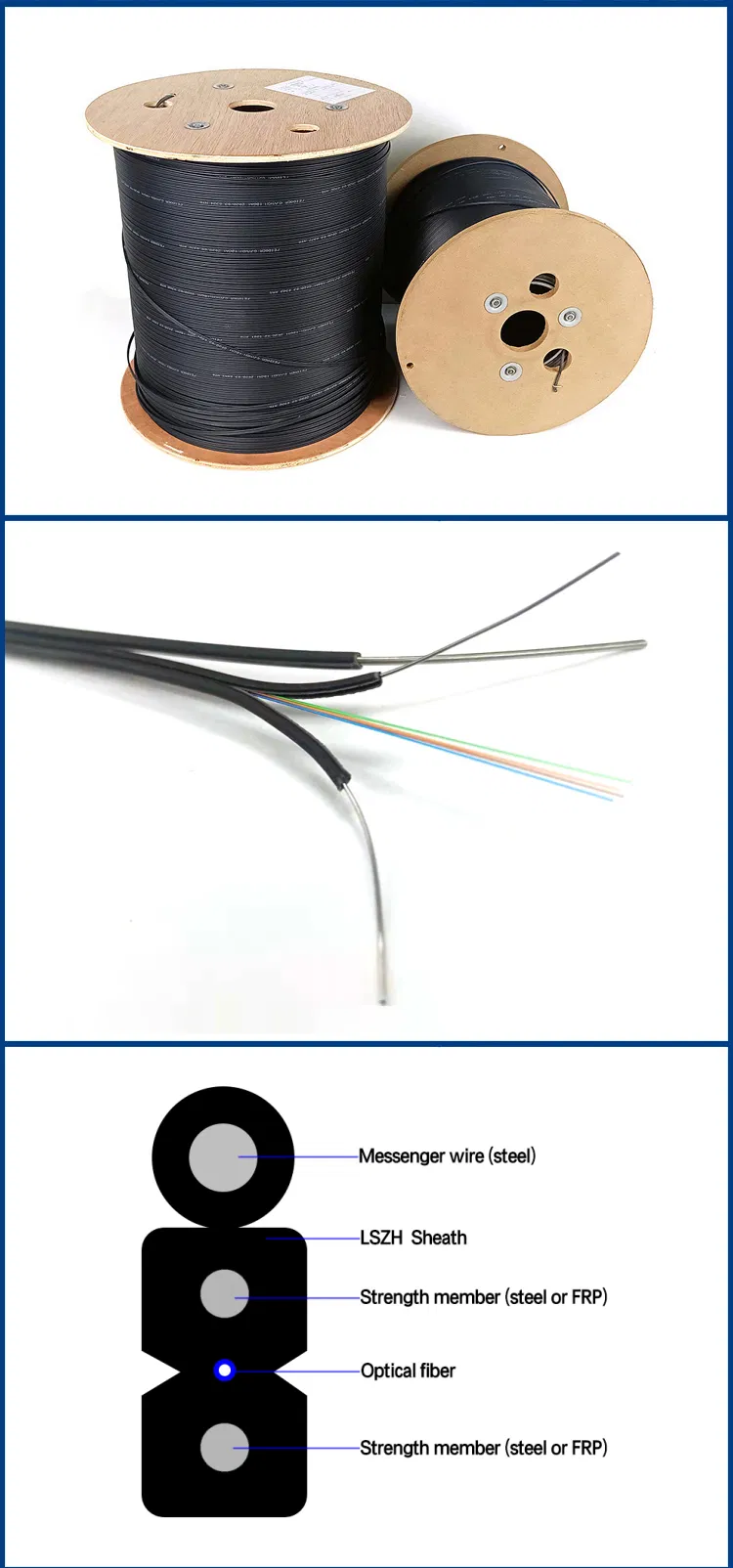

Drop Cable Detail
Outdoor Cable Structure

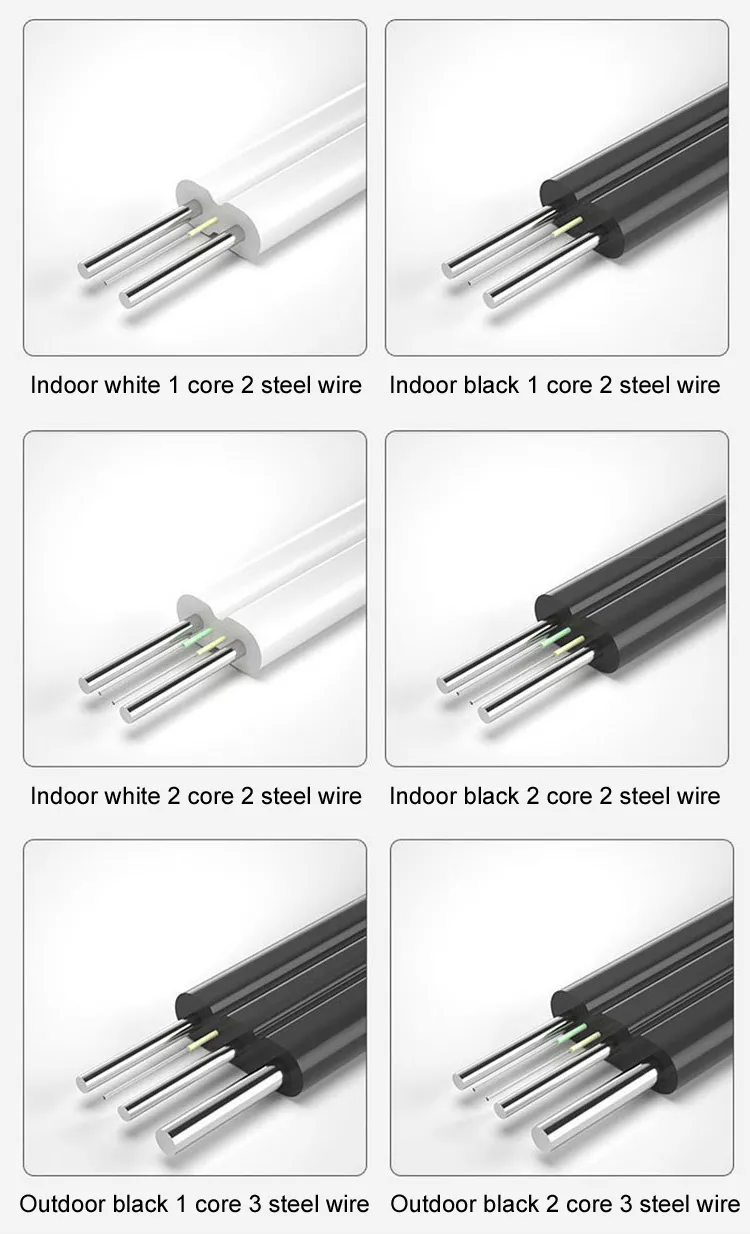

FTTH Installation

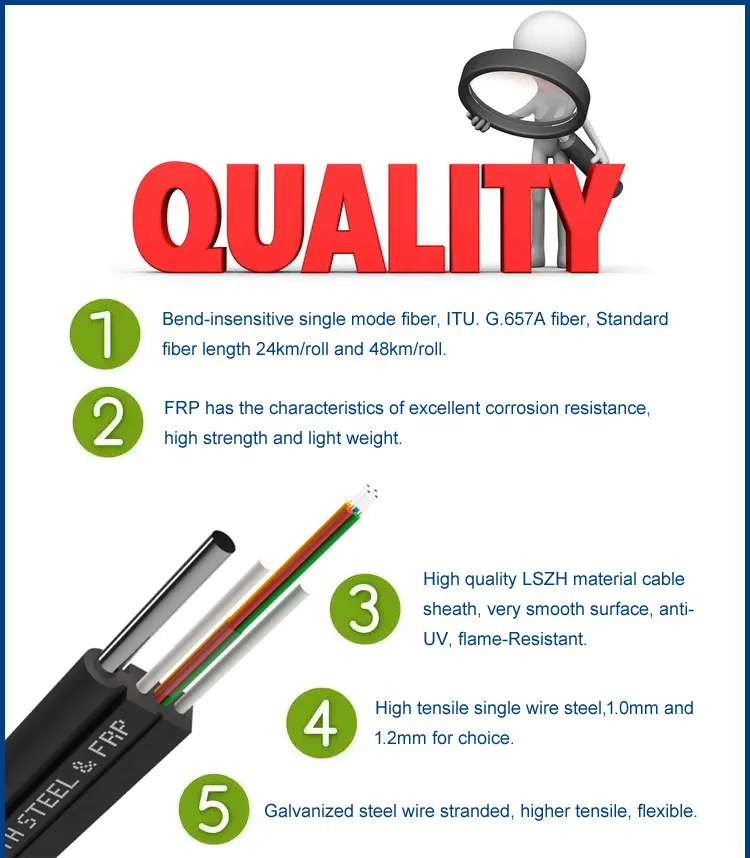

Cable Quality
Technical Specs
Fiber Core

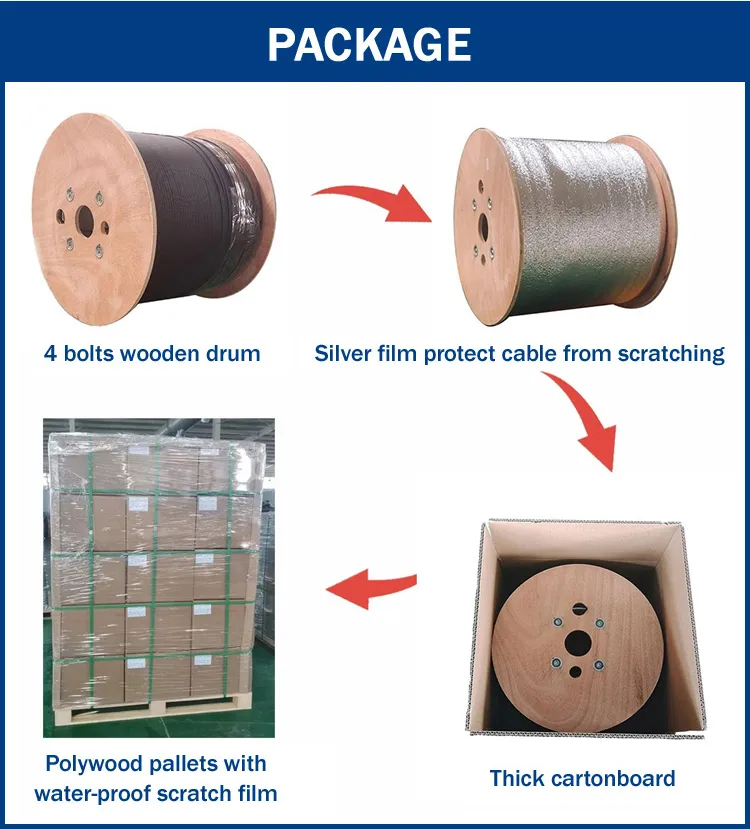

Packaging
Cross Section

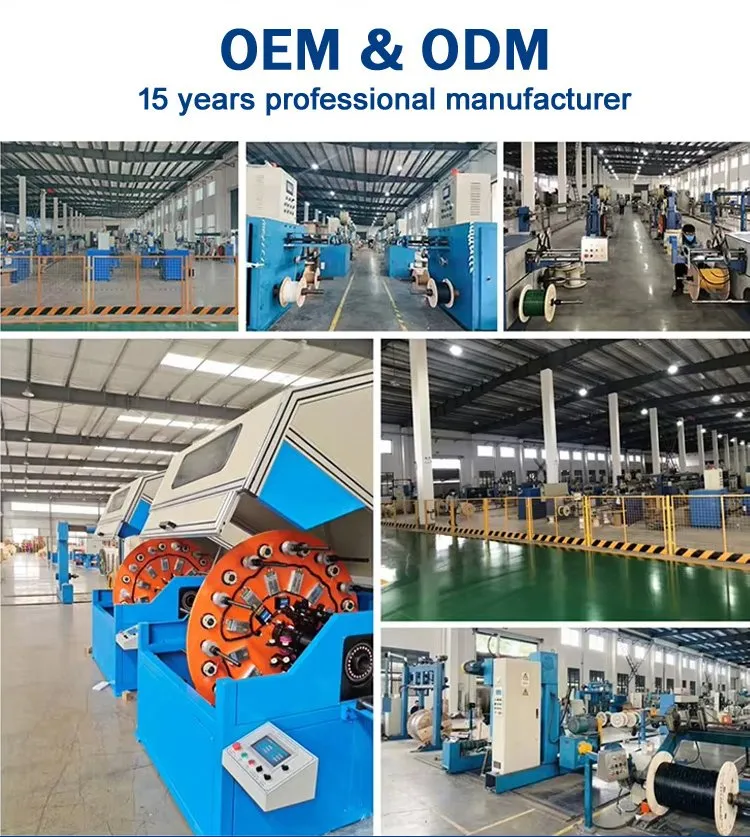

Production Line
Frequently Asked Questions
What are the main applications for this fiber optic drop cable?
It is primarily used for FTTH (Fiber to the Home) projects, indoor and outdoor shaft wiring, and terminal system connections in buildings.
What makes the LSZH sheath beneficial?
LSZH (Low Smoke Zero Halogen) sheath is flame-retardant and environment-friendly. It reduces the amount of toxic and corrosive gas emitted during combustion.
Is the cable easy to install?
Yes, its unique groove design allows for easy peeling and splicing, which significantly simplifies the installation and maintenance process.
What strength members are used in this cable?
The cable uses two parallel metallic or FRP (Fiber Reinforced Plastic) strength members, along with a single steel wire messenger for enhanced tensile performance.
What is the temperature range for operation?
The cable is designed to operate efficiently within a wide temperature range of -40ºC to +70ºC.
What is the bending radius of the cable?
The minimal installation bending radius is 30 times the outer diameter, while the operational bending radius is 15 times the outer diameter.
