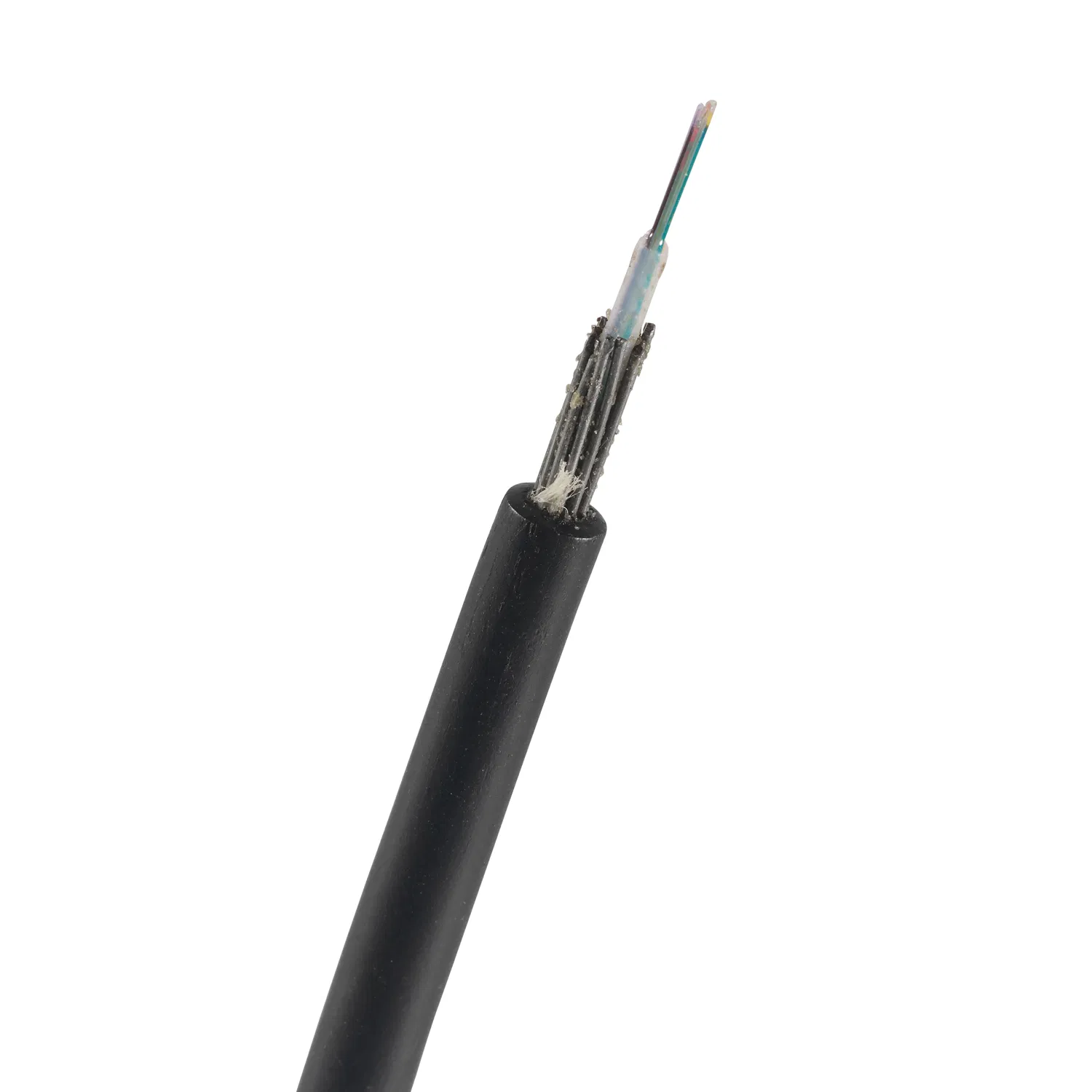

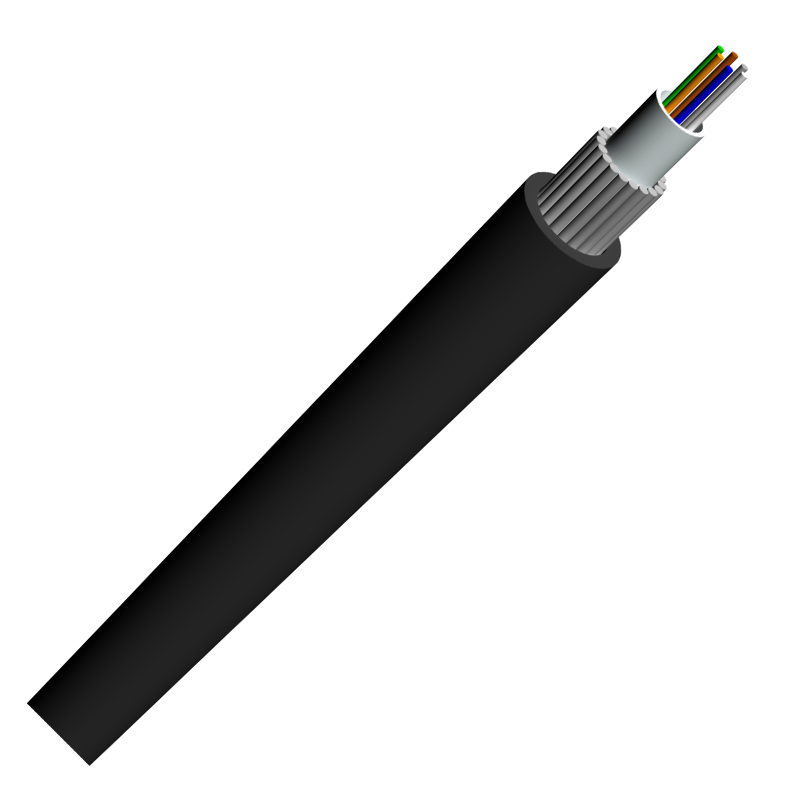

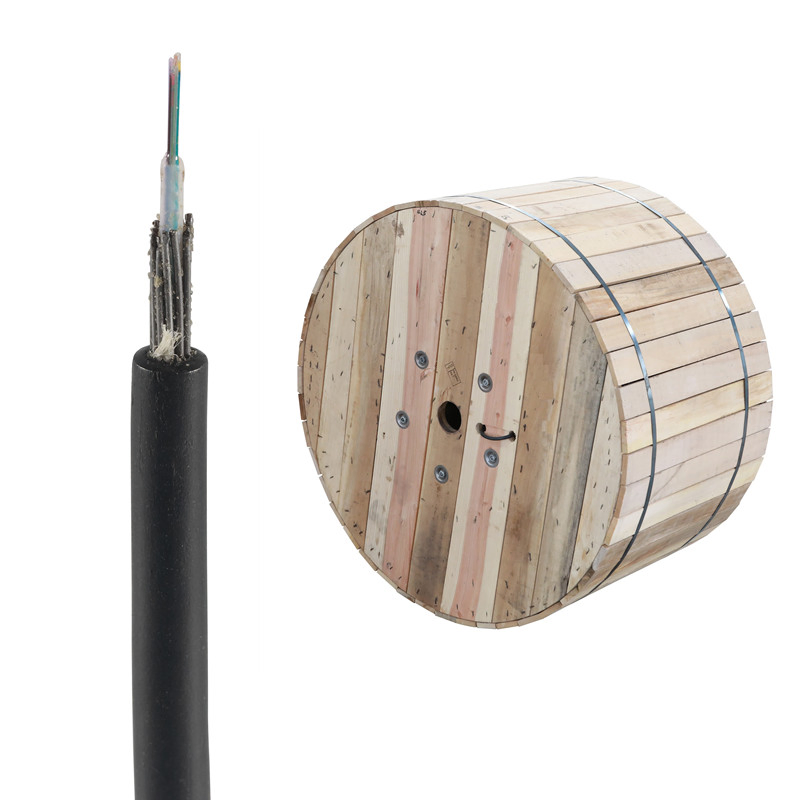

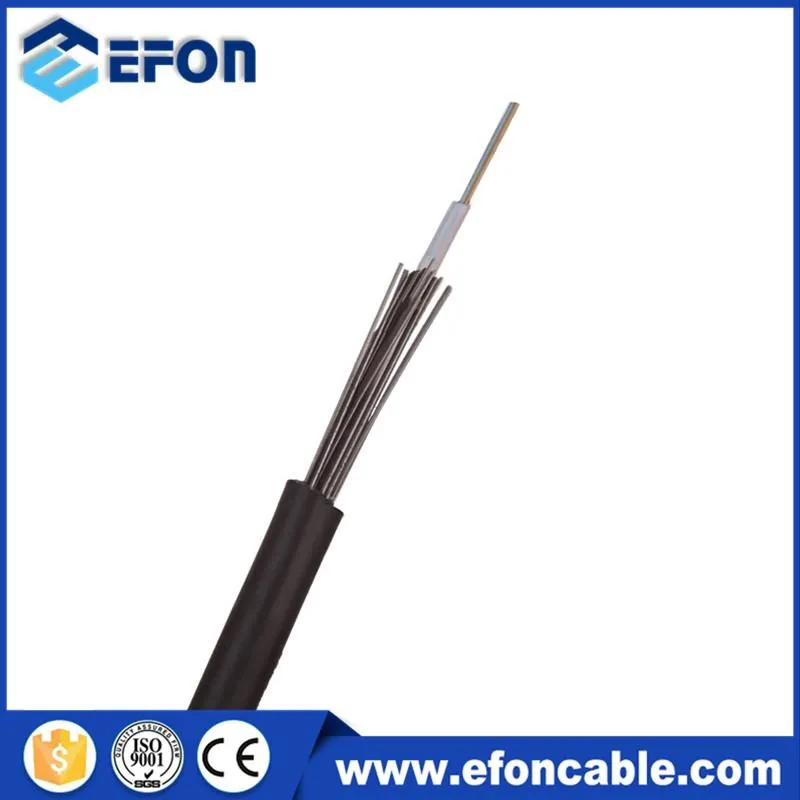

GYXTY SWA Armored Aerial or Duct Fiber Optical Cable

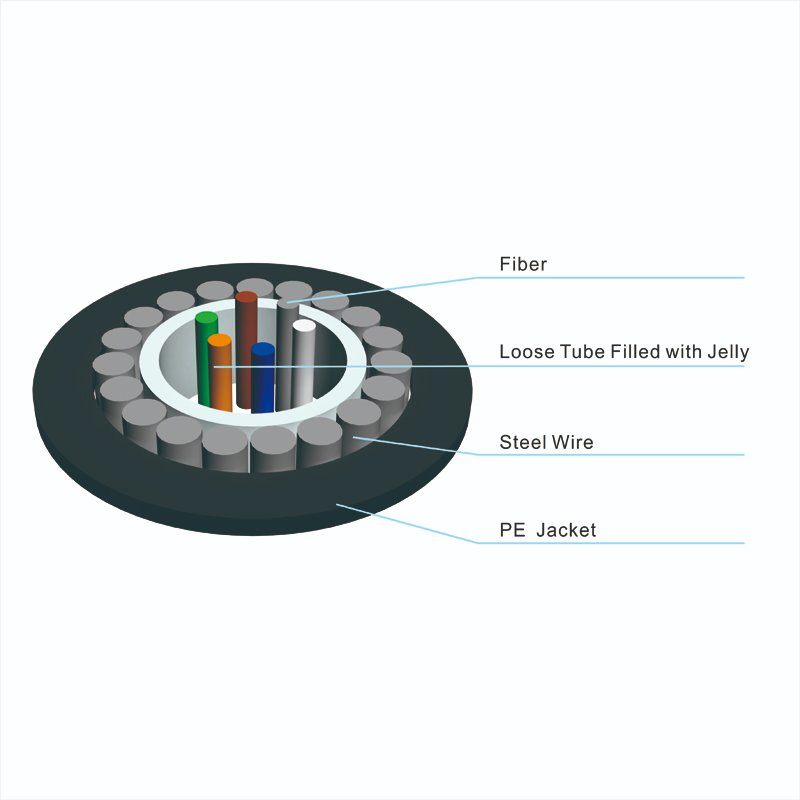

GYXTY Steel Wire Armored Uni Tube Single Jacket cable is designed with the flexibility and versatility required for today's most demanding installations, including aerial, conduit, and duct applications. The overall steel wire armoring provides excellent tensile and crush resistance.
| Fiber Type | G.652 | G.655 | 50/125 um | 62.5/125 um | |
|---|---|---|---|---|---|
| Attenuation (+20°C) | 850 nm | - | - | <3.0 dB/km | <3.3 dB/km |
| 1300 nm | - | - | <1.0 dB/km | <1.0 dB/km | |
| 1310 nm | <0.36 dB/km | <0.40 dB/km | - | - | |
| 1550 nm | <0.22 dB/km | <0.23 dB/km | - | - | |
| Fiber Count | Diameter (mm) | Weight (kg/km) | Tensile Short/Long (N) | Crush Short/Long (N/100mm) |
|---|---|---|---|---|
| 2~12 | 7.1 | 74 | 2000 / 1000 | 1500 / 600 |
| 14~24 | 7.5 | 80 | 2000 / 1000 | 1500 / 600 |
| Test Item | Standard Compliance |
|---|---|
| Max Tension Performance | IEC 60794-1-2-E |
| Crush Test | IEC 60794-1-2-E3 |
| Impact Test | IEC 60794-1-2-E4 |
| Temperature Cycling | IEC 60794-1-2-F1 |
| Water Penetration | IEC 60794-1-2-F5B |
