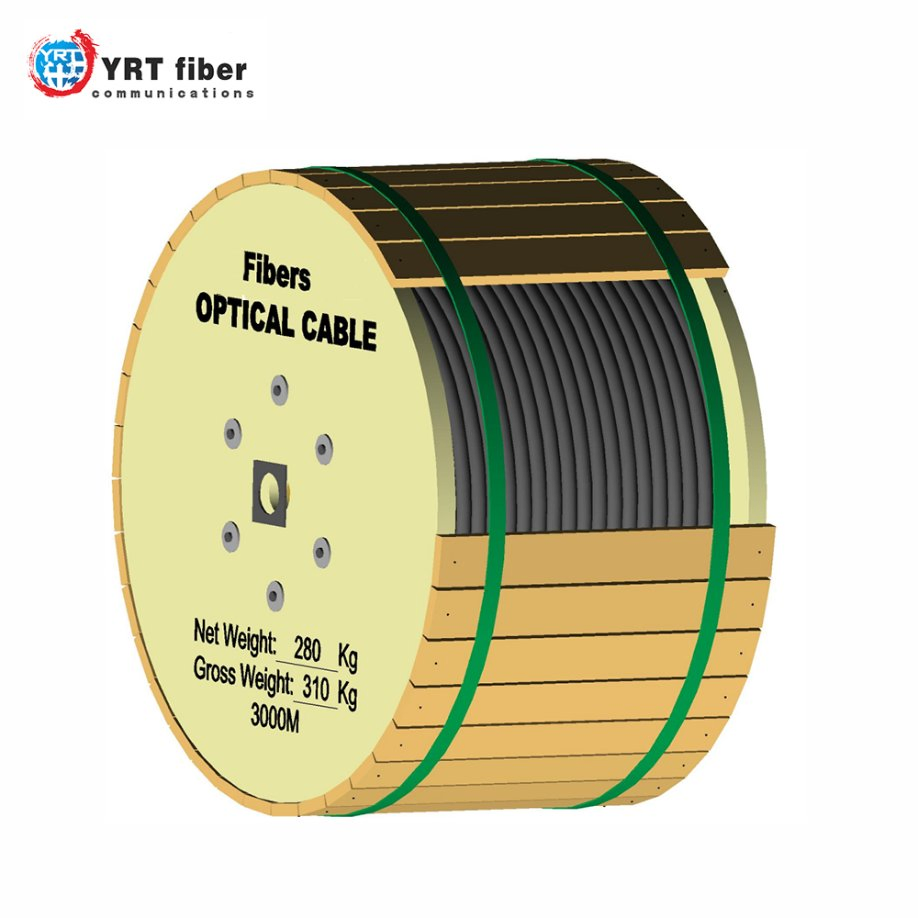

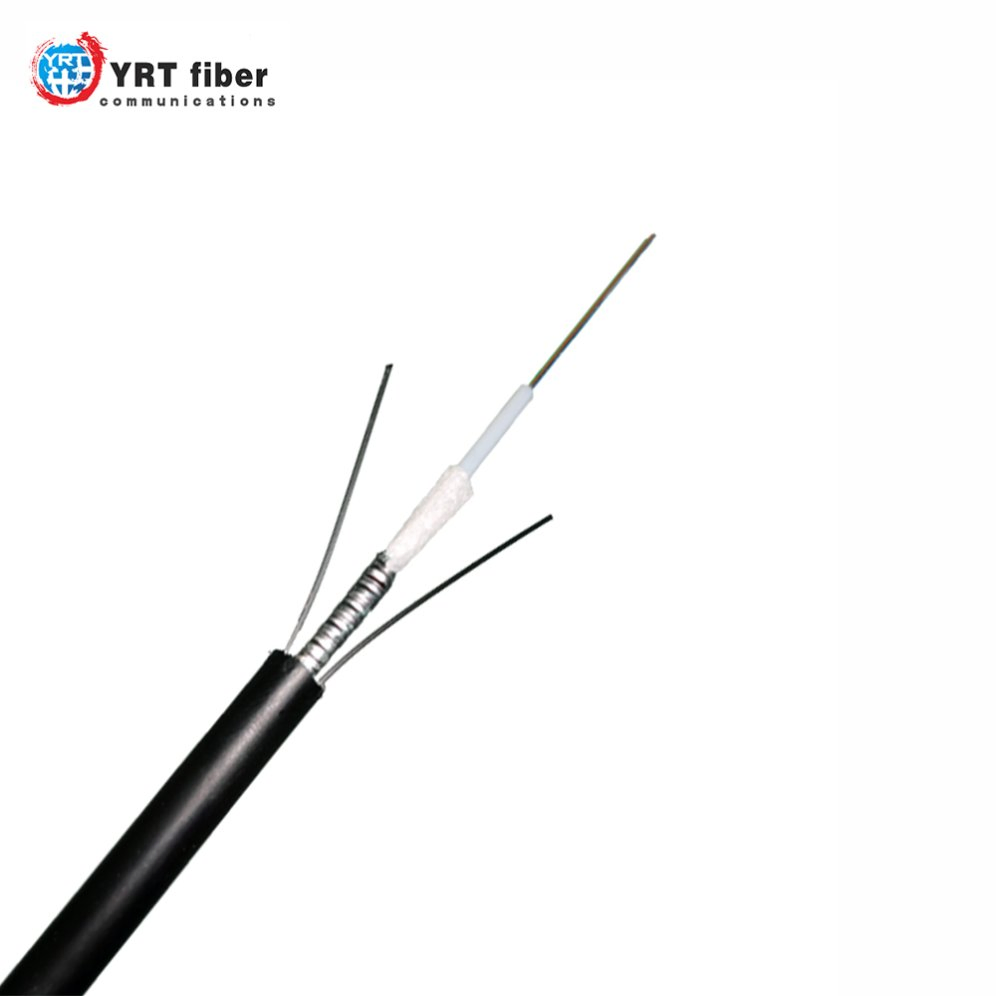

Outdoor Armored Singlemode Fiber Optic Cable with G652D fiber HDPE Jacket GYXTW

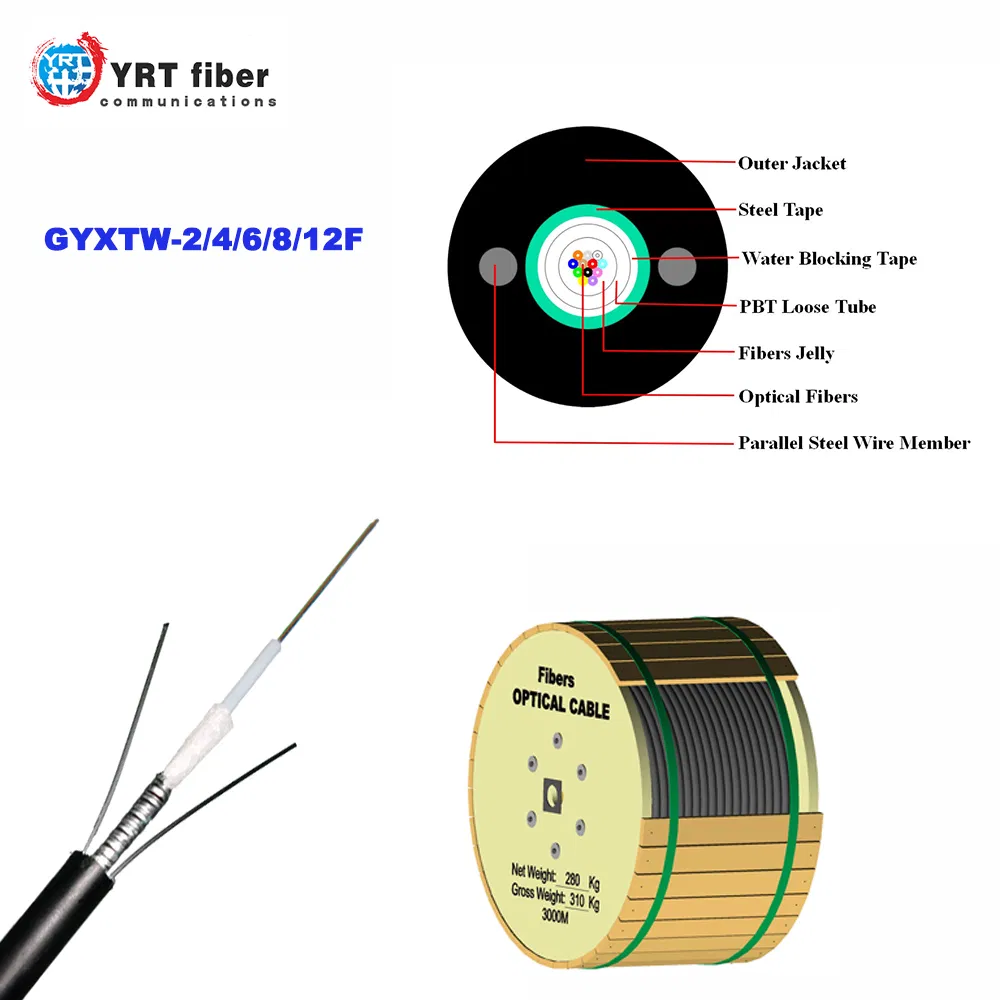

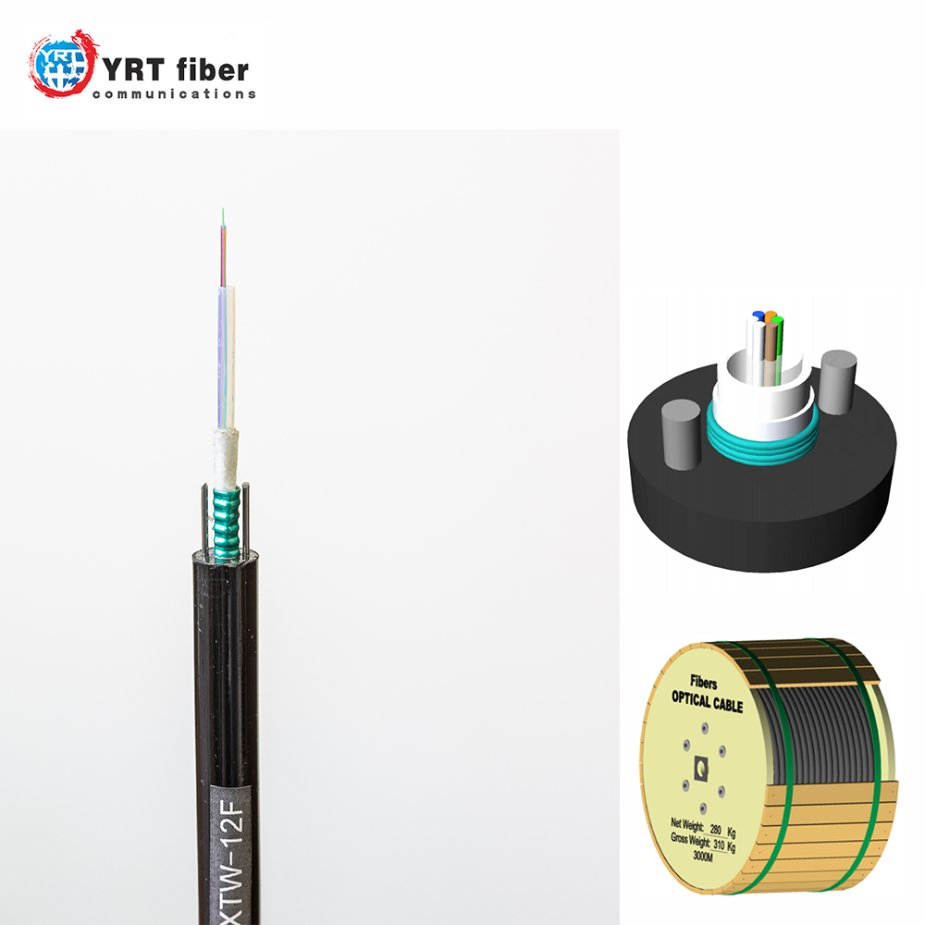

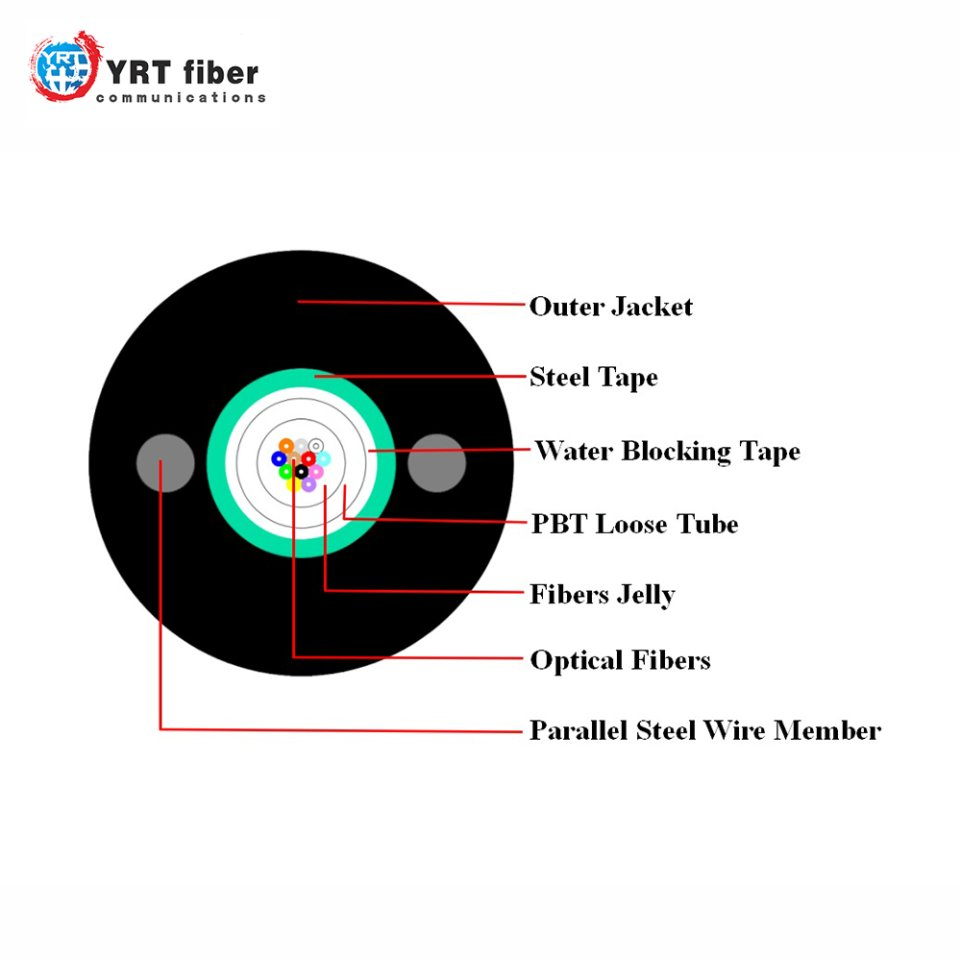

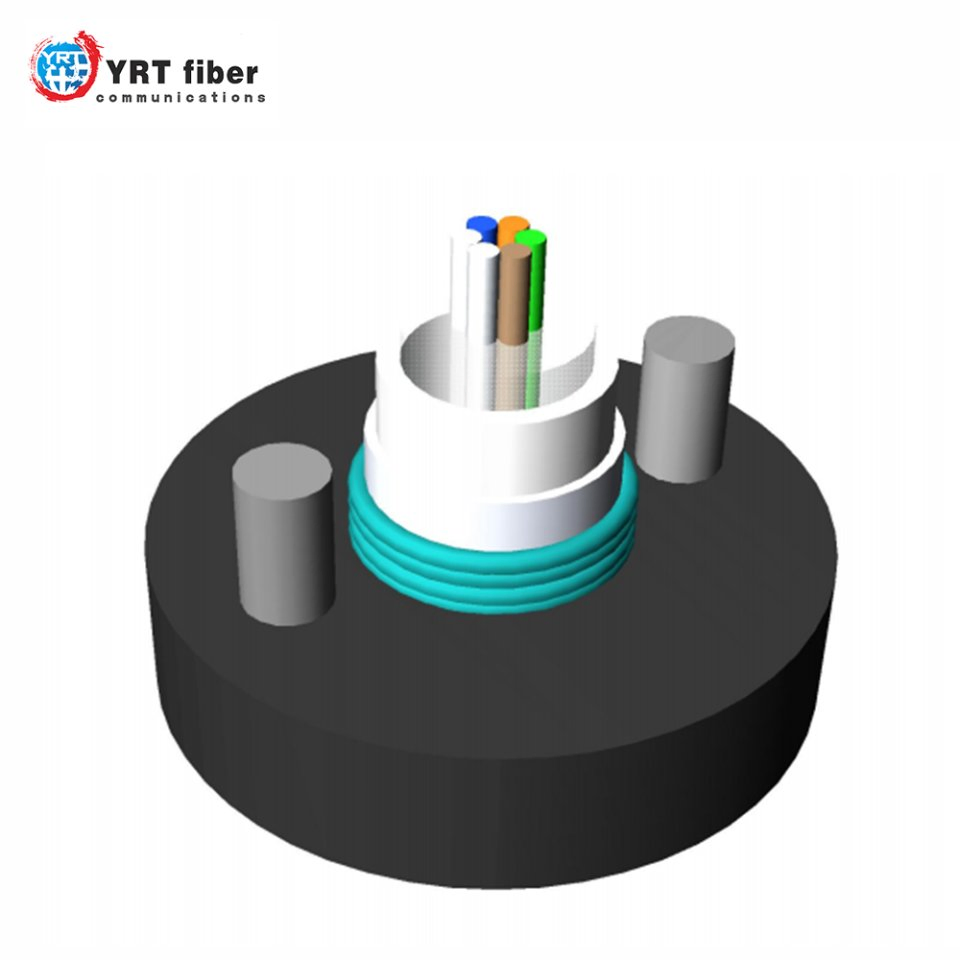

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.
| Parameter | G.652 | G.655 | 50/125μm | 62.5/125μm | |
|---|---|---|---|---|---|
| Attenuation (+20ºC) | @850nm | - | - | ≤3.0 dB/km | ≤3.0 dB/km |
| @1300nm | - | - | ≤1.0 dB/km | ≤1.0 dB/km | |
| @1310nm | ≤0.36 dB/km | ≤0.40 dB/km | - | - | |
| @1550nm | ≤0.22 dB/km | ≤0.23 dB/km | - | - | |
| Bandwidth (Class A) | @850nm | - | - | ≥500 MHz·km | ≥200 MHz·km |
| @1300nm | - | - | ≥1000 MHz·km | ≥600 MHz·km | |
| Numerical Aperture | - | - | 0.200±0.015NA | 0.275±0.015NA | |
| Cable Cut-off Wavelength | ≤1260nm | ≤1480nm | - | - | |
| Storage/Operating Temperature | -40ºC ~ +70ºC | ||||
| Model | Fiber Count | Outer Diameter (mm) | Weight (kg/km) | Tensile Strength (N) | Crush Resistance (N/100mm) | Bending Radius (Static/Dynamic) |
|---|---|---|---|---|---|---|
| GYXTW-4 | 4 | 8.0 | 95 | 600/1500 | 300/1000 | 10D/20D |
| GYXTW-6 | 6 | 8.0 | 105 | 1000/3000 | 1000/3000 | 10D/20D |
| GYXTW-8 | 8 | 8.0 | 132 | 1000/3000 | 1000/3000 | 10D/20D |
| GYXTW-12 | 12 | 8.0 | 148 | 1000/3000 | 1000/3000 | 10D/20D |
