XT Cabled
1 / 5
Fibers: up to 288 core
Fiber type: Single mode fiber G652.D
Strength Member: Central FRP and Additional Kevlar Aramid Yarn

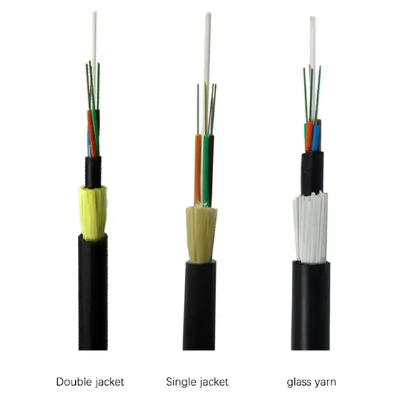

Outer Jacket: MDPE/ HDPE (Single/Double Jacket options)
Application: Self-supporting overhead laying, Electric no power off installation
Moisture Resistance: Water-blocking Yarn & Water-blocking Tape
Span customized: 80/100/120/150/200/300/400m etc.
Reel Length: 2km, 3km, 4km, etc.

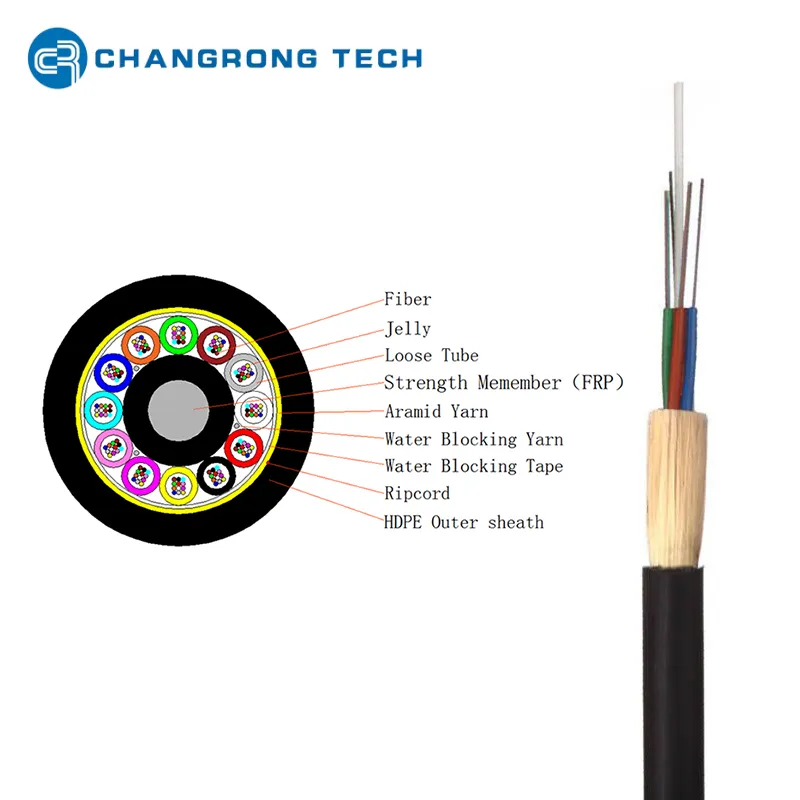

The fibers are positioned in a loose tube made of high modulus plastic and filled with gel. Tubes (and fillers) are stranded around the non-metallic strength member to form the cable core. Water Blocking yarn and water blocking tape used in the cable core to prevent water penetration. Then Aramid Yarn to reinforce. Finally, PE or AT outer jacket is extruded.
| Counts | 2-30 | 32-36 | 38-60 | 62-72 | 74-96 | 98-120 | 122-144 |
|---|---|---|---|---|---|---|---|
| Max. fiber per tube | 6 | 6 | 12 | 12 | 12 | 12 | 12 |
| Cable Diameter (mm) | 9.7 | 9.7 | 9.7 | 9.7 | 11.2 | 12.3 | 13.5 |
| Weight (Kg/km) | 74 | 75 | 75 | 75 | 100 | 120 | 143 |
| Tensile Strength (N) | Long/Short Term: 1900/4800 | ||||||

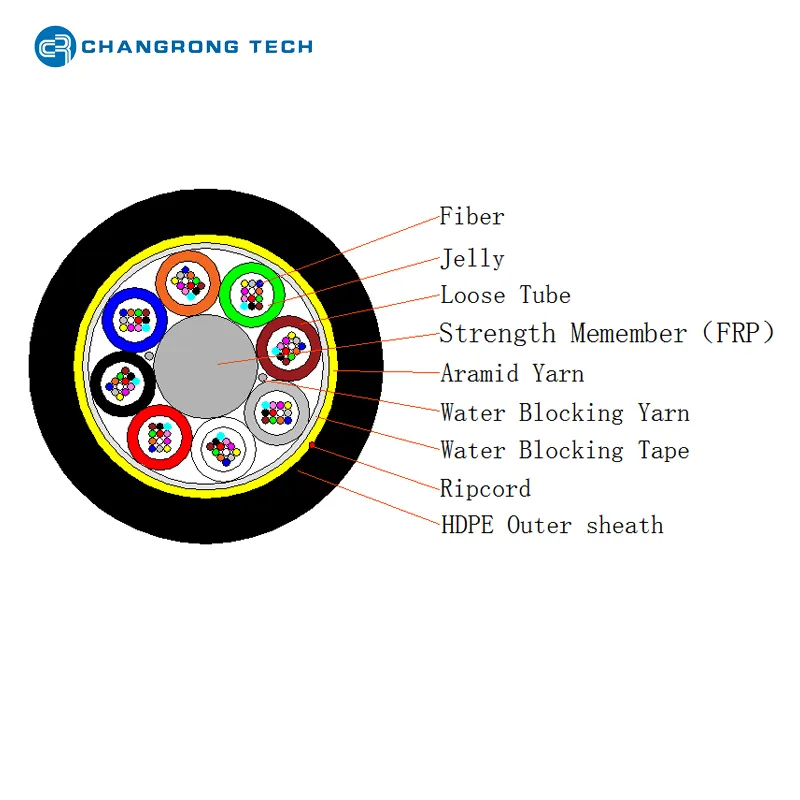

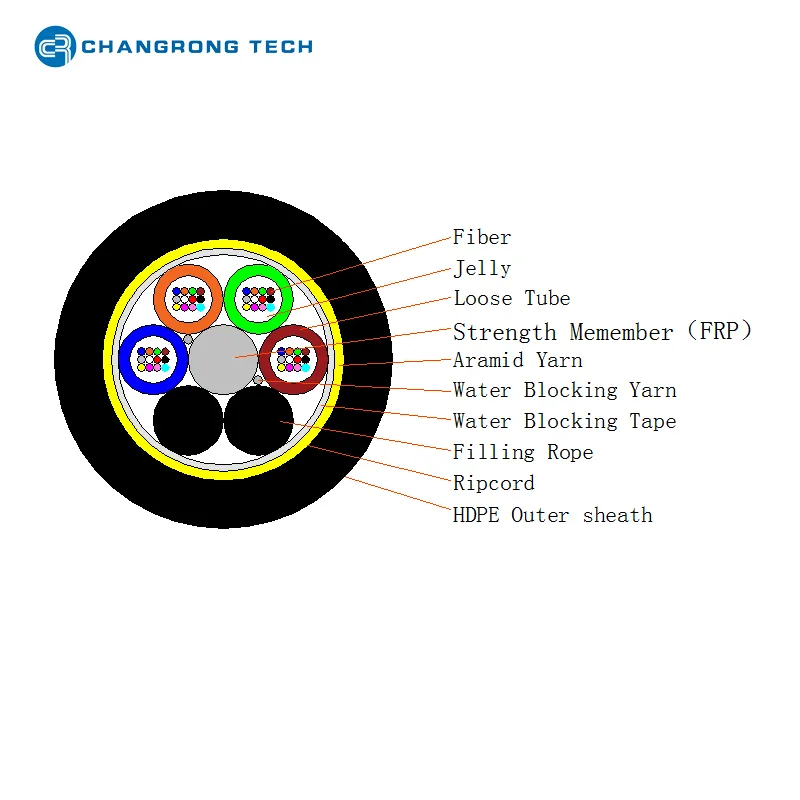

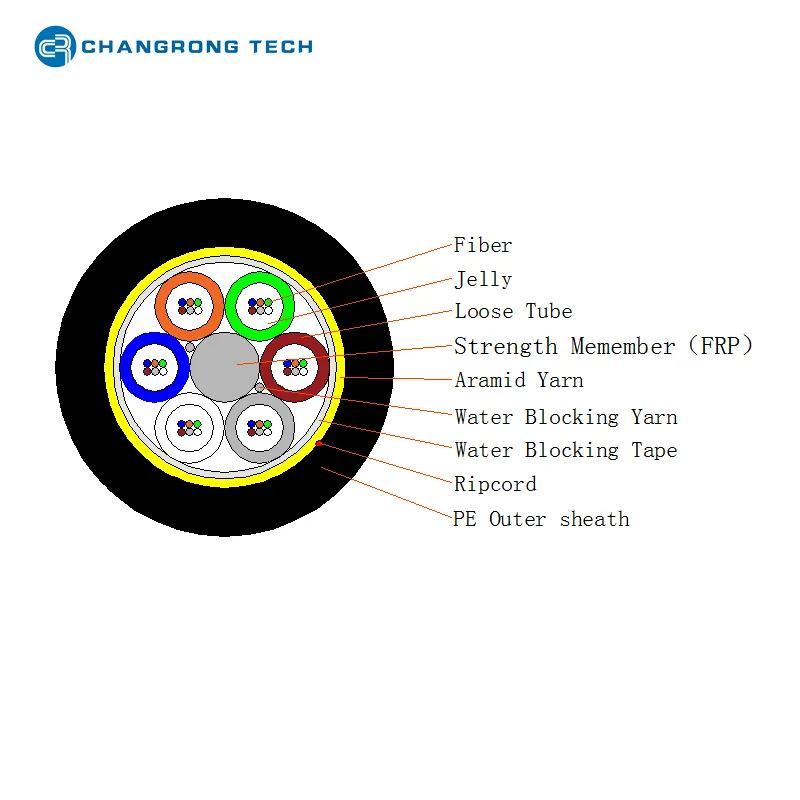

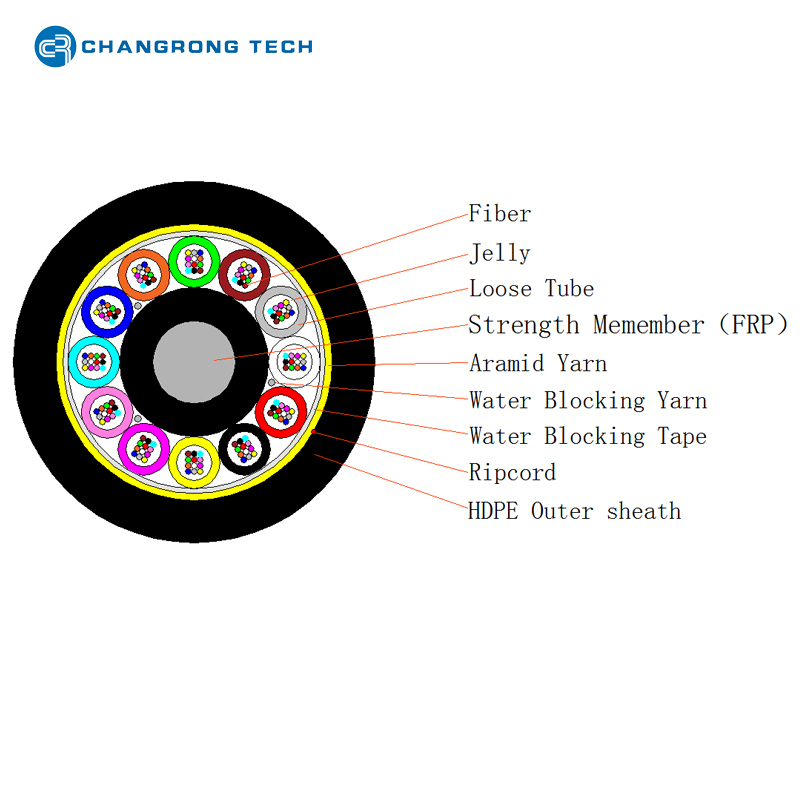

More Cores Option in Single Jacket:

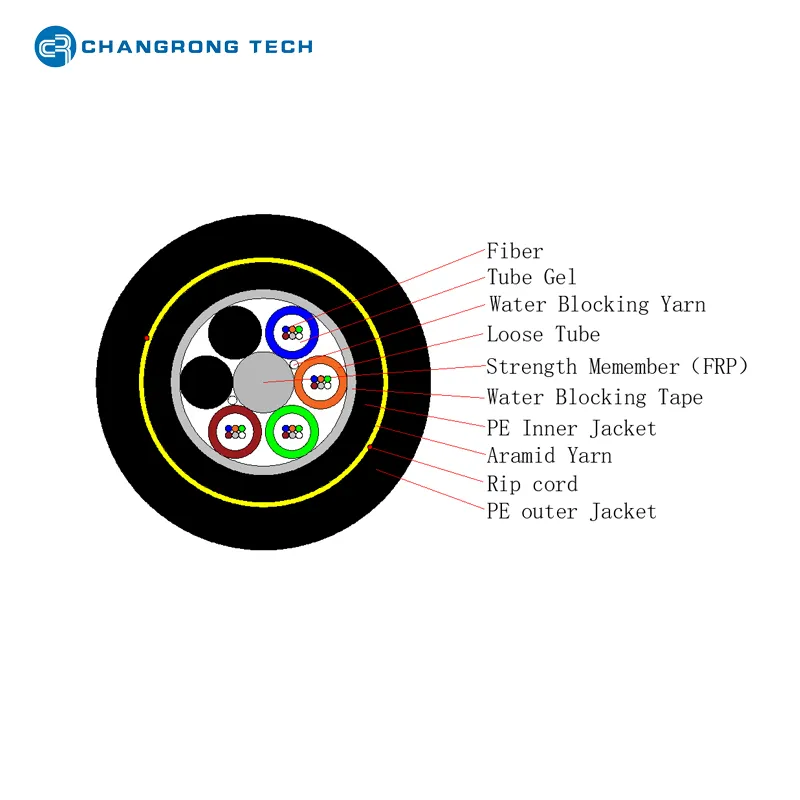

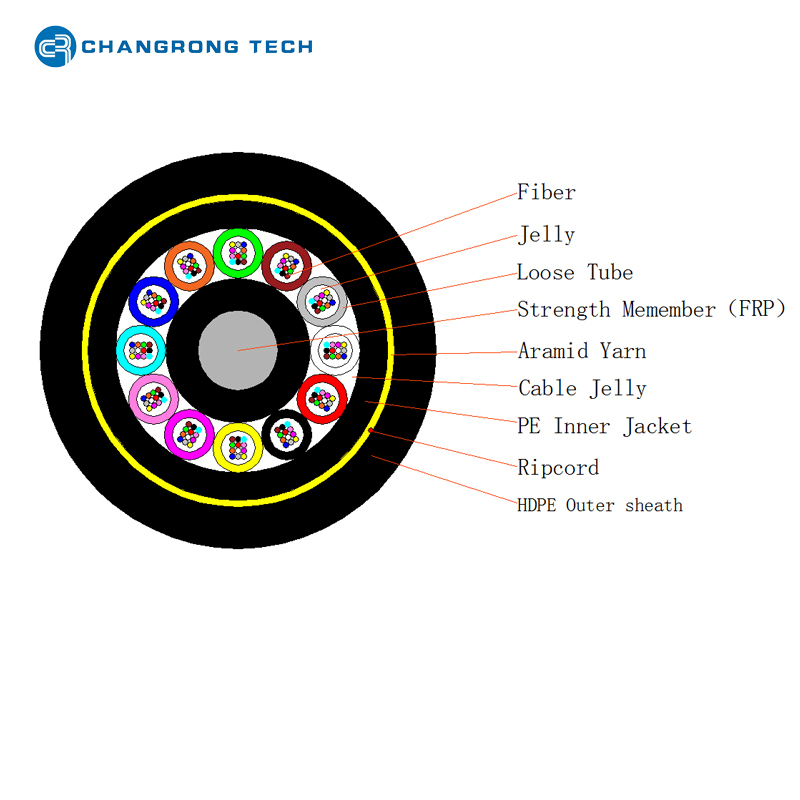

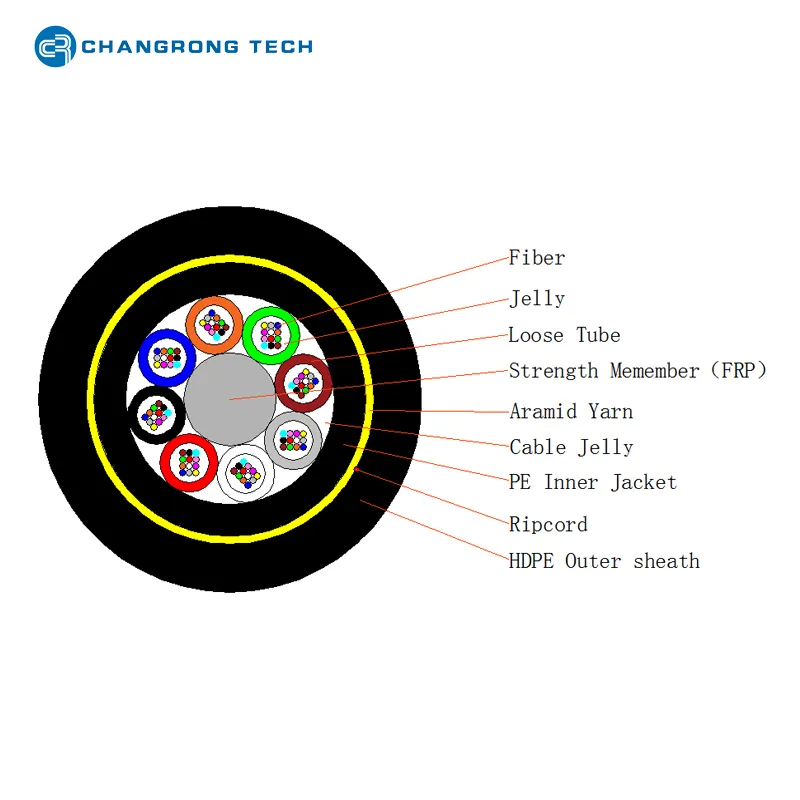

More Cores Option in Double Jacket:

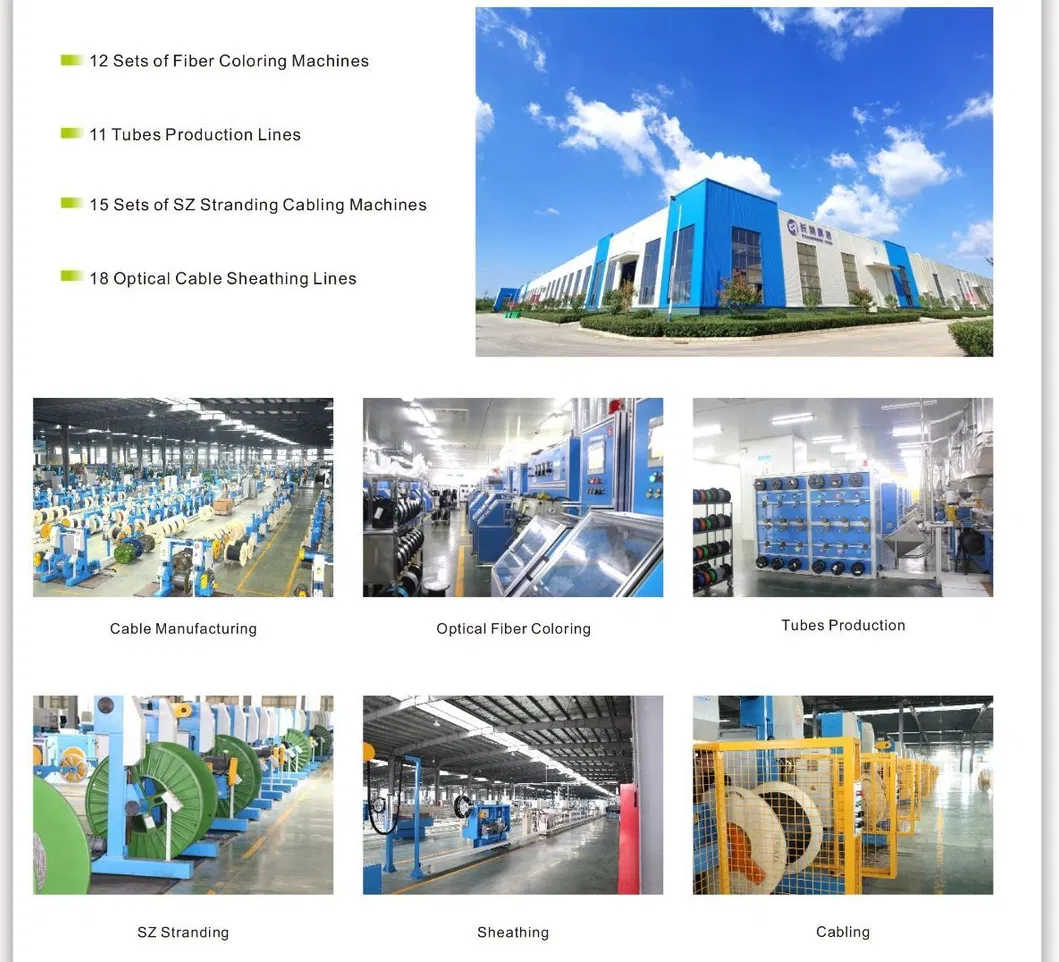

ISO9001, ISO14001, ISO45001 Certified Factory

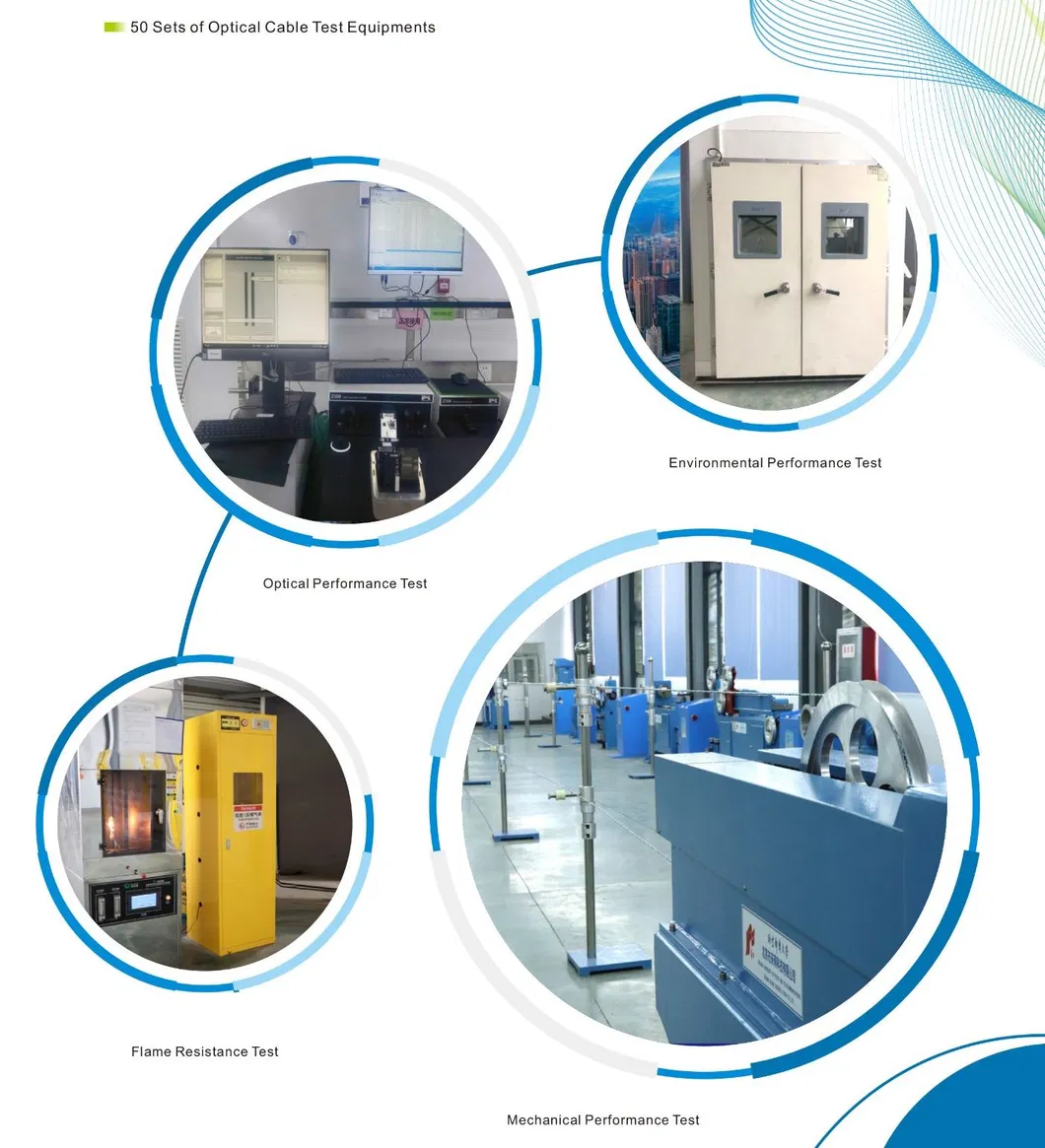

Own laboratory has passed the CNAS Certification

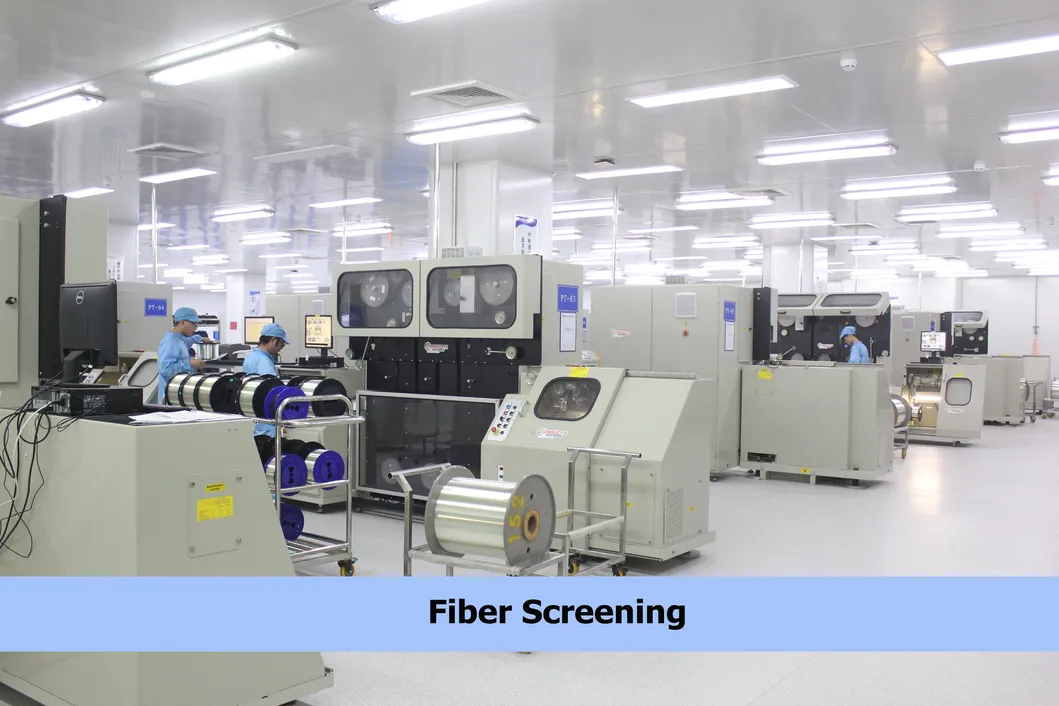

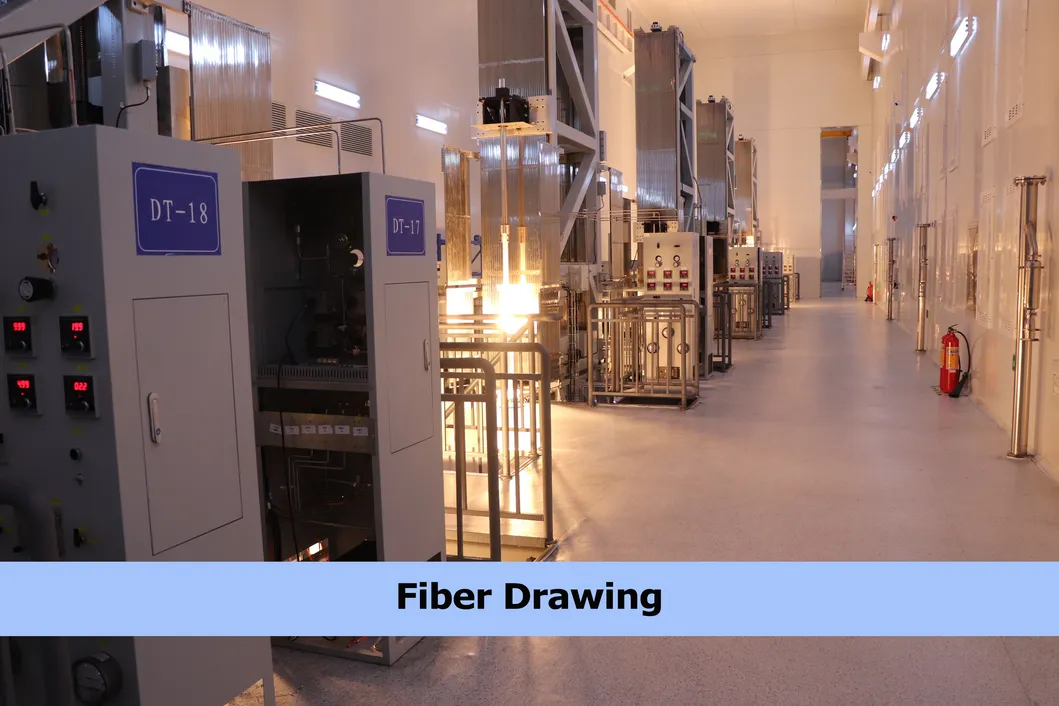

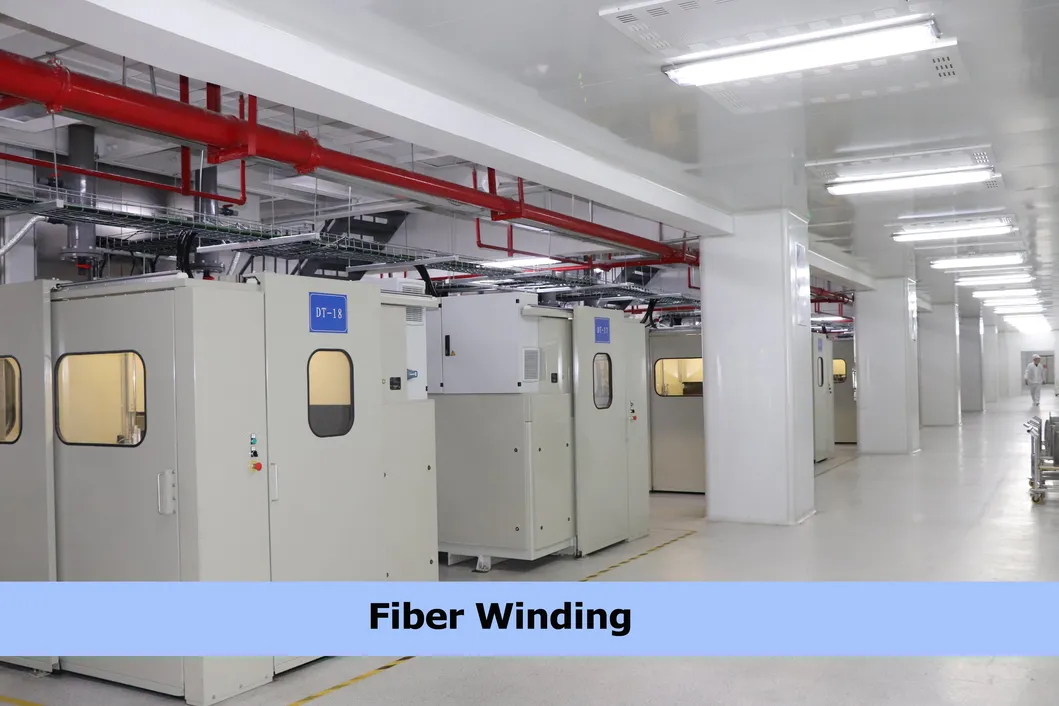

Fiber Workshop Show:

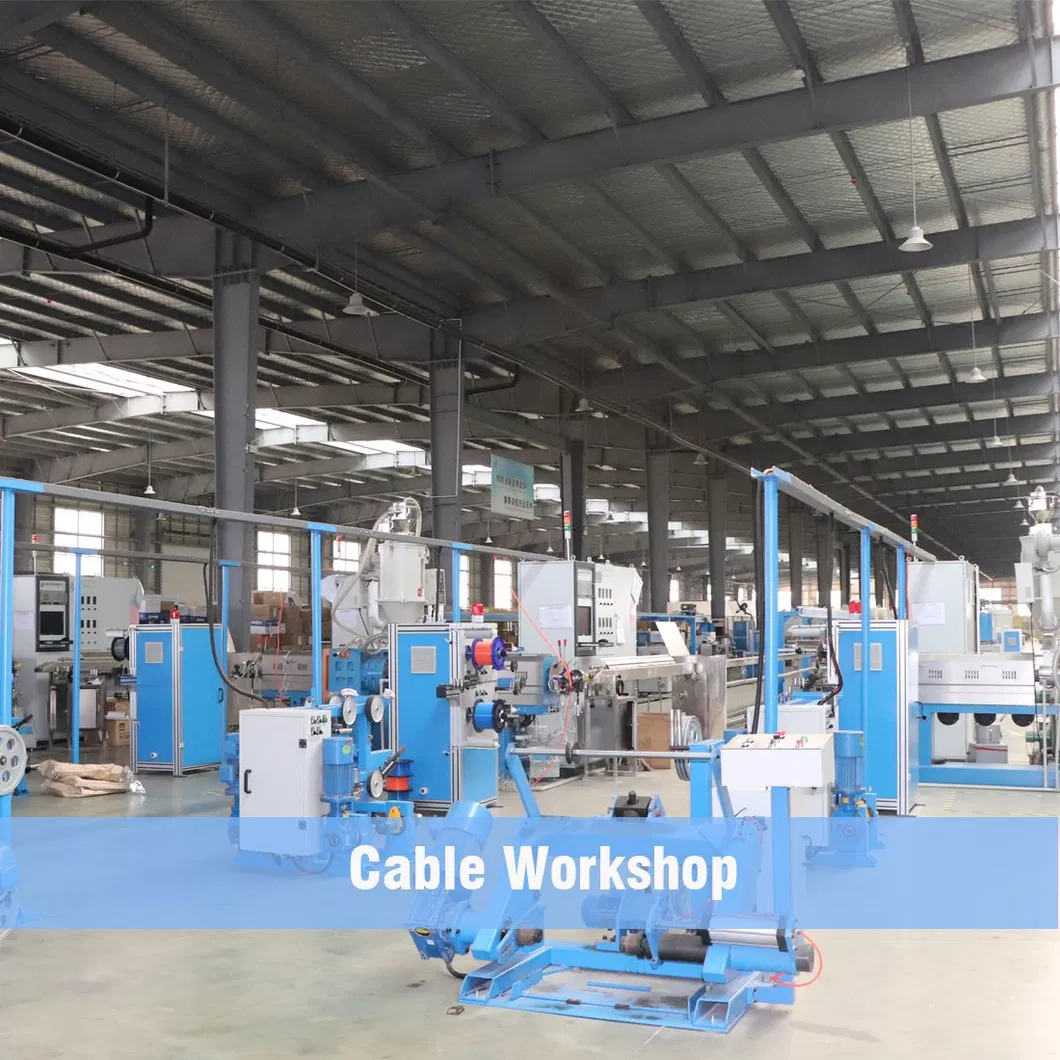

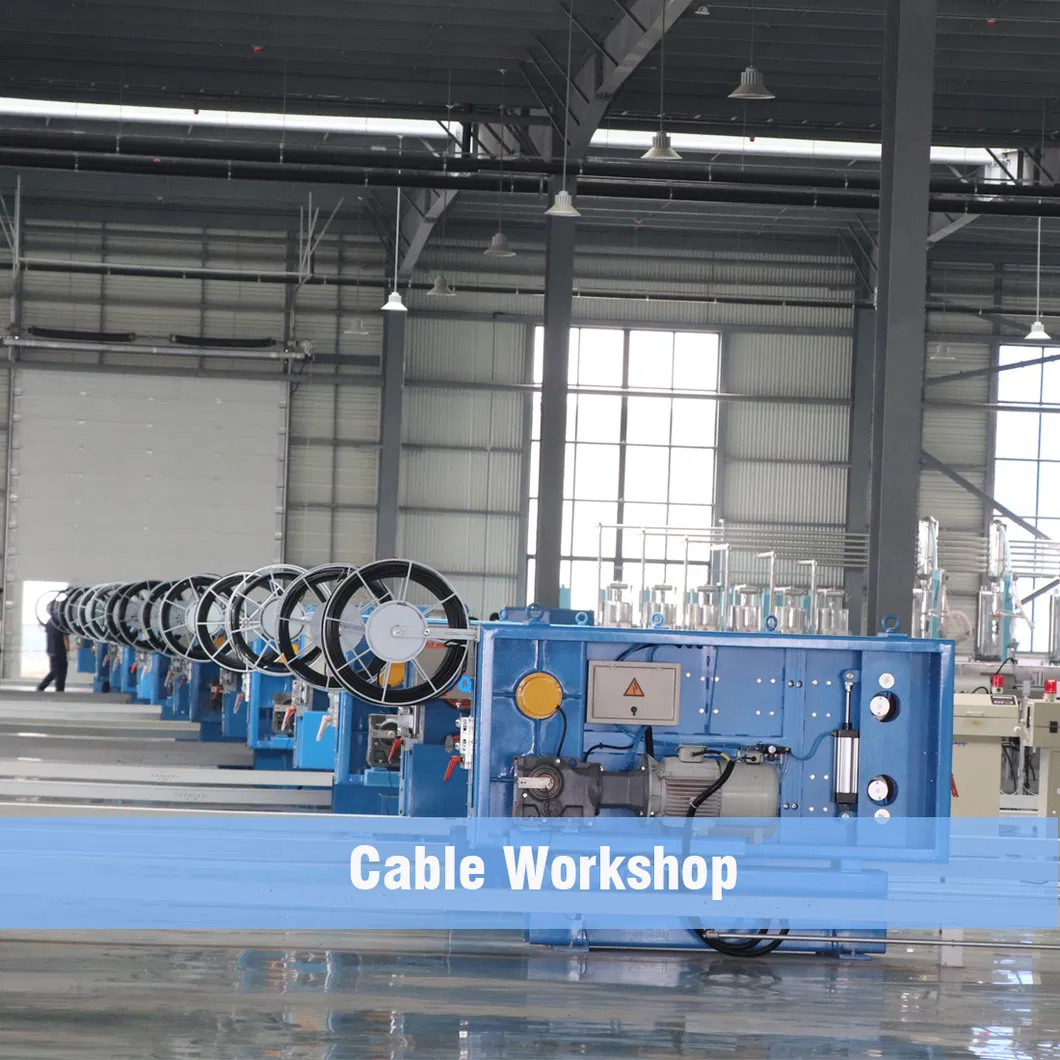

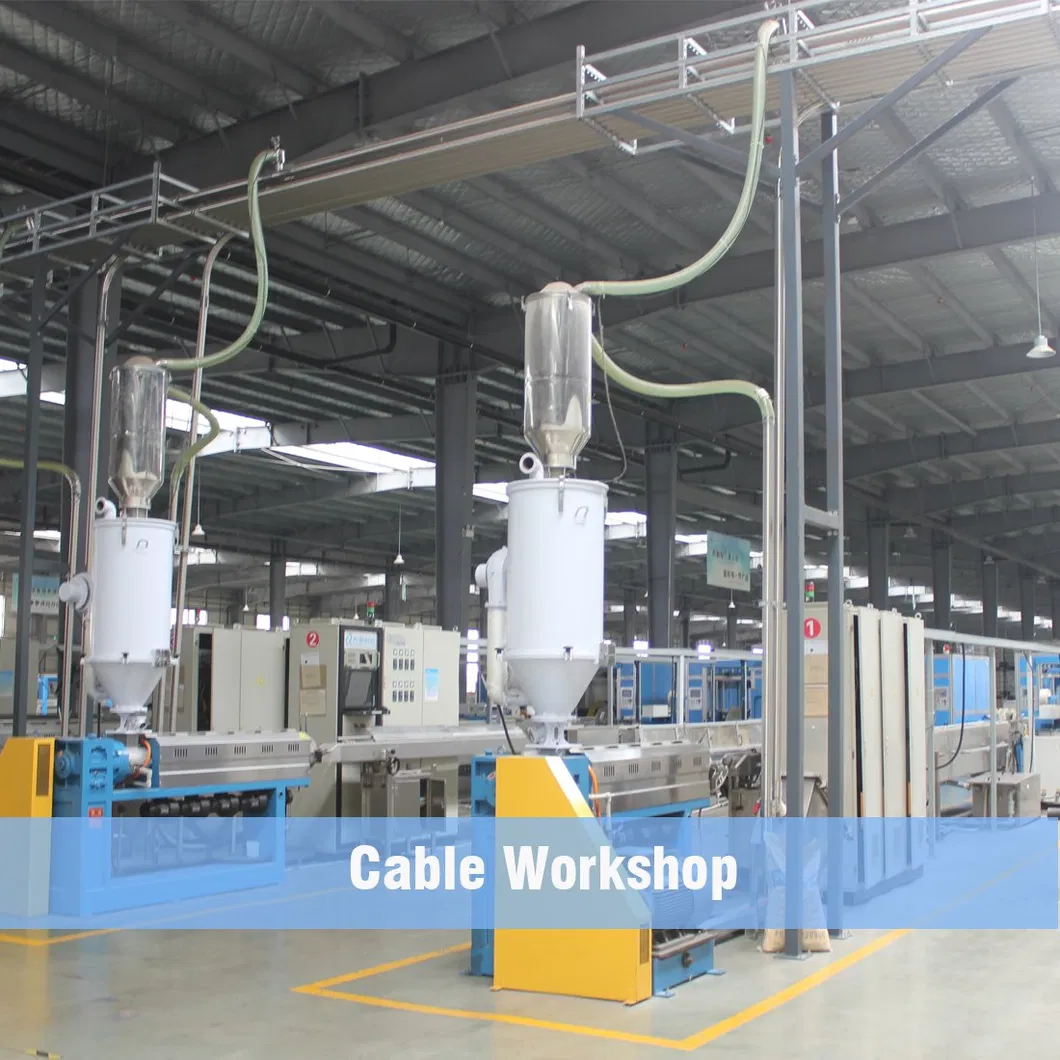

Cable Workshop Show:

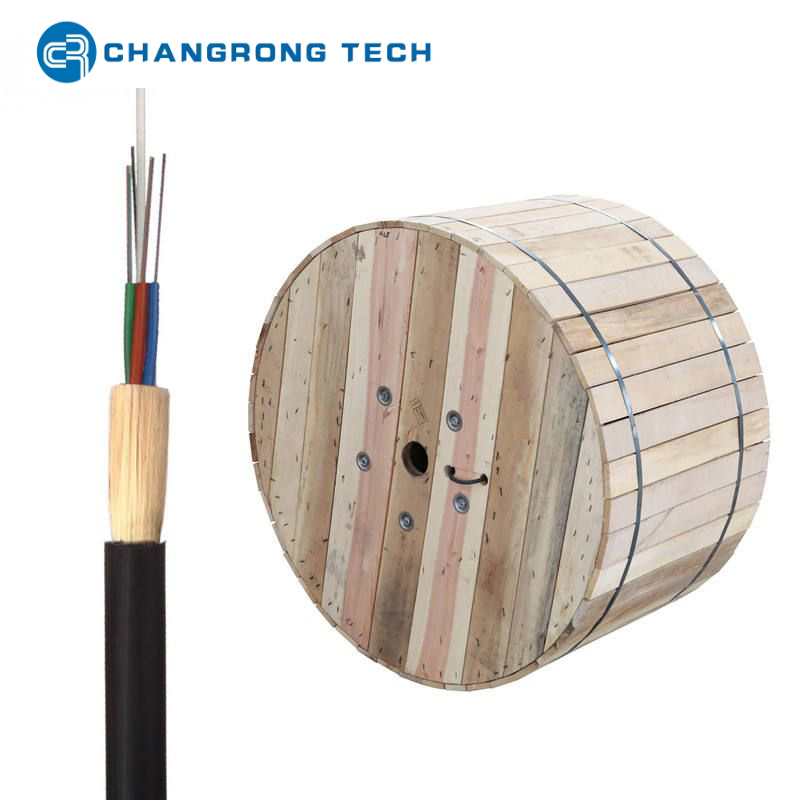

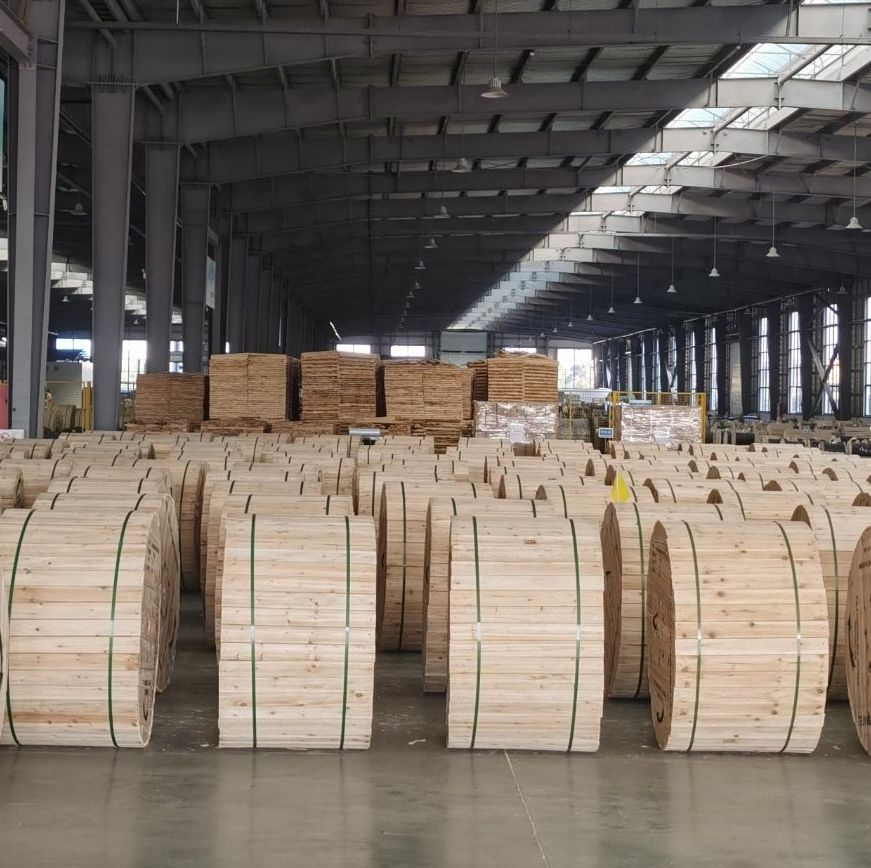

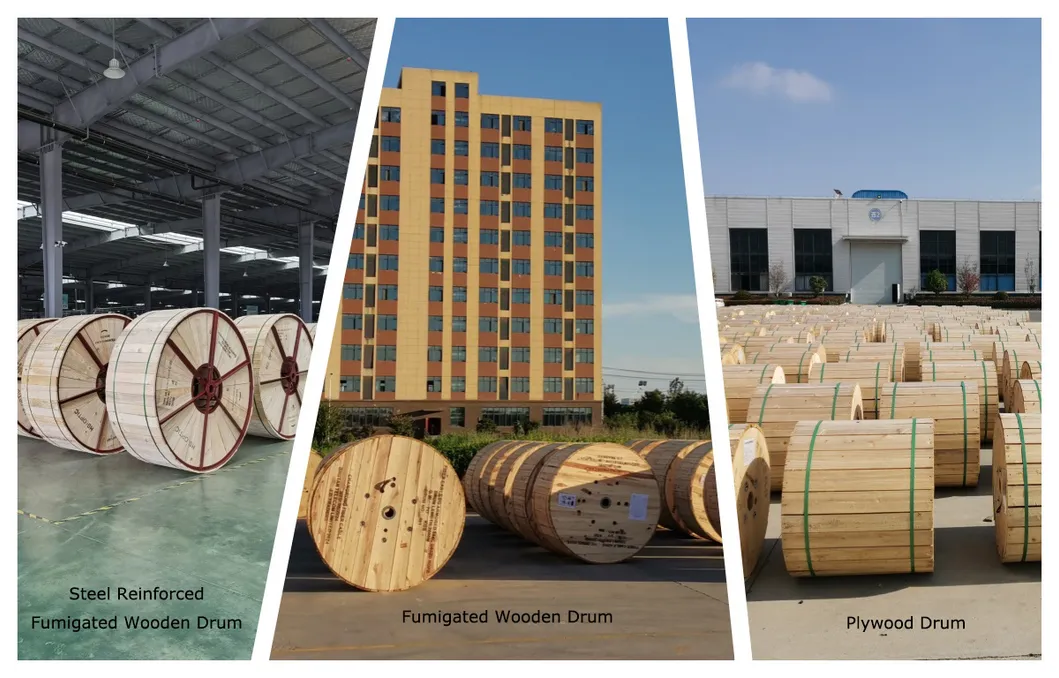

Drum Packing:

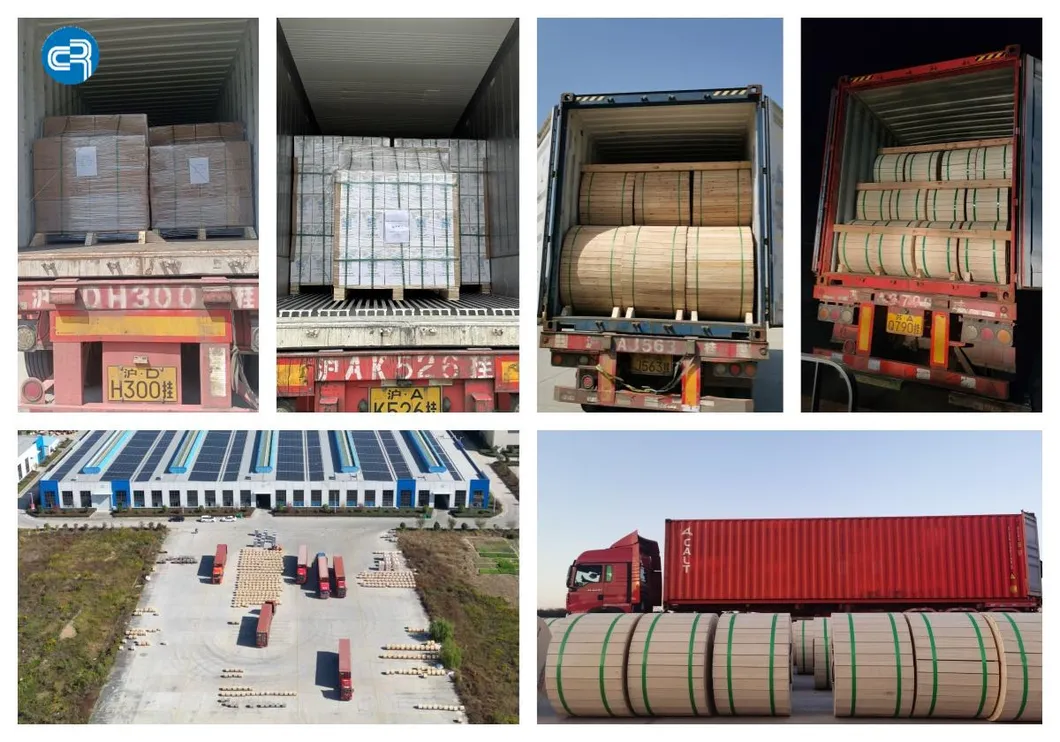

Shipping:
