Industrial Hot Selling Bow type drop fiber optic cable (FRP or steel wire strength unit) GJXH GJXFH

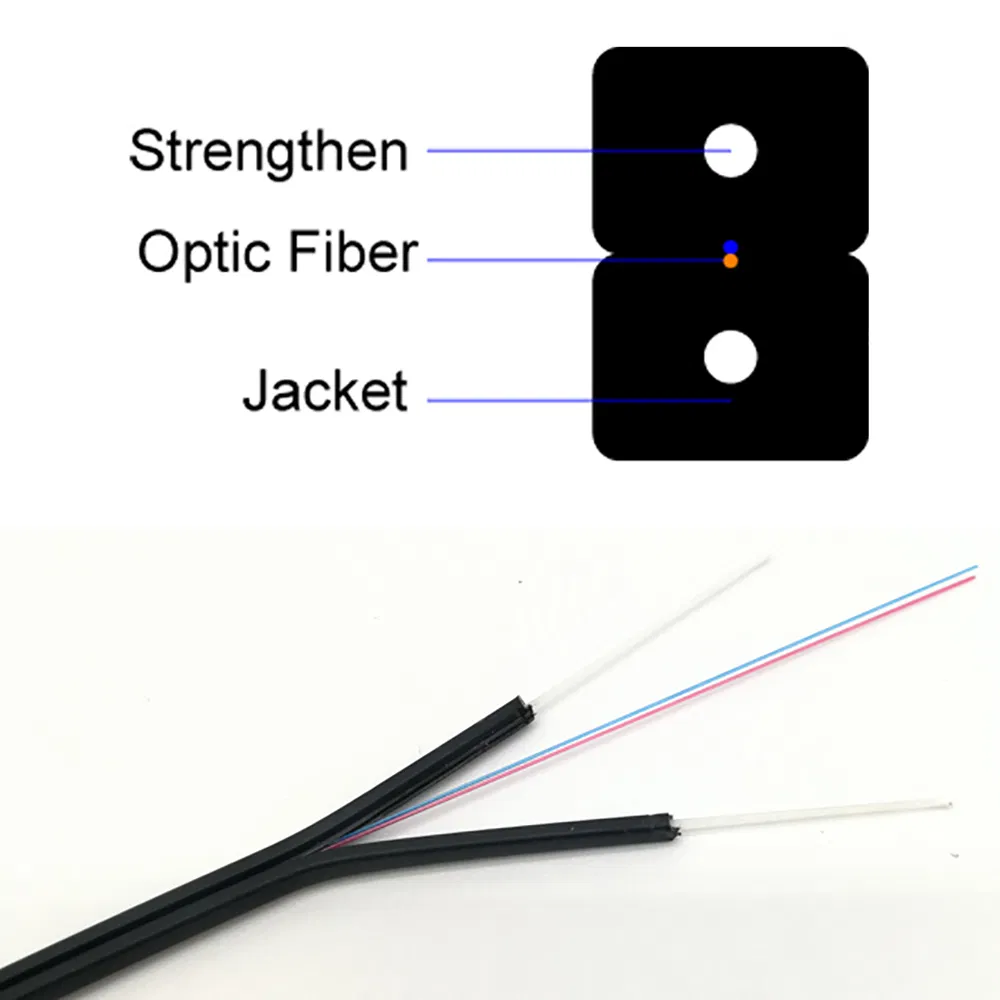

The bow type drop fiber cable used for the access network is to place the optical communication fiber in the center. Two parallel fiber reinforced plastic (FRP) or steel wire are placed on both sides, and finally, a black or colored low-smoke halogen-free (LSZH) jacket is extruded into the cable.
| Fiber Count | Cable Dimension (mm) | Cable Weight (kg/km) | Tensile Strength (N) Long/Short | Crush Resistance (N/100mm) | Bending Radius (mm) |
|---|---|---|---|---|---|
| 1 | (2.0±0.1)x(3.0±0.1) | 9.6 | 40/80 | 500/1000 | 15/30 |
| 2 | (2.0±0.1)x(3.0±0.1) | 9.6 | 40/80 | 500/1000 | 15/30 |
| Fiber Type | Attenuation (dB/km) | Bandwidth (850/1300nm) | Effective Bandwidth (850nm) | Min Bend Radius (mm) |
|---|---|---|---|---|
| G657A1 | 0.36/0.22 | - | - | 10 |
| G657A2 | 0.36/0.22 | - | - | 7.5 |
| OM3 | 3.0/1.0 | >1500/500 | >2000 | 30 |
| OM4 | 3.0/1.0 | >3500/500 | >4700 | 30 |
| Fiber Count | 1-2 |
|---|---|
| Fiber Type | G657A1, G657A2, 50/125, 62.5/125, OM3, OM4, OM5 |
| Strength Unit | FRP or Steel Wire |
| Jacket Color | Customizable (Refer to Chromatogram) |

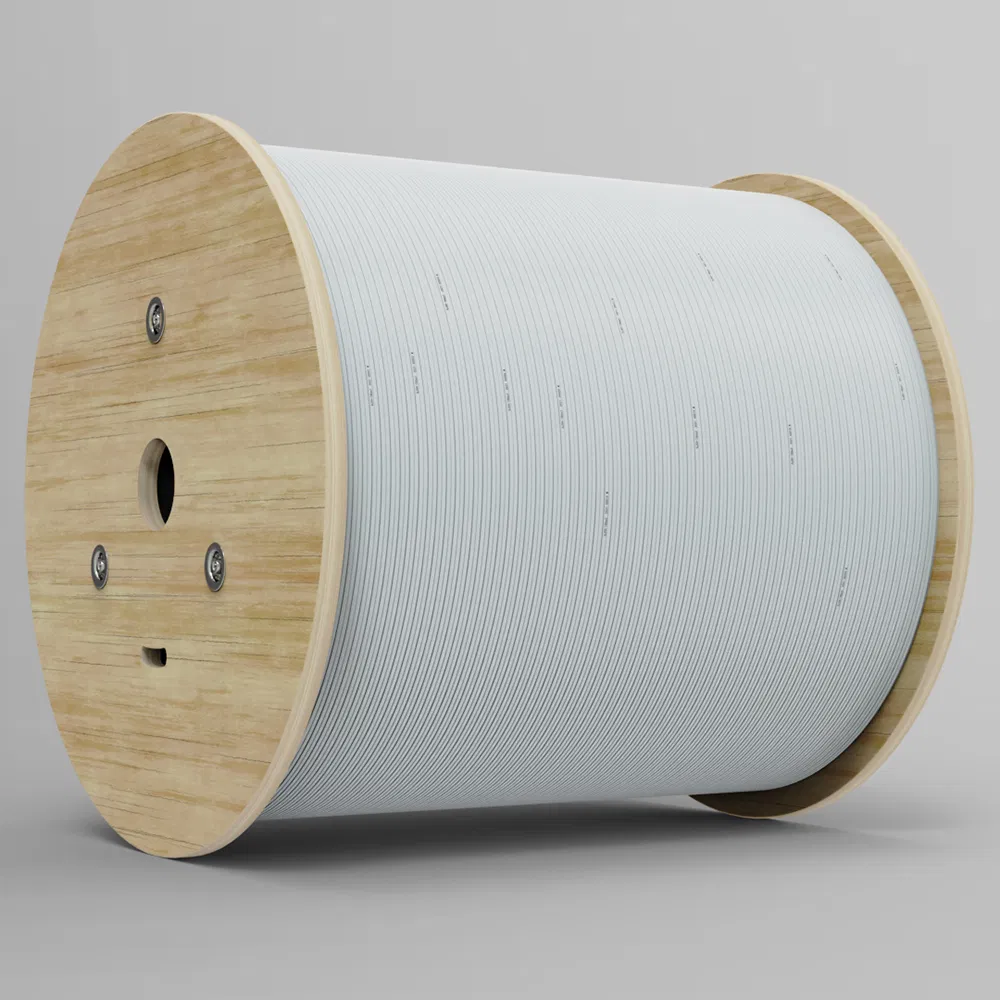

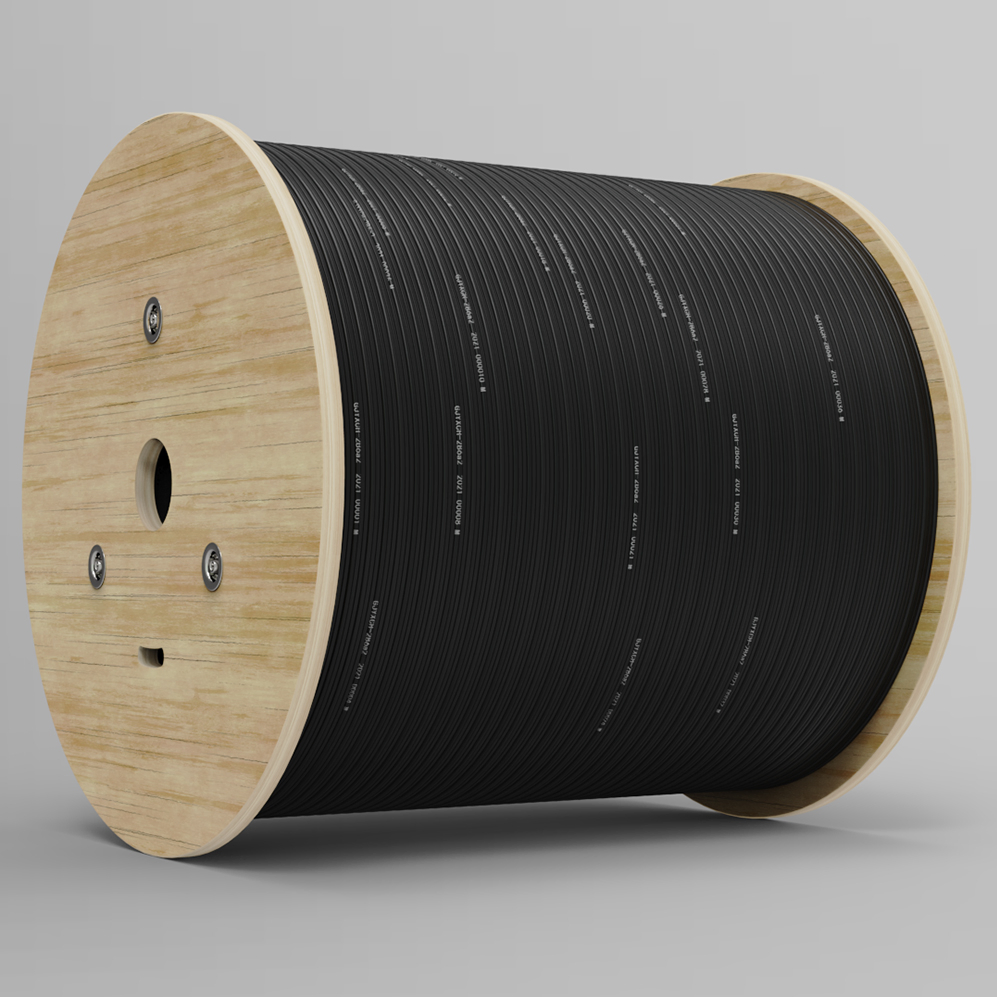

| Package | Wooden-Drum or per request |
