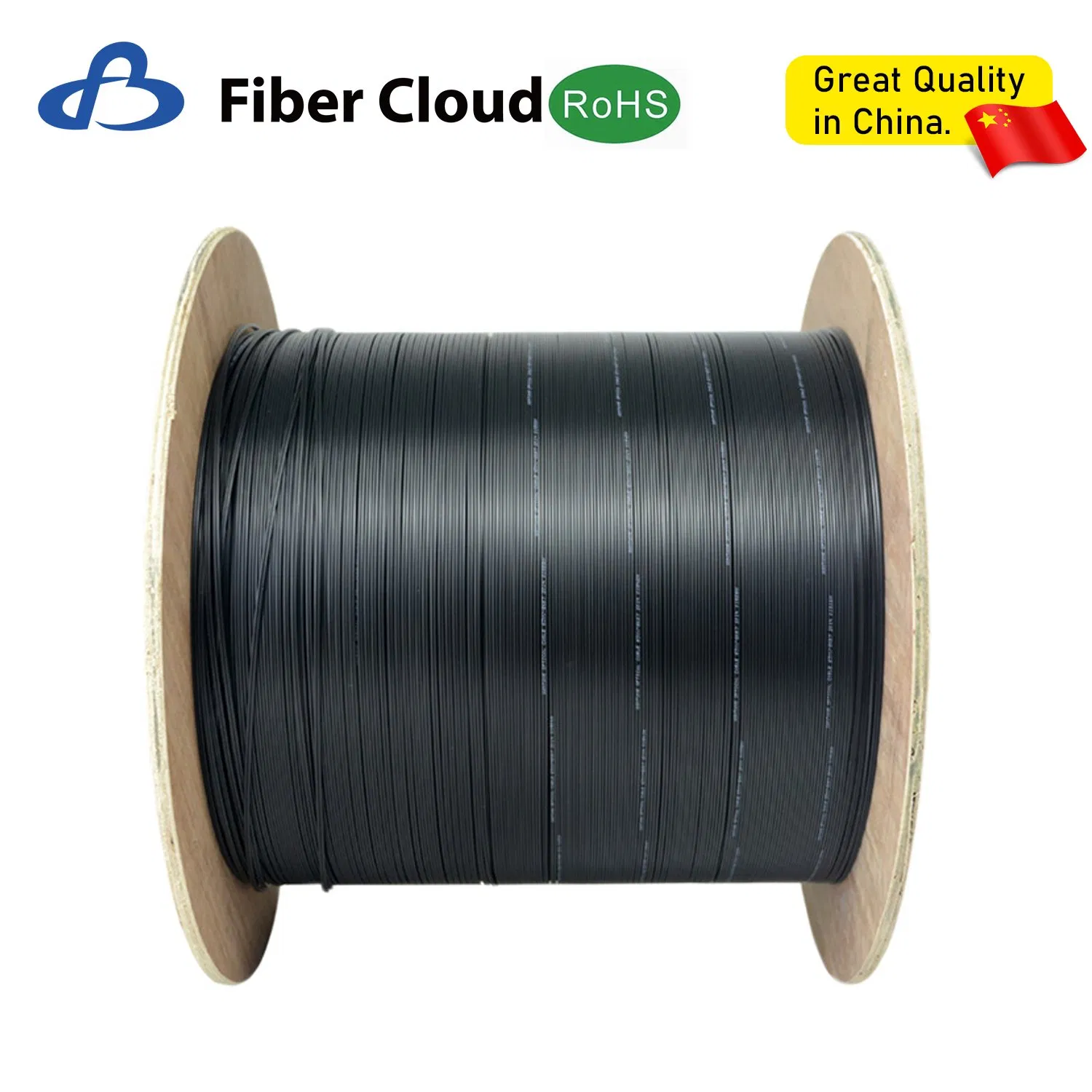

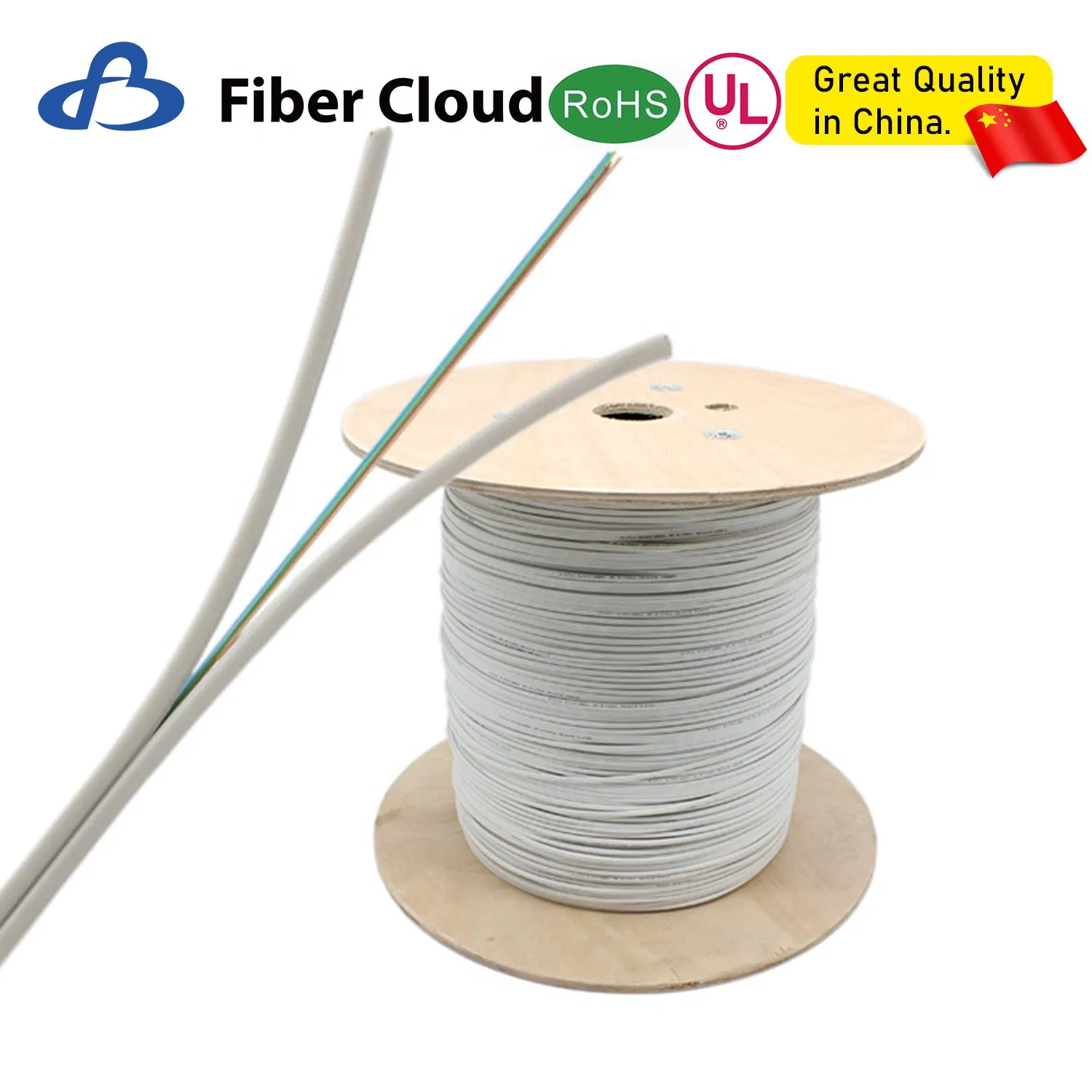

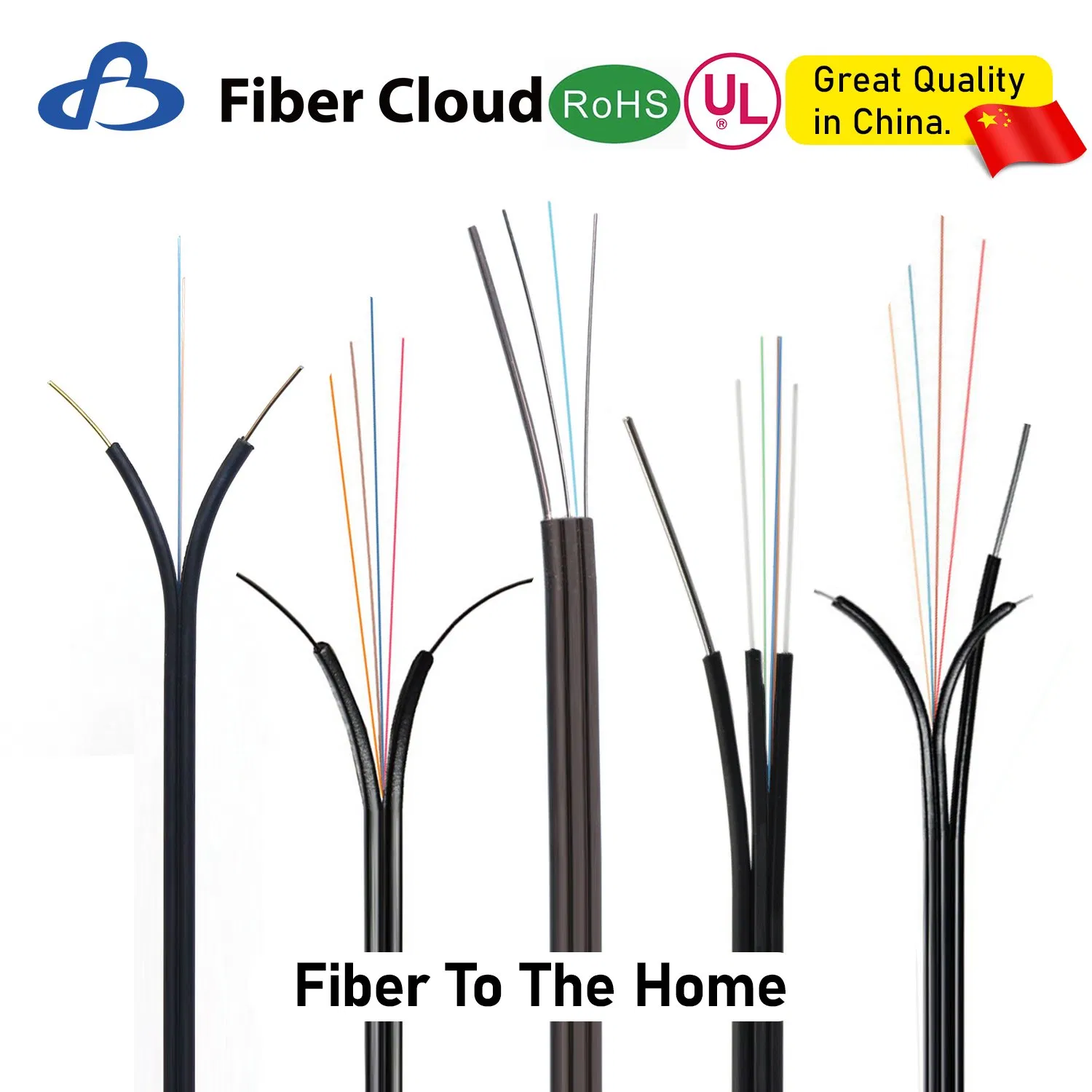

Singlemode Single Core UL LSZH Ofnp Low Friction FTTH Fiber Optic Cable
Singlemode Single Core UL LSZH Ofnp Low Friction FTTH Fiber Optic Cable
Singlemode Single Core UL LSZH Ofnp Low Friction FTTH Fiber Optic Cable
Singlemode Single Core UL LSZH Ofnp Low Friction FTTH Fiber Optic Cable
Singlemode Single Core UL LSZH Ofnp Low Friction FTTH Fiber Optic Cable
1 / 5
Singlemode Single Core UL LSZH Ofnp Low Friction FTTH Fiber Optic Cable
Singlemode Single Core UL LSZH Ofnp Low Friction FTTH Fiber Optic Cable
Singlemode Single Core UL LSZH Ofnp Low Friction FTTH Fiber Optic Cable
Singlemode Single Core UL LSZH Ofnp Low Friction FTTH Fiber Optic Cable
Singlemode Single Core UL LSZH Ofnp Low Friction FTTH Fiber Optic Cable

Singlemode Single Core UL LSZH Ofnp Low Friction FTTH Fiber Optic Cable

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information
Model NO.
1 Core FTTH Cable
Connection Structure
SC
Material Shape
Round Wire
Lateral Pressure
>1000(N/100mm)
Tensile Strength
1000N - 10000N
Core Count
1/2/4 and Customized
Certification
RoHS, CE, ISO9001, UL
Flame-Retardant
LSZH/Ofnp/Onfr
Product Description

1/2/4 Cores Manufacture UL OPNR Approved FTTH G657A2 GJXFH Optical Fiber Cable Covered Wire

FTTH Drop Cable Header

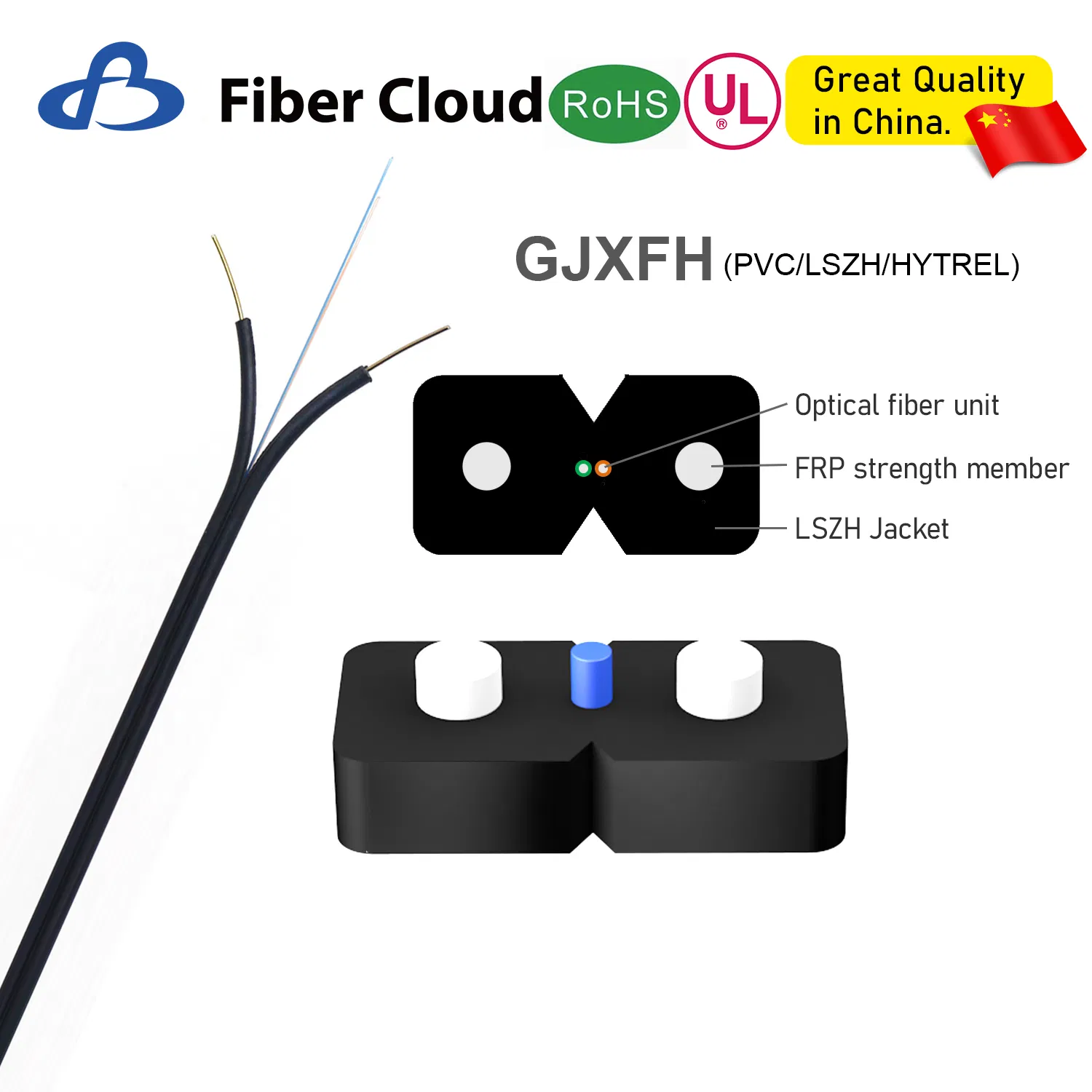

Bow-type FTTH Drop Cable Features:

Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property.
Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber.
Simple structure, light weight and high practicability.
Novel flute design, easily strip and splice, simplify installation and maintenance.
Low smoke, zero halogen and flame retardant sheath.

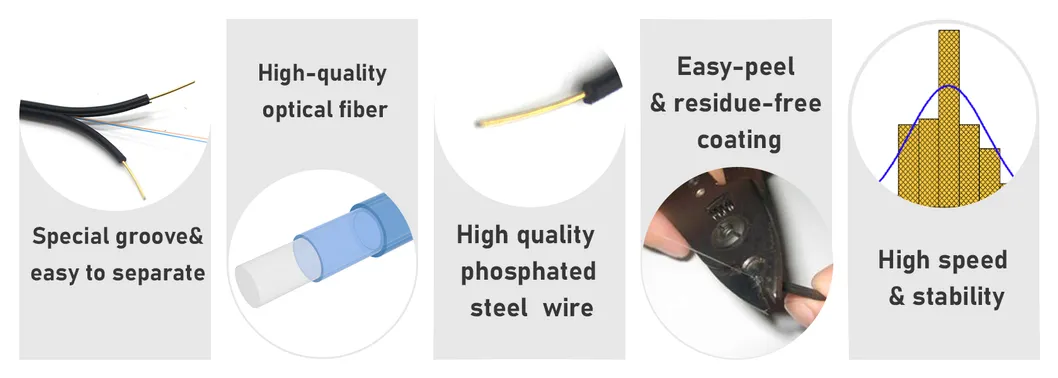

FTTH Detail 1

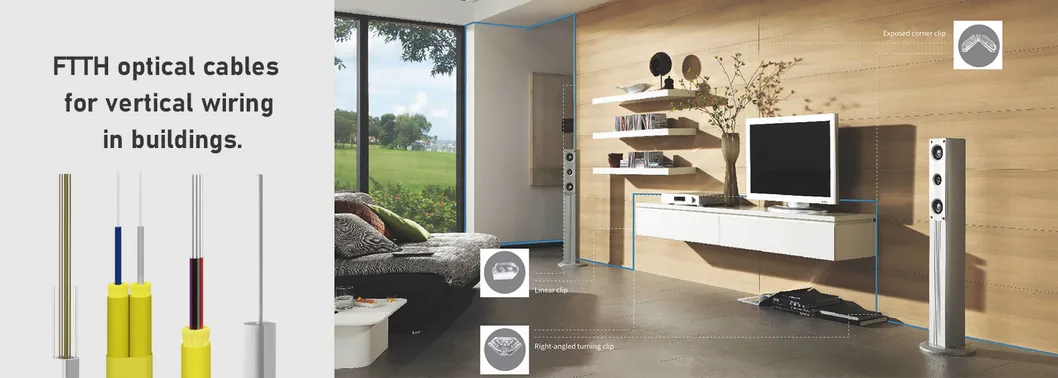

FTTH Detail 2
Technical Parameters

Storage and use temperature: -40ºC to +120ºC

Cable Code Fiber Count Cable Size (mm) Weight (kg/km) Tensile (N) L/S Crush (N/100mm) L/S
GJXFH-1Xn 1 2.0x3.0 8 800/2500 500/1000
GJXFH-2Xn 2 2.0x3.0 8.5 800/2500 500/1000
GJXFJH-1Xn 1 2.0x3.8 9 800/2500 500/1000
Parameter 1
Parameter 2
Parameter 3
Certifications

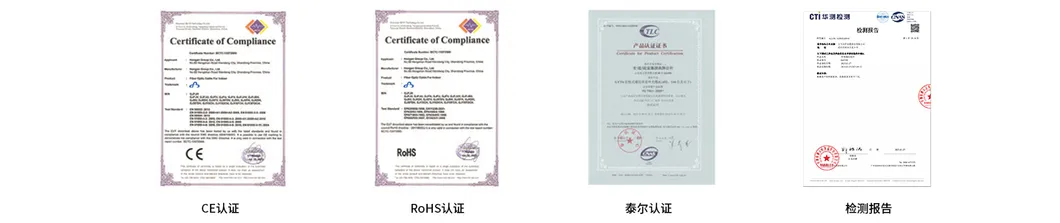

Cable Certifications
Packaging & Shipping
Packaging 1

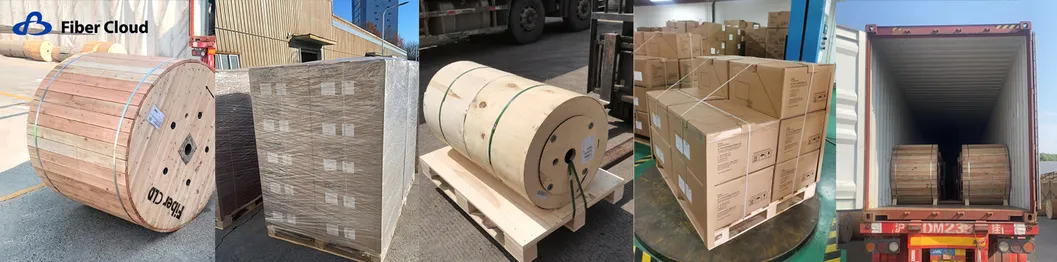

Packaging 2
Our Service
  • Customer solutions provided in days, not weeks.
  • Warm services with careful attention to detail.
  • Specific inquiry responses within 24 hours.
  • Cost-effective solutions to bring more benefit for business expansion.
  • Strict quality standards meeting international fiber optic requirements.
Frequently Asked Questions
Q1: How can you guarantee the delivery time?
We have built a professional procedure system from production to delivery and can include penalty clauses in contracts for delays to ensure on-time fulfillment.
Q2: What is your best price for this fiber cable?
Prices are based on product quality and estimated quantity. We always provide the most competitive matching price based on your specific requirements.
Q3: Can I print my own logo on the product?
Yes, we provide logo printing services. Please send your logo design to us for customization.
Q4: Do you provide OEM/ODM services?
Yes, we provide full OEM and ODM services. Simply share the details of your technical requirements with us.
Q5: How do you deal with faulty products?
Our products have a defective rate of less than 0.2% due to strict quality control. We also issue detailed test reports before every shipment.
Q6: Why should we choose to cooperate with you?
We offer first-class production lines, professional management, competitive pricing, and a comprehensive one-stop service for all your optical fiber needs.
