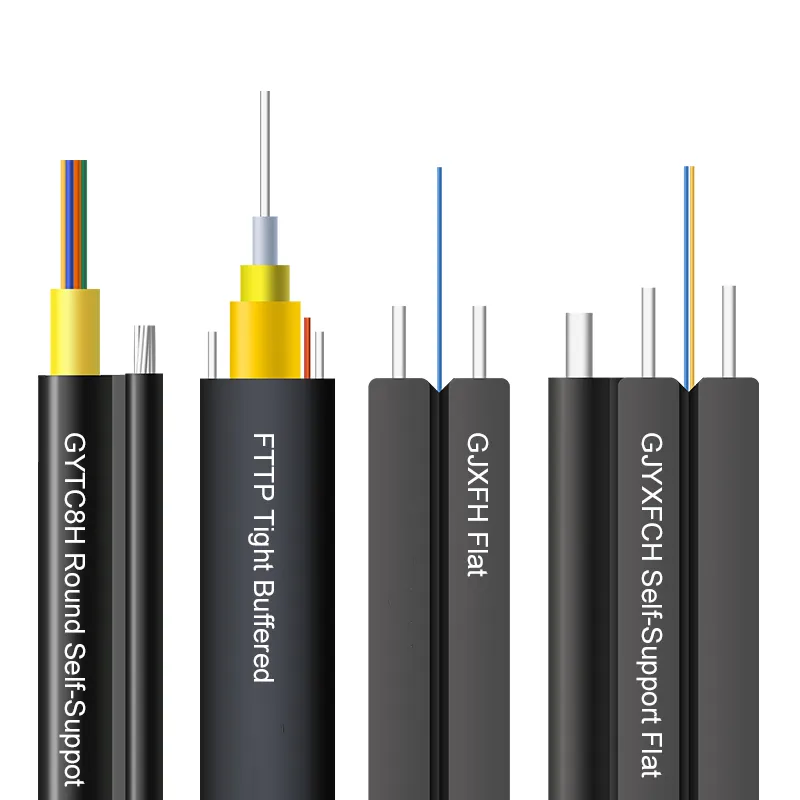

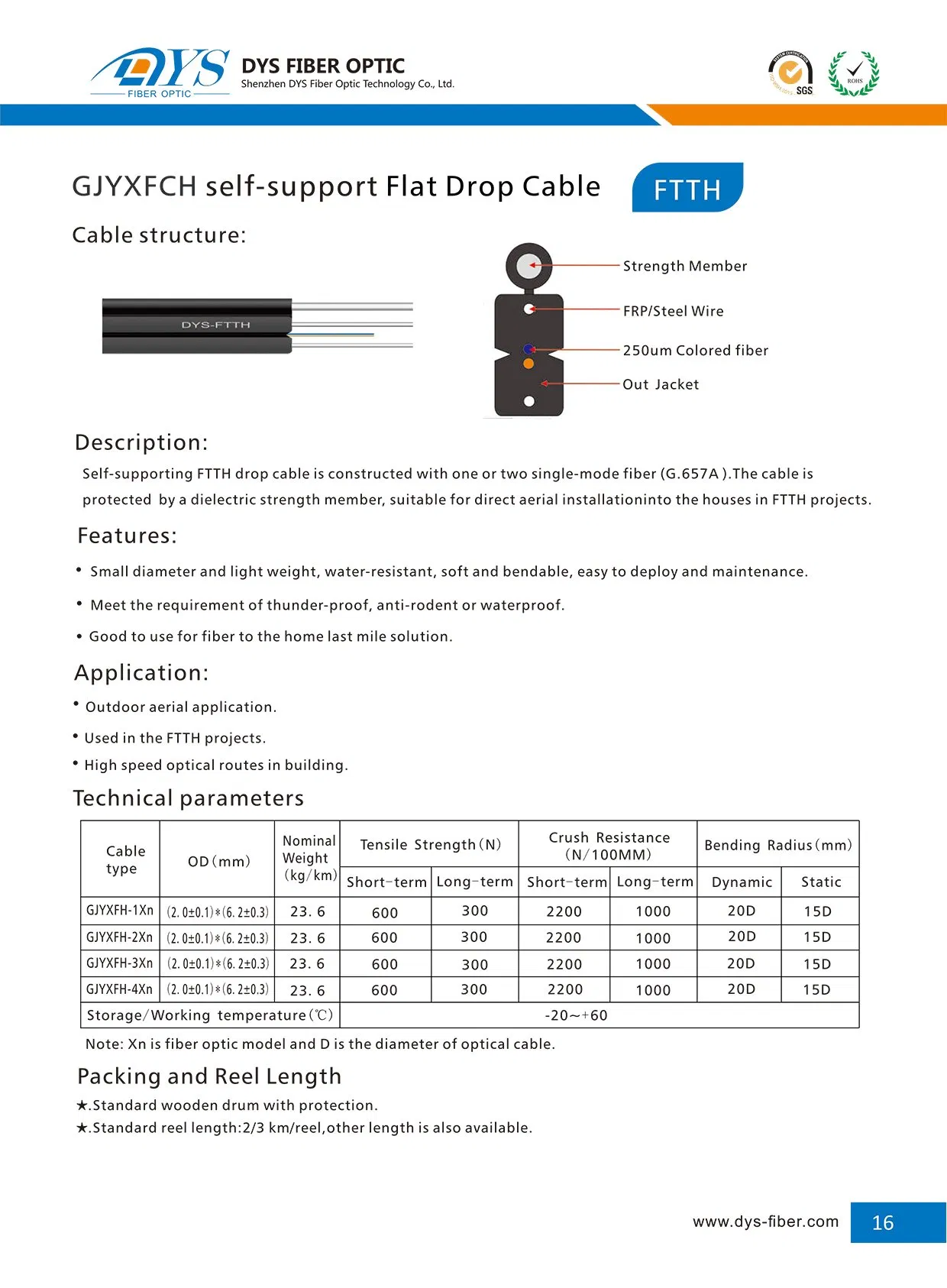

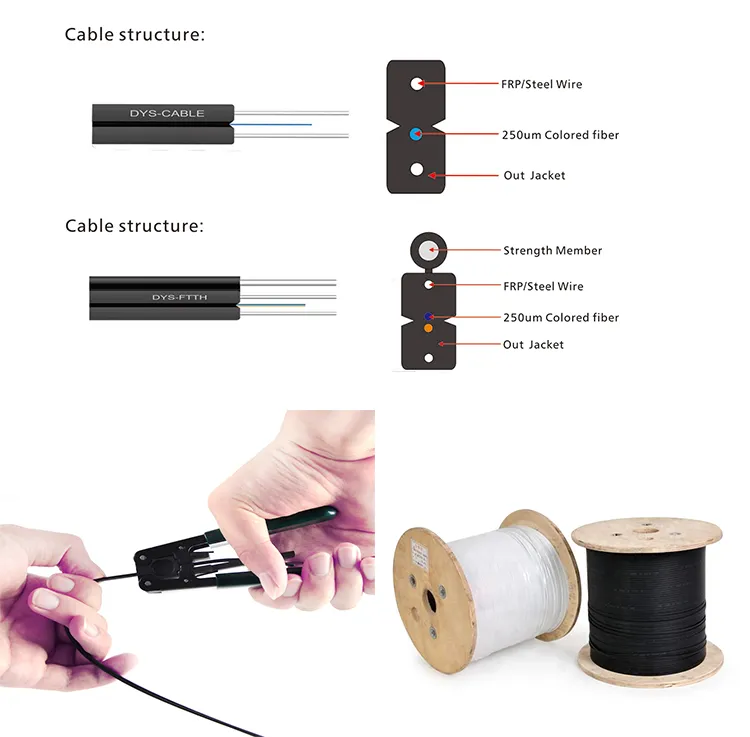

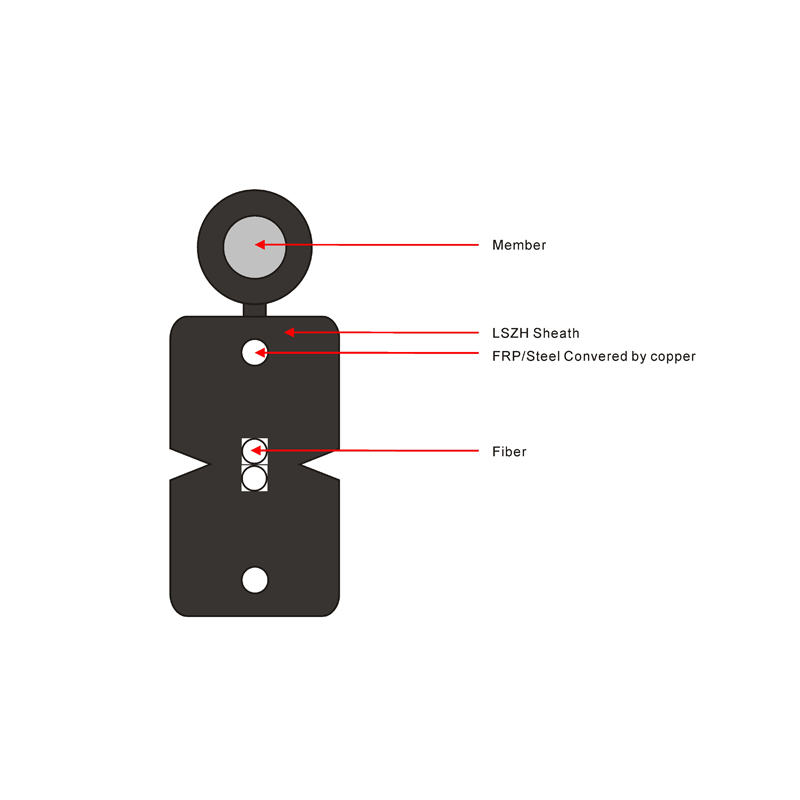

Self-supporting FTTH drop cable is constructed with one or two single-mode fiber (G.657A). The cable is protected by a dielectric strength member, suitable for direct aerial installation into the houses in FTTH projects.
| Cable type | OD(mm) | Weight (kg/km) | Tensile Strength(N) | Crush (N/100MM) | Bending Radius(mm) | |||
|---|---|---|---|---|---|---|---|---|
| Short | Long | Short | Long | Dynamic | Static | |||
| GJYXFCH-1Xn | (2.0±0.1)*(6.2±0.3) | 23.6 | 600 | 300 | 2200 | 1000 | 20D | 15D |
| GJYXFCH-2Xn | (2.0±0.1)*(6.2±0.3) | 23.6 | 600 | 300 | 2200 | 1000 | 20D | 15D |
| GJYXFCH-4Xn | (2.0±0.1)*(6.2±0.3) | 23.6 | 600 | 300 | 2200 | 1000 | 20D | 15D |
| Storage/Working temp(ºC) | -20~+60 | |||||||
