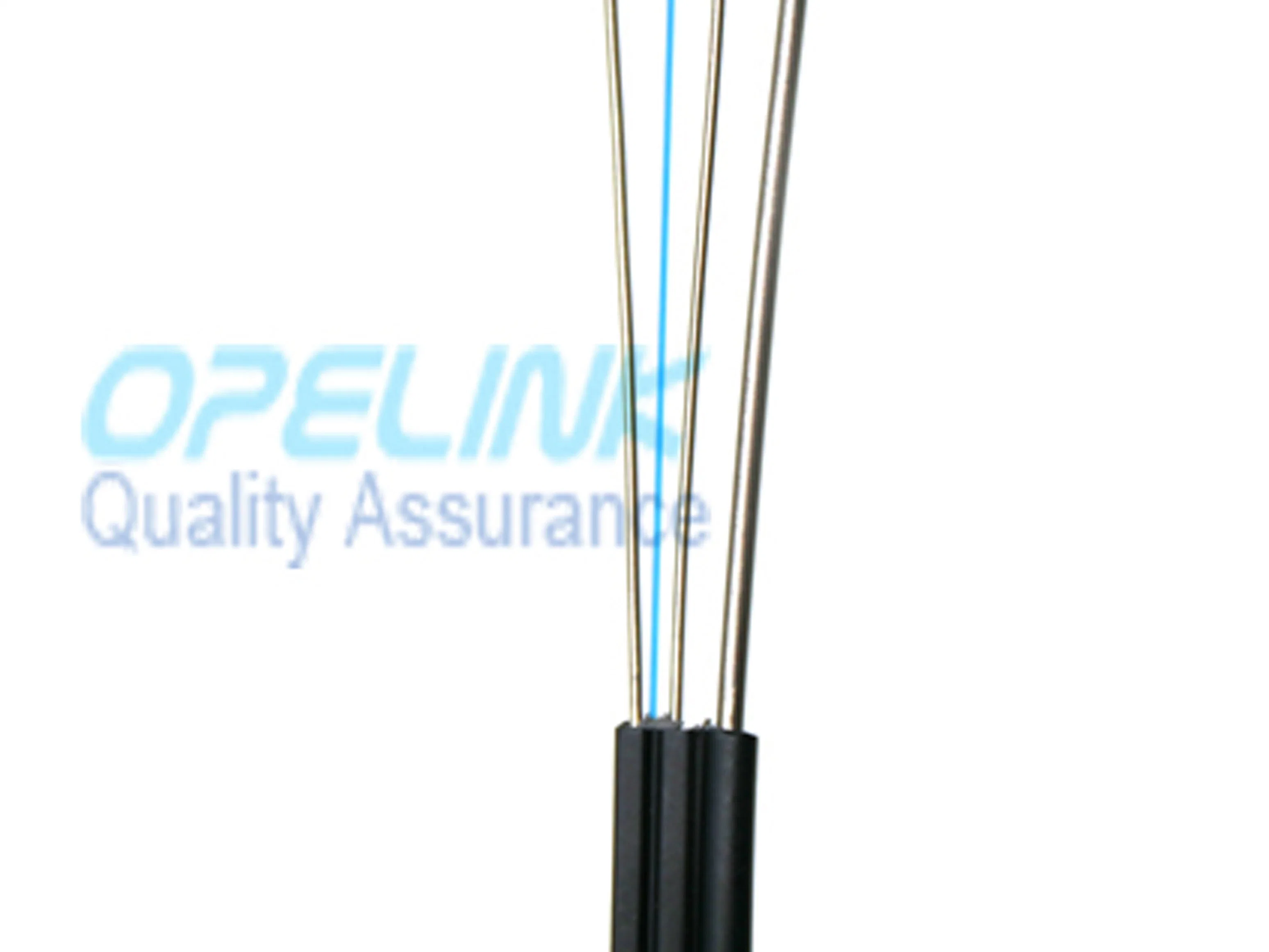

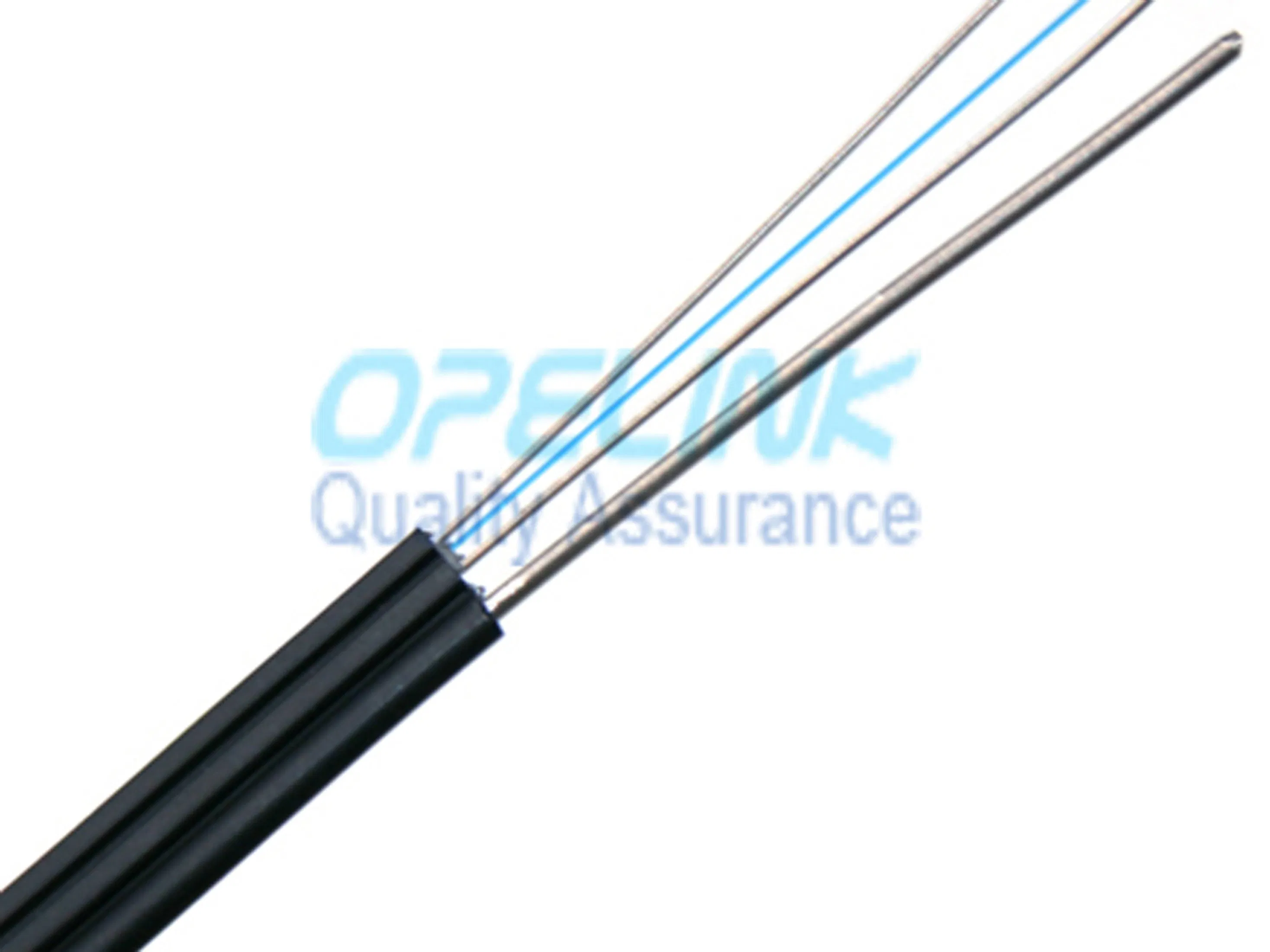

Drop Fiber optic cables for telecommunication (Bow-type), suitable for optical fiber to the user (FTTH) network, users to introduce the section of the cable, but also apply to the Office (FTTO) and optical fiber to the building (FTTB), and other optical fiber access network users to introduce the section of the optical cable.
FTTH drop cables are good to use for fiber to the home last mile solution, we provide FTTH drop cable with different counts from 1, 2, 4, to 12. This cable adopts the popular design in the industry, its structure and performance is optimized for FTTH applications.

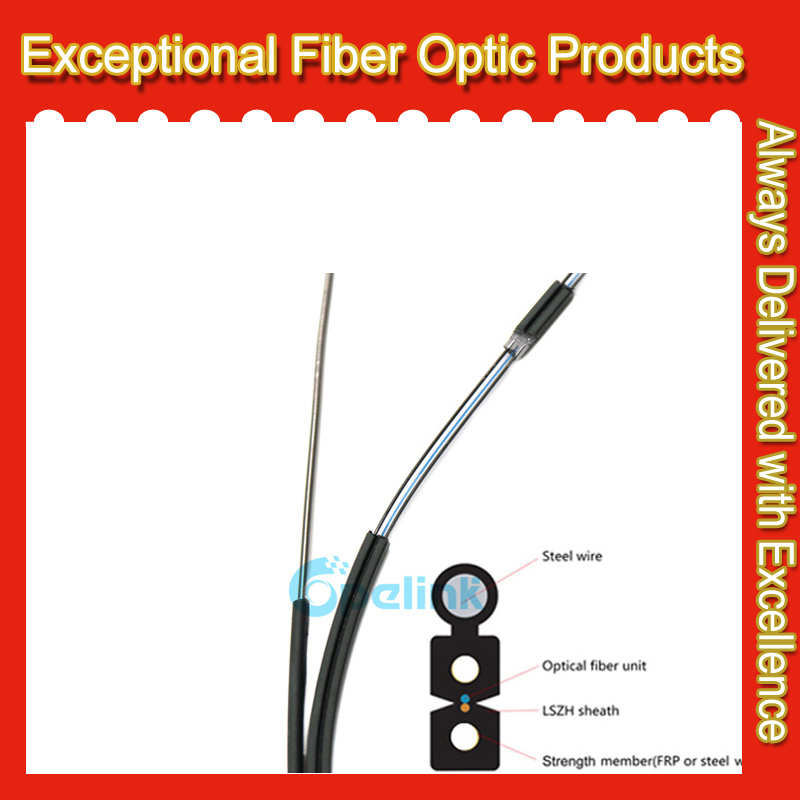

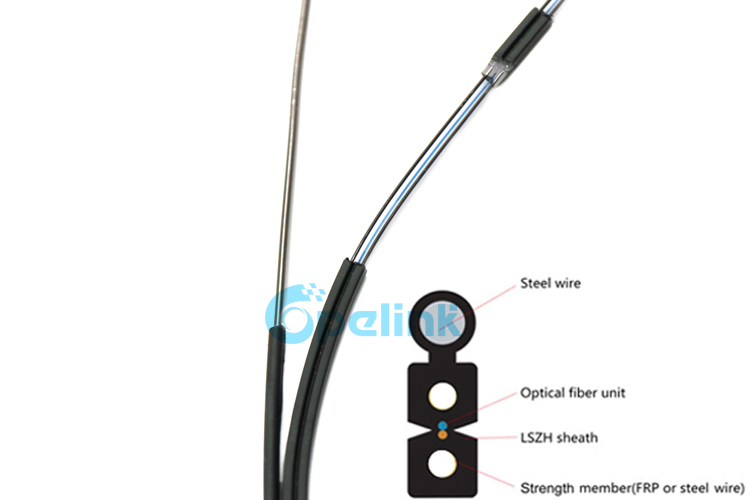

The drop FTTH cables are with flame retardant jacket and with supporting wire, there are strengthen members inside the cables for supporting the whole cables, the whole cable meet the RoHS standards and contains no harmful components.
| Fiber Count | External diameter (mm) | Weight (kg/km) | Min bending radius (mm) | Min crush resistance (N/100mm) | Min drawing force (N) | |||
|---|---|---|---|---|---|---|---|---|
| Static | Dynamic | Short term | Long term | Short term | Long term | |||
| 1 | (2.0±0.1)x(5.4±0.1) | 20 | 20 | 40 | 2200 | 1000 | 600 | 300 |
| 2 | (2.0±0.1)X(5.4±0.1) | 20 | 20 | 40 | 2200 | 1000 | 600 | 300 |
| 4 | (2.0±0.1)X(6.4±0.1) | 20 | 20 | 40 | 2200 | 1000 | 600 | 300 |
| Fiber Core | Fiber Type | Count | Cable OD | Reinforcer | Fiber Jacket | Jacket Color |
|---|---|---|---|---|---|---|
| 1=G652D, 2=G657A1, 3=G657A2, 6=OM3 | S=simplex, Z=zipcord, Y=Round, F=Flat | 001=1 core, 002=2 cores, 024=24 cores | 01=0.9mm, 02=2.0mm, 04=2.9*6.0mm | 1=Kevlar, 2=FRP, 4=Steel wire | LH=LSZH, PE=PE, PU=TPU | 01=Blue, 02=Orange, 06=White, 08=Black |
