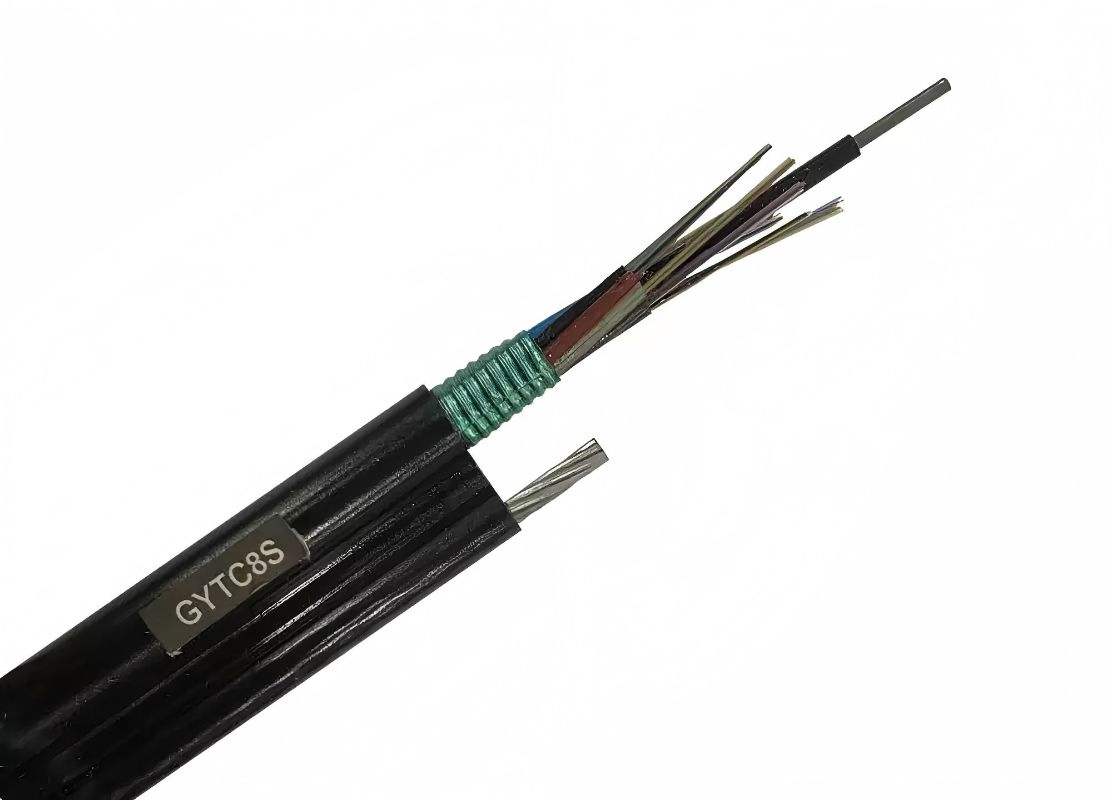

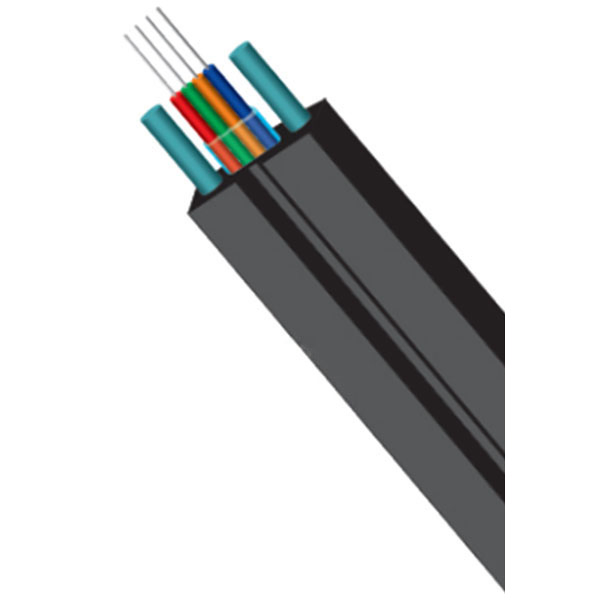

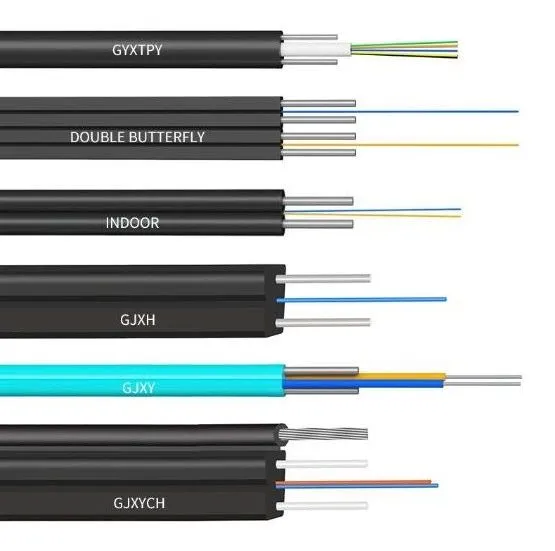

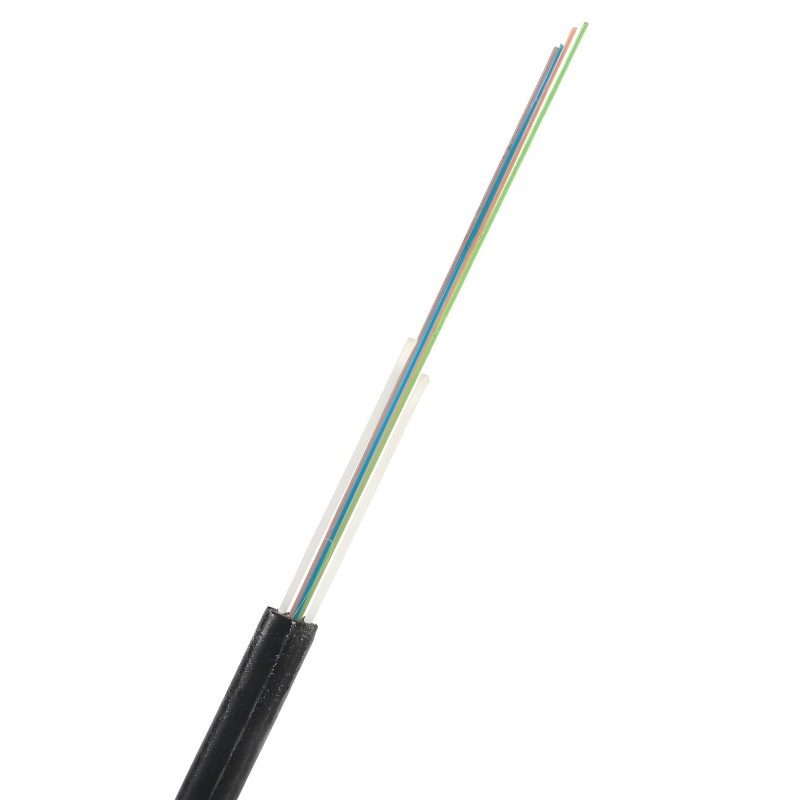

The FTTH drop cable is positioned in the centre. Two parallel fiber reinforced plastics (FRP) are placed at the two sides. A steel wire as the additional strength member is also applied. Then, the cable is completed with a black or color PVC/LSZH sheath. The typical self-supporting bow-type drop fiber optic cable consists of GJXFH/GJXH cable and an additional strength member (steel wire or stranded steel wire).
| Basic Information | |
|---|---|
| Model NO. | FTTH DROP CABLE |
| Material Shape | Flat Wire |
| Allowed Lateral Pressure | >1000(N/100mm) |
| Allowed Tensile Strength | 100N - 1000N |
| Certification | RoHS, CE, ISO9001, VDE, CCC |
| Sheath Material | LSZH/TPU |
| Fiber Cores | 1/2/4 |
| Operating Temperature | -20~70°C |
| Fiber Type | Attenuation (1310/1550nm) | Min Bending Radius (mm) |
|---|---|---|
| G652D | 0.36/0.22 dB/km | 16 |
| G657A1 | 0.36/0.22 dB/km | 10 |
| G657A2 | 0.36/0.22 dB/km | 7.5 |
| Fiber Count | Cable Diameter (mm) | Tensile Strength (Short/Long) | Crush Resistance (N/100mm) |
|---|---|---|---|
| 1-4 Cores | 5.2 * 2.0 | 600 / 300 N | 2200 / 1000 |
Single Mode Cables
Multimode Cables
Armored Cables
Available Customizations: Fiber types (G.652D, G.657A1/A2), Jacket materials (PVC, LSZH, PE, PU), Connector types (LC, SC, FC, ST), and Custom lengths/labeling.
