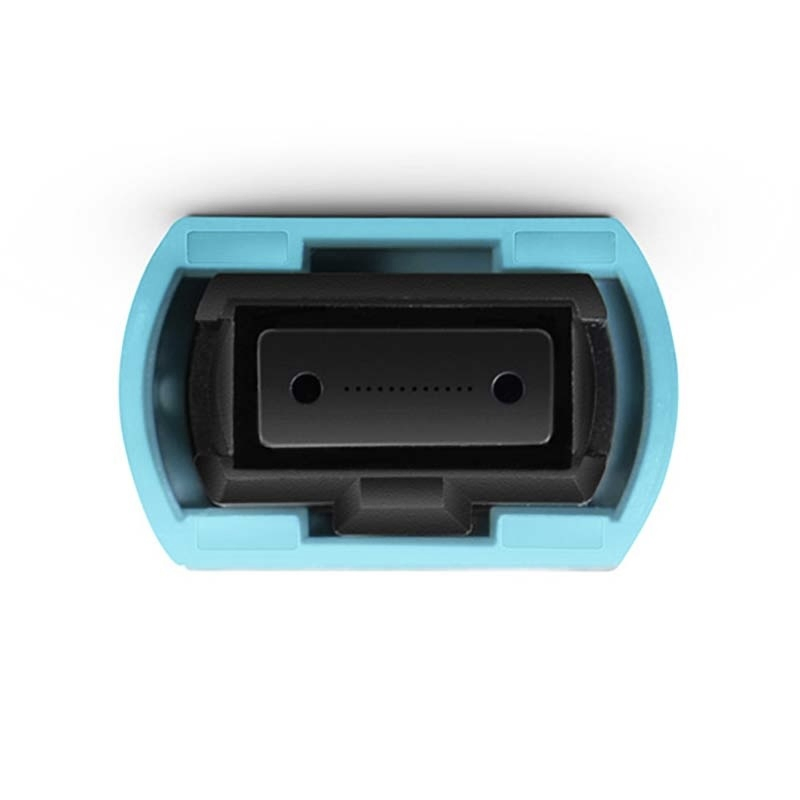

The MT-RJ and MPO are the MT series. Small size, Multi-channel is the most prominent feature, which greatly facilitates the high-density wiring. The MT series connectors have been widely applied to CATV, Multimedia, Gigabit Ethernet, active device interface, data processing networks, telecommunication networks, and asynchronous Transmission Mode (ATM).

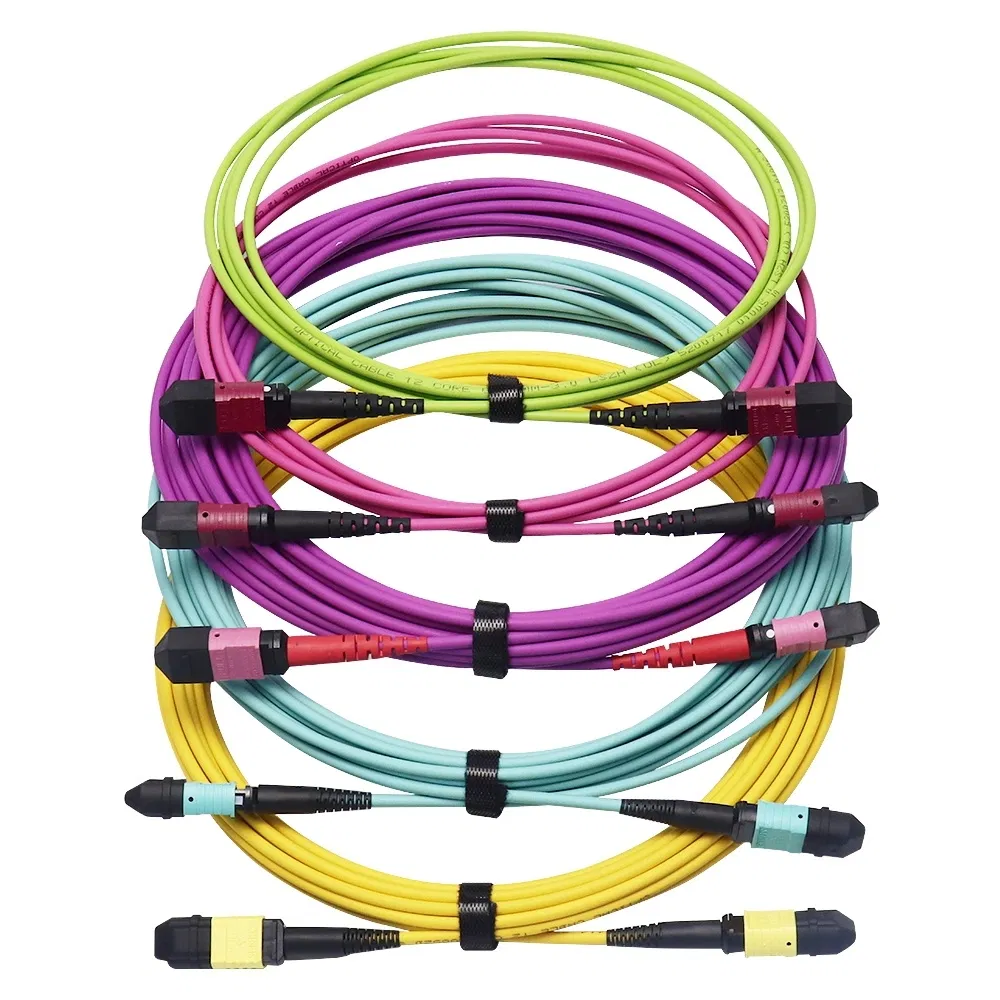

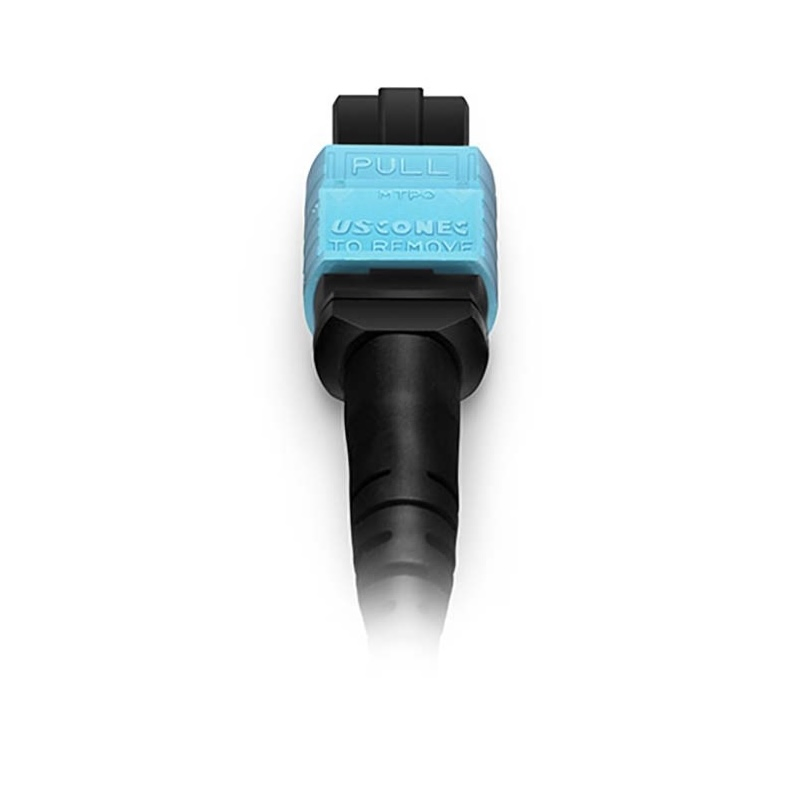

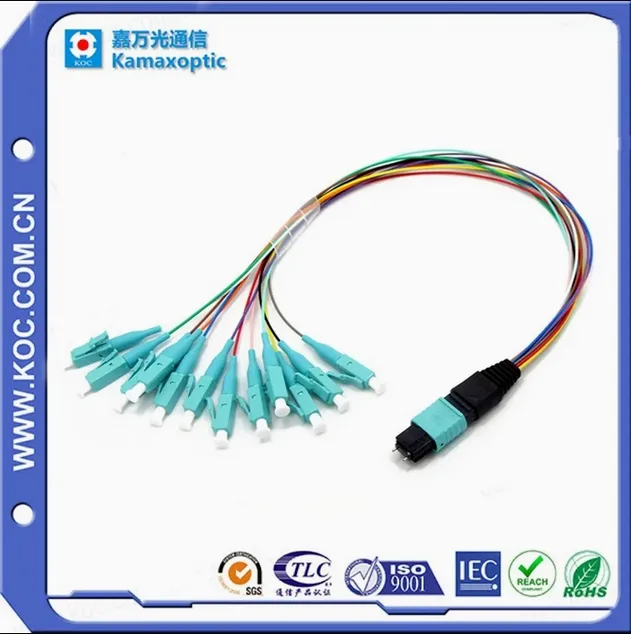

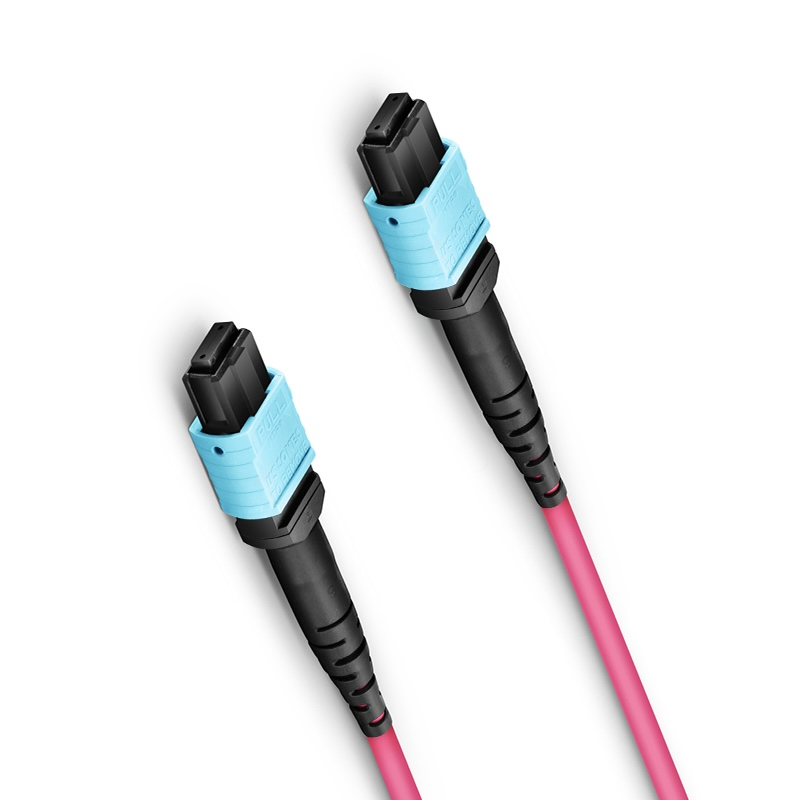

The MPO can be 24 fibers, and the MPO patchcord cable can be ribbon fiber or breakout fiber; the MT series patchcord have low insertion loss and high precision guide pins for exact alignment.
| Polish Type | UPC to UPC | Certification | RoHS, ISO9001 |
| Glass Fiber | Corning ClearCurve® Multimode | Durability | 500 times |
| Fiber Mode | OM4 50/125μm | Tensile Strength | 80/240N |
| Fiber Count | 12 Fibers | Insertion Loss | 0.35dB Max |

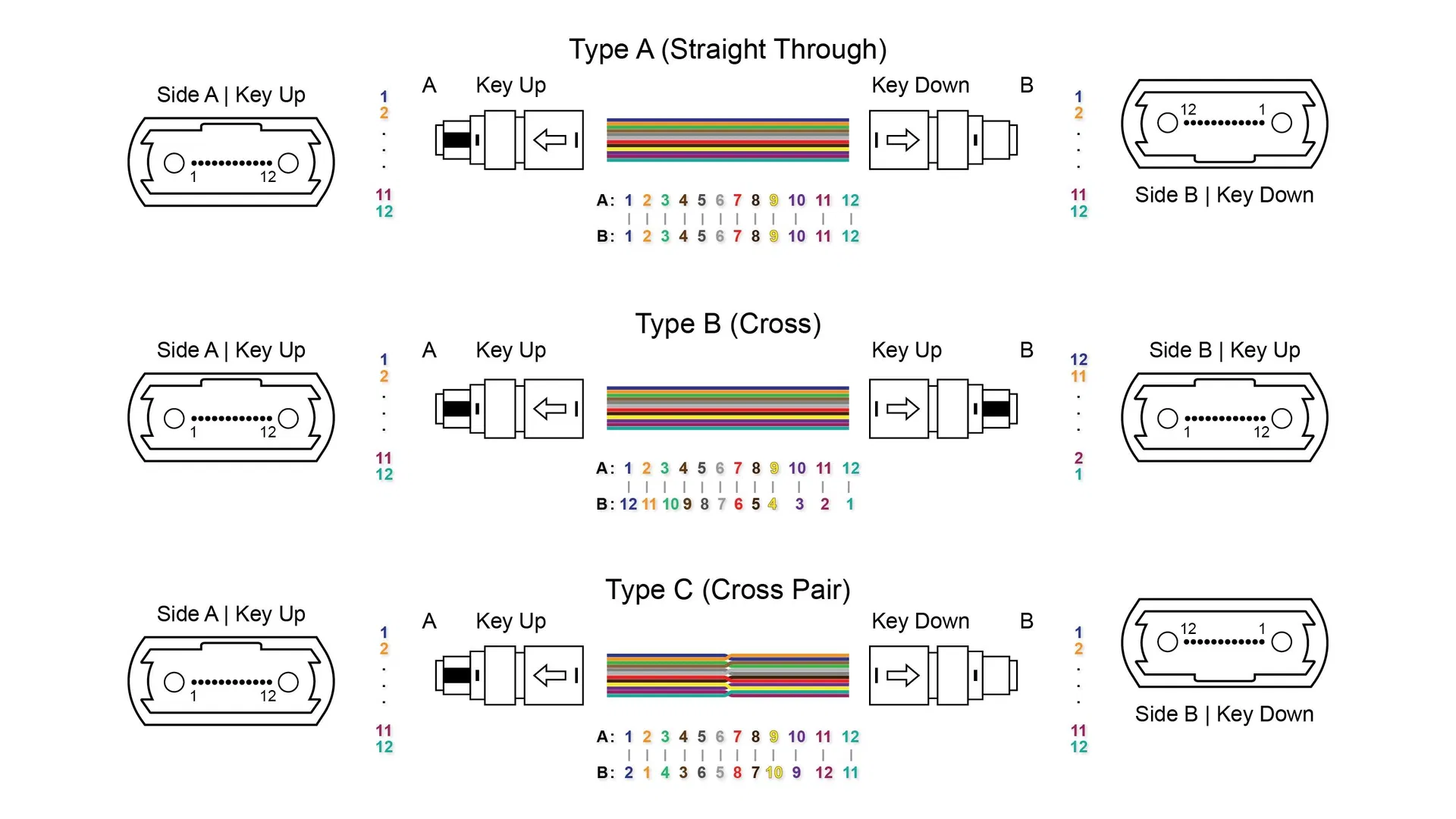

| Polarity | Type B | Min. Bend Radius | 7.5mm (Fiber) |

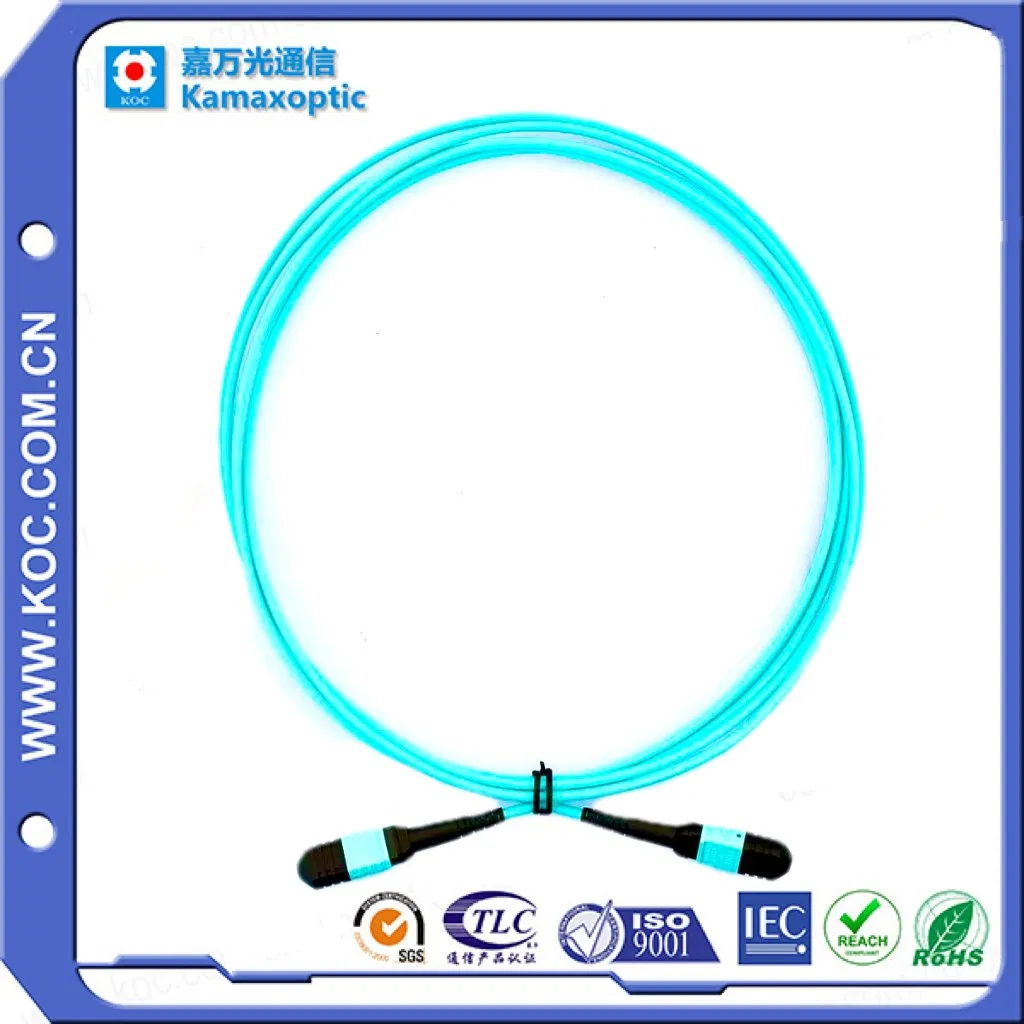

Note: Specification refers to standard Fiber Optic Jumper MPO/female-MPO/female 12 CORE OM4 LSZH 3 meters.
25 Years Experienced Fiber Optic Components Global Supplier.

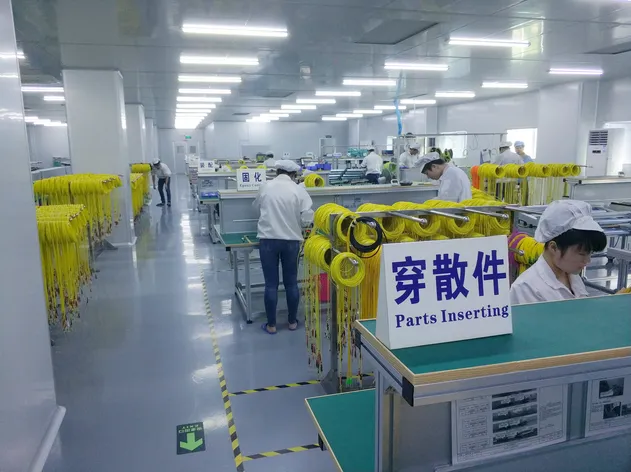

Established in 2001, our group is a state and municipal level High-tech Company. We specialize in professional manufacturing for telecom, fiber optic network connection, passive devices, and data center cabling.
Our products are extensively applicable to telecom operators, fiber optic engineering, CCTV, broadband networks, FTTH, and data centers in more than 80 countries worldwide. We provide reliable products and services under the concept of high quality orientation.
