XT Cabled
1 / 5
| Model NO. | GYTC8S | Material Shape | Round Wire |
|---|---|---|---|
| Allowed Lateral Pressure | >1000(N/100mm) | Tensile Strength | 1000N - 10000N |
| Core | Multicore | Certification | RoHS, CE, ISO9001 |
| Sheath Material | PE | Product Name | Fiber Optical Cable |
| Installation Method | Self-Supporting Aerial | Specification | 4-96C |

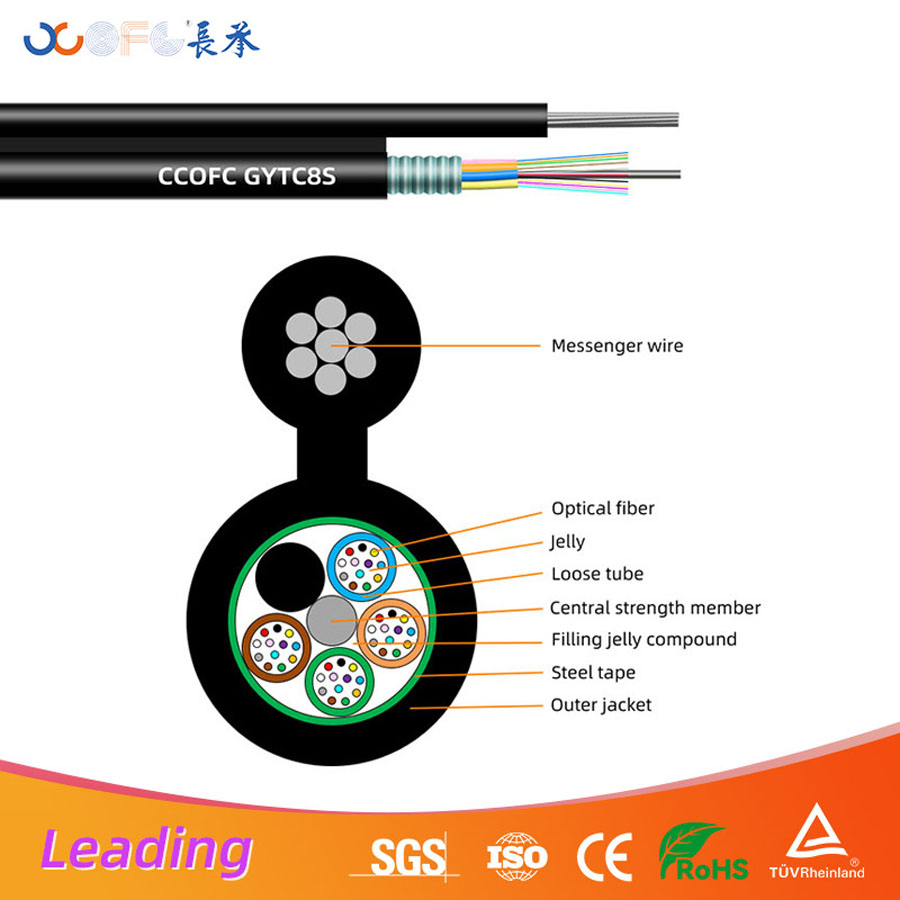

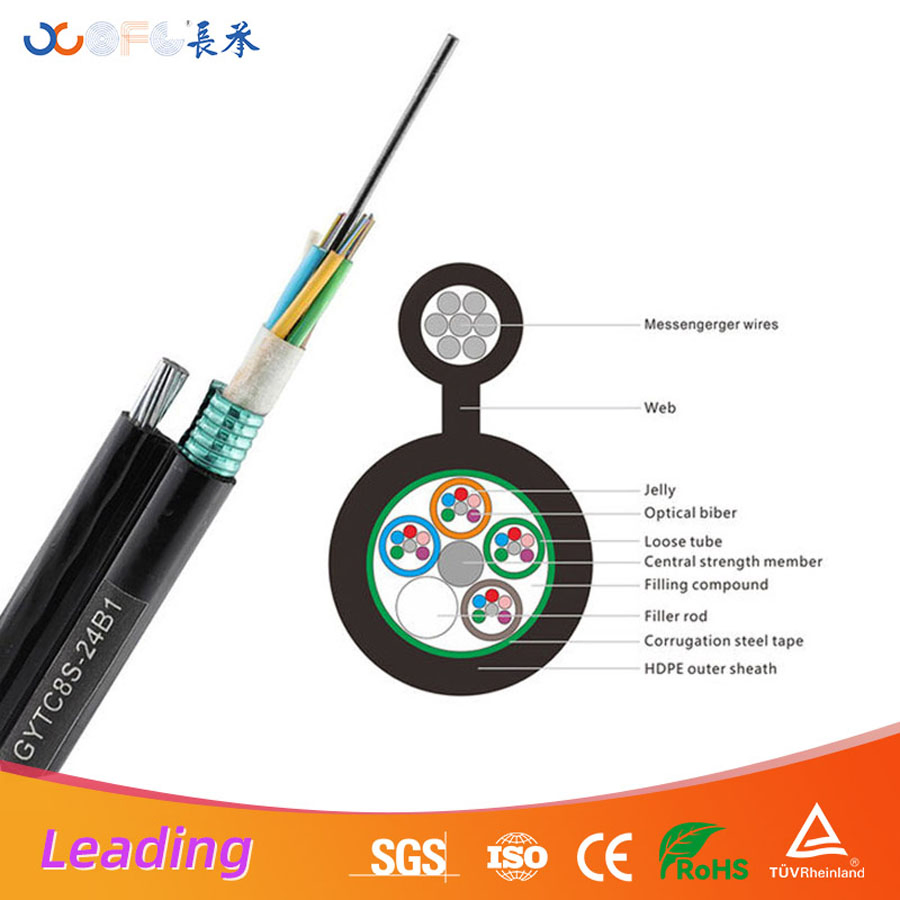

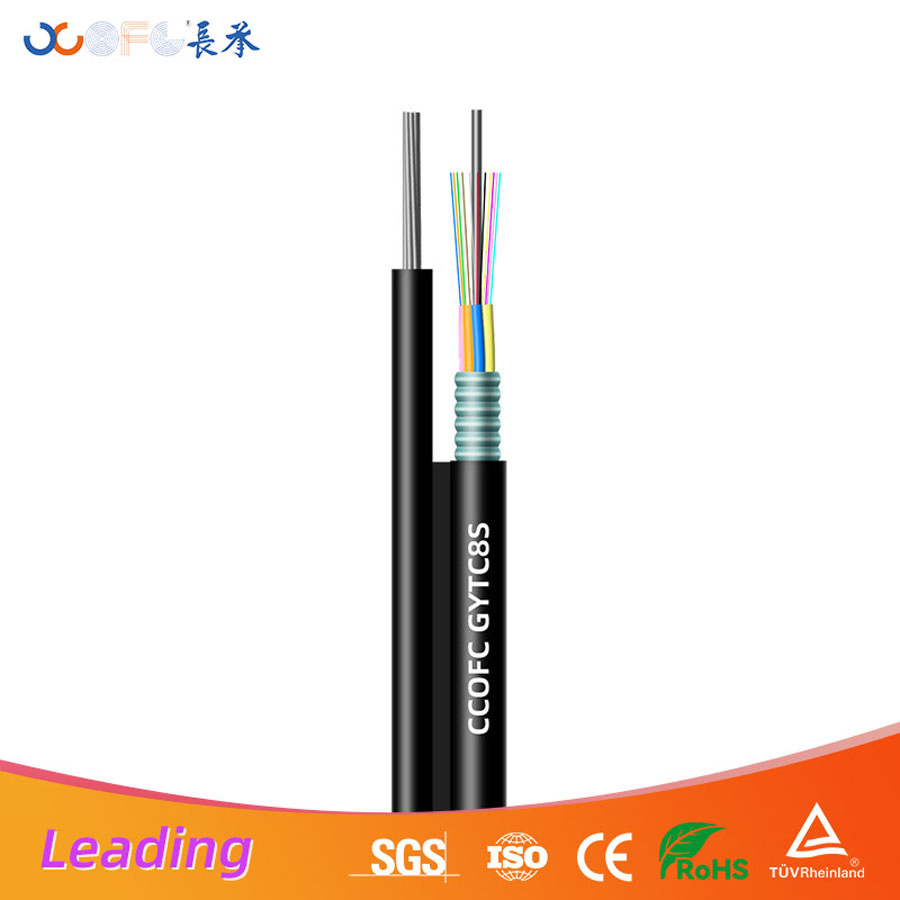

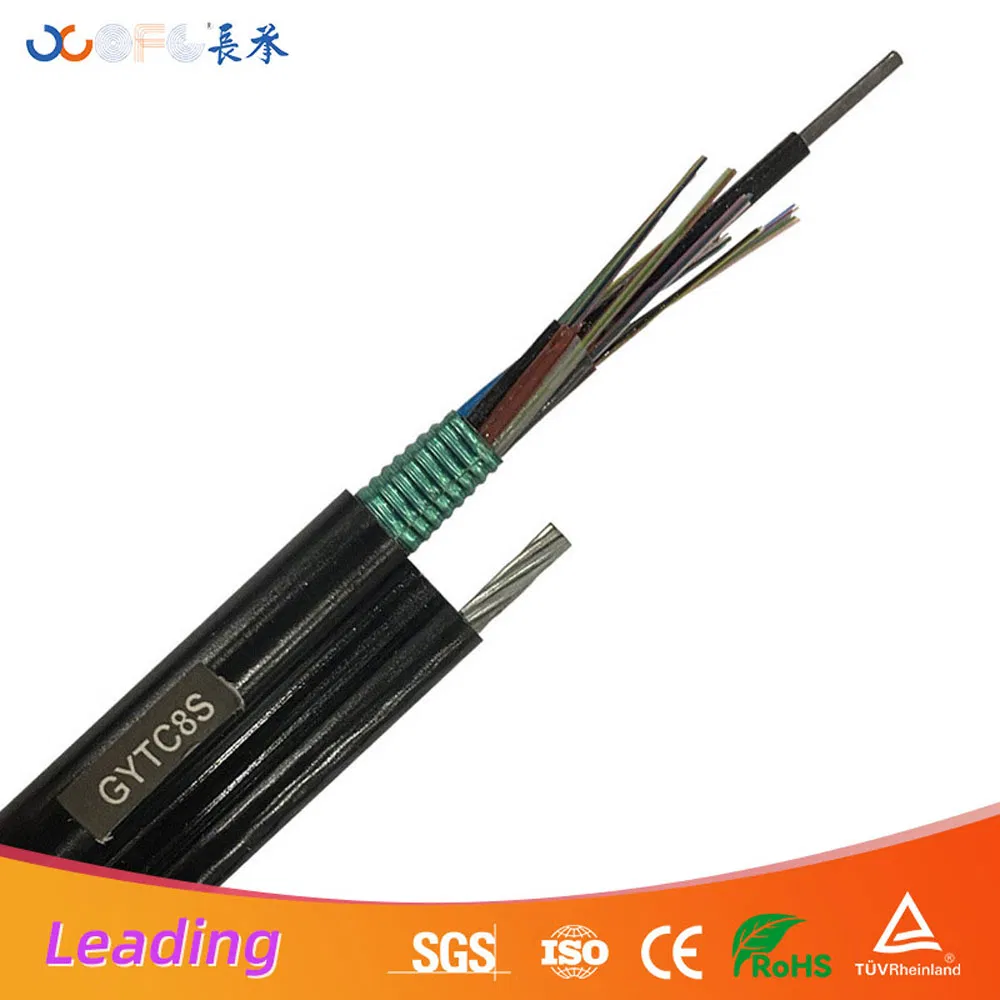

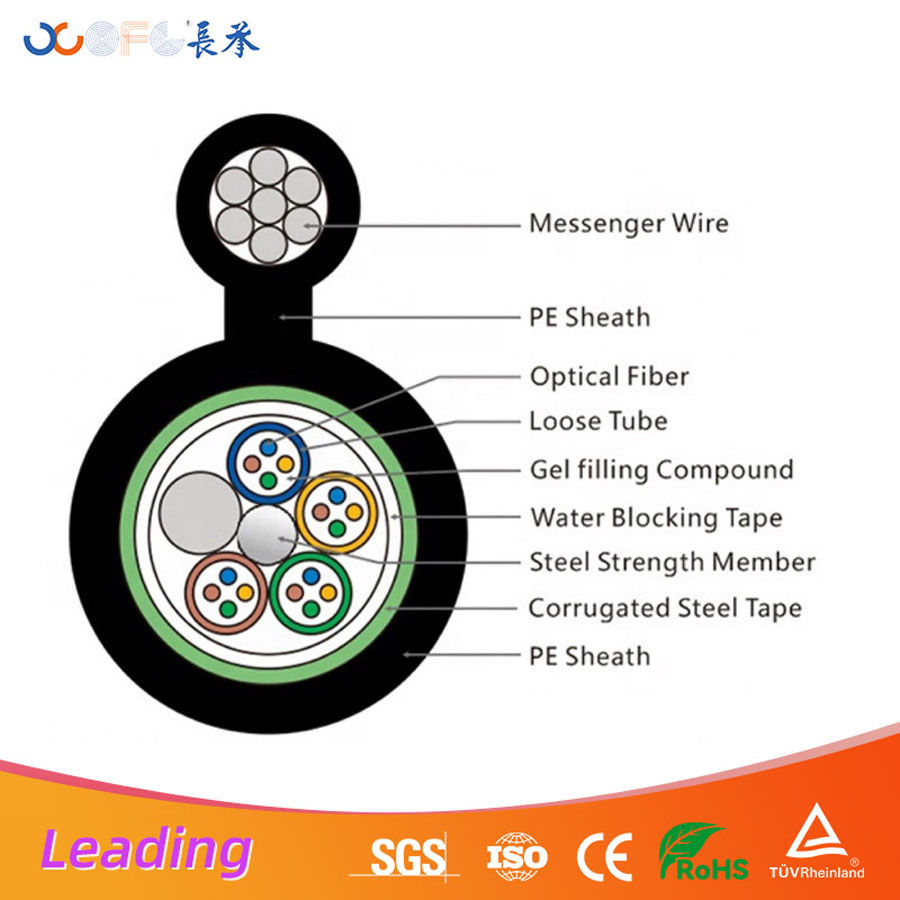

The GYTC8S fibre optic cable is constructed by placing a 250µm fibre optic cable into a high modulus material pine tube, which is filled with a waterproof compound. At the centre of the cable core is a metal reinforcement core, around which the loose tube (and filler rope) is twisted to form a compact and round core. The core is wrapped longitudinally with a layer of plastic coated aluminium tape (APL) / (PSP) and integrated with the wire strands in a polyethylene sheath in the shape of a figure of eight.

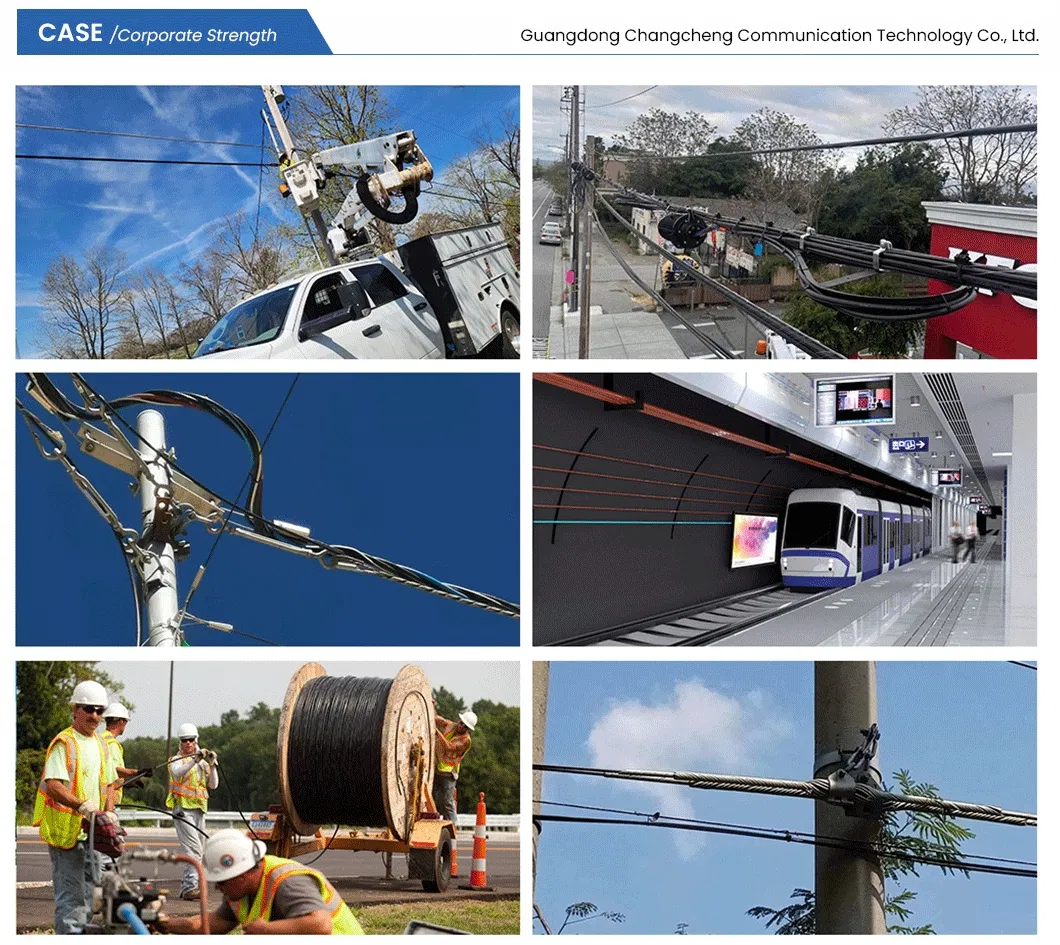

Ideal for overhead installation along high-voltage power transmission networks.
Perfect for companies requiring reliable fiber communications alongside electrical infrastructure.
Excellent for crossing rivers, valleys, and challenging terrains.
Essential component for modern smart grid communication and monitoring systems.
| Fiber Number | Outer Dia (MM) | Weight (KG/Km) | Tensile Short/Long (N) | Crush Load (N/100M) |
|---|---|---|---|---|
| 2~20F | 10.6x20.8 | 268 | 9000 / 4000 | 3000 / 1000 |
| 22~30F | 10.9x21.1 | 272 | 9000 / 4000 | 3000 / 1000 |
| 32-36F | 11.6x21.8 | 299 | 9000 / 4000 | 3000 / 1000 |
| 38-72F | 13x23.2 | 329 | 9000 / 4000 | 3000 / 1000 |
LOOSE-JACKETED CONSTRUCTION
WATER-BLOCKING TECHNOLOGY

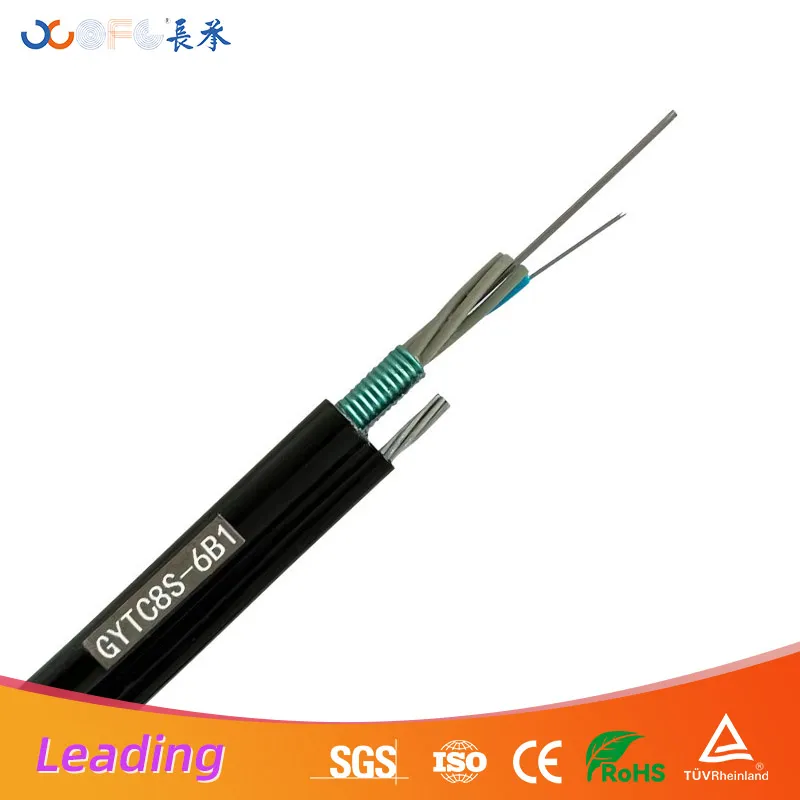

HIGH MODULUS MATERIALS

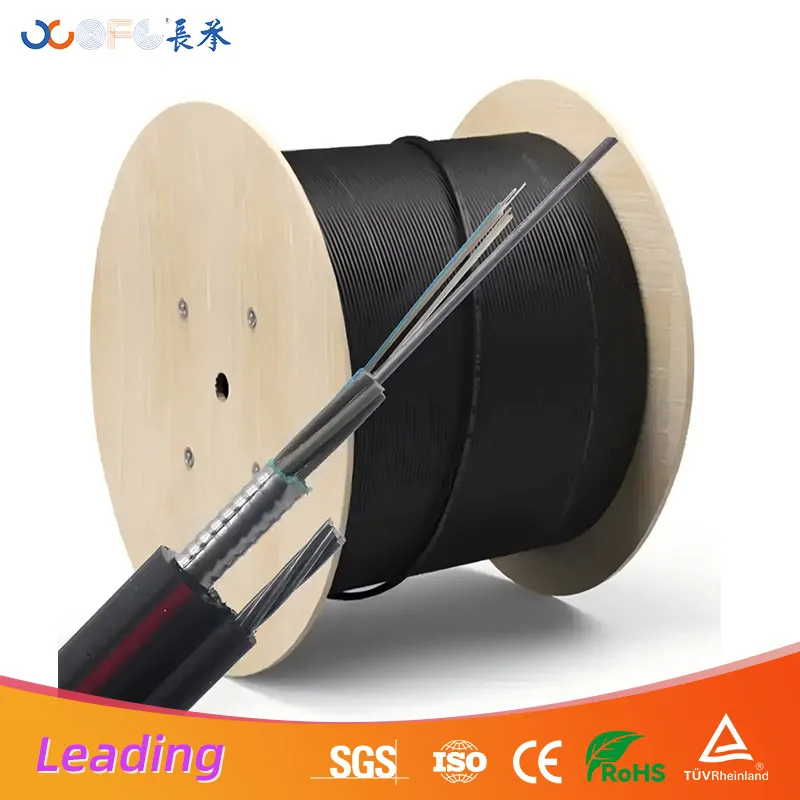

SELF-SUPPORTING DESIGN
