MPO/APC-MPO/APC Ribbon Fiber Optic Patch Cable

1 / 5

MPO/APC-MPO/APC Ribbon Fiber Optic Patch Cable

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

MPO Ribbon Cable

Connection Structure

MPO/MTP

Material Shape

Round Wire

Lateral Pressure

100-1000 (N/100mm)

Tensile Strength

100N-1000N

Certification

RoHS, ISO9001

Insertion Loss

Less Than 0.3dB

Return Loss

More Than 55dB

Fiber Type

G652D, G657A1

Cable Od

0.9mm, 2.0mm, 3.0mm

Product Description

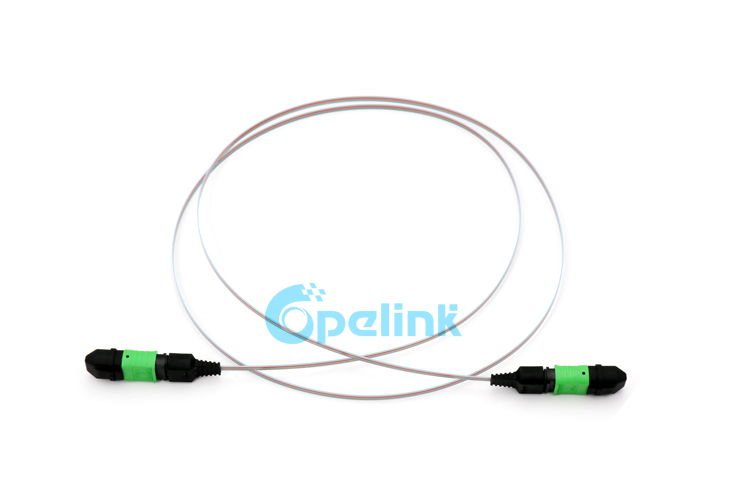

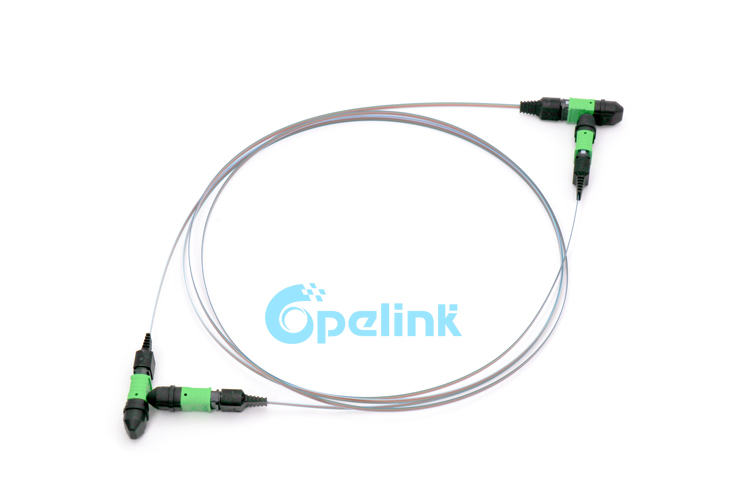

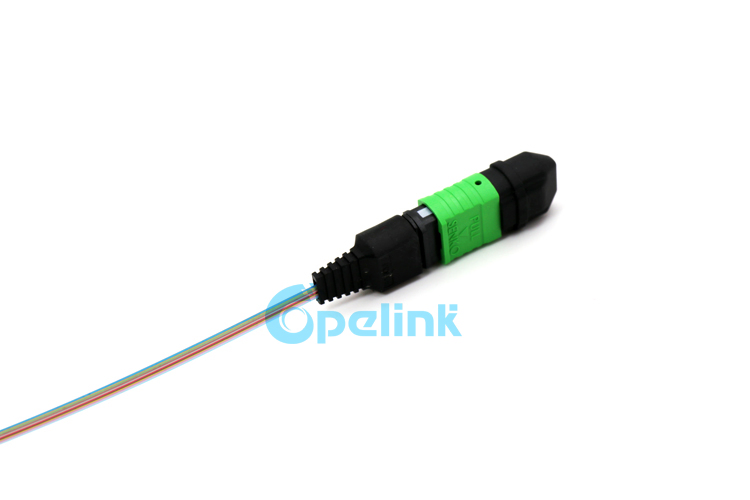

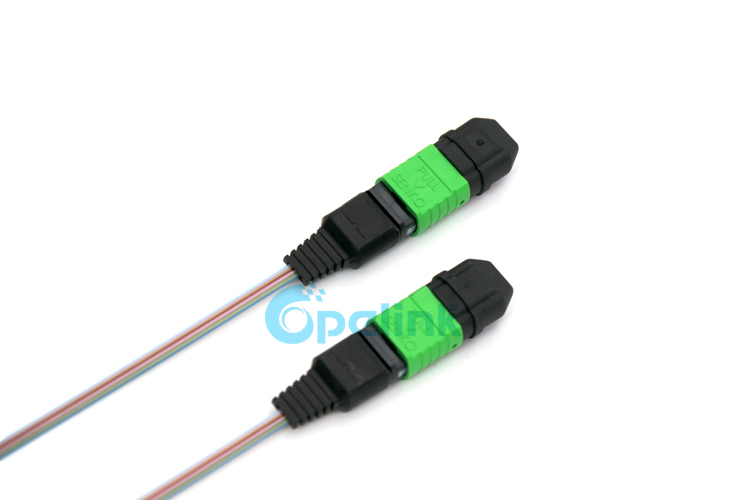

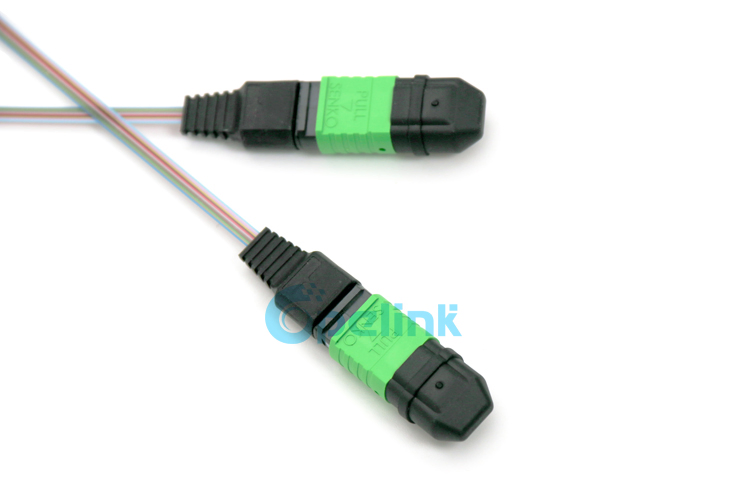

MPO/APC-MPO/APC Ribbon Fiber Optic Patch Cable

We offer a range of high-density multifiber MPO Ribbon Cable products, including jumpers, fanouts, and pigtails. These solutions are cost-effective and designed for high-performance data environments.

Key Features

Good durability and exchangeability

High temperature stability

Complies with IEC-61754-7

Complies with EIA/TIA-604-5

Applications

High density wiring systems

40G and 100G systems, QSFP modules

Data communication and optical networks

Storage area network fiber channels

Technical Parameters

Parameter	Singlemode (PC)	Singlemode (APC)	Multimode (PC)
Insertion Loss (Max)	<=0.7dB	<=0.7dB	<=0.7dB
Insertion Loss (Typical)	<=0.35dB	<=0.35dB	<=0.35dB
Return Loss	>=50dB	>=60dB	>=20dB
Operating Temp	-20ºC to 75ºC
Durability	>1000 cycles

Frequently Asked Questions

Q1. Can I have a sample order for this product? What's the MOQ? Yes, we welcome sample orders for testing. The MOQ is 1 piece.

Q2. What is the lead time for production? Samples typically require 3-5 days, while mass production takes approximately 1-2 weeks.

Q3. What are the available shipping methods? We usually ship via DHL, UPS, FedEx, or TNT, taking 3-5 days to arrive. Airline and sea shipping are also available options.

Q4. How is the freight cost determined? Freight depends on the order quantity. We work with reliable forwarders to provide the most cost-effective shipping methods.

Q5. Do you offer a guarantee for these products? Yes, we provide a 1-2 year warranty depending on the specific product type.

Q6. What happens if there are product defects? If any defective items are found in a batch, we will provide replacement units to ensure quality standards.
