Multi Cores Optical Fiber Flat Ribbon Indoor Cable for Communication Use

Customization:	Available
Application:	Communication
Type:	Single-mode Fiber

Send Inquiry

Product Description

📋

Basic Specifications

Model NO.

GJFDKBV

Connection Structure

LC/SC/FC/ST/E2000/MU/MTRJ

Material Shape

Flat Wire

Allowed Lateral Pressure

100(N/100mm) < 1000(N/100mm)

Allowed Tensile Strength

100N < 1000N

Core

Multicore

Certification

RoHS, CE, ISO9001, CCC

Brand

OEM

Sheath Material

PVC/PU/LSZH

Material

Stainless Steel + PVC/LSZH

Weight

13~17kg/Km

Insert Loss

< 0.3dB

Return Loss

> 60dB

Connector Type

LC/SC/FC/ST

Specification

2~12 fibers

Production Capacity

80,000 PCS/Month

🚀

Product Overview

Product Name: Multi-core Optical Fiber Flat Ribbon Indoor Cable (GJFDKBV)

Key Characteristics:

Superior uniformity of the outer diameter for tight buffer fiber.
Excellent strippability for easier installation.
High performance flame-retardant properties.
Low induced attenuation across the full operating temperature range.
Optimized geometrical dimensions for high-precision fiber connectivity.

Main Applications:

Core components for various types of indoor fiber optic cables.
Ideal for manufacturing high-quality patch cords and pigtails.
Widely used in communication equipment serving and distribution frames.

📊

Technical Parameters

Cable Count	Outside Diameter (MM)	Weight (Kg)	Tensile Strength (N)		Crush Load (N/100MM)		Bending Radius (MM)		Storage Temp (°C)
Cable Count	Outside Diameter (MM)	Weight (Kg)	Short Term	Long Term	Short Term	Long Term	Short Term	Long Term	Storage Temp (°C)
2	3.5*2.5	13.00	500	100	500	100	20D	10D	-20 to +60
4	3.5*2.5	13.00	500	100	500	100	20D	10D	-20 to +60
6	4.0*2.5	15.00	500	100	500	100	20D	10D	-20 to +60
8	4.5*2.2	15.00	500	100	500	100	20D	10D	-20 to +60
12	4.8*2.2	17.00	500	100	500	100	20D	10D	-20 to +60

📷

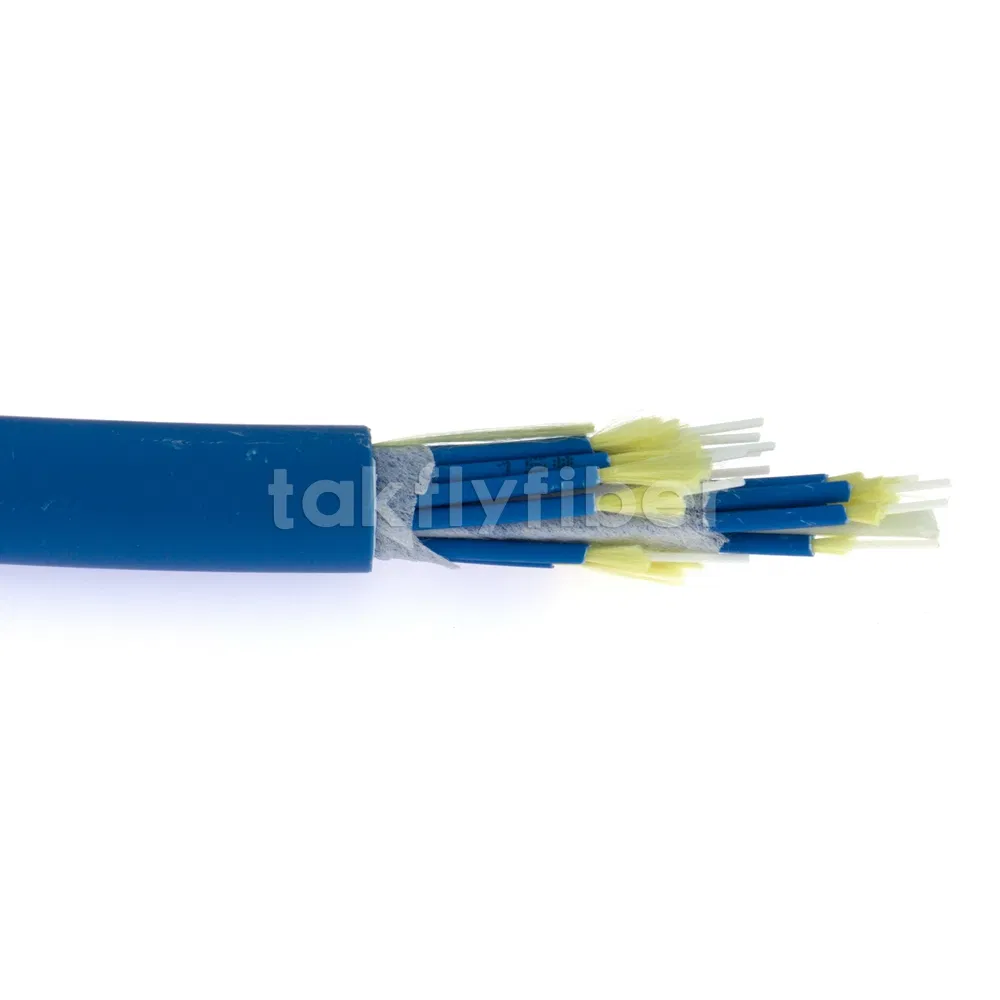

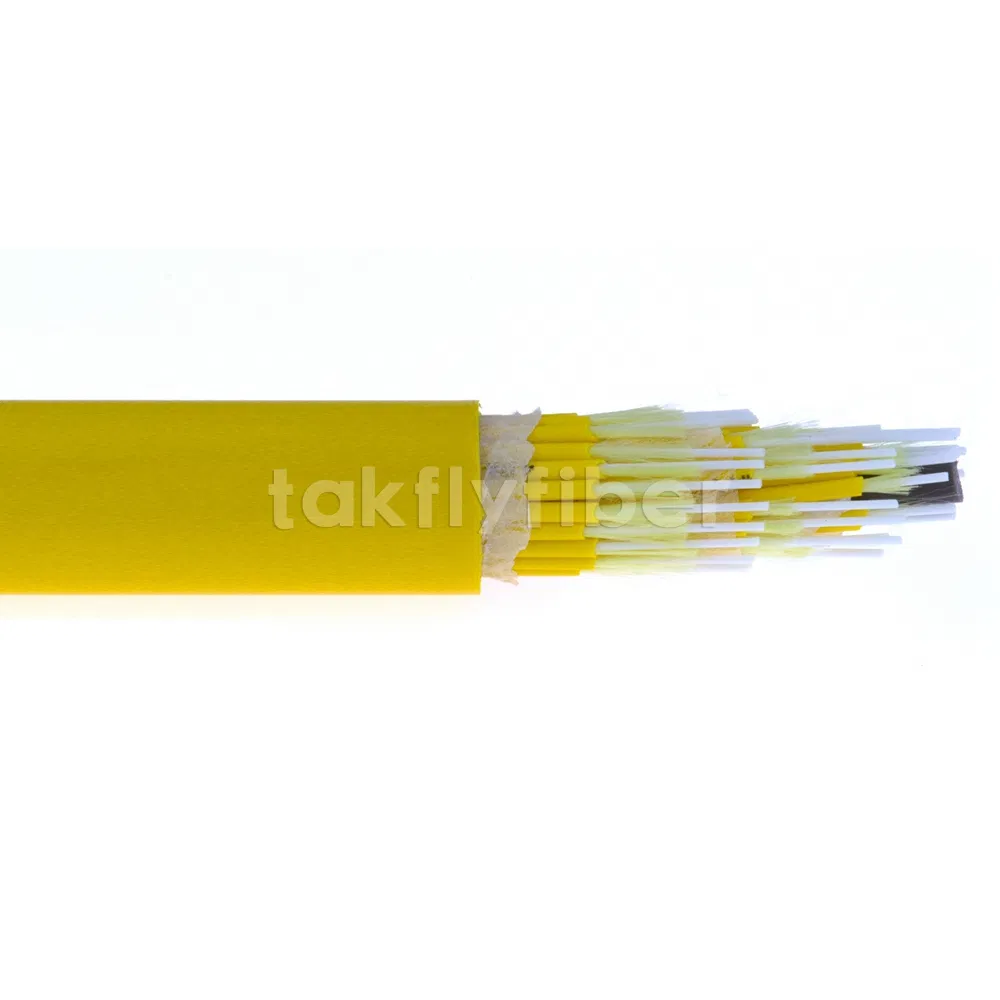

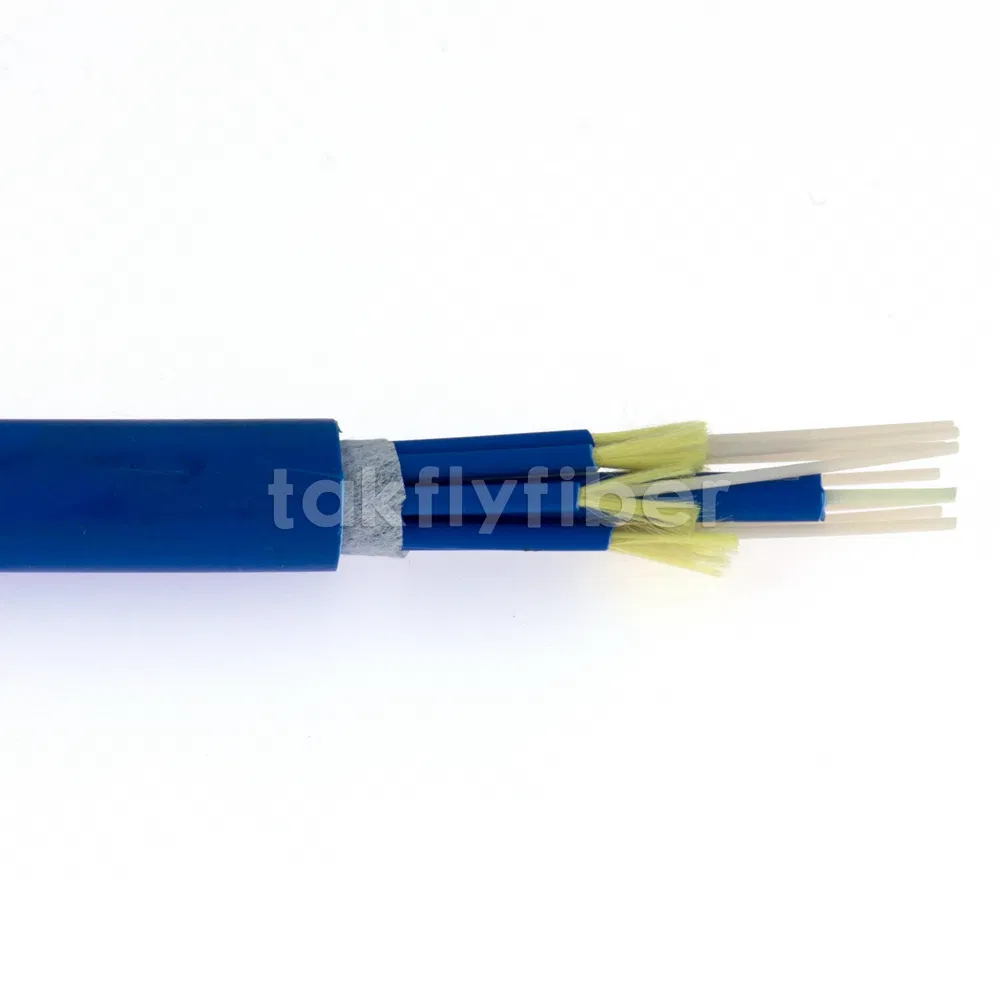

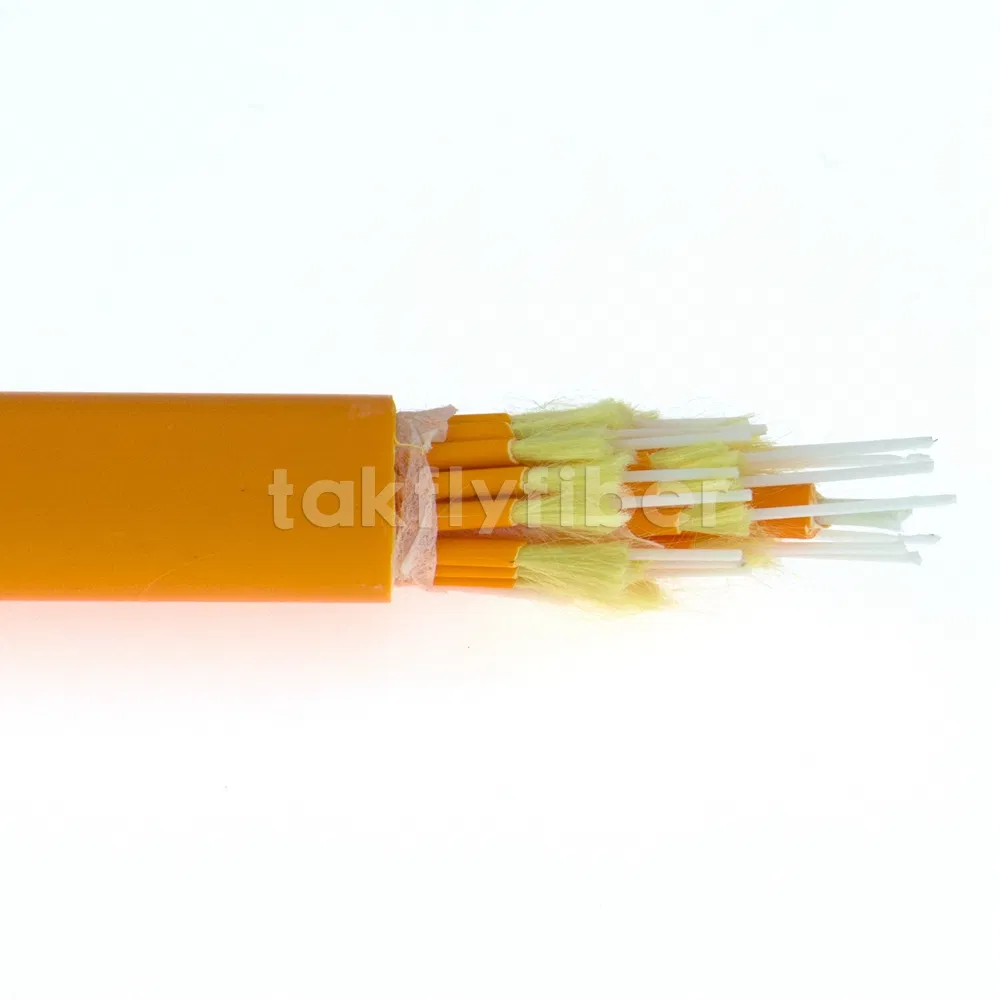

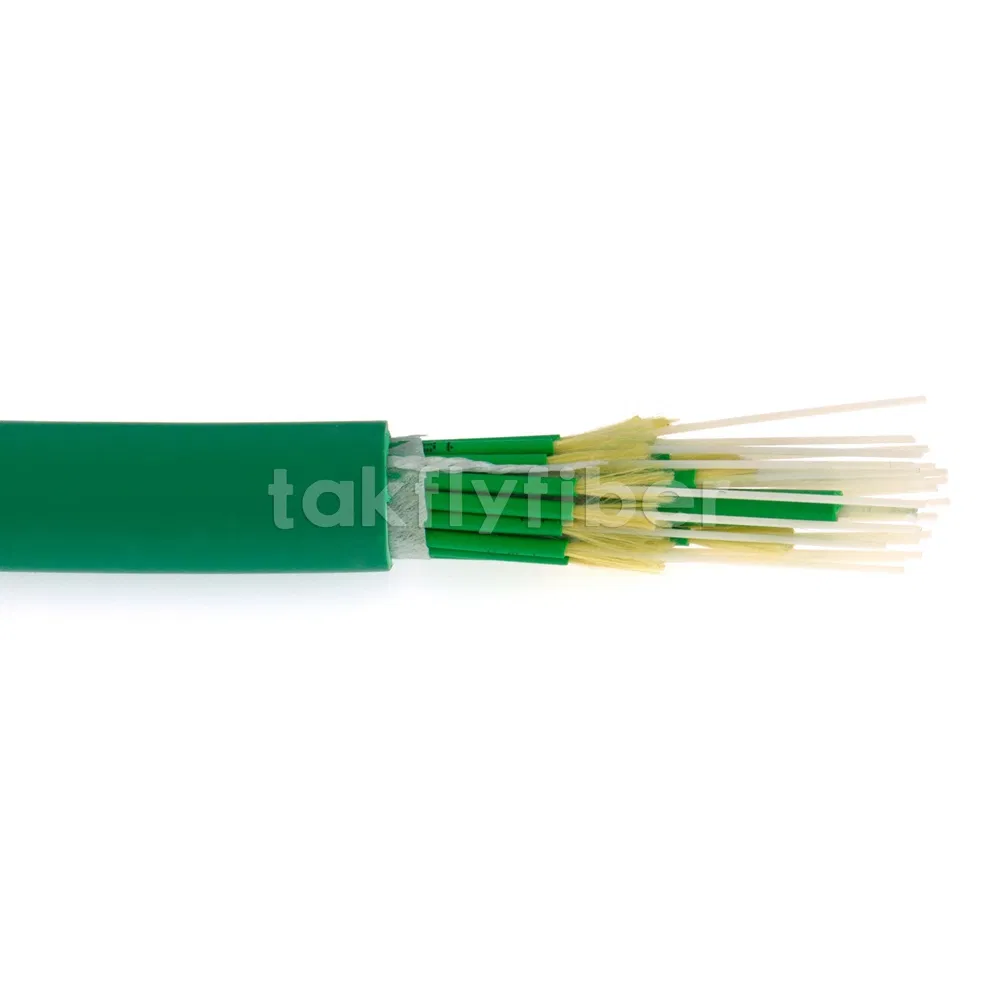

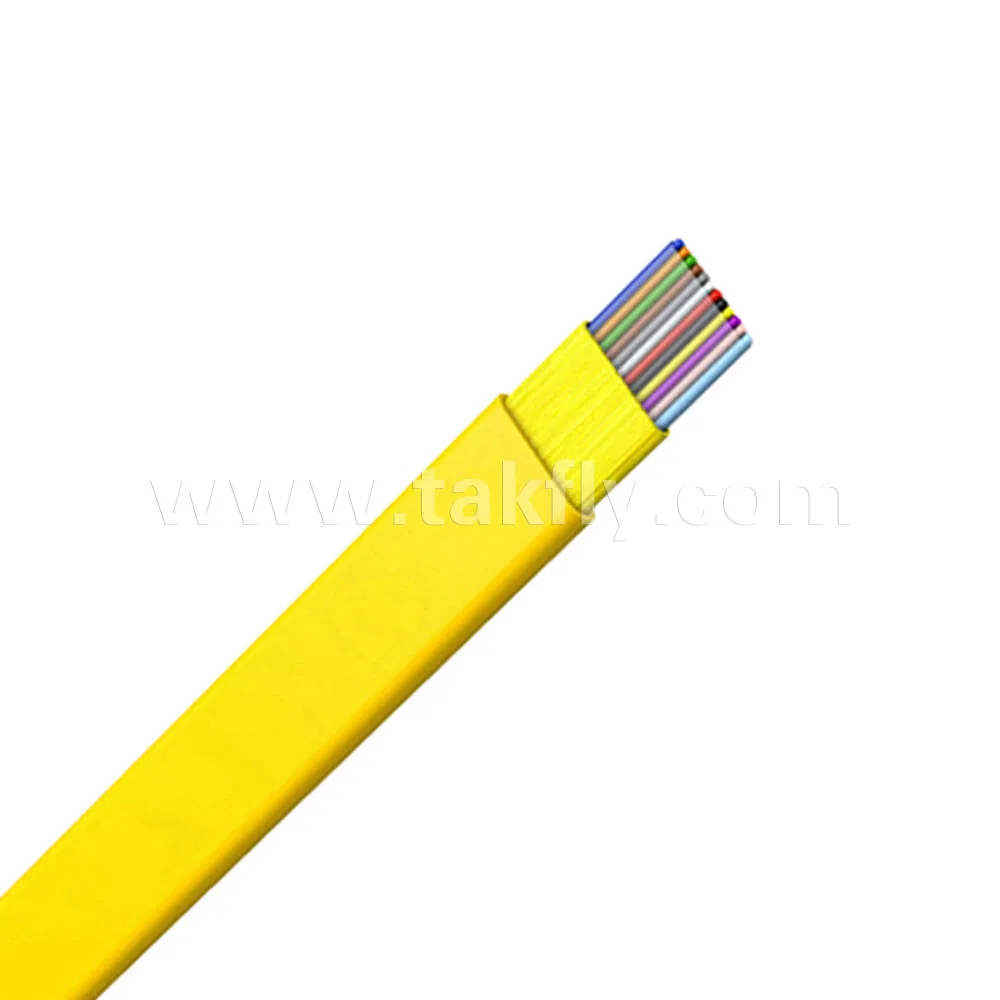

Product Gallery

🛡️

Quality Assurance & Service

Strict Quality Control: All products undergo five rigorous inspections during production:

Material incoming inspection before production.
Full inspection after finishing each individual process.
Full inspection of semi-finished products.
Comprehensive inspection before packing.
Random spot checks after packing before shipment.

Manufacturing Advantages: Over 15 years of experience in fiber optic manufacturing with a strong R&D team and OEM/ODM capabilities.

❓

Frequently Asked Questions

What is the main advantage of the flat ribbon design?

The flat ribbon design allows for high-density fiber counts in a compact space, providing excellent flexibility and ease of stripping for indoor installations.

Which sheath materials are available for this cable?

We offer PVC, PU, and LSZH (Low Smoke Zero Halogen) sheath materials to meet different environmental and safety requirements.

Can the cable be used for outdoor applications?

This specific GJFDKBV model is designed primarily for indoor use, such as patch cords, pigtails, and communication equipment connections.

What fiber types are supported by this cable?

The cable supports both Multimode (G.651) and Singlemode (G.652, G.653, G.654, G.655) fibers to accommodate various transmission needs.

What is the typical lead time for an order?

Generally, the lead time is between 2 to 7 working days, depending on the final order quantity and specific customization requirements.

Is the cable compliant with international standards?

Yes, the products are certified by RoHS, CE, ISO9001, and CCC, ensuring they meet global quality and safety standards.
