OEM Multicore Outdoor Air Blown Micro Duct Fiber Optic Cable

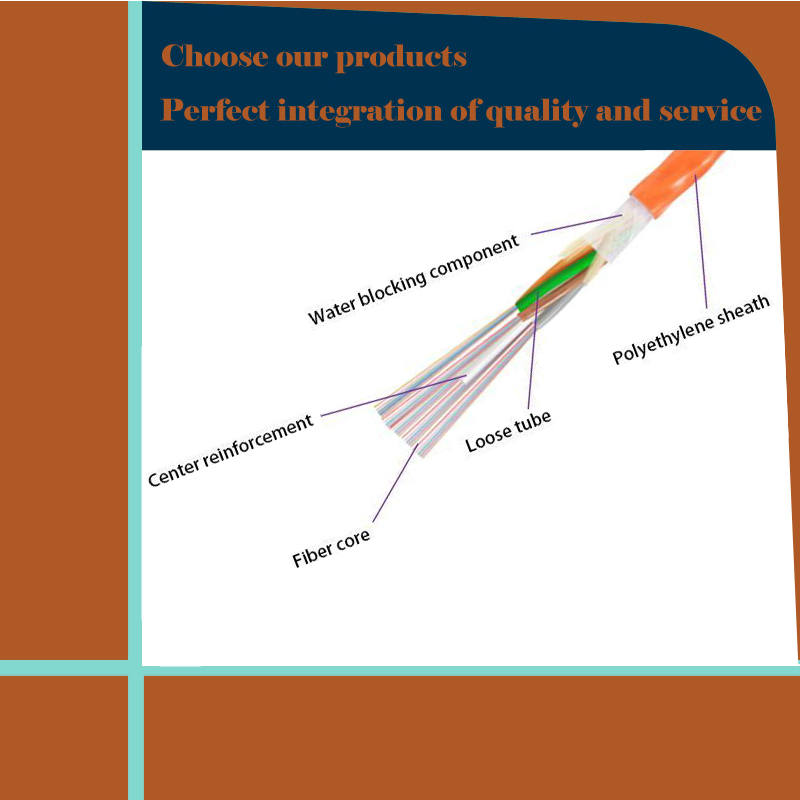

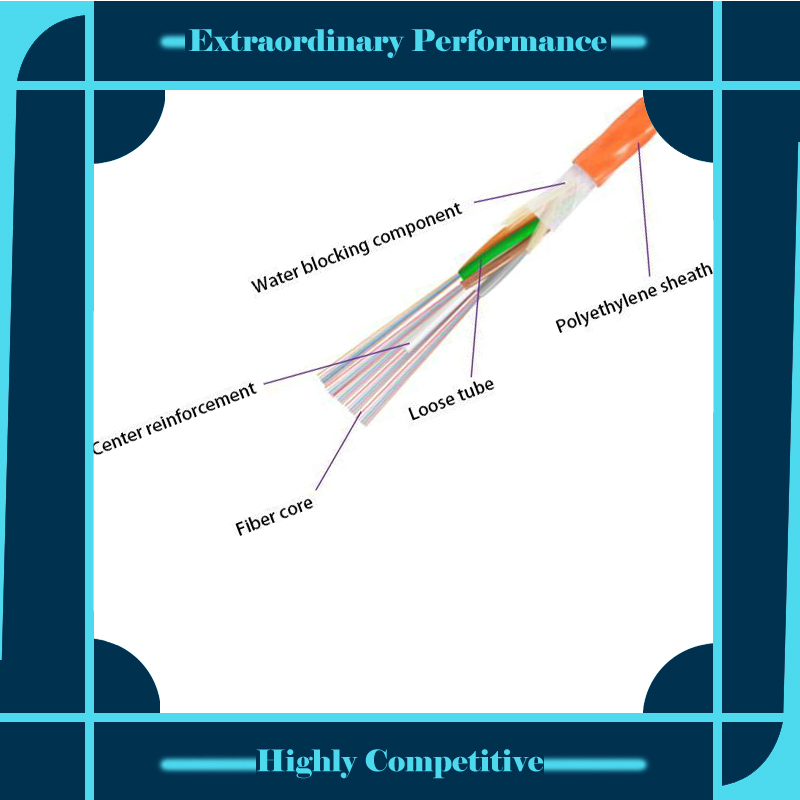

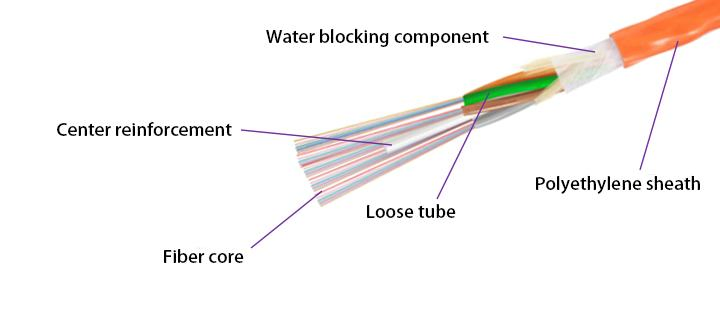

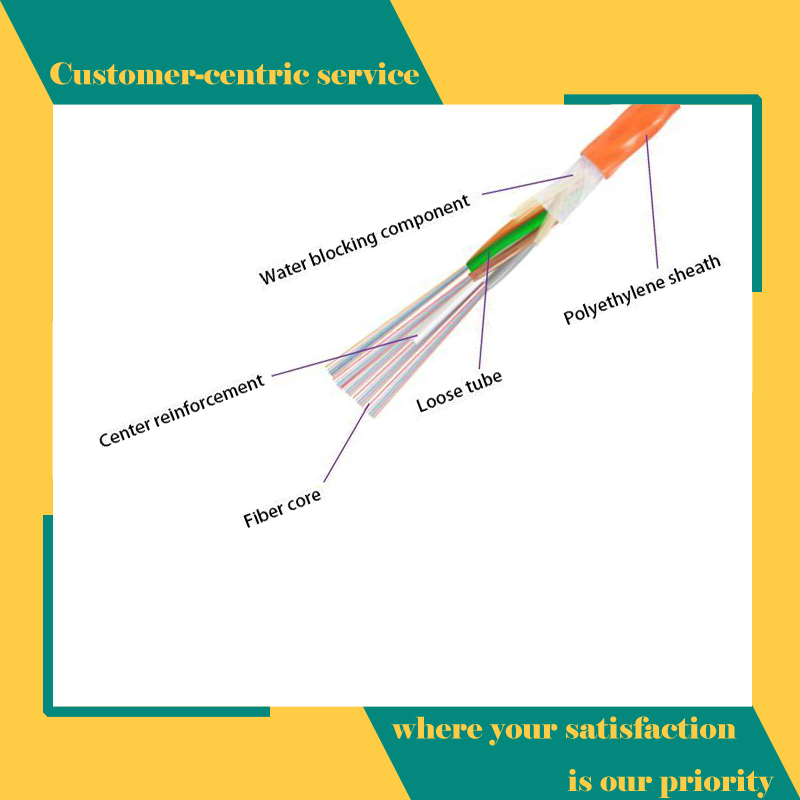

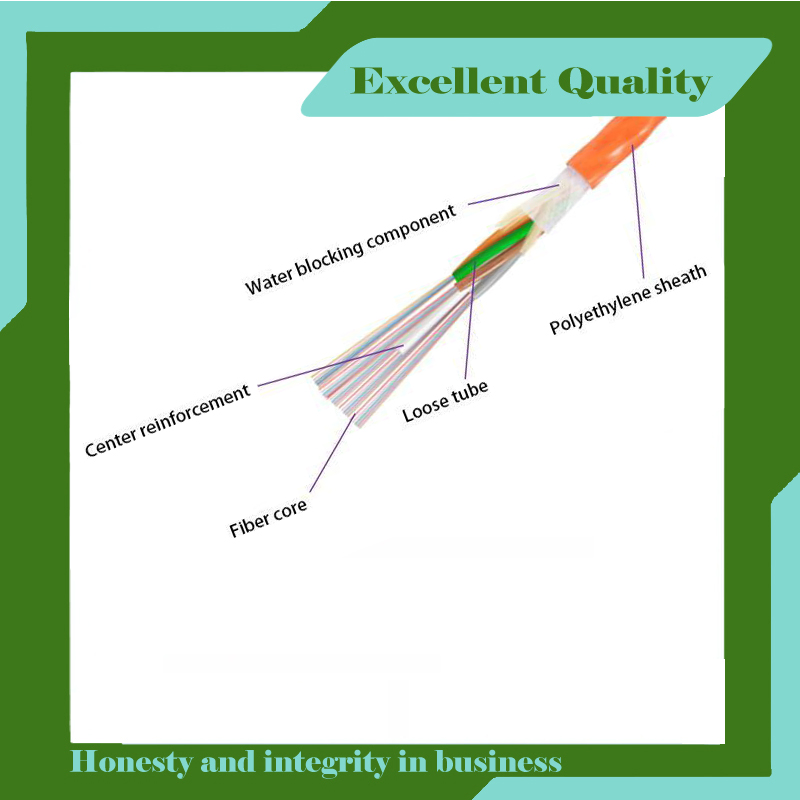

The GCYFTY optical cable structure features single-mode or multi-mode optical fibers sheathed in a high-modulus polyester loose sleeve, filled with a waterproof compound. The cable center uses a non-metallic reinforced core. The loose tube is twisted around the central core to form a compact round cable, filled with water-blocking filler and wrapped in a polyethylene sheath.
📍 Application: Suitable for aerial or pipeline laying methods.
| Model | Core | Cable OD (mm) | Weight (Kg/Km) | Tensile (N) | Crush Resistance (N/100mm²) | Bending Radius |
|---|---|---|---|---|---|---|
| GCYFTY | 12~72 | 5.6 ± 0.1 | 27 ± 2 | 500 | 300 / 800 | 10D / 20D |
| GCYFTY | 96 | 6.4 ± 0.1 | 40 ± 2 | 1000 | 300 / 800 | 10D / 20D |
| GCYFTY | 144 | 7.8 ± 0.1 | 55 ± 2 | 1000 | 300 / 800 | 10D / 20D |
