Outdoor Aerial Self Supporting G652D ADSS Fiber Optic Cable

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

ℹ️

Basic Information

Model NO.:ADSS

Structure:Joint Box / Central Loose Tube

Material Shape:Round Wire

Lateral Pressure:100-1000 (N/100mm)

Tensile Strength:1000N - 10000N

Core Count:2-288 Cores

Certification:RoHS, CE, ISO9001

Sheath Material:HDPE

Diameter:8.0mm/9.0mm/12.0mm

Strength Member:Steel Wire

Applications:Aerial / Direct-Burial / Duct

Production:1,000,000m/Day

📋

Product Description

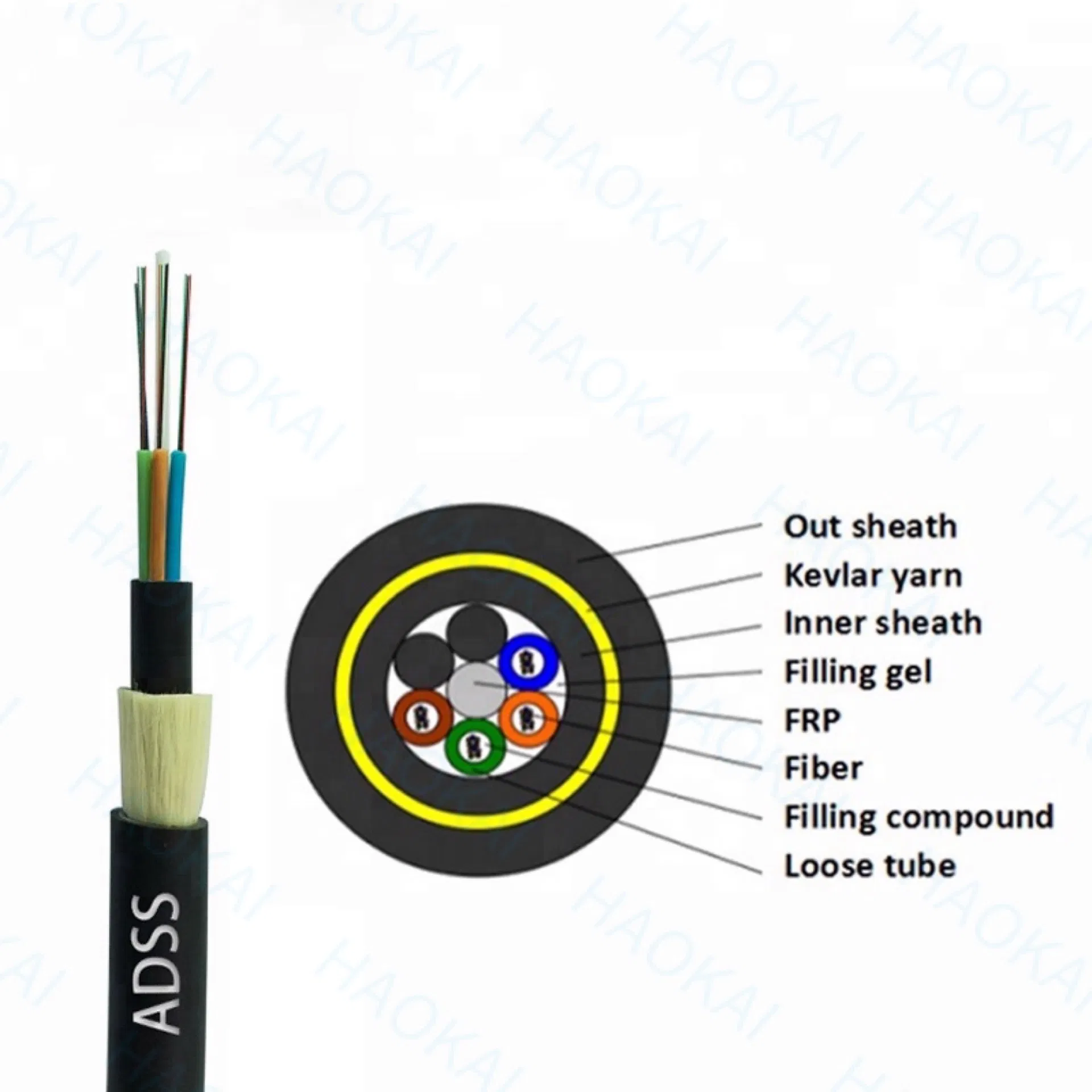

Outdoor Aerial Self Supporting G652D ADSS Fiber Optic Cable

Product Characteristics:

Power-free erection for efficient installation.
AT sheath adopted with excellent electrical mark resistance.
Light weight and small diameter, reducing load on towers from ice and wind.
Large span capability, with maximum span exceeding 1000 meters.
Excellent tensile properties and stable temperature characteristics.

Performance Characteristics:

Excellent water barrier layer with superior permeability resistance.
Steel strip bonding outer sheath and metal reinforcement for tension performance.
Beam tube center design minimizes lateral force on the optical fiber.

📊

Product Parameters

Cable OD. (mm)	Weight (kg/km)		Tensile daily (kN)	Max. tensile (kN)	Broken strength (kN)	Temp (ºC)	Thermal Exp. (10-6/K)	Span (m)
Cable OD. (mm)	PE Jacket	AT Jacket	Tensile daily (kN)	Max. tensile (kN)	Broken strength (kN)	Temp (ºC)	Thermal Exp. (10-6/K)	Span (m)
9.0	75	85	1.20	3	7	-40~+60	1.2	50
9.8	80	90	1.50	5	10	-40~+60	1.3	100
10.0	85	95	2.00	6	15	-40~+60	1.3	150
10.8	95	100	2.20	8	18	-40~+60	1.3	200

🖼️

Detailed Photos & Advantages

❓

Frequently Asked Questions

What is an ADSS fiber optic cable?

ADSS (All-Dielectric Self-Supporting) cable is a type of optical fiber cable that contains no conductive metal elements. It is designed for aerial installation between structures without the need for a separate messenger wire.

What is the maximum span distance for this cable?

This ADSS cable is designed for versatility, with various configurations supporting spans from 50 meters up to 1000 meters depending on the environmental conditions and tensile requirements.

Why is the AT sheath used?

The Anti-Tracking (AT) sheath is specifically designed for high-voltage environments. It provides excellent resistance to electrical tracking, ensuring the cable's longevity when installed near power lines.

Can the core count be customized?

Yes, we offer a wide range of core configurations from 2 cores up to 288 cores to meet different network capacity requirements.

Is this cable suitable for extreme weather?

Absolutely. The cable features a working temperature range of -40ºC to +60ºC and is designed to withstand significant wind and ice loads due to its high tensile strength and HDPE material properties.
