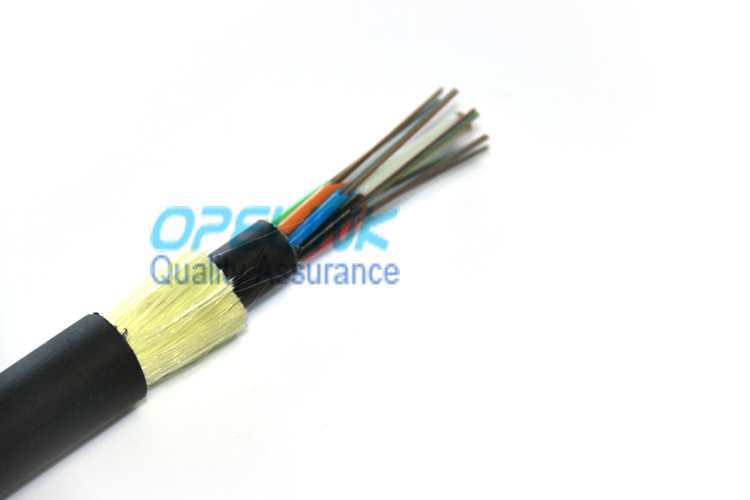

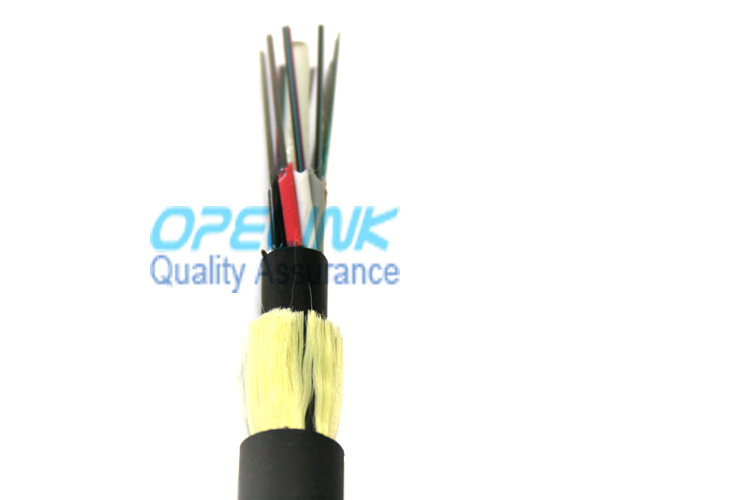

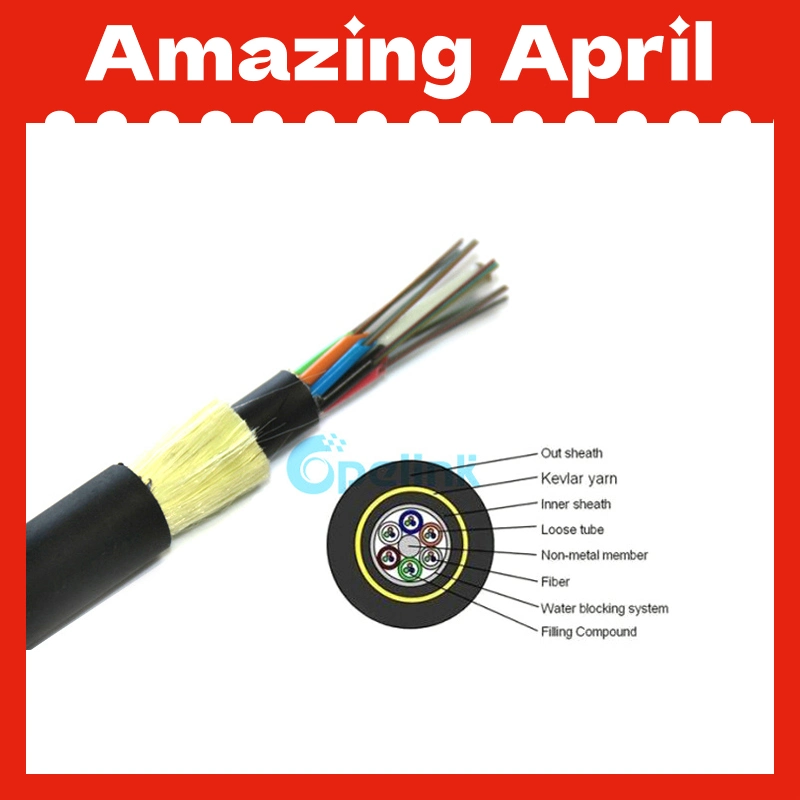

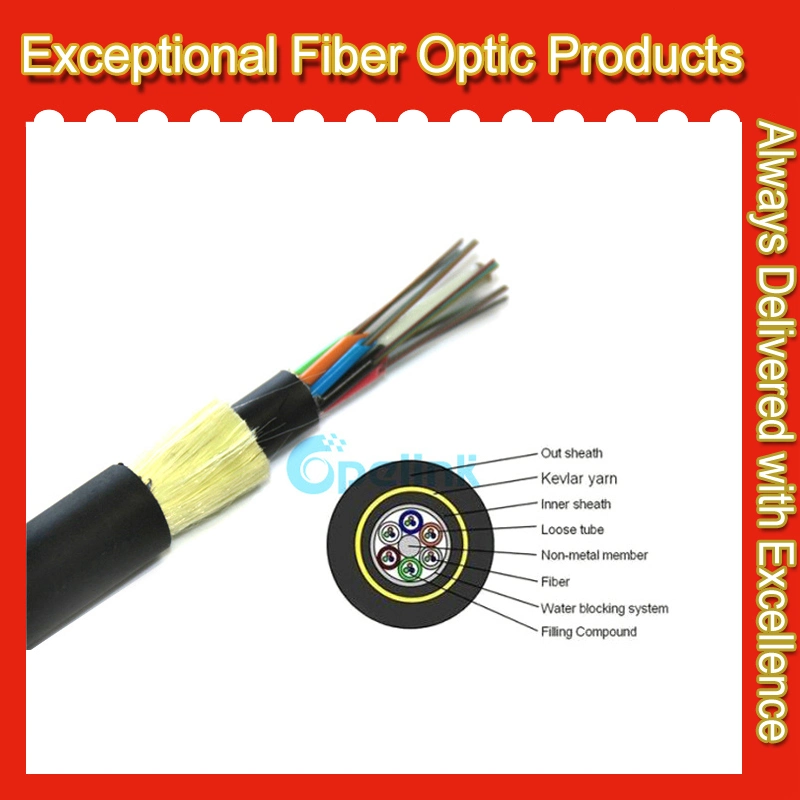

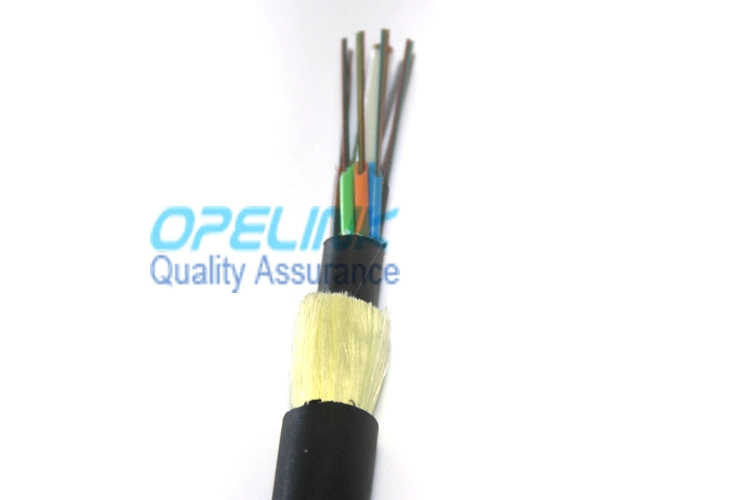

Description: All Dielectric Self-Supporting Fiber Optic Cable ADSS is loose tube stranded. 200um or 250um Bare Fibers are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core.
After the cable core is filled with filling compound, it is covered with a thin PE (polyethylene) inner sheath. After a stranded layer of aramid yarns is applied over the inner sheath as a strength member, the cable is completed with a PE or AT (anti-tracking) outer sheath.
| Outer Diameter (mm) | Ref. Weight (kg/km) | Max Working Tension (KN) | Allowable Tension (KN) | Break Strength (KN) | Strength Member CSA (mm²) | Elastic Modulus (KN/mm²) | Heat Expansion (x10⁻⁶/k) | |
|---|---|---|---|---|---|---|---|---|
| PE | AT | |||||||
| 12.5 | 125 | 136 | 1.5 | 4 | 10 | 4.6 | 7.6 | 1.8 |
| 13.0 | 132 | 142 | 2.25 | 6 | 15 | 7.6 | 8.3 | 1.5 |
| 13.3 | 137 | 148 | 3.0 | 8 | 20 | 10.35 | 9.45 | 1.3 |
| 13.6 | 145 | 156 | 3.6 | 10 | 24 | 13.8 | 10.8 | 1.2 |
| 14.5 | 164 | 177 | 5.4 | 15 | 36 | 18.4 | 13.6 | 0.9 |
| 15.5 | 190 | 204 | 9.0 | 26 | 60 | 32.2 | 19.1 | 0.1 |
