XT Cabled
1 / 5
Application: Direct-burial / Duct / Non Self-supporting Aerial Installation
Span Customized: 80/100/120/200m etc.
| Fiber Counts | 4 | 6 | 8 | 12 | 24 | |
|---|---|---|---|---|---|---|
| Fiber Model | G.652D | |||||
| Strength Member | Material | Steel Wire | ||||
| Diameter(±0.05)mm | 0.8 | |||||
| Loose Tube | Material | PBT | ||||
| Diameter(±0.06)mm | 1.8 | 2.0 | 2.8 | |||

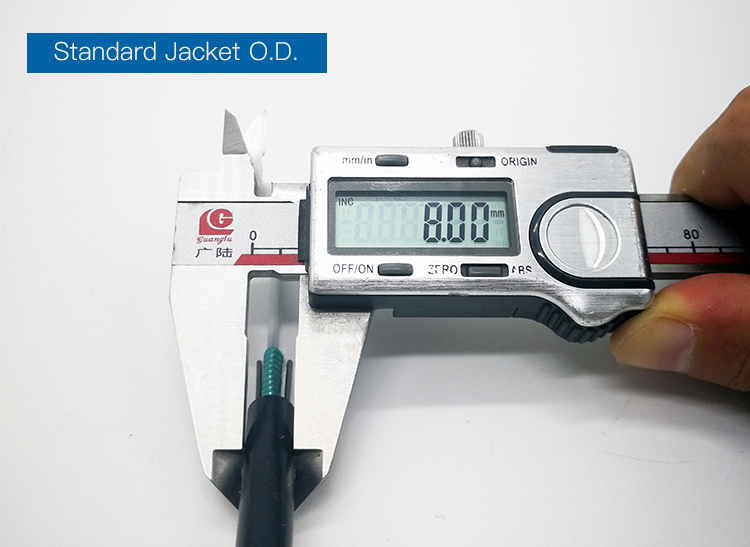

| Cable Diameter (±0.2)mm | 7.7 | 7.9 | 8.5 | |||
| Cable Weight (±5.0)kg/km | 57 | 59 | 68 | |||
| Tensile Strength (Long/ Short) | 600N/ 1500N | |||||
| Crush Resistance (N/100mm) | 300N/ 1000N | |||||

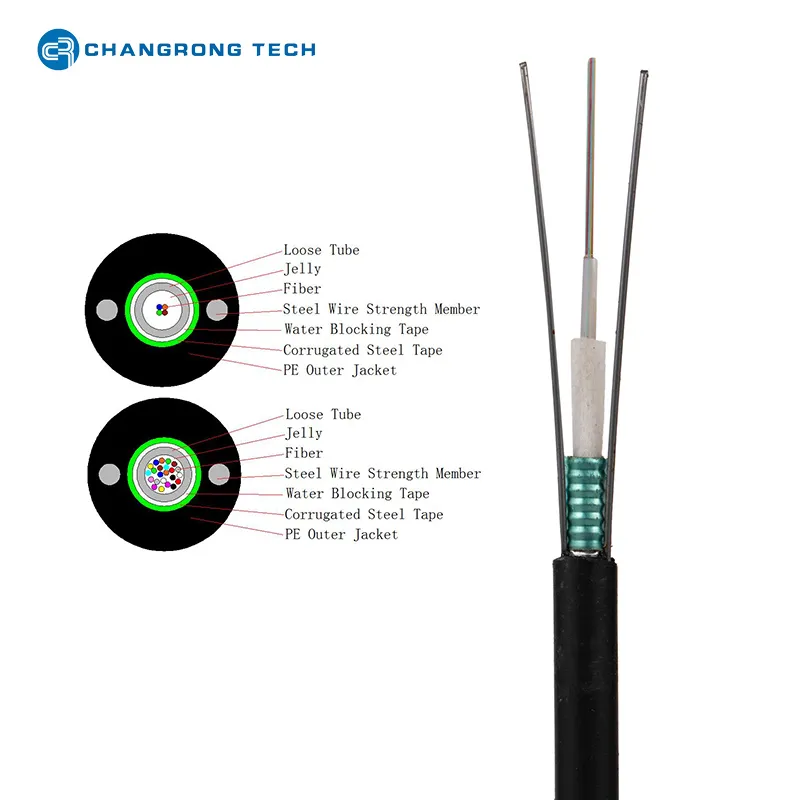

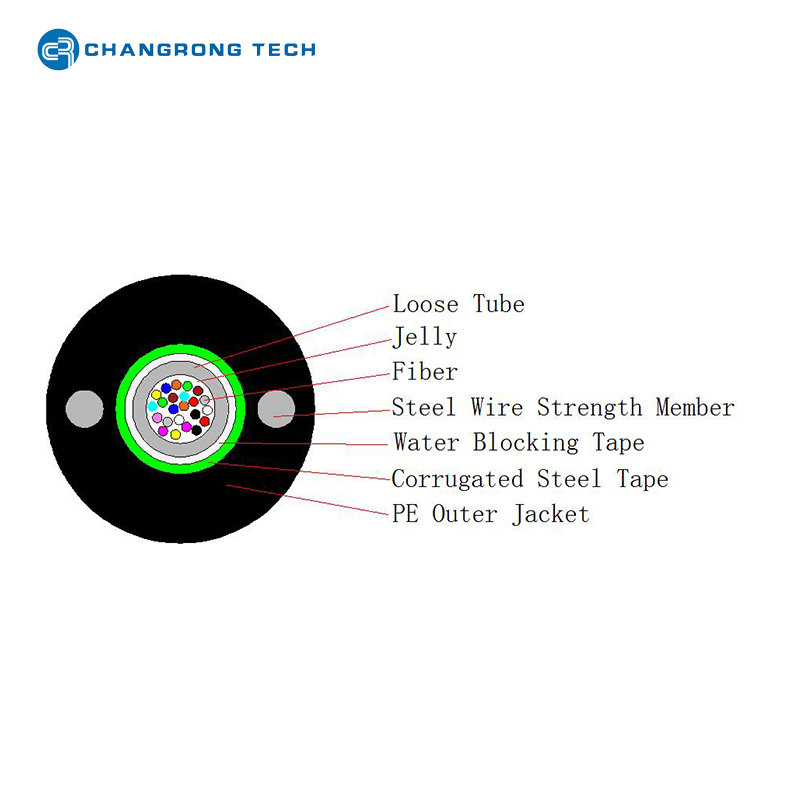

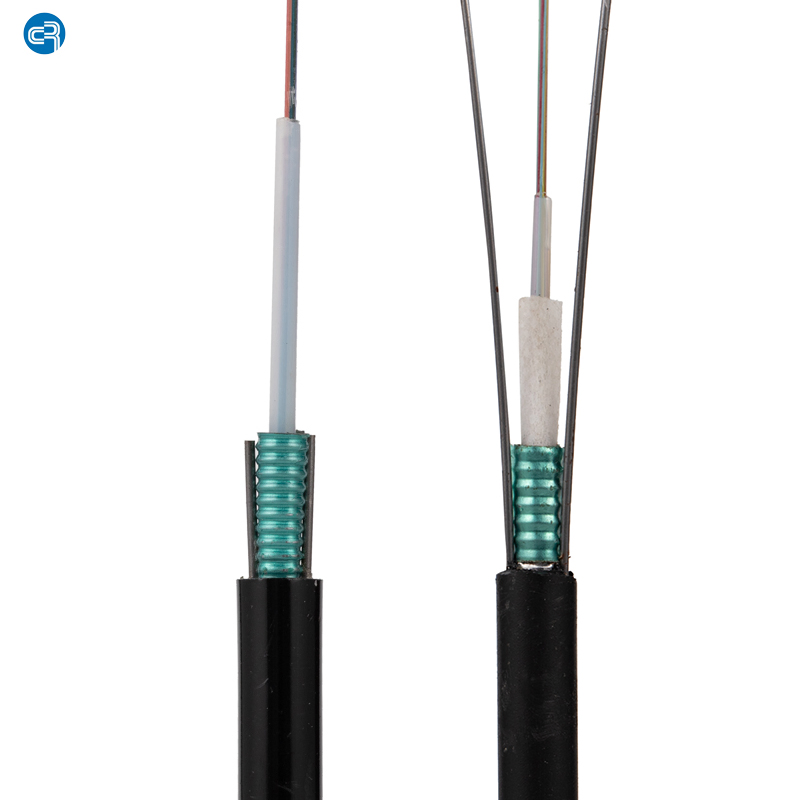

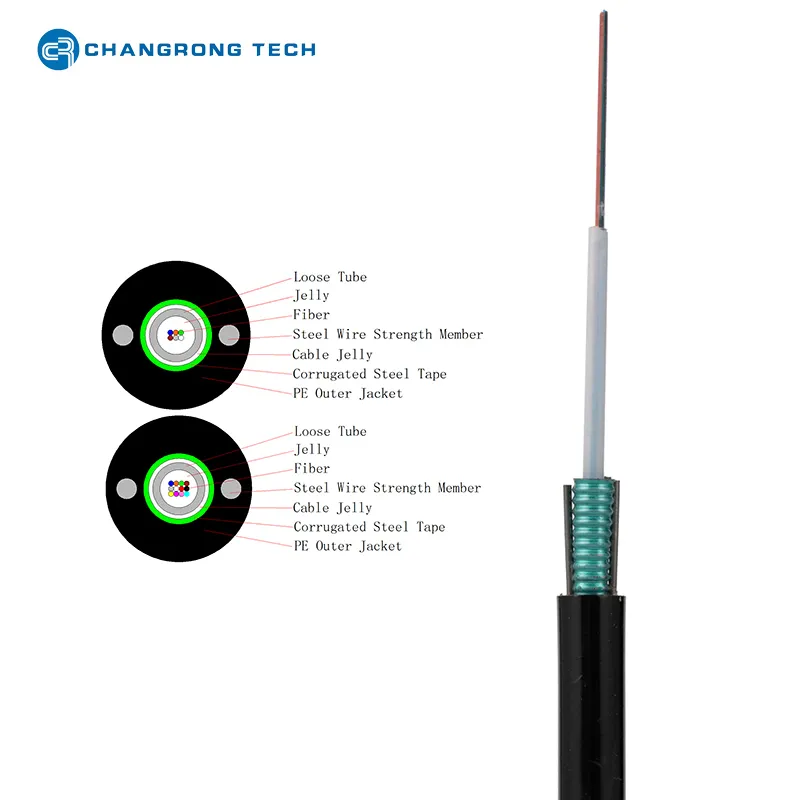

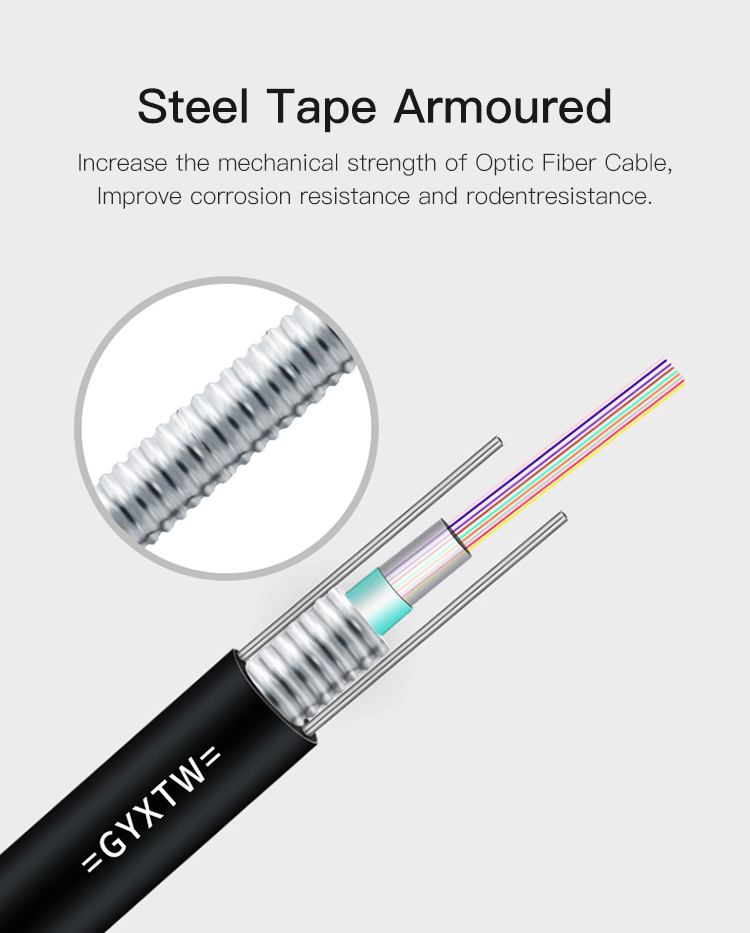

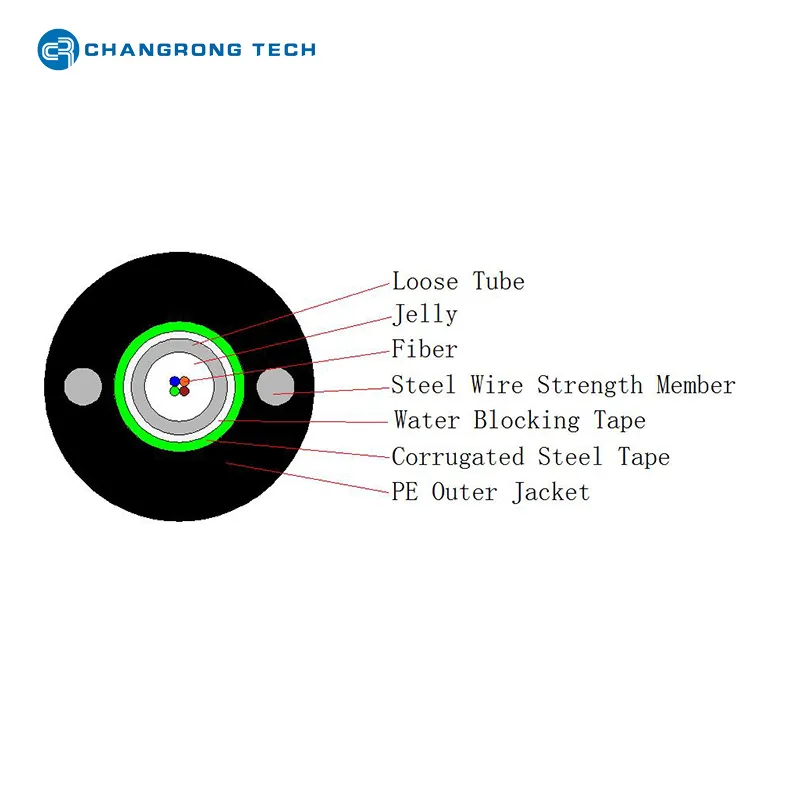

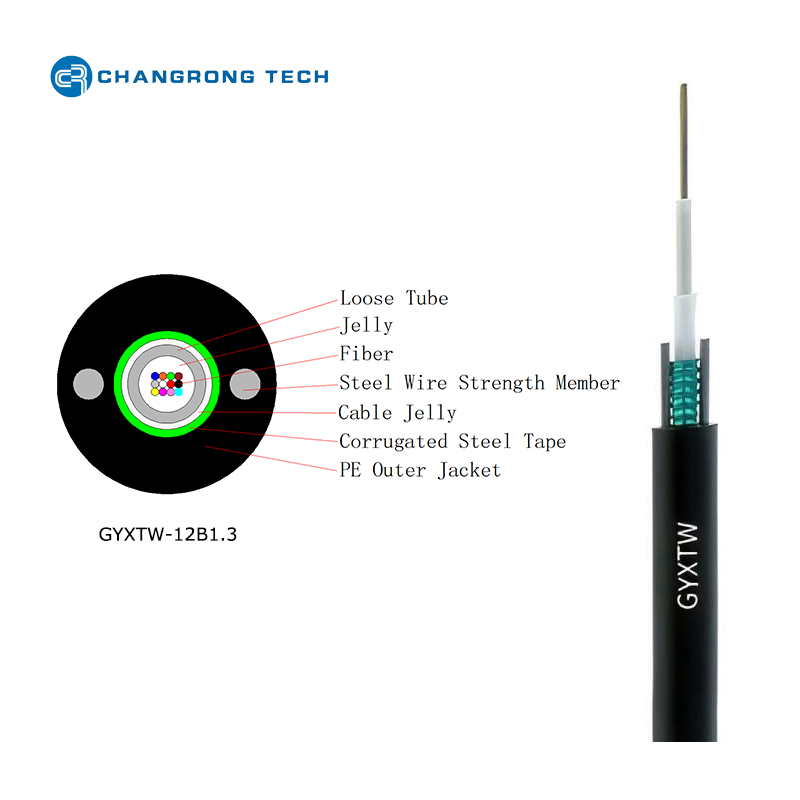

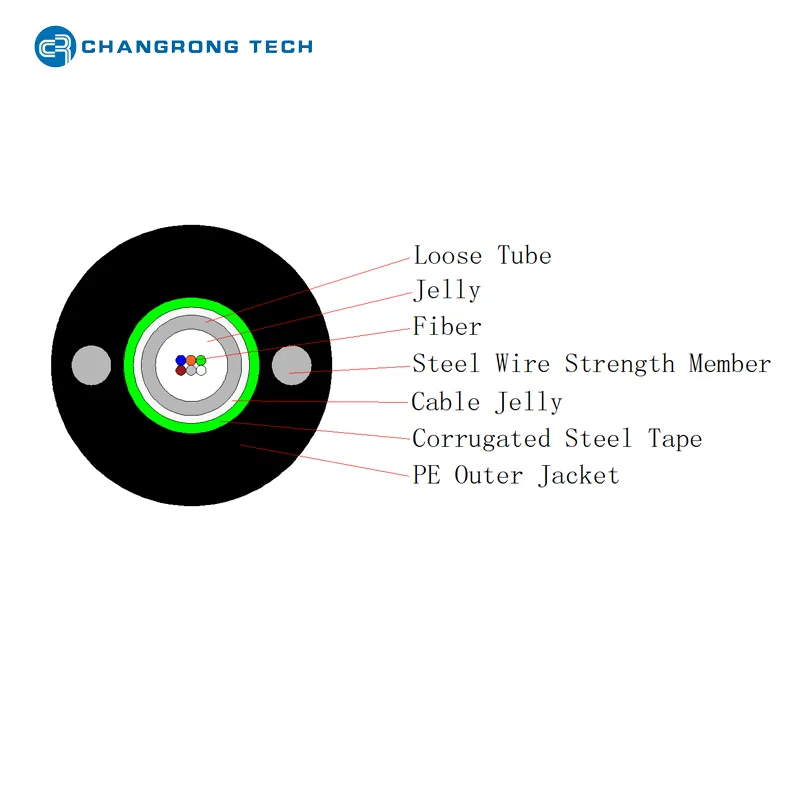

The fibers are positioned in PBT loose tube filled with water-proof filling compound. The water blocking tape is wrapped around the central tube. Corrugated steel tape (CST) armored longitudinally with two parallel steel wires embedded at two sides.
ISO9001, ISO14001, ISO45001 Certified Factory.

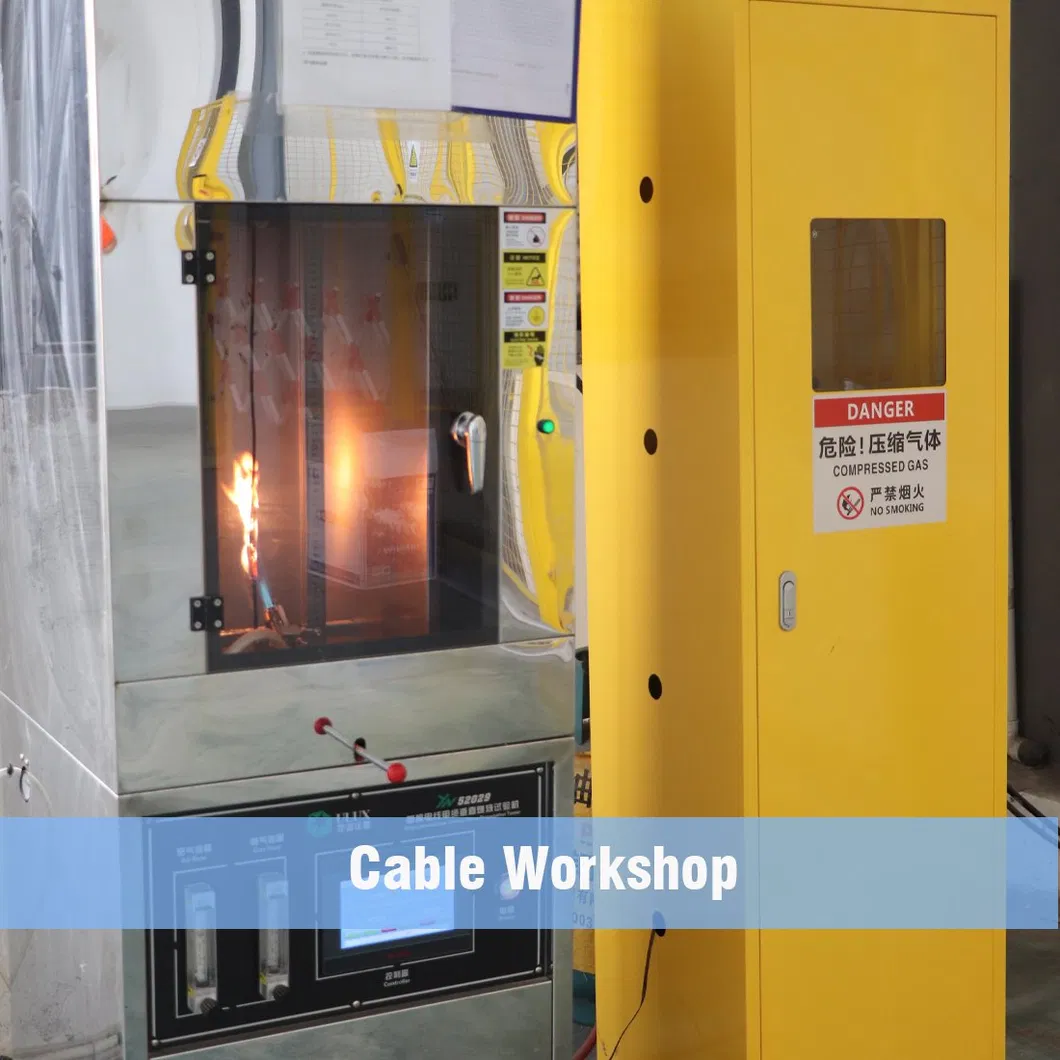

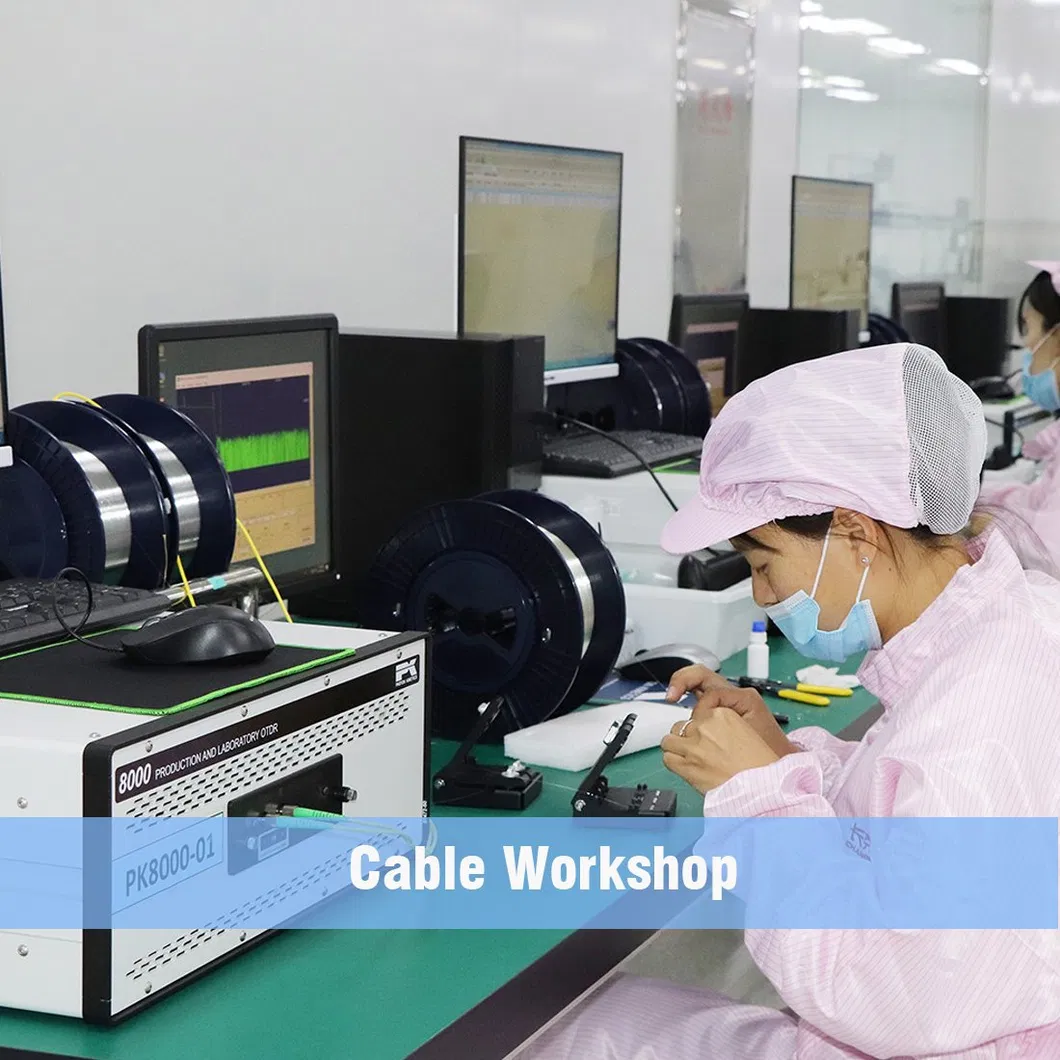

Own Lab certified by CNAS.

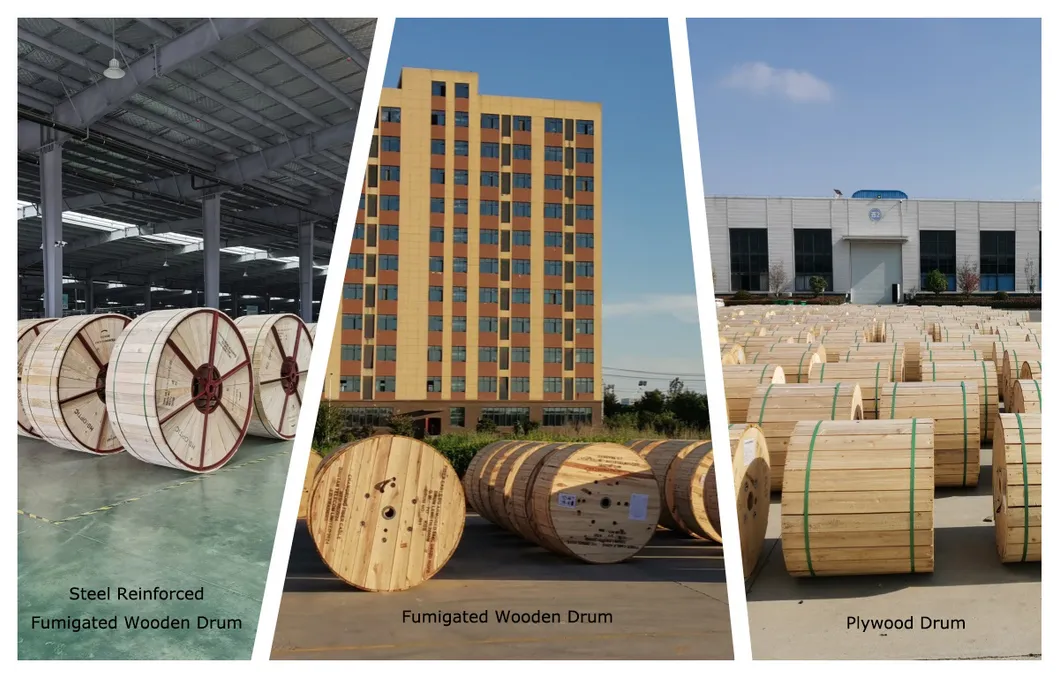

Drum Packing:

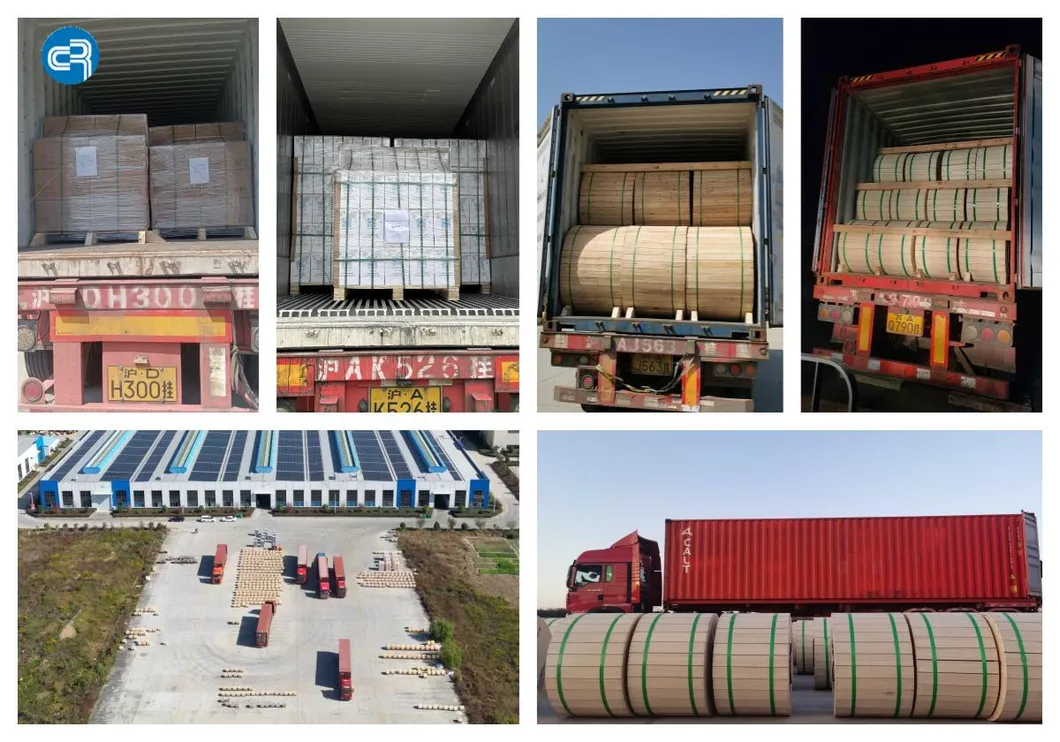

Shipping:

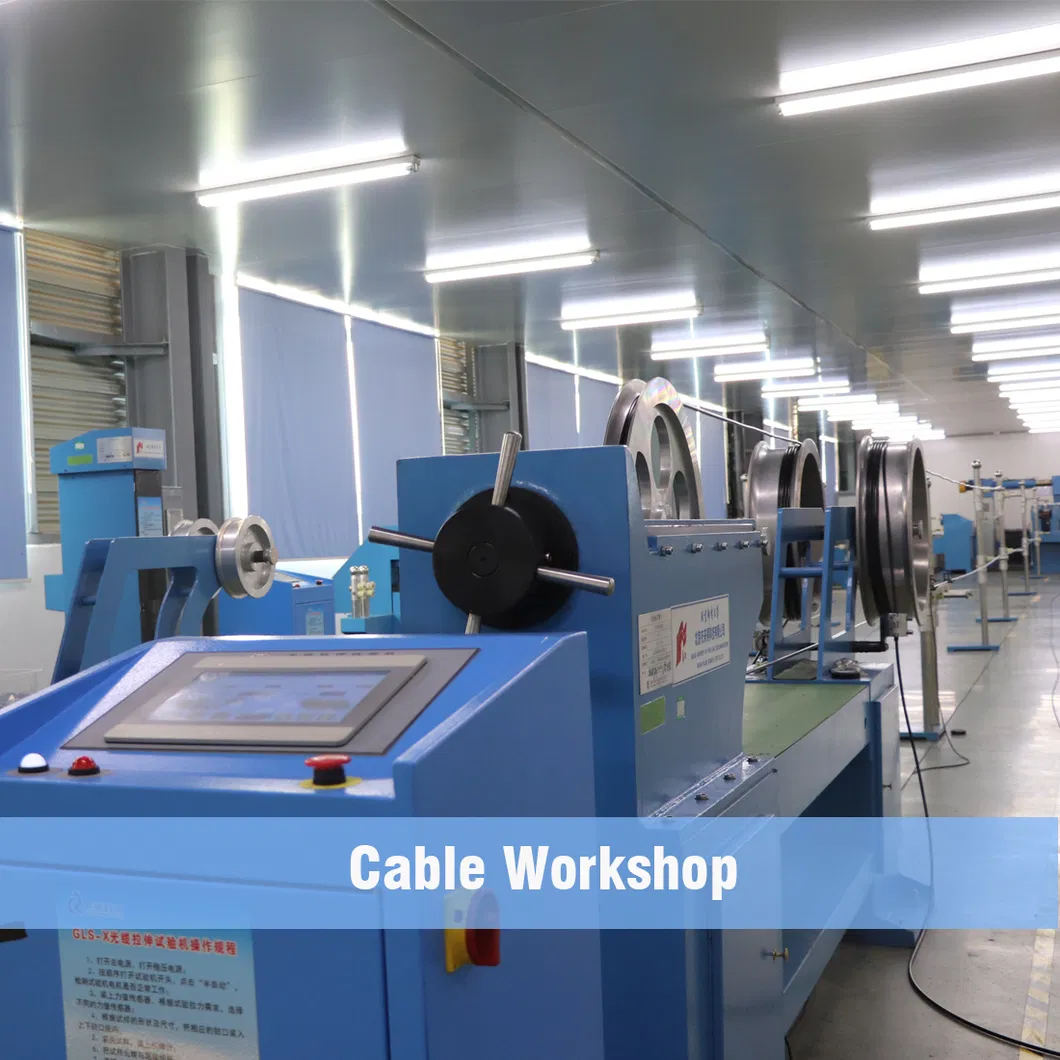

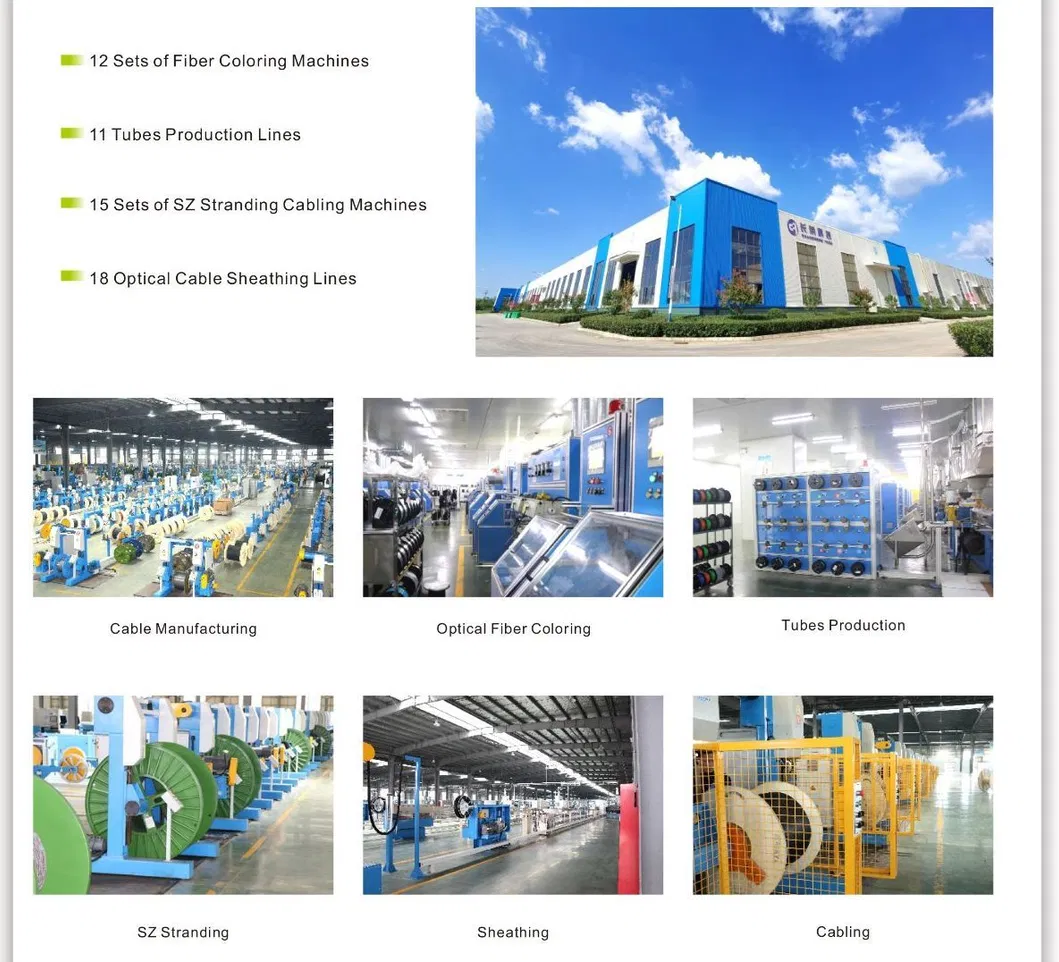

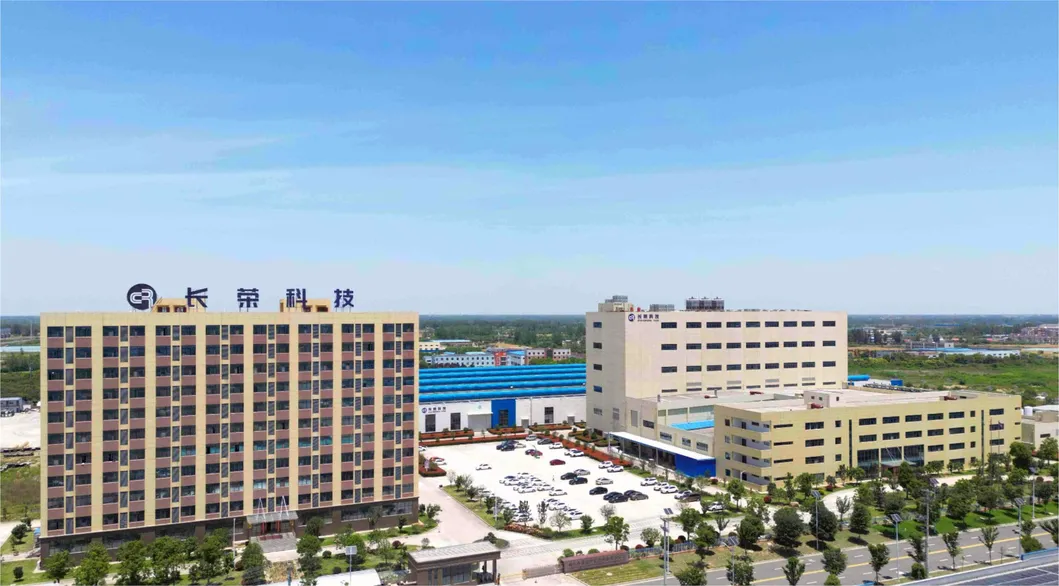

As a high-tech enterprise specialized in R&D, production and sales of optical fibers and cables, the facility is ISO9001, ISO14001, and ISO45001 certified. Equipped with 9 cutting-edge fiber drawing towers and 18 production lines, it maintains an annual production capacity of 15 million Fiber Kilometers. The facility includes an advanced laboratory with CNAS certification, devoted to achieving the best solutions for global customers.
Product Catalogue:
