Single Mode 144core Fiber Ribbon Optic Cable Gytda Armored Aluminum Cable

Customization:	Available
Application:	Local Communication Cable, Fiber Optic Cable
Conductor Material:	Fiber Core

Send Inquiry

Product Description

📊 Basic Information

Model NO.

GYDTA

Cover Material

Material Shape

Round Wire

Conductor Type

Solid

Certification

ISO, RoHS

Fiber

G652D

Central Strength Member

Steel Wire

Loose Tube

PBT

Waterblocking

Water-Blocking Yarn

Armored

Aluminum Tape

Sheath

HS Code

85447000

⚙️ Product Specification

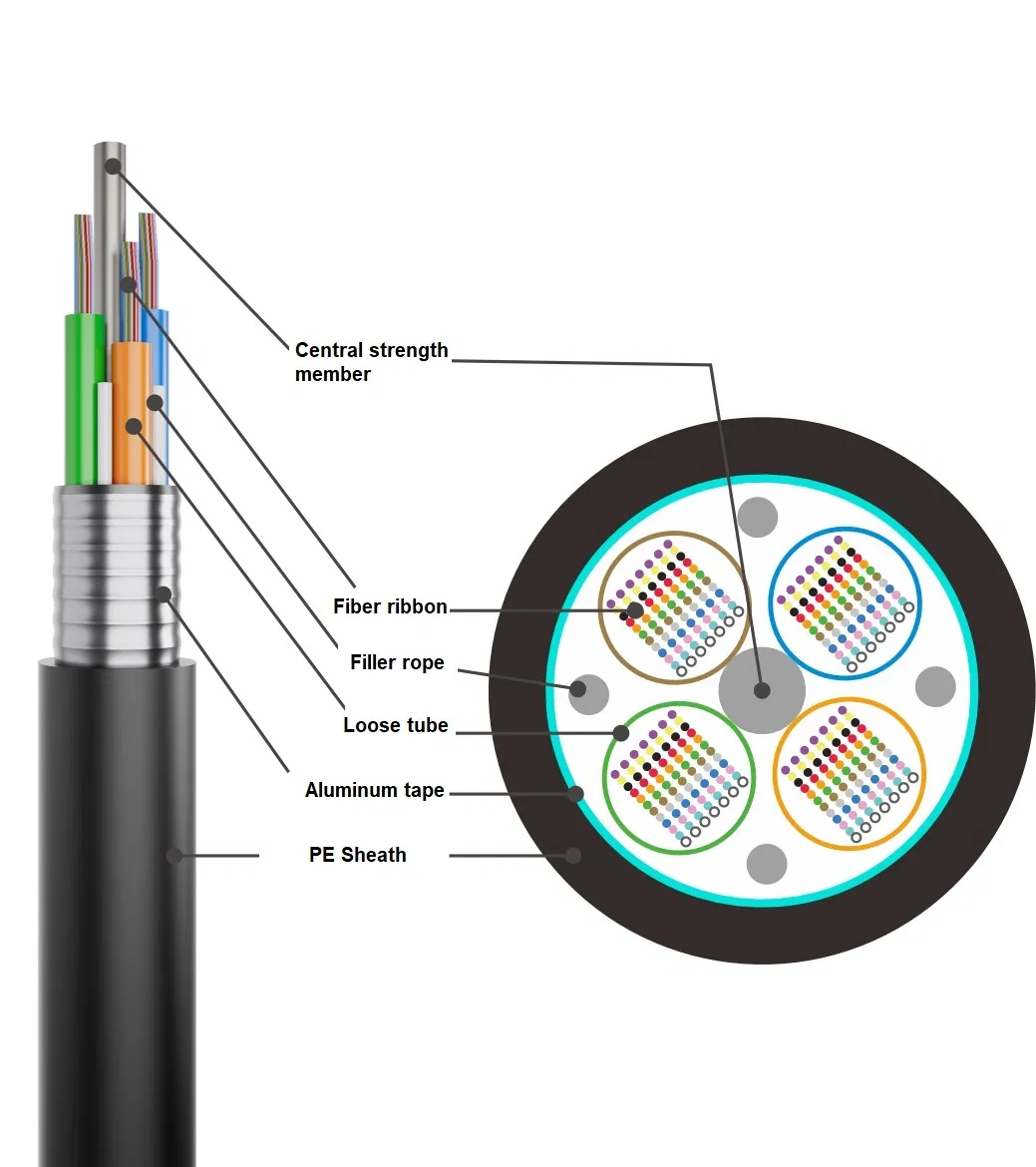

DESCRIPTION: The GYDTA optical fiber tape is inserted into a loose sleeve made of high modulus material, filled with waterproof compound. The center features a metal reinforcing core. With longitudinally wrapped plastic-coated aluminum strip and a PE sheath, this cable ensures robust performance.

FEATURES: Low transmission loss and dispersion. Excellent mechanical and environmental performance due to precise excess length control. High core density structure with superior compressive resistance.

APPLICATIONS: Ideal for Overhead installation and long-haul communications.

Type	Max. Attenuation		Tensile Strength (N)		Crush Resistance (N)		Min. Bending Radius
Type	1310nm	1550nm	Short Term	Long Term	Short Term	Long Term	Min. Bending Radius
GYDTA	0.35dB/km	0.21dB/km	1500	600	1000	300	20D (Dynamic)

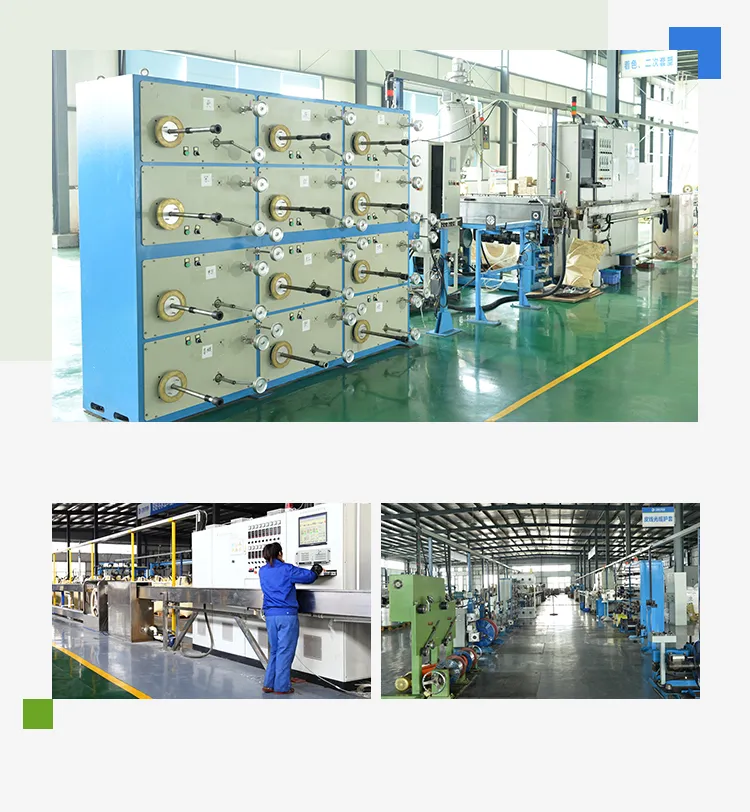

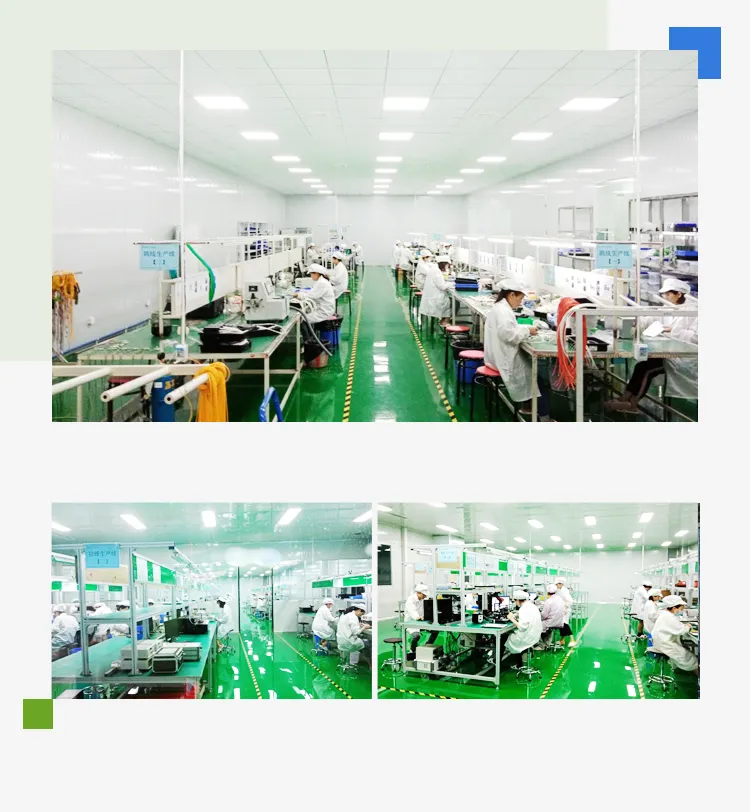

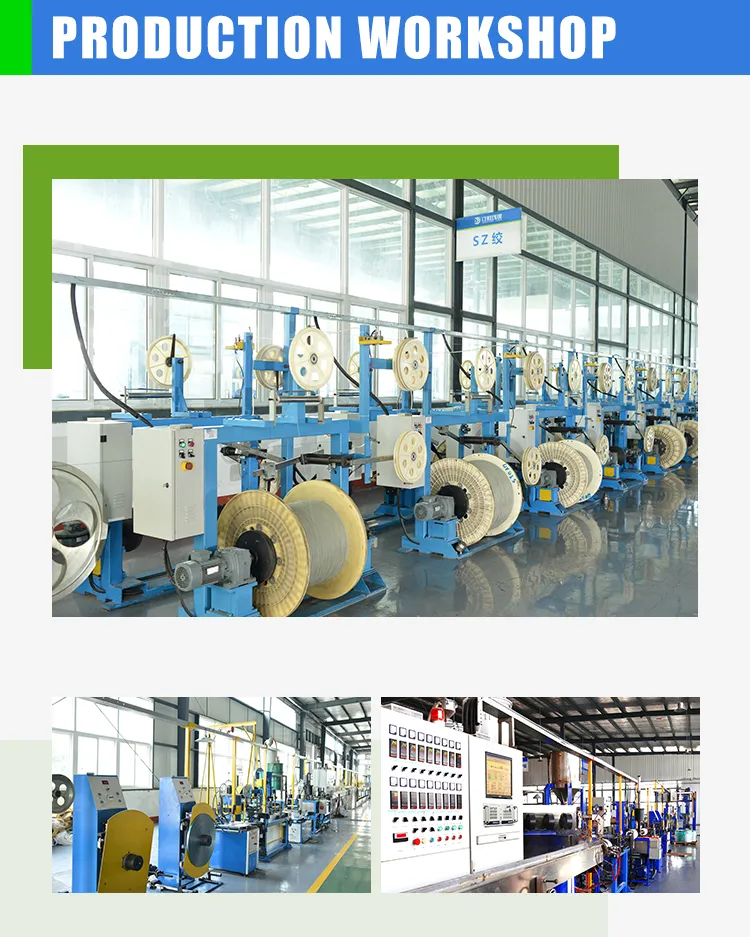

🎬 Manufacturing Process

📦 Packing & Delivery

Package Size

110.00cm * 116.00cm * 90.00cm

Gross Weight

440.000kg

Standard Length

3km/Drum

Lead Time

20 days (1 - 10,000 Meters)

❓ Frequently Asked Questions

What are your main fiber optic products?

We specialize in a wide range of outdoor and indoor fiber optic cables, including central loose tube, stranded loose tube, FTTH drop cables, and ADSS.

Do your raw materials meet international standards?

Yes, we maintain long-term partnerships with qualified suppliers and hold ISO9001 and RoHS certifications for our raw materials.

What is the typical lead time for mass production?

Samples are usually ready within 2-3 days, while mass production typically takes between 7 to 14 days depending on order volume.

What is your Minimum Order Quantity (MOQ)?

The MOQ for fiber optic cables is 2KM. For coaxial cables, the MOQ is 1KM. Some network cables like CAT5e/CAT6 may have no MOQ if in stock.

What shipping methods do you offer?

For large orders, we ship by sea (LCL or FCL). For smaller orders, options include sea, air, or express courier services.

Do you have experience working with network operators?

Yes, we have many years of experience in supplying and cooperating with various global network operators.
