Stranded Loose Tube Armored Fiber Ribbon Optical Gydta Underground Duct Cable

1 / 5

Stranded Loose Tube Armored Fiber Ribbon Optical Gydta Underground Duct Cable

Send Inquiry

Product Description

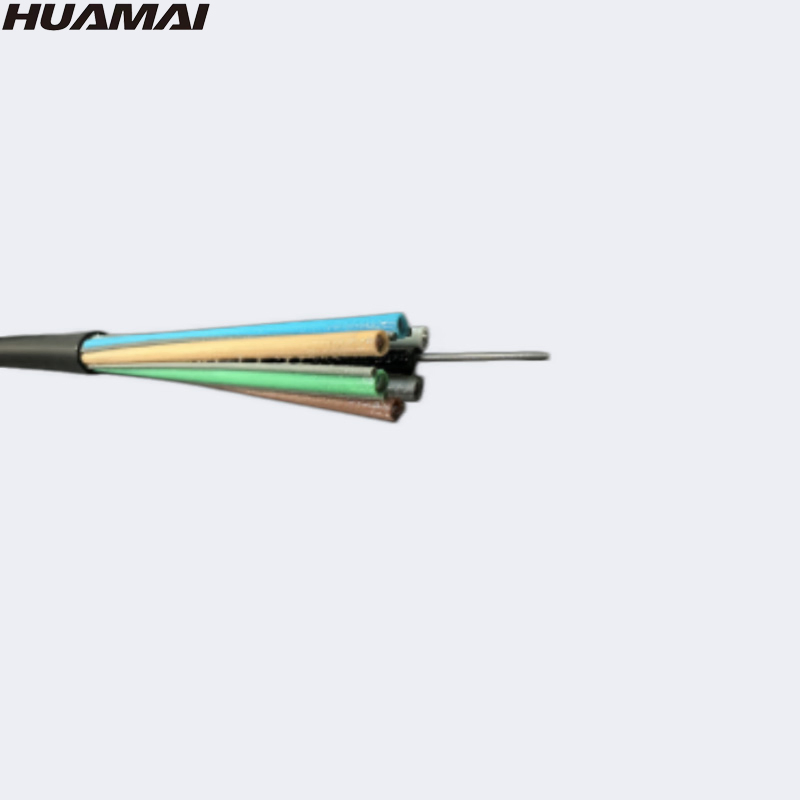

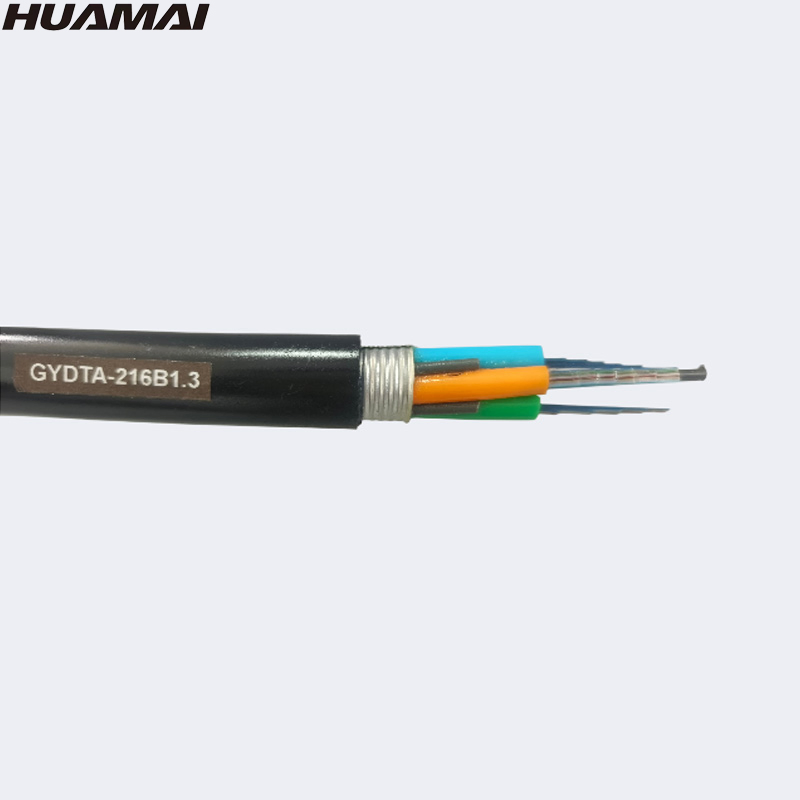

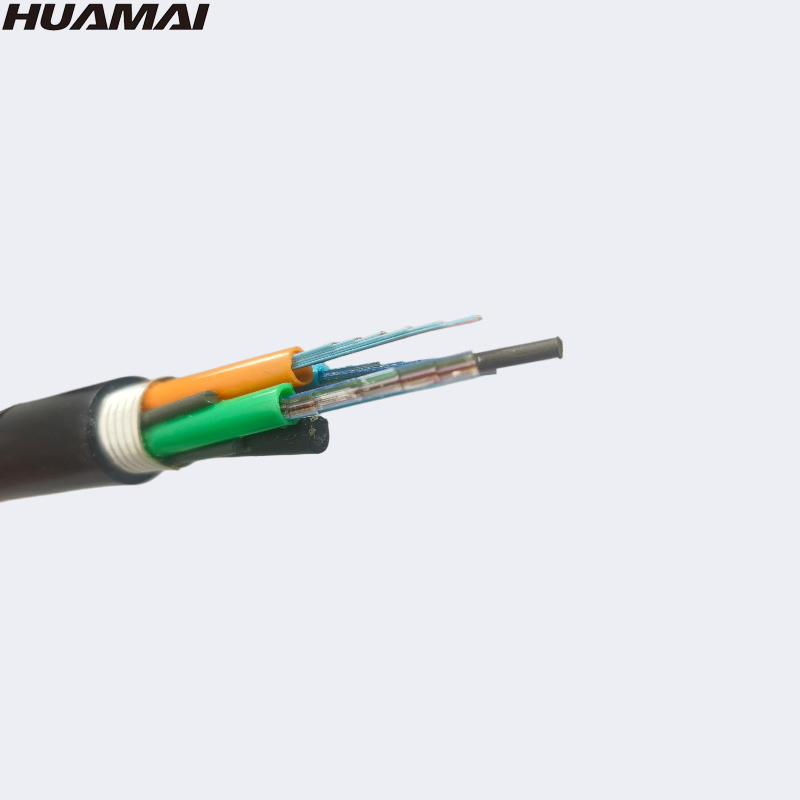

Loose Tube Stranded Armoured Fiber Ribbon Optical Cable

This high-performance optical cable features a metal core with loose tube stranded filling containing fiber ribbons. Protected by metal tape armor and a durable polyethylene sheath, it is designed for robust underground and duct applications.

Reference Standard

IEC 60794-3

Product Features

✔️ High Density: Optical fiber ribbon provides high fiber density and exceptional splicing efficiency.

✔️ Waterproofing: Fully filled waterproofing material ensures excellent protection against longitudinal water seepage.

✔️ Armoured Protection: Metal tape armor provides superior mechanical protection for underground installation.

Technical Specifications

Fiber Count	Tensile Strength (N)		Crush Resistance (N/100mm)		Min. Bend Radius (mm)		Nominal Diameter (mm)	Nominal Weight (kg/km)
Fiber Count	Short Term	Long Term	Short Term	Long Term	Dynamic	Static	Nominal Diameter (mm)	Nominal Weight (kg/km)
144	1500	600	1000	300	20D	10D	16.5	245/275
192	1500	600	1000	300	20D	10D	17.6	275/305
216	1500	600	1000	300	20D	10D	17.6	275/305
288	1500	600	1000	300	20D	10D	17.6	275/305
432	1500	600	1000	300	20D	10D	21.8	410/450
576	1500	600	1000	300	20D	10D	22.8	430/500

Note:
1. "D" refers to the outer diameter of the optical cable.
2. Typical values may be adjusted according to actual field conditions.
3. Customized products can be designed based on specific project requirements.

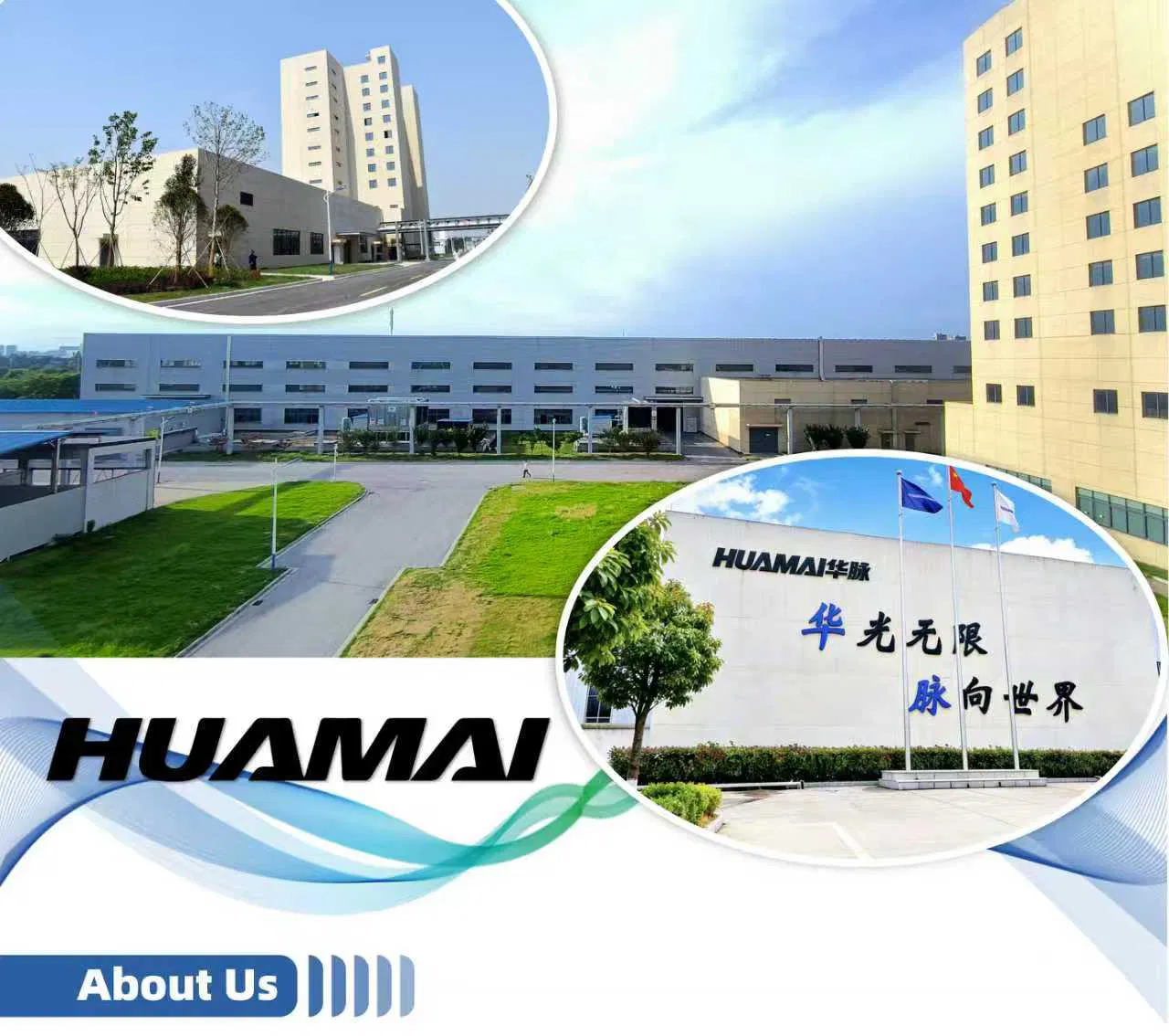

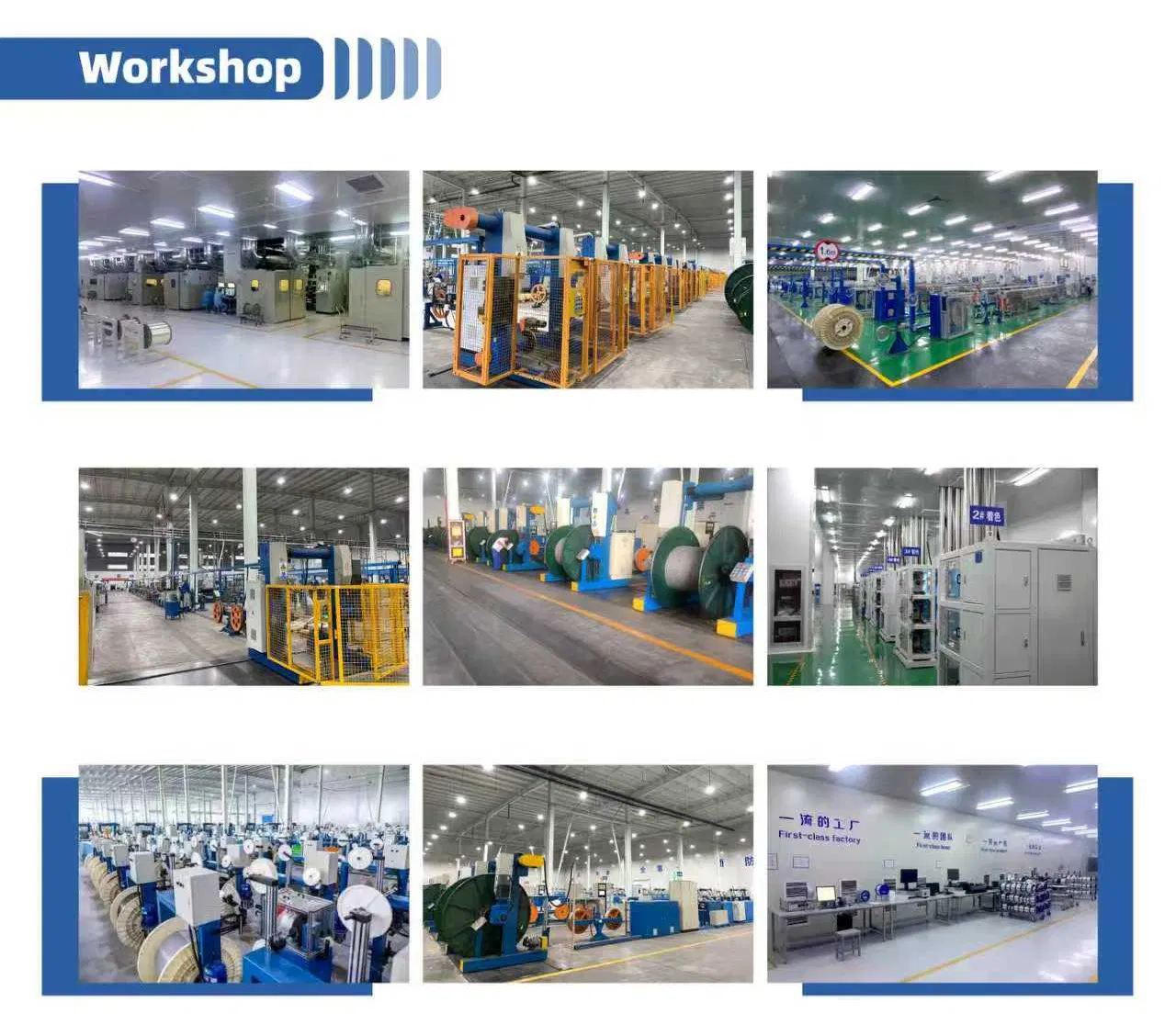

Production Excellence

Our manufacturing facility was founded in 2018. Over the past 8 years, we have been dedicated to the field of optical communication. As a professional fiber optic cable manufacturer and direct source factory, we specialize in a full range of indoor and outdoor optical cables.

Our marketing and service network covers the globe. We maintain stable cooperative relations with several major operators, communication equipment vendors, and national oil and gas pipeline networks. We are actively expanding in the overseas communication equipment market, exporting to North America, Southeast Asia, and beyond.

Frequently Asked Questions

Q: How do you ensure quality control for your optical cables? A: We implement 100% rigorous inspection and testing for every cable before shipment to ensure compliance with international standards.

Q: Do you accept small trial orders? A: Yes, we welcome small orders. We are committed to supporting our clients' business growth from the ground up.

Q: Can I request samples before placing a bulk order? A: Absolutely. Samples are available for performance testing. A small sample fee is required initially, which is fully refundable upon confirmation of a bulk order.

Q: What is the typical lead time for sample production? A: Sample production typically takes 7-15 days, including comprehensive quality testing. We can expedite the process for urgent requirements.

Q: Do you offer OEM/ODM services for customized specifications? A: Yes, we provide full OEM and ODM services. Whether it's a specific fiber count or unique jacket material, we can turn your requirements into a finished product.

Q: Is this cable suitable for direct burial? A: This cable features metal tape armor and a high-density polyethylene sheath, making it highly resistant to moisture and mechanical stress, suitable for duct and certain underground environments.
