Optic Cable 12 Core Distribution Breakout Bundle Tight Buffered for Fiber Patch Cord GoodFtth

1 / 5

Optic Cable 12 Core Distribution Breakout Bundle Tight Buffered for Fiber Patch Cord GoodFtth

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Technical Specifications

Model NO.

GD-CA-320022

Certification

ISO, RoHS

Condition

New

Jacket Material

PVC, LSZH, OFNR, OFNP

Jacket Color

Yellow, Orange, Aqua, Magenta, Lime Green

Specification

6.5mm or 12.5mm

Origin

China

Production Capacity

5,000,000m/M

Packaging & Delivery

Package Size

48.00cm * 48.00cm * 36.00cm

Gross Weight

48.000kg

Product Overview

Optic Cable 12 Core Distribution Breakout Bundle

High-quality tight-buffered fiber optic cable designed for versatile indoor applications and patch cord manufacturing.

📌 Applications

Indoor distribution systems
Production of patch cords and pigtails
Communication equipment interconnectivity

⭐ Key Features

Soft and highly flexible design
Excellent flame retardant performance
Superior tensile and crush strength
Multiple sheath options: PVC, LSZH, OFNP

Mechanical Characteristics

Fiber Count	Dimension (mm)	Weight (kg/km)	Tensile Strength (N)		Crush Load (N/100mm)		Bending Radius (mm)		Temp Range (ºC)
Fiber Count	Dimension (mm)	Weight (kg/km)	Long	Short	Long	Short	Dynamic	Static	Temp Range (ºC)
12	6.5 / 12.5	36.5 / 145	200	660	200	1000	20D	10D	-20 ~ +60

Optical Characteristics

Parameter	Wavelength	G652D	G657A1/A2	G.655	62.5/125	50/125
Attenuation (+20ºC)	@850/1300nm	-	-	-	≤3.0 / 1.0 dB/km	≤3.0 / 1.0 dB/km
Attenuation (+20ºC)	@1310/1550nm	≤0.36 / 0.22	≤0.36 / 0.22	≤0.23	-	-
Bandwidth	@850/1300nm	-	-	-	≥500 / 600	≥500 / 1000

Note: Available fibers include G652, G655, G657, OM1, OM2, OM3, OM4, OM5. Regular jacket colors are standardized (Yellow for SM, Aqua for OM3, etc).

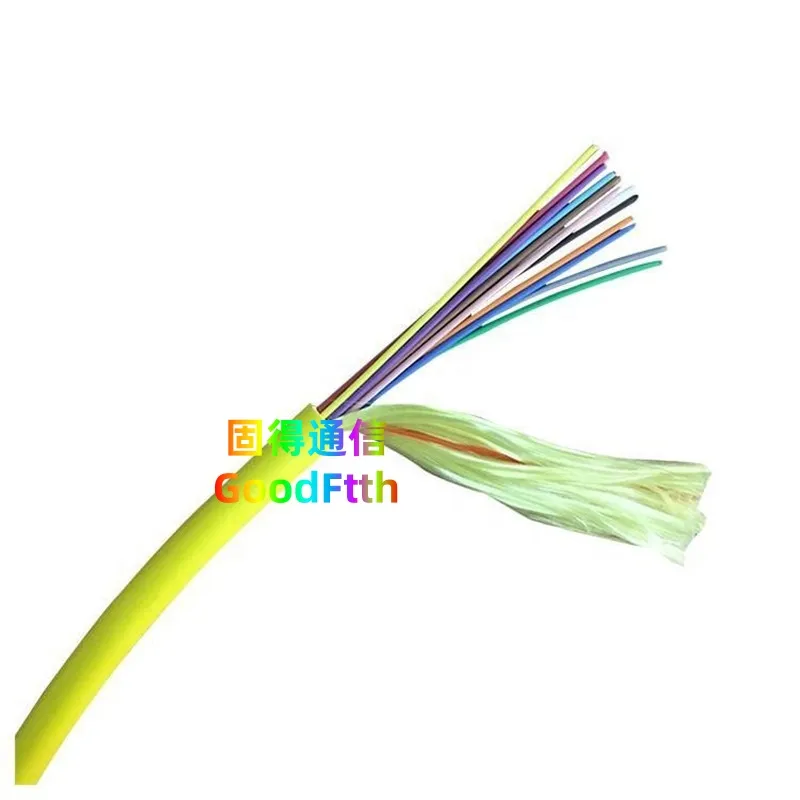

Optic Cable 12 Core Distribution Breakout Bundle 1

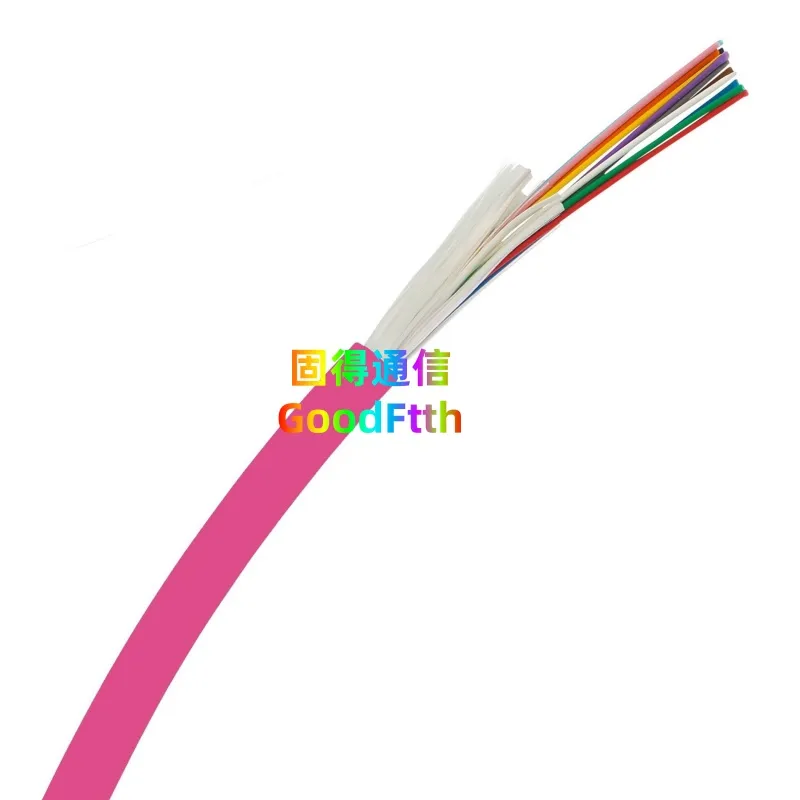

Optic Cable 12 Core Distribution Breakout Bundle 2

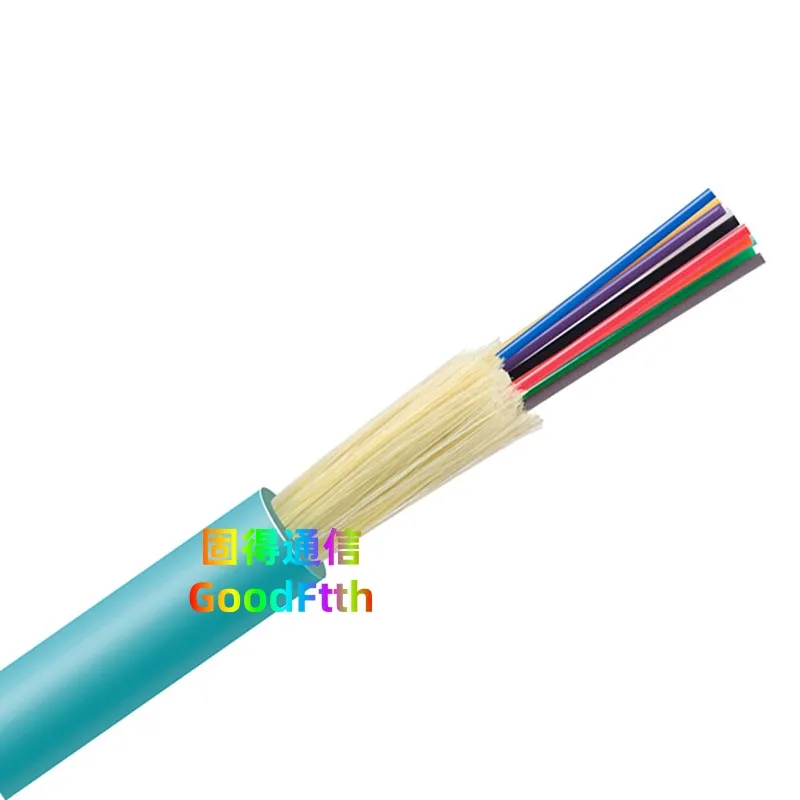

Optic Cable 12 Core Distribution Breakout Bundle 3

Optic Cable 12 Core Distribution Breakout Bundle 4

Frequently Asked Questions

What are the primary applications for this 12-core breakout cable?

This cable is primarily used for indoor distribution, manufacturing high-quality patch cords and pigtails, and connecting various communication equipment in data centers or office environments.

Which jacket materials can I choose from?

We offer several options depending on your fire safety and environment requirements, including PVC, LSZH (Low Smoke Zero Halogen), OFNR (Riser), and OFNP (Plenum).

Is the cable suitable for extreme temperature environments?

The cable is designed to operate reliably within a temperature range of -20ºC to +60ºC, making it suitable for most indoor climate-controlled environments.

What fiber types are available for this cable?

The cable can be customized with various fiber types including Singlemode (G652D, G655, G657A1/A2) and Multimode (OM1, OM2, OM3, OM4, OM5).

How are the jacket colors determined?

We follow industry standards: Yellow for singlemode, Orange for OM1/OM2, Aqua for OM3, Magenta for OM4, and Lime Green for OM5. Custom colors are also available upon request.
