Multi Purpose High Quality Multicore Indoor Breakout Fiber Cable

1 / 5

Multi Purpose High Quality Multicore Indoor Breakout Fiber Cable

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

Indoor Breakout Fiber Cable

Connection Structure

Fiber Cable

Material Shape

Round Wire

Lateral Pressure

100(N/100mm) < 1000(N/100mm)

Tensile Strength

100N < 1000N

Core Count

Multicore

Certification

RoHS, ISO9001

Sheath Material

PVC / LSZH

Transport Package

Carton Box

HS Code

85447000

Origin

China

Production Capacity

50,000 Core Km

Product Description

Multi Purpose High Quality MultiCore Indoor Breakout Fiber Cable

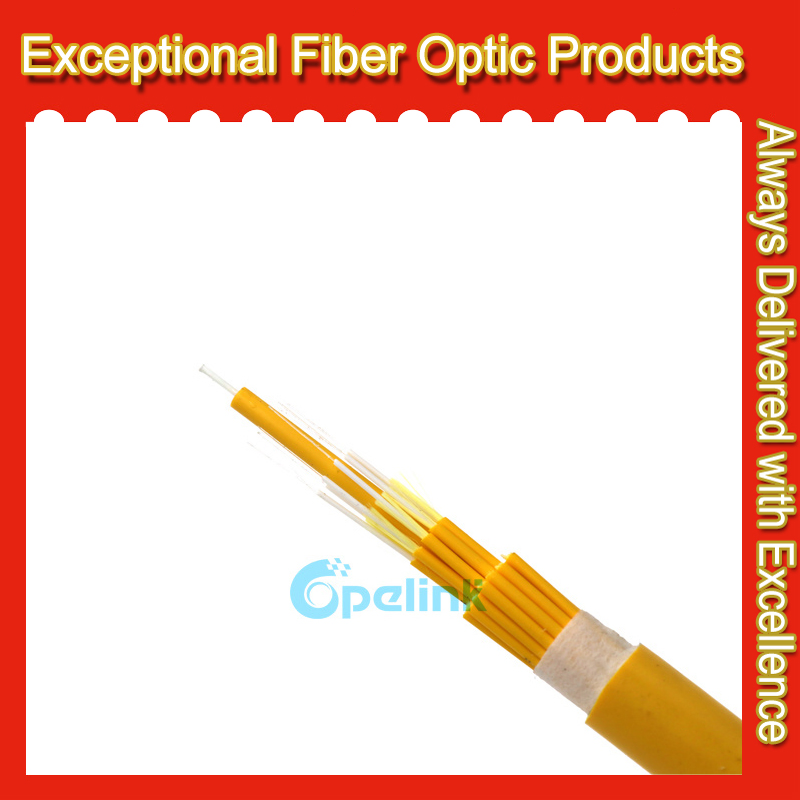

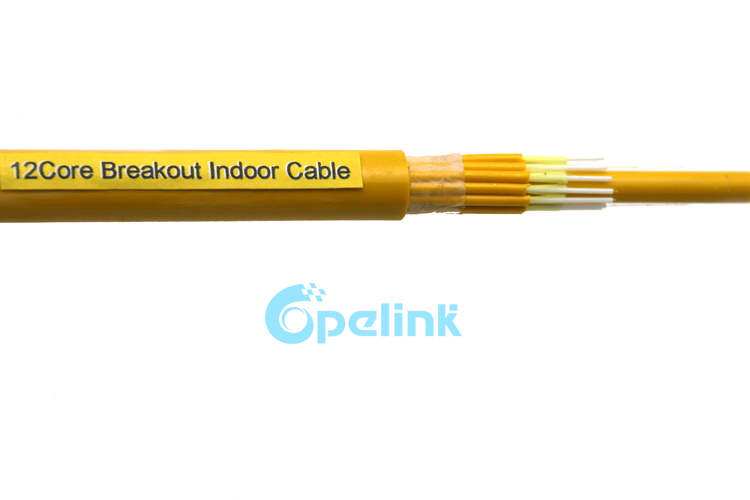

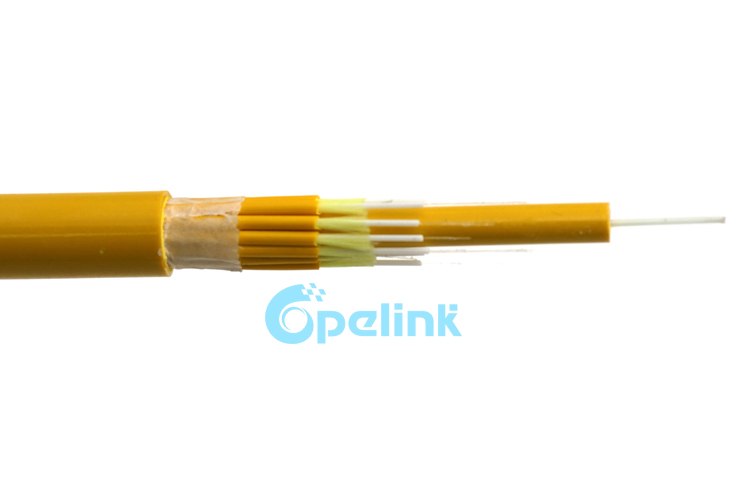

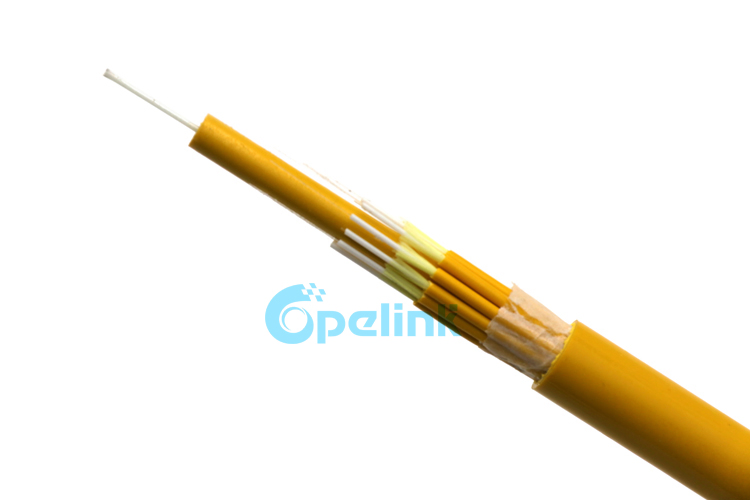

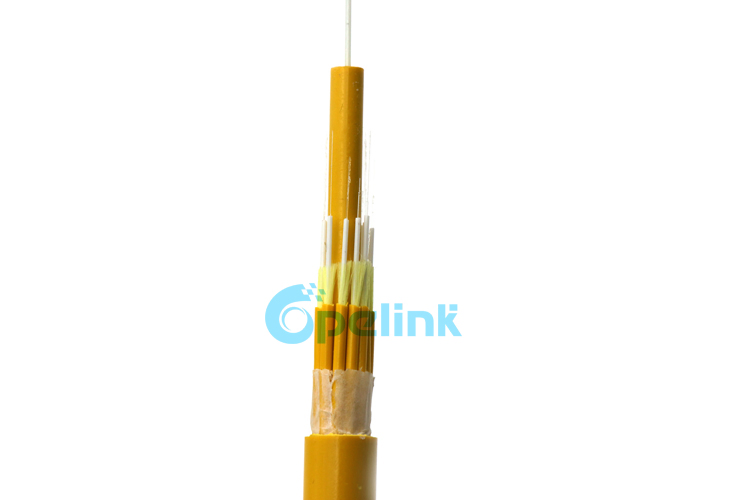

Singlemode Multi Purpose Breakout Fiber Optic Cable uses simplex cable (900um tight buffer fiber, aramid yarn as strength member) as a subunit. A FRP locates in the center of the core as a non-metallic strength member. The subunits are stranded around the cable core. The cable is completed with a high-grade PVC or LSZH jacket.

Application & Features

Main Applications:

Indoor level and vertical cabling, ceiling cabling, and surface cabling.
Standard fiber core for direct splicing to connectors and equipment.
Ideal for use in pigtails and patch cords.

Key Features:

Simplex cable contains aramid yarn for high strength and excellent bending performance.
No-gel design, easy to splice and operate.
Independent buffer design and sheath to prevent damage from environmental and mechanical stress.
Jacket color options (PVC, LSZH, or PE) based on fiber type and environment.
Fiber count available from 2 to 48 cores.
Ultra-violet radiation, water, and mildew resistant options available.

Fiber Characteristics (Single Mode)

Item	Unit	Specification
Attenuation	dB/km	1310nm≤0.4; 1550nm≤0.3
Dispersion	Ps/nm.km	1285~1330nm≤3.5; 1550nm≤18.0
Zero dispersion wavelength	Nm	1300~1324
Zero dispersion slope	Ps/nm.km	≤0.095
Fiber cutoff wavelength	Nm	≤1260
Mode field diameter	Um	9.2±0.5
Cladding diameter	um	125±1.0
Proof test	kpsi	≥100

Mechanical Parameters

Fiber Account	OD(mm)	Weight(kg/km)	Max Tension (Short/Long)	Crush Resistance
2 Core	7.5+-0.5	50	400 / 120 N	1000 N/100
4 Core	7.5+-0.5	51	400 / 120 N	1000 N/100
12 Core	12.5+-0.5	128	1200 / 400 N	1000 N/100
24 Core	15.5+-0.5	198	1200 / 400 N	1000 N/100
48 Core	20+-0.5	246	1800 / 600 N	1000 N/100
