Product Description

📋 Basic Specifications
Model NO.
TK-2SFP10G-AOC
Certification
CE, RoHS, FCC
Condition
New
Jacket Material
LSZH/PVC
Cable Diameter
3.0mm
Fiber Type
62.5/125
Fiber Cores
8/12
Bandwidth
160MHz.Km@850nm
Operating Temp.
0-85℃
Production Capacity
30,000 PCS/Day
Warranty
3 Years
HS Code
854470000

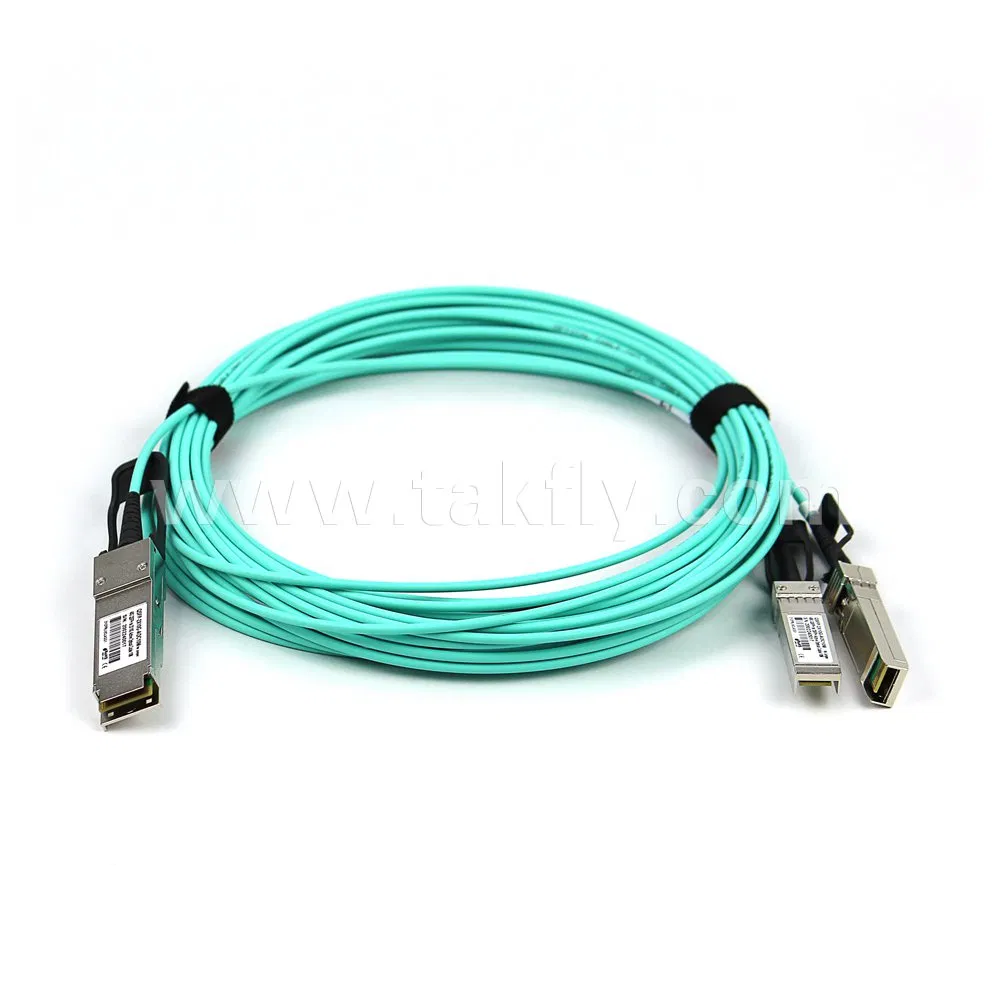

🚀 40G QSFP to 10G SFP AOC Active Optical Cable

The TK-2SFP10G-AOC is a high-performance Two-Channel, Pluggable, Parallel, Fiber-Optic QSFP+ to 2 x SFP+ breakout active optical cable solution. Designed for 40G to 2 x 10G applications, this cable provides a multi-lane data communication interconnect solution for short-range needs.

It integrates four data lanes in each direction with a 40 Gbps aggregate bandwidth, where each lane operates at 10.3125 Gbps. It supports 2 x 10G InfiniBand QDR applications and remains backwards compatible with 4 x 5G IB DDR and 4 x 2.5G IB single IB SDR applications.

💎 Key Features
QSFP+ AOC End:
  • Compliant with 40GBASE-SR4 and XLPPI specifications (IEEE 802.3ba-2010).
  • Supports 40G-IB-QDR / 20G-IB-DDR / 10G-IB-SDR applications.
  • Compliant with industry standard SFF-8436.
  • Power Level 1: Maximum Power Consumption < 1.5 W.
  • Operates at 10.3125 Gbps per channel with 64b/66b encoded data.
SFP+ End (Each):
  • Compliant with SFF-8431 electrical specifications for Enhanced Small Form Factor Pluggable Modules.
  • Mechanical specifications meet SFF-8432 "IPF" standards.
  • Maximum power dissipation of 0.35W per end.
General Assembly:
  • 0 to 85°C operating case temperature range.
  • Proven high-reliability 850 nm technology (VCSEL transmitter and PIN receiver).
  • Hot-pluggable for easy installation and servicing.
  • Uses thin, lightweight optical fiber for superior cable management.
📊 Electrical Characteristics
Parameter Symbol Min Typical Max Unit
QSFP+ 40G End Power Consumption---1.5W
QSFP+ 40G Power Supply Current---300mA
SFP+ 10G End Power Consumption---0.35W
SFP+ 10G Power Supply Current---100mA
⚙️ Operating Conditions
Parameter Symbol Min Typical Max Unit
Operating Case TemperatureTOPC0-85degC
Power Supply VoltageVCC3.133.33.47V
Data RateDR-10.311.3Gbps
Link Distance (OM3 Fiber)D0-100m
I2C Interface Frequencyfs--400kHz
🖼️ Product Gallery
Active Optical Cable 1

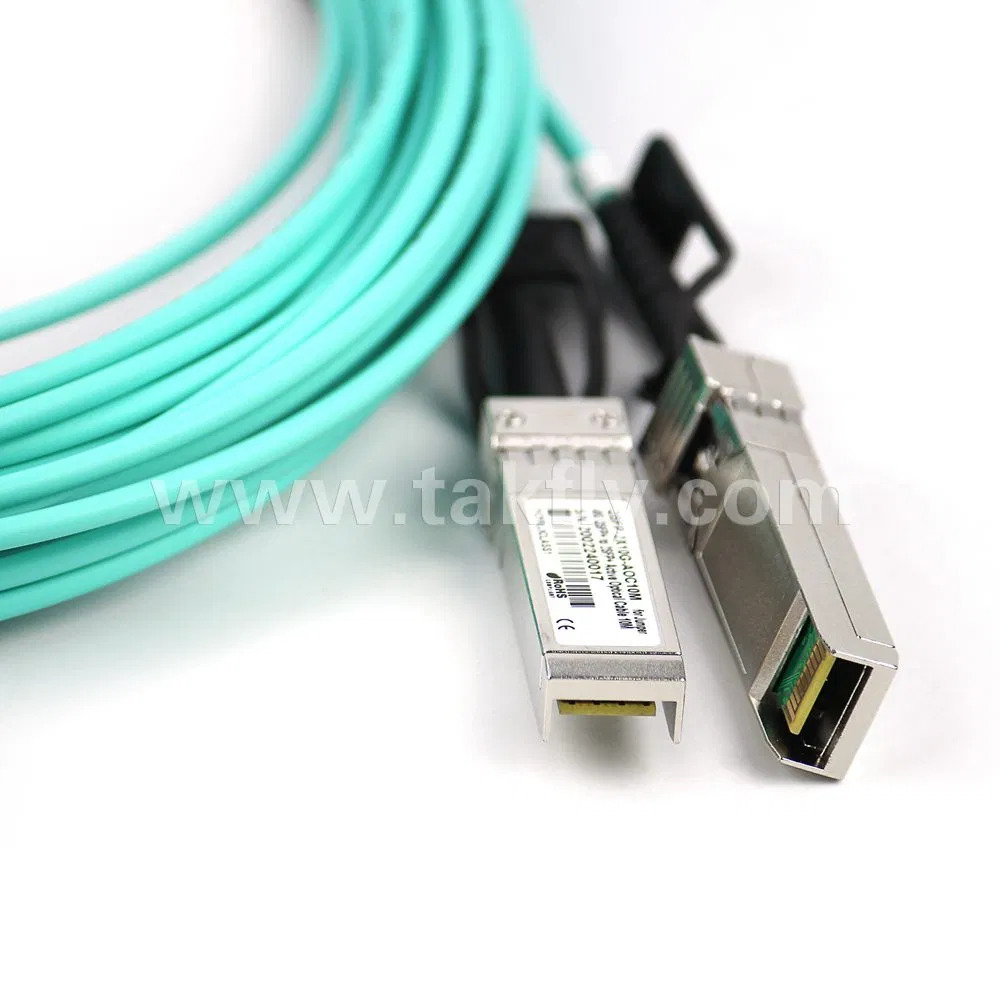

Active Optical Cable 2
Active Optical Cable 3

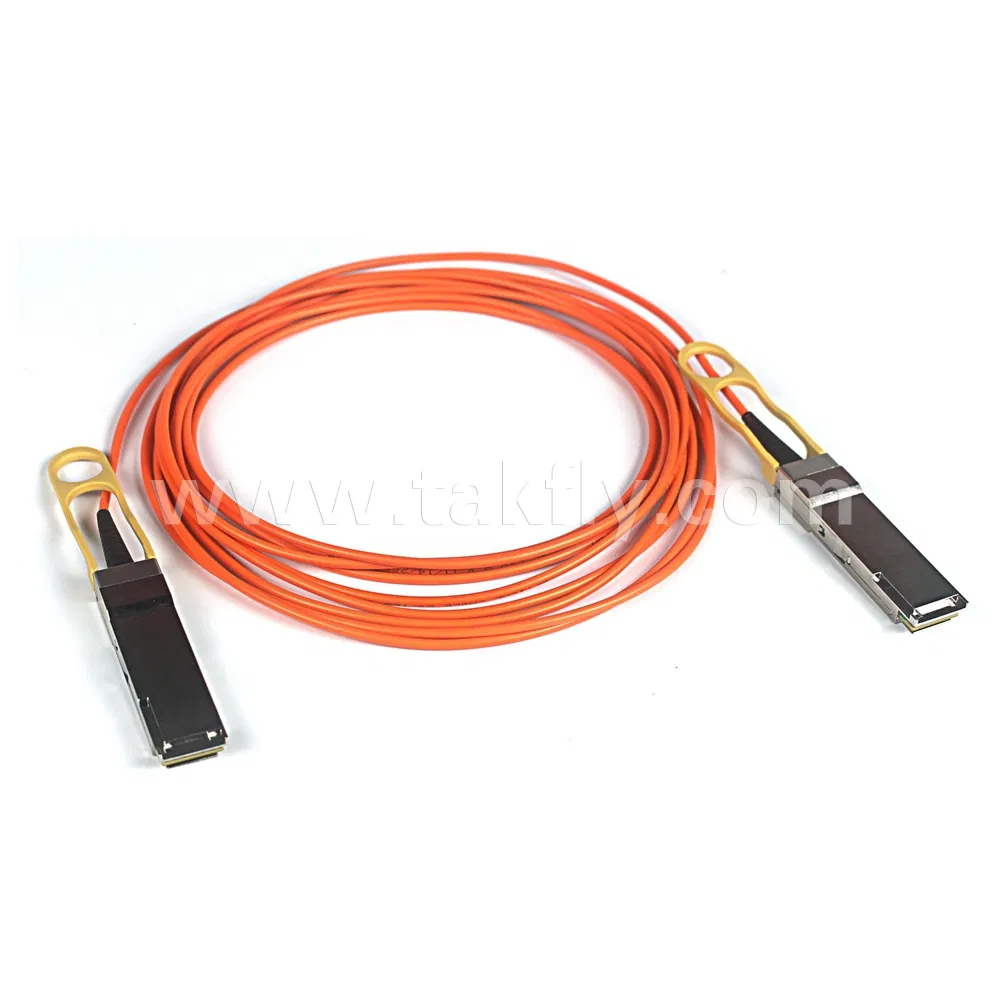

Active Optical Cable 4
Active Optical Cable 5
Active Optical Cable 6
📜 Quality Certificates

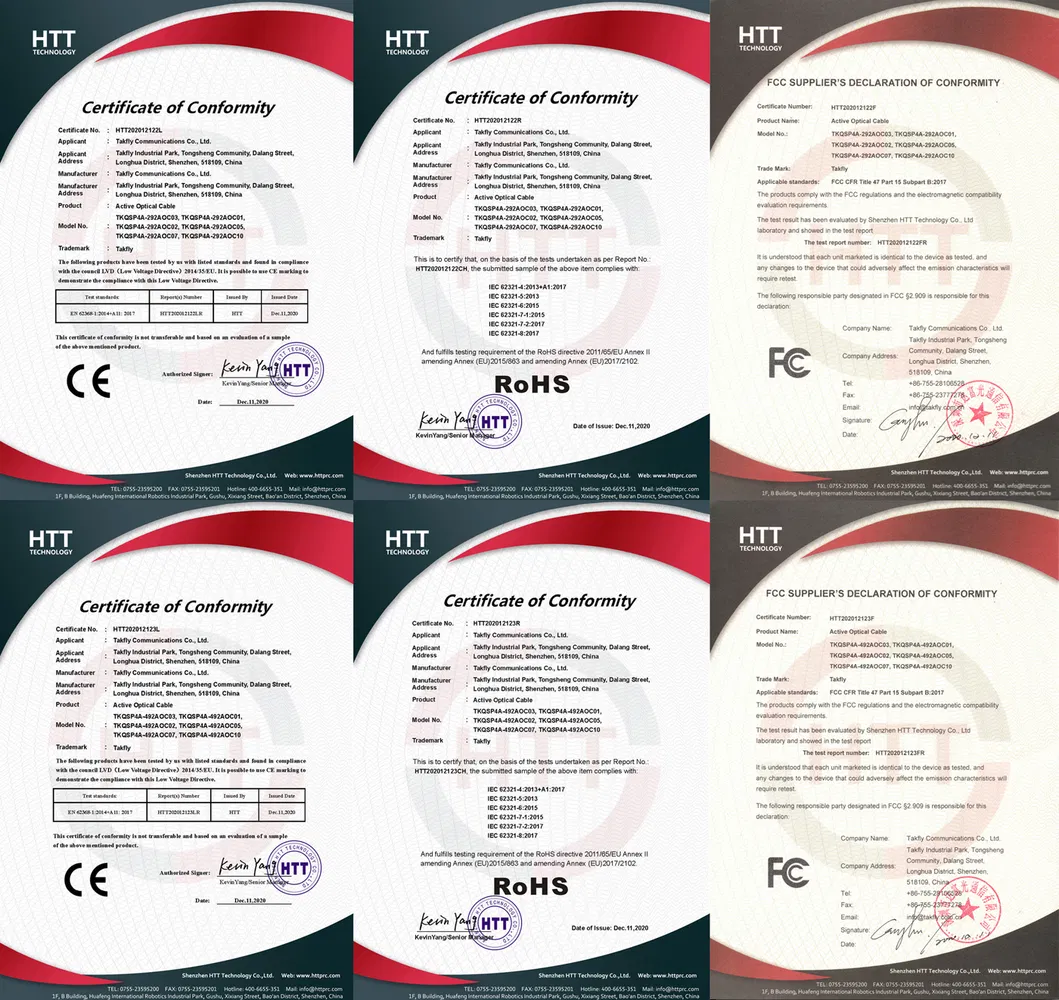

Certificate 1
Certificate 2
❓ Frequently Asked Questions
1. What is the main use of a QSFP+ to 2x SFP+ breakout AOC?
It is primarily used to connect a single 40GbE QSFP+ port on a switch or router to two 10GbE SFP+ ports, allowing for high-density and flexible network distribution.
2. Does this cable support hot-plugging?
Yes, the cable is fully hot-pluggable, which means it can be installed or removed without powering down the networking equipment, ensuring minimal service disruption.
3. What is the maximum distance supported by this AOC?
Using OM3 multi-mode fiber, this cable can support link distances up to 100 meters, making it ideal for intra-rack and inter-rack data center connections.
4. What is the power consumption of this cable?
The QSFP+ end has a maximum power consumption of less than 1.5W, while each SFP+ end consumes a maximum of 0.35W, making it an energy-efficient solution.
5. Is the cable compatible with InfiniBand standards?
Yes, it supports 2 x 10G InfiniBand QDR applications and is backwards compatible with DDR and SDR single IB applications.
6. What is the warranty period for this product?
This Active Optical Cable comes with a 3-year quality warranty for peace of mind and reliable long-term service.
