GJFHJY 2-48 Core Type PVC/LSZH Jacket 2.0mm Breakout Indoor Cable

The GJFHJY 2–48 Core Indoor Breakout Cable is designed for high-density indoor fiber distribution. Each fiber is independently reinforced in a 2.0mm tight-buffered subunit, enabling direct termination without the need for breakout kits.

With flame-retardant PVC or LSZH outer jackets, this cable meets international safety standards for building wiring. It is ideal for data centers, FTTH indoor wiring, equipment interconnection, and riser applications.

📋 Basic Specification
Model NO.
GJFHJY
Cover Material
PVC/LSZH/TPU
Type
Fiber Cable
Fiber Count
2, 4, 6, 8, 12, 24, 36, 48 Cores
Certification
CE, ISO, RoHS, CCC, VDE
Fiber Type
Sm & mm
Outer Jacket Color
Yellow (Sm), Orange (Om1/Om2), Aqua (Om3), Violet
Max Tensile Strength
600n (Short Term) / 200n (Long Term)
Operating Temp
-20°c to +70°c
Flame Standard
IEC 60332 / UL 1581
Origin
China
HS Code
8544700000

🚀 KEY FEATURES

  • Central FRP strength member for structural integrity.
  • Stranded tight buffer units for excellent tensile performance.
  • Corrosion-resistant and waterproof outer sheath.
  • Environment-friendly LSZH/PVC jacket materials.
  • Flame retardant for indoor safety applications.
  • Aramid yarn reinforcement in tight buffer fibers.

📍 APPLICATIONS

  • Adopted to Indoor Distribution systems.
  • Used as Pigtails for communication equipment.
  • Suitable for high-density communication servers.
  • Convenient installation and simple operation.
  • Ideal for building backbone and riser systems.
🖼️ Product Visuals

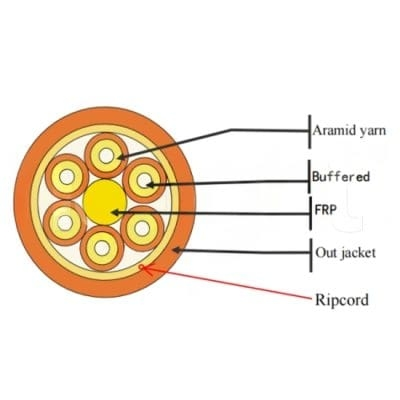

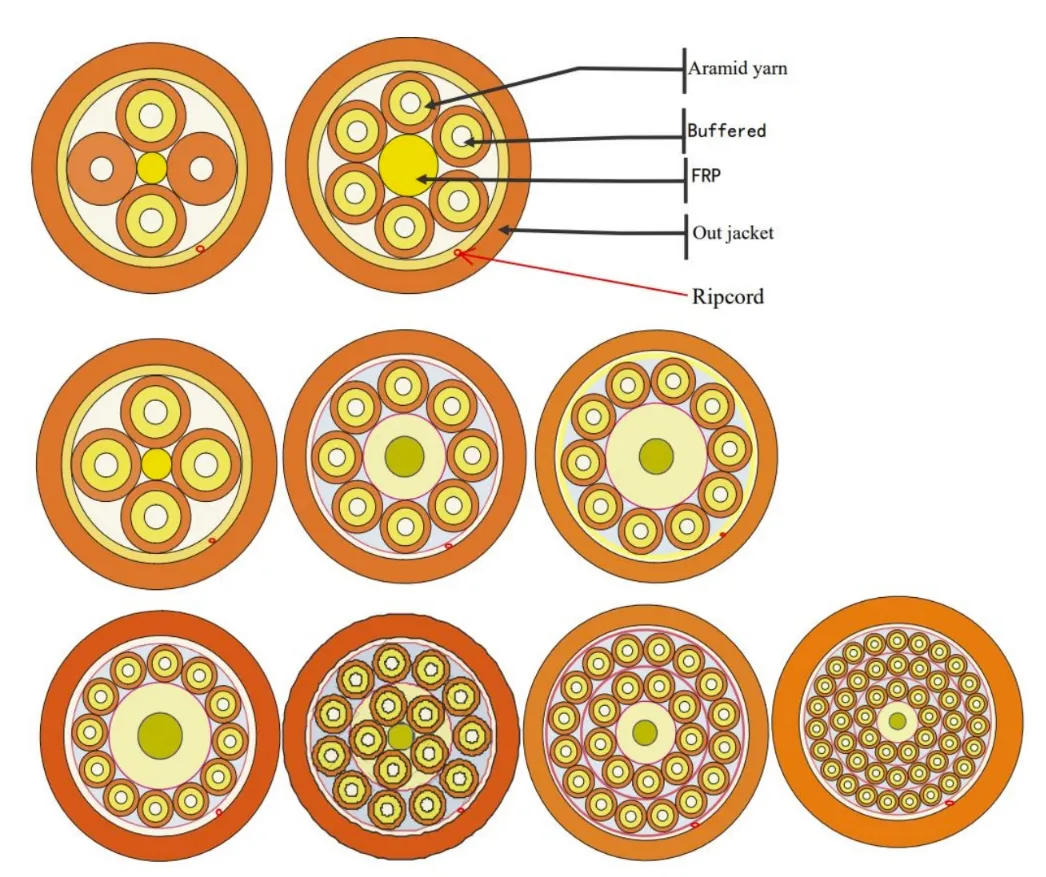

Fiber Cable Structure

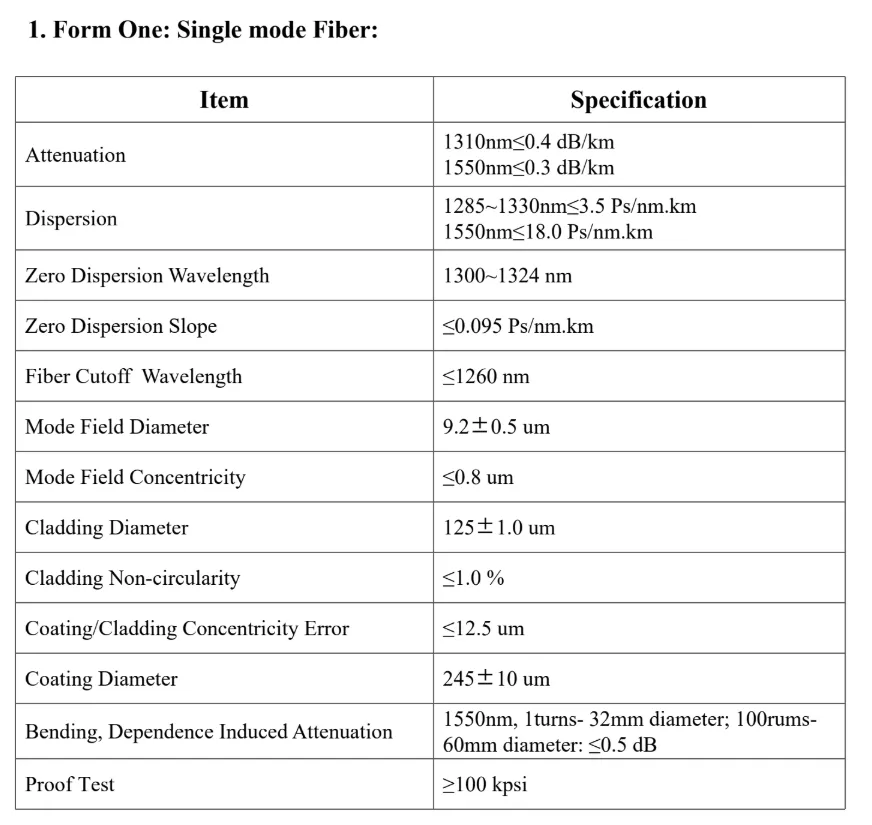

Breakout Cable View

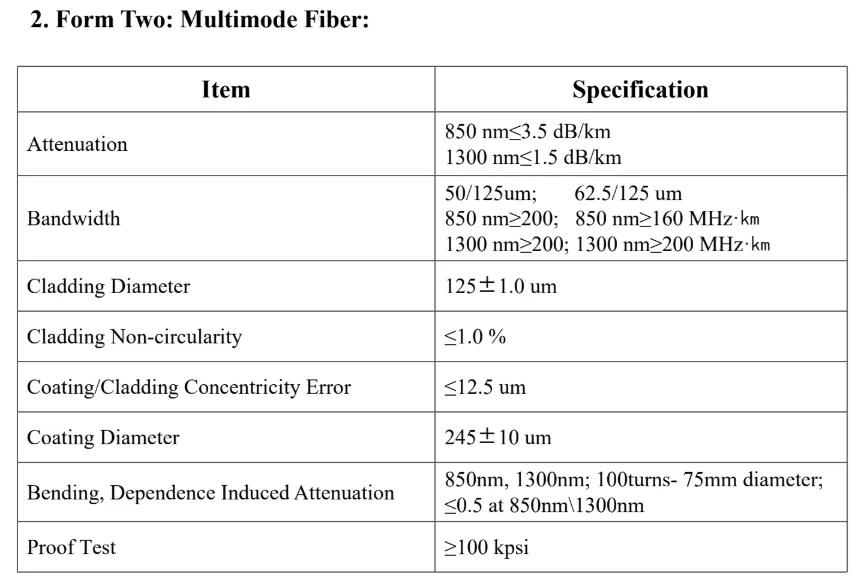

Indoor Fiber Detail

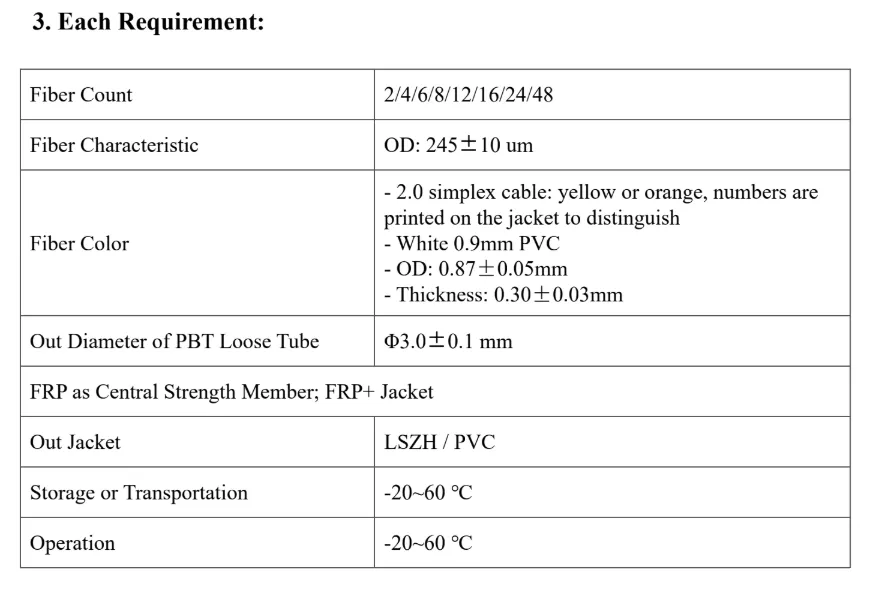

PVC LSZH Jacket

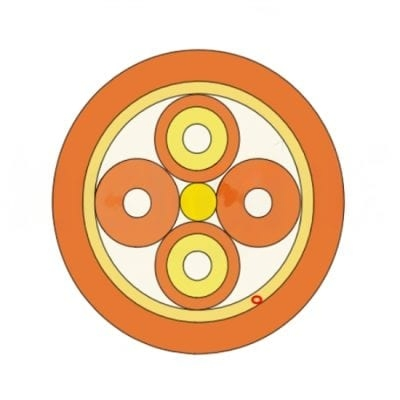

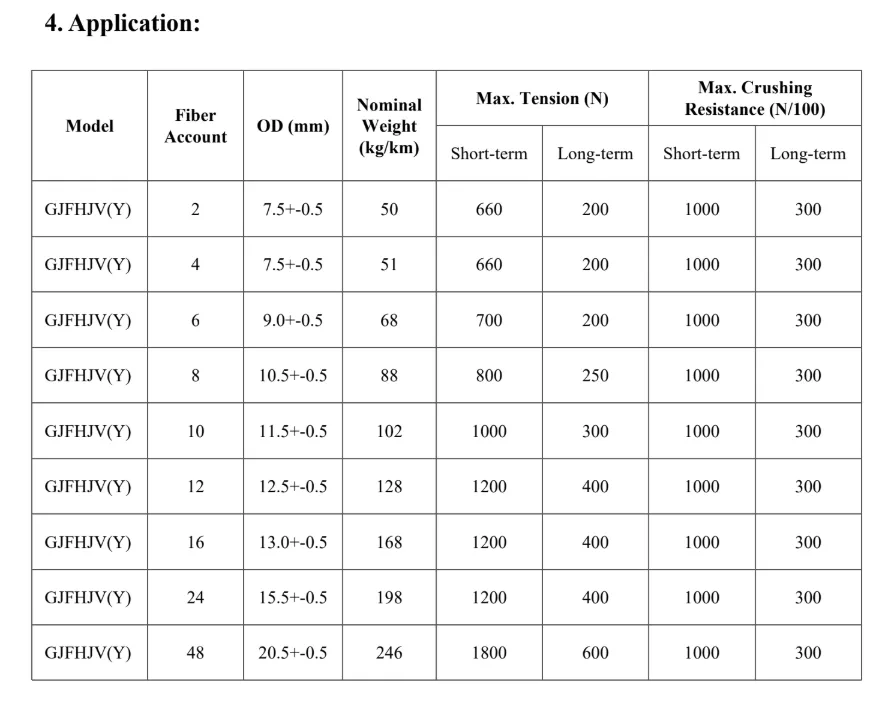

Cable Cross Section
Related Products
📦 Packaging & Logistics
Package Size
34.00cm * 15.00cm * 30.00cm / 48*48*30cm
Gross Weight
3.500kg
Transport Package
Export Box
Capacity
10,000 PCS/Month

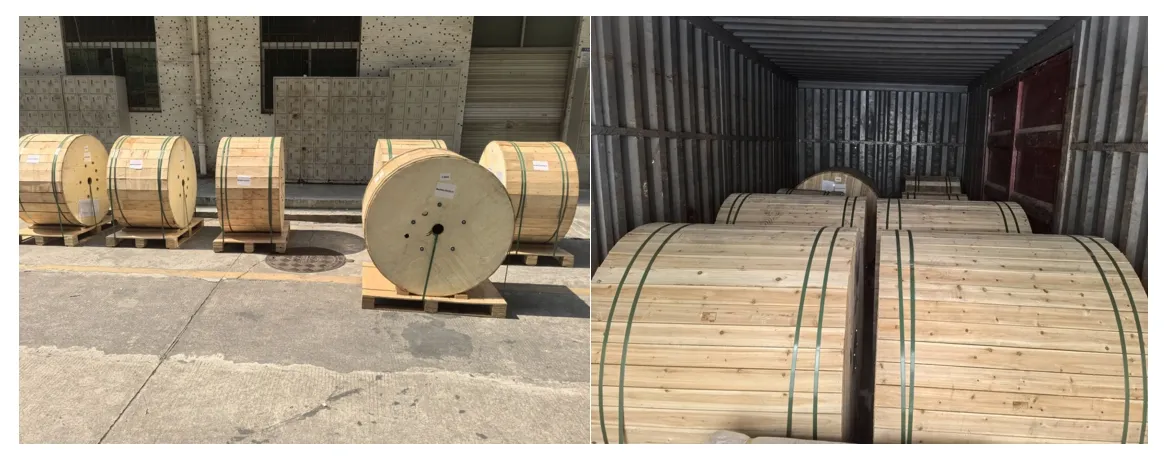

Shipping Package 1

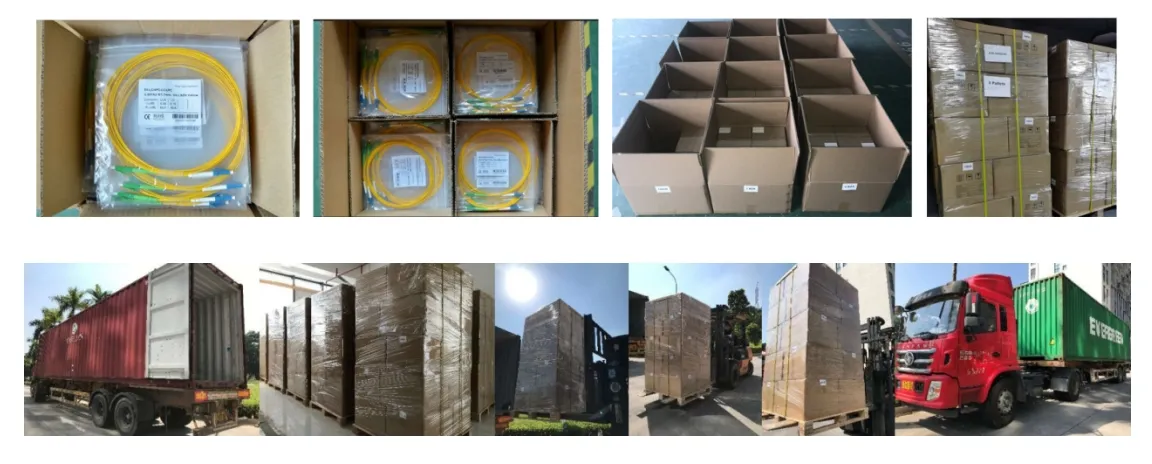

Shipping Package 2
Keywords: Indoor Breakout Fiber Cable, GJFHJY 2.0mm Subunit Cable, 12 Core Indoor Fiber Optic Cable, 24 Core Breakout Cable LSZH, 48 Core PVC Jacket Cable, Tight Buffered Fiber Cable, Flame Retardant Fiber Cable, Multi Core Indoor Fiber, FTTH Fiber Cable.
Frequently Asked Questions
What does the GJFHJY model designation stand for?
It refers to a specific type of indoor breakout cable featuring tight-buffered fibers reinforced with aramid yarn, designed primarily for building wiring and high-density distribution.
Can this cable be used for direct connector termination?
Yes, the 2.0mm independent subunits are designed to allow easy and secure direct termination with standard connectors without needing additional breakout kits.
What is the difference between PVC and LSZH jackets for this cable?
LSZH (Low Smoke Zero Halogen) is designed for safety in poorly ventilated areas as it emits limited smoke and no toxins when exposed to fire. PVC is a more cost-effective option for general indoor use.
Is the GJFHJY cable suitable for riser applications?
Yes, this cable complies with flame-retardant standards such as IEC 60332 and UL 1581, making it safe for vertical riser installations in buildings.
What fiber types and core counts are available?
We provide core counts ranging from 2 to 48 cores. Fiber options include Single Mode (G.652/G.657) and Multi Mode (OM1, OM2, OM3, OM4) to suit different bandwidth requirements.
How does the cable handle physical stress during installation?
The cable features a central FRP strength member and aramid yarn within each subunit, providing excellent tensile strength (up to 600N short term) and crush resistance.
