Model NO.HX-MPO-LC
Number of Cores8/12/16/24
Ferrule EndfaceUPC
ApplicationFDF, Network Equipment, Fiber Module
Light SourceLaser
Cable O.D3.0mm or Customized

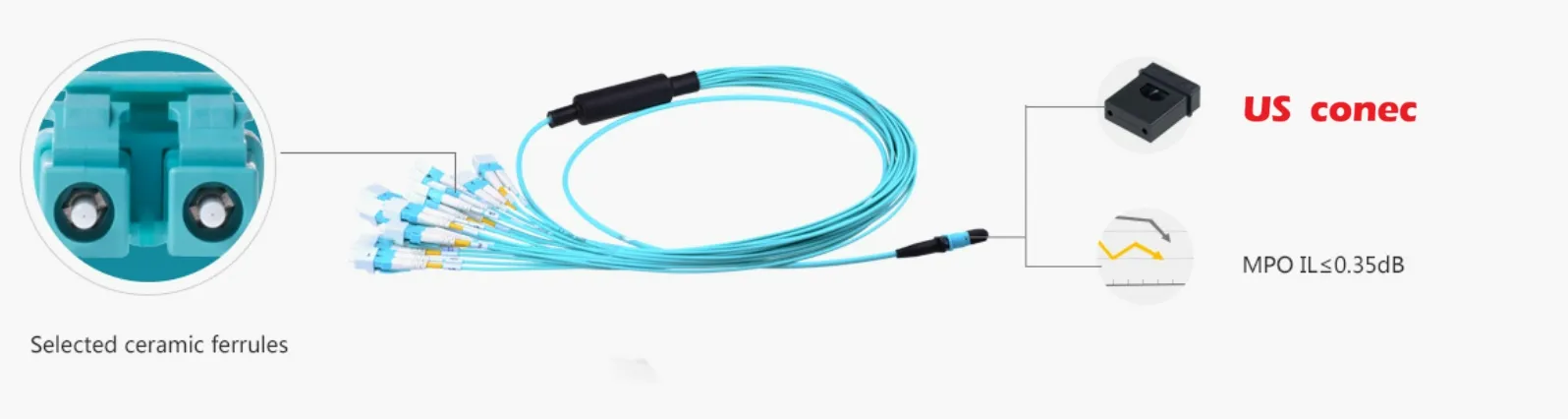

Insertion Loss<0.35 dB
Return Loss>50 dB
PolarityA, B, C
Production Capacity500,000 PCS/Year
ℹ️

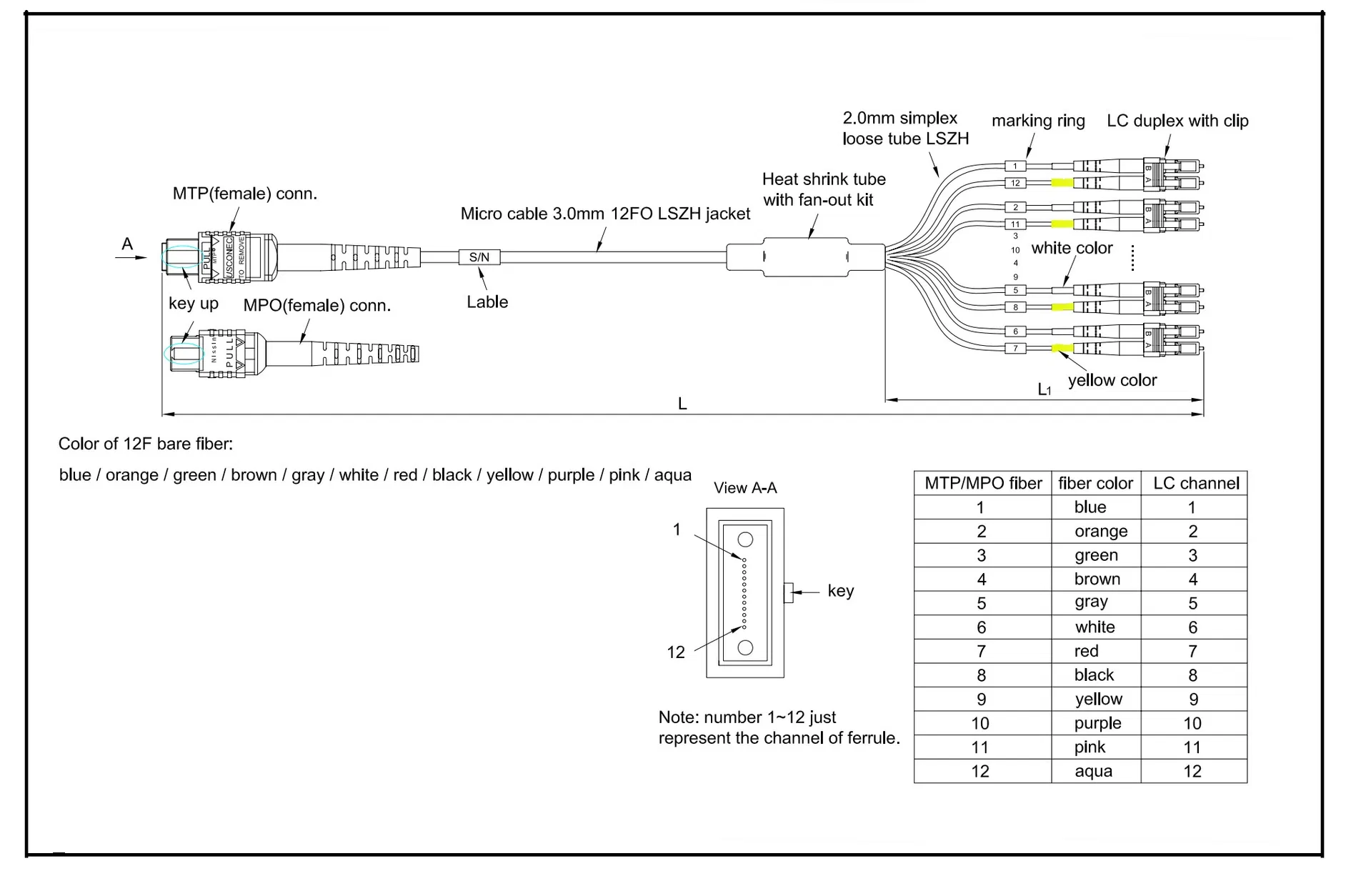

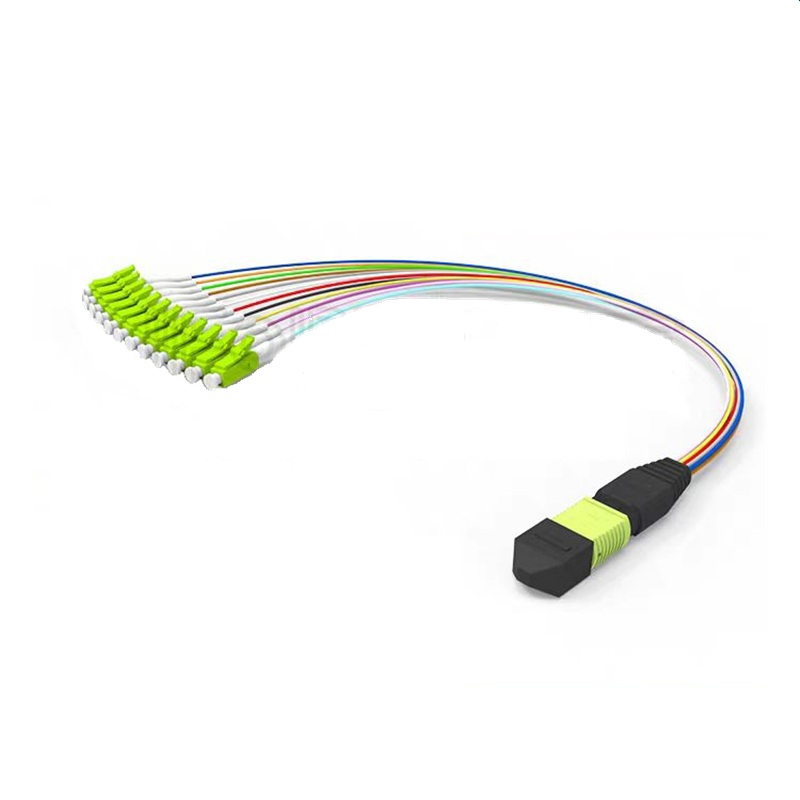

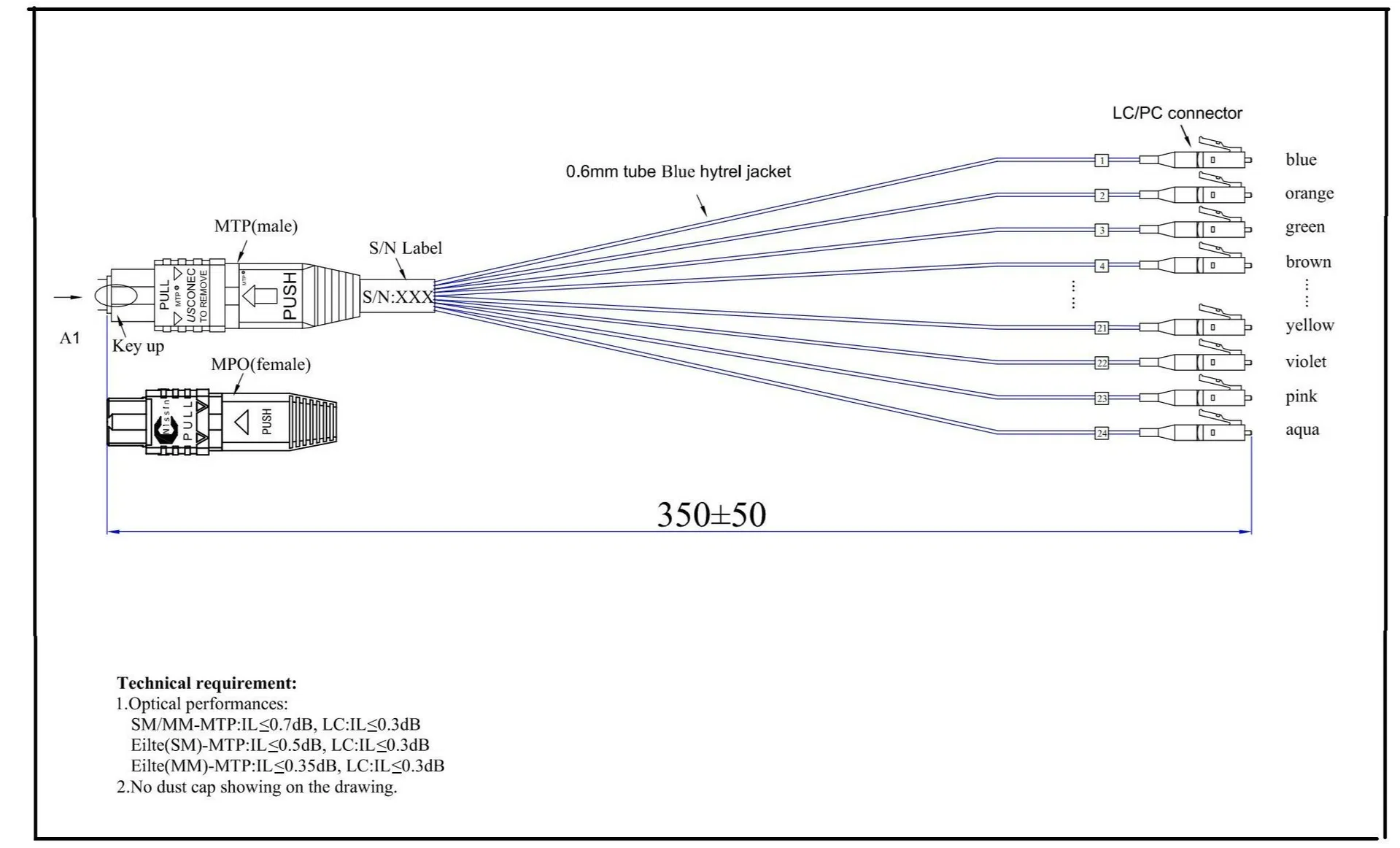

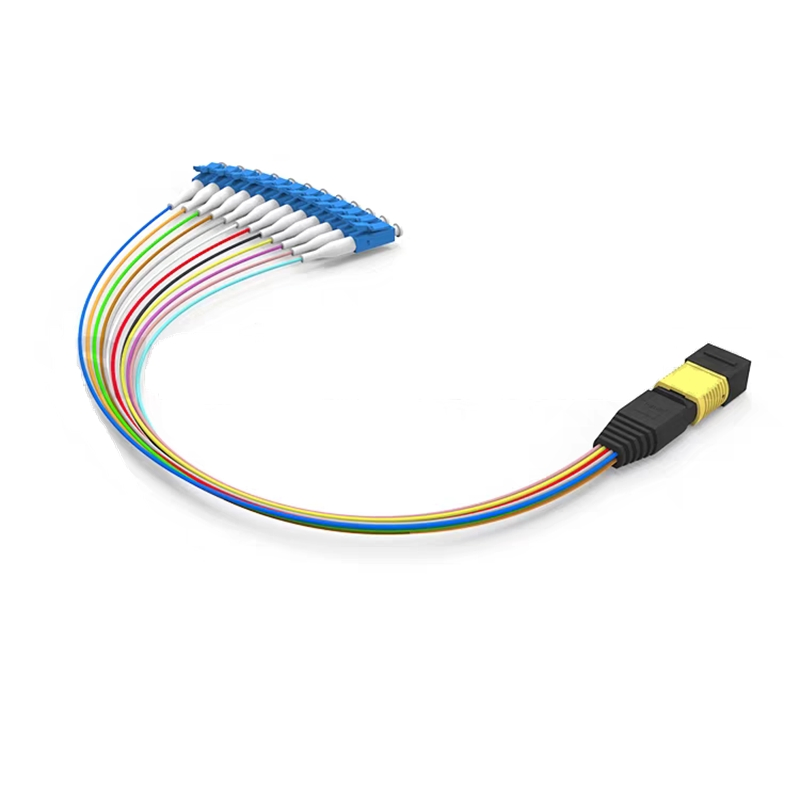

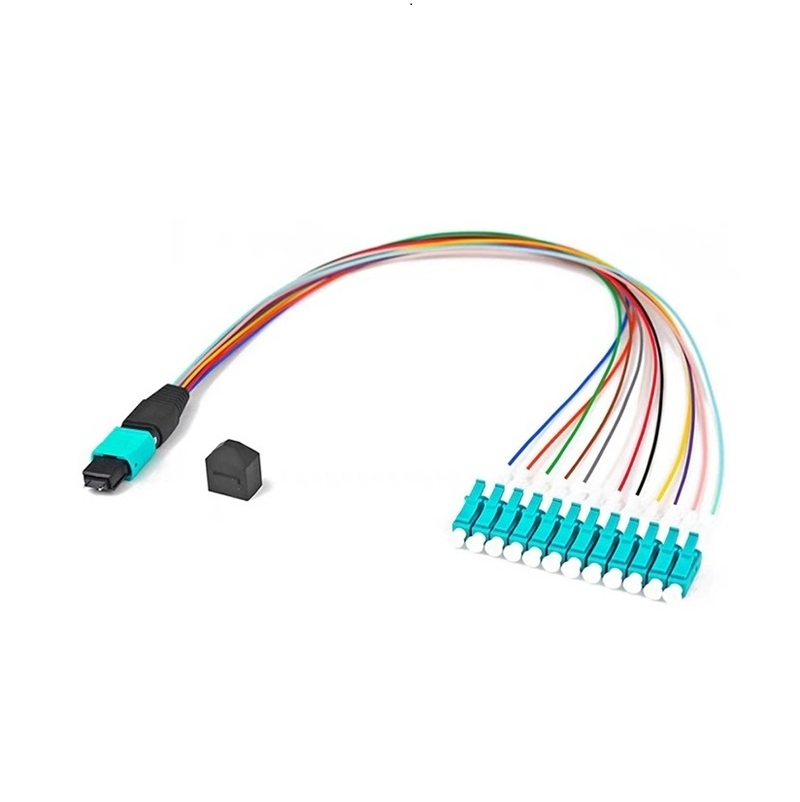

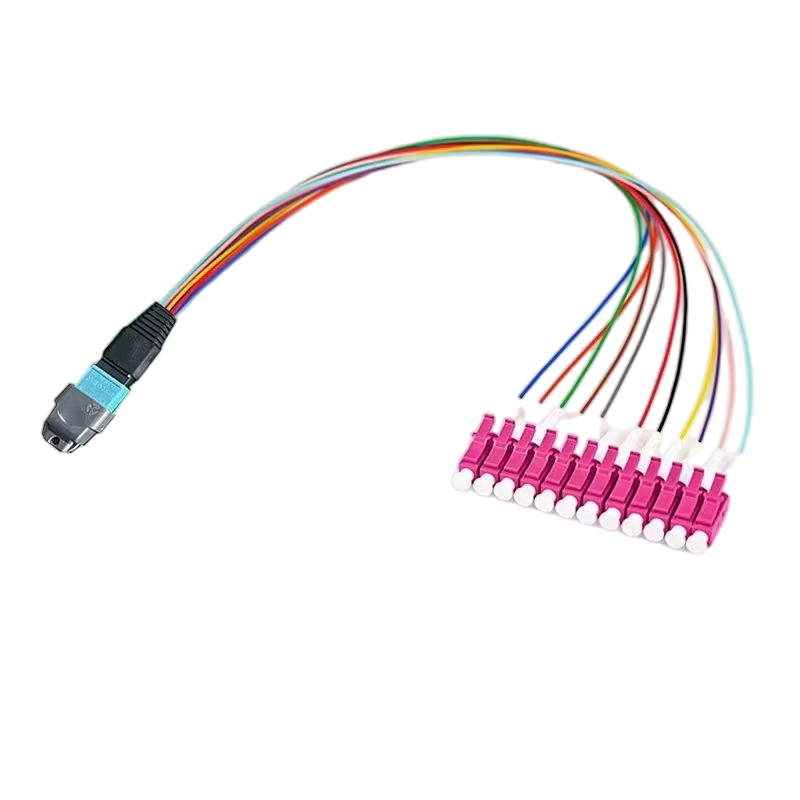

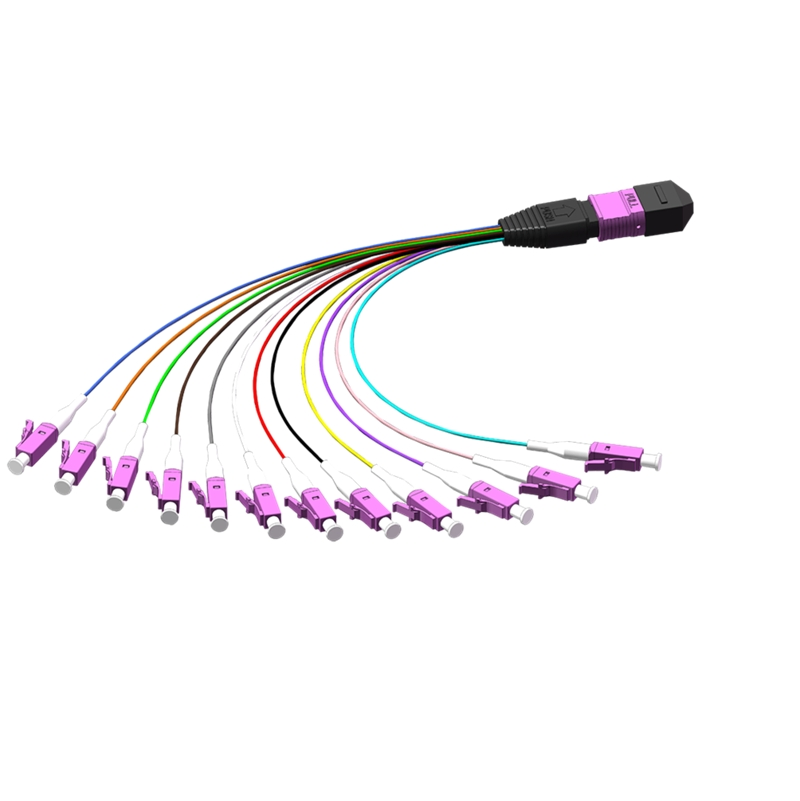

The MPO/MTP breakout patch cords consist of four main structures: main cable, sub cable, fan-out, and connector. Utilizing multi-core optical cables, it is designed for high-density environments where efficient wiring and minimal entanglement are critical. It offers stable transmission, high reliability, and full customization for Backbone networks, ODFs, and Data Centers.
🔹 Data communication network
🔹 Optical System Access network
🔹 Storage area networking fiber channel
🔹 High density architectures
🔹 Gigabit Ethernet & ATM
🔹 Active Device/Transceiver Interface
🔹 CATV, Video and Multimedia
🔹 Telecommunication Networks
🔹 Optical Switch interframe connections
🔹 Premise Installations
1. High Performance in IL & RL (Low loss SM and MM applications)
2. 4, 8, 12 and 24 fiber connector terminations available
3. Ruggedized round cable, oval cable, and bare ribbon options
4. Color-coded housings to differentiate fiber and polish types

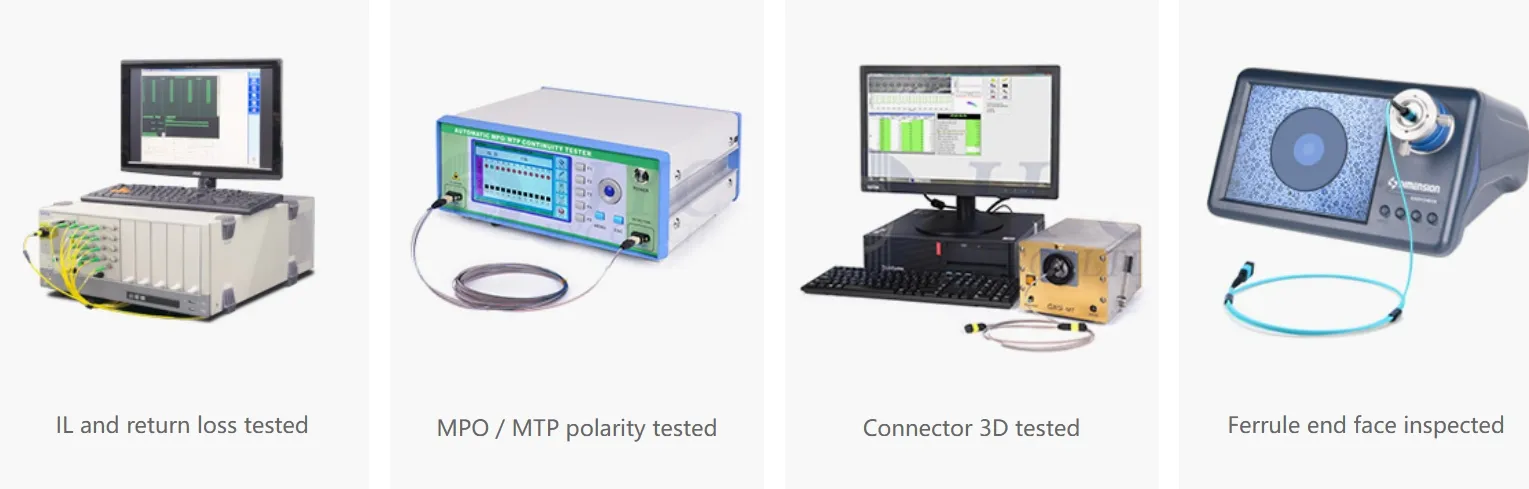

5. 100% tested quality meeting international standards (RoHS, IEC, Telcordia)
We offer comprehensive OEM/ODM capabilities with a product line ranging from basic passive optic networks to advanced fiber management solutions. Our products are exported to over 30 countries, supported by competitive pricing and turnkey project solutions. Other offerings include PLC Splitters, FBT Couplers, Optic Adapters, and Distribution Boxes (FDB/ODF).
Frequently Asked Questions
Q1: Can you provide OEM/ODM services?
A: Yes, we offer full OEM/ODM services, including customized LOGO design and printing to meet your brand requirements.
Q2: What is the typical lead time for orders?
A: Standard models are usually shipped within 10-15 days. For customized units or large project requirements, the lead time is approximately 30 days.
Q3: Is there international after-sales support?
A: Yes, we have partnered service centers in key regions to ensure prompt technical support and after-sales service for our global clients.
Q4: What documentation is provided for international shipping?
A: We provide a complete export package, including Commercial Invoices, Packing Lists, Bills of Lading, Certificates of Conformity (COC), and other required regional documents.
Q5: How can I confirm an order?
A: You can contact our sales team via the inquiry system for a quote. Once specifications are finalized, orders are confirmed through a formal Purchase Order (PO).
Q6: What standards do your fiber optic products comply with?

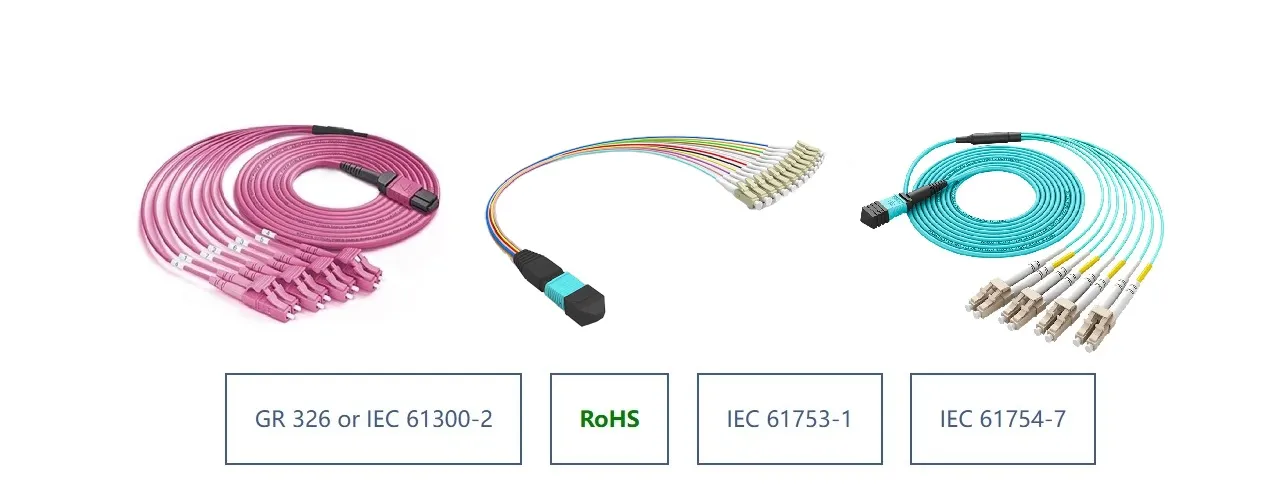

A: Our products are 100% tested and comply with international standards such as Telcordia GR 326, IEC 61300 series, and are fully RoHS compliant.
