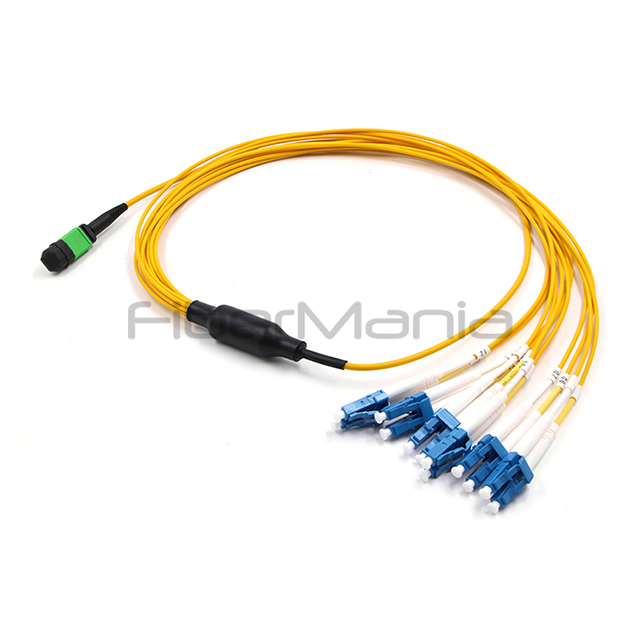

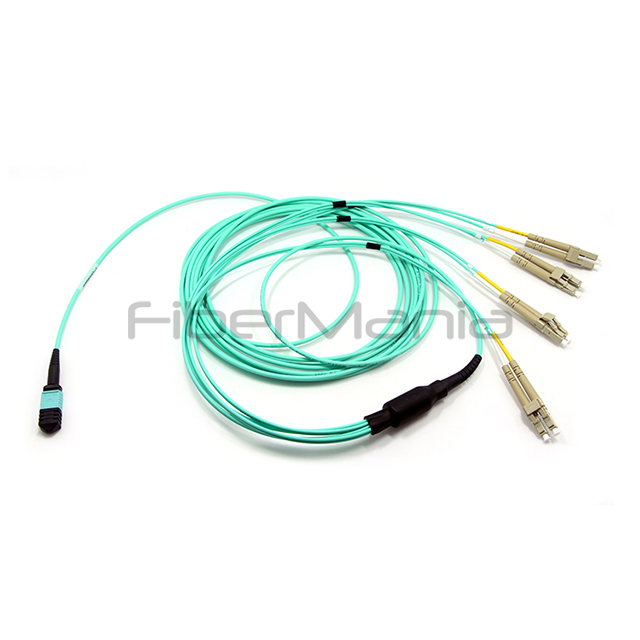

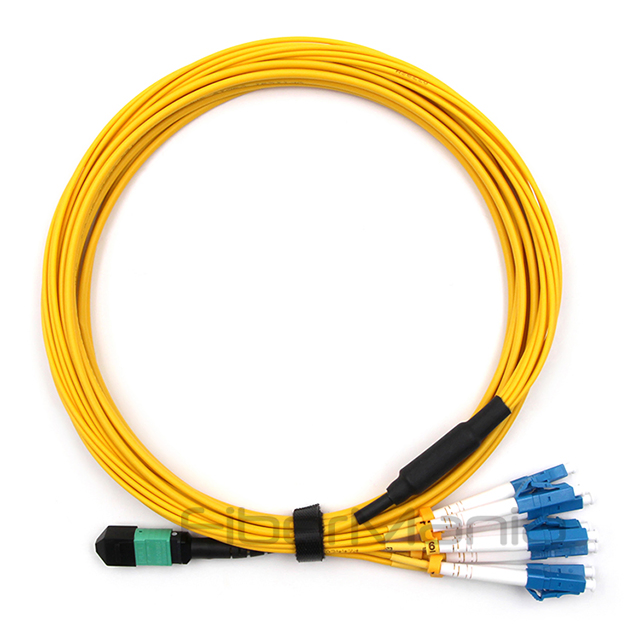

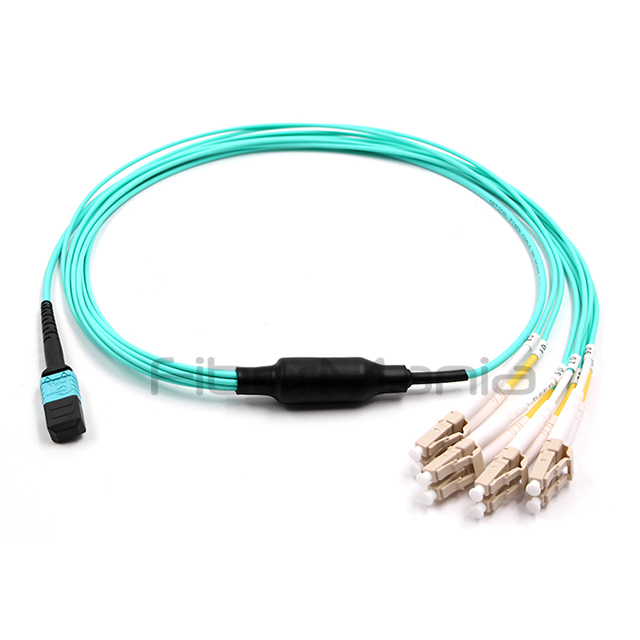

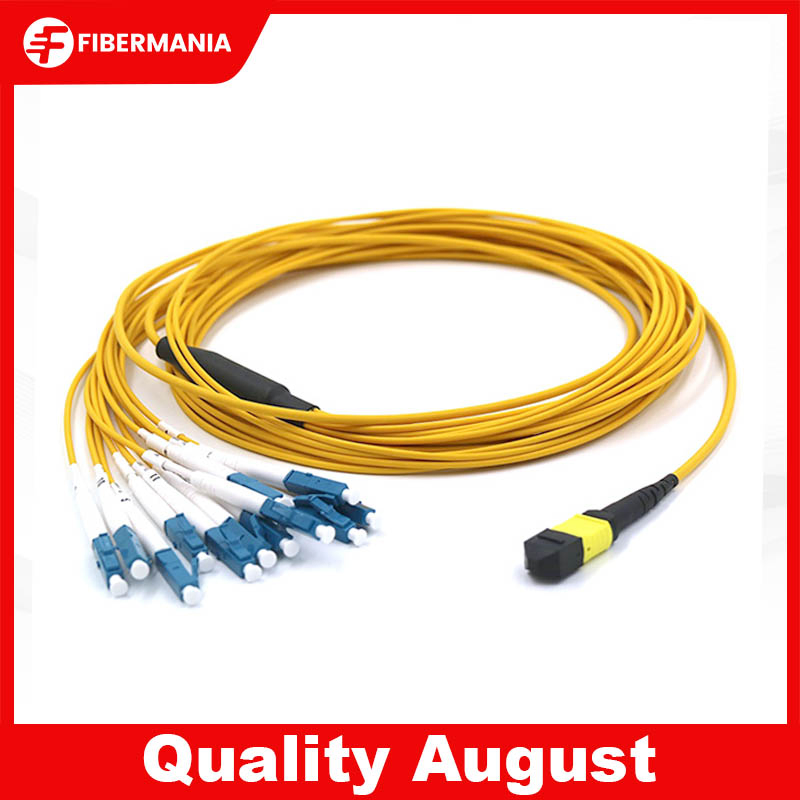

The MPO to LC breakout cable is an essential component for modern data centers and networking applications, providing a seamless connection between high-density MPO connectors and individual LC connectors. This cable is specifically designed for QSFP to SFP connections, making it ideal for high-speed data transmission.
| Basic Information | |
|---|---|
| Model NO. | MTP/MPO Cable Assemblies |
| Connection Structure | MPO-LC |
| Material Shape | Round Wire |
| Allowed Lateral Pressure | 100(N/100mm)<1000(N/100mm) |
| Allowed Tensile Strength | 100N<1000N |
| Core | Multicore |
| Certification | RoHS, CE, ISO9001 |
| Sheath Material | PVC/LSZH |
| Connector A | MPO/MTP |
| Connector B | LC |
| Gender | Male or Female |
| Fiber Type | OS2/OM1/OM2/OM3/OM4/OM5 |
| Core Number | 8~24 Core |
| Operating Temperature | -10 to 60°C |
| Connector | MPO/MTP (Male/Female) | LC/SC/FC/ST | |||||
| Fiber Mode | SM(OS2) | MM(OM1-OM5) | SM(OS2) | MM(OM1-OM5) | |||
| Insertion Loss | Typical ≤ 0.30dB (Elite ≤ 0.15dB) | Typical ≤ 0.50dB | Typical ≤ 0.15dB | Typical ≤ 0.15dB | |||
| Return Loss | ≥ 50dB | ≥ 60dB | ≥ 35dB | ≥ 50dB | ≥ 60dB | ≥ 30dB | |

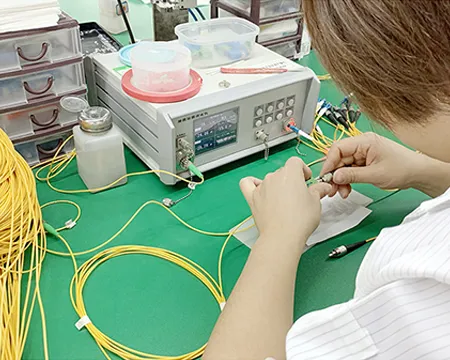

IL and RL Testing: Conduct testing on the insertion loss and return loss of cables to verify their reach and ensure stable signal transmission.

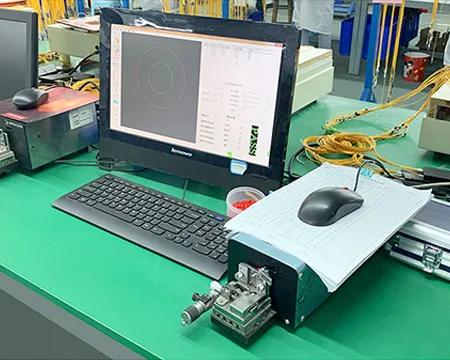

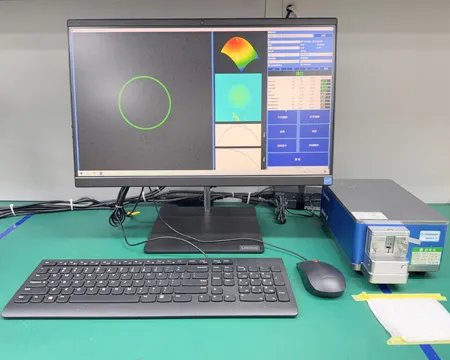

3D Interferometer Testing: Evaluate the connectors or ferrules to verify apex offset, radius of curvature, and fiber height.

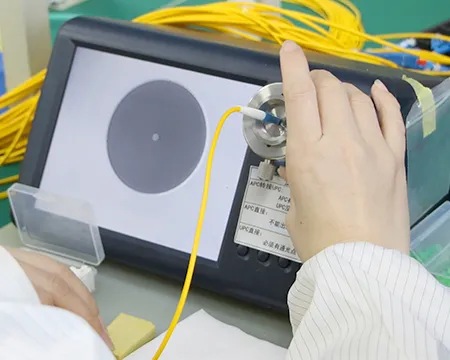

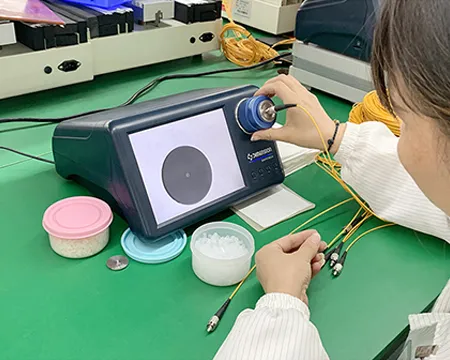

End-Face Inspection: Examine the connector end face for any scratches, defects, or contamination to ensure the tips remain clean.
| Test Item | Standard Requirement | Reference Standard |
|---|---|---|
| Insertion Loss (IL) | ≤ 0.35 dB (Standard) / ≤ 0.20 dB (Elite) | IEC 61300-3-4 |
| Return Loss (RL) | ≥ 20 dB (MM) / ≥ 60 dB (SM, APC) | TIA-604-5 |
| Polarity | Type A/B/C per design | TIA-568.3-D |
| Durability | ≥ 500 mating cycles | IEC 61300-2-2 |
| Operating Temp | -40°C to +75°C | IEC 61753-1 |
