| Model NO. | GJBFJVH | Certification | CE, RoHS |
|---|---|---|---|
| Product Name | Multi-Core Indoor Breakout Cable Gjbfjvh | ||
| Product Type | Indoor Tight-Buffered Fiber Optic Cable | Condition | New |
| Specification | 8-48C | HS Code | 8544700000 |

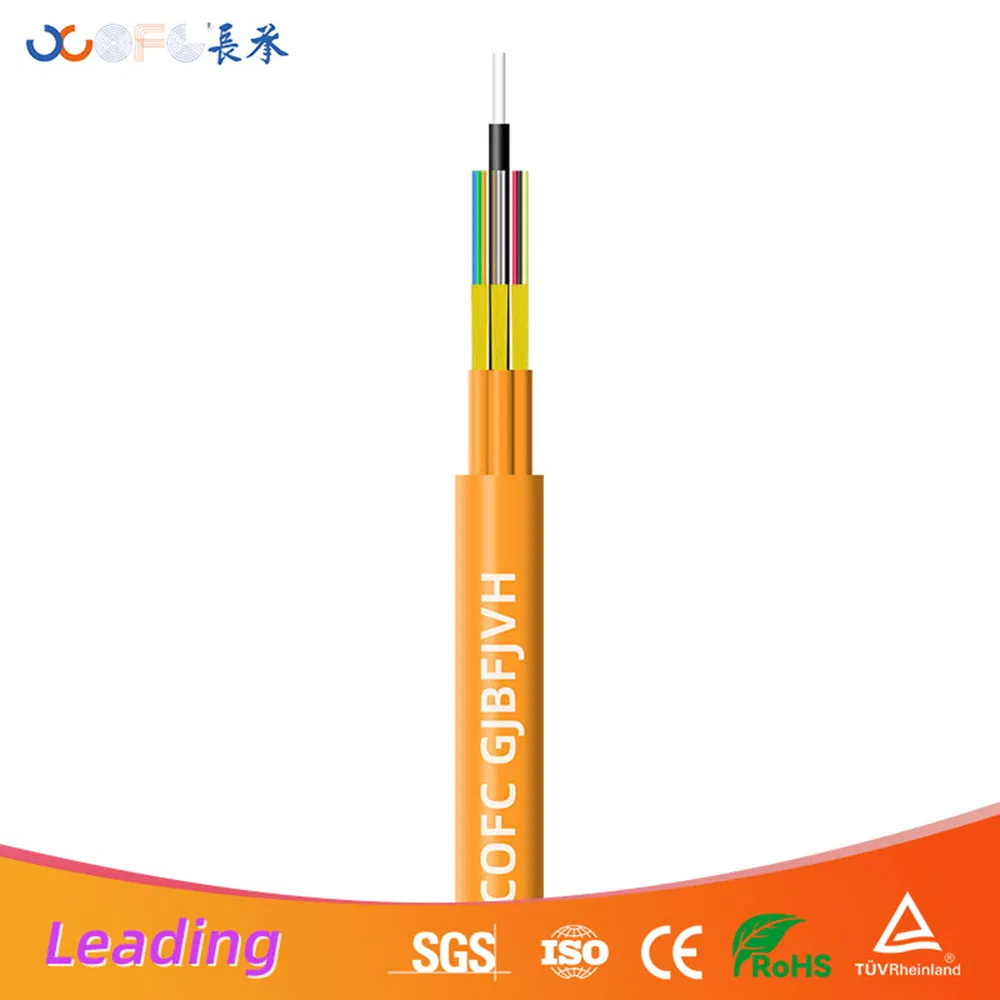

Multi-core Indoor Branch Cable GJBFJVH

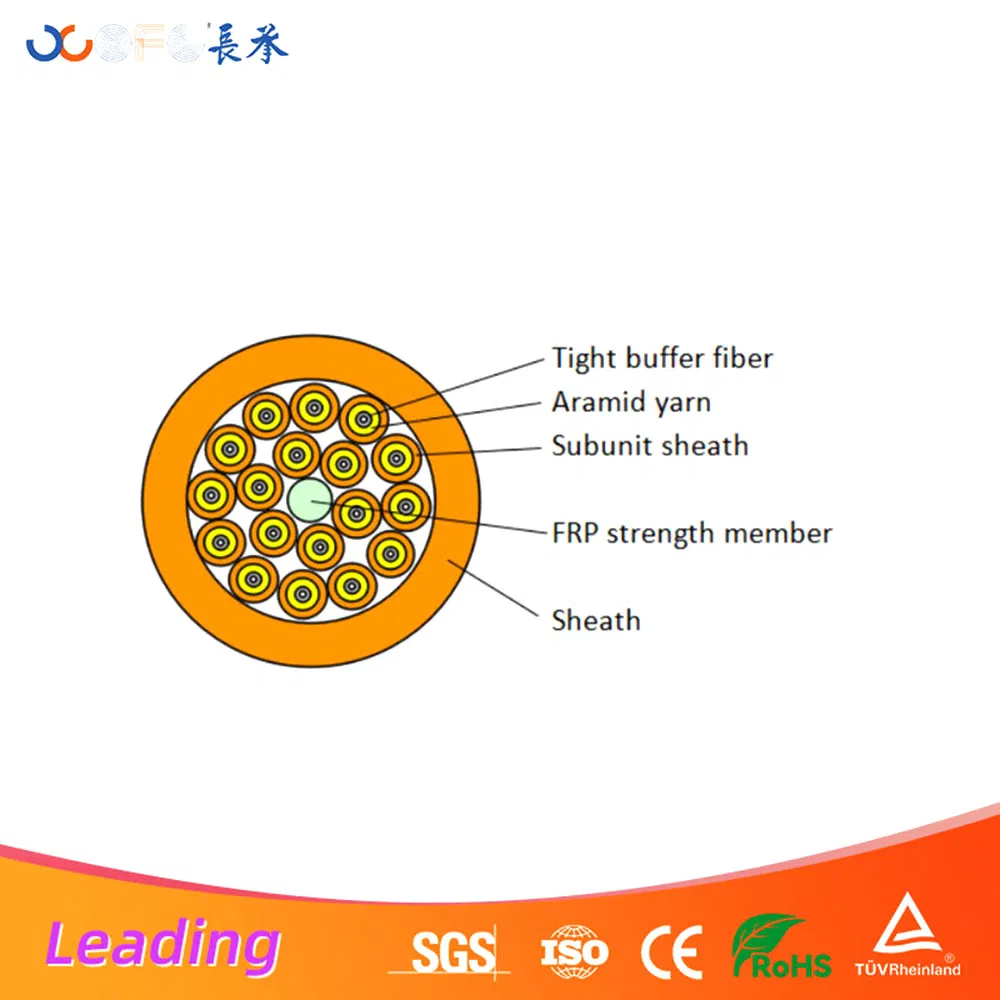

The GJBFJVH multi-purpose breakout tight buffer cable uses a single core (Φ900µm tightly sheathed optical fibre, aramid reinforcement) as a sub-unit, with a non-metallic central reinforcement core. The sub-units of the cable are twisted around the central reinforcement core to form the core, and the outer layer is extruded with a polyvinyl chloride (PVC) or low smoke and halogen free (LSZH) sheath.
| TECHNICAL SPECIFICATIONS | |
|---|---|
| Primary Function | High-Speed Data Transmission For Indoor Network Installations |
| Core Applications | Office Networking, Data Center Connections, Fiber-To-The-Desk, Patch Cord Manufacturing |
| Flame Resistance | Meets International Fire Safety Standards; LSZH Version available |
| Installation Method | Easy Routing Through Conduits, Cable Trays, or Surface Mounting |
| Fiber Number | Outer Dia (mm) | Weight (kg/km) | Tensile Strength (Short/Long N) | Crush Load (Short/Long N/100m) |
|---|---|---|---|---|
| 08F | 9.8±0.5 | 101 | 660 / 200 | 1000 / 300 |
| 12F | 12.4±0.5 | 155 | 660 / 200 | 1000 / 300 |
| 24F | 14.4±0.5 | 201 | 1320 / 400 | 1000 / 300 |
| 48F | 19±0.5 | 344 | 1320 / 400 | 1000 / 300 |

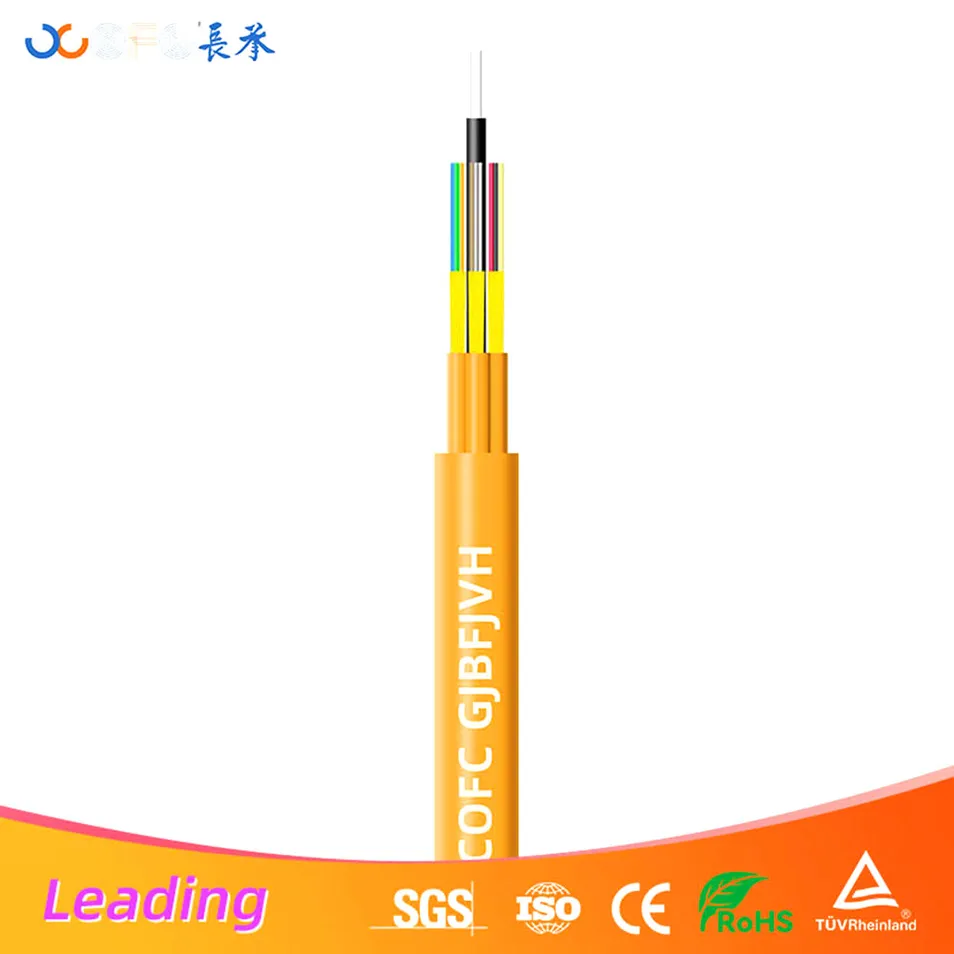

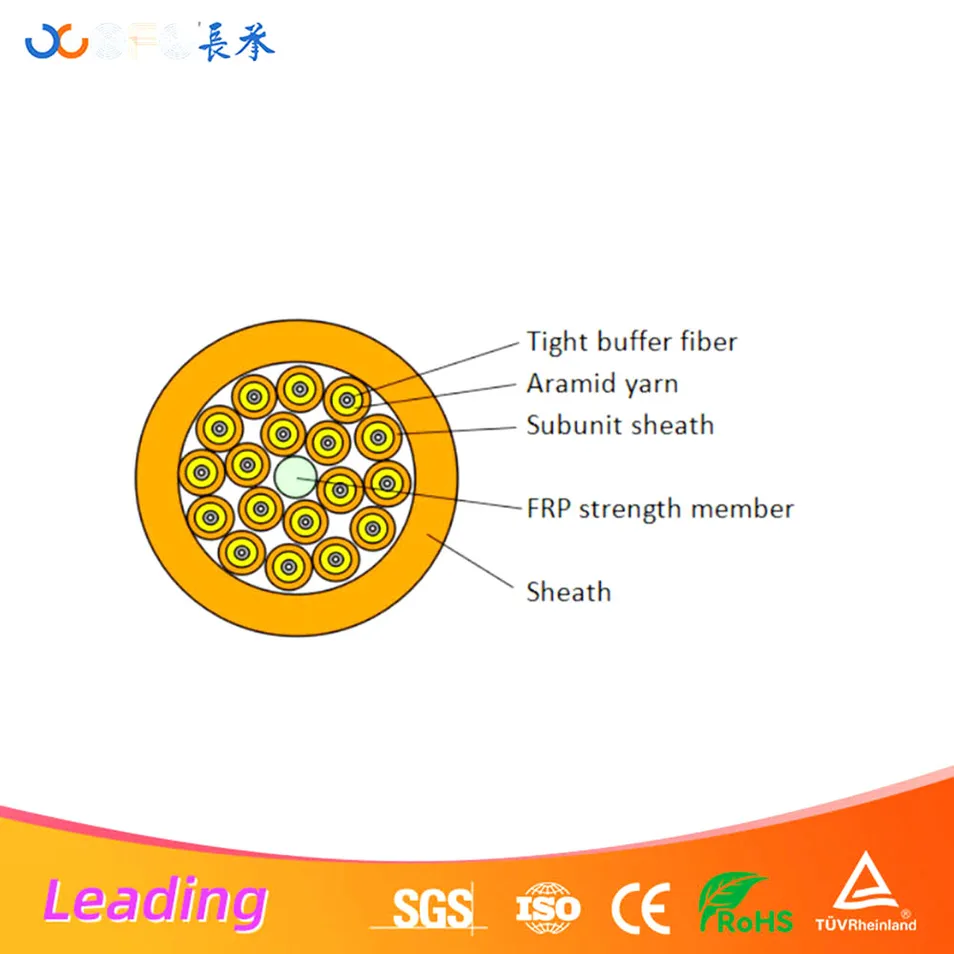

Branch structure design

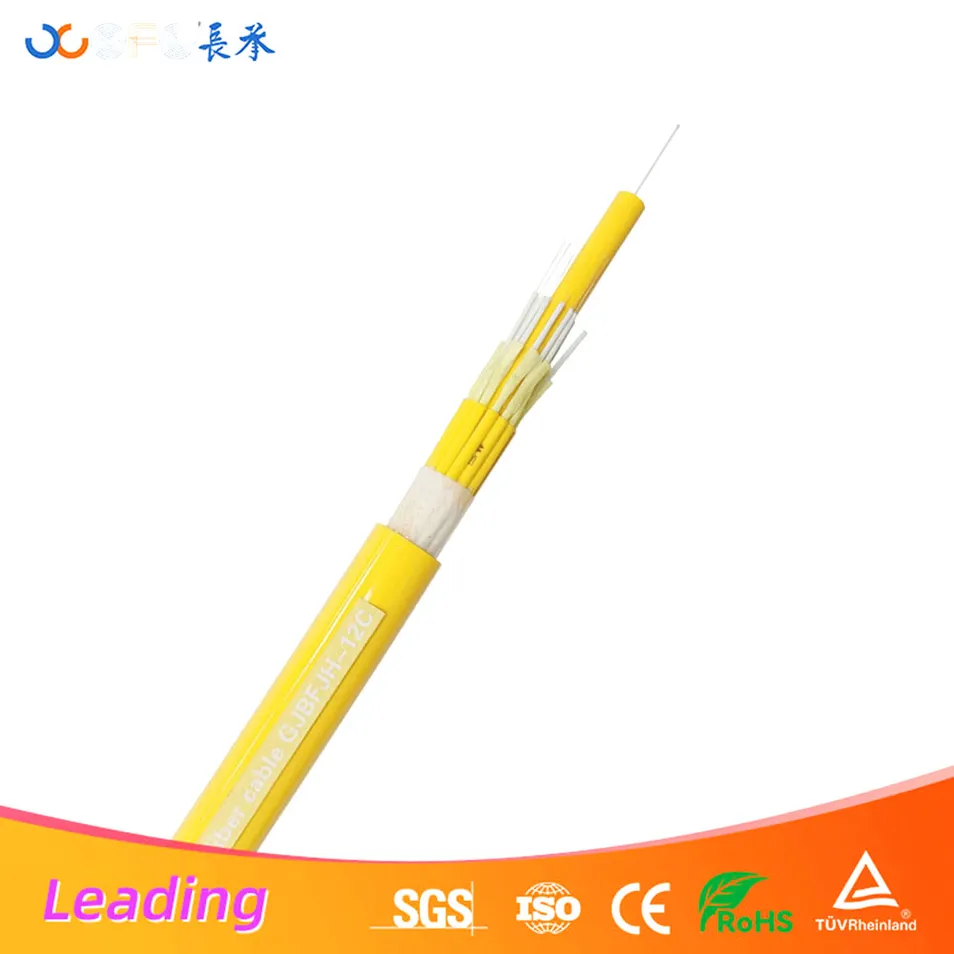

LSZH outer sheath

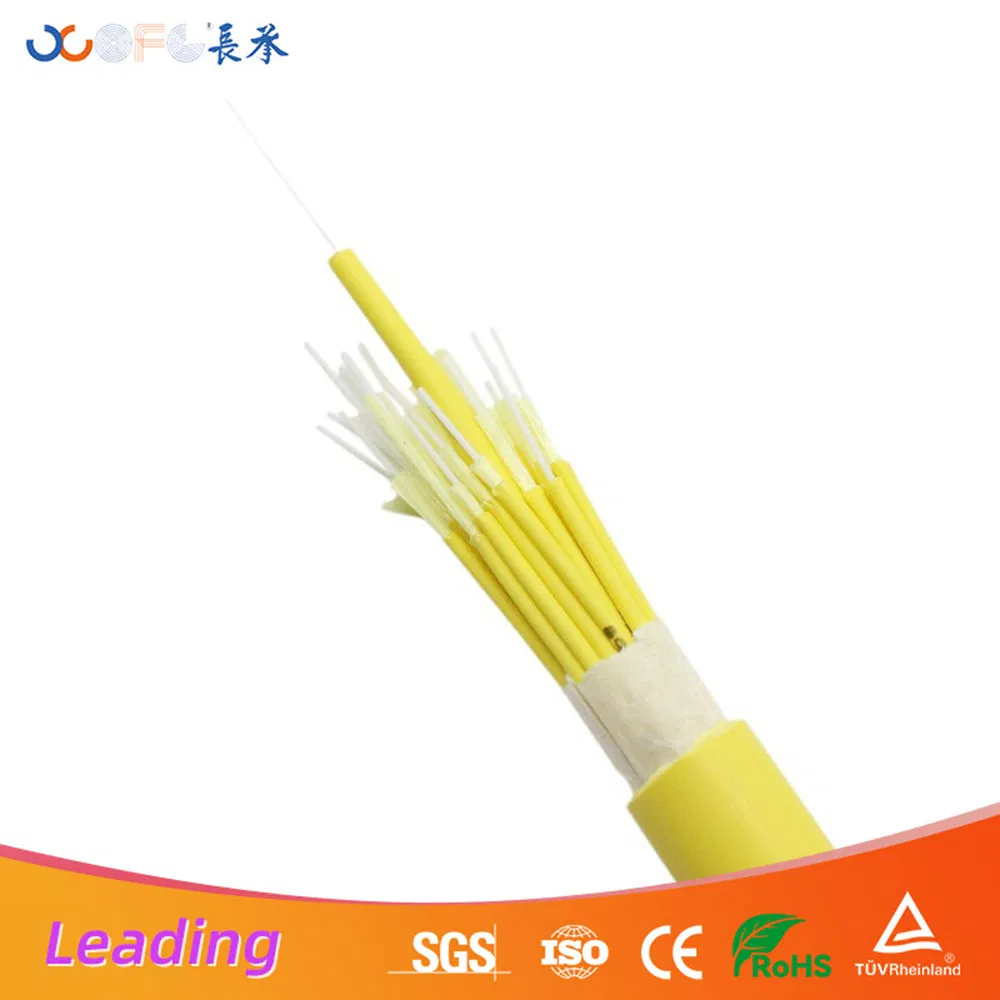

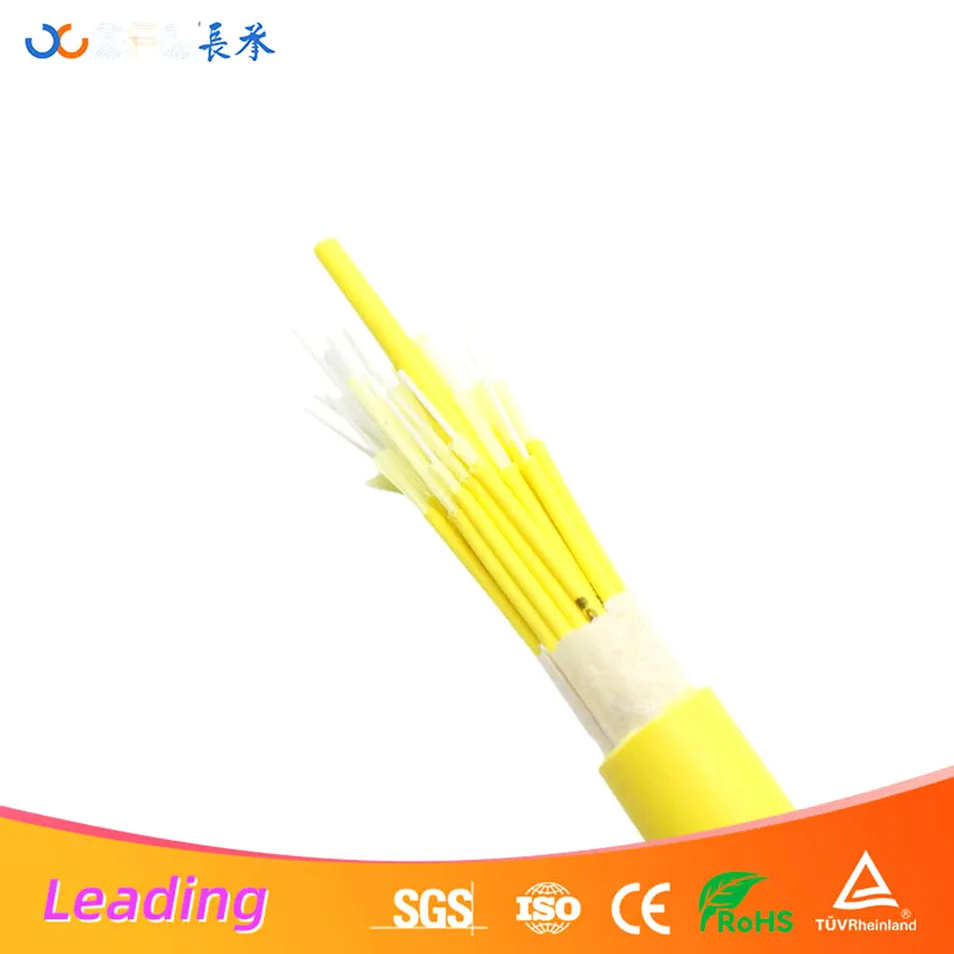

Tight-buffered fiber core
