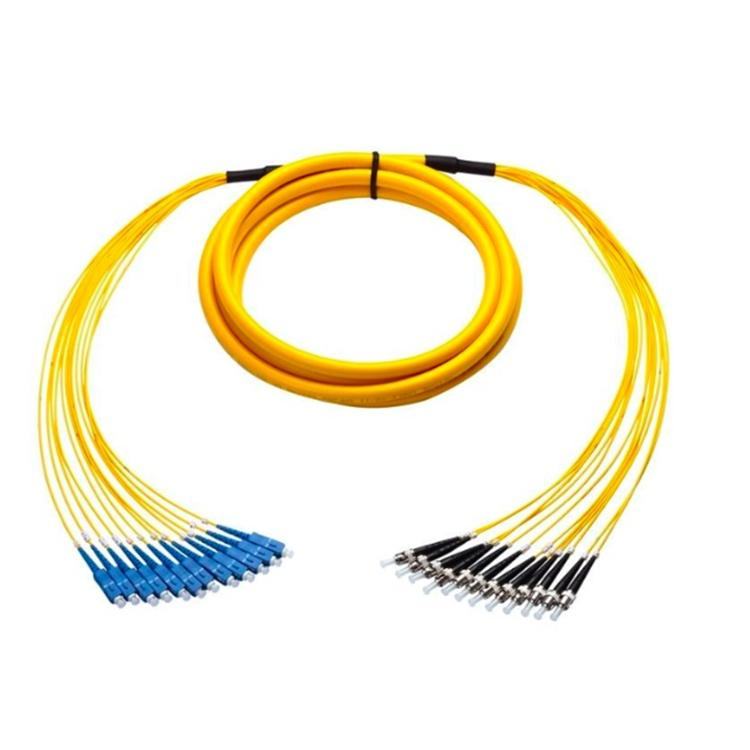

24fibers Multifiber Pre-Terminated Singlemode Breakout Fiber Optic Patch Cable with Pulling Eye
24fibers Multifiber Pre-Terminated Singlemode Breakout Fiber Optic Patch Cable with Pulling Eye
24fibers Multifiber Pre-Terminated Singlemode Breakout Fiber Optic Patch Cable with Pulling Eye
24fibers Multifiber Pre-Terminated Singlemode Breakout Fiber Optic Patch Cable with Pulling Eye
24fibers Multifiber Pre-Terminated Singlemode Breakout Fiber Optic Patch Cable with Pulling Eye
1 / 5
24fibers Multifiber Pre-Terminated Singlemode Breakout Fiber Optic Patch Cable with Pulling Eye
24fibers Multifiber Pre-Terminated Singlemode Breakout Fiber Optic Patch Cable with Pulling Eye
24fibers Multifiber Pre-Terminated Singlemode Breakout Fiber Optic Patch Cable with Pulling Eye
24fibers Multifiber Pre-Terminated Singlemode Breakout Fiber Optic Patch Cable with Pulling Eye
24fibers Multifiber Pre-Terminated Singlemode Breakout Fiber Optic Patch Cable with Pulling Eye

24fibers Multifiber Pre-Terminated Singlemode Breakout Fiber Optic Patch Cable with Pulling Eye

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information
Model
Breakout Cable
Certification
CE, ISO, RoHS
Condition
New
Fiber Count
2, 4, 6, 8, 12, 16, 24, 48, 96, 144
Connector Type
SC, FC, LC, ST
Insertion Loss
<0.3dB
Return Loss
>50dB
Operating Temp
-40 to 85°C
Production Capacity
10000 Pieces/Week
Package Size
15.00cm * 15.00cm * 10.00cm
Product Description

24 Fibers MultiFiber Pre-Terminated Singlemode Breakout Fiber Optic Patch Cable with Pulling Eye

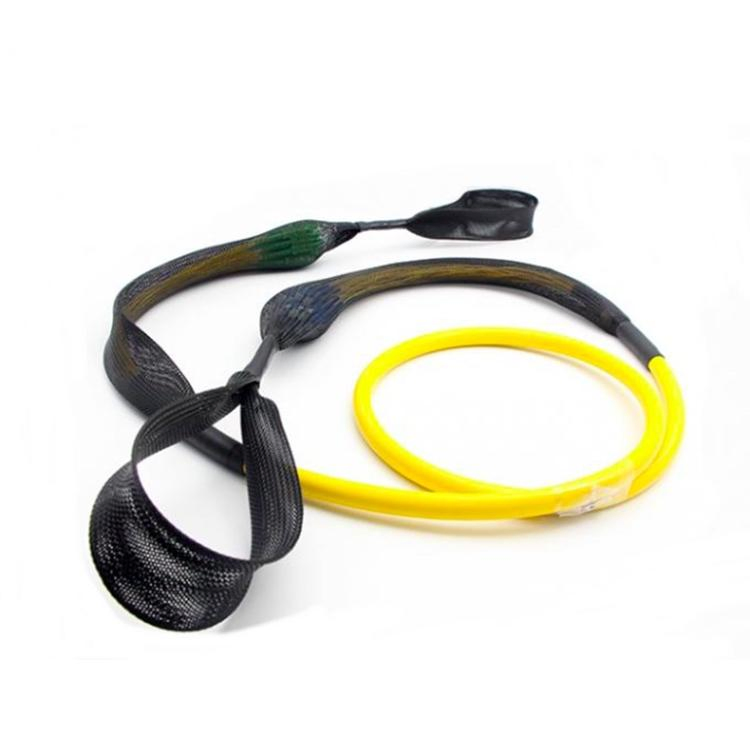

Fibers are terminated with swivel pulling eyes to eliminate cable damage during installation. Cables are terminated both ends with connectors of your choice. Once terminated, we perform rigorous tests to ensure the cable meets industry standards. Test results are supplied with the cable.

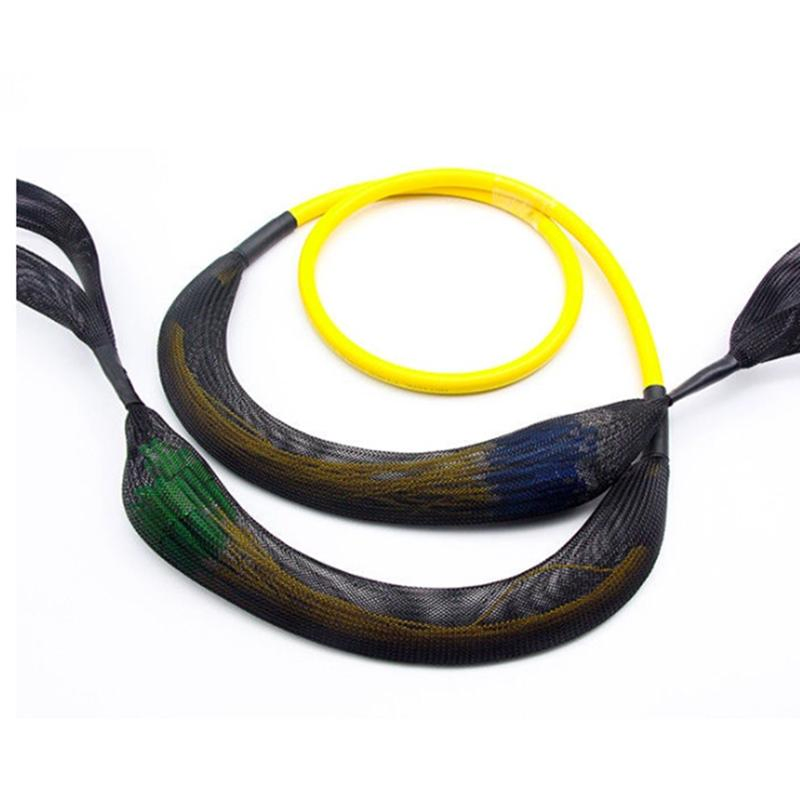

To avoid damage, the fiber is protected with an armored plastic tube, completely covering the terminated fibers. The tube in turn has a pulling eye so even difficult cable runs can withstand a greater pulling strain without damaging the fiber.
Fiber Optic Patch Cable

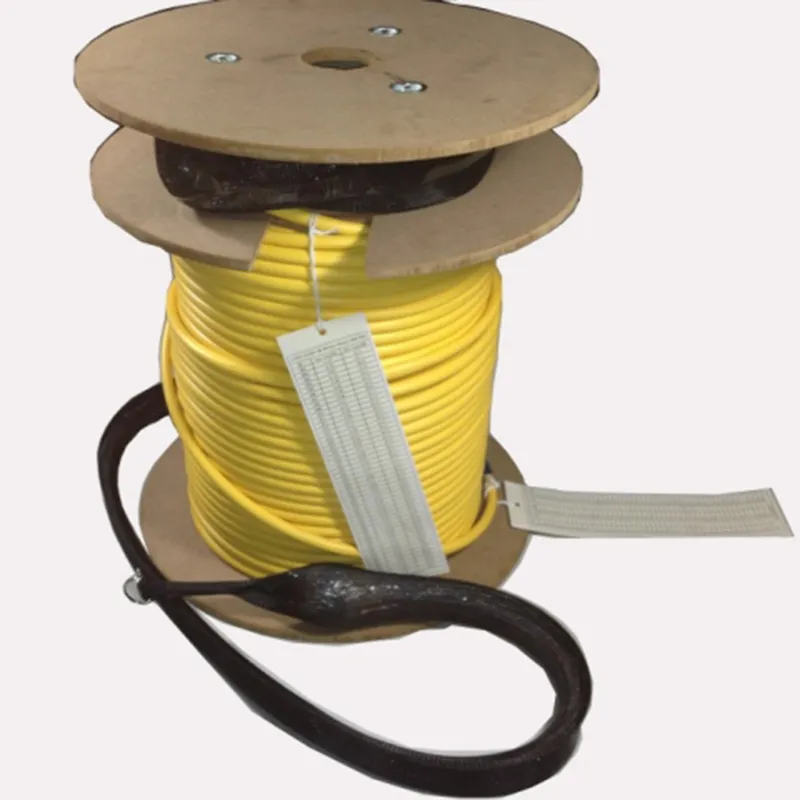

Fiber Optic Patch Cable Detail

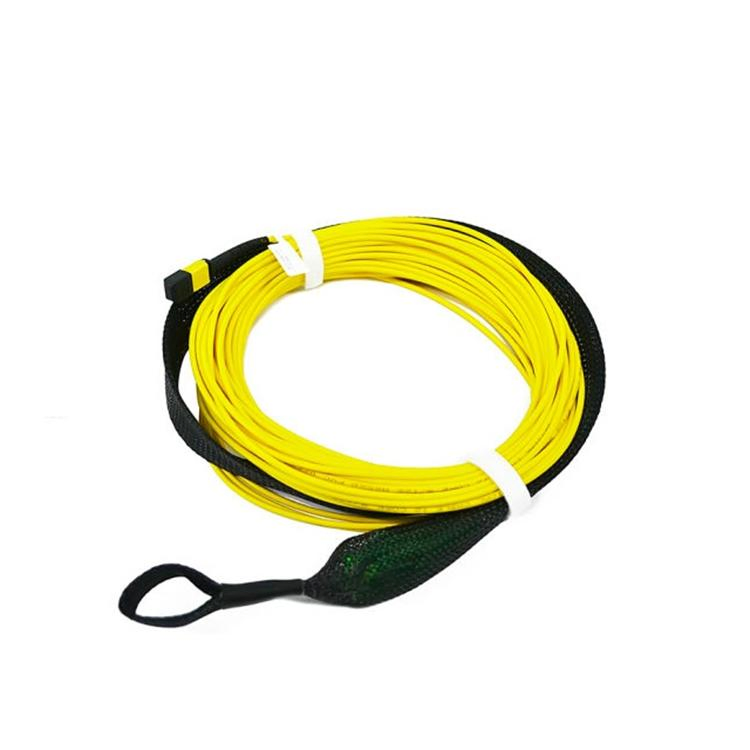

Pulling eye kits protect pre-terminated fiber optic cables during installation in conduits, ducts, or risers, saving significant time and costs during network deployment.

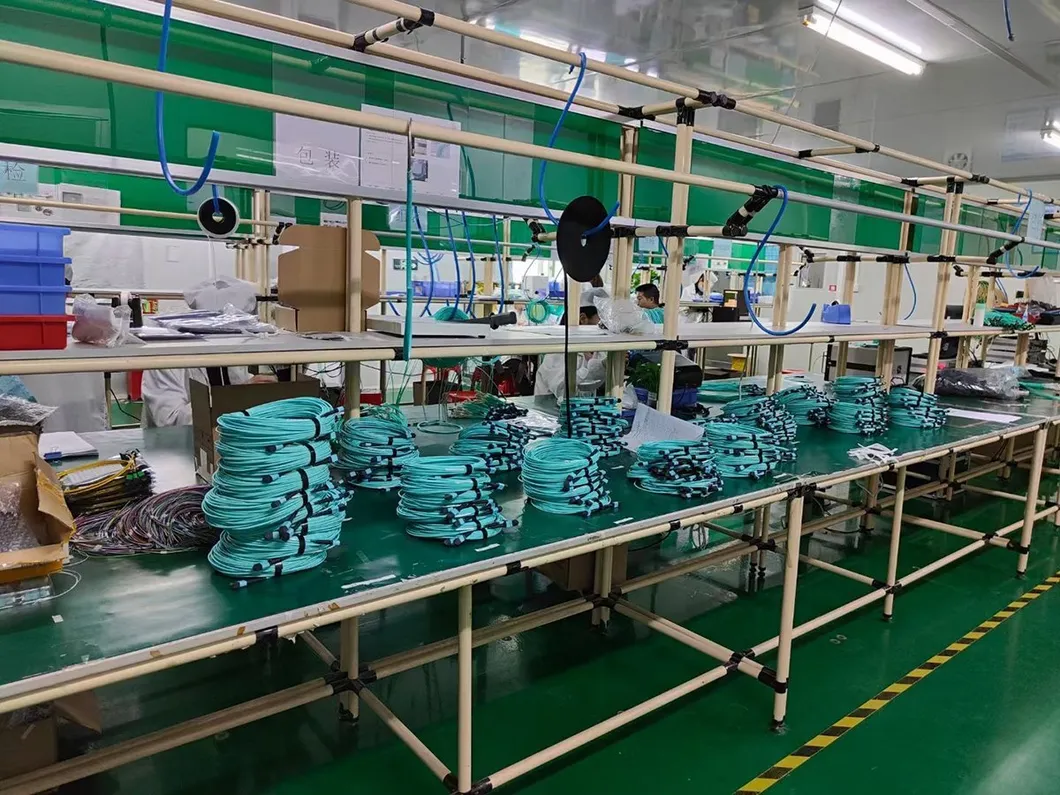

Product Range Overview
Product Parameters
Model Parameter Single Mode Multimode
Polish UPC APC PC
Insertion Loss ≤0.30dB ≤0.20dB ≤0.20dB
Return Loss ≥50dB ≥60dB ≥30dB
Test Wavelength 1310/1550nm 850/1300nm
Durability ≤0.2dB (500 Matings)

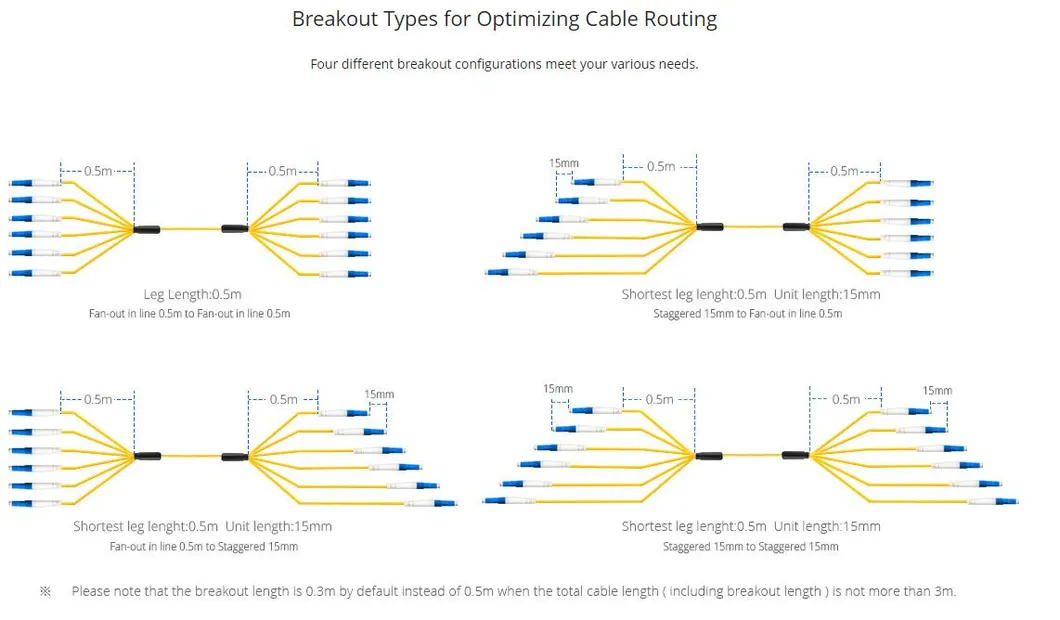

Technical Specs

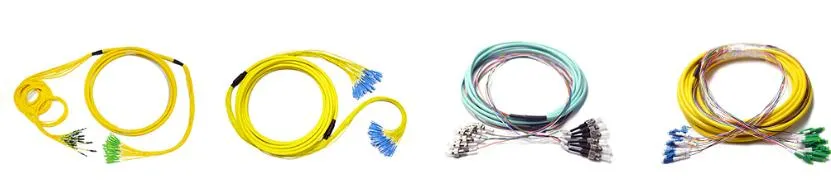

Parameter Chart
Key Features & Applications
Product Features:
  • High-quality Zirconium Ceramic Ferrules for stable polishing.
  • Large production capacity (10K-20K pieces per week).
  • Fast delivery turnaround (3-5 days).
  • 100% testing before shipment with optional 3D report.
  • Full range of connectors: SC, LC, FC, ST, MU, MTRJ, MPO/MTP, etc.
Applications:
  • FTTH, LAN, PON & Optical CATV.
  • Fiber optic communication systems.
  • Optical fiber test equipment and sensors.
  • Industrial networking applications.
  • Local ring networks.

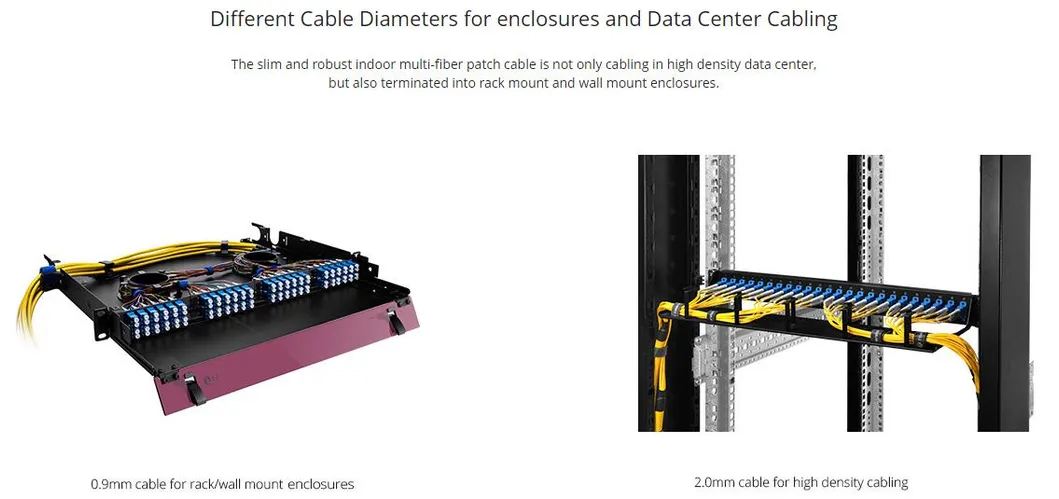

Application Diagram
Certifications & Quality
Certification 1
Certification 2
Packaging & Shipping
Logistics Packaging
Frequently Asked Questions
Q1: What is the warranty for your fiber optic patch cords?
We provide a lifetime warranty for our fiber optic cables, which are UL approved and 100% factory tested.
Q2: Can we customize the logo on the fiber cable jacket?
Yes, logo printing is available. The minimum order quantity (MOQ) for custom printing is 1KM. Neutral printing has no MOQ requirement.
Q3: What types of fiber cores are available?
We offer OS2 (9/125um), OM1 (62.5/125um), OM2 (50/125um), OM3, OM4, and OM5 (50/125um) fibers.
Q4: Are different cable jacket materials available?
Yes, while PVC (Riser) is standard, we also provide LSZH (Low Smoke Zero Halogen) and Plenum jackets upon request.
Q5: Can I order custom lengths for pre-terminated cables?
Absolutely. Any specific length can be manufactured based on your project requirements.
Q6: What is the typical lead time for an order?
Standard orders are typically delivered within 3-5 days, thanks to our robust production capacity.
