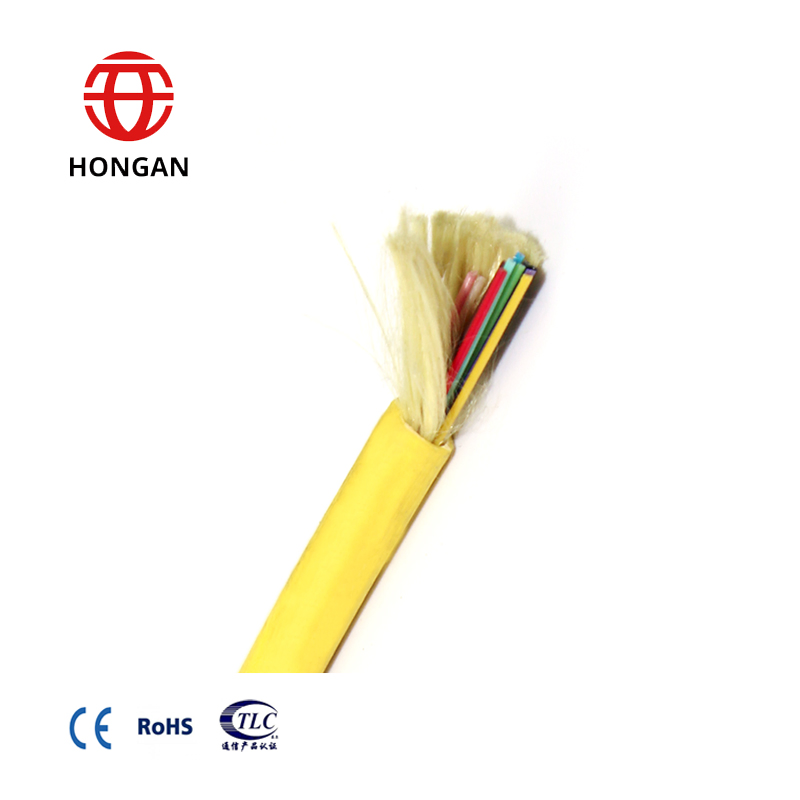

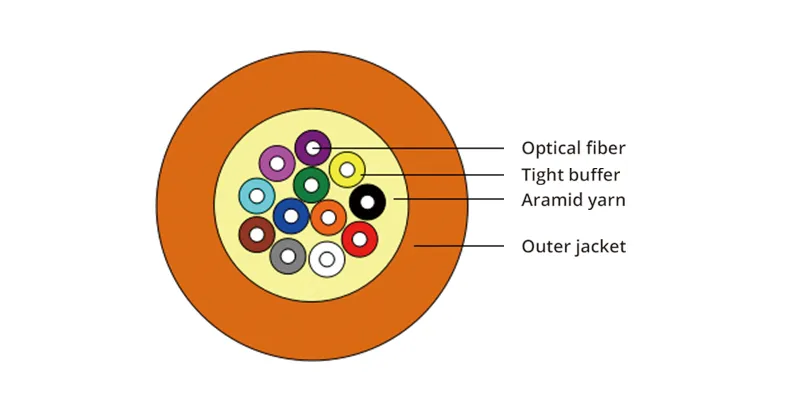

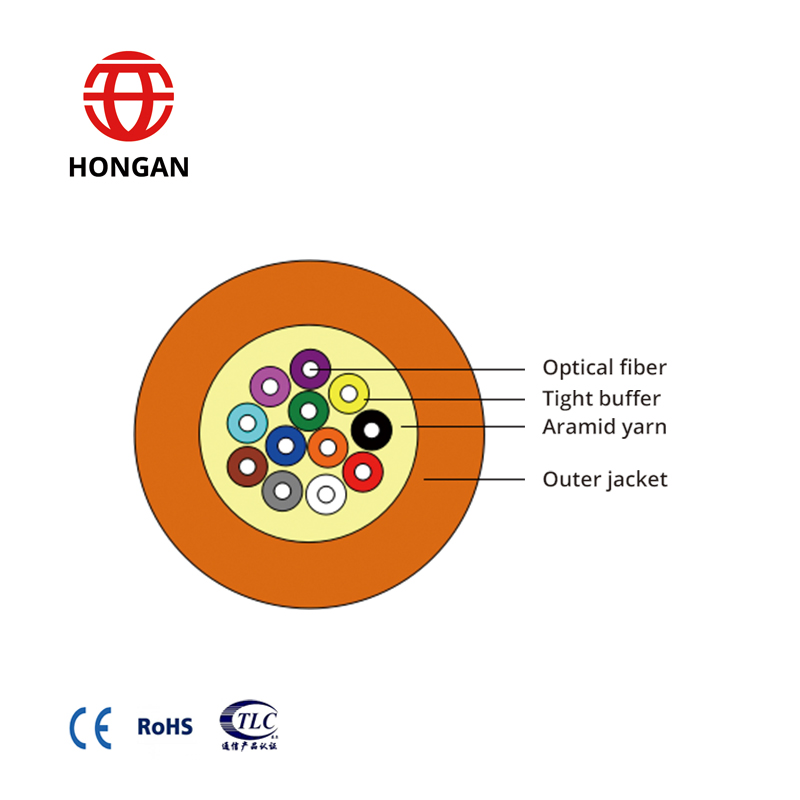

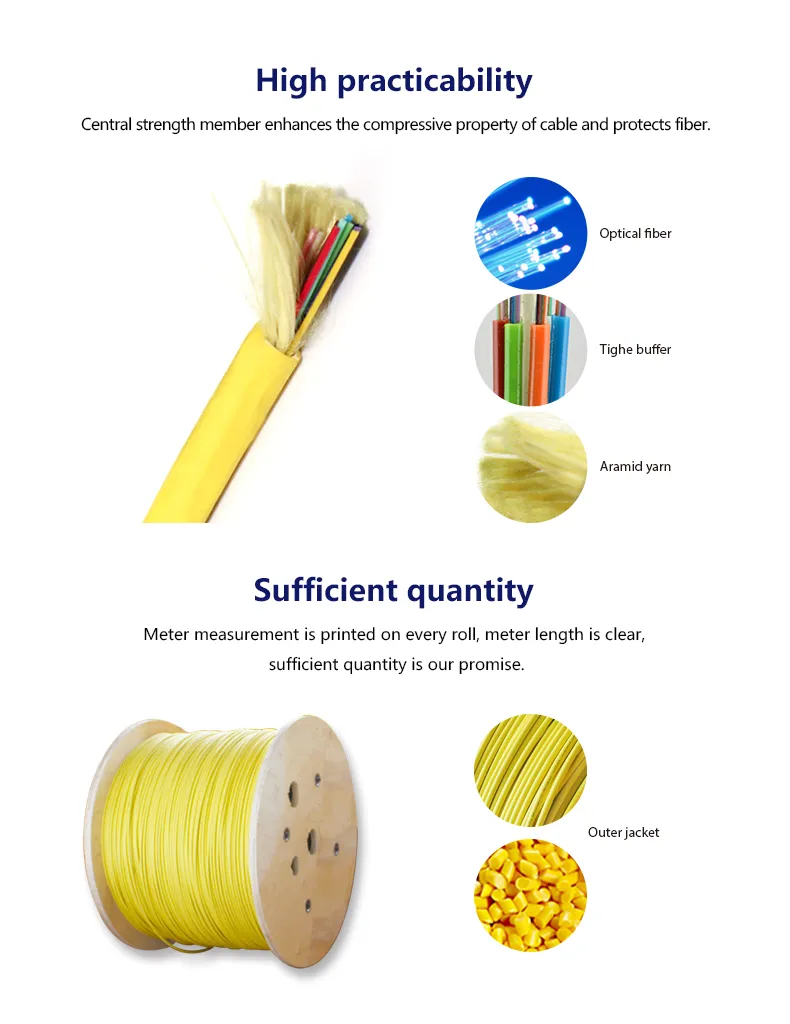

This high-performance GJPFJH cable features a specialized tight buffer design, reinforced with aramid yarn strength members and protected by a flame-retardant LSZH outer jacket.
| Item | Parameters | ||||
|---|---|---|---|---|---|
| Tight buffer fiber | Diameter | 0.9±0.05mm | |||
| Material | LSZH | ||||
| Number of cores | 4 | 6 | 8 | 12 | |
| Tight buffer color | Full color spectrum available | ||||
| Fiber color | Natural color | ||||
| Strength member | Material | Aramid yarn | |||
| Outer jacket | Diameter (mm) | 4.7±0.3 | 5.2±0.3 | 5.8±0.3 | 6.3±0.3 |
| Thickness (mm) | 0.8±0.1 | 0.9±0.1 | 0.9±0.1 | 0.9±0.1 | |
| Material | LSZH | ||||
| Jacket Color | SM (G.652/G.657) | Yellow | |||
| MM (OM1/2/3/4) | Orange | ||||
| Item | Standard | Parameters |
|---|---|---|
| Operation temperature | IEC 60794-1-2 F1 | -40ºC ~ +60ºC |
| Installation temperature | - | -5ºC ~ +50ºC |
| Min. bending radius (Static) | - | 10 times cable diameter |
| Min. bending radius (Dynamic) | - | 20 times cable diameter |
| Short term Tensile | - | 400N |
| Short term Crush | - | 1000N/100mm |

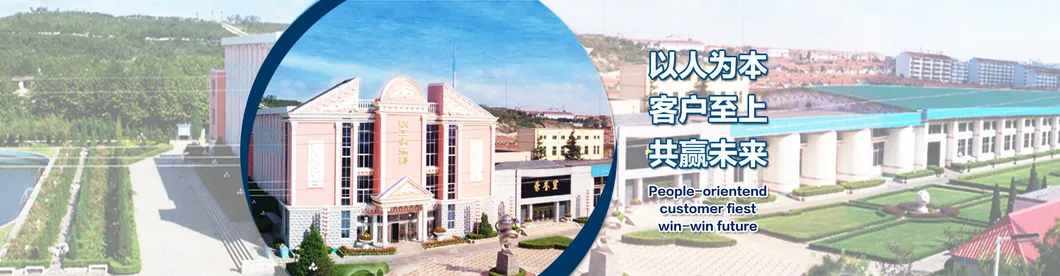

With over 30 years of experience, we specialize in producing high-quality optical fiber cables, network data cables, and multi-pair telephone cables. Our solutions cater to EPON, GPON, and Data Center infrastructures worldwide.
