Indoor /Outdoor Single-Mode Mirco ADSS (breakout) Fiber Optical Cable

1 / 5

Indoor /Outdoor Single-Mode Mirco ADSS (breakout) Fiber Optical Cable

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📊 Basic Specifications

Model NO.

GJFJV

Material Shape

Round Wire

Lateral Pressure

>1000(N/100mm)

Tensile Strength

1000N < 10000N

Core Count

1-24 Cores

Certification

RoHS, CE, ISO9001, VDE, CCC

Sheath Material

LSZH, TPU

Structure

Micro ADSS Tight Buffer

Applications

Indoor/Outdoor Access Building

Fiber Options

G657A1, G657A2

Strength Member

Kevlar Aramid Yarn

Warranty

5 Years

🛡️ Product Description

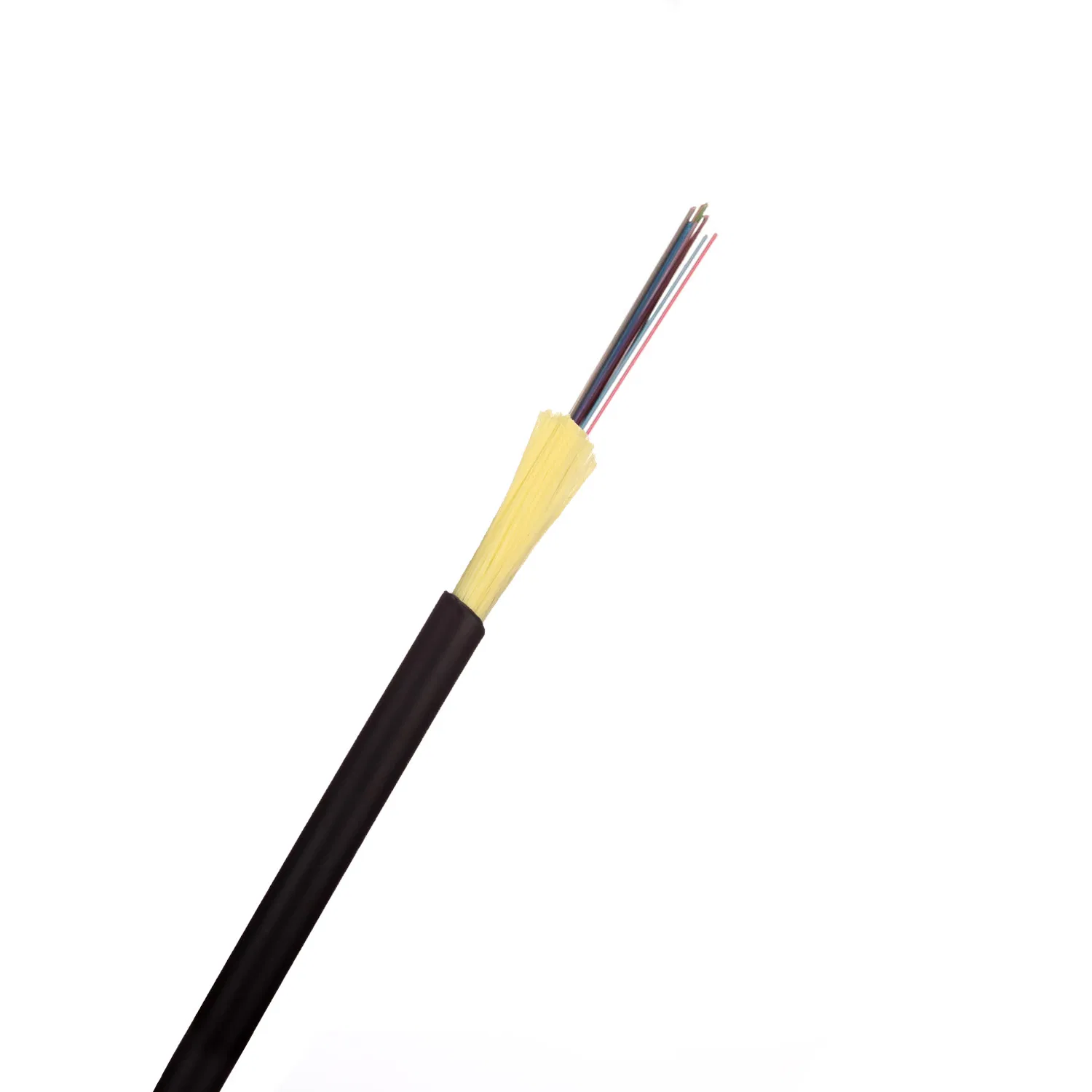

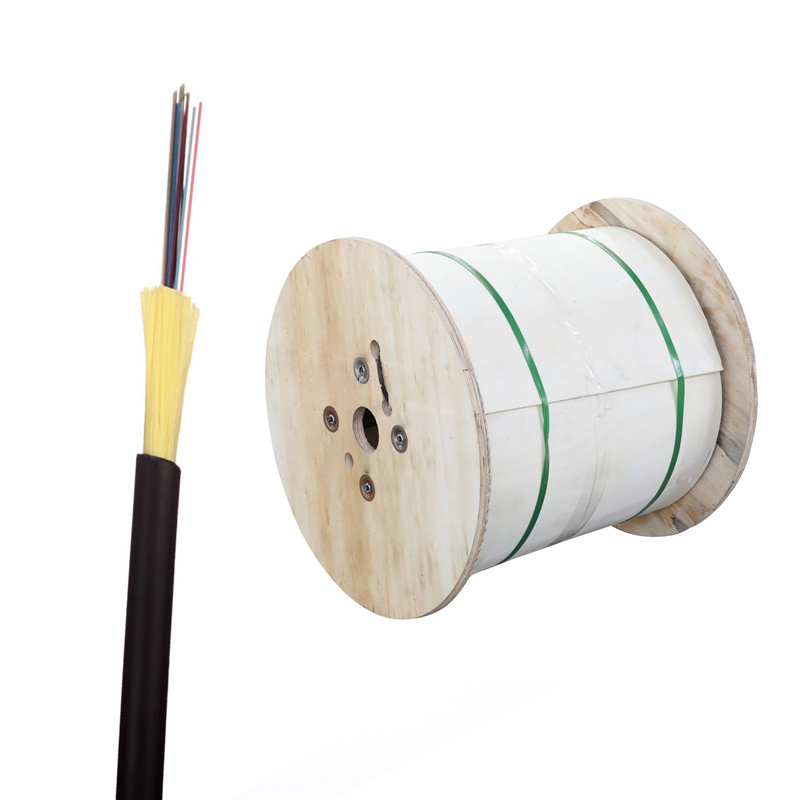

Indoor/Outdoor Single-Mode Micro ADSS (Breakout) Fiber Optical Cable

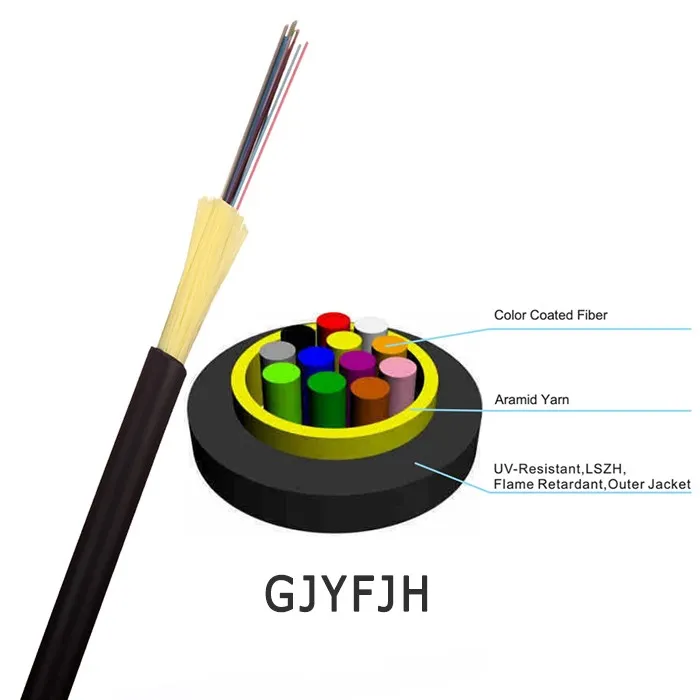

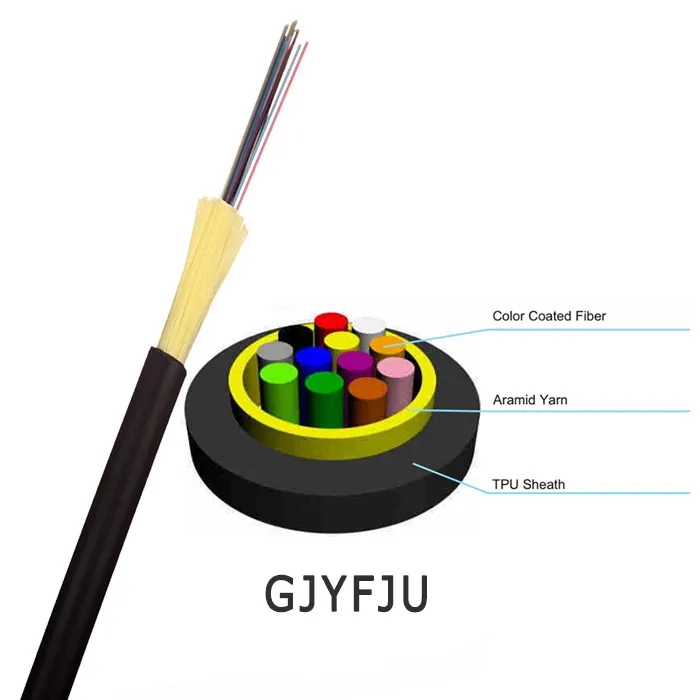

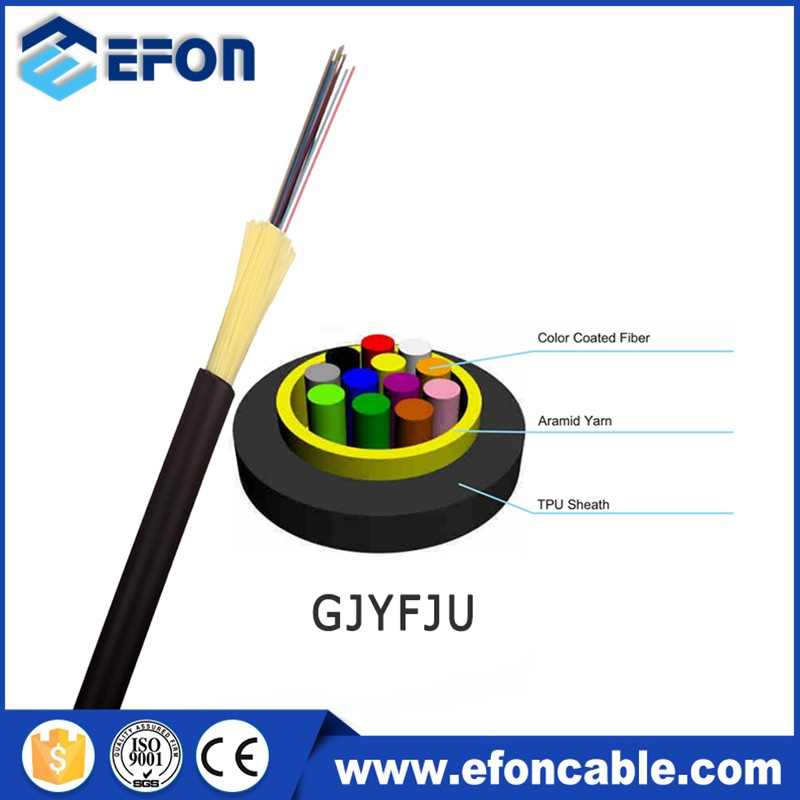

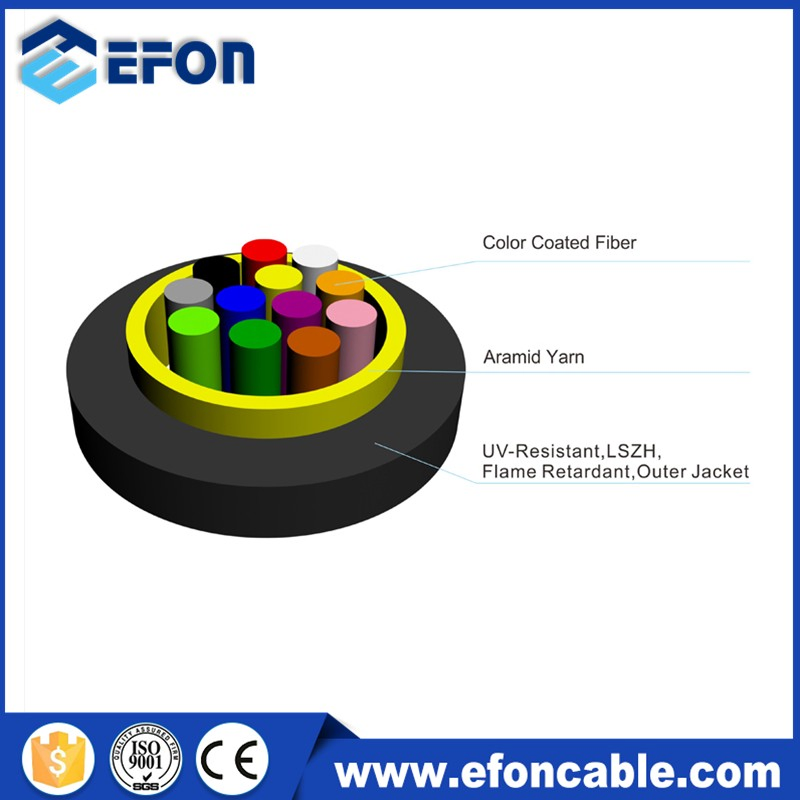

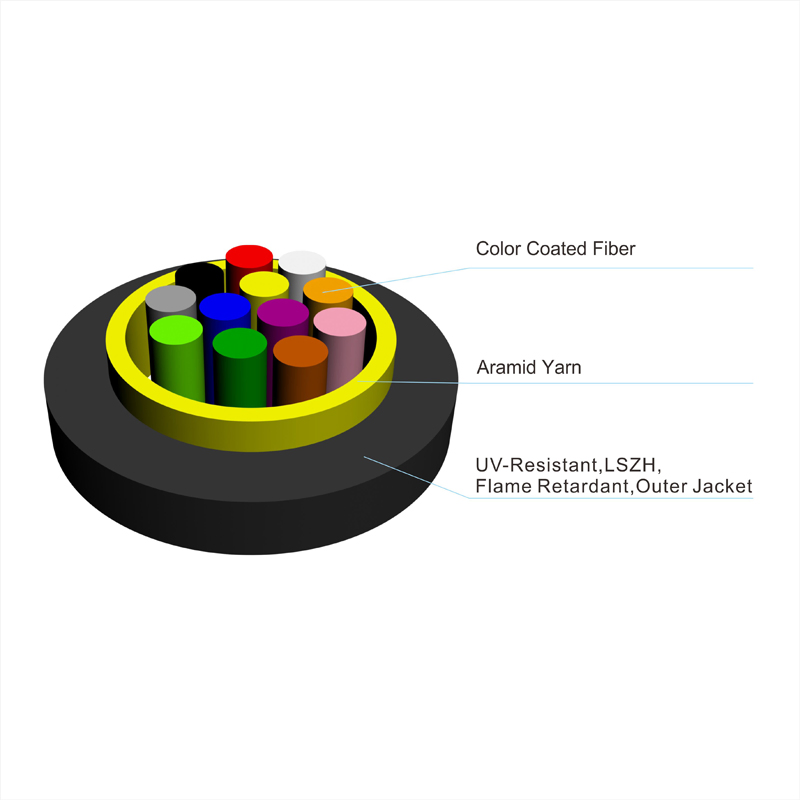

Micro ADSS Optical Drop cable consists of individually color-coated 250um fibers, reinforced with aramid yarns as a strength member and covered with a UV and Flame resistant LSZH jacket or a thermoplastic urethane (TPU) outer sheath that offers excellent abrasion resistance and extreme cold temperature workability.

🌟 Key Features

Good mechanical and environmental characteristics.
Excellent abrasion resistance and cold temperature workability.
Soft, flexible, easy to lay and splice.
High capacity transmission capability.

🚀 Main Applications

Access network or access cable from outdoor to indoor.
Customer premises network wiring.
Access building cable in premises distribution systems.
FTTX Drop cable installations.

📈 Optical Characteristics

Fiber Type	Attenuation (dB/km)	Min Bending Radius (mm)
G652D	0.36/0.22 (1310/1550nm)	16
G657A1	0.36/0.22 (1310/1550nm)	10
G657A2	0.36/0.22 (1310/1550nm)	7.5
OM3/OM4	3.0/1.0 (850/1300nm)	30/7.5

⚙️ Structure & Technical Specifications

Cable Count	Diameter (mm)	Weight (kg/km)	Tensile Short/Long (N)	Crush Short/Long (N/100mm)
1-2 Core	3.0	12	1000 / 400	2200 / 1000
4-12 Core	3.5	15	1000 / 400	2200 / 1000
12-24 Core	4.2	20	1000 / 400	2200 / 1000

📸 Product Gallery

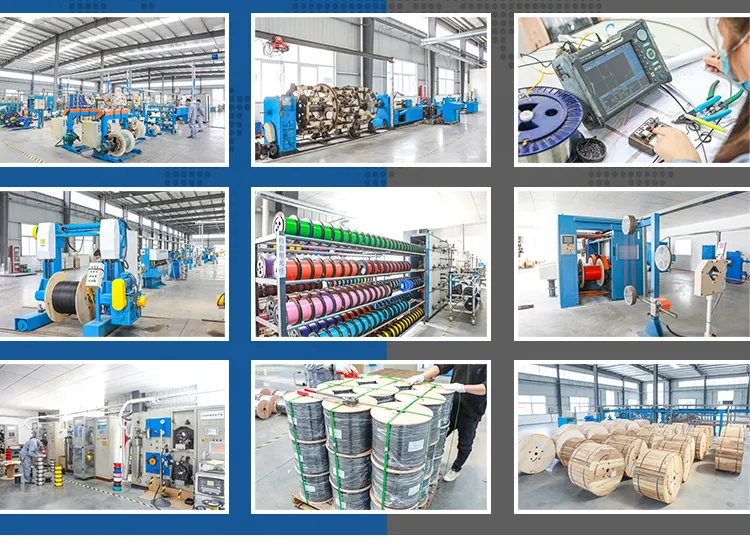

🏭 Production & Quality Control

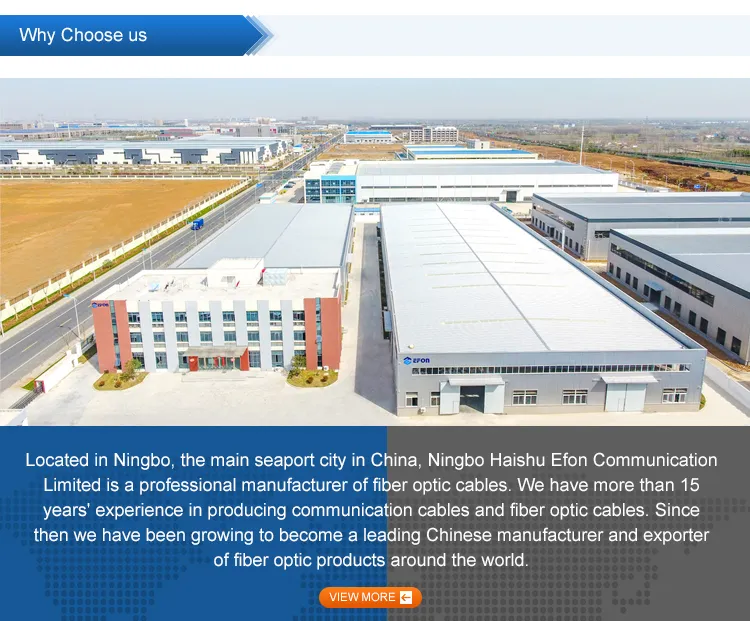

With over 15 years of experience in producing communication cables, we have grown into a leading manufacturer and exporter of fiber optic products globally. Our strict quality control system ensures that each product meets international requirements. All products undergo rigorous inspection before shipment and hold RoHS, ISO9001, and TLC certifications.

❓ Frequently Asked Questions

What is the difference between LSZH and TPU jackets?

LSZH (Low Smoke Zero Halogen) is flame-retardant and ideal for indoor safety. TPU (Thermoplastic Urethane) provides superior abrasion resistance and flexibility in extreme cold temperatures, making it excellent for harsh outdoor environments.

Can this cable be used for both indoor and outdoor applications?

Yes, the Micro ADSS cable is designed specifically for transition environments, serving as an access cable from outdoor to indoor customer premises.

What fiber types are available for this cable?

We offer multiple options including Single-mode (G652D, G657A1, G657A2) and Multi-mode (50/125, 62.5/125, OM3, OM4) to suit various bandwidth needs.

What is the standard warranty period?

We provide a 5-year warranty on our fiber optic cables. If there are no man-made issues, we offer free repair or replacement.

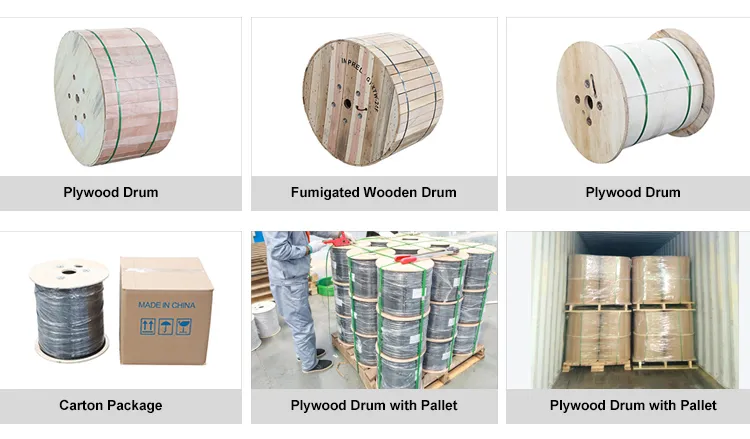

What is the lead time for large orders?

Typically, products are dispatched within 10 days. For large container orders, shipping schedules are coordinated to ensure timely delivery via sea or air.
